Stinger HR9-FD001 | Radio Replacement Kit to Suit Pioneer DMH-AP6650BT 9" Head Unit for Ford Ranger 2012-2015 Vehicles

PX1 Ranger Audio Upgrade 9" Pioneer Fitment With AUX, Nav Outputs and Hazard Button Included

Product Overview

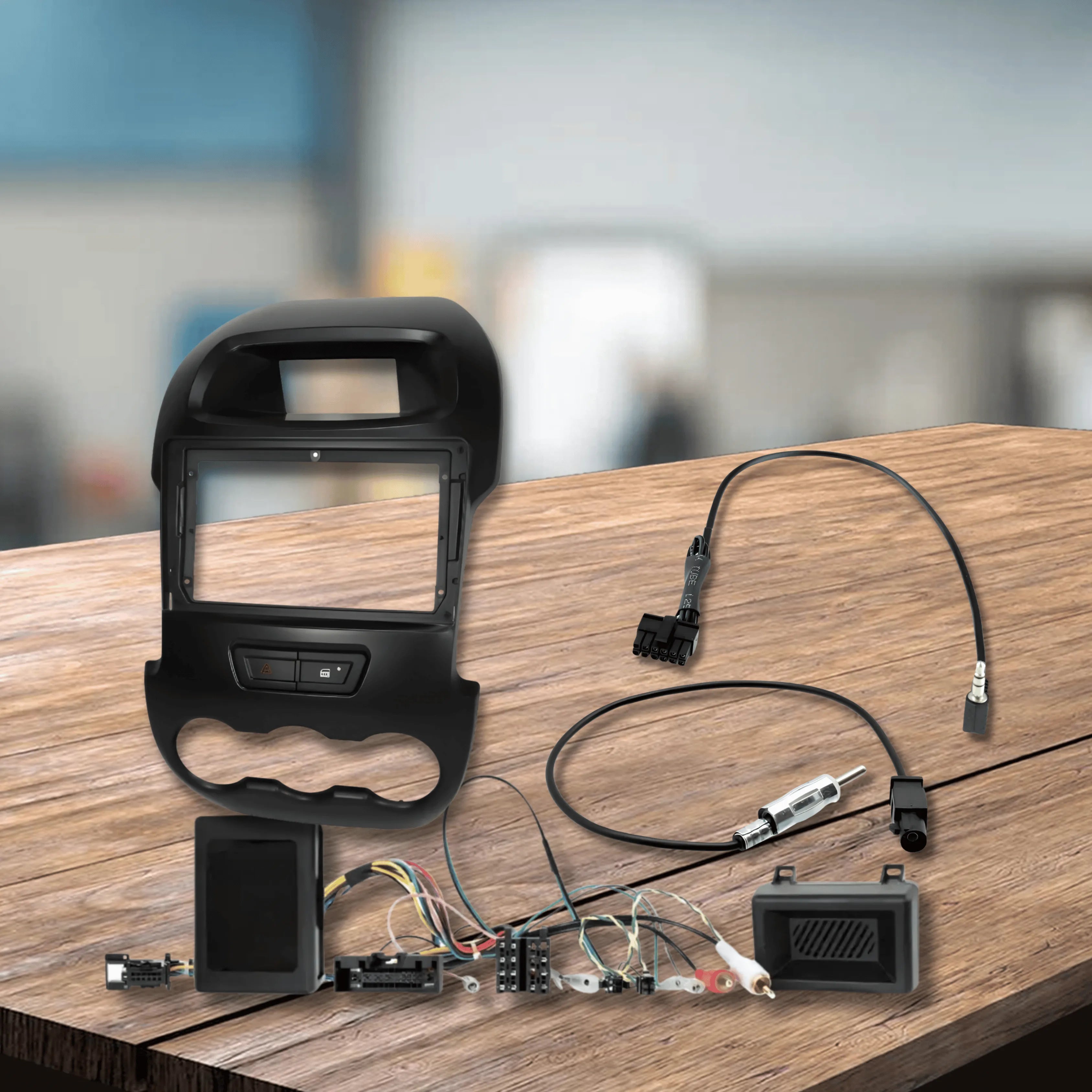

The Stinger HR9-FD001 is a purpose-built radio replacement kit designed for installing the Pioneer DMH-AP6650BT 9" head unit into 2012–2015 Ford Ranger PX1 models. This complete bundle provides a flush-fit 9" fascia, plug-and-play wiring harness, steering wheel control interface, antenna adaptor, and a replacement hazard and door lock button a thoughtful inclusion given the PX1 Ranger's dash layout, where the factory hazard switch sits within the head unit surround.

The HR9-FD001's SWC interface delivers a full suite of navigation outputs reverse, park, ignition, illumination, and VSS and retains the factory AUX input where equipped. The interface holds its programming through power loss. Please note: this kit is for non-navigation models only, and does not retain steering wheel phone buttons. Reverse camera retention and USB retention are not included. The Pioneer DMH-AP6650BT head unit is not included.

Key Specifications

• Manufacturer Part Number: HR9-FD001
• Compatible head unit: Pioneer DMH-AP6650BT (9" display)
• Vehicle compatibility: Ford Ranger PX1 2012–2015 — non-navigation models only
• Factory connector type: Not specified — confirm before purchase
• Output connector type: Standard ISO connector
• Steering wheel audio control retention: Yes (select aftermarket radios; audio buttons only)
• Steering wheel phone button retention: No — phone buttons not retained
• SWC memory retention: Yes — retained on power loss
• Navigation outputs: Yes — reverse, park, ignition, illumination, VSS
• AUX retention: Yes — if factory AUX equipped
• USB retention: Not included
• Reverse camera retention: Not included
• Antenna adaptor: Included
• Hazard & door lock replacement button: Included
• Colour: Black
• Plug & Play: Yes

Features & Benefits

• 9" Flush Fit Radio Panel — Purpose-moulded for the PX1 Ranger's dash, delivering a factory-finish result around the larger 9" Pioneer screen with no gaps and no generic trims on show.
• Hazard & Door Lock Replacement Button — The PX1 Ranger's hazard switch is integrated into the factory head unit surround. This kit includes a replacement button to relocate that function cleanly within the new fascia — a detail most generic install kits miss entirely.
• Steering Wheel Audio Control Retention — Retains factory steering wheel audio buttons via the included interface with compatible aftermarket radios. Memory is held even when battery power is lost. Note: phone buttons are not retained.
• Full Navigation Outputs — The SWC interface provides reverse, park, ignition, illumination, and VSS signal outputs — enabling full navigation and safety feature integration with the Pioneer head unit without additional wiring.
• Factory AUX Retention — Where the PX1 Ranger is fitted with a factory AUX input, the interface retains that connection, keeping the factory AUX port functional with the new head unit.
• Plug & Play Harness — Connects directly to the PX1 Ranger's factory connector and converts to standard ISO — no splicing, no soldering, fully reversible.
• Antenna Adaptor Included — Factory antenna connection is retained via the included adaptor, maintaining FM/AM reception with no additional parts needed.

Technical Specs

Compatible With / Goes Well With

• Ford Ranger PX1 2012, 2013, 2014, 2015 — non-navigation models only
• Pioneer DMH-AP6650BT 9" Digital Media Receiver (head unit not included)
• Factory Ford Ranger PX1 steering wheel audio controls (retained via included interface; audio buttons only)
• Factory Ford Ranger PX1 AUX input — if equipped

Caution: This kit is for non-navigation PX1 Ranger models only it is not compatible with factory navigation-equipped variants. Steering wheel phone buttons are not retained, even if your vehicle is equipped with them. Reverse camera retention and USB retention are not included additional products will be required if these functions are needed. Always verify compatibility with your specific Ranger variant before installation.

Frequently Asked Questions

Does the HR9-FD001 include the Pioneer DMH-AP6650BT head unit?

No — the Pioneer DMH-AP6650BT is sold separately. The HR9-FD001 is an installation kit providing the fascia, wiring harness, SWC interface, antenna adaptor, and hazard/door lock replacement button needed to fit that head unit into compatible PX1 Ranger models.

Why does this kit include a hazard and door lock button?

In the PX1 Ford Ranger, the hazard switch is built into the factory head unit surround. Replacing the head unit removes this switch, so the HR9-FD001 includes a dedicated replacement button to restore that function cleanly within the new fascia.

Is this kit compatible with factory navigation models?

No — the HR9-FD001 is for non-navigation PX1 Ranger models only. If your Ranger is fitted with the factory navigation system, this kit is not suitable.

Will this kit retain all my steering wheel control buttons?

Audio buttons only — volume and track controls are retained via the included SWC interface. Steering wheel phone buttons are not retained by this kit, even if your vehicle is equipped with them.

Does this kit include reverse camera or USB retention?

No — neither reverse camera retention nor USB retention is included with the HR9-FD001. Factory AUX is retained where equipped. If reverse camera integration or USB connectivity is required, additional products will be needed.
