Product features

Stinger CAM-LR5 AHD 720P and CVBS 600TVL Reverse Camera Kit for Land Rover Defender 2007 to 2016

The Stinger CAM-LR5 is a purpose-built reverse camera kit for Land Rover Defender (2007 to 2016), designed to mount over the rear washer for a high central position. It supports both AHD (720P, 150° horizontal) and CVBS (600 TV lines, 145° horizontal) signal formats, making it compatible with a wide range of aftermarket and OEM-style head units. The camera features a 1/3" image sensor, IP69K waterproof rating, 0.1 lux minimum illumination, removable parking lines and a switchable mirror/normal image. Operating range is -20°C to +70°C. Power supply is 12V to 24V.

Product overview

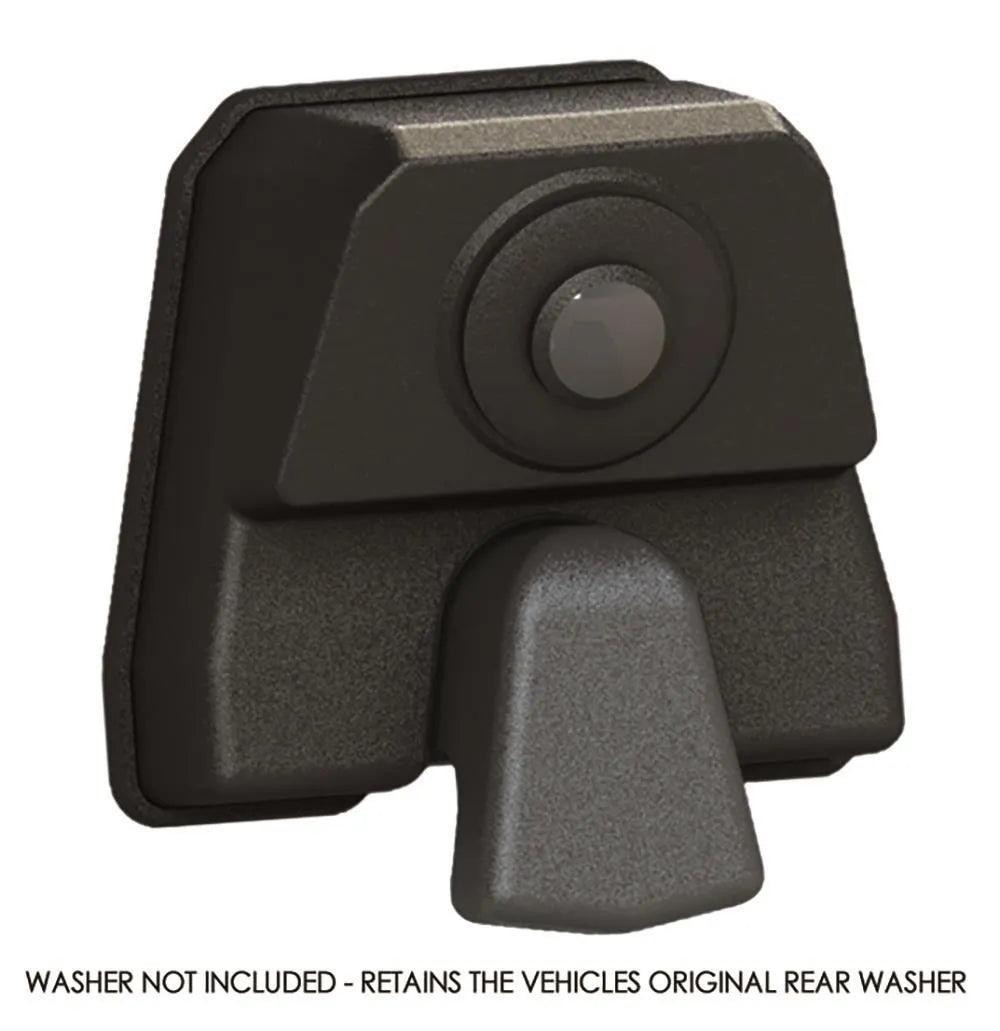

Most reverse camera installations require drilling or cutting into the tailgate or number plate surround. The CAM-LR5 takes a different approach, mounting over the existing rear washer outlet to achieve a high, centrally positioned camera without visible modifications to the bodywork. This placement provides a natural, well-centred viewing angle that suits the Defender's boxy proportions and makes reversing and parking easier to judge.

The CAM-LR5 supports both AHD and CVBS output formats from a single camera. AHD (720P at 1080x720 effective pixels) delivers higher-resolution image quality to compatible AHD head units. CVBS output (600 TV lines) provides compatibility with standard aftermarket and factory-style monitors. The IP69K waterproof rating is the highest available, providing protection against high-pressure water jets at high temperatures relevant for a vehicle like the Defender that is routinely pressure-washed. Parking guidelines are included and removable, and the image can be switched between mirror and normal orientation to suit the installation.

Features and benefits

Mounts over the rear washer for a high central position: Purpose-built fitment over the existing rear washer outlet delivers a high, central camera position without cutting or drilling the bodywork, resulting in an OEM-finished appearance.

Dual output AHD 720P and CVBS 600TVL: Supports both AHD high-definition and standard CVBS output from a single unit, compatible with a wide range of head units and monitors.

Wide horizontal viewing angle: 150° for AHD and 145° for CVBS, providing a broad field of view for confident reversing and parking in the Defender's blind spots.

IP69K waterproof rating: The highest waterproof protection rating, designed to withstand high-pressure high-temperature water jets — suited to the Defender's off-road and wash-down use conditions.

0.1 lux minimum illumination: Low-light capability for reversing in dim conditions including car parks, driveways and night-time use.

Removable parking guidelines: Factory-enabled parking lines that can be turned off for a clean image without guide overlays.

Switchable mirror and normal image: Image orientation can be set to mirror or normal to suit the installation and head unit display configuration.

Bespoke fitment for Land Rover Defender 2007 to 2016: Specifically designed for the Defender body, ensuring precise integration and an OEM-matched appearance.

12V to 24V power supply: Compatible with both 12V and 24V vehicle electrical systems.

Technical specs

Specification Detail
SKU CAM-LR5
Brand Stinger
Image Sensor 1/3" optical format, 3.87 V/lux sensitivity
AHD Resolution 720P
CVBS Resolution 600 TV lines
Effective Pixel Array 1080 (H) x 720 (V)
Horizontal Angle (AHD) 150°
Horizontal Angle (CVBS) 145°
Minimum Illumination 0.1 lux
TV System NTSC (30FPS)
Waterproof Rating IP69K
Operating Temperature -20°C to +70°C
Mounting Over rear washer, 25mm cut-out
Parking Lines Yes (removable)
Image Orientation Switchable mirror/normal
Power Supply 12V to 24V
Compatible Vehicles Land Rover Defender 2007 to 2016

Compatible with

The CAM-LR5 is designed and warranted for Land Rover Defender from 2007 to 2016. Confirm your exact model year before purchasing.

Frequently asked questions

Does this camera require drilling or cutting the Defender bodywork? No. The CAM-LR5 is designed to mount over the existing rear washer outlet, providing a high central camera position without any drilling or cutting. The result is a clean, OEM-style installation that preserves the Defender's exterior.

What is the difference between AHD and CVBS output? AHD (Analogue High Definition) delivers higher-resolution 720P video to compatible AHD head units. CVBS is the standard analogue video format supported by most aftermarket and OEM-style head units and monitors. The CAM-LR5 supports both from a single unit, so it is compatible with a wide range of head unit types.

What does IP69K waterproof rating mean? IP69K is the highest waterproof protection rating in the IP (Ingress Protection) standard. It confirms the camera withstands high-pressure, high-temperature water jets directed from any angle, making it suitable for vehicles that are routinely pressure-washed or used in wet off-road conditions.

Can I remove the parking guidelines? Yes. The parking guidelines are enabled by default and can be switched off if a clean unguided image is preferred.

Is the image mirrored by default? The CAM-LR5 supports both mirror and normal image orientation, which can be switched to suit the head unit display configuration and the driver's preference.
