Stinger BKHY046 Black Double DIN Radio Fascia Kit for Hyundai iLoad and iMax TQ Series 2008–2016

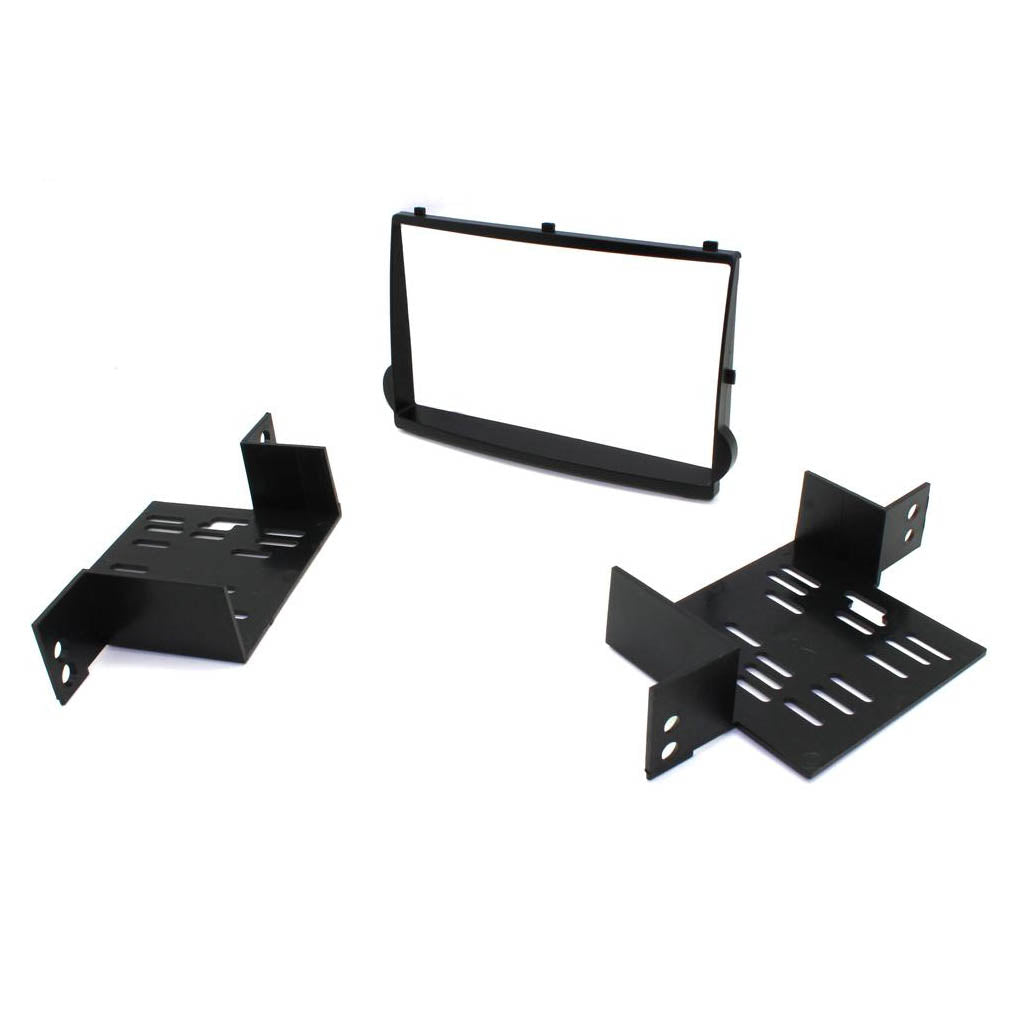

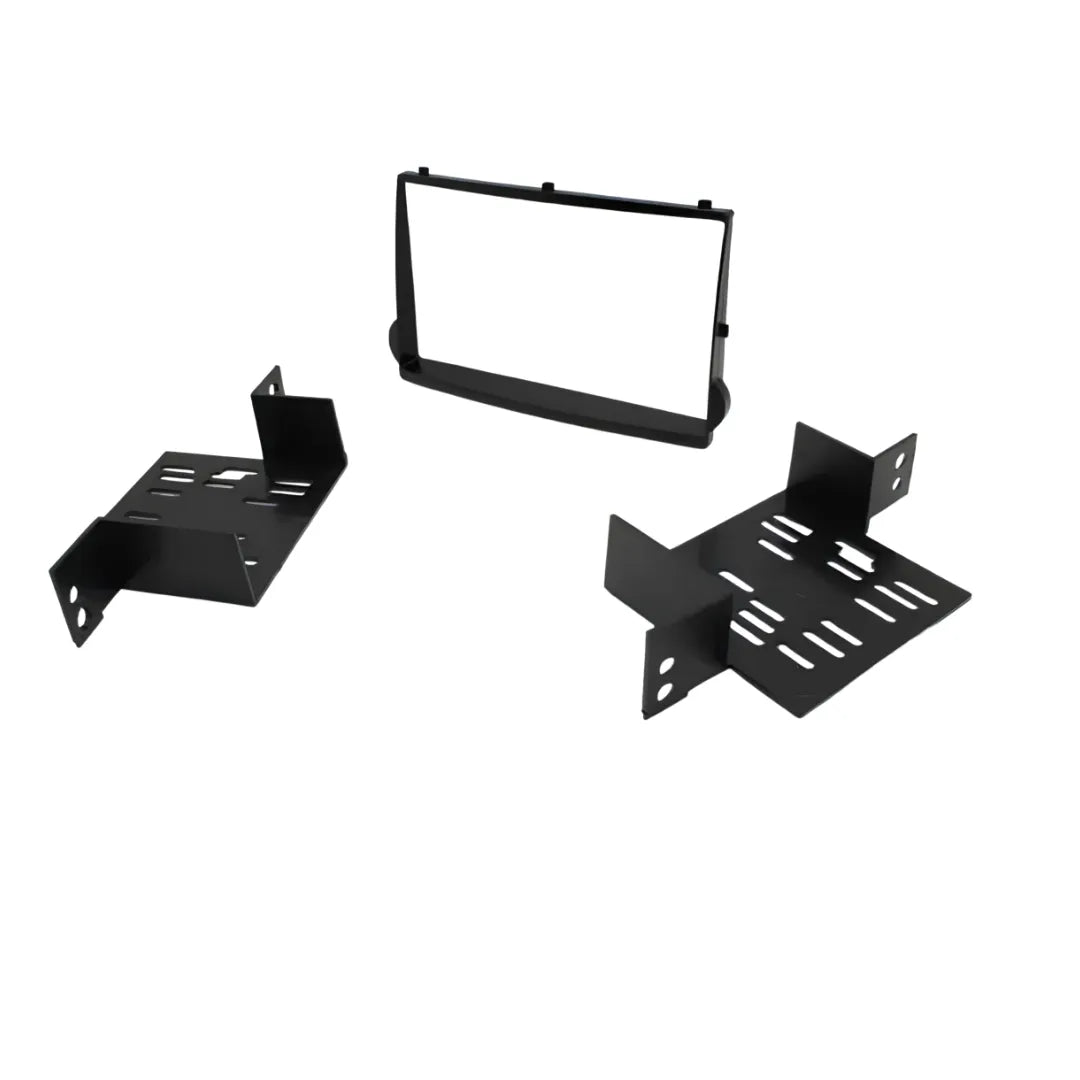

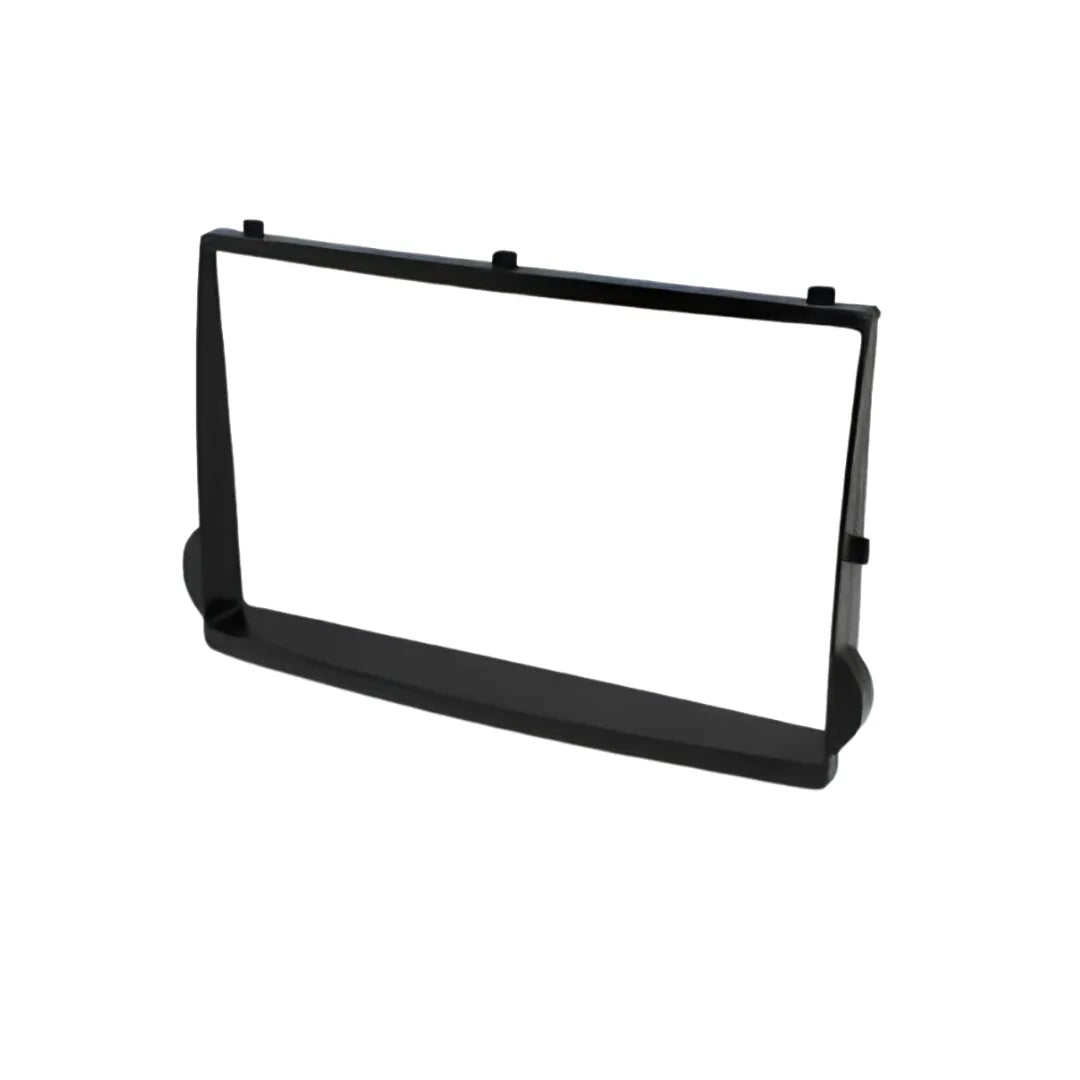

The BKHY046 from Stinger is a black double DIN fascia kit for the Hyundai iLoad and iMax TQ series (2008 to 2016), enabling installation of an aftermarket double DIN head unit into the factory dashboard opening. Mounting brackets are included. This fascia suits factory non-navigation models only.

Product overview

The Hyundai iLoad and iMax TQ series share a common dash architecture that requires a vehicle-specific fascia when fitting an aftermarket double DIN head unit. The BKHY046 covers both models within a single kit, providing the correct double DIN aperture without modification to the factory dash panel.

A fitment restriction applies: the BKHY046 suits non-navigation iLoad and iMax TQ models only. Vehicles equipped with the factory navigation system have a different dash layout, and this fascia will not provide a correct fit in those variants. Confirm your vehicle does not have factory navigation before ordering.

Mounting brackets are included in the box, and the black finish suits the factory interior trim of both models across the confirmed production range.

Features and benefits

Hyundai iLoad and iMax TQ series fitment: Covers both the Hyundai iLoad and iMax TQ series (2008 to 2016) within a single fascia kit, providing the correct double DIN aperture for aftermarket head unit installation across both models.

Black finish: The black colour suits the factory interior trim of the Hyundai iLoad and iMax TQ series, maintaining a consistent dashboard appearance after installation.

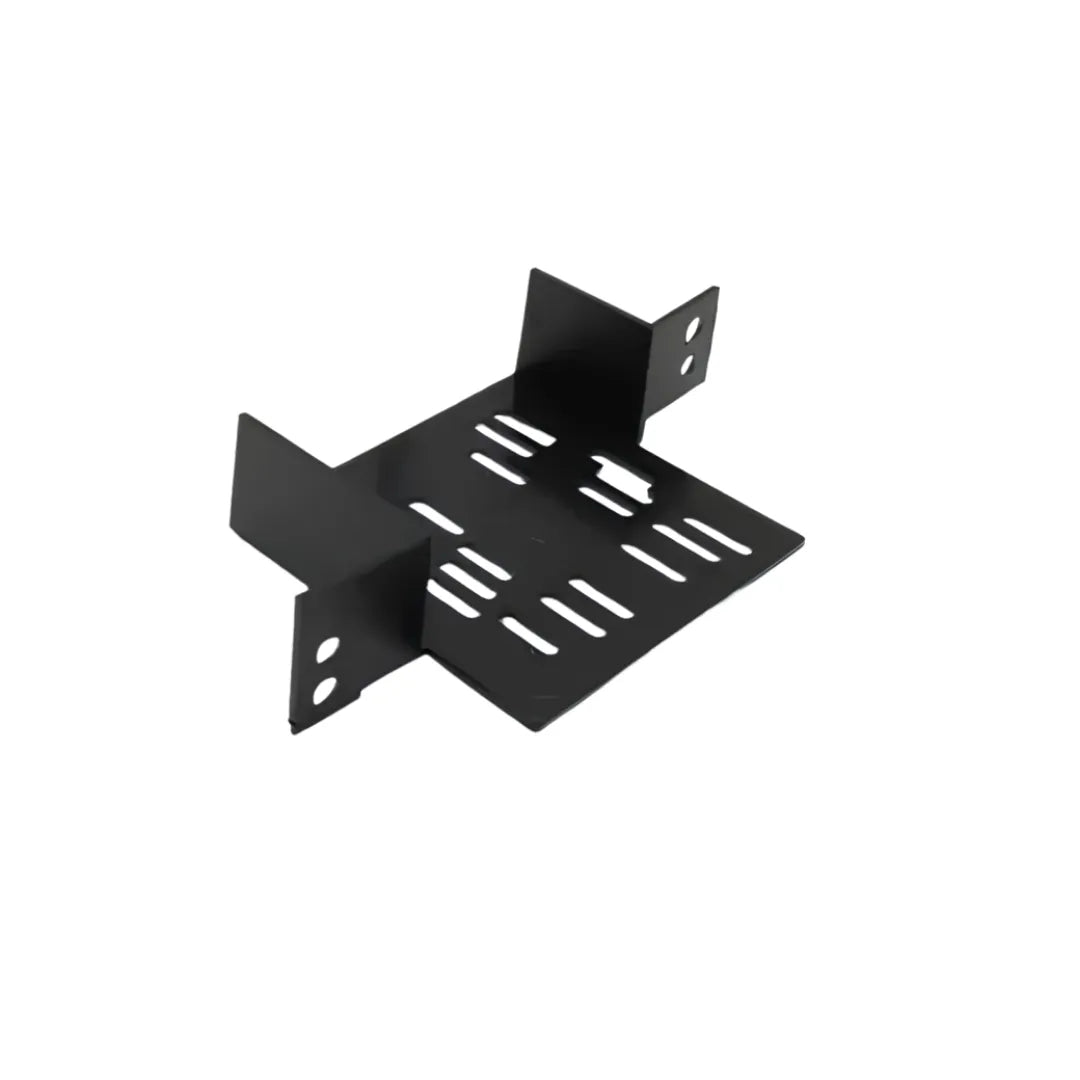

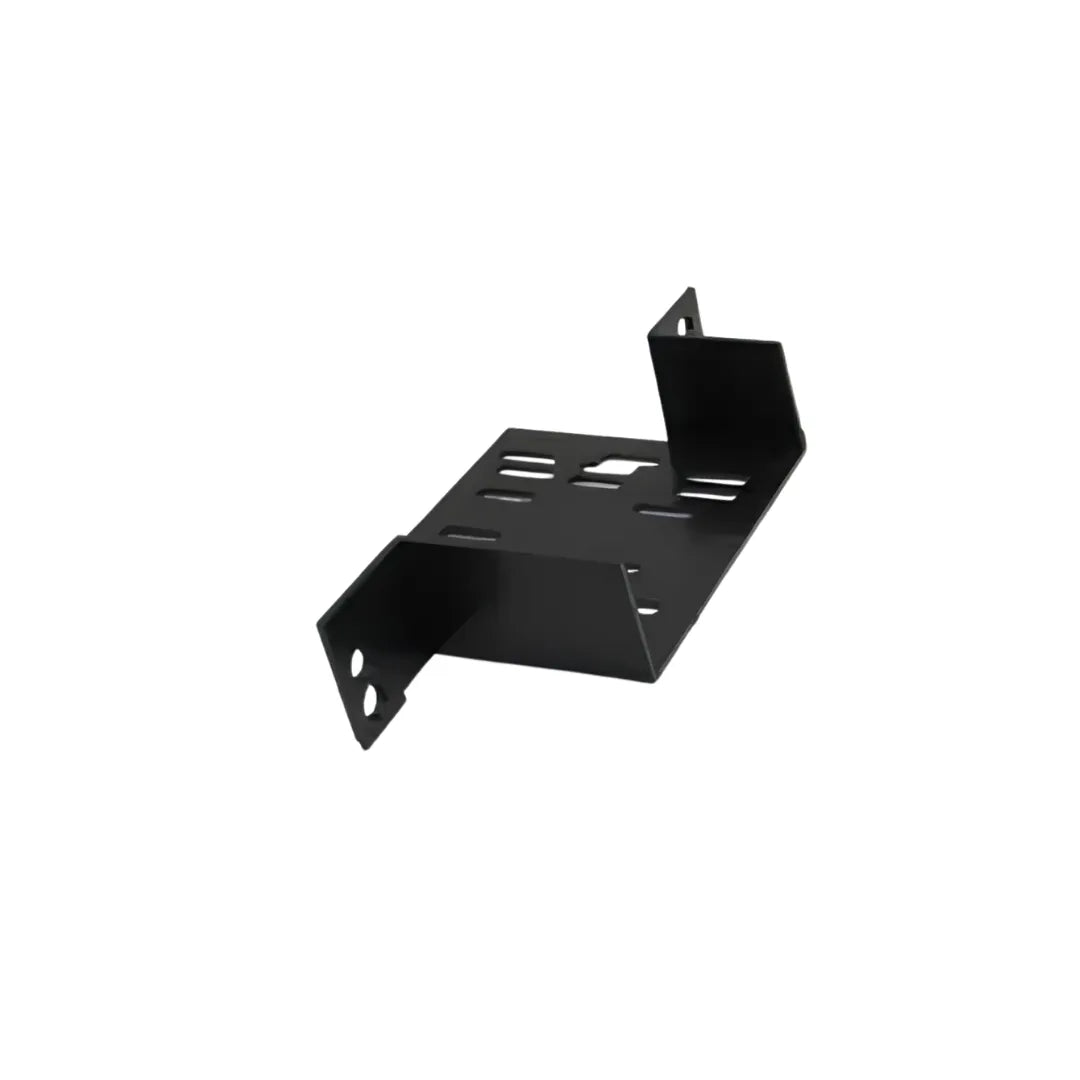

Mounting brackets included: Mounting brackets are supplied in the box, providing all hardware needed to secure the aftermarket head unit within the dashboard opening without a separate purchase.

Non-navigation models only: This fascia suits factory non-navigation iLoad and iMax TQ models only. Navigation-equipped variants have a different dash layout and require a different solution. Confirm your vehicle's configuration before ordering.

Technical specs

Specification Detail
SKU BKHY046
Brand Stinger
Colour Black
Includes Mounting Brackets Yes
Compatible Radio Size Double DIN
Navigation Models Not suitable

Compatible with

This fascia kit is confirmed for the following Hyundai vehicles fitted with factory non-navigation head units only.

Compatible vehicle table

Make Model Variant Years
Hyundai iLoad - iMax (TQ) Non-navigation models only 2008 - 2016

Frequently asked questions

Does the BKHY046 include mounting brackets?
Yes. Mounting brackets are included with the BKHY046. No separate bracket purchase is required to secure the head unit within the dashboard opening.

Will the BKHY046 fit my Hyundai iLoad or iMax if it has factory navigation?
No. The BKHY046 suits factory non-navigation models only. Vehicles equipped with the factory navigation system have a different dash layout and require a different fascia. Contact us to confirm the correct solution for your navigation-equipped iLoad or iMax.

Does this fascia suit both the iLoad and the iMax?
Yes. The BKHY046 is confirmed for both the Hyundai iLoad and iMax TQ series (2008 to 2016), provided neither vehicle has factory navigation fitted.

Is the BKHY046 compatible with single DIN head units?
The BKHY046 provides a double DIN aperture and is designed for double DIN aftermarket head units only. Contact us if you require a single DIN solution for the Hyundai iLoad or iMax.

What else do I need to complete the head unit installation in my Hyundai iLoad or iMax?
In addition to this fascia kit, you will typically need a wiring harness and antenna adapter suited to your specific iLoad or iMax variant. Contact us and we can help confirm the correct accessories for your installation.
