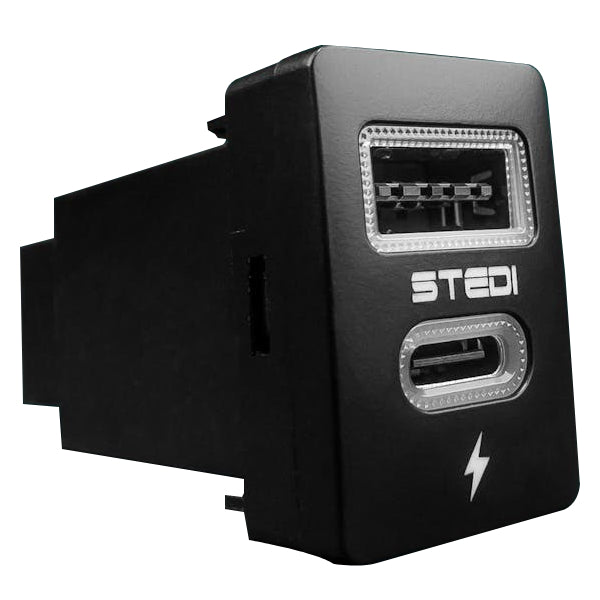

STEDI USBC-SHORT-TOY OEM Style USB-C Connector Switch Suit Toyota Vehicles

Maintain the Factory Look & Feel of Your Vehicle!

OEM Matched
Our range of Modern Toyota Push Switches maintain the factory look and feel of your vehicle with a wide variety of prints from LED Light Bars & Air Compressors to Diff Locks and much more.

Dash Illumination
Our OEM Push Switches have dual illumination lighting up the lower half from the dash illumination of your vehicle and the top once the selected device is active.

Fits Like A Glove
Fitting in a wide range of Toyota models with a full list of compatibility in the specs below. Total height of 32.5mm and width of 22mm, if these dimensions do not match those of your vehicle we also have Old Toyota OEM Push Switches.

Important Information: Please ensure switches are always wired through a fused relay.

Key Features:

• Blue LED Back Lighting (Excluding RJ45 UHF switch, which does not feature illumination)
• Upper Light is Active when Power is ON
• Lower Light is Active when Dash Lights are ON
• Laser-etched print ensures our print will never rub off with the use
• Rated at 3A on 12V
• Excellent OEM matching design
• Short Type USB Volt Meter - Output Current: 2.5A+
• Short Type Dual USB - Output Current: 2.5A+

Compatible Toyota Makes:

• Toyota RAV4 | 2006 - 2011
• Toyota Landcruiser 200 Series | 2008 - Current Model
• Toyota Prado 150 Series | 2010 - Onwards
• Toyota Hilux | 2015 - Onwards (Current Model)
• Toyota Fortuner | 2016 - Onwards
• Toyota Camry | 2011 - 2014
• Toyota Corolla | 2006 - 2013
• Toyota Tacoma | 2012 - 2014 (Center Console)
• Toyota Tundra | 2007 - 2014
• Toyota Kluger | 2008 - Current Model

Please Note: We have two different OEM-Style Toyota switches, if your vehicle makes is not listed above, please view our other product listings.

Specifications:

• Back Light LED Colour: Blue
• USB Volt Meter Output Current: 2.5A+
• Dual USB Output Current: 2.5A+
• Rated: 3A @ 12V
• Dimensions: 32.5mm (H) x 22mm (W)
• Weight: 0.32kg

What's Included:

• 1x STEDI™ Short Type USB + USB-C Suit Toyota
• Wiring Diagram
