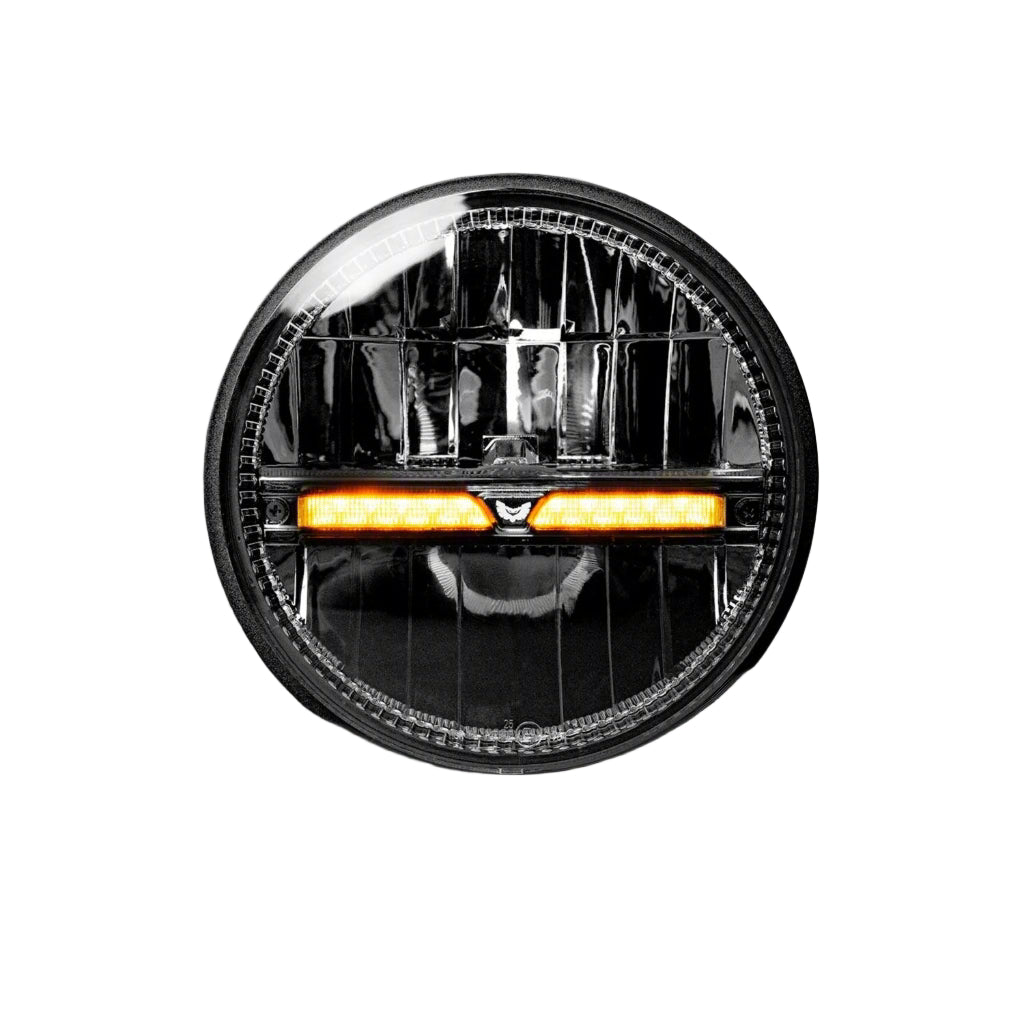

STEDI ST-45-HBI-071 7" Homage Black Indicator LED Headlight 5700K

STEDI ST-45-HBI-071 7" Homage Black Indicator LED Headlight 5700K | Classic Style, Modern Performance

Retro-styled 7-inch LED headlight with integrated indicator and DRL functionality, featuring 5700K color temperature, ADR compliance, and 320m high beam distance for classic vehicle upgrades

Product Overview

The STEDI ST-45-HBI-071 7" Homage Black LED Headlight represents the perfect fusion of classic automotive styling with cutting-edge LED technology. Designed as a tribute to iconic vehicles like the Jeep CJ, Mercedes G Wagon, Land Rover Defender, and classic muscle cars, this headlight delivers modern performance wrapped in timeless aesthetic appeal. The integrated indicator and daytime running light (DRL) functionality provides enhanced on-road visibility while maintaining the clean, classic appearance that defines vintage automotive design.

Engineered for universal compatibility with 7-inch round headlight applications, the Homage features dual 12W Osram LED technology delivering 3600 raw lumens with exceptional beam performance. The high beam reaches an impressive 320m distance at 1 lux, while the hardened polycarbonate lens and IP68 rating ensure durability in the harshest conditions. Most importantly, this headlight is 100% ADR compliant and legal for road use in Right Hand Drive markets, eliminating concerns about retrofit legality.

Key Specifications

• Model: ST-45-HBI-071
• Size: 7-inch round LED headlight
• LED Configuration: 2 x 12W Osram KW H4L531.TE
• Color Temperature: 5700K
• Raw Lumens: 3600Lm
• Beam Distance: High beam 433m, Low beam 259m @ 1 lux (pair)
• Current Draw: 2.2A @ 12V, 1.1A @ 24V
• Ingress Protection: IP68 rated
• Weight: 1.26kg each

Features & Benefits

Classic Design with Modern Technology
Retro-inspired styling pays homage to iconic vehicles while incorporating advanced LED technology, integrated indicators, and DRL functionality for enhanced safety and performance.

ADR Compliance and Legal Road Use
100% ADR compliant with E9, ECE R148/R149 certification ensures complete legal compatibility for road use in Right Hand Drive markets without compliance concerns.

Superior Illumination Performance
Dual Osram LEDs deliver exceptional beam performance with 320m high beam distance, providing significantly improved visibility compared to traditional halogen headlights.

Integrated Safety Features
Built-in indicator and DRL functionality enhances on-road visibility while maintaining clean aesthetic lines, eliminating the need for separate indicator modifications.

Universal Compatibility
Drop-in replacement for #6014, 6015, 6016, H6024 and Par 56 headlamp designs with compatibility across positive and negative switched vehicles plus integrated park light functionality.

Technical Specifications

• Operating Voltage: DC 10V - 30V compatibility
• Lifespan: 30,000 hours LED life expectancy
• Operating Temperature: -40°C to +60°C range
• Lens Material: Hardened polycarbonate construction
• Certifications: E923081 ADR compliance, CISPR25 Class 3
• Environmental Protection: IP68 waterproof rating
• Connector Type: Standard automotive H4 connection
• Mounting: Direct replacement for 7-inch round headlights

Scope of Delivery

• 1 x STEDI 7" Black Homage LED Headlight (5700K)
• 1 x User Instruction Manual
• 24 Month Warranty Protection

Vehicle Compatibility

Universal 7-inch Round Headlight Applications:
All round headlight Landcruisers, 1955-1983 Jeep CJ-5, 1976-1986 Jeep CJ-7, 1981-1985 Jeep CJ-8, 1997-2006 Jeep Wrangler (TJ), Land Rover Defender, 1982-1991 Mitsubishi Pajero (L040), GQ Patrol, Harley Davidson Motorcycles, Mercedes Benz G Wagon, Kenworth Trucks with 7" round headlight, Toyota FJ42/FJ45/FJ47 (1974+), Toyota HJ42/HJ45/HJ47 (1974+), Mazda MX5 (1990-1997), Chevy C10/C20/C30, Dodge D100/D150/D200/D300/D400/D450, Freightliner Century Class (1996-2011)

How It Works

Advanced LED Headlight System – The ST-45-HBI-071 utilizes dual 12W Osram LEDs in a precision-engineered reflector housing to deliver superior beam patterns for both high and low beam operation. The integrated indicator function operates independently while the DRL provides enhanced daytime visibility. The hardened polycarbonate lens protects the LED array while maintaining optimal light transmission and beam quality.

Compatible With / Goes Well With

Vehicle Types: Classic cars, motorcycles, trucks, off-road vehicles with 7-inch round headlight applications
Electrical Systems: 12V and 24V vehicles with positive or negative switching
Replacement Applications: Direct replacement for halogen headlight upgrades
Installation Notes: Standard automotive H4 connection, integrated park light functionality

Frequently Asked Questions

Is this headlight legal for road use in Australia?

Yes, the ST-45-HBI-071 is 100% ADR compliant with E923081 certification and fully legal for road use in Right Hand Drive markets including Australia.

Will this headlight fit my vehicle?

The headlight is designed as a universal drop-in replacement for all 7-inch round headlight applications. Check the extensive compatibility list or use the vehicle selector for specific fitment confirmation.

How does the integrated indicator function work?

The integrated indicator operates independently from the headlight function, providing turn signal capability while maintaining the clean aesthetic of the classic design without requiring separate indicator lights.

What is the difference between this and traditional halogen headlights?

LED technology provides significantly brighter illumination (3600 lumens vs ~1000 for halogen), longer lifespan (30,000 hours vs ~1000), lower power consumption, and better beam quality with 320m high beam distance.

Does installation require any modifications?

No modifications are required. The headlight uses standard H4 automotive connections and is designed as a direct replacement for existing 7-inch round headlights.

What does the 5700K color temperature provide?

5700K provides a clean, bright white light that closely matches daylight conditions, offering excellent visibility and contrast for both urban and highway driving conditions.
