Stedi ST-02-SRT-296 Sport Plus 50in 96 LED Double Row Light Bar

Stedi ST-02-SRT-296 Sport Plus 50 Inch Double Row 96 LED Combo Light Bar

The Stedi ST-02-SRT-296 Sport Plus is a 50-inch double row LED light bar featuring 96 OSRAM GW LEDs, 28,800 raw lumens, and 25,428 tested lumens. The combination beam pattern illuminates 1,102 metres at 1 lux, drawing 288W at 24A from a 12V system. Rated IP68 with a 50,000-hour lifespan and backed by a five-year warranty, it includes a wiring harness, stainless steel brackets, blackout cover, interchangeable trims, and full mounting hardware.

Product overview

The ST-02-SRT-296 is part of Stedi's Sport Plus Light Bar range, delivering over 20% more lumen output than previous generations through high-performance OSRAM GW LEDs. The 5000K colour temperature enhances contrast and reduces eye fatigue on long drives, and the combination beam pattern of 18 flood, 60 spot, and 18 flood LEDs balances long-distance projection with peripheral coverage. Larger reflectors and refined optics maximise beam spread and distance, while the precision-engineered 8-degree angled housing ensures correct beam alignment when mounted to a bull bar or roof platform.

The bolt-free exterior is finished in jet black powder coat with a snap-on blackout cover and interchangeable orange and grey trims. The bar can also be reversed when roof-mounted for an aggressive stance and additional application flexibility. The extruded aluminium housing with hardened polycarbonate lens provides maximum impact resistance in IP68-rated waterproof construction. Compatible with Stedi Sport Plus, Pro Plus, and EVO spotlights for integrated auxiliary lighting setups. Registered designs 202615237 and 202615238 apply.

Features and benefits

96 OSRAM GW LEDs at 28,800 raw lumens: Ninety-six OSRAM GW LEDs deliver 28,800 raw lumens and 25,428 tested lumens, producing over 20% more output than the previous generation Sport Plus for superior off-road visibility.

1,102 metre reach at 1 lux: The combination beam pattern illuminates 1,102 metres at 1 lux for outstanding forward visibility on unsealed roads and tracks at touring speeds.

Combination beam pattern: The 18 flood, 60 spot, 18 flood LED configuration delivers balanced long-distance spot projection and broad peripheral flood coverage from a single bar.

8-degree angled housing with reversible mounting: The precision-engineered 8-degree angled housing ensures correct beam alignment on bull bars and can be reversed when roof-mounted for an aggressive stance and additional application flexibility.

Bolt-free exterior with jet black powder coat: The clean bolt-free design finished in jet black powder coat provides a sleek and integrated appearance for modern 4WD builds.

Snap-on blackout cover with interchangeable trims: The included blackout cover protects the lens when not in use, and interchangeable orange and grey trims allow customisation to match the vehicle.

IP68 waterproof rating: Full dust protection and submersion resistance suited to creek crossings, heavy rain, and demanding off-road environments.

Hardened polycarbonate lens: Maximum impact resistance for long-term durability against stone strikes and debris in off-road conditions.

50,000-hour lifespan: The rated 50,000-hour LED lifespan provides long-term reliability for serious touring and off-road use.

Compatible with Stedi Sport Plus, Pro Plus, and EVO spotlights: The 5000K colour temperature integrates seamlessly with Stedi's spotlight range for a matched auxiliary lighting setup.

Five-year warranty with Australian-based support: Backed by a five-year warranty with Australian-based customer support for long-term confidence in performance and reliability.

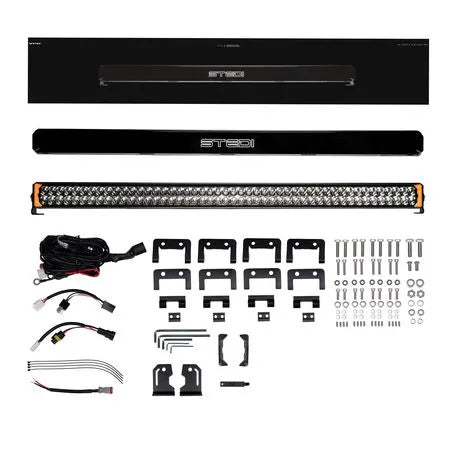

What's in the box

• 1 x Sport Plus double row light bar combo
• 1 x Protective Stedi blackout cover
• 1 x Powder coated 304 stainless steel side bracket set
• 1 x Mounting hardware set
• 1 x Stedi cover key tool
• 1 x Orange trims set
• 1 x Grey trims set
• 1 x Stedi high beam wiring harness with H4 and HB3 adaptor
• 5 x Cable ties
• 4 x Channel mounts with hardware

Technical specs

Frequently asked questions

Can the ST-02-SRT-296 be mounted in reverse on a roof platform?
Yes. The 8-degree angled housing allows the bar to be reversed when roof-mounted, producing an aggressive stance and additional application flexibility for different vehicle setups.

Is a wiring harness included with the ST-02-SRT-296?
Yes. A Stedi high beam wiring harness with H4 and HB3 adaptor is included, along with stainless steel brackets, mounting hardware, blackout cover, interchangeable trims, and cable ties.

Is the ST-02-SRT-296 compatible with Stedi spotlights?
Yes. The 5000K colour temperature integrates seamlessly with Stedi Sport Plus, Pro Plus, and EVO spotlights for a matched and integrated auxiliary lighting setup.

Is the ST-02-SRT-296 suitable for 24V vehicle applications?
Yes. The ST-02-SRT-296 operates across a 10 to 30V input range at 12A at 24V, covering both 12V and 24V vehicle electrical systems.

What warranty is included with the ST-02-SRT-296?
The Stedi ST-02-SRT-296 is backed by a five-year warranty with Australian-based customer support. Contact us for further information on warranty terms and conditions.
