STEDI ST-02-SRT-280 Sport Plus 42" Double Row 80 LED Light Bar

SKU: ST02SRT280
Regular price
$419
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

STEDI Type-X Sport Plus ST-02-SRT-280 42 Inch Double Row LED Light Bar 80 OSRAM GW LEDs Combination Beam 21074 Tested Lumens 1015 Metres at 1 Lux 5000K IP68 240W 10-30V Extruded Aluminium Jet Black Powdercoat

The STEDI Type-X Sport Plus ST-02-SRT-280 is a 42-inch double-row LED light bar with 80 OSRAM GW LEDs, combination beam pattern (14 flood + 52 spot + 14 flood), 21074 tested lumens, and 1015 metres reach at 1 lux. 5000K colour temperature. IP68 waterproof. 240W, 10-30V. Extruded aluminium housing with jet black powdercoat finish. Includes 304 stainless steel brackets, wiring harness, blackout cover, interchangeable orange and grey trims, and mounting hardware. Five-year warranty.

Product overview

The Type-X Sport Plus ST-02-SRT-280 delivers 21074 tested lumens and 1015 metres at 1 lux from 80 OSRAM GW LEDs across a 42-inch double-row bar, exceeding 1000 metres at 1 lux for serious remote area and high-speed off-road driving. The combination beam uses 14 flood LEDs on each outer section for wide spread and 52 spot LEDs across the centre for maximum forward projection. The 8-degree angled housing integrates with most bull bars and can be reversed for roof platform mounting. 5000K colour temperature matches STEDI Sport Plus, Pro Plus, and EVO spotlights. Bolt-free exterior, jet black powdercoat, snap-on blackout cover, and interchangeable orange and grey trims. Sliding mounting bracket and 304 stainless steel side brackets. Hardened polycarbonate clear lens. IP68 rated. 50,000-hour LED lifespan.

Features and benefits

80 OSRAM GW LEDs in a double-row 42-inch bar: 21074 tested lumens and 1015 metres at 1 lux.

21074 tested lumens, 1015 metres at 1 lux: Over 1 kilometre beam reach at 1 lux.

Combination beam pattern (14 flood + 52 spot + 14 flood): Wide outer flood spread with 52 centre spot LEDs for maximum forward projection.

5000K colour temperature: Matched to STEDI Sport Plus, Pro Plus, and EVO spotlights.

8-degree angled housing: Integrates with most bull bars; reversible for roof platform mounting.

IP68 waterproof.

Bolt-free exterior with jet black powdercoat finish.

Snap-on blackout cover included.

Interchangeable orange and grey trims.

Extruded aluminium housing with hardened polycarbonate clear lens.

Sliding mounting bracket and 304 stainless steel side brackets.

10-30V: Compatible with 12V and 24V vehicle electrical systems.

240W per unit, 20A at 12V / 10A at 24V.

50,000-hour LED lifespan.

Five-year warranty with Australian-based customer support.

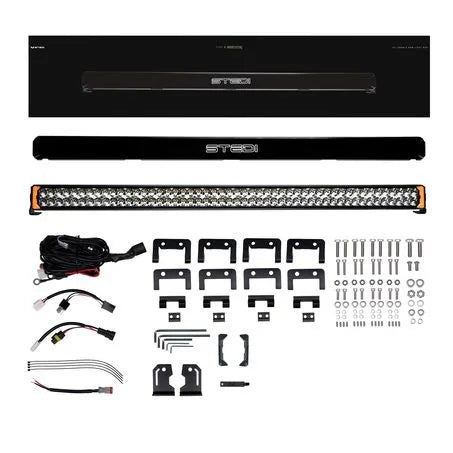

What's in the box

  • 1x Sport Plus double row light bar (combo)
  • 1x Protective STEDI blackout cover
  • 1x Powder coated 304 stainless steel side bracket set
  • 1x Wiring harness
  • 1x Mounting hardware set
  • 1x STEDI cover key tool
  • 1x Orange trims set
  • 1x Grey trims set
  • 1x Channel mounts and hardware

Technical specs

Specification Detail
SKU ST-02-SRT-280
Brand STEDI
Range Type-X Sport Plus
LED Type OSRAM GW LEDs
LED Count 80
Beam Pattern Combination (14 flood + 52 spot + 14 flood)
Lumens (Raw) 24000
Lumens (Tested) 21074
1 Lux (Metres) 1015
Colour Temperature 5000K
IP Rating IP68
Operating Voltage 10-30V
Power Draw 240W
Amp Draw 20A at 12V / 10A at 24V
Operating Temperature -40°C to 60°C
Housing Material Extruded aluminium
Lens Type Clear polycarbonate
Finish Jet black powdercoat
Brackets 304 stainless steel
LED Lifespan 50,000 hours
Weight 5.7kg
Registered Designs 202615237 / 202615238
Warranty Five years

Frequently asked questions

What is the difference between the ST-02-SRT-280 and the ST-02-SRT-260?

The ST-02-SRT-280 is 42 inches with 80 LEDs, 21074 tested lumens, and 1015 metres at 1 lux. The ST-02-SRT-260 is 32 inches with 60 LEDs, 15768 tested lumens, and 890 metres at 1 lux. The ST-02-SRT-280 is the first Sport Plus double-row bar to exceed 1000 metres at 1 lux, suited to the most demanding remote area and high-speed off-road applications.

What is the combination beam pattern on the ST-02-SRT-280?

The combination beam uses 14 flood LEDs on each outer end and 52 spot LEDs across the centre, delivering wide spread from the outer floods and maximum forward projection from the central spots.

Can the ST-02-SRT-280 be mounted to a roof platform?

Yes. The 8-degree angled housing can be reversed when mounted to a roof platform, producing a more aggressive stance while maintaining the same beam output.

Is the ST-02-SRT-280 compatible with other STEDI lights?

Yes. The 5000K colour temperature is matched to STEDI's Sport Plus, Pro Plus, and EVO spotlight ranges for consistent light colour when used together.

What is the IP68 rating on the ST-02-SRT-280?

IP68 means the light bar is fully dust-tight and can withstand continuous submersion beyond 1 metre depth, providing complete waterproof protection for off-road and all-weather use.
