Stedi ST-02-SRT-2100 Sport Plus 52in Double Row 100 LED Light Bar

SKU: ST02SRT2100
Price
$519
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

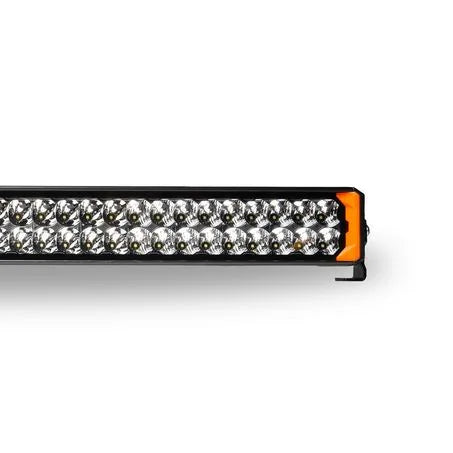

Stedi ST-02-SRT-2100 Sport Plus 52 Inch Double Row 100 LED Combo Light Bar

The Stedi ST-02-SRT-2100 Sport Plus is a 52-inch double row LED light bar featuring 100 high-performance OSRAM LEDs, 30,000 raw lumens, and 26,325 effective lumens. The combination beam pattern covers 1,122 metres of distance and 100 metres of width at 1 lux, with an 18 flood, 64 spot, 18 flood configuration. Rated IP68 and backed by a five-year warranty, it includes a wiring harness and mounting hardware.

Product overview

The ST-02-SRT-2100 is the second-generation Sport Plus light bar from Stedi, delivering a 25% lumen increase over the comparable first-generation model. One hundred OSRAM LEDs produce 30,000 raw lumens at 5000K colour temperature across a combination beam pattern that balances long-distance spot performance with broad flood coverage on both sides. The aluminium body and IP68 rating confirm durability and full waterproof protection for demanding off-road and touring conditions.

Designed in Australia for Australian conditions, the Sport Plus is compatible with 10 to 30V electrical systems covering both 12V and 24V vehicles. A complete wiring harness and mounting hardware are included for a straightforward installation without additional sourcing.

Features and benefits

100 OSRAM LEDs at 30,000 raw lumens: One hundred high-performance OSRAM LEDs deliver 30,000 raw lumens and 26,325 effective lumens for exceptional long-distance illumination on unsealed roads and tracks.

1,122 metre reach at 1 lux: The combination beam pattern illuminates 1,122 metres of distance and 100 metres of width at 1 lux, providing outstanding forward visibility at highway and off-road speeds.

Combination beam pattern: The 18 flood, 64 spot, 18 flood LED configuration delivers a balanced spread of long-distance spot output and peripheral flood coverage from a single bar.

25% lumen increase over first generation: The Sport Plus delivers 25% more lumens than the comparable first-generation Stedi light bar, providing a significant real-world visibility improvement.

5000K colour temperature: A cool 5000K output closely matches daylight for natural and clear illumination across the full beam pattern.

IP68 waterproof rating: Full dust protection and submersion resistance beyond IP67 standards, suited to creek crossings, heavy rain, and demanding off-road environments.

Aluminium body construction: The aluminium housing provides a strong and lightweight structure with effective heat dissipation for reliable long-term LED performance.

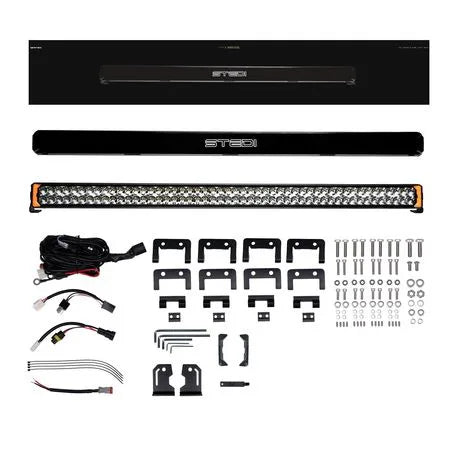

Wiring harness and mounting hardware included: A complete wiring harness and all mounting hardware are supplied in the box for a complete installation without additional purchases.

Designed in Australia: Engineered in Australia specifically for Australian road and off-road conditions.

Five-year warranty: Backed by Stedi's five-year warranty for long-term confidence in performance and reliability.

Technical specs

Specification Detail
SKU ST-02-SRT-2100
Brand Stedi
Bar Length 52 inches
Row Configuration Double row
LEDs 100 x OSRAM
Raw Lumens 30,000
Effective Lumens 26,325
Beam Pattern Combination (18 flood, 64 spot, 18 flood)
1 Lux Distance 1,122 metres
1 Lux Width 100 metres
Colour Temperature 5000K
Body Material Aluminium
IP Rating IP68
Voltage Compatibility 10-30V
Warranty Five years
Unit of Measure Each

Frequently asked questions

What is the difference between the Sport Plus and the first-generation Stedi light bar?
The Sport Plus delivers 25% more lumens than the comparable first-generation Stedi light bar, providing a significant real-world visibility improvement at the same bar length.

Is a wiring harness included with the ST-02-SRT-2100?
Yes. A complete wiring harness and mounting hardware are included in the box for a straightforward installation.

Is the ST-02-SRT-2100 suitable for 24V vehicle applications?
Yes. The ST-02-SRT-2100 operates across a 10 to 30V input range, covering both 12V and 24V vehicle electrical systems.

What does the IP68 rating mean for the ST-02-SRT-2100?
IP68 confirms full dust protection and submersion resistance beyond the IP67 standard, making the light bar suited to creek crossings, heavy rain, and demanding off-road environments.

What warranty is included with the ST-02-SRT-2100?
The Stedi ST-02-SRT-2100 is backed by a five-year warranty. Contact us for further information on warranty terms and conditions.
