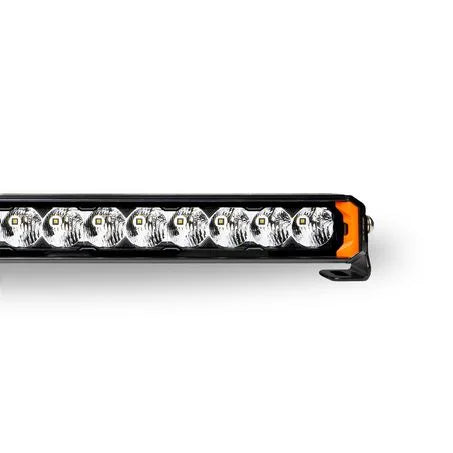

Stedi ST-02-SRT-140 Sport Plus 51.5in 40 LED Single Row Light Bar

Stedi ST-02-SRT-140 Sport Plus 51.5 Inch Single Row 40 LED Combo Light Bar

The Stedi ST-02-SRT-140 Sport Plus is a 51.5-inch single row LED light bar featuring 40 OSRAM GW LEDs, 12,500 raw lumens, and 9,710 tested lumens. The combination beam pattern illuminates 810 metres at 1 lux, drawing 128W at 10.6A from a 12V system. Rated IP68 with a 50,000-hour lifespan and backed by a five-year warranty, it includes a wiring harness, stainless steel brackets, blackout cover, interchangeable trims, and full mounting hardware.

Product overview

The ST-02-SRT-140 is part of Stedi's Sport Plus Light Bar range, delivering over 20% more lumen output than previous generations through high-performance OSRAM GW LEDs. The 5000K colour temperature enhances contrast and reduces eye fatigue on long drives, and the combination beam pattern of 8 flood, 24 spot, and 8 flood LEDs balances long-distance projection with peripheral coverage. Larger reflectors and refined optics maximise beam spread, while the precision-engineered 8-degree angled housing ensures correct beam alignment when mounted to a bull bar or roof platform.

The bolt-free exterior is finished in jet black powder coat with a snap-on blackout cover and interchangeable orange and grey trims for a customised appearance. The extruded aluminium housing with hardened polycarbonate lens provides maximum impact resistance and long-term durability in IP68-rated waterproof construction. The unit is compatible with Stedi Sport Plus, Pro Plus, and EVO spotlights for integrated auxiliary lighting setups. Registered designs 202615237 and 202615238 apply.

Features and benefits

40 OSRAM GW LEDs at 12,500 raw lumens: Forty OSRAM GW LEDs deliver 12,500 raw lumens and 9,710 tested lumens, producing over 20% more output than the previous generation Sport Plus for superior off-road visibility.

810 metre reach at 1 lux: The combination beam pattern illuminates 810 metres of distance at 1 lux for outstanding forward visibility on unsealed roads and tracks at touring speeds.

Combination beam pattern: The 8 flood, 24 spot, 8 flood LED configuration delivers balanced long-distance spot projection and broad peripheral flood coverage from a single bar.

8-degree angled housing: The precision-engineered 8-degree angled housing ensures correct beam alignment when mounted to a bull bar or roof platform without additional adjustment.

Bolt-free exterior with jet black powder coat: The clean bolt-free design finished in jet black powder coat provides a sleek and integrated appearance suitable for modern 4WD builds.

Snap-on blackout cover with interchangeable trims: The included blackout cover protects the lens when not in use, and interchangeable orange and grey trims allow the bar to be customised to match the vehicle.

IP68 waterproof rating: Full dust protection and submersion resistance suited to creek crossings, heavy rain, and demanding off-road environments.

Hardened polycarbonate lens: Maximum impact resistance for long-term durability against stone strikes and debris in off-road conditions.

50,000-hour lifespan: The rated 50,000-hour LED lifespan provides long-term reliability for serious touring and off-road use.

Compatible with Stedi Sport Plus, Pro Plus, and EVO spotlights: The 5000K colour temperature integrates seamlessly with Stedi's Sport Plus, Pro Plus, and EVO spotlight range for a matched auxiliary lighting setup.

Five-year warranty with Australian-based support: Backed by a five-year warranty with Australian-based customer support for long-term confidence in performance and reliability.

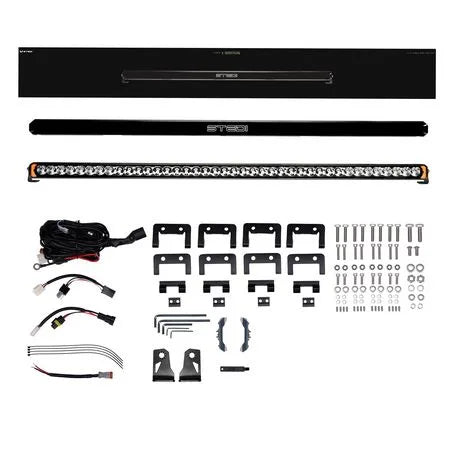

What's in the box

• 1 x Sport Plus single row light bar combo
• 1 x Protective Stedi blackout cover
• 1 x Powder coated 304 stainless steel side bracket set
• 1 x Mounting hardware set
• 1 x Stedi cover key tool
• 1 x Orange trims set
• 1 x Grey trims set
• 1 x Stedi high beam wiring harness with H4 and HB3 adaptor
• 5 x Cable ties
• 4 x Channel mounts with hardware

Technical specs

Frequently asked questions

Is the ST-02-SRT-140 compatible with Stedi spotlights?
Yes. The 5000K colour temperature of the ST-02-SRT-140 integrates seamlessly with Stedi Sport Plus, Pro Plus, and EVO spotlights for a matched and integrated auxiliary lighting setup.

Is a wiring harness included with the ST-02-SRT-140?
Yes. A Stedi high beam wiring harness with H4 and HB3 adaptor is included, along with stainless steel brackets, mounting hardware, blackout cover, interchangeable trims, and cable ties.

What does the 8-degree angled housing do?
The precision-engineered 8-degree angled housing ensures the beam is projected correctly when the bar is mounted to a bull bar or roof platform, eliminating the need for additional beam angle adjustment during installation.

Is the ST-02-SRT-140 suitable for 24V vehicle applications?
Yes. The ST-02-SRT-140 operates across a 10 to 30V input range at 5.3A, covering both 12V and 24V vehicle electrical systems.

What warranty is included with the ST-02-SRT-140?
The Stedi ST-02-SRT-140 is backed by a five-year warranty with Australian-based customer support. Contact us for further information on warranty terms and conditions.
