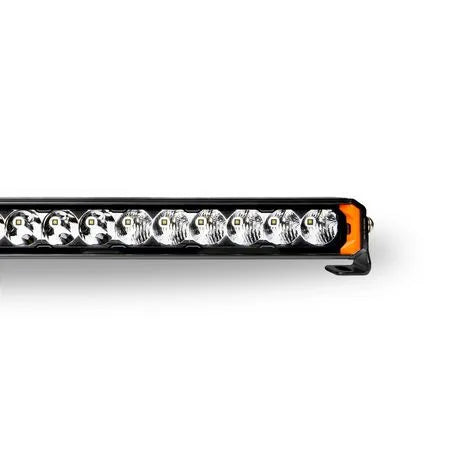

STEDI ST-02-SRT-132 Sport Plus 41.5" Single Row 32 LED Light Bar

SKU: ST02SRT132
Regular price
$339
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

STEDI Type-X Sport Plus ST-02-SRT-132 41.5 Inch Single Row LED Light Bar 32 OSRAM GW LEDs Combination Beam 7651 Tested Lumens 733 Metres at 1 Lux 5000K IP68 100W 10-30V Extruded Aluminium Jet Black Powdercoat

The STEDI Type-X Sport Plus ST-02-SRT-132 is a 41.5-inch single-row LED light bar with 32 OSRAM GW LEDs, combination beam pattern (6 flood + 20 spot + 6 flood), 7651 tested lumens, and 733 metres reach at 1 lux. 5000K colour temperature. IP68 waterproof. 100W, 10-30V. Extruded aluminium housing with jet black powdercoat finish. Includes 304 stainless steel brackets, wiring harness, blackout cover, interchangeable orange and grey trims, and mounting hardware. Five-year warranty.

Product overview

The Type-X Sport Plus ST-02-SRT-132 delivers 7651 tested lumens and 733 metres at 1 lux from 32 OSRAM GW LEDs across a 41.5-inch single-row bar. The wider bar spreads 20 spot LEDs across the centre section flanked by 6 flood LEDs on each outer end, providing an extended illumination width with strong forward reach. The 8-degree angled housing integrates with most bull bars and can be reversed for roof platform mounting. 5000K colour temperature matches STEDI Sport Plus, Pro Plus, and EVO spotlights. Bolt-free exterior, jet black powdercoat, snap-on blackout cover, and interchangeable orange and grey trims. Sliding mounting bracket and 304 stainless steel side brackets. Hardened polycarbonate clear lens. IP68 rated. 50,000-hour LED lifespan.

Features and benefits

32 OSRAM GW LEDs in a single-row 41.5-inch bar: 7651 tested lumens across a wide illumination spread.

7651 tested lumens, 733 metres at 1 lux: Confirmed beam performance.

Combination beam pattern (6 flood + 20 spot + 6 flood): Extended width with strong forward reach from 20 centre spot LEDs.

5000K colour temperature: Matched to STEDI Sport Plus, Pro Plus, and EVO spotlights.

8-degree angled housing: Integrates with most bull bars; reversible for roof platform mounting.

IP68 waterproof.

Bolt-free exterior with jet black powdercoat finish.

Snap-on blackout cover included.

Interchangeable orange and grey trims.

Extruded aluminium housing with hardened polycarbonate clear lens.

Sliding mounting bracket and 304 stainless steel side brackets.

10-30V: Compatible with 12V and 24V vehicle electrical systems.

100W per unit, 8.4A at 12V / 4.2A at 24V.

50,000-hour LED lifespan.

Five-year warranty with Australian-based customer support.

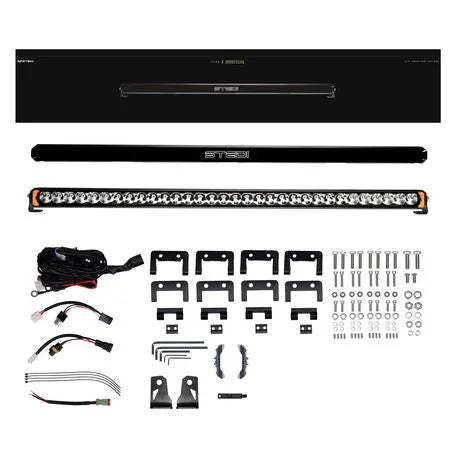

What's in the box

  • 1x Sport Plus single row light bar (combo)
  • 1x Protective STEDI blackout cover
  • 1x Powder coated 304 stainless steel side bracket set
  • 1x Wiring harness
  • 1x Mounting hardware set
  • 1x STEDI cover key tool
  • 1x Orange trims set
  • 1x Grey trims set
  • 1x Channel mounts and hardware

Technical specs

Specification Detail
SKU ST-02-SRT-132
Brand STEDI
Range Type-X Sport Plus
LED Type OSRAM GW LEDs
LED Count 32
Beam Pattern Combination (6 flood + 20 spot + 6 flood)
Lumens (Raw) 10500
Lumens (Tested) 7651
1 Lux (Metres) 733
Colour Temperature 5000K
IP Rating IP68
Operating Voltage 10-30V
Power Draw 100W
Amp Draw 8.4A at 12V / 4.2A at 24V
Operating Temperature -40°C to 60°C
Housing Material Extruded aluminium
Lens Type Clear polycarbonate
Finish Jet black powdercoat
Brackets 304 stainless steel
LED Lifespan 50,000 hours
Weight 3.22kg
Registered Designs 202615237 / 202615238
Warranty Five years

Frequently asked questions

What is the difference between the ST-02-SRT-132 and the ST-02-SRT-124?

The ST-02-SRT-132 is 41.5 inches with 32 LEDs, 7651 tested lumens, and 733 metres at 1 lux. The ST-02-SRT-124 is 31.5 inches with 24 LEDs, 5657 tested lumens, and 650 metres at 1 lux. Choose the ST-02-SRT-132 for greater width, output, and beam reach over a longer single-row bar.

What is the combination beam pattern on the ST-02-SRT-132?

The combination beam uses 6 flood LEDs on each outer end and 20 spot LEDs across the centre, delivering wide spread at closer range from the outer floods and strong forward reach from the central spots.

Can the ST-02-SRT-132 be mounted to a roof platform?

Yes. The 8-degree angled housing can be reversed when mounted to a roof platform, producing a more aggressive stance while maintaining the same beam output.

Is the ST-02-SRT-132 compatible with other STEDI lights?

Yes. The 5000K colour temperature is matched to STEDI's Sport Plus, Pro Plus, and EVO spotlight ranges for consistent light colour when used together.

What is the IP68 rating on the ST-02-SRT-132?

IP68 means the light bar is fully dust-tight and can withstand continuous submersion beyond 1 metre depth, providing complete waterproof protection for off-road and all-weather use.
