STEDI ST-02-SRT-124 Sport Plus 31.5" Single Row 24 LED Light Bar

SKU: ST02SRT124
Price
$299
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

STEDI Type-X Sport Plus ST-02-SRT-124 31.5 Inch Single Row LED Light Bar 24 OSRAM GW LEDs Combination Beam 5657 Tested Lumens 650 Metres at 1 Lux 5000K IP68 75W 10-30V Extruded Aluminium Jet Black Powdercoat

The STEDI Type-X Sport Plus ST-02-SRT-124 is a 31.5-inch single-row LED light bar with 24 OSRAM GW LEDs, combination beam pattern (4 flood + 16 spot + 4 flood), 5657 tested lumens, and 650 metres reach at 1 lux. 5000K colour temperature. IP68 waterproof. 75W, 10-30V. Extruded aluminium housing with jet black powdercoat finish. Includes 304 stainless steel brackets, wiring harness, blackout cover, interchangeable orange and grey trims, and mounting hardware. Five-year warranty.

Product overview

The Type-X Sport Plus ST-02-SRT-124 delivers 5657 tested lumens and 650 metres at 1 lux from 24 OSRAM GW LEDs across a 31.5-inch single-row bar. The longer bar spreads 16 spot LEDs across a wider centre section flanked by 4 flood LEDs on each outer end, providing an extended illumination width with strong forward reach suited to touring and serious off-road use. The 8-degree angled housing integrates with most bull bars and can be reversed for roof platform mounting. 5000K colour temperature matches STEDI Sport Plus, Pro Plus, and EVO spotlights. Bolt-free exterior, jet black powdercoat, snap-on blackout cover, and interchangeable orange and grey trims. Sliding mounting bracket and 304 stainless steel side brackets. Hardened polycarbonate clear lens. IP68 rated. 50,000-hour LED lifespan.

Features and benefits

24 OSRAM GW LEDs in a single-row 31.5-inch bar: 5657 tested lumens across a wide illumination spread.

5657 tested lumens, 650 metres at 1 lux: Confirmed beam performance.

Combination beam pattern (4 flood + 16 spot + 4 flood): Extended width with strong forward reach from 16 centre spot LEDs.

5000K colour temperature: Matched to STEDI Sport Plus, Pro Plus, and EVO spotlights.

8-degree angled housing: Integrates with most bull bars; reversible for roof platform mounting.

IP68 waterproof.

Bolt-free exterior with jet black powdercoat finish.

Snap-on blackout cover included.

Interchangeable orange and grey trims.

Extruded aluminium housing with hardened polycarbonate clear lens.

Sliding mounting bracket and 304 stainless steel side brackets.

10-30V: Compatible with 12V and 24V vehicle electrical systems.

75W per unit, 7A at 12V / 3.5A at 24V.

50,000-hour LED lifespan.

Five-year warranty with Australian-based customer support.

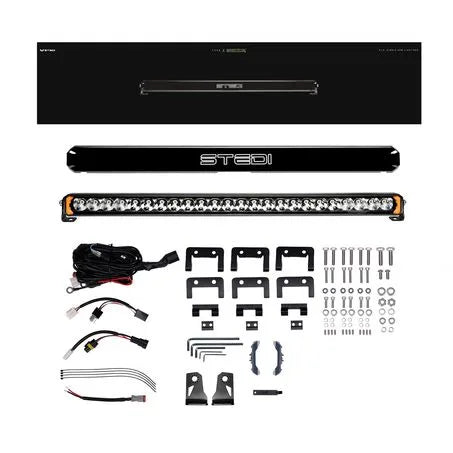

What's in the box

  • 1x Sport Plus single row light bar (combo)
  • 1x Protective STEDI blackout cover
  • 1x Powder coated 304 stainless steel side bracket set
  • 1x Wiring harness
  • 1x Mounting hardware set
  • 1x STEDI cover key tool
  • 1x Orange trims set
  • 1x Grey trims set
  • 1x Channel mounts and hardware

Technical specs

Specification Detail
SKU ST-02-SRT-124
Brand STEDI
Range Type-X Sport Plus
LED Type OSRAM GW LEDs
LED Count 24
Beam Pattern Combination (4 flood + 16 spot + 4 flood)
Lumens (Raw) 7500
Lumens (Tested) 5657
1 Lux (Metres) 650
Colour Temperature 5000K
IP Rating IP68
Operating Voltage 10-30V
Power Draw 75W
Amp Draw 7A at 12V / 3.5A at 24V
Operating Temperature -40°C to 60°C
Housing Material Extruded aluminium
Lens Type Clear polycarbonate
Finish Jet black powdercoat
Brackets 304 stainless steel
LED Lifespan 50,000 hours
Weight 2.55kg
Registered Designs 202615237 / 202615238
Warranty Five years

Frequently asked questions

What is the difference between the ST-02-SRT-124 and the ST-02-SRT-116?

The ST-02-SRT-124 is 31.5 inches with 24 LEDs, 5657 tested lumens, and 650 metres at 1 lux. The ST-02-SRT-116 is 21.5 inches with 16 LEDs, 3664 tested lumens, and 519 metres at 1 lux. Choose the ST-02-SRT-124 for greater width, output, and reach over a longer single-row bar.

What is the combination beam pattern on the ST-02-SRT-124?

The combination beam uses 4 flood LEDs on each outer end and 16 spot LEDs across the centre, delivering wide spread at closer range from the outer floods and strong forward reach from the central spots.

Can the ST-02-SRT-124 be mounted to a roof platform?

Yes. The 8-degree angled housing can be reversed when mounted to a roof platform, producing a more aggressive stance while maintaining the same beam output.

Is the ST-02-SRT-124 compatible with other STEDI lights?

Yes. The 5000K colour temperature is matched to STEDI's Sport Plus, Pro Plus, and EVO spotlight ranges for consistent light colour when used together.

What is the IP68 rating on the ST-02-SRT-124?

IP68 means the light bar is fully dust-tight and can withstand continuous submersion beyond 1 metre depth, providing complete waterproof protection for off-road and all-weather use.
