STEDI ST-02-SRT-104 Sport Plus 7.5
STEDI ST-02-SRT-104 Sport Plus 7.5" Single Row 4 LED Light Bar
STEDI ST-02-SRT-104 Sport Plus 7.5
STEDI ST-02-SRT-104 Sport Plus 7.5" Single Row 4 LED Light Bar
STEDI ST-02-SRT-104 Sport Plus 7.5
STEDI ST-02-SRT-104 Sport Plus 7.5" Single Row 4 LED Light Bar
Click to open expanded view
STEDI logo

STEDI ST-02-SRT-104 Sport Plus 7.5" Single Row 4 LED Light Bar

SKU: ST02SRT104
Price
$99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

STEDI Type-X Sport Plus ST-02-SRT-104 7.5 Inch Single Row LED Light Bar 4 OSRAM GW LEDs Combination Beam 866 Tested Lumens 251 Metres at 1 Lux 5000K IP68 12W 10-30V Extruded Aluminium Jet Black Powdercoat

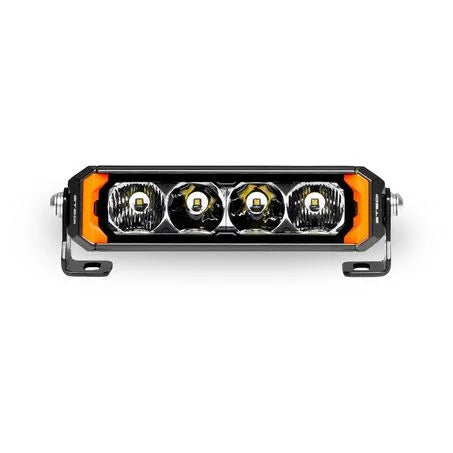

The STEDI Type-X Sport Plus ST-02-SRT-104 is a 7.5-inch single-row LED light bar with 4 OSRAM GW LEDs, combination beam pattern (1 flood + 2 spot + 1 flood), 866 tested lumens, and 251 metres reach at 1 lux. 5000K colour temperature. IP68 waterproof. 12W, 10-30V. Extruded aluminium housing with jet black powdercoat finish. Includes 304 stainless steel brackets, blackout cover, interchangeable orange and grey trims, and mounting hardware. Five-year warranty.

Product overview

The Type-X Sport Plus ST-02-SRT-104 steps up from the 4.3-inch ST-02-SRT-102 with four OSRAM GW LEDs in a combination beam configuration, 1 flood, 2 spot, 1 flood delivering 866 tested lumens and a beam reaching 251 metres at 1 lux for a wider and longer illumination profile. The 8-degree angled housing integrates with most bull bars and can be reversed for roof platform mounting. 5000K colour temperature matches STEDI Sport Plus, Pro Plus, and EVO spotlights. Bolt-free exterior, jet black powdercoat, snap-on blackout cover, and interchangeable orange and grey trims. Sliding mounting bracket and 304 stainless steel side brackets allow post-fitment position adjustment. Hardened polycarbonate clear lens. IP68 rated. 50,000-hour LED lifespan.

Features and benefits

4 OSRAM GW LEDs: High-performance LED technology delivering 866 tested lumens from a 7.5-inch single-row bar.

866 tested lumens, 251 metres at 1 lux: Confirmed beam performance for real-world off-road visibility.

Combination beam pattern (1 flood + 2 spot + 1 flood): Blends wide flood spread with spot reach for versatile illumination.

5000K colour temperature: Improves contrast and reduces eye fatigue. Matched to STEDI Sport Plus, Pro Plus, and EVO spotlights.

8-degree angled housing: Integrates with most bull bars; reversible for roof platform mounting.

IP68 waterproof: Fully sealed for Australia's harshest environments.

Bolt-free exterior with jet black powdercoat finish.

Snap-on blackout cover included.

Interchangeable orange and grey trims.

Extruded aluminium housing with hardened polycarbonate clear lens.

Sliding mounting bracket and 304 stainless steel side brackets.

10-30V: Compatible with 12V and 24V vehicle electrical systems.

12W per unit, 1A at 12V / 0.5A at 24V.

50,000-hour LED lifespan.

Five-year warranty with Australian-based customer support.

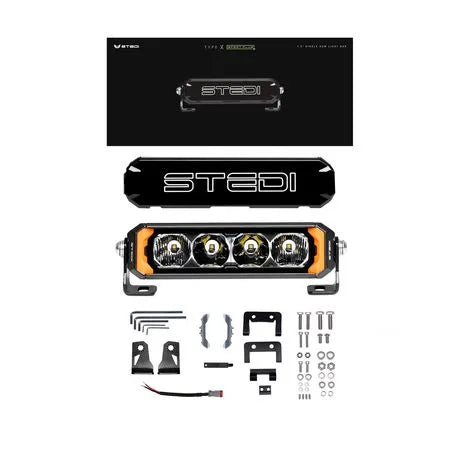

What's in the box

  • 1x Sport Plus single row light bar (combo)
  • 1x Protective STEDI blackout cover
  • 1x Powder coated 304 stainless steel side bracket set
  • 1x Mounting hardware set
  • 1x STEDI cover key tool
  • 1x Orange trims set
  • 1x Grey trims set
  • 1x Channel mounts and hardware

Technical specs

Specification Detail
SKU ST-02-SRT-104
Brand STEDI
Range Type-X Sport Plus
LED Type OSRAM GW LEDs
LED Count 4
Beam Pattern Combination (1 flood + 2 spot + 1 flood)
Lumens (Raw) 1200
Lumens (Tested) 866
1 Lux (Metres) 251
Colour Temperature 5000K
IP Rating IP68
Operating Voltage 10-30V
Power Draw 12W
Amp Draw 1A at 12V / 0.5A at 24V
Operating Temperature -40°C to 60°C
Housing Material Extruded aluminium
Lens Type Clear polycarbonate
Finish Jet black powdercoat
Brackets 304 stainless steel
LED Lifespan 50,000 hours
Weight 0.88kg
Registered Designs 202615237 / 202615238
Warranty Five years

Frequently asked questions

What is the combination beam pattern on the ST-02-SRT-104?

The combination beam uses a 1 flood + 2 spot + 1 flood LED arrangement, blending a wide flood spread at closer range with the focused reach of spot LEDs in the centre. This provides both width and distance in a single bar.

What is the difference between the ST-02-SRT-104 and the ST-02-SRT-102?

The ST-02-SRT-104 is 7.5 inches with 4 LEDs, 866 tested lumens, and a combination beam reaching 251 metres at 1 lux. The ST-02-SRT-102 is 4.3 inches with 2 LEDs, 472 tested lumens, and a flood beam reaching 89 metres at 1 lux. Choose the ST-02-SRT-104 for greater reach and a wider illumination profile.

Can the ST-02-SRT-104 be mounted to a roof platform?

Yes. The 8-degree angled housing can be reversed when mounted to a roof platform, producing a more aggressive stance while maintaining the same beam output.

Is the ST-02-SRT-104 compatible with other STEDI lights?

Yes. The 5000K colour temperature is matched to STEDI's Sport Plus, Pro Plus, and EVO spotlight ranges for consistent light colour when used together.

What is the IP68 rating on the ST-02-SRT-104?

IP68 means the light bar is fully dust-tight and can withstand continuous submersion beyond 1 metre depth, providing complete waterproof protection for off-road and all-weather use.
