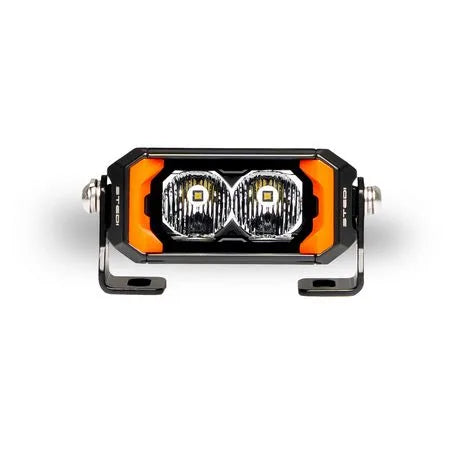

STEDI ST-02-SRT-102 Sport Plus 4.3" Single Row 2 LED Light Bar

SKU: ST02SRT102
Price
$49
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

STEDI Type-X Sport Plus ST-02-SRT-102 4.3 Inch Single Row LED Light Bar 2 OSRAM GW LEDs Flood Beam 472 Tested Lumens 89 Metres at 1 Lux 5000K IP68 6.7W 10-30V Extruded Aluminium Jet Black Powdercoat

The STEDI Type-X Sport Plus ST-02-SRT-102 is a 4.3-inch single-row LED light bar with 2 OSRAM GW LEDs, flood beam pattern, 472 tested lumens, and 89 metres reach at 1 lux. 5000K colour temperature. IP68 waterproof. 6.7W, 10-30V. Extruded aluminium housing with jet black powdercoat finish. Includes 304 stainless steel brackets, blackout cover, wiring harness, interchangeable orange and grey trims, and mounting hardware. Five-year warranty.

Product overview

The Type-X Sport Plus light bar is STEDI's best-value light bar range, combining high-performance OSRAM GW LEDs with a precision-designed 8-degree angled housing that integrates cleanly into most bull bar profiles. The 4.3-inch two-LED flood configuration delivers 472 tested lumens and a beam reaching 89 metres at 1 lux, with 5000K colour temperature for improved contrast and reduced eye fatigue. The housing can be reversed when mounted to a roof platform for a more aggressive stance. Larger reflectors and optimised optics provide a wider illumination spread. The exterior is bolt-free with a jet black powdercoat finish and snap-on blackout cover. Interchangeable orange and grey trims allow colour customisation. Sliding mounting bracket and stainless steel side brackets allow adjustment of the mounting position after fitment. Hardened polycarbonate clear lens. IP68 rated. 50,000-hour LED lifespan.

Features and benefits

2 OSRAM GW LEDs: High-performance LED technology delivering 20% more lumen output than previous STEDI generations.

472 tested lumens, 89 metres at 1 lux: Confirmed beam performance for real-world visibility.

Flood beam pattern: Wide light spread for close to mid-range illumination.

5000K colour temperature: Improves contrast and reduces eye fatigue. Compatible with STEDI Sport Plus, Pro Plus, and EVO spotlights.

8-degree angled housing: Integrates with most bull bars and can be reversed for roof platform mounting.

IP68 waterproof: Fully sealed for use in Australia's harshest environments.

Bolt-free exterior with jet black powdercoat finish.

Snap-on blackout cover included.

Interchangeable orange and grey trims: Customisable appearance.

Extruded aluminium housing with hardened polycarbonate clear lens.

Sliding mounting bracket and 304 stainless steel side brackets.

10-30V: Compatible with 12V and 24V vehicle electrical systems.

6.7W per unit, 0.56A at 12V / 0.28A at 24V.

50,000-hour LED lifespan.

Five-year warranty with Australian-based customer support.

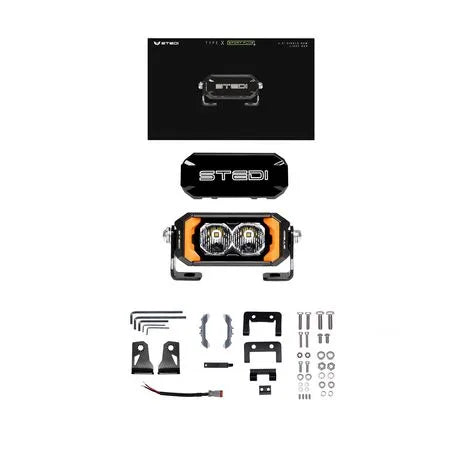

What's in the box

  • 1x Sport Plus single row light bar (flood)
  • 1x Protective STEDI blackout cover
  • 1x Powder coated 304 stainless steel side bracket set
  • 1x Mounting hardware set
  • 1x STEDI cover key tool
  • 1x Orange trims set
  • 1x Grey trims set
  • 1x Channel mounts and hardware

Technical specs

Specification Detail
SKU ST-02-SRT-102
Brand STEDI
Range Type-X Sport Plus
LED Type OSRAM GW LEDs
LED Count 2
Beam Pattern Flood
Lumens (Raw) 600
Lumens (Tested) 472
1 Lux (Metres) 89
Colour Temperature 5000K
IP Rating IP68
Operating Voltage 10-30V
Power Draw 6.7W
Amp Draw 0.56A at 12V / 0.28A at 24V
Operating Temperature -40°C to 60°C
Housing Material Extruded aluminium
Lens Type Clear polycarbonate
Finish Jet black powdercoat
Brackets 304 stainless steel
LED Lifespan 50,000 hours
Weight 0.66kg
Registered Designs 202615237 / 202615238
Warranty Five years

Frequently asked questions

What LEDs does the ST-02-SRT-102 use?

The ST-02-SRT-102 uses OSRAM GW LEDs, delivering 472 tested lumens and a beam reaching 89 metres at 1 lux from a 2-LED flood configuration.

Can the ST-02-SRT-102 be mounted to a roof platform?

Yes. The 8-degree angled housing can be reversed when mounted to a roof platform, producing a more aggressive stance while maintaining the same beam output.

What trims are included and can they be changed?

The ST-02-SRT-102 includes interchangeable orange and grey trims for colour customisation. Trims can be swapped using the included cover key tool.

Is the ST-02-SRT-102 compatible with other STEDI lights?

Yes. The 5000K colour temperature is matched to STEDI's Sport Plus, Pro Plus, and EVO spotlight ranges for a consistent light colour when used together.

What is the IP68 rating on the ST-02-SRT-102?

IP68 means the light bar is fully dust-tight and can withstand continuous submersion beyond 1 metre depth, providing complete waterproof protection for off-road and all-weather use.
