STEDI ST-01-SRT-801 | 8.5" LED Driving Lights | Type-X™ Sport Plus

Smarter. Sharper. Stronger. Type-X Sport Plus Sets a New Standard!

PERFORMANCE REIMAGINED.
Introducing Type-X Sport Plus. A reimagined evolution of the renowned Type-X Sport.  Available in 8.5” and 7”, Type-X Sport Plus incorporates state-of-the-art technology and modern aesthetics to create a refined LED driving light that yet again sets a new standard.

PLUS DISTANCE, PLUS FLOOD.

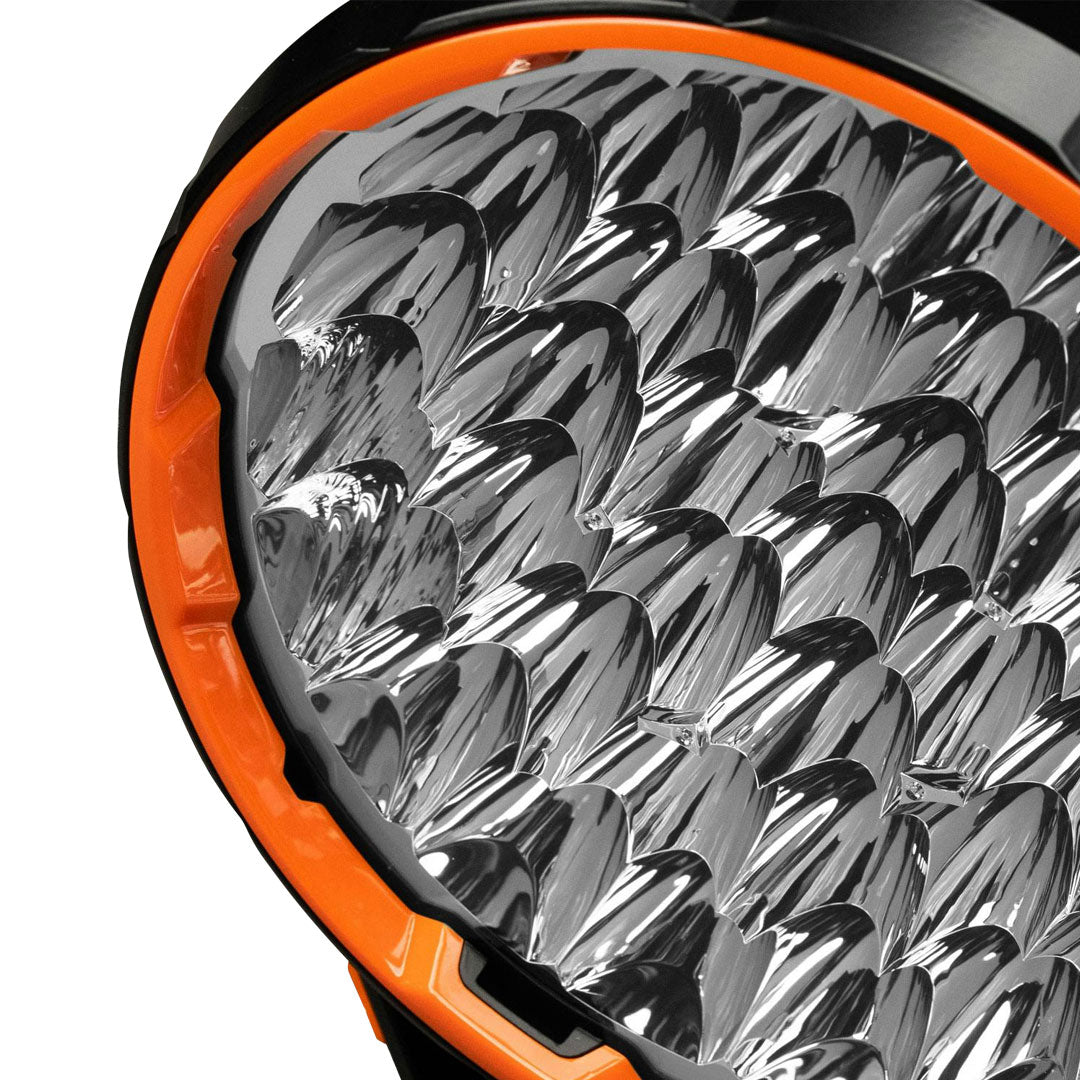

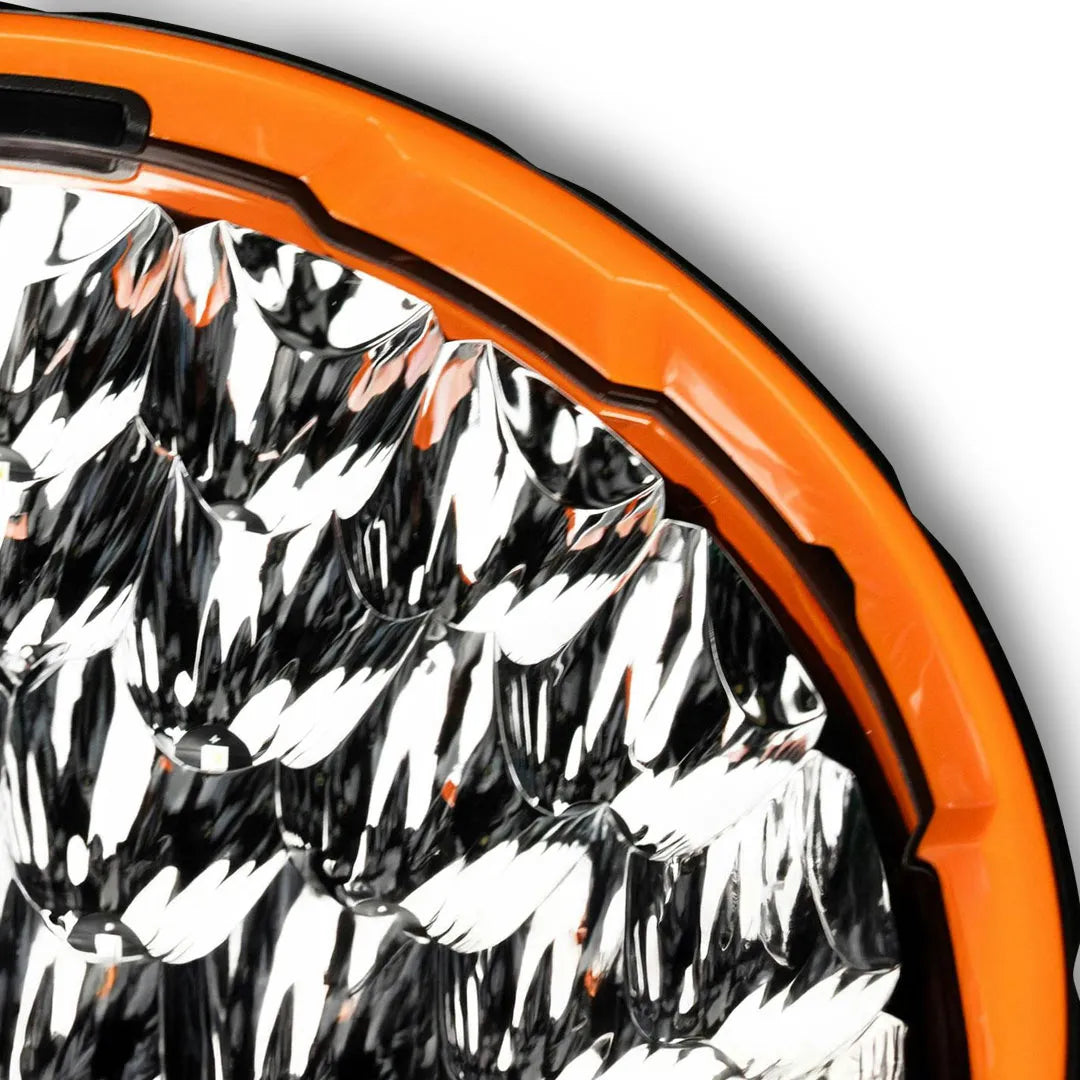

Type-X Sport Plus receives a significant increase in beam distance as well as flood. Both size variants will throw light well over 1km down the road, however it was crucial to us to additionally provide more flood and illuminate the critical zones of the road with precision. The integrated wide-beam optics ensure excellent near-field illumination, blending seamlessly to eliminate hot spots and provide a smooth driving beam. Taking learnings from the Type-X EVO range, the optimised 5000k colour temperature has been integrated into Type-X Sport Plus, reducing eye fatigue over sustained periods of use.

NEW CUSTOMISATION.
Taking design cues from Type-X Sport, every detail of Type-X Sport Plus has been carefully considered, including a slimmer profile and a modernised bracket system that maintains functionality while enhancing the design. The new interchangeable colour fascia adds a new level of customisation to the Type-X Sport category.

MOUNTING SOLUTIONS

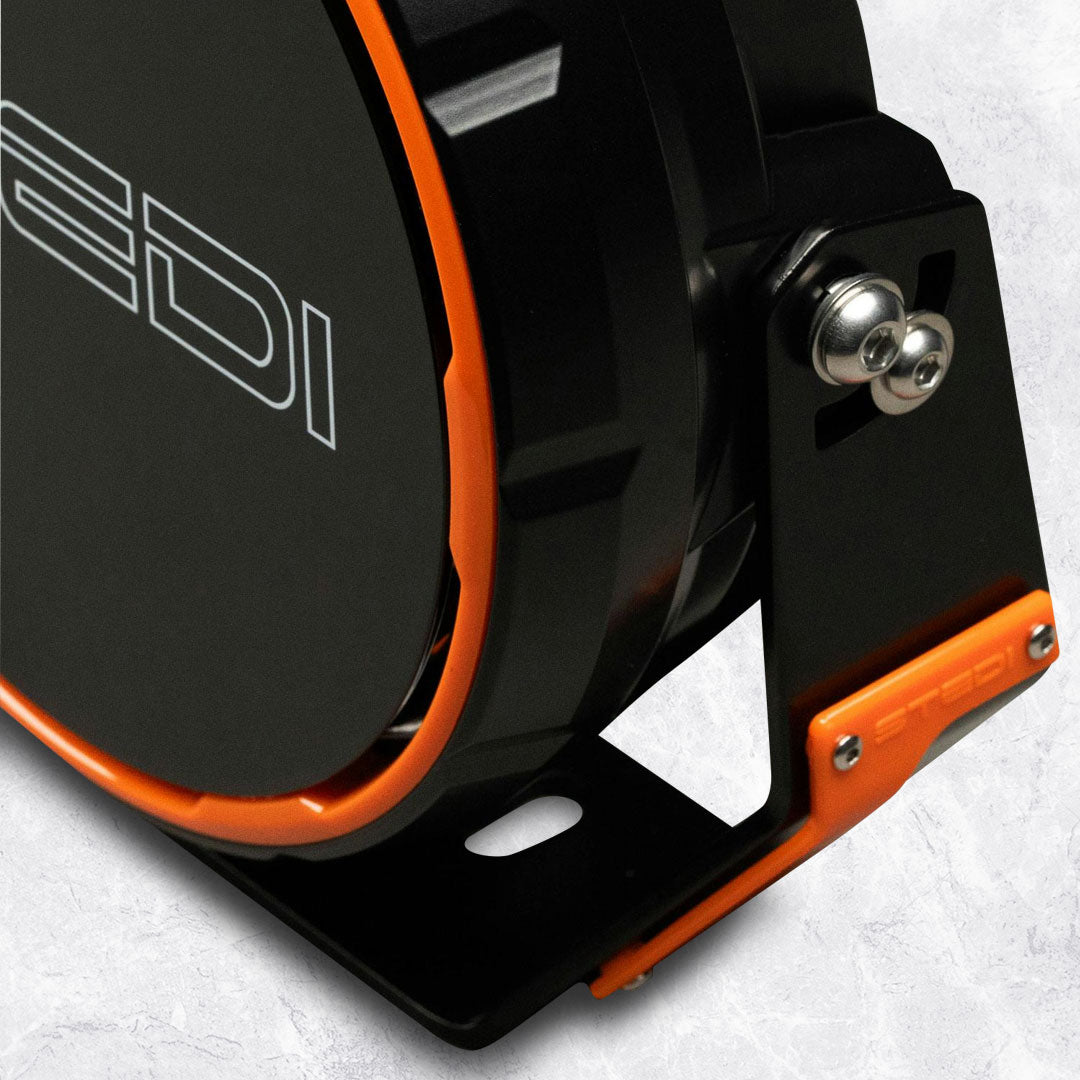

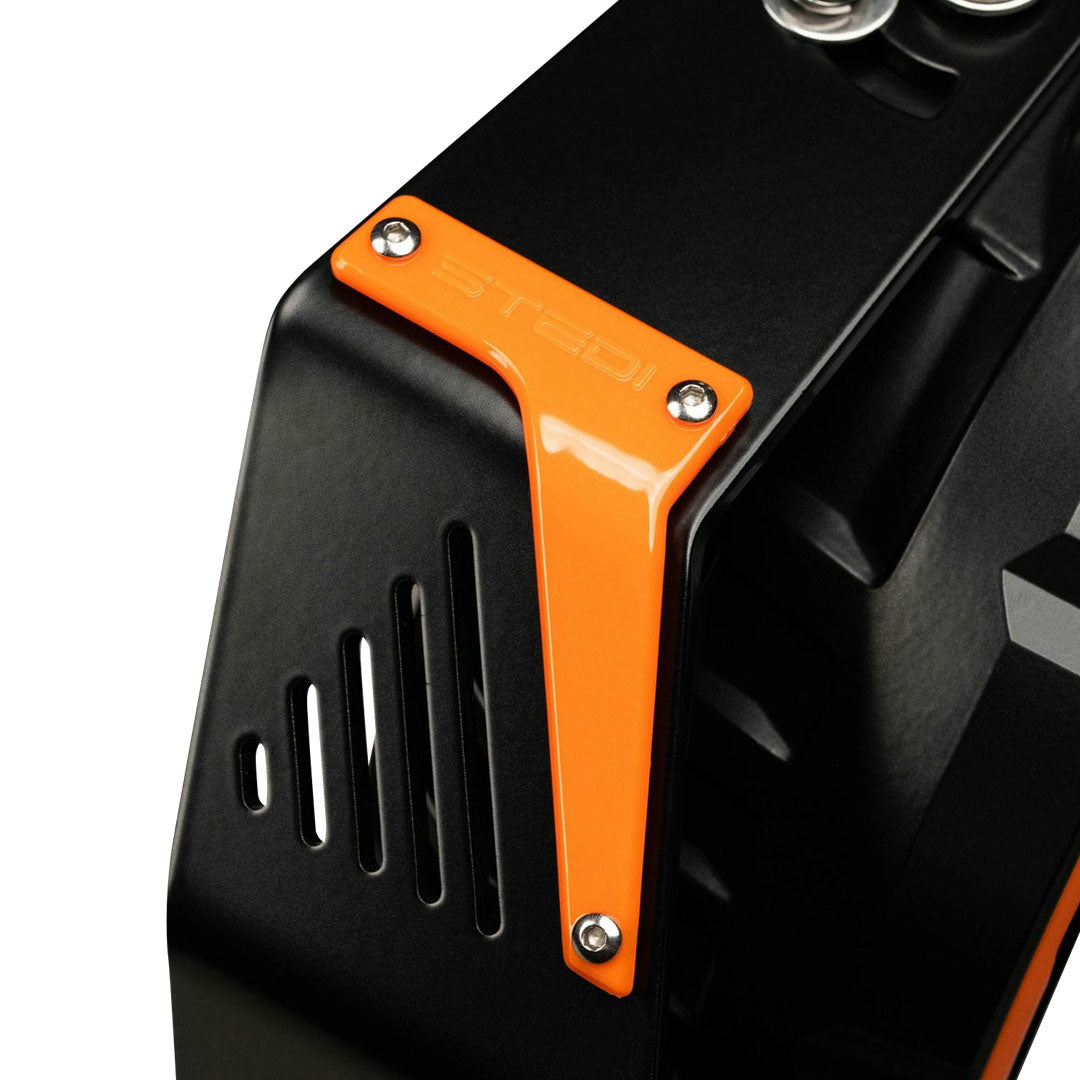

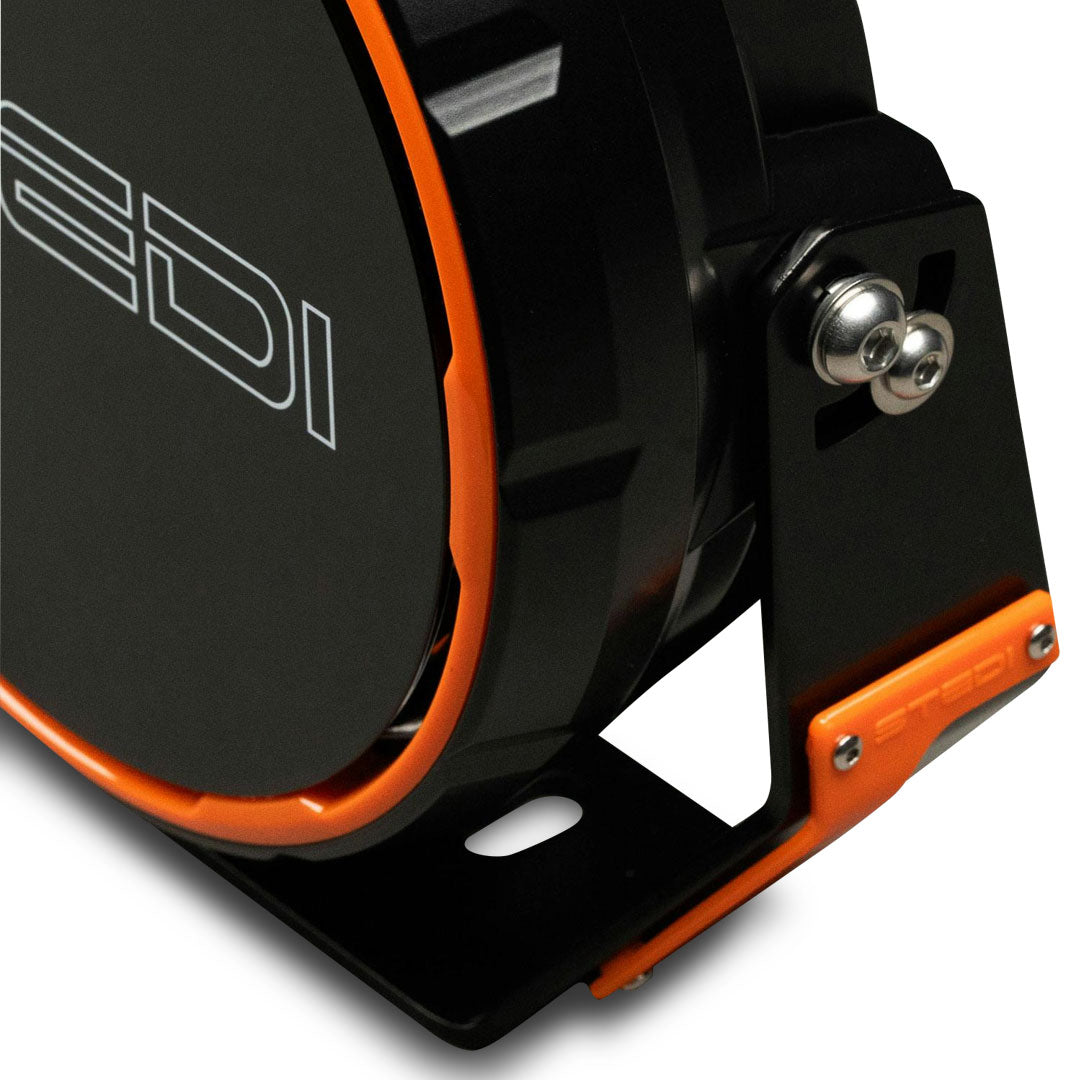

The Type-X Sport Plus has been designed for ease of installation and customisation. Featuring a re-engineered bracket system with minimal clearance, it ensures a streamlined, unobtrusive fit for modern and heritage bull bars. The new onboarding DTP plug simplifies installation with a plug-and-play system.

The nitty gritty.
We are proud to welcome the Sport Plus into the STEDI™ family—a reimagined evolution of a timeless classic and one of the most cost-effective driving lights on the market, all without compromising performance or quality. This advanced lighting solution is meticulously engineered to enhance visibility in any driving condition, making it the perfect companion for challenging off-road environments and diverse seasonal elements. As the saying goes, “Why reinvent the wheel?” or enhance something already deemed exceptional? At STEDI™, we believe in the power of forward-thinking and continuous improvement. Our engineering and design teams embraced this challenge, and the result speaks for itself. The Sport Plus seamlessly elevates the renowned Type-X™ Sport series with the signature STEDI™ refinement, delivering superior performance that even exceeded our own expectations. By integrating state-of-the-art technology and exceptional design, the Sport Plus represents a new pinnacle in driving light innovation. The Sport Plus is available in the same sizing options as its predecessors—8.5-inch and 7-inch models—featuring a combination of spot and flood reflectors for optimal optical performance.

STEDI ST-01-SRT-801 Specifications:

• LED 30x OSRAM P8 + 6x CREE XP20

• RAW LUMENS 19,020 Lm (each)

• TESTED LUMENS 12,385 Lm (each) | 24,770 Lm (Pair)

• AMP DRAW 4.5A @ 24v (each)

• POWER DRAW 108W (each)

• CANDELA 601,464 (Single) / 1,202,928(Pair)

• BEAM PATTERN Combo (32 Spot + 4 Flood)

• INGRESS PROTECTION IP68 | Submersible up to 3m

• COLOUR TEMP (CCT) 5000K

• VOLTAGE COMPATIBILITY 10v & 30v

• LUMEN MAINTENANCE 50,000 LM-80

• WEIGHT 3.35kg (each)

• OPERATING TEMP -40°C - 60°C

• PHOTOMETRIC DATA 770 m 1 Lx (Single), 1,192 m 1 Lx (Pair)

What's Included:

• 2 x STEDI™ 8.5" Type-X™ Sport Plus LED Driving Lights

• 2 x Protective STEDI™ Blackout Covers

• 2 x Orange Coloured Fascias

• 2 x Grey Coloured Fascias

• 2 x Orange Coloured Shoulder Trim

• 2 x Grey Coloured Shoulder Trim

• 1 x Fascia Key Tool

• 1 x STEDI™ Smart High Beam Wiring Harness

• 2 x Stainless Steel Mounting Brackets

• 2 x Mounting Hardware (Set)

• 2 x Bracket Shock Dampeners

• 1 x Wiring & Fitting Instructions
