STEDI SNGL-X1-SPORT-8-5INCH 8.5" Single (1x Light) Type-X™ Sport

The Nitty Gritty.

High Performance - Accessible Price

Get to know the Type-X™ Sport; our most affordable driving light yet. The goal of STEDI™ is to offer high-performance, high-quality driving lights at accessible prices. Compare the build quality, performance, and list of inclusions with other offerings on the market and you will conclude that our Type-X™ Sport is peerless.

Legendary Type-X™ DNA

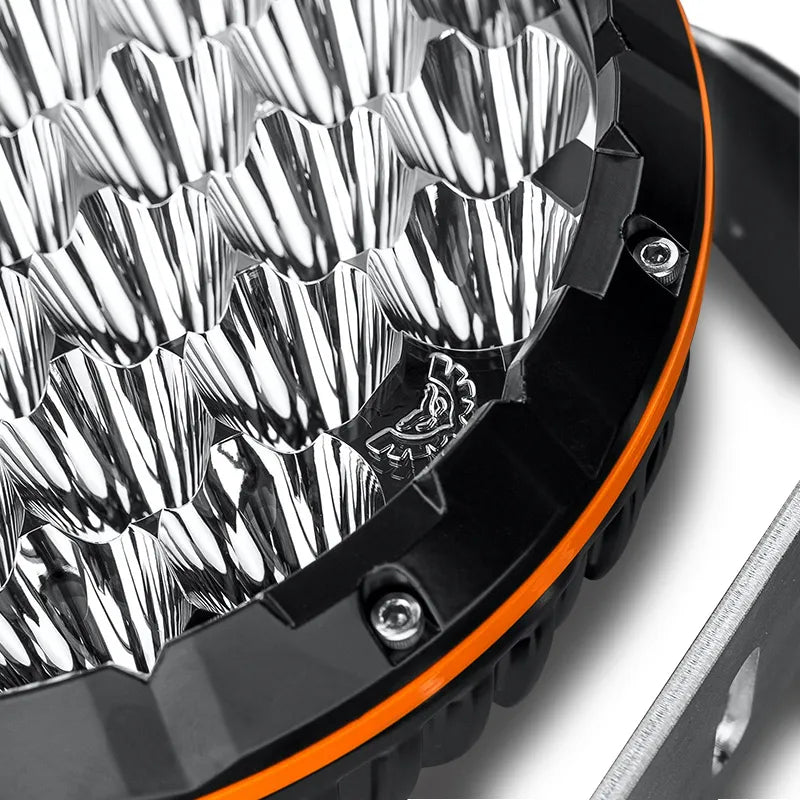

All-new reflector geometry, all-new LEDs, and all-new housing. We’ve increased the depth of the optics by 35% allowing for a perfectly collimated beam and the resultant increase in light intensity. The beam diameter strikes a sublime balance between width and throw, sending light right out to 1,050m. Four dedicated built-in wide-beam optics disperse light evenly into the nearfield, and transition beautifully with the spot beam.

STEDI™ Design Language

Some people call it the little things; for us, it is literally everything. We have obsessed over the most trivial geometries and design elements to achieve a visually stunning luminaire. The accompanying brackets (with the laser-cut STEDI™ branding) will allow the Type-X™ Sport to be mounted on a range of locations on your vehicle.

The Nerdy Details

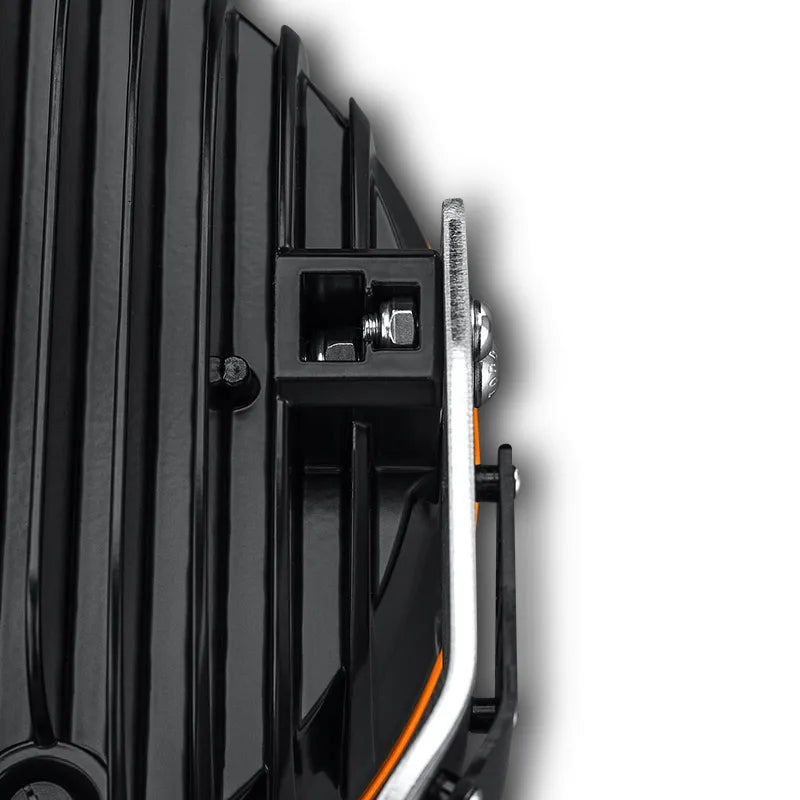

• 4mm thick 304 Series Stainless Mounting bracket, which includes rubber dampener and an additional 3mm upper plate.

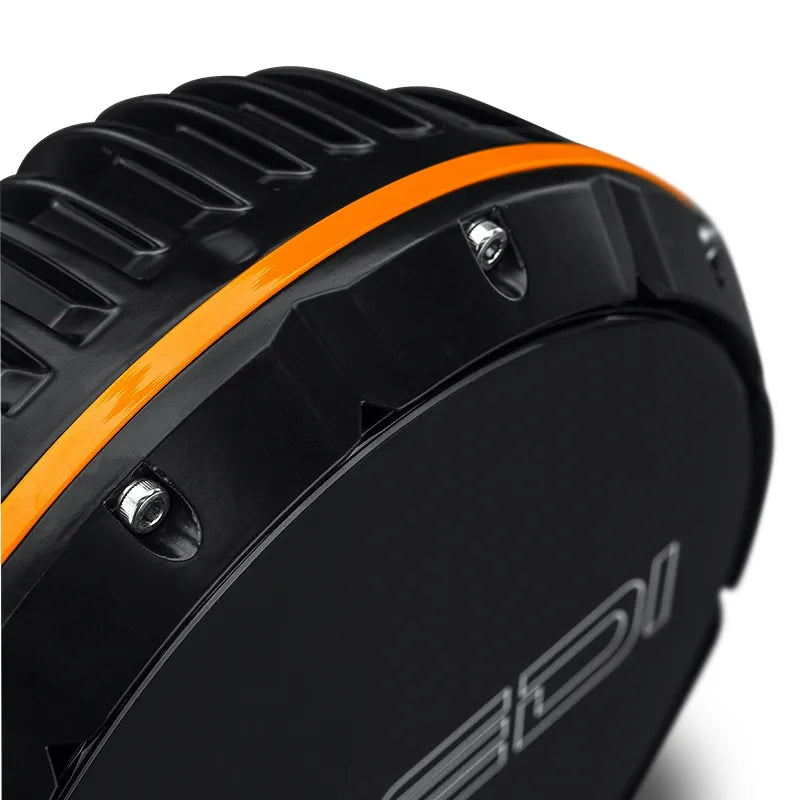

• A360.0 Cast Housing | Boasting superior strength and corrosion resistance.
• 3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable & scratch resistant
• 100% Polyester UV and abrasion resistant powder coat
• IP68 | Dust & Particle tight + Water-proof up to 3 meters
• Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust & contaminants.

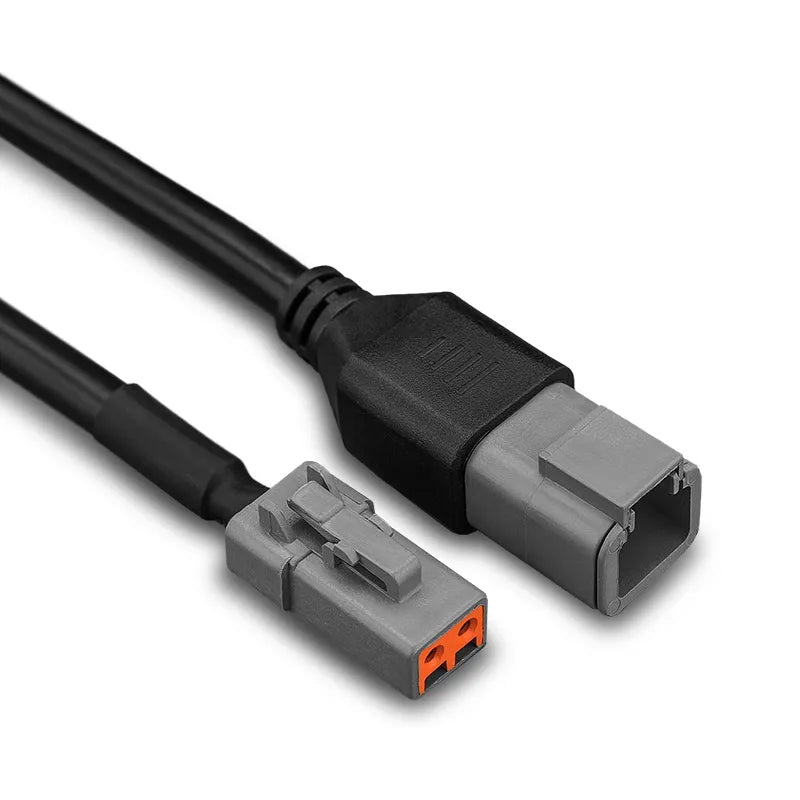

• Environmentally Sealed Deutsch® DTP-2 connector
• EMI & RFI Suppression circuitry – We guarantee it.
• Each TYPE-X Sport comprises 36 of OSRAM’s® finest OSLON® LED, selected for its high luminous flux and perfectly matches optical properties.
• Four wide-beam reflectors built-in, which form a lateral shaped flood pattern designed to minimize valuable light wasted up to the sky. Also available separately are the snap-on wide-beam covers, for environments demanding an increased peripheral vision.
• 5700K CCT offers stunning clarity and definition with excellent Colour Rendering Index (CRI)
• Does Not Include Wiring Harness

Dimensions:

Specifications:

• LED: 36 x Osram Oslon SSL
• Raw Lumens: 10, 390
• Tested Lumens: 7, 475
• AMP Draw: 9.8A @ 13.2v
• Power Draw: 129W
• Candela: cd
• Beam Pattern: 4 x Spread 32 x Spot Beam
• Ingress Protection: IP68 | Submersible up to 3m
• Colour Temp (CCT): 5700K
• Voltage Compatibility: 12v & 24v
• Lumen Maintenance: 50,000 LM-80
• Weight: 3.35kg

Photometric Data

• 10 m 11,025Lx
• 50 m 441Lx
• 200 m 27Lx
• 300 m 12Lx
• 400 m 6Lx
• 1,000 m 1.1Lx
• 1,050 m 1Lx

What's In The Box:

• 1 x STEDI TYPE-X Sport

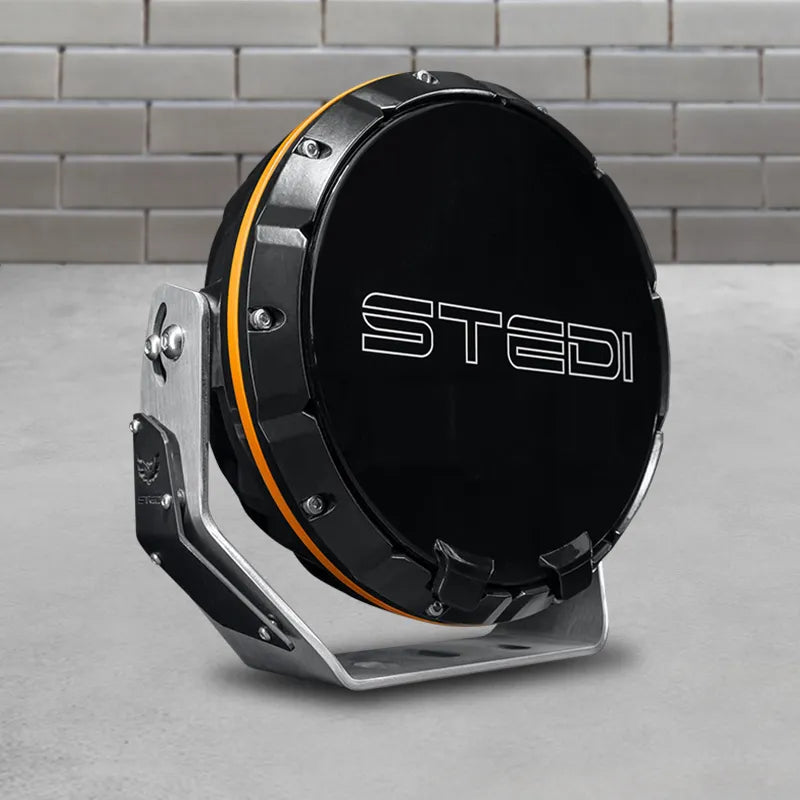

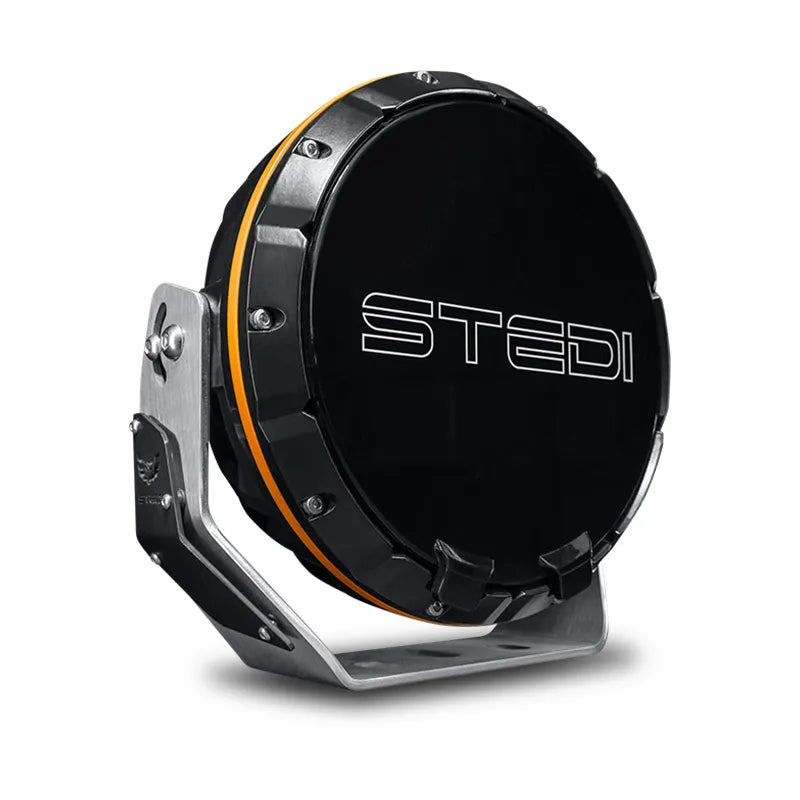

• 1 x STEDI Black Out Covers
• 3 Series Stainless Steel Nuts and Bolts
• Rubber Shock Dampener
