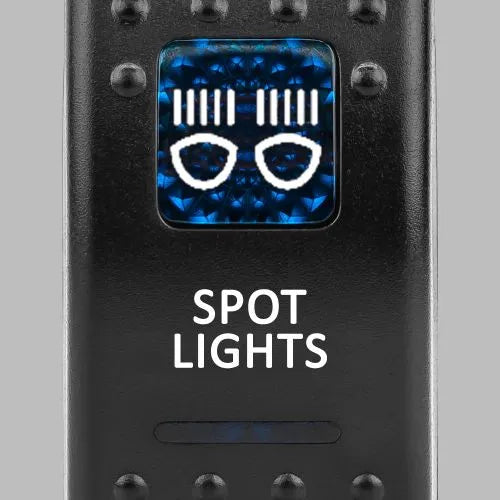

STEDI ROKSWCH-SPOT Carling Type Rocker Switch for 4x4 Spot Lights Back Lit Blue
Click to open expanded view
STEDI logo

STEDI ROKSWCH-SPOT Carling Type Rocker Switch for 4x4 Spot Lights Back Lit Blue

SKU: ROKSWCHSPOT
Price
$19
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

The Nitty Gritty.

STEDI high quality 12 volt Rocker Switch.

Single throw ON / OFF switch designed to operate 12 volt driving lights. Switch surface size is 49mm x 25mm and uses a standard din size mounting hole of 36mm x 22mm, which is the standard size in most vehicles. Please ensure you check these measurements to ensure correct fitment.

  • Single Pole Single Throw ON - OFF switch
  • Robust design
  • Upper backlight light is ON when the switch is pressed UP.
  • Lower backlight can be wired to your dash light circuit for constant backlight to switch
  • Waterproof rating of IP66.
  • Same size as the switches sold at well-known 4x4 store
  • Rated 20A 12V / 24v 10A
  • 5 pin
  • Wiring diagram supplied with switch.
  • Cutout dimensions 21mm x 36.83mm

Whilst our rocket switches are 20amp rated, we strongly recommend that power is run via inline fuse.

All graphic and text are printed on switch face using state of the inks to ensure long life. Unlike imitation switches that use stickers prone to wear.

Fits Like a Glove.

Suited to fit all vehicles with holder dimensions of 36.83mm x 21mm. Available in 21 variants of print from light related to accessories and auxiliary throughout your vehicle.

Dash Illumination.

Simple On/Off function with dash & power illumination, text lighting up whilst the vehicle's dash lights are active and icon when the chosen device is currently active. Blue backlit illumination.

Wiring Diagram:

Specifications:

  • Cutout Dimensions: 21mm x 36.83mm
  • Holder Dimensions: 36.83mm x 21mm
  • Rating: 20A 12V / 24v 10A
  • Waterproof Rating: IP66
