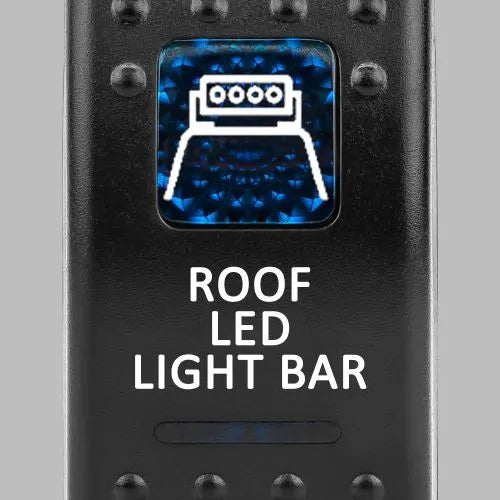

STEDI ROKSWCH-ROOF Carling Type Rocker Switch for 4x4 Roof LED Light Bar Back Lit Blue

The Nitty Gritty.

STEDI high quality 12 volt Rocker Switch.

Single throw ON / OFF switch designed to operate 12 volt driving lights. Switch surface size is 49mm x 25mm and uses a standard din size mounting hole of 36mm x 22mm, which is the standard size in most vehicles. Please ensure you check these measurements to ensure correct fitment.

• Single Pole Single Throw ON - OFF switch
• Robust design
• Upper backlight light is ON when the switch is pressed UP.
• Lower backlight can be wired to your dash light circuit for constant backlight to switch
• Waterproof rating of IP66.
• Same size as the switches sold at well-known 4x4 store
• Rated 20A 12V / 24v 10A
• 5 pin
• Wiring diagram supplied with switch.
• Cutout dimensions 21mm x 36.83mm

Whilst our rocket switches are 20amp rated, we strongly recommend that power is run via inline fuse.

All graphic and text are printed on switch face using state of the inks to ensure long life. Unlike imitation switches that use stickers prone to wear.

Fits Like a Glove.

Suited to fit all vehicles with holder dimensions of 36.83mm x 21mm. Available in 21 variants of print from light related to accessories and auxiliary throughout your vehicle.

Dash Illumination.

Simple On/Off function with dash & power illumination, text lighting up whilst the vehicle's dash lights are active and icon when the chosen device is currently active. Blue backlit illumination.

Wiring Diagram:

Specifications:

• Cutout Dimensions: 21mm x 36.83mm
• Holder Dimensions: 36.83mm x 21mm
• Rating: 20A 12V / 24v 10A
• Waterproof Rating: IP66

What's In The Box:

• Carling Type Rocker Switch (in selected style).
