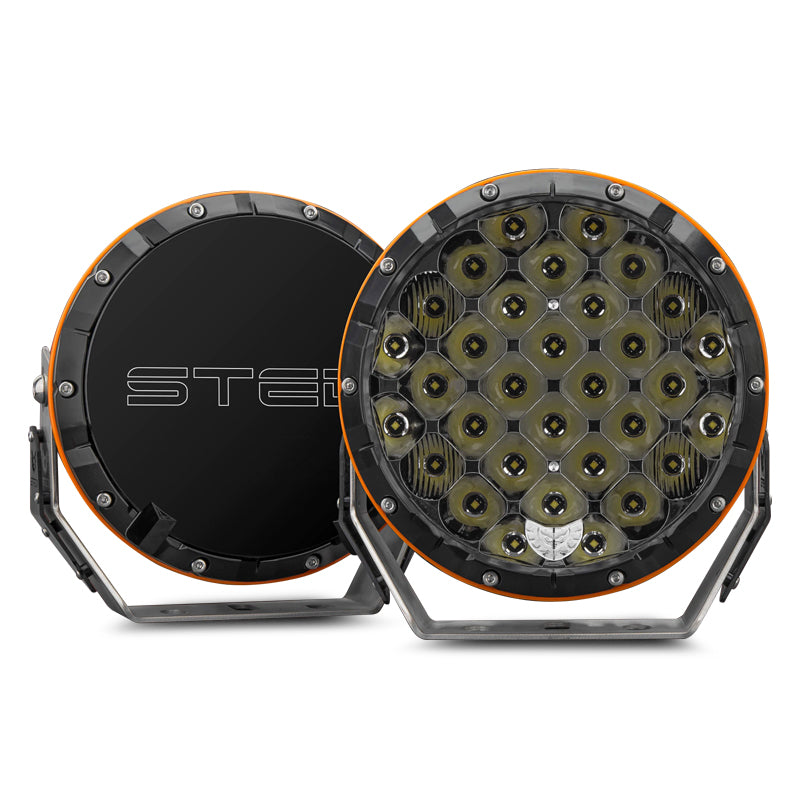

STEDI LEDTYPE-X-SRT-7INCH 7" Type-X™ Sport LED 4WD Spotlights - Pair

Deliver Unrivaled Road/Shoulder Illumination & Unmatched Driving Confidence!

STEDI™ DESIGN LANGUAGE.
Some people call it the little things. For us, it is literally everything. We obsessed over even the most trivial geometries and design elements to achieve a visually stunning luminaire. The 4mm 304 Stainless steel bracket features our signature shoulder armour with laser-cut STEDI™ branding. A carefully considered orange rim surrounding the housing offers just the right amount of visual impact while ensuring that the overall look and feel play nicely equally on a Sandy Taupe Landcruiser as it will on a Magnetic Grey Ranger.

LEGENDARY TYPE-X DNA.
It's been a few years since the inception of the original Type-X™. We’ve taken an already proven platform and completely redesigned it from the ground up. The 7" Type-X™ Sport features an increased optics depth of 35%, allowing for a perfectly collimated beam and the resultant increase in light intensity. The beam diameter strikes a sublime balance between width and throw, sending light right out to 895m. Four dedicated built-in wide-beam optics disperse light in the near field and transition beautifully with the spot beam.

HIGH PERFORMANCE - ACCESSIBLE PRICE.
The 7" Type-X™ Sport; is our most affordable driving light yet, with the inherented STEDI™ ability to deliver a high-performance and high-quality driving illuminance. Simply look at the build quality and performance of other offerings on the market and you will be convinced that the 7" Type-X™ Sport remains untouched.

Features:

• 4mm thick 304 Series Stainless Mounting bracket, which includes a rubber dampener and an additional 3mm upper plate.
• A360.0 Cast Housing | Boasting superior strength and corrosion resistance.
• 3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable & scratch resistant
• 100% Polyester UV and abrasion-resistant powder coat
• IP68 | Dust & Particle tight + Water-proof up to 3 meters
• Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust, and contaminants.
• Environmentally Sealed Deutsch DT-2 connector
• EMI RFI Suppression circuitry - We guarantee it.
• Each 7" TYPE-X Sport comprises 32 of OSRAM's OSLON LEDs, selected for its high luminous flux and perfectly matching optical properties.
• 4 wide-beam reflectors are built, which form a lateral-shaped flood pattern designed to minimize valuable light wasted up to the sky.
• 5700K CCT offers stunning clarity and definition with an excellent Colour Rendering Index (CRI)

Specifications:

• LED: 32 x Osram Oslon SSL
• Raw Lumens: 16,640 (Pair)
• Tested Lumens: 12,820 (Pair)
• Amp Draw: 6.4A @ 13.2V (Each)
• Power Draw: 85W (Each)
• Candela: 819,200CD
• Beam Pattern: 4 x Spread 28 x Spot Beam
• Ingress Protection: IP68 | Submersible Up to 3M
• Colour Temp: (CCT) 5700K
• Voltage Compatibility: 12V & 24V
• Lumen Maintenance: 50,000 LM-80
• Weight: 2.250kg (Each)

Photometric Data:

• 10M: 8,129LX
• 50M: 327LX
• 200M: 20LX
• 300M: 9LX
• 400M: 5LX
• 895M: 1LX

What's Included:

• 2 x STEDI 7" TYPE-X Sport
• 2 x STEDI Black Out Covers
• 1 x Easy Fit High Beam Wiring With DT-2 Sealed Connectors, H4, HB3 Adapter Plugs to High Beam. 60A Relay, Fuse, Switch
• 3 Series Stainless Steel Nuts & Bolts
• Rubber Shock Dampener
• Wiring Instructions
