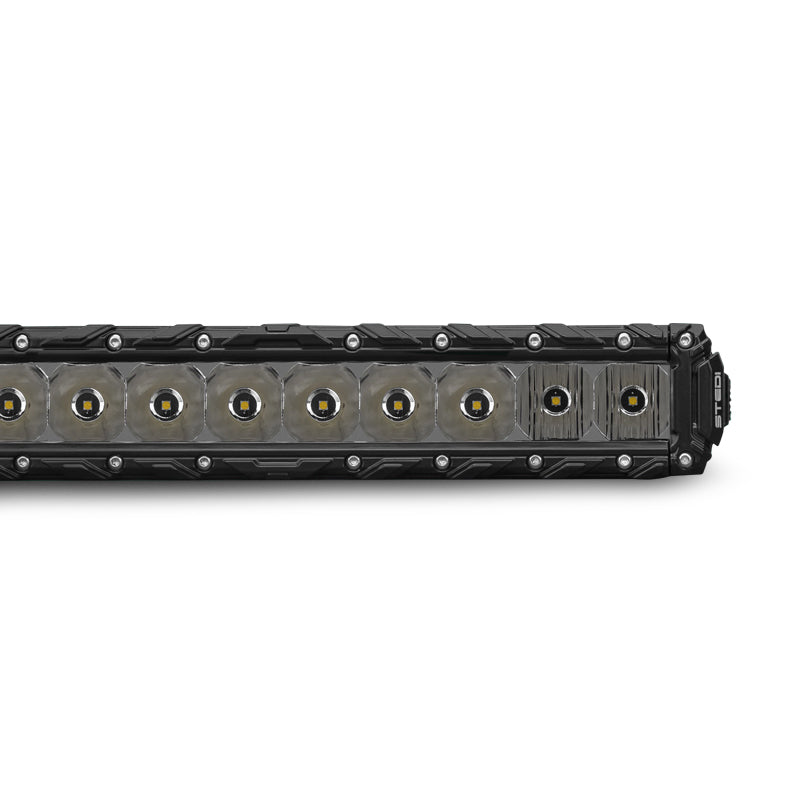

STEDI LEDST3K-20L ST3K 21.5" Low Profile 20 LED Slim Light Bar

Quick answer

The STEDI is the LEDST3K-20L ST3K 21.5" Low Profile 20 LED Slim Light Bar. Brilliance Is The Name Of The Game The ST3K range is easily comparable to the STEDI Type-X and ST4k range.

Proven to Be a Solid & Durable Upgrade for Your Vehicle!

The Definition of Calibre

Our Stedi St3 K Led Light Is Was Designed to Bring a Large Amount of Light to A Small Amount of Space. with A Total Height of Just 63mm (with the Side Brackets Attached), You Will Find the St3 K Is Able to Be Mounted on Your Front Bar or Grill, Whilst Maintaining the Factory Look of Your Vehicle.

Timeless Design
The St3 K 21.5 Inch Led Light Bar Utilizes the Pure Drive Technology (of Type-X and St4 K Fame), to Deliver a Powerful Punch. the St3 K 21.5 Inch Led Light Bar Can Also Be Mounted in Tight Spaces, Allowing It to Suit a Wide and Unexpected Range of Vehicles.

Brilliance Is The Name Of The Game
The ST3K range is easily comparable to the STEDI Type-X and ST4k range. With a strong penetrating beam of 493m at 1 LUX and 55m out to the shoulders of the road (with flood beam), the ST3K 21.5 is the perfect all-rounder!

Market Leading Performance

• ST3K-20L features 20 of OSRAM’s® finest OSLON® LED, selected for unrivalled efficiency.
• 4 Flood + 12 Spot + 4 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 493m
• True White 5700K Colour temperature offers stunning clarity and definition.
• Our Pure-Drive™ circuit design allow 97% of input power to go directly to LEDs.

Built To Withstand The Relentless Punishment Of The Deep Australian Outback

• Finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.
• Pressure Equalization vent | Protects against water ingress, dust & contaminants.
• IP68 | Dust & Particle tight + Water-proof up to 3 meters!
• Environmentally sealed Deutsch ® DT-2 connector.
• Protected against EMC and RFI.
• Ultra-Low 51mm profile without the side brackets & 63mm with side brackets!

Includes our Easy Fit High Beam Plug and Play Wiring Harness which includes H4 and HB3 Adapters making for an easy connection to high beam. Unlike the copycat harnesses on the market ours has built in electronics making our harness compatible with even the most modern and sophisticated wiring systems.

Specifications:

• LED: 20 x Osram OSLON White
• Effective Lumen: 4,100Lm
• Peak Intensity: 243,200CD
• Operating Voltage: 10-30V DC
• IP Rating: IP68
• Current Draw: 4.3A @ 13.5v
• Colour Temperature: (CCT) 5700 Kelvin
• Housing Material: Aluminium Extrusion & Cast
• Lens: GE™ Lexan
• Mounting Bracket: Powder Coated 3mm Stainless Steel
• Bolts & Fittings: 3 Series Stainless Steel
• Beam Type: Flood Spot Combo
• Life Span: 50,000 Hours
• Weight: 1.855
• Operating Environment: minus 40, +50 ° Celsius
• Photometric Data:
  • 10M: 2,430 Lx
  • 50M: 97 Lx
  • 100M: 24 Lx
  • 200M: 6 Lx
  • 493M: 1 Lx

What's Included:

• ST3K 21.5" LED Light Bar
• Stainless Fasteners
• Stainless Steel Side Mounting Brackets
• 12v Quick Fit to High Beam Wiring, Relay, Wiring Kit & On/Off Switch
• H4 & HB3 Adapters Included
• Wiring Instructions

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ about the STEDI

What is the STEDI?

It is the STEDI LEDST3K-20L ST3K 21.5" Low Profile 20 LED Slim Light Bar. Brilliance Is The Name Of The Game The ST3K range is easily comparable to the STEDI Type-X and ST4k range.

What are the main features of the STEDI?

ST3K-20L features 20 of OSRAM’s® finest OSLON® LED, selected for unrivalled efficiency. True White 5700K Colour temperature offers stunning clarity and definition. Our Pure-Drive™ circuit design allow 97% of input power to go directly to LEDs.

What warranty comes with the STEDI?

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.
