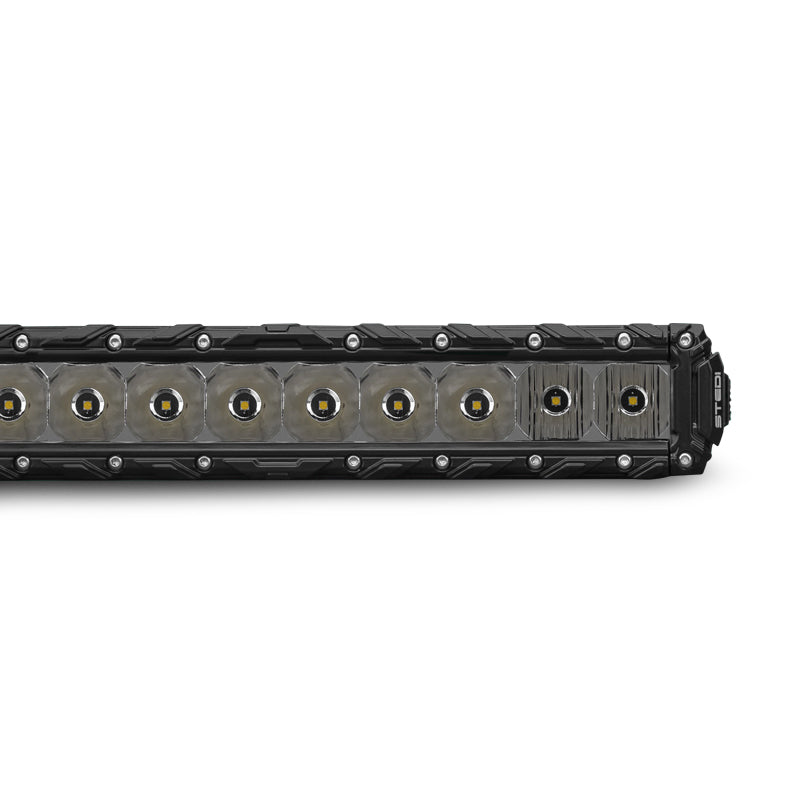

Front view of a slim black light bar with a single row of LEDs across its length
Front view of a slim black light bar with a single row of LEDs across its length
End cap and black side bracket of the bar resting on grey leather
End cap and black side bracket of the bar resting on grey leather
Lit reflector row seen low along the face of the housing
Lit reflector row seen low along the face of the housing
Corner of the lit bar with the STEDI name across the end cap
Corner of the lit bar with the STEDI name across the end cap
Looking down the finned rear of the housing to the end cap screws
Looking down the finned rear of the housing to the end cap screws
Grey Deutsch style plug and orange locked socket on the wire tail
Grey Deutsch style plug and orange locked socket on the wire tail
Bar mounted in the lower grille of a D-Max front bumper
Bar mounted in the lower grille of a D-Max front bumper
STEDI LEDST3K-10L ST3K 11.5" Low Profile 10 LED Slim Light Bar official STEDI video
Click to open expanded view
STEDI logo

STEDI LEDST3K-10L ST3K 11.5" Low Profile 10 LED Slim Light Bar

SKU: LEDST3K10L
Price
$103.34
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Front view of a slim black light bar with a single row of LEDs across its length

STEDI LEDST3K-10L ST3K 11.5" Low Profile 10 LED Slim Light Bar

$103.34

Product features

The STEDI LEDST3K-10L is an 11.5 inch, 10 LED slim light bar that stands just 63mm tall with its side brackets fitted. It fits into a bumper opening or behind a grille where a full height bar will not, and STEDI quotes 1 lux at 348m with 2,050 effective lumens.

The space problem

Many modern utes and SUVs have a small gap in the bar or a lower grille and nowhere else to put lights without blocking the radiator or the sensors. A 63mm tall bar mounted low keeps the factory look and still adds real reach.

The combination beam suits mixed driving. Two flood reflectors on each end spread light 50 degrees wide to the road shoulders, while six spot reflectors in the middle run a 5.8 degree beam down the road.

Specifications

LEDs 10 x OSRAM OSLON, white
Effective output 2,050 lumens
Peak intensity 121,600cd
1 lux distance 348m
Beam Combination, 50° flood and 5.8° spot
Colour temperature 5700K
Voltage 10 to 30V DC
Current draw 2.1A at 13.6V
IP rating IP68, submersible to 3 metres
Housing Extruded and cast aluminium
Lens GE Lexan
Brackets 3mm stainless steel, powder coated
Connector Deutsch DT 2 pin
Rated life 50,000 hours
Operating temperature Minus 40°C to 50°C
Weight 1.65kg

Light on the road, by STEDI's figures

  • 10m: 1,211 lux
  • 50m: 48 lux
  • 100m: 12 lux
  • 200m: 3 lux
  • 348m: 1 lux

In the box

  • ST3K 11.5 inch light bar
  • Low profile stainless side brackets
  • Stainless fasteners
  • DT wire tail

A wiring harness is not included. Pair it with a STEDI or other relay harness sized for the draw.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ

Can a 24V truck power this bar?

Yes. STEDI gives a 10 to 30V DC input range for the ST3K 10 LED.

How tall is it?

63mm with the side brackets fitted.

Does it come with a harness?

No. You get the bar, brackets, fasteners and a DT wire tail.
