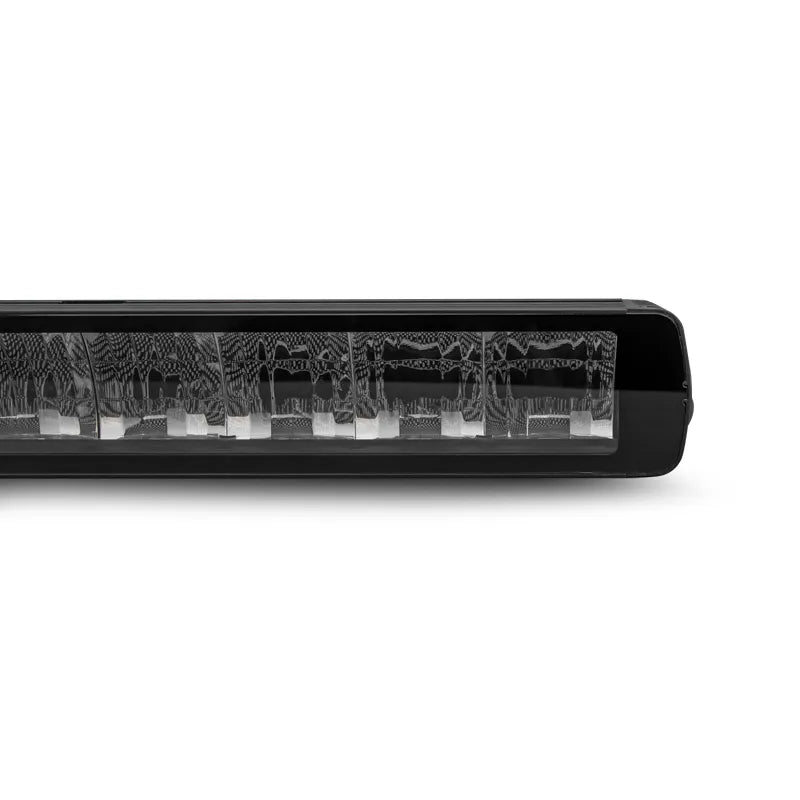

STEDI LEDST-X-40-16L ST-X 40.5" Super Drive 16 LED Light Bar

Proven to Be a Solid & Durable Upgrade for Your Vehicle!

Electrifying Performance
At the core of the ST-X 40.5 Inch you will find world-class A grade 15W reverse facing emitters pushing out 8400 Lumens at a stunning 5000K colour temperature. The 30-degree horizontal beam pattern facilitates maximum illumination at the mid to long-range, all the way out to 1 lux @ 859m, with very little light within the first 80m.

The 15-degree vertical spread means minimal light wasted and significantly reduces glare from road signs.

A Cut Above
The circuit of the ST-X allows for max output (8400Lm) or reduced output (2327XLm modes, the latter making it legal for road use in New Zealand and European countries. The built-in amber (2700K) or white (6000K) DRL / Position Light function allows you to stay conspicuous day or night.

The hidden placement of the separate positioning light LEDs offers stunning uniformity of light distribution within the light bar.

Near Invisible Frame
The STEDI name has always been synonymous with cutting edge design. Now, we yet again raise the bar with our all-new edge to edge bonded lens design. If Apple were to design a light bar, this would be it. It’s stunning from every angle.

The Beam Pattern
If you're looking for a driving light that offers near-field spread, keep moving, this is not that. The optical properties of the hooded reflector design is best described as high-beam on steroids. The ST-X excels in the high-speed, high-way application when mid to long-range visibility is critical.

• Significantly Minimises Adverse Reflection from Road Signs
• Controlled Vertical Spread Minimises Reflections Off of High-Mounted Road Signs

Key Features:

• 16x 15W LED's
• LED Parking / Position Light Function (Amber or White Built-In)
• Breather Allows Pressure Equalisation when Rapid Heat up And Cool Down Cycles Occur
• Anodized Polyester Powder Coat
• Weatherproof Deutsch DTP Connector
• Includes Adjustable Side Brackets & Sliding Bottom Brackets
• Includes Our Easy-Fit Plug & Play High Beam Wiring Harness with HB3 & H4 Adapter (Compatible with Both Negative and Positive Switched Vehicles)
• Protected Against Reverse Polarity
• Shockproof, IP68 Waterproof, UV Shielded
• Protected Against RFI / EMC Interference
• Voltage & Current Surge Protection
• Pulse Width Modulation Thermal Management
• Compatible with Ford Ranger Wildtrak FX4 Roof Light Bar Mounting Bracket for Roof Mounting

Specifications:

• Voltage: 9-36V
• Amperes: 17.2A @ 12V (Full Power), 3.28A @ 12V (Limit Power)
• Power: 206.4W (Full Power), 39.36 (Limit Power)
• Lumens: 8400LM (Full Power), 2327LM (Limit Power)
• Colour Temperature: 5000k
• Photometric Data: 1 Lux @ 859m (Full Power), 1 Lux @ 450m (Limit Power)
• Lens Material: Optical Grade, Hard-Coated Lexan
• Housing Material: 6063 Extrusion
• Ingress Protection: IP68
• Candelas: 739582 @ Full Power, 203337 @ Limit Power
• Connector: 60cm Cable with DTP 4"
• Operating Temp: -40 ~ +150
• Certificates: R112, Ref. 50 & R10
• Life Span: 50, 000 Hours (LM80)
• Product Weight: 3.7kg
• Shipping Weight: 4.2kg

What's Included:

• 1 x 40.5" ST-X-20L LED Light Bar
• 2 x Steel Side Brackets
• Easy-Fit High Beam Wiring Kit | HB3 & H4 Piggy-Back Included
• Wiring Instructions
• Comprehensive 304 Stainless Steel Fasteners
