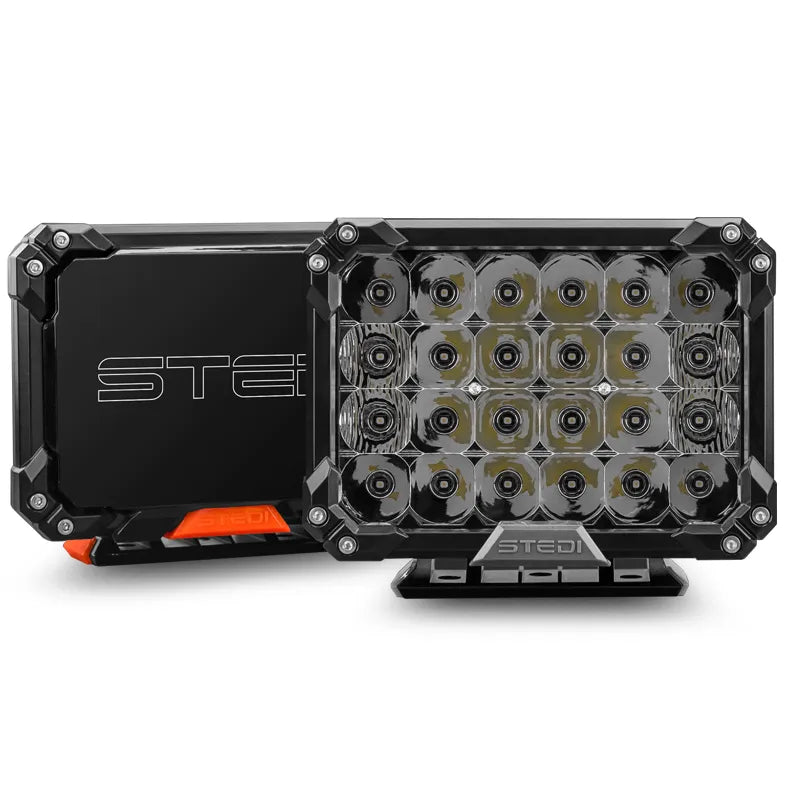

STEDI LEDQUAD-PRO Quad PRO Compact LED Driving Lights
Click to open expanded view
STEDI logo

STEDI LEDQUAD-PRO Quad PRO Compact LED Driving Lights

SKU: LEDQUADPRO
Price
$549
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

STEDI Quad PRO LED Driving Lights: Unmatched Driving Confidence

Compact Design, Mega Performance
The compact-LED driving light space has been fearfully neglected, with offerings looking as underwhelming as their inability to sustain a compact performance. Enter the all-new STEDI QUAD Pro.

A Legendary Bloodline
The QUAD Pro is the continuation of the high-calibre class of the PRO bloodline. Sharing the legendary performance of the Type-X Pro and ST3303 Pro, the QUAD Pro utilises the same reflector and LED technology, to deliver an explosive performance.

Customisable Like No Other
Included in the kit is a pair of STEDI blackout cover, in addition to the orange and grey colour customisation caps. The iconic STEDI Smiley covers are available to purchase separately, as are optional blue, green, red, and yellow colour caps.

Razor-Sharp Luminance
Our Quads showcase a glistening 5700K colour temperature, providing the necessary luminance to cut-through any obstrusive dust and other air-born particles.

QUAD Pro LED Driving Lights
The compact housing design offers endless possibilities in terms of mounting locations. We think these are going to be hugely popular as roof-mounted arrays and on bull bars with minimal clearance like the AFN bars.

Take Your Pick
The compact housing design offers endless possibilities in terms of mounting locations. We think these are going to be hugely popular as roof-mounted arrays and on bull bars with minimal clearance like the AFN bars.

STEDI Quad PRO LED Driving Lights Features:

  • Includes Our Legendary Easy-Fit Plug & Play High Beam Wiring Harness
  • IP68 Ingress Protection Means Our QUADS Are 100% Immersible in Water & Dust-Tight
  • 5700K Colour Temperature Provides Just the Right Amount of Warmth to Cut-Through Air-Born Particles
  • Environmentally Sealed Deutsch DT-2 Connectors
  • RFI & EMI Suppressed Circuit Design, Means No Interference with Radio or Communications Equipment
  • High-Pressure Die-Cast Bracket
  • Spread & Spot Beam Reflectors Built-In

STEDI Quad PRO LED Driving Lights Specifications:

  • LED: 24 x OSLON High-Flux LED
  • Raw Lumens: 17,040 (Pair)
  • Tested Lumens: 11,360 (Pair)
  • Amp Draw: 7.4A @ 13.2v (Each)
  • Power Draw: 97W (Each)
  • Candela: 693,889cd
  • Beam Pattern: 4 x Spread 20 x Pencil Beam
  • Ingress Protection: IP68 | Submersible up to 3m
  • Colour Temp: (CCT) 5700K
  • Voltage Compatibility: 12v & 24v
  • Lumen Maintenance: 50,000 LM-80
  • Weight: 1.4Kg (Including Cover) (Each)

Photometric Data:

  • 10m: 6,938 LX
  • 50m: 277 LX
  • 200m: 17 LX
  • 300m: 7.7 LX
  • 40m: 4 LX
  • 500m: 2.7 LX
  • 833m: 1 LX

What's in The Box:

  • 2 x QUAD Pro LED Spot Lights
  • 2 x STENCIL Black Out Covers
  • 1 x Set Orange Colour Caps (Fitted)
  • 1 x Set Grey Colour Caps
  • Easy Fit High Beam Wiring Harness
  • H4 & HB3 adapters to High Beam
  • Installation Manual
  • Stainless Fitting Hardware
