STEDI LEDMOTO-IRIS-7 STEDI 7" Iris Chrome LED Headlight

The Nitty Gritty.

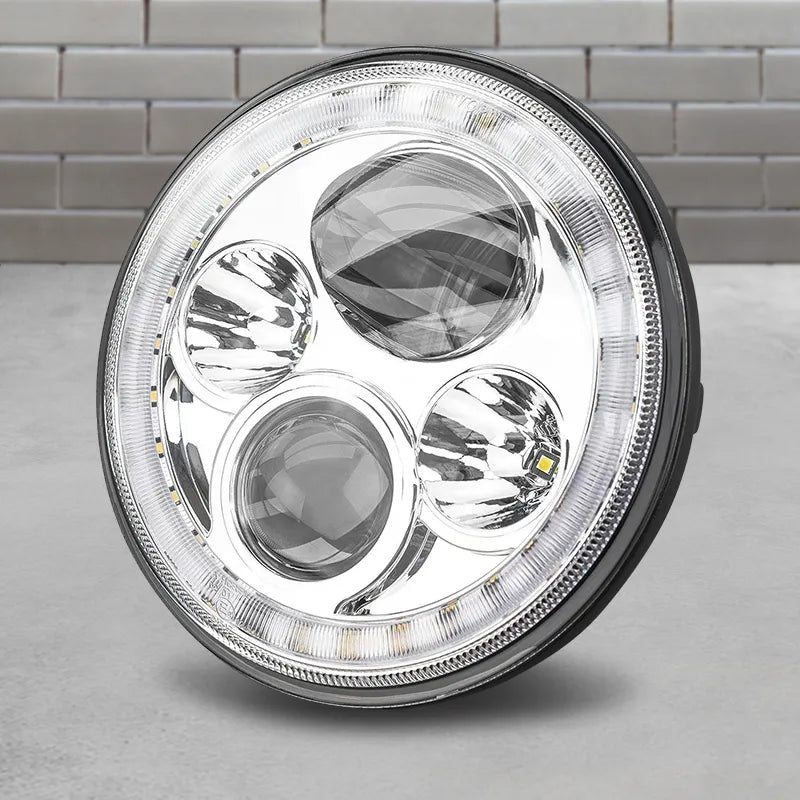

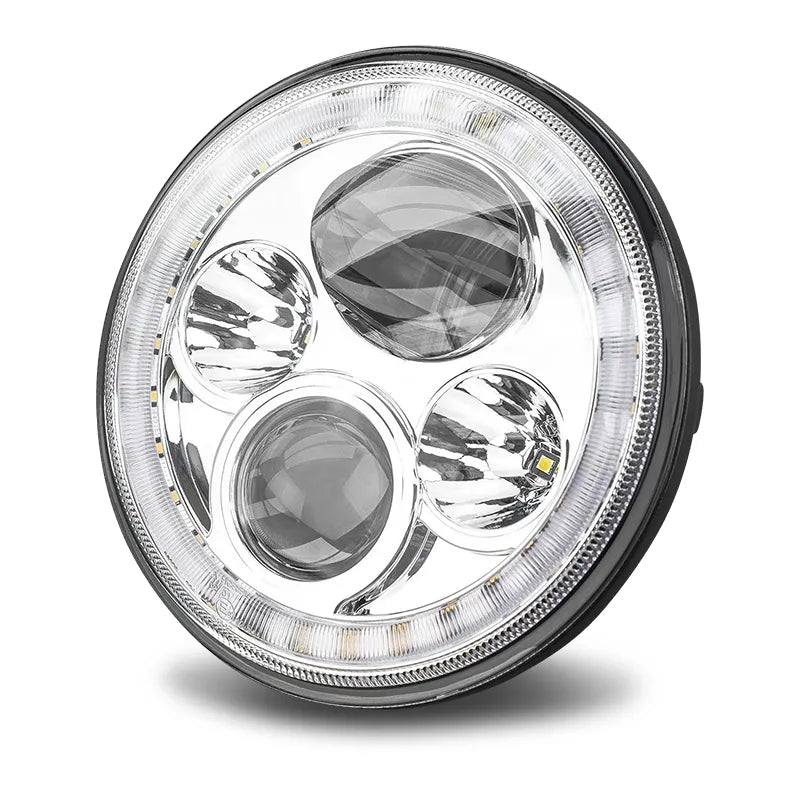

STEDI 7 Inch Iris Chrome LED Headlight Pair

Our IRIS 7 Inch LED Driving Lights should be the first step when improving your motorcycles' light output. Complete with High and Low beam as well as a full LED halo ring park light, the IRIS 7" is the perfect replacement for your existing headlight.

Finally, a Worthy 7" LED Headlamp

You've either heard about or tried the other disaster 7" LED kits on the market. Our IRIS LED Headlight unit is ADR Compliant and features a proper RHD beam geometry. Our IRIS is a complete LED unit that will replace your existing 7" factory headlight unit. Complete with separate High & Low beams as well as a full halo park light, the IRIS is your all-in-one upgrade solution for your motorbike or 4x4 vehicle that runs a 7" headlight (list of known compatible models in the description).

Performance that Surpasses the Very Best

The low beam is full of volume and throws out to 141m at 1 Lux (Per Headlight). The high beam throws out to 235m at the 1 Lux (Per Headlight) which is better than many auxiliary lights on the market. The integrated optional halo park light can be wired to ignition or to a dedicated switch to illuminate to offer day-time safety. Anti-Flicker technology for an effortless install.

ADR Compliant

The IRIS falls within the parameters of ADR making it a 100% legal LED driving light upgrade. No wasting time checking whether or not your vehicle meets the guidelines for retrofitting LED lights, from the get-go you're all set.

Key Performance Metrics:

• ADR Approved E-Mark CE
• Proper Right Hand Drive Beam Geometry

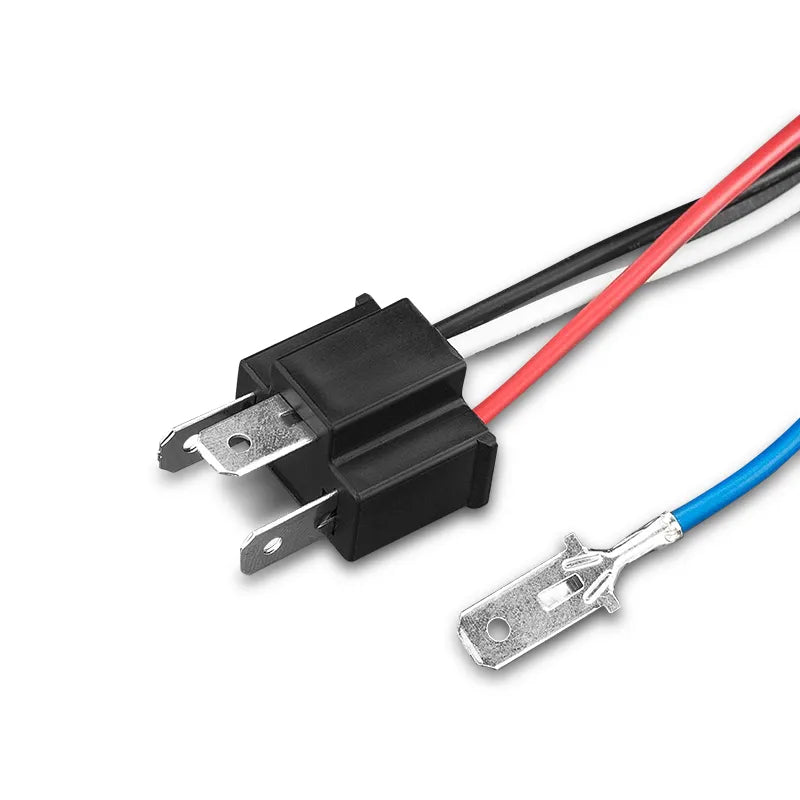

• H4 Adaptor
• High Beam 1 Lux @ 235m (Per Headlight)
• Low Beam 1 Lux @ 141m (Per Headlight)

Performance Build Quality:

• Anodized Polyester Powdercoat
• Lexan Polycarbonate (PC) Lens refractor

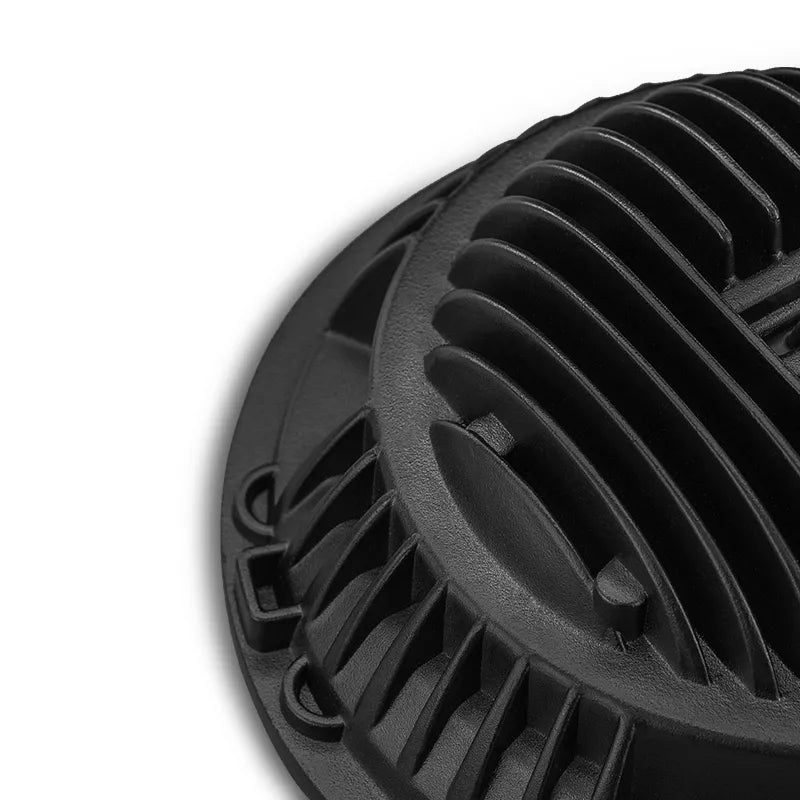

• Die-cast aluminium alloy (ADC12) Heat-Sink
• IP67 | Ingress Protection
• Shock Proof, Waterproof and UV Shielded
• Protected against Reverse Polarity and Voltage / Current surges
• Warranty | 2 Years

Specifications:

• LED (Per Headlight) High Beam: 2x 10w XML-2 LED
• Low Beam: 2x 15w LED
• Park Light: 30x 1.5w Osram
• Raw Lumens (Per Headlight) High Beam: 2000Lm
• Low Beam: 1400Lm
• Park Light: 150Lm
• Amp Draw (Per Headlight) High Beam: 2.4a @ 13.6v
• Low Beam: 1.6a @ 13.6v
• Park Light: 0.2a @ 13.6v
• Lifespan: 50,000 Hours
• Ingress Protection: IP67
• Operating Temperature: -30°C~+60°C
• Lens Material: Lexan Polycarbonate
• Colour Temp: 5700K
• Voltage Compatibility: 12v & 24v
• Peak Beam Distance: @ 1 LUX (Per Headlight) High Beam: 235m
• Low Beam: 141m
• Park Light: 8m
• Weight (each): 1.140kg each
• Drop Iin Replacement For: #6014, 6015, 6016, H6024 and Par 56 headlamp designs
• Adr Compliance: ADR 46/00 | ADR 49/00

Compatible Models:

• 1955-1983 Jeep CJ-5
• 1976-1986 Jeep CJ-7
• 1981-1985 Jeep CJ-8
• 1997-2006 Jeep Wrangler (TJ)
• 2007-2015 Jeep Wrangler 2-Door (JK)
• 2007-2015 Jeep Wrangler Unlimited 4-Door (JK)
• 1982 - 1991 Mitsubishi Pajero (L040)
• Land Rover Defender
• 70 Series Toyota Landcruiser with round headlamp (Needs additional H4 CANBUS to resolve negative switching)
• 60 Series Toyota Landcruiser with round headlamp (Needs additional H4 CANBUS to resolve negative switching)
• Toyota FJ-40/45/47 (Needs additional H4 CANBUS to resolve negative switching)
• GQ Patrol
• Harley Davidson Motorcycles
• Mercedes Benz G Wagon
• Kenworth Trucks with 7 inch round headlight

What's In The Box:

• 2 x 7 inch STEDI IRIS LED Headlight
