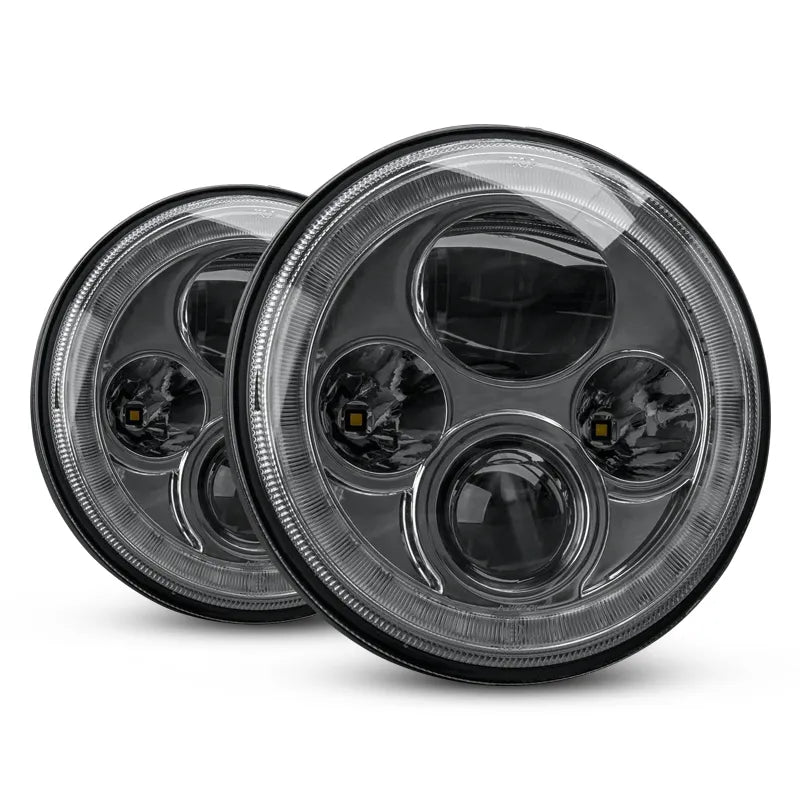

Pair of STEDI IRIS 7 inch chrome LED headlights front on
Pair of STEDI IRIS 7 inch chrome LED headlights front on
Click to open expanded view
STEDI logo

Stedi LEDMOTO-IRIS-7-PAIR 7 Inch Iris Chrome LED Headlight Pair

SKU: LEDMOTOIRIS7PAIR
Price
$399.98
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier and it usually dispatches within 3 to 7 business days.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Items we order in from a supplier usually dispatch within 3 to 7 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Pair of STEDI IRIS 7 inch chrome LED headlights front on

Stedi LEDMOTO-IRIS-7-PAIR 7 Inch Iris Chrome LED Headlight Pair

$399.98

Product features

Old seven inch sealed beams on a Defender, Patrol or Jeep give a weak yellow spread that barely lights the edge of a dirt road.

The STEDI IRIS replaces the whole 7 inch headlamp with an ADR compliant LED unit with right hand drive beam geometry, separate high and low beams and a park light. STEDI quotes 1 lux at 235m on high beam and 141m on low beam per headlight, with an H4 adaptor for plug in fitting.

IRIS headlight features

  • ADR approved, E mark and CE
  • Right hand drive beam geometry
  • H4 adaptor
  • High beam 1 lux at 235m, low beam 1 lux at 141m (per headlight)
  • Anodised polyester powdercoat finish

Specifications

LED (per headlight) High beam 2 x 10W, low beam 2 x 15W, park light 30 x 1.5W
Raw lumens (per headlight) High 2000Lm, low 1400Lm, park 150Lm
Amp draw (per headlight) High 2.4A, low 1.6A, park 0.2A at 13.6V
Lifespan 50,000 hours
Ingress protection IP67
Operating temperature minus 30 to plus 60 degrees C
Lens Lexan polycarbonate
Colour temperature 5700K
Voltage 12V and 24V
Weight 1.140 kg each
ADR ADR 46/00 and ADR 49/00

Fitment and compatibility

STEDI lists Jeep CJ and Wrangler TJ and JK, Pajero L040, Land Rover Defender, GQ Patrol, Harley Davidson, G Wagon and Kenworth with 7 inch round lamps. 60 and 70 Series LandCruisers and FJ40s need an extra H4 CANBUS module for negative switching.

What is in the box

STEDI lists 2 x 7 inch STEDI IRIS LED headlights in the pair.

Install notes

Most fit straight into the 7 inch bucket on the H4 plug. Ring South Nowra on (02) 4423 5254 if your LandCruiser needs the CANBUS module wired in.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

Frequently asked questions

Are the STEDI IRIS headlights ADR approved?

Yes, STEDI lists ADR 46/00 and 49/00 compliance.

How many headlights are in the pair?

Two 7 inch IRIS headlights.

Can I use the IRIS pair on a 24V Kenworth?

Yes, STEDI rates them for 12V and 24V, and Kenworth is on its fit list.

Will they fit my 70 Series?

Yes with an extra H4 CANBUS module for negative switching. Send us your model and we will confirm.
