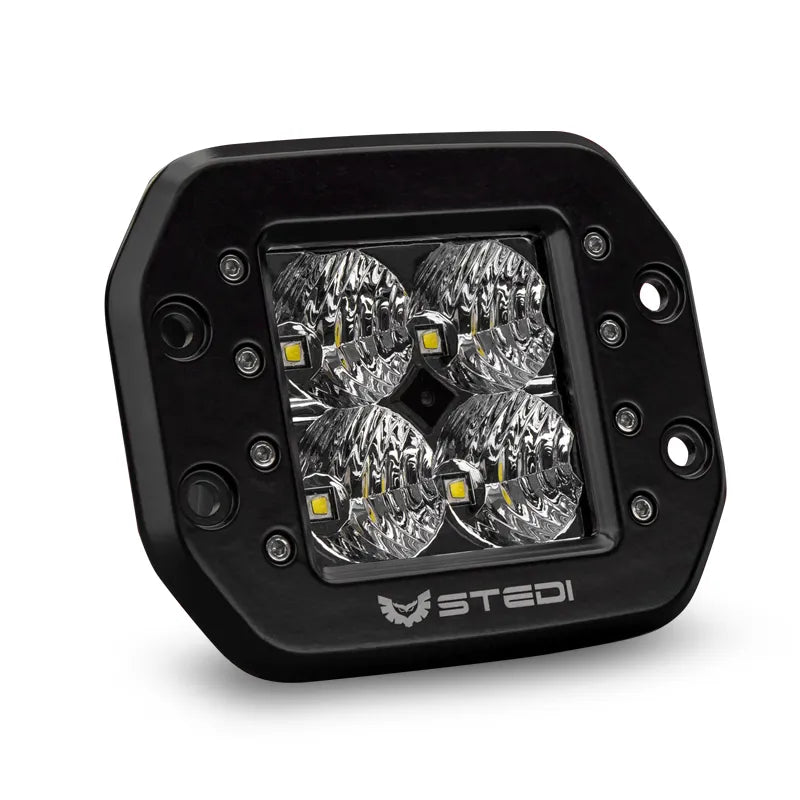

STEDI C4 Black Edition Flush Mount Flood LED Light

The STEDI C4 Black Edition is a flush mount flood light for custom trays and rear bars, with four CREE XM-L2 LEDs giving 4,200 lumens. The flood beam suits work lighting and reversing.

It is IP68 with a Gore breather vent and is RFI and EMI suppressed. If you are upgrading from STEDI's older flush mount, the mounting points are the same.

Specifications

• Lumens: 4,200
• LEDs: 4 x CREE XM-L2
• Voltage: 12 V and 24 V
• Draw: 2.1 A at 13.2 V
• Colour temperature: 5700 K
• Rating: IP68
• Cut out: 89 mm wide x 82 mm high
• Weight: 0.55 kg
• In the box: 1 x C4 flush mount flood light, 4 x bolts, 4 x flat washers, 4 x nylon nuts, male and female Deutsch connectors

FAQ

What is the STEDI LEDFLUSH-C4-FLOOD?

STEDI C4 Black Edition flush mount flood LED, 4,200 lumens, IP68, 89 x 82 mm cut out.

What size hole do I cut?

STEDI gives 89 mm wide by 82 mm high.
