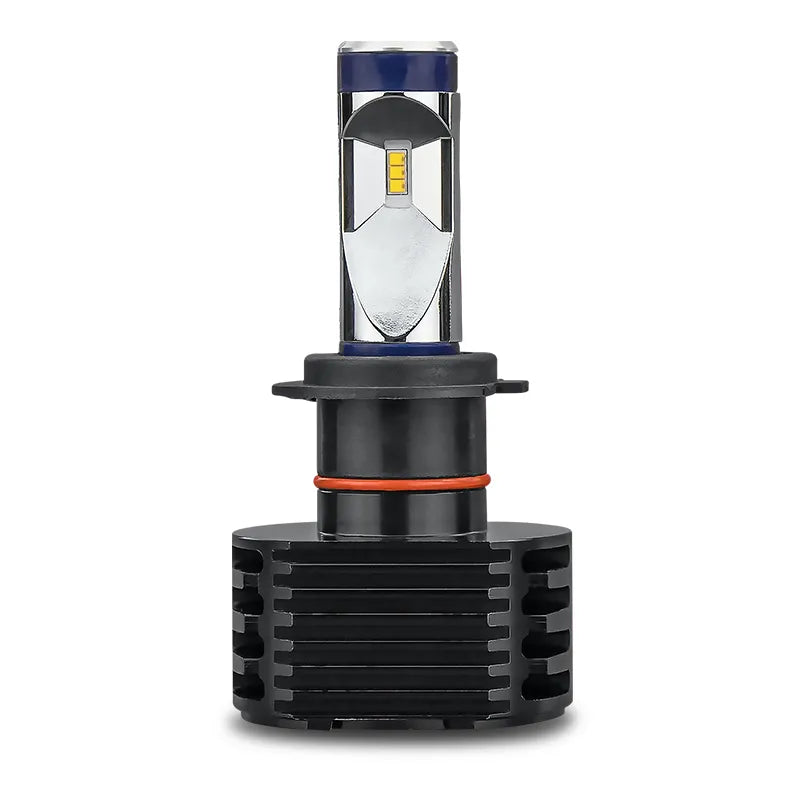

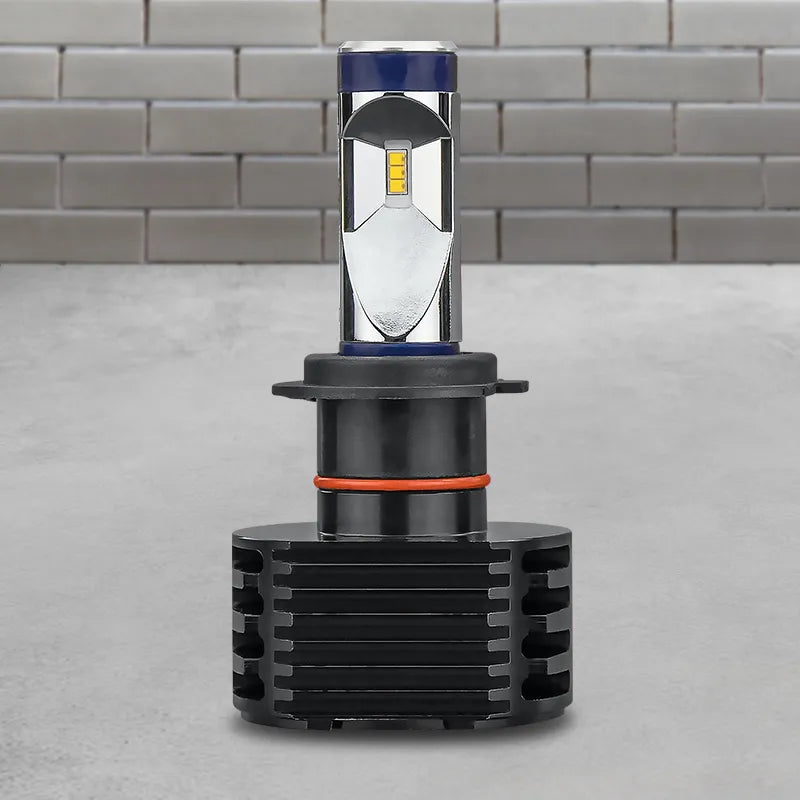

STEDI LEDCONV-H7-M Motorcycle H7 LED Headlight Upgrade Kit

The Nitty Gritty.

We know all too well just how poorly the factory H7 headlight perform on your motorcycle. Your primary headlights are the single most important light source for night driving and your first and last line of defence to avoid any potential road hazaards.

This is why in our search for the ultimate LED headlight conversion system our criteria was first and foremost long term quality and reliability. We sampled, age and field tested over 20 different conversion kits from every end of the spectrum claims to quality, lumens, to finally settle on 3rd GEN MC kit.. The motorcycle H7 kit has a specifically optimised focal length design for motorbike reflector housings.

A Realised Solution

We know all too well just how poorly the factory headlight performs on your motorcycle. That is why we have endeavoured to sample and field test over 20 different conversion kits, from every end of the spectrum claims, to arrive at our motorcycle H7 kit, with a specifically optimised focal length designed for motorbike reflector housings.

Tested, Not Estimated

Our foremost criteria in light output are exemplary excellent in lux performance and excellent net light volume. But just as equally important was that the beam should precisely mimic the original halogen bulb. Through countless hours of optic ray tracing testing, we were able to achieve a universally coherent focal sweet spot.

Ground-Breaking Performance

Our Motorbike Night Pilots are powered by Philips - Lumileds Luxeon ZE S, delivering a ground-breaking 1,760Lm. We are so confident that our Motorbike Night Pilots will exceed your expectation, we are offering a 30-day money-back guarantee and a real 24-month replacement warranty.

Dimensions:

Key Technical Break Down

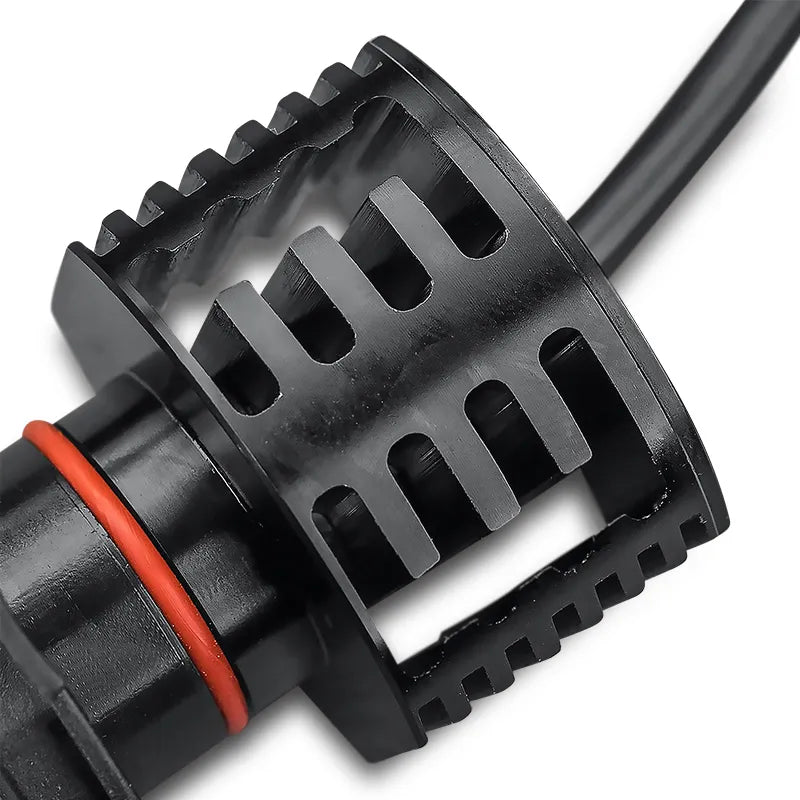

• Thermal Management - Quite literally the end all be all of all LED Lighting is thermal management. The inferior LED conversion kits use inexpensive non application specific fans which are prone to failure. 11 out of 20 we aged tested failed within 45 days. When the fan fails, the LED will fail shortly thereafter. The hollow 6063 Aluminium uses a specially designed Convection style heat sink that stays cooler on one side than the other so it can pull the hot air out of the heat sink.

• Light Output - Needless to say our foremost criteria in light output demanded excellent in lux performance and excellent net light volume, but just as equally important was that the beam must be precisely like the original halogen. To meet this demand, countless hours of optic ray tracing tests were performed to ensure a universally coherent focal sweet spot is achieved. Powered by Philips - Lumileds Luxeon ground breaking ZE S, pushes out real 1,760Lm. We are so confident that our Motorbike Night Pilots will exceed your expectation, we are offering a 30 day money back guarantee, and a real 24 month replacement warranty.

Technology

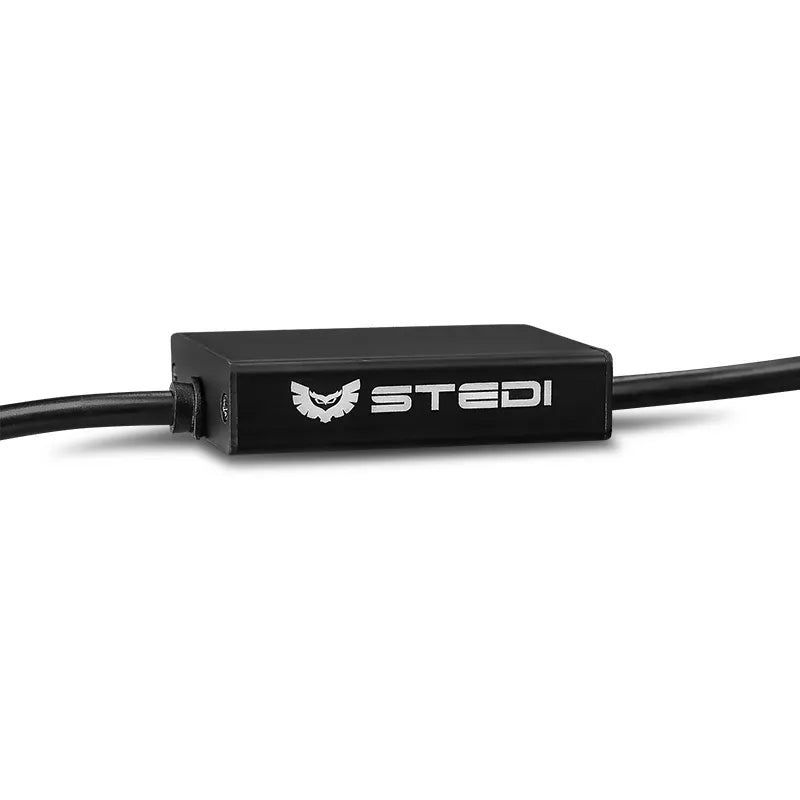

• CAN-Bus error FREE Module
• Electrically Protected against RF and EM Interference
• Over and Under Voltage Protection
• Waterproof connectors

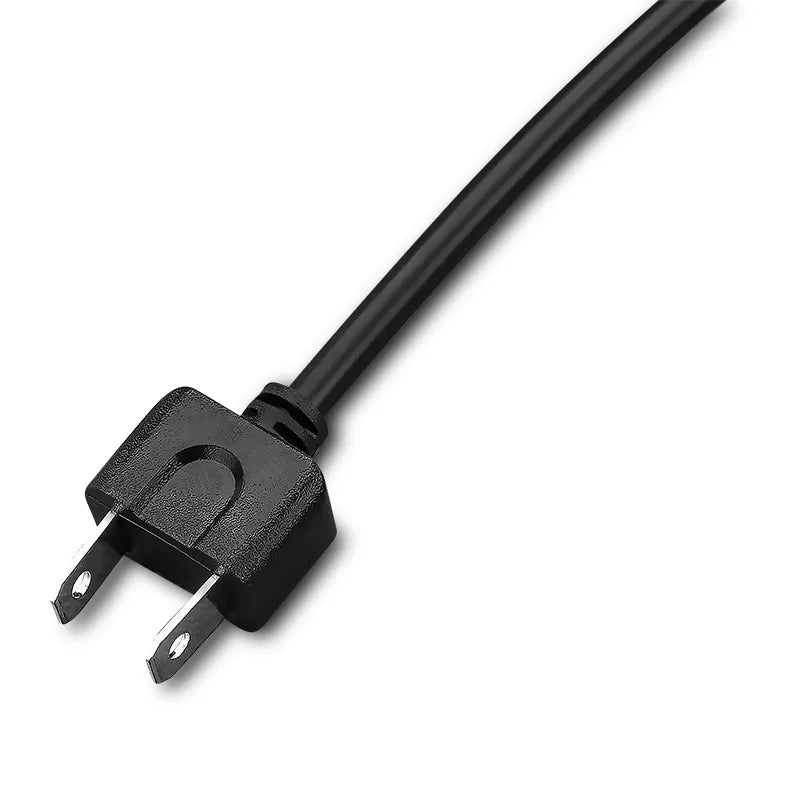

• Plug and Play H7 Connector | No cutting or professional installation required, just plug and play
• Ingress Protection IP67
• 5700Kelvin

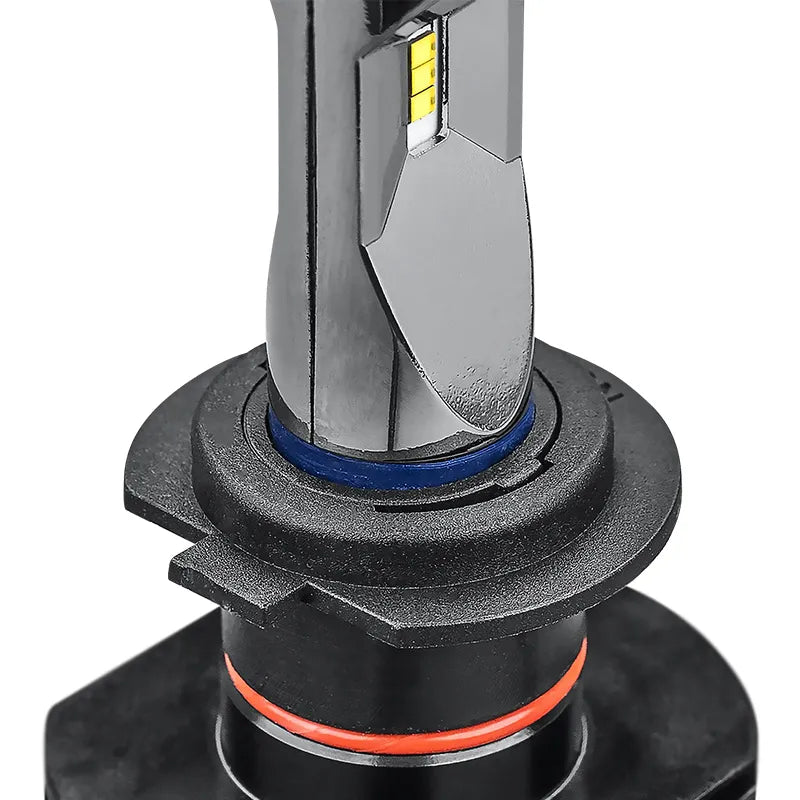

• Removable H7 Collar for easy install

Specifications:

• Housing Material: 6063 Aviation Aluminium

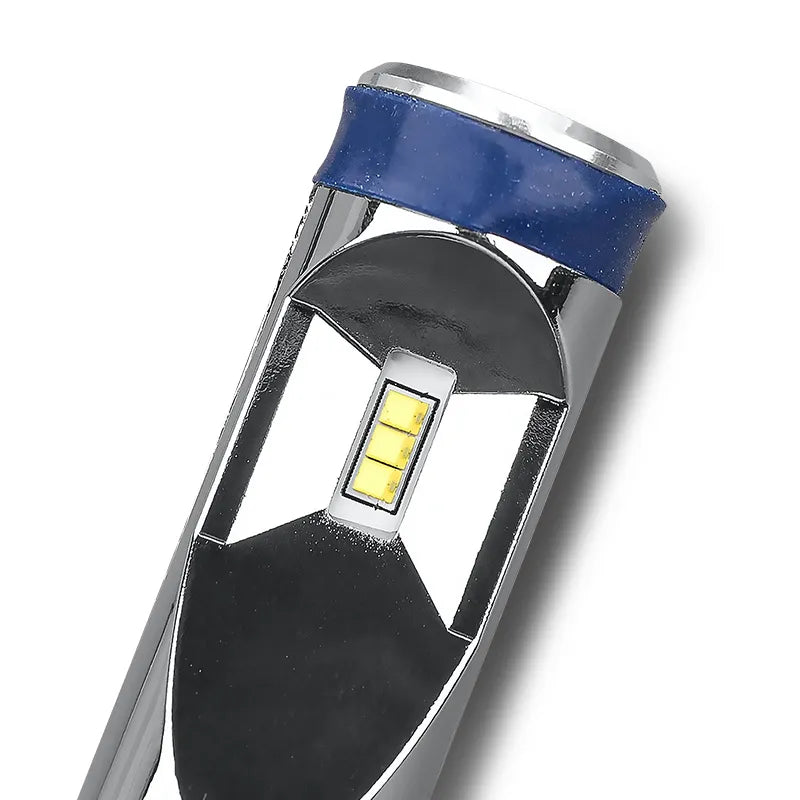

• LED Chip Type: 6 x Philip™ ZES (Each Lamp)
• Power: 2.1A each @ 13.6v
• Raw Lumens: 3,450Lm each globe (RAW) | 1,760Lm each globe (Actual)
• Compatible Voltage DC: 12v and 24v
• Lifespan: 30,000 hours
• Canbus:Built-in
• Socket Type: H7
• Ingress Protection: IP65
• Operating Temp: -40°c to + 80°c

What's In The Box:

• 1 x H7 Motorcycle STEDI Night Pilot LED Conversion Headlight
• 1 x Drivers
• Installation Guide
