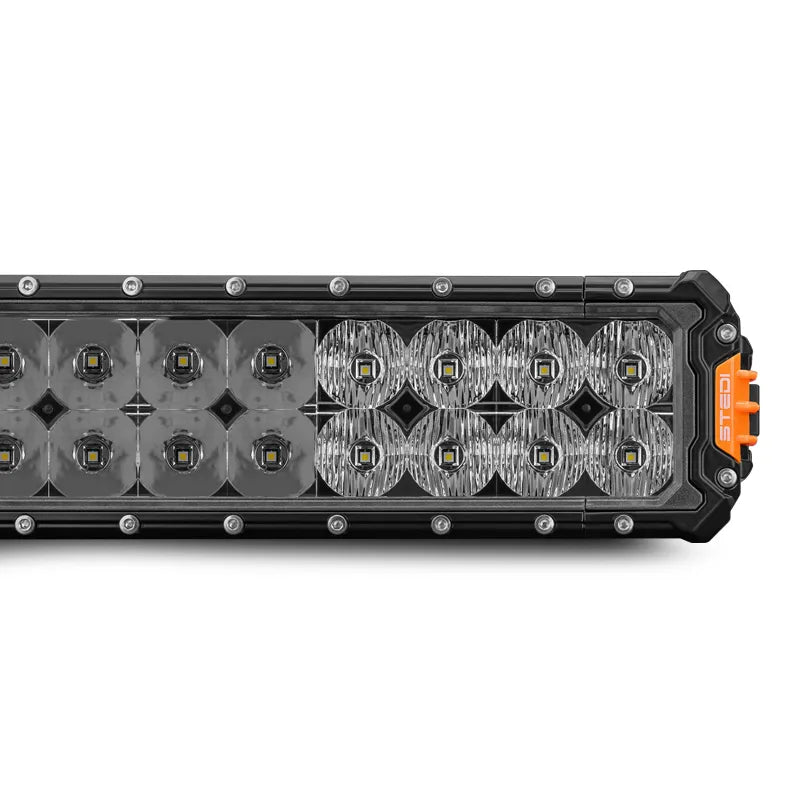

STEDI LED3303-PRO-32L ST3303 PRO 23.3" 32 LED Light Bar

Proven to Be a Solid & Durable Upgrade for Your Vehicle!

The Ultimate Light Bar

For almost a decade, the name STEDI has stood for cutting-edge design and market-leading performance. The ST3303-PRO is an aggregation of all things that have made us the globally distributed, coveted brand born right here in Australia.

Unquestionably, ST3303 PRO sits at the pinnacle of the STEDI offering. A pure expression of capability and design that converges with brutal performance, making the all-new ST3303 PRO unmistakably STEDI.

A New Realm Of Performance

Every good story starts with CREE LEDs. So, we commissioned CREE’s XPL HI emitter, which represents a +9% increase in lumen output at the same drive current over the already great (but now aging) CREE XM-L2 found in the previous model.

9% doesn’t sound like much, but the kicker is that the emitter die size drops down from 5 x 5mm to 3.5 x 3.5mm. Higher lumen density with tighter source improves the optic and emitter size relationship – We’ve effectively increased the optic diameter by 40% without physically increasing it. The result is huge light volume and tremendous beam throw.

Now, Are You Sitting Down?

Where others stop, we get started. The current draw is enormous, and quite literally unlike anything else on the market. The 60 LED variant draws 36 amp at 13.6v & @ 12.5v 40 amp. Have we got your attention yet? Now, you must, without any exception, we repeat, you must use the heavy-duty, dual relay (yes dual relay!), dual fused wiring harness we supply.

The current is so intense, the 40 LED and 60 LED bars have two separate power cables (yes two separate power cables!) on either side of the light bar, and two separate breathers (yep two!) to deal with the enormous current draw.

Features:

• CREE® XLamp XP-L HI Undomed LED's Using CREE’s Breakthrough SC5 Technology™
• RFI & EMI Suppression Circuit. Guaranteed to Not Interfere with Radio or GPS Equipment
• IP68 - Submersible to 3m
• High Current Deutsch DTP-2 25A Connectors
• 32mm Diameter Parabolic Reflectors
• Spread & Spot Beam Pattern
• 4mm Thick 304 Stainless Steel Side Brackets Included
• Cast Alloy Adjustable Sliding Bracket Included
• Nitto Denko™ Breather with PTFE Microporous Membrane
• Very Heavy-Duty Smart Plug & Play ADR Compliant Wiring Harness. (Switch, Fuse, Relay, HB3 & H4 Piggyback Adaptors) Included

Specifications:

• LED Manufacturer: CREE XPL Hi
• LED Count: 32
• Voltage: 9V - 32V
• Current Draw (Amperes): 16.4a @13.6v
• Lens Material: Optical Grade, Hard Coated Lexan
• RAW LUMENS 31,040Lm
• Effective Lumens: 17,920Lm
• Peak Intensity (Candela): 474,721CD
• Housing Material: A360.0 Cast Face Plate, Extruded Aluminum Heat Sink
• Life Span: 50,000 Hours
• Flood Beam: 50°
• Spot Beam: 9°
• Ingress Protection: IP68
• Operating: TEMP -40ËšC ~ +150ËšC
• Weight: 2.850kg

What's Included:

• ST3303 PRO 32 LED Light Bar
• Easy Fit High Beam Wiring Harness with H4 & HB3 Adapters to High Beam
• 2 x Lower Mountings Brackets with Stainless Steel Fasteners
• 2 x 4mm Thick Stainless Steel Brackets
• 2 x Orange End Caps
• 2 x Grey End Caps
