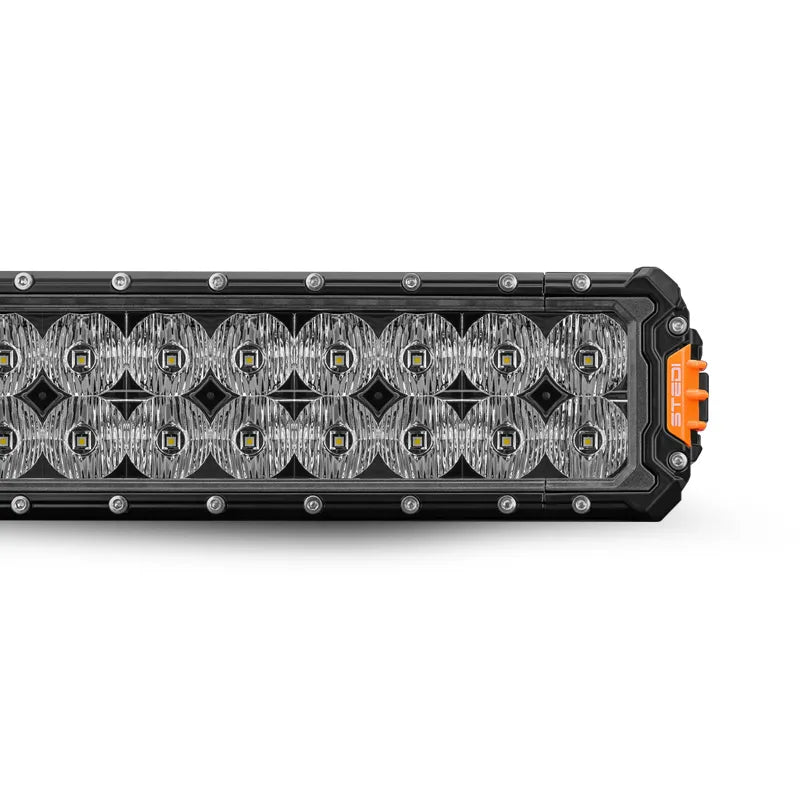

STEDI LED3303-PRO-32L-FLOOD ST3303 PRO 23.3" Full Flood High Output LED Driving Light Bar

SKU: LED3303PRO32LFLOOD
Sale price
$494.99
Regular price
$519
You save
5%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Proven to Be a Solid & Durable Upgrade for Your Vehicle!

ST3303 PRO 23.3" Full Flood LED Bar

We conceptualized a light bar that would be diabolic, something excessive, over the top, a real savage. Then, we went ahead and made it. No other light bar on the market encapsulates 32 x 10W CREE XM-L2 LEDs inside of 21.5” housing – A world first then?

Features:

  • CREE® XLAMP XP-L HI Undomed LED's Using CREE’s Breakthrough SC5 Technology™
  • RFI & EMI Suppression Circuit. Guaranteed to Not Interfere with Radio or GPS Equipment
  • IP68 - Submersible to 3m
  • High Current Deutsch DTP-2 25A Connectors
  • 32mm Diameter Parabolic Reflectors
  • Spread & Spot Beam Pattern
  • 4mm Thick 304 Stainless Steel Side Brackets Included
  • Cast Alloy Adjustable Sliding Bracket Included
  • Nitto Denko™ Breather with PTFE Microporous Membrane
  • Very Heavy-Duty Smart Plug & Play ADR Compliant Wiring Harness. (Switch, Dual Fuse, Dual Relay, HB3 & H4 Piggyback Adaptors) Include

Specifications:

  • LED Manufacturer: CREE XPL Hi
  • LED Count: 32
  • Voltage: 9V - 32V
  • Current Draw (Amperes): 16.7a @13.6v
  • Lens Material: Optical Grade, Hard Coated Lexan
  • Raw Lumens: 35,040Lm
  • Effective Lumens: 17,920Lm
  • Peak Intensity: (Candela): 474,721CD
  • Housing Material: A360.0 Cast Face Plate, Extruded Aluminum Heat Sink
  • Life Span: 50,000 Hours
  • Flood Beam: 50°
  • Spot Beam: 9°
  • Ingress Protection; IP68
  • Operating Temp: -40C ~ +150C
  • Weight: 2.850kg

What's in The Box:

  • ST3303 21.5" LED Light Bar
  • Easy Fit High Beam Wiring Harness with H4 & HB3 Adapters to High Beam
  • 3 X Lower Mountings Brackets with Fasteners
  • Nuts & Bolts (6 x M8 40mm Bolts, 6 x M8 Nuts, 6 x M6 Bolts)
