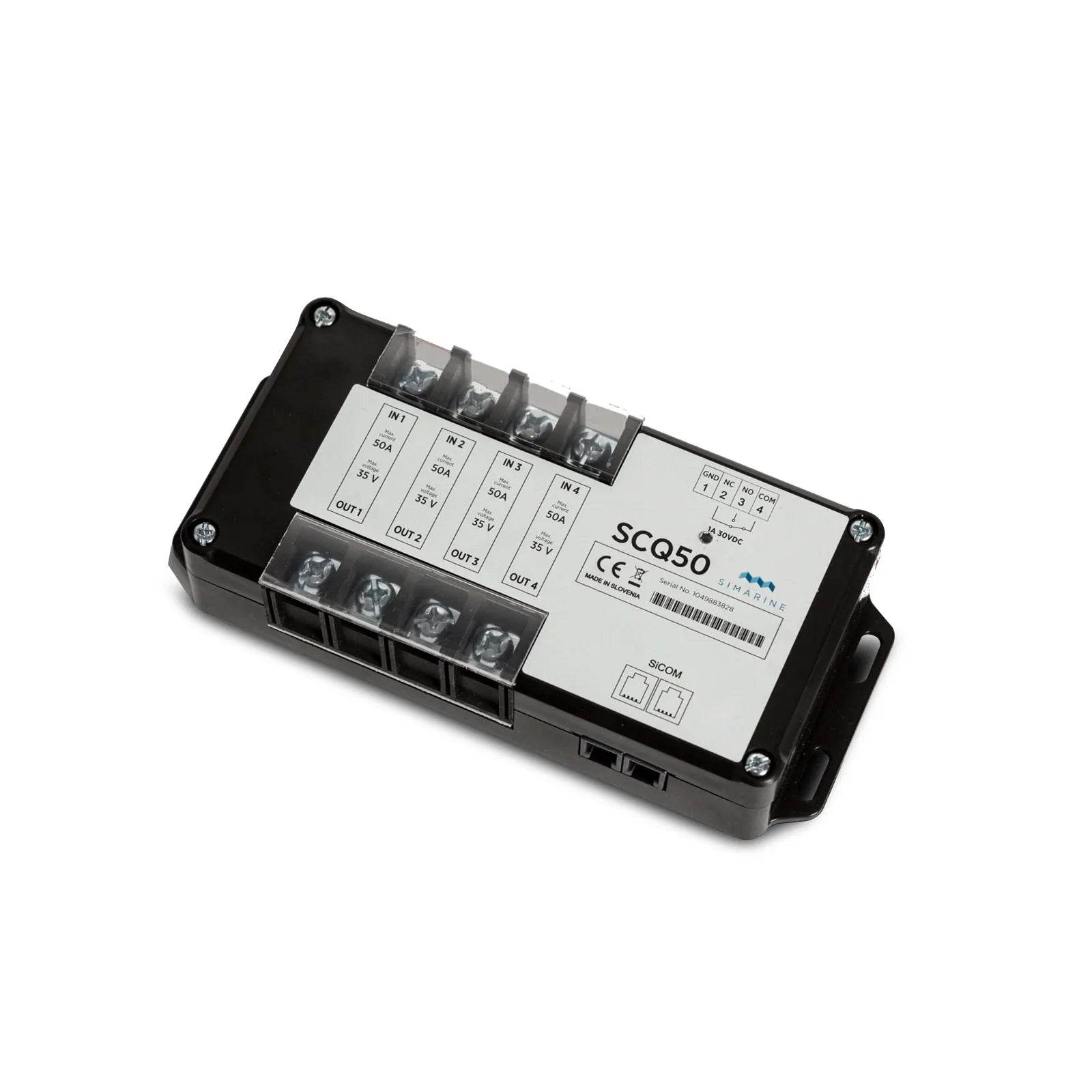

Simarine SI-SCQ50 50A Active Quad Shunt for Pico Battery Monitor

SKU: SISCQ50

CALL FOR PRICING & AVAILABILITY - (02) 4257-2636

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Product features

Optimized Active Shunt for PICO Battery Monitor: Precision Current Monitoring for 12V & 24V Systems with 4x 50A Sensors

Active shunt for PICO battery monitor with 4x current sensors up to 50A each. For 12V and 24V systems.

Operating

  • Power source voltage range 6 – 35 V
  • Temperature range -20 – +70 °C
  • Power consumption at 12 V
  • Operating 3,5 mA
  • Current measuring channels 4
  • Relay (monostable)
  • Maximum Operating Current 1 A
  • Maximum Common Input Voltage 6 – 30V

Voltage inputs

  • Per channel 0,01 – 50 A
  • Resolution 0,01 A
  • Accuracy ± 0,6 %
  • Sampling rate 100 ms

Maximal current

  • Continuous 50 A
  • Peak current (<1 min) 60 A
  • Peak current (<5 sec) 60 A
  • Voltage drop at 50 A35 mV
  • Maximum voltage on connections 35 V

Connectivity Up to

  • Current sensors 4
  • Relay Common Input (COM) 1
  • Relay Output Normaly Open (NO) 1
  • Relay Output Normaly Closed (NC) 1
  • SiCOM RJ 9 Sockets 2
Installation and Dimension
  • Dimensions (length x width x depth) 182 x 80 x 37 mm
  • Weight 230g
