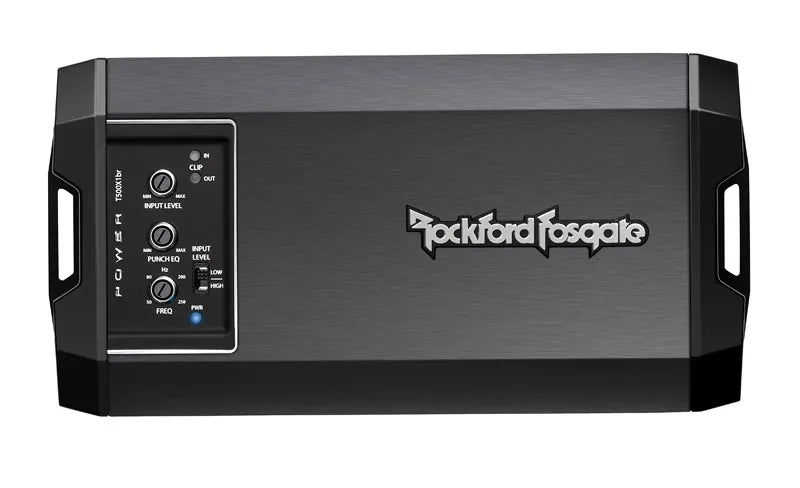

Rockford Fosgate T500X1BR Power 500 Watt Class-BR Mono Amplifier

Rockford Fosgate T500X1BR 500 Watts Mono. Patented Tech. Fits Where Others Won't.

Product Overview

The Rockford Fosgate T500X1BR is a Power Series Class-BR mono amplifier built around Rockford Fosgate's proprietary Boosted Rail technology a patented design that draws minimal current from your vehicle's electrical system while maintaining a stored power reserve for sustained, dynamic bass output. The result is 500 watts of mono subwoofer power in an ultra-compact chassis that fits hybrid vehicles, electric cars, motorcycles, side-by-side UTVs, and small cars where a conventional amplifier simply won't go.

Unlike standard Class D monoblocks, the T500X1BR's Boosted Rail architecture actively manages current draw and power delivery making it one of the most electrically efficient 500-watt amplifiers available. The 3-stage thermal lock extrusion with dual fan forced induction keeps operating temperatures in check even in confined spaces, while real-time thermal sensing with Rollback technology reduces output before the amp ever reaches a protection trip point. For Australian builds where heat is a genuine concern confined underbody mounts, motorcycle tail bags, UTV roll cages this is the thermal management story that matters.

Key Specifications

• Total RMS Output: 500 watts mono
• Amplifier Class: Class-BR (Boosted Rail — Rockford Fosgate proprietary)
• Channels: 1 (mono)
• Form Factor: Ultra-compact
• Power Connector: 8 AWG
• Ground Connector: 8 AWG
• Speaker Connector: 10 AWG
• Inputs: Low-level (RCA) and high-level (speaker-level)
• Auto Turn-On: Yes — via high-level (differential) input detection
• Remote-Out: Yes — when using high-level inputs
• Remote Level Control: 2013 PLC2 compatible (sold separately)
• Clip Detection: C.L.E.A.N. input and output clip detection with indicator LEDs
• Cooling: Dual fan forced induction
• Heatsink: Dual extruded heatsinks with 3-stage thermal lock extrusion
• Thermal Protection: Real-time thermal sensing with Rollback technology
• RCA Connectors: Upgraded
• Construction: Discrete surface mount technology
• Control Panel: Top-mounted
• Protection: Thermal, over-current, short circuit (real-time)

Features & Benefits

• Patented Boosted Rail Technology — Rockford Fosgate's proprietary Class-BR design sips current from your charging system while holding a stored power reserve for dynamic bass transients. Ideal for hybrid and electric vehicles where alternator output is limited or managed by the vehicle's BMS, and for motorcycles and UTVs where electrical headroom is tight.
• Ultra-Compact Form Factor — Designed to fit where a conventional monoblock can't. Motorcycles, side-by-sides, small hatchbacks, hybrids, under-seat installs — the T500X1BR opens up mounting locations that a standard amp chassis rules out entirely.
• Dual Fan Forced Induction Cooling — Active cooling via twin fans allows the T500X1BR to sustain rated output in confined spaces without relying solely on passive heatsink area. Critical for tight installs where airflow around the amplifier is restricted.
• 3-Stage Thermal Lock Extrusion with Dual Heatsinks — The extruded heatsink design combined with active fan cooling creates a three-stage thermal management system that handles heat from multiple directions. In Australian summer conditions — whether under a UTV seat or behind a motorcycle fairing — this is what keeps the amp alive.
• Real-Time Thermal Sensing with Rollback Technology — Rather than hard-cutting the amp when temperatures rise, Rollback progressively reduces output to a safe level, keeping audio playing while protecting internal components. Recovers automatically when temperatures drop — no manual reset required.
• C.L.E.A.N. Input/Output Clip Detection with Indicator LEDs — Rockford Fosgate's gain-calibration system now extends to both input and output clip detection with dedicated LED indicators. Set your gain correctly on the way in, and monitor whether the output is clipping under real listening conditions — a genuine dual-stage clip monitoring system.
• Differential Inputs with High-Level Auto Turn-On — Accepts speaker-level signals directly from an OEM or factory head unit. The differential input design rejects noise and ground loops that are common in high-level installs. Auto turn-on activates the amp on signal detection — no remote wire required.
• Remote-Out Feature (High-Level Input Mode) — When using the high-level inputs, the T500X1BR generates a remote-out signal that can trigger additional amplifiers or accessories downstream — useful in multi-amp builds where a clean remote signal source is otherwise unavailable.
• Upgraded RCA Connectors — Higher-quality RCA connectors than standard at this power class — better contact, lower noise floor, and a more secure connection for installations subject to vibration (motorcycles, UTVs, off-road use).
• 8 AWG Power/Ground, 10 AWG Speaker Connectors — Sized appropriately for the T500X1BR's output rating, reducing wiring complexity and keeping the install tidy.
• 2013 PLC2 Remote Ready — Compatible with Rockford Fosgate's PLC2 remote Punch Level Control (sold separately) for dash-mounted bass level adjustment. Note: requires the 2013-spec PLC2.
• Discrete Surface Mount Technology — Internal components are surface-mounted for tighter tolerances, better vibration resistance, and improved reliability — especially relevant in motorcycle and UTV applications subject to constant vibration.
• Top-Mounted Controls — All crossover and gain controls are on the top face of the amplifier for easy access during initial setup, regardless of mounting orientation.

Technical Specs

Compatible With / Goes Well With

Vehicle Applications:

• Hybrid vehicles (low alternator output — Boosted Rail manages current draw)
• Electric vehicles (BMS-sensitive electrical systems)
• Motorcycles (compact chassis, vibration-resistant SMT construction)
• Side-by-side UTVs (compact, fan-cooled for confined mounting)
• Small cars and hatchbacks (tight boot or under-seat installs)
• Trucks and utes (standard subwoofer installs)

Head Unit Compatibility:

• Factory/OEM head units (via high-level differential input with Auto Turn-On)
• Aftermarket head units with RCA pre-outs (low-level input)

Accessories:

• Rockford Fosgate 2013 PLC2 Remote Punch Level Control (optional, sold separately — confirm 2013 spec)
• 8 AWG power/ground wiring kit recommended
• 10 AWG speaker cable recommended

Frequently Asked Questions

What makes Boosted Rail technology different from a standard Class D amplifier?

Boosted Rail is Rockford Fosgate's patented design that draws minimal current from your vehicle's electrical system while storing a power reserve for dynamic bass bursts — unlike Class D, which draws current in direct proportion to output at all times.

Is the T500X1BR suitable for a motorcycle or UTV installation?

Yes. The ultra-compact chassis, dual fan cooling, vibration-resistant surface mount construction, and upgraded RCA connectors make the T500X1BR one of the few 500-watt amplifiers genuinely engineered for motorcycle and side-by-side UTV installs.

What is Rollback technology and how does it protect my amplifier?

Rather than cutting power entirely when the amp gets hot, Rollback progressively reduces output to keep temperatures safe while keeping audio playing. The amp recovers automatically once it cools — no manual reset, no interruption to your ride.

Does the T500X1BR work with a factory head unit?

Yes. The differential high-level input accepts speaker-level signals directly from an OEM head unit, with Auto Turn-On built in. The differential design also rejects the noise and ground loops common in high-level installs — particularly important on motorcycles and UTVs.

What does the Remote-Out feature do and when do I need it?

When using the high-level inputs, the T500X1BR outputs a remote-on signal that can trigger a second amplifier or powered accessory. Useful in multi-amp builds where a factory head unit doesn't provide a clean remote wire source.
