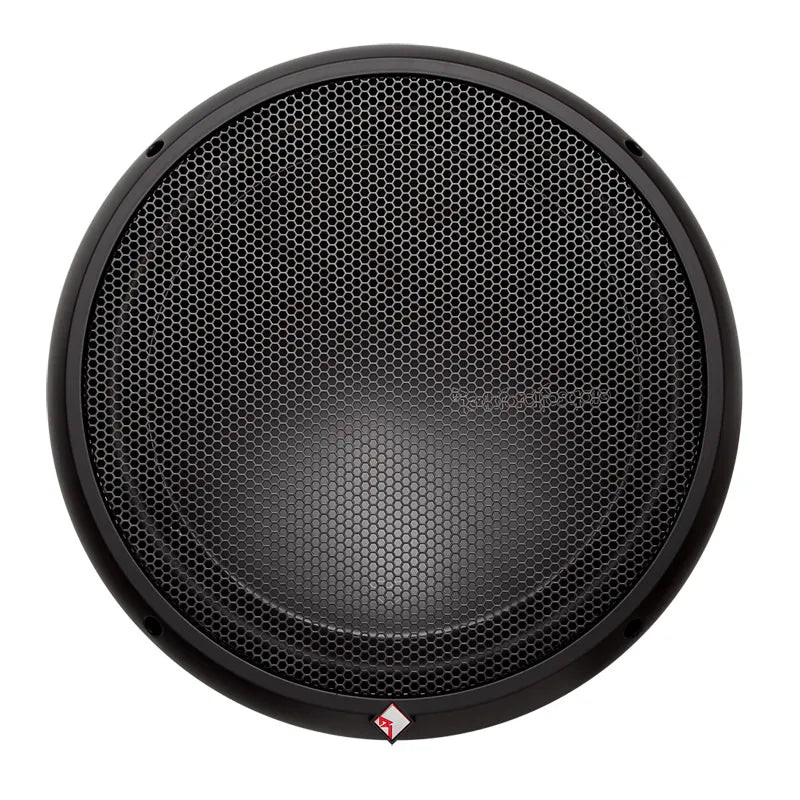

Rockford Fosgate T1D415 Power 15" T1 Dual 4-Ohm Subwoofer 1000 Watts, VAST Technology, Built to Dominate

Product Overview

The Rockford Fosgate T1D415 is a 15" dual 4-ohm voice coil subwoofer from the flagship Power T1 series, rated at 1000 Watts RMS and 2000 Watts peak. Built on a foundation of patented Rockford Fosgate technologies, the T1D415 is engineered to perform like a larger woofer than its physical dimensions suggest delivering the kind of deep, high-output bass that defines serious Australian car audio builds.

At the core of the T1D415 is Rockford Fosgate's patented VAST (Vertical Attach Surround Technique) technology, which increases usable cone surface area by up to 25% over a conventional surround attachment meaning more air moved, more bass output, and more efficiency from the same basket diameter. The new FlexFit die-cast aluminium basket provides installation flexibility for extreme custom builds, while the high-temp Nomex-reinforced voice coil, anodized aluminium former with copper-clad aluminium winding, Kevlar fibre reinforced paper cone, and anodized aluminium heat-sinking dust cap combine to handle sustained 1000W RMS input with long-term reliability. Grille and integral trim ring are included.

Key Specifications

• Driver size: 15"
• Voice coil configuration: Dual 4-ohm (DVC)
• Power handling: 1000W RMS / 2000W peak
• Technology: Patented VAST (Vertical Attach Surround Technique) up to 25% increased cone surface area
• Basket: FlexFit rigid die-cast aluminium
• Cone: Kevlar fibre reinforced paper
• Voice coil former: Anodized aluminium with copper-clad aluminium wire
• Voice coil reinforcement: Spun-laced Nomex collar (high-temp)
• Dust cap: Anodized aluminium heat-sinking
• Input terminals: Proprietary 8 AWG insulated all-metal spring terminals
• Spiders: Symmetrical dual progressive roll tear-resistant poly-cotton
• Tinsel leads: Periodic-stitched fatigue-resistant
• Grille: Included with integral trim ring
• Impedance wiring options: 2 ohm (parallel) / 8 ohm (series)

Features & Benefits

• Patented VAST technology up to 25% more cone surface area: VAST (Vertical Attach Surround Technique) repositions the surround attachment point to reclaim cone surface area that is traditionally lost under the surround. The result is up to 25% more effective piston area than a conventional 15" woofer moving more air and producing more bass output per watt of input power.
• FlexFit rigid die-cast aluminium basket: The FlexFit basket is precision-cast for structural rigidity while providing installation geometry flexibility for custom builds where standard basket angles won't clear the enclosure or vehicle structure. Critical for extreme custom fabrication common in serious Australian show and competition builds.
• 1000W RMS / 2000W peak power handling: Built for the highest-output mono amplifiers in the Rockford Fosgate Power series and beyond. At 1000W RMS continuous, the T1D415 is designed for builds where bass performance is the primary objective.
• Dual 4-ohm voice coils: DVC configuration provides wiring flexibility: wire in parallel for a 2-ohm load (maximum power from a 1-ohm or 2-ohm stable mono amplifier), or wire in series for an 8-ohm load for specific multi-driver or bridged amplifier configurations.
• High-temp voice coil with spun-laced Nomex reinforcement collar: The Nomex collar reinforces the voice coil former at the critical junction between the former and the cone, preventing delamination and separation under high-power, high-excursion use a common failure point in lesser subwoofers at sustained 1000W RMS input.
• Anodized aluminium voice coil former with copper-clad aluminium wire: Aluminium formers dissipate heat faster than paper or plastic equivalents, extending voice coil life at high sustained power levels. Copper-clad aluminium winding reduces voice coil mass while maintaining conductivity improving transient response and efficiency.
• Kevlar fibre reinforced paper cone: Kevlar reinforcement adds stiffness and break-up resistance to the cone without excessive weight, maintaining pistonic motion accuracy at high excursion levels where an unreinforced paper cone would begin to flex and distort.
• Anodized aluminium heat-sinking dust cap: The dust cap covers the pole piece opening and acts as an active heat sink, drawing thermal energy away from the pole piece and voice coil gap during sustained high-power use an engineering detail that directly contributes to long-term power handling reliability in Australian builds running at rated power.
• Optimised pole piece and spider venting: Internal venting channels allow air to flow through the pole piece and spider platform, reducing air compression behind the cone at high excursion levels and improving overall linearity and efficiency.
• Proprietary 8 AWG insulated all-metal spring input terminals: Heavy-gauge 8 AWG terminals are appropriate for the high current levels a 1000W RMS, low-impedance subwoofer demands. All-metal construction and spring-loaded clamping ensure reliable, corrosion-resistant connections in the long term.
• Symmetrical dual progressive roll poly-cotton spiders: Dual spiders provide linear restoring force symmetry across the full excursion range, reducing harmonic distortion and maintaining voice coil alignment at the high displacement levels a 15" 1000W RMS driver routinely operates at.
• Periodic-stitched fatigue-resistant tinsel leads: Tinsel lead fatigue and breakage is a common failure mode in high-excursion subwoofers. The periodic-stitching pattern distributes flex stress along a longer lead length, significantly extending fatigue life at the high excursion levels the T1D415 is designed to sustain.
• Grille and integral trim ring included: Ships complete with a protective grille and trim ring for a finished, professional installation appearance.

Technical Specs

Compatible With

• High-output mono amplifiers stable at 2 ohms (parallel wiring) rated at or near 1000W RMS
• Rockford Fosgate Power T1 series mono amplifiers
• Custom ported and sealed enclosures designed for the T1D415 confirm recommended enclosure volume and tuning with Rockford Fosgate specifications
• Rockford Fosgate 8 AWG and heavy-gauge wiring kits for high-current 1000W RMS installations
• Rockford Fosgate RCA cables and signal processors for high-output system integration
• Competition and show car audio builds requiring a high-output 15" flagship driver
• Australian vehicles with custom fabricated enclosures in boots, utes trays, and dedicated audio bays

Frequently Asked Questions

What impedance does the T1D415 present to the amplifier? The T1D415 has dual 4-ohm voice coils. Wired in parallel, it presents a 2-ohm load the typical configuration for maximising power from a high-output mono amplifier. Wired in series, it presents an 8-ohm load for specific amplifier configurations. Confirm your amplifier's stable impedance rating before wiring.

What is VAST technology and why does it matter? VAST (Vertical Attach Surround Technique) is a patented Rockford Fosgate technology that repositions the surround attachment point on the cone, reclaiming up to 25% of the cone surface area that is traditionally covered by the surround in conventional designs. The result is more effective piston area moving more air and producing more bass output per watt than a conventional subwoofer of the same basket diameter.

What enclosure does the T1D415 require? The T1D415 is a raw driver that requires a custom or aftermarket enclosure. Rockford Fosgate publishes recommended sealed and ported enclosure specifications for the T1D415 confirm these with the official documentation or a qualified installer before designing or building an enclosure.

What amplifier is recommended for the T1D415? A high-output mono amplifier stable at 2 ohms and rated at or near 1000W RMS at 2 ohms is recommended for optimal performance. Rockford Fosgate Power series mono amplifiers are the natural pairing. Do not exceed 2000W peak input.

Does the T1D415 include a grille? Yes. The T1D415 ships with a grille and integral trim ring included, providing a complete, finished installation appearance without requiring a separately purchased grille.
