Battery Terminal with Integrated 4-Port Distribution Block 2× 1/0 or 4 AWG Inputs, 2× 8 AWG Inputs. Positive or Negative. Custom Tooled Solid Brass, HPP Platinum Finish.

Product Overview

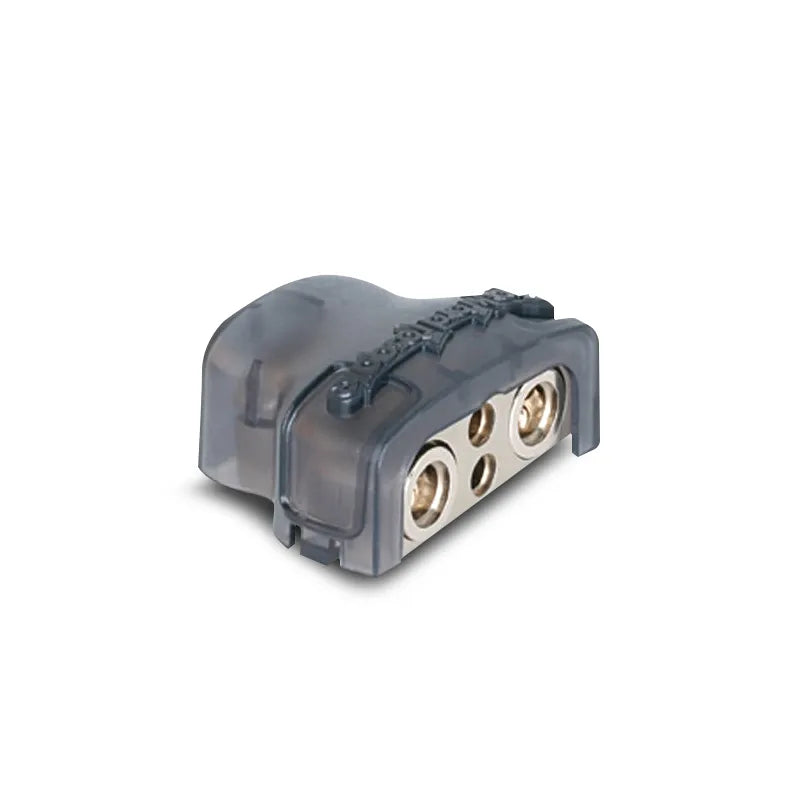

The Rockford Fosgate RFDB1 is a battery terminal with a built-in 4-port distribution block replacing the stock battery terminal and providing direct wire distribution at the battery post itself. Usable as either a positive or negative terminal using the supplied sizing ring to fit the battery post. Constructed from custom-tooled solid brass with HPP platinum finish.

Wire inputs: two ports accept 1/0 AWG or 4 AWG wire; two ports accept 8 AWG wire providing a total of four wiring connections directly at the battery terminal without additional distribution hardware.

Key Specifications

• Part number: RFDB1
• Type: Battery terminal with integrated distribution block
• Total ports: 4 ✓
• Large inputs: 2 × 1/0 AWG or 4 AWG ✓
• Small inputs: 2 × 8 AWG ✓
• Polarity: Positive or negative (sizing ring included) ✓
• Construction: Custom tooled solid brass ✓
• Plating: HPP (High Performance Plating) — platinum finish ✓
• Battery post sizing ring: Included ✓
• Current rating: Not specified — confirm with Rockford Fosgate
• Dimensions: Not specified
• Warranty: Not specified — confirm with Rockford Fosgate

Features & Benefits

• Integrated Distribution at the Battery Terminal — Eliminates the need for a separate distribution block close to the battery — all wiring connections are made directly at the post, simplifying the under-bonnet installation.
• 4 Ports — Mixed Wire Gauges — Two ports accept 1/0 AWG or 4 AWG (primary amplifier runs), two ports accept 8 AWG (secondary runs or accessories) — all from one terminal.
• Positive or Negative — Supplied Sizing Ring — The included sizing ring adjusts the terminal clamp for either the positive (larger) or negative (smaller) battery post diameter — a single part number for both connections.
• Custom Tooled Solid Brass with HPP Plating — Machined brass for high current capacity and precise tolerances; HPP platinum finish for long-term corrosion resistance in the under-bonnet environment.

Technical Specs

Compatible With / Goes Well With

Suitable for:

• Replacing stock battery terminals with a distribution-capable terminal
• Under-bonnet wiring simplification for multi-amplifier installations
• Positive terminal (with ring) or negative/ground terminal (without ring or with different ring)

Pairs with:

• Rockford Fosgate RFW1R-51 / RFW1B-51 wire
• Rockford Fosgate RFD1 / RFD4 distribution blocks for downstream distribution

FAQs

How does the sizing ring work for positive and negative terminals? Standard lead-acid and AGM battery terminals have different diameters — positive posts are larger. The supplied sizing ring inserts into the terminal clamp to reduce the opening, allowing the same terminal to fit either post size. Confirm the included ring configuration from the official Rockford Fosgate RFDB1 product page.

Can I use the RFDB1 for both positive and negative? Yes — two units would be required for both battery terminals (one for positive, one for negative). The product is sold as an individual terminal.

Does this replace my existing battery terminal? Yes — the RFDB1 replaces the factory battery terminal and clamps directly onto the battery post.
