One amplifier. Five channels. Your entire system sorted.

Product Overview

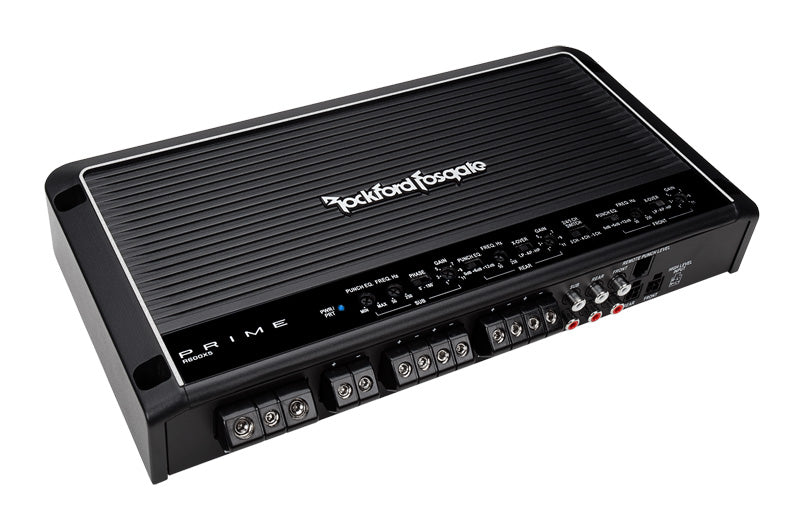

The Rockford Fosgate R600X5 is a 5-channel amplifier from the Prime series designed to power a complete car audio system from a single unit. Four main channels run on Class A/B topology, delivering 75W RMS each into 2-ohm loads (50W RMS @ 4 ohms), while a dedicated fifth channel uses Class-D circuitry to produce 300W RMS into a 2-ohm subwoofer load (200W RMS @ 4 ohms). Total system output is 600W RMS verified to the CEA-2006 standard.

The R600X5 covers the full 20Hz–20kHz frequency range across its main channels, with the subwoofer channel filtered independently via a variable low-pass crossover. Separate front, rear, and sub gain controls allow precise level matching across the entire system. A 2/4/5 channel input select accommodates factory and aftermarket head units with varying RCA output configurations, and high-level Molex inputs are provided for direct factory deck integration. The on-board Punch EQ, variable sub crossover, Remote Punch Level Control, and 0°/180° sub phase control round out a feature set designed to replace a rack of individual components with a single install-friendly chassis measuring 5 x 17.2 x 33.5 cm.

Key Specifications

• Channels: 5 (4 full-range + 1 dedicated subwoofer)
• Rated power (4 ohms): 50W RMS x 4 + 200W RMS x 1
• Rated power (2 ohms): 75W RMS x 4 + 300W RMS x 1
• Total rated power: 600W RMS (CEA-2006)
• Dynamic power: 58W x 4 + 224W x 1 @ 4Ω / 95W x 4 + 403W x 1 @ 2Ω (PowerCube)
• Bridgeable: Yes
• Circuit topology: Class A/B (front/rear) + Class D (sub)
• Efficiency: Front/Rear 64% @ 4Ω / Sub 85% @ 4Ω
• Frequency response: 20Hz – 20kHz (+/-1dB)
• Input sensitivity: 450mV – 12V
• THD+Noise: <1.0% across all channels at 4Ω and 2Ω
• Front/Rear crossover: High-pass/Low-pass, 50Hz–250Hz @ 12dB/octave Butterworth
• Sub crossover: Low-pass variable 50Hz–250Hz
• Front/Rear Punch EQ: 0dB / +6dB / +12dB @ 45Hz (stepped)
• Sub Punch EQ: Variable 0dB to +12dB @ 45Hz
• Sub phase control: 0° / 180°
• Signal input: High level (2 x 4-pin Molex) / Low level (3 x RCA pairs)
• Channel select: 2 / 4 / 5 channel input
• Separate gain controls: Front, Rear, Sub (independent)
• Remote control: Punch Level Control (PLC) — sub channel
• Operating voltage: 9–16V DC
• Power wire gauge: 4 AWG
• Speaker wire gauge: 8 AWG
• Recommended fuse: 80A (not included)
• CEA-2006 compliant

Features & Benefits

• 5-Channel Design — One Amplifier for Everything — The R600X5 eliminates the need for separate amplifiers for front, rear, and sub channels. A single chassis, single power run, and single ground point simplify installation considerably — reducing wiring complexity, mounting space requirements, and total system cost compared to a multi-amplifier setup.
• Hybrid Class A/B + Class-D Topology — The four main channels use Class A/B circuitry for accurate, low-distortion full-range reproduction. The dedicated subwoofer channel uses Class-D for its higher efficiency (85% vs 64%), keeping heat output manageable in a chassis that handles five simultaneous channels. Each topology is used where it performs best.
• Separate Front, Rear, and Sub Gain Controls — Independent gain trimmers for front, rear, and subwoofer channels allow precise level matching without compromising the overall signal chain. Fine-tune the balance between channels to suit your speaker combination, room acoustics, or listening preference without a separate processor.
• 2/4/5 Channel Input Select — The selectable input configuration accommodates head units with 2-channel, 4-channel, or full 5-channel RCA output. A 2-channel input feeds signal across all channels; a 4-channel input separates front and rear with the sub deriving signal from the mix; a 5-channel input provides a dedicated RCA path to every output stage. Compatible with both entry-level and high-end source units.
• High-Level Inputs (2 x 4-pin Molex) — Factory head units without RCA outputs are supported via two high-level Molex connectors. Direct integration with OEM audio systems is possible without a line output converter — a practical option for factory radio retention builds.
• Front/Rear High-Pass and Low-Pass Crossovers — The main channels can be configured as high-pass filtered (directing only upper frequencies to door speakers) or low-pass filtered depending on system requirements. Works in conjunction with the sub channel's low-pass crossover to create a properly crossed-over full system from a single amplifier.
• On-Board Punch EQ — Stepped +6dB and +12dB bass boost at 45Hz on front/rear channels, with a variable 0dB–+12dB continuous boost on the sub channel. Adjust the low-end presence of all channels to suit the acoustic environment without requiring an external equaliser.
• Remote Punch Level Control (PLC) — Sub Channel — The included PLC allows the driver to adjust subwoofer output level from the dash or centre console in real time. Front and rear channel gain is set at the amplifier; subwoofer level is managed remotely on the fly.
• MOSFET Power Supply with Full Protection — Over-current, short-circuit, and thermal protection are present across all five channels. Real-time thermal sensing monitors both output stage and power supply temperatures independently. Muted turn-on prevents the thumps and pops that can stress tweeters and subwoofer cones on startup.
• CEA-2006 Compliant Power Ratings — All five channels are rated under the CEA-2006 measurement standard. The 600W RMS total is a verified, signal-referenced figure across every channel simultaneously — not a single-channel burst measurement.

Technical Specs

Compatible With / Goes Well With

The R600X5 is designed to power a complete car audio system. Confirmed load configurations based on manufacturer specifications:

• Four 4-ohm full-range speakers on the main channels (50W RMS per channel)
• Four 2-ohm full-range speakers on the main channels (75W RMS per channel)
• Single 4-ohm SVC subwoofer on the dedicated sub channel (200W RMS)
• Single 2-ohm SVC subwoofer on the dedicated sub channel (300W RMS)
• Dual 4-ohm SVC subwoofers wired in parallel on the sub channel (2-ohm load — 300W RMS)
• Factory head units without RCA outputs (via 2 x high-level Molex inputs)
• Head units with 2, 4, or 5-channel RCA output (via channel input select)

Goes well with:

• Rockford Fosgate Prime series 6.5" or component speakers on main channels
• Rockford Fosgate Prime or Punch series subwoofers on the dedicated sub channel
• Aftermarket head units with 3-pair (5-channel) RCA preamp outputs
• Sealed or ported subwoofer enclosures tuned to suit the 300W sub channel

Frequently Asked Questions

Can the R600X5 genuinely power a complete car audio system on its own?

Yes. The R600X5 provides four full-range channels for front and rear speakers plus a dedicated 300W RMS subwoofer channel — all from a single amplifier and power run. It is specifically designed as an all-in-one solution.

What does the 2/4/5 channel input select do?

It configures the amplifier to match your head unit's RCA output count. A 2-channel source feeds all channels from a single pair; 4-channel separates front and rear with the sub derived from the mix; 5-channel gives every output stage its own dedicated input signal for the cleanest result.

Can the main channels be bridged for more power?

The R600X5 is listed as bridgeable, but bridged channel configuration and output power figures are not specified in the manufacturer data provided. Confirm the bridging arrangement and expected output directly with Rockford Fosgate or your authorised dealer before planning a bridged setup.

What wiring does the R600X5 require?

The R600X5 requires 4 AWG power and ground cable, 8 AWG speaker wire, and an 80A fuse (not included). A Remote Punch Level Control for the sub channel is included. With five speaker outputs, professional installation is strongly recommended to ensure correct earthing, fusing, and speaker wiring.

What does CEA-2006 compliant mean for a 5-channel amplifier?

CEA-2006 requires power to be measured across all channels simultaneously under standardised conditions. The 600W RMS total is a verified, real-world figure — not a single-channel burst measurement or inflated peak rating.
