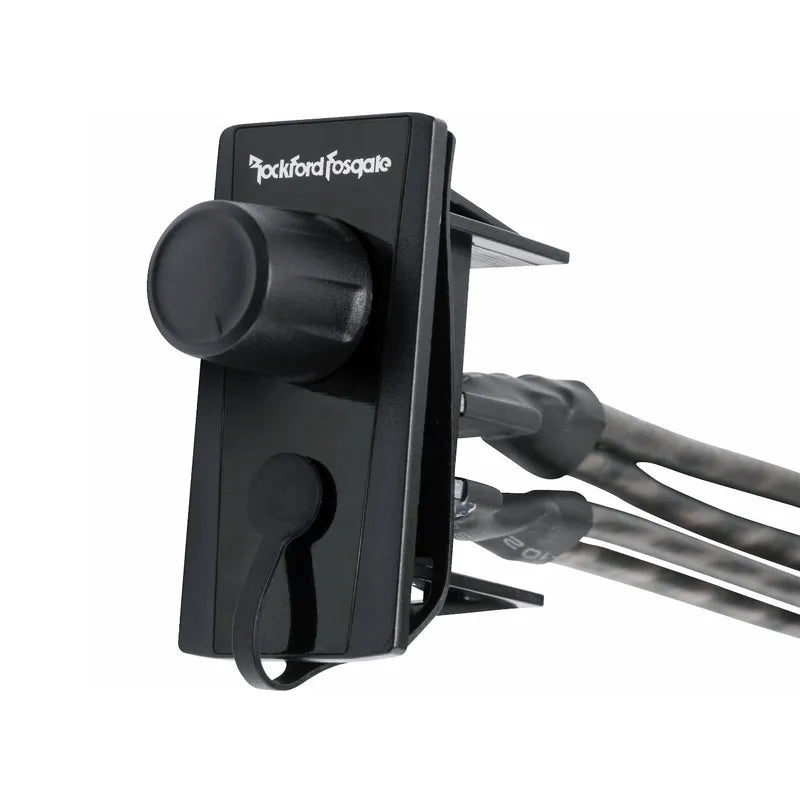

Rockford Fosgate PLC-U Universal Punch Level Control

Universal Inline RCA Audio Level Control Audio Taper Potentiometer, Four Mounting Configurations: Panel Mount, Under-Dash Bracket, Rocker Switch with 3.5mm AUX, and Flush Panel Mount. Mobile, Marine, and Off-Road Compatible.

Product Overview

The Rockford Fosgate PLC-U is a universal inline stereo RCA level control designed to vary the signal level of any stereo pair of RCA cables independently of a master volume control. The high-quality audio taper potentiometer provides true linear level control across the entire knob range suited to subwoofer level adjustment, zone volume control, or anywhere a dedicated RCA signal path requires independent level management.

The PLC-U ships with four mounting configurations covering the widest range of vehicle installation scenarios: standard 1" panel mount (large or small knob), universal under-dash bracket, rocker switch mount with integrated 3.5mm AUX-to-RCA extension port, and a disassembled rocker switch configuration for smaller flush panel mounting. Compatible with source units, line drivers, and amplifiers. Suitable for mobile, marine, and off-road applications.

Key Specifications

• Part number: PLC-U
• Type: Inline stereo RCA audio level control ✓
• Control: Audio taper potentiometer (linear) ✓
• Signal path: Stereo RCA pair (inline) ✓
• Mounting configurations: 4 ✓
• Panel mount: 1" (25.4mm) hole, retaining nut, large and small knob options ✓
• Under-dash bracket: Universal, used with panel mount unit ✓
• Rocker switch mount: Integrated 3.5mm to RCA extension port ✓
• Flush mount: Rocker switch disassembled for smaller-hole installation ✓
• Rocker switch knockout: Fits standard vehicle rocker switch panel knockouts ✓
• Compatible with: Source units, line drivers, amplifiers ✓
• Applications: Mobile, marine, off-road ✓
• Input/output impedance: Not specified — confirm with Rockford Fosgate
• Cable lengths: Not specified — confirm with Rockford Fosgate
• Dimensions: Not specified — confirm with Rockford Fosgate
• Warranty: Not specified — confirm with Rockford Fosgate

Features & Benefits

• Audio Taper Potentiometer — True Linear Level Control The audio taper (logarithmic) potentiometer matches the non-linear sensitivity of human hearing — producing a level change that feels linear across the entire knob rotation, rather than changing rapidly at the lower end of the range as a standard linear potentiometer does. This provides precise, usable level adjustment from minimum to maximum.
• Panel Mount — 1" Hole, Large and Small Knob Installs in a standard 1" panel hole (same as the PAUX) with a threaded retaining nut. Two knob size options are included — large for easy manual adjustment during driving, small for a more discreet installation. The panel mount version is the primary configuration for dedicated level control locations on the dash or console.
• Universal Under-Dash Bracket When a panel cut-out is not preferred or clearance behind the panel is limited, the universal under-dash bracket holds the panel mount unit in an accessible under-dash position without requiring a hole.
• Rocker Switch Mount with 3.5mm AUX Extension The rocker switch configuration fits standard vehicle rocker switch panel knockouts (common in trucks, SUVs, and 4WDs with unused accessory switch positions). The integrated 3.5mm-to-RCA extension port adds AUX input capability at the same location — combining level control and device connectivity in a single rocker switch position.
• Flush Panel Mount via Disassembly Disassembling the rocker switch housing allows the level control potentiometer to be surface-mounted using a smaller hole than the 1" panel mount requires — enabling installation in locations where neither the 1" hole nor the full rocker switch knockout is available.
• Stereo RCA Inline — Universal System Compatibility Inline on any stereo pair of RCA cables — works with any source unit, line driver, or amplifier with RCA connections. Compatible with the full Rockford Fosgate RFI, RFIT, RFIY, and RFITY cable and adapter range.

Technical Specs

Compatible With / Goes Well With

Suitable for:

• Subwoofer level adjustment from an accessible dash or console location
• Zone volume control for secondary RCA output channels
• Any stereo RCA signal path requiring independent level management
• Marine, UTV, motorcycle, and off-road audio systems (marine-suitable application confirmed)

Pairs well with:

• Rockford Fosgate RFI or RFIT series RCA cables (inline on the signal path)
• Rockford Fosgate TM750X1bd or TM1000X5ad marine amplifiers
• Rockford Fosgate RF-HLC or RF-HLC4 LOC units (downstream level control)
• Rockford Fosgate PAUX (the rocker switch AUX port extends similar functionality from a single mounting position)

Frequently Asked Questions

What is an audio taper potentiometer and why does it matter for level control?

An audio taper (also called logarithmic) potentiometer is designed to match the non-linear sensitivity of human hearing — which perceives loudness changes logarithmically, not linearly. At any position on the knob, the level change feels proportional and smooth. A standard linear potentiometer would make most of its audible change in the first 20% of knob rotation, making fine adjustment difficult.

Can the PLC-U be used as a subwoofer level control?

Yes — the PLC-U controls the signal level on any inline stereo RCA pair. For subwoofer level adjustment, connect it inline on the RCA cable between the head unit or crossover output and the subwoofer amplifier input.

Which mounting option suits a standard truck or 4WD with rocker switch panels?

The rocker switch mount configuration — it fits standard vehicle rocker switch panel knockouts that are common in utes, trucks, and 4WDs. The integrated 3.5mm-to-RCA extension port adds AUX input capability at the same switch position, making this configuration particularly practical for dual-function installations.

Does the PLC-U work in marine installations?

Yes — the PLC-U is confirmed suitable for mobile, marine, and off-road applications. The rocker switch mounting option is particularly useful in marine helm consoles that feature standard rocker switch panel arrays.

Is the PLC-U the same as the PLC2 remote mentioned in the amplifier listings?

No — the PLC2 is a dedicated bass remote level control specific to compatible Rockford Fosgate amplifiers (including the TM750X1bd and TM1000X5ad). The PLC-U is a universal inline RCA level control that works with any amplifier or source — it is not amplifier-specific and does not require amplifier compatibility. Both provide level adjustment, but from different points in the signal chain.
