Rockford Fosgate P3V2-69C2 Punch P3 6"x9" 3-Way Coaxial/Component Speaker System 75W RMS
A 6"x9" 3-way coaxial/component hybrid speaker system from Rockford Fosgate, the P3V2-69C2 pairs a 6"x9" 4Ω component woofer with a P1V2-25 Punch P1 2.5" 4Ω coaxial midrange/tweeter unit per channel, delivering 75W RMS and 150W peak with a woofer external LP crossover at 1.2kHz 6dB/Oct, P1V2-25 ICC+ internal 6dB tweeter crossover at 9kHz, 33µF bass blocker (HP 1200Hz) for the coaxial midrange, FLWR twist-lock adaptors, VAST 2.0 woofer cone, MC3 crossover chassis, 89dB sensitivity, 49Hz-25kHz frequency response, and full installation hardware. Sold in pairs.
Product Overview

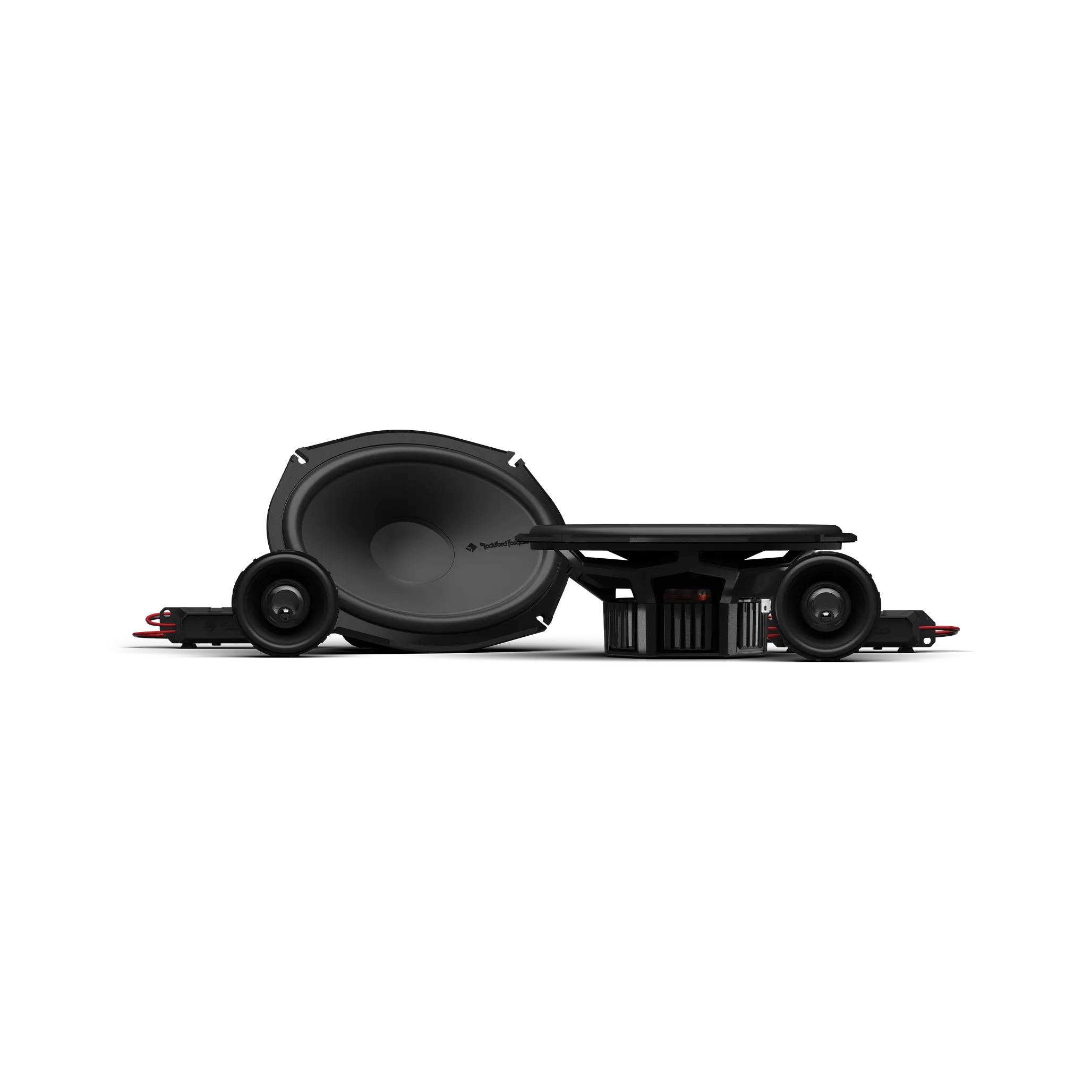

The Rockford Fosgate P3V2-69C2 is a 3-way hybrid coaxial/component system that provides a more installation-friendly alternative to the fully separate P3V2-69 3-way component system. Where the P3V2-69 uses three completely discrete drivers per channel requiring three separate mounting locations, the P3V2-69C2 uses a 2-driver approach per channel: a 6"x9" component woofer for the low-frequency channel, and a P1V2-25 Punch P1 2.5" coaxial speaker that combines midrange and tweeter in a single coaxial unit for the midrange and high-frequency channels. This reduces the number of separate mounting locations required per channel while retaining full 3-way frequency coverage.
The P1V2-25 2.5" coaxial uses an integrated ICC+ 6dB internal crossover for its tweeter at 9kHz, and is protected from low-frequency excursion by the included 33µF bass blocker capacitor providing a 1200Hz 6dB/Oct highpass filter. The 6"x9" woofer uses an external lowpass crossover at 1.2kHz 6dB/Oct. The 6"x9" woofer shares the same VAST 2.0 cone technology, 8.41" x 5.71" oval cutout, 79.4mm mounting depth with motor cover (70mm without), and durable material stack as the P3V2-69 woofer. FLWR twist-lock adaptors provide front-loading (40.6mm) and rear-loading (37.3mm) depth options for the 2.5" coaxial. CTA-2031 compliant and Klippel verified. Grilles sold separately. 2-year warranty.
Features & Benefits
3-Way Coaxial/Component Hybrid - Simpler Installation than Full Component: The P3V2-69C2 achieves full 3-way frequency coverage with only two separate driver mounting locations per channel: the 6"x9" woofer in the factory woofer position and the P1V2-25 coaxial in the factory midrange or dash position, making installation more straightforward than the fully separate 3-driver P3V2-69 system.

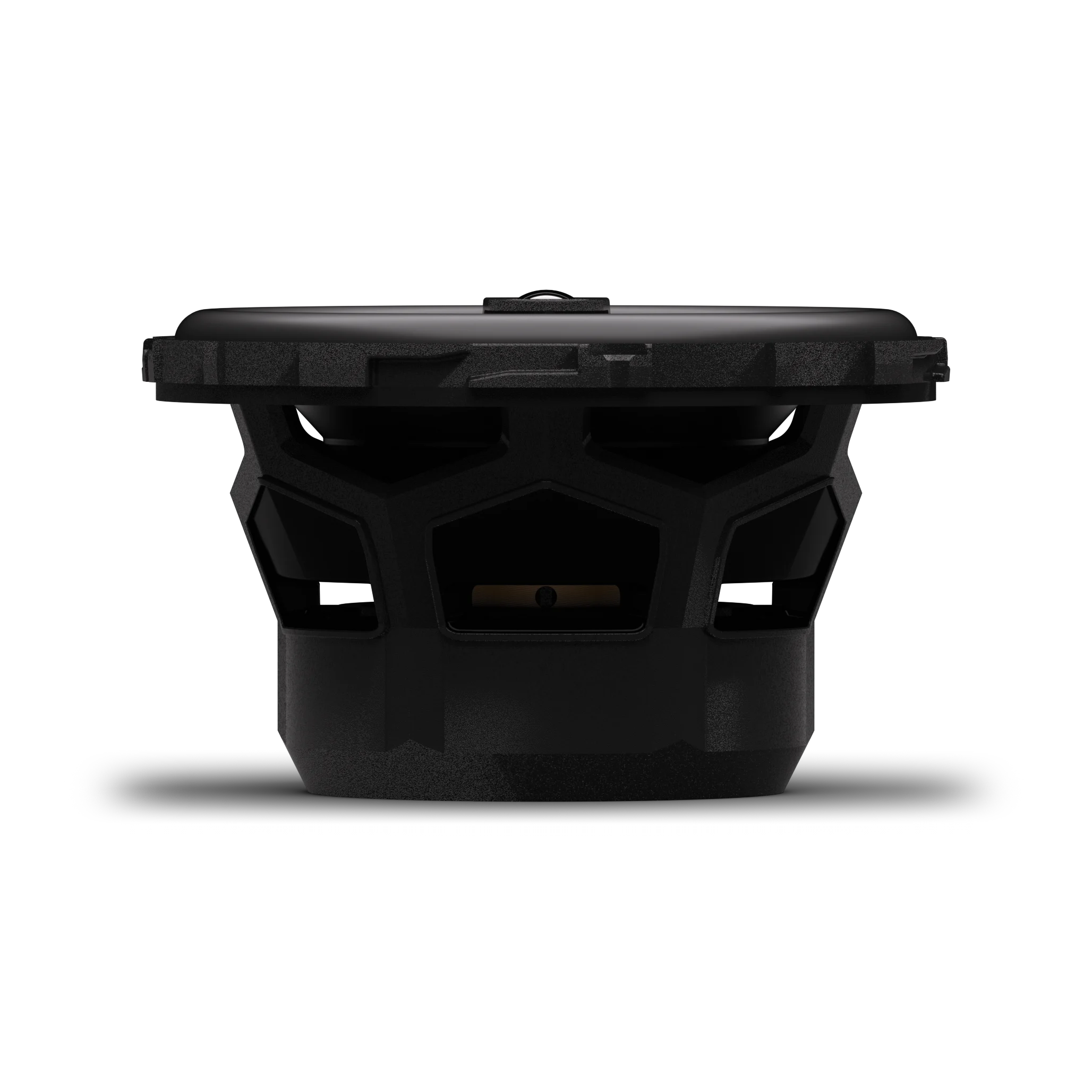

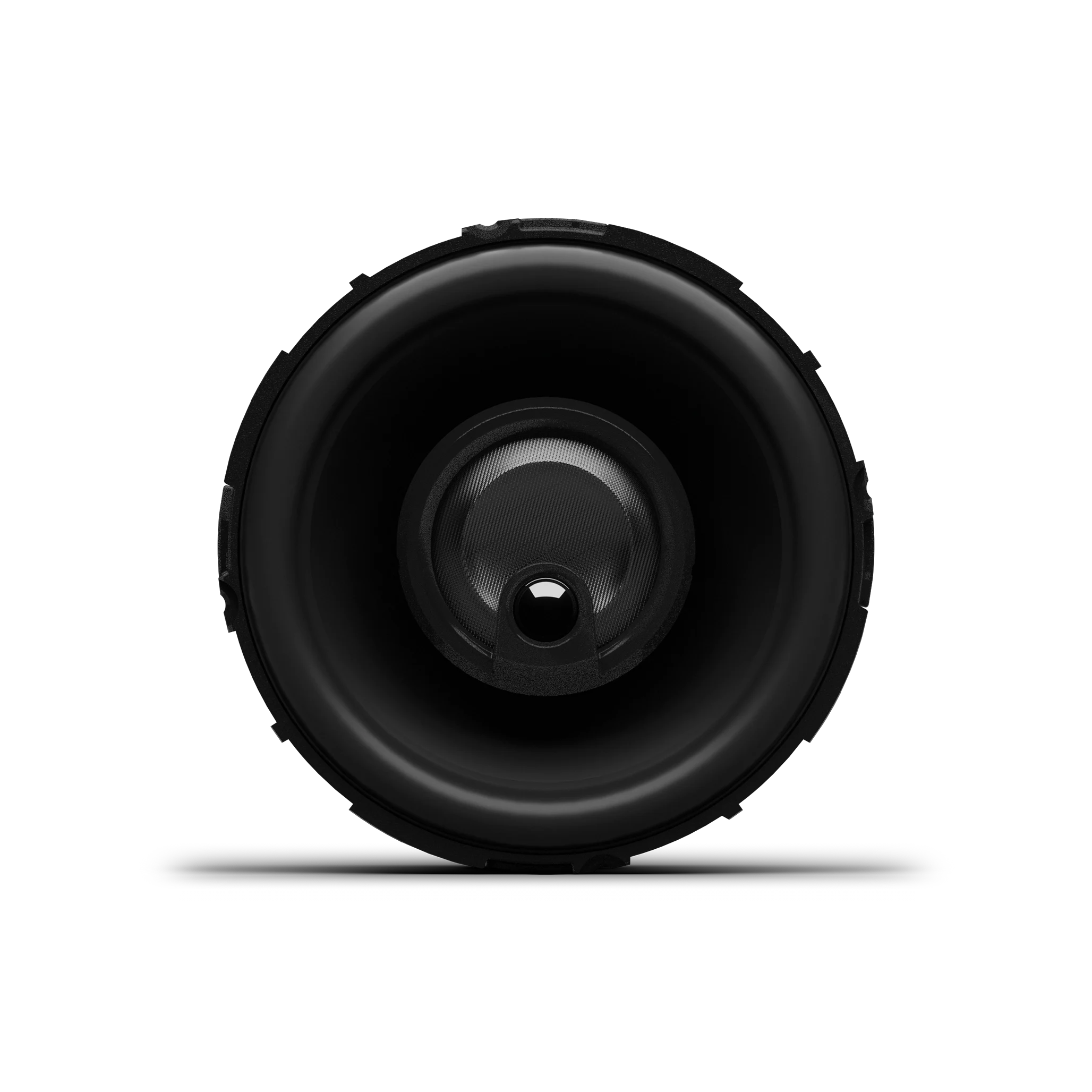

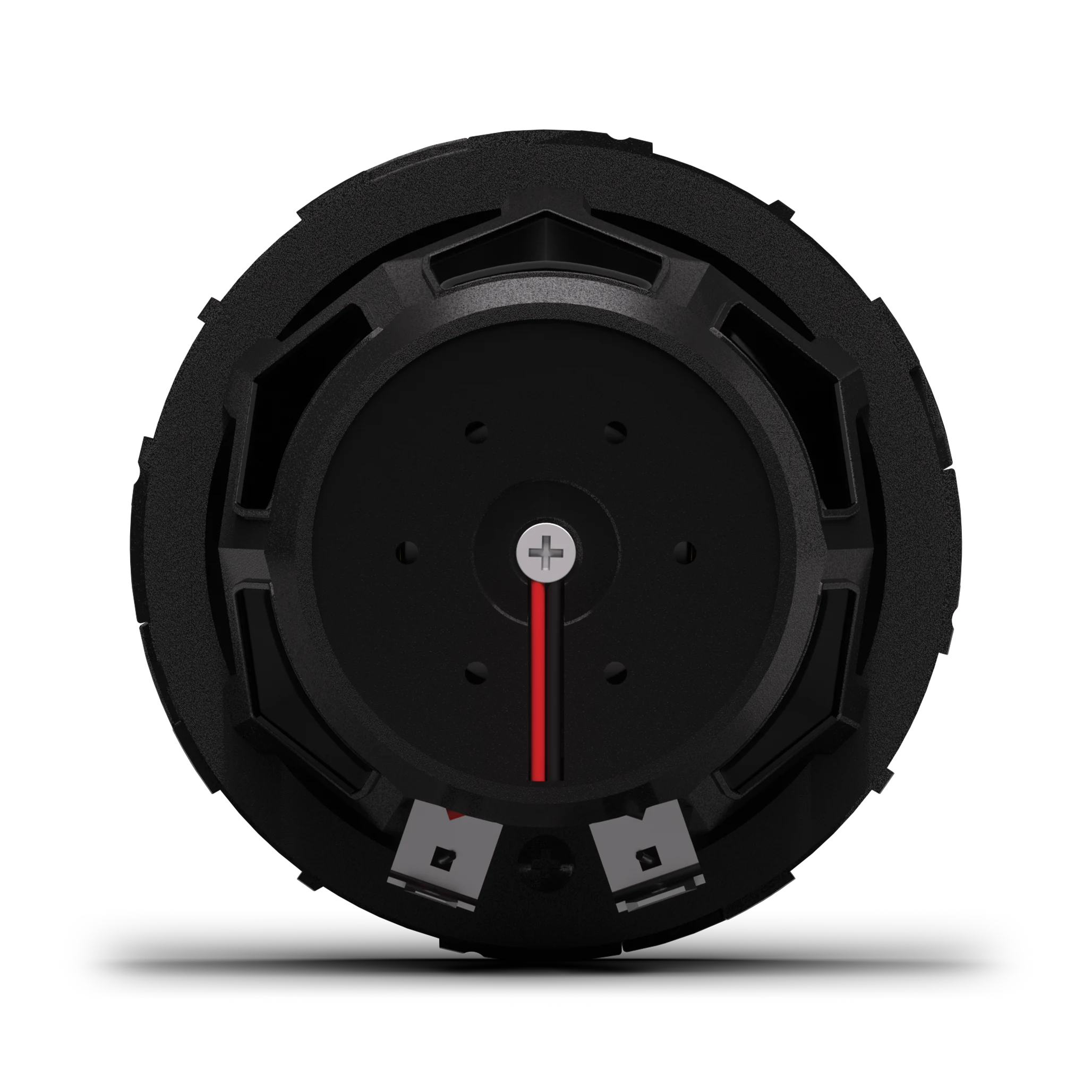

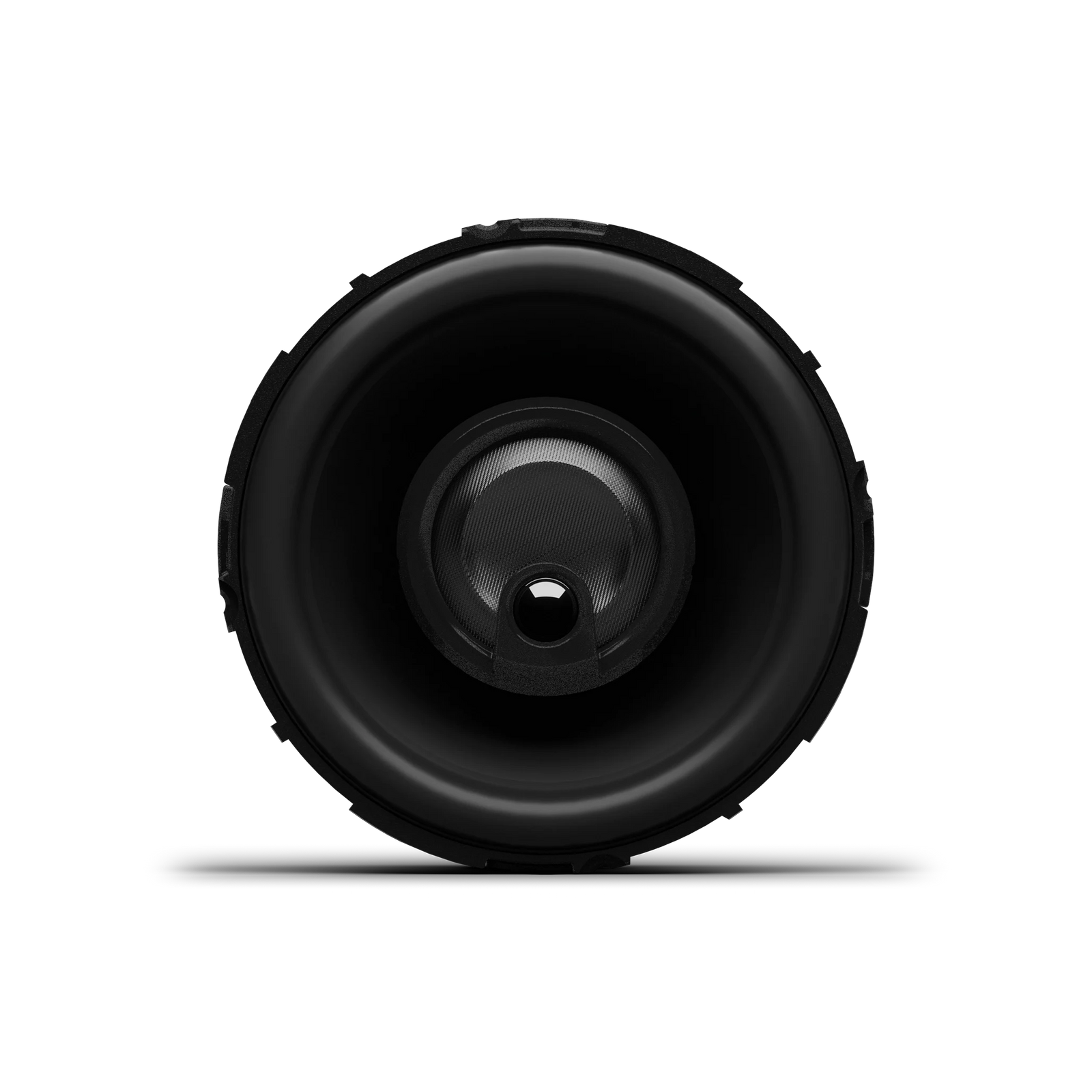

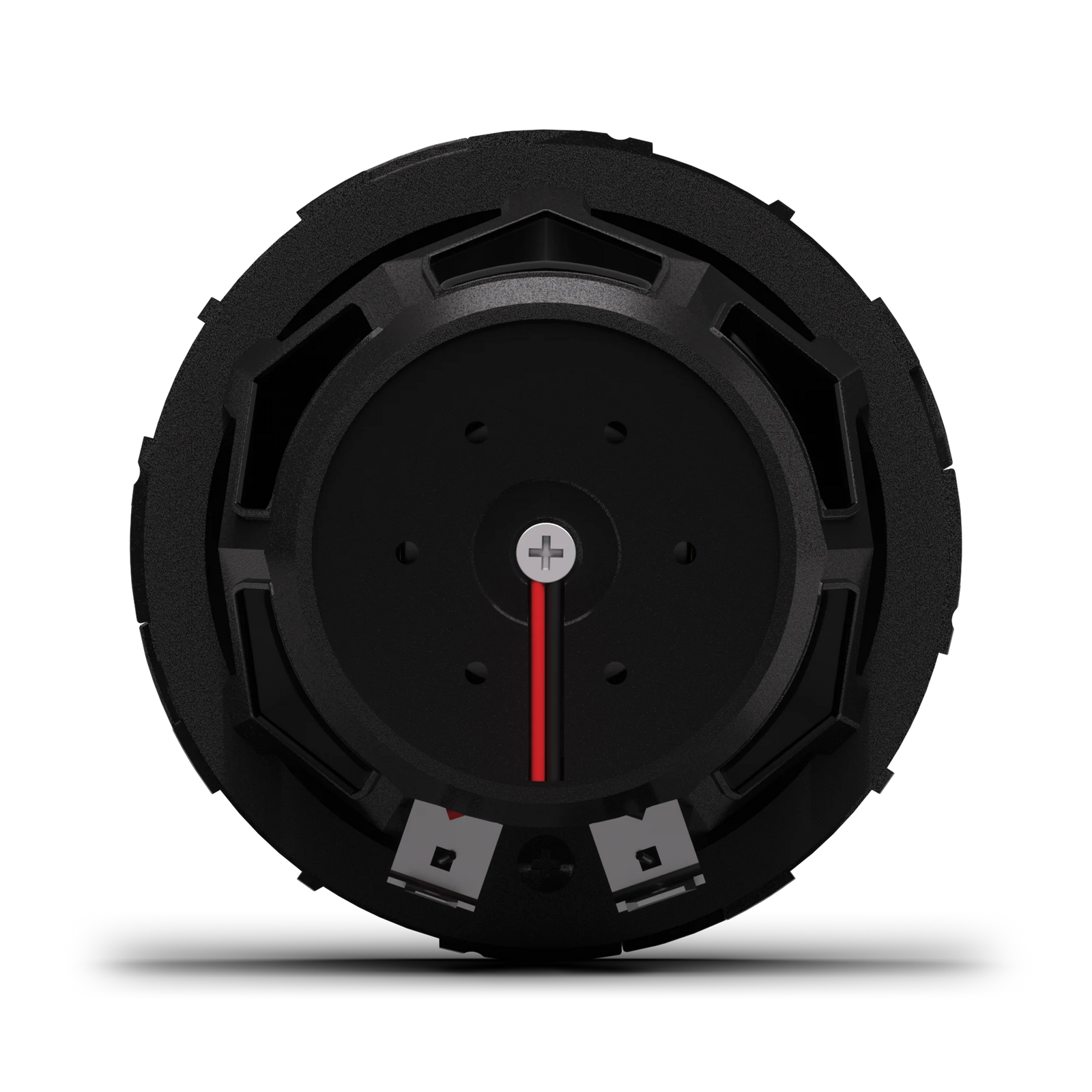

P1V2-25 Punch P1 2.5" Coaxial - Integrated Midrange and Tweeter: The P1V2-25 2.5" coaxial unit combines midrange and 3/4" tweeter in a single coaxial driver with an ICC+ 6dB internal crossover at 9kHz, providing midrange and high-frequency coverage from a single 2.5" mounting position.
33µF Bass Blocker Crossover - Coaxial Midrange Protection: The included 33µF non-polarised capacitor provides a 1200Hz 6dB/Oct highpass filter for the P1V2-25 coaxial, protecting the midrange driver from excessive low-frequency excursion without requiring a full external bandpass crossover network.

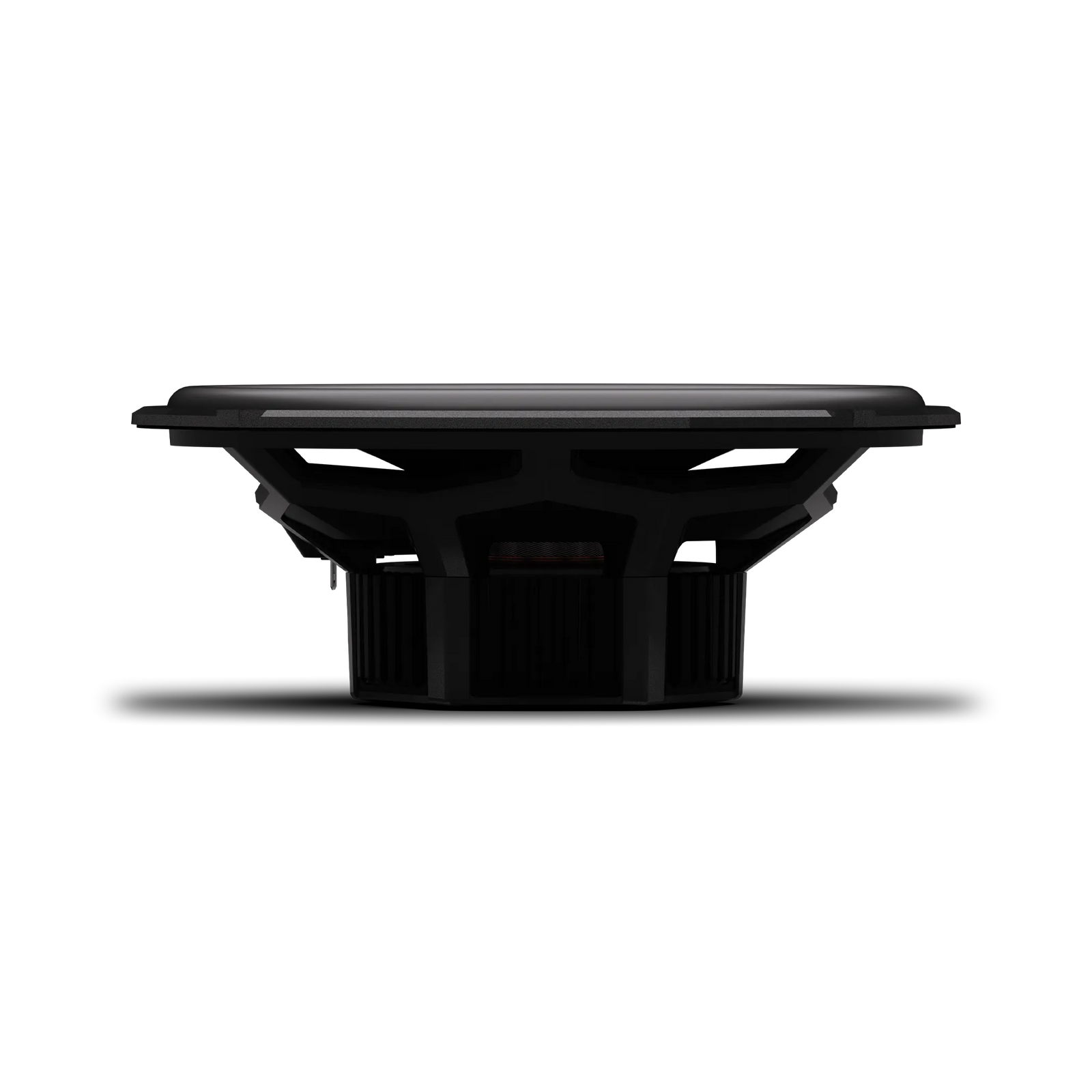

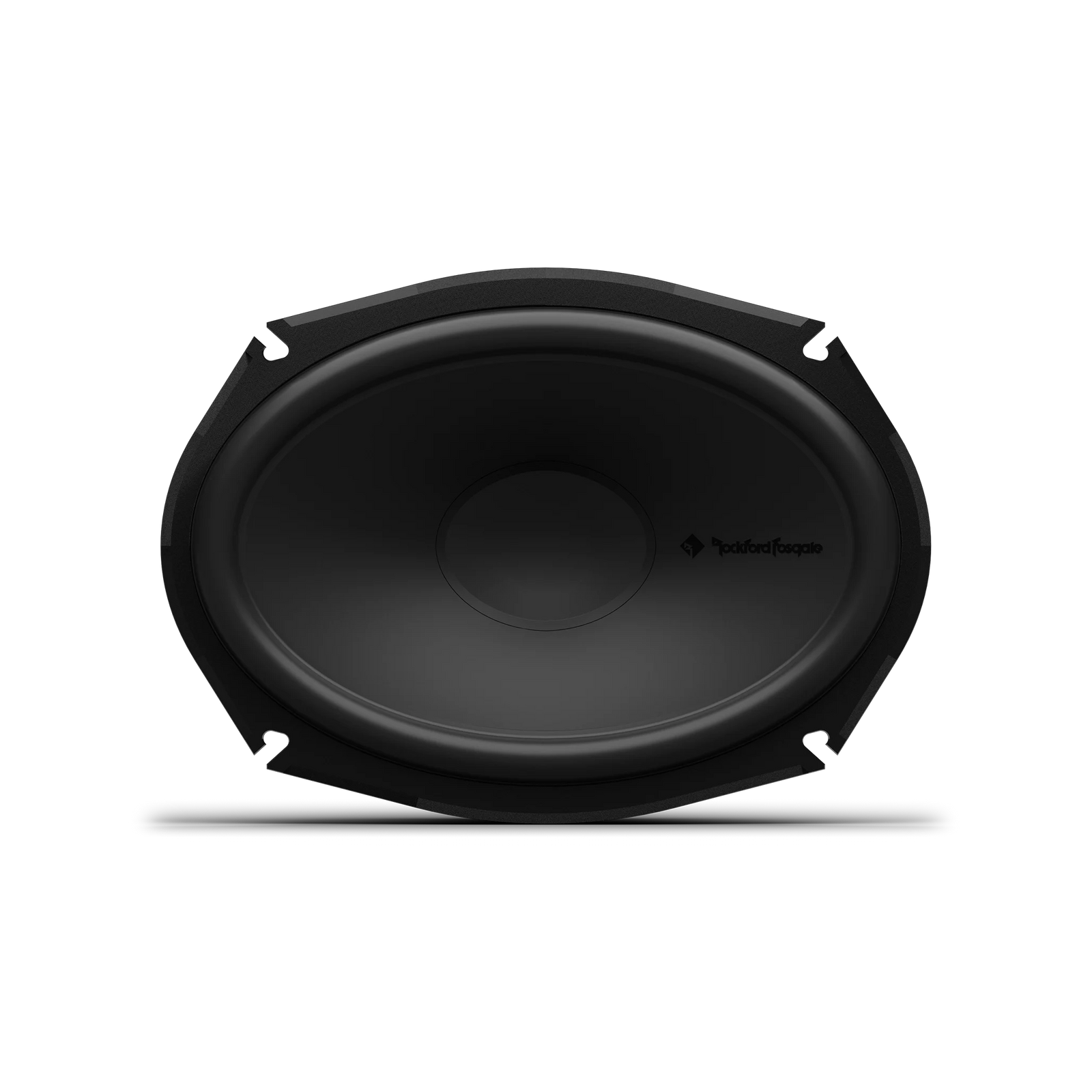

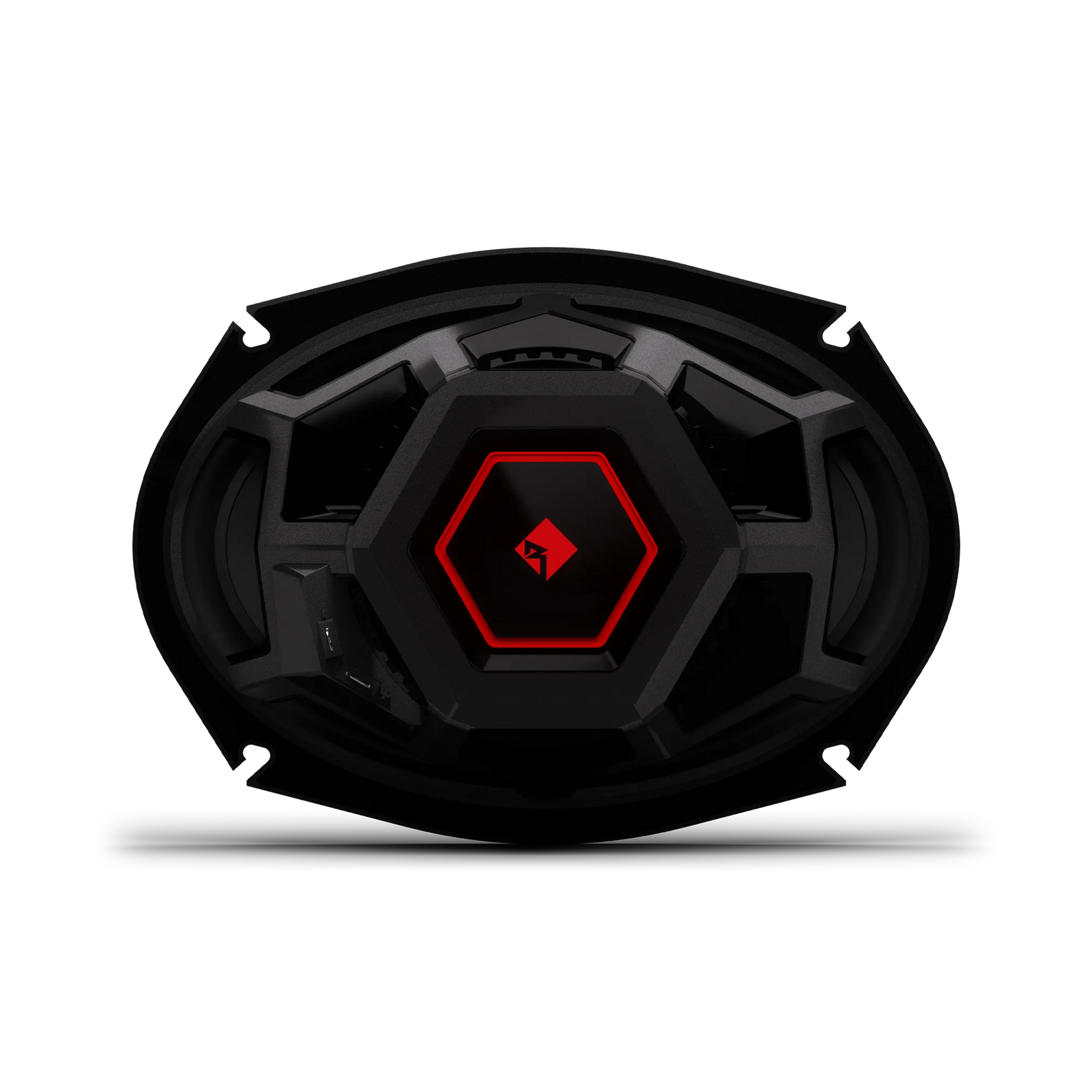

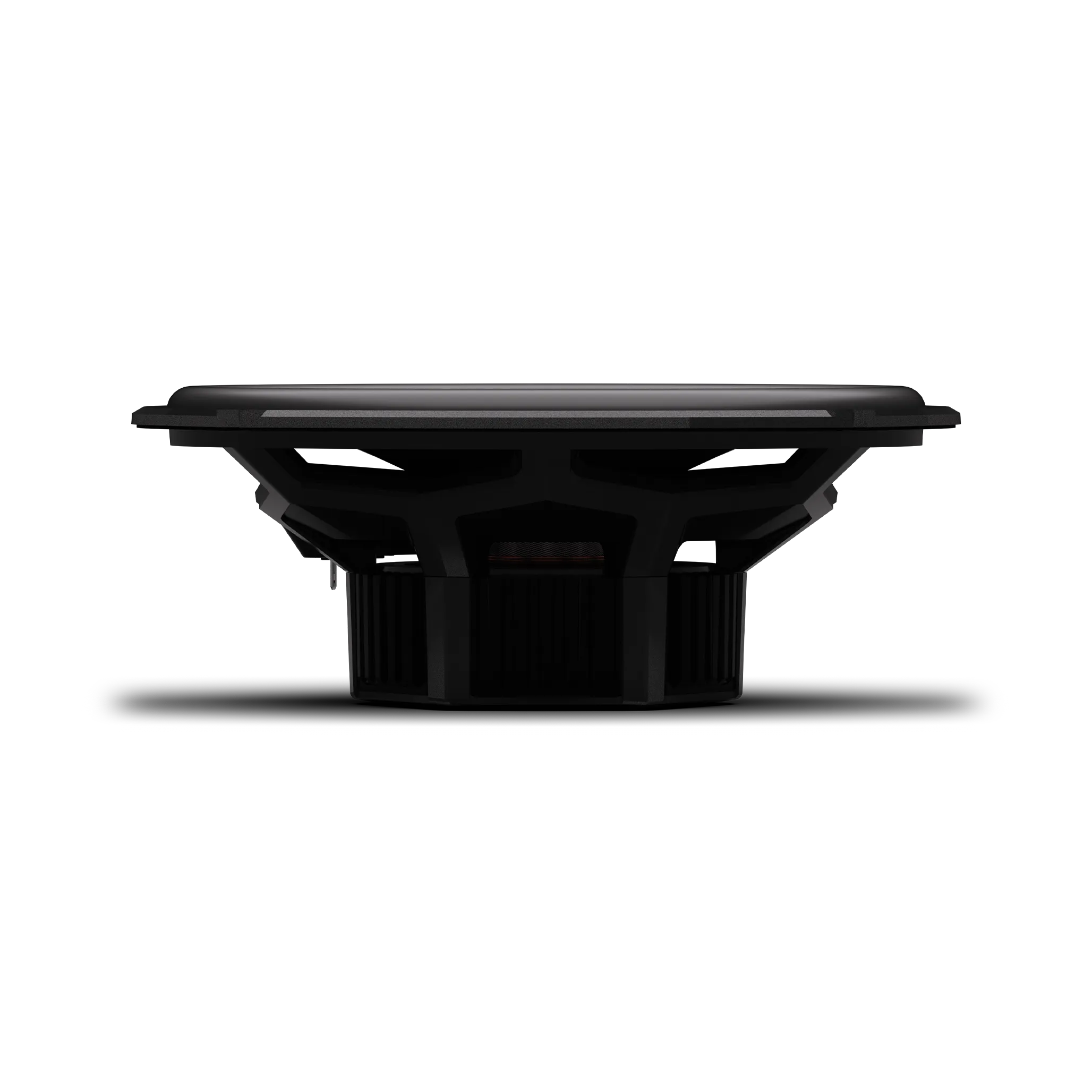

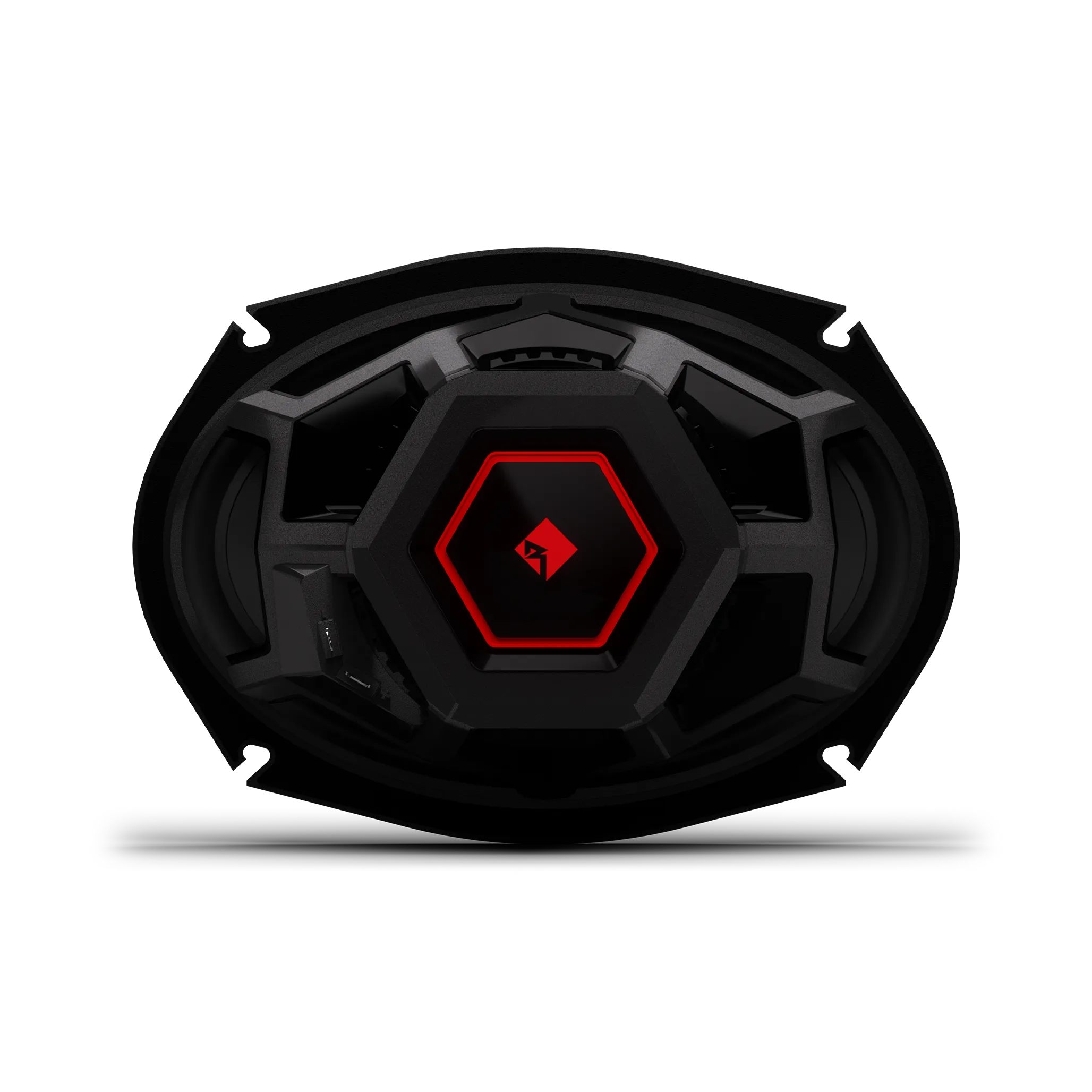

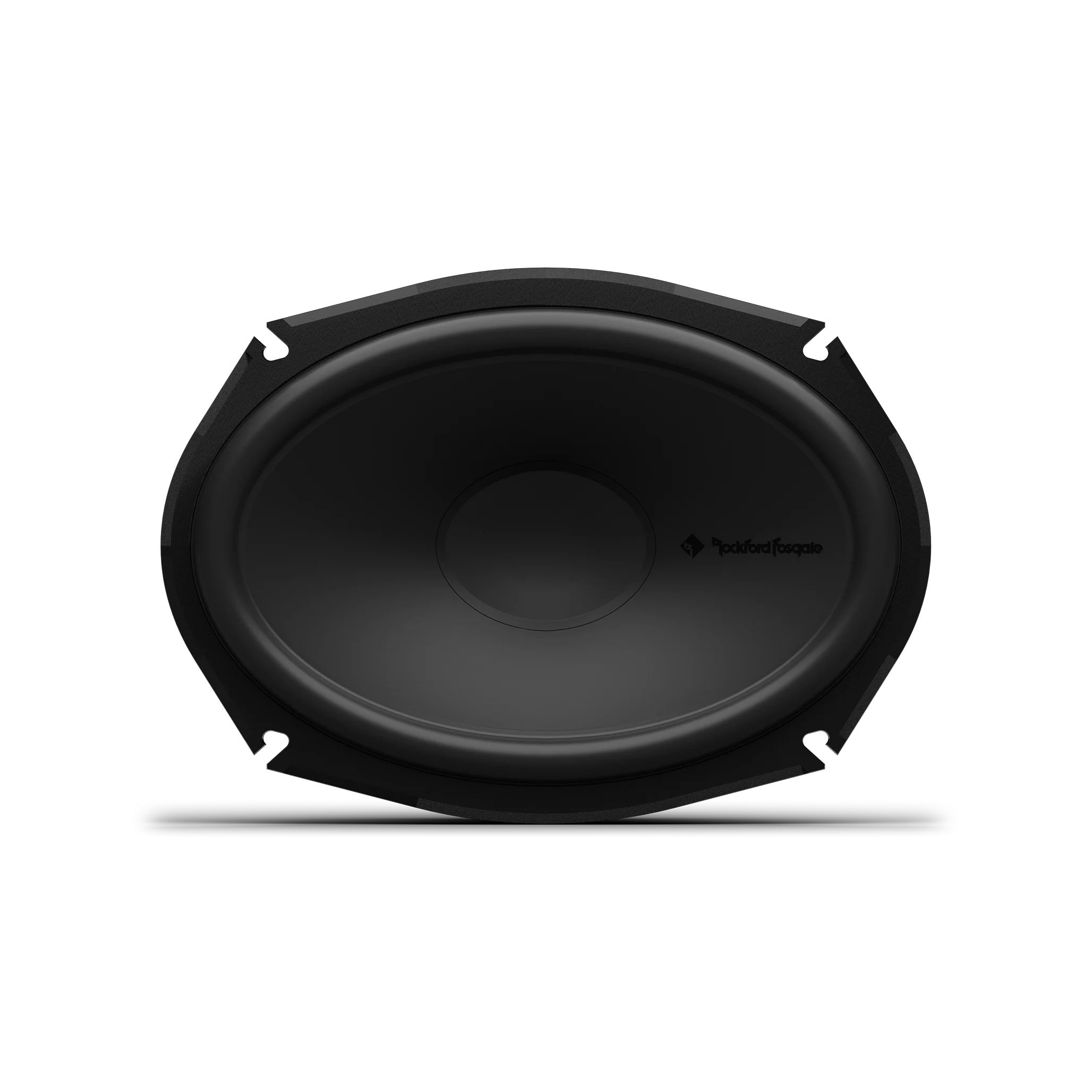

6"x9" VAST 2.0 Woofer with Auto Fit Architecture: The 6"x9" component woofer uses VAST 2.0 for 25% increased effective cone area with an 8.41" x 5.71" oval cutout, 79.4mm mounting depth with motor cover (70mm without), and factory-location mounting flanges for drop-in integration into most modern vehicle 6"x9" factory speaker locations.
FLWR Twist-Lock Adaptors for 2.5" Coaxial: The included FLWR twist-lock adaptors provide front-loading (40.6mm) and rear-loading (37.3mm) depth options for the P1V2-25 coaxial in factory 2.5" midrange and dash positions with a 2.54" cutout.

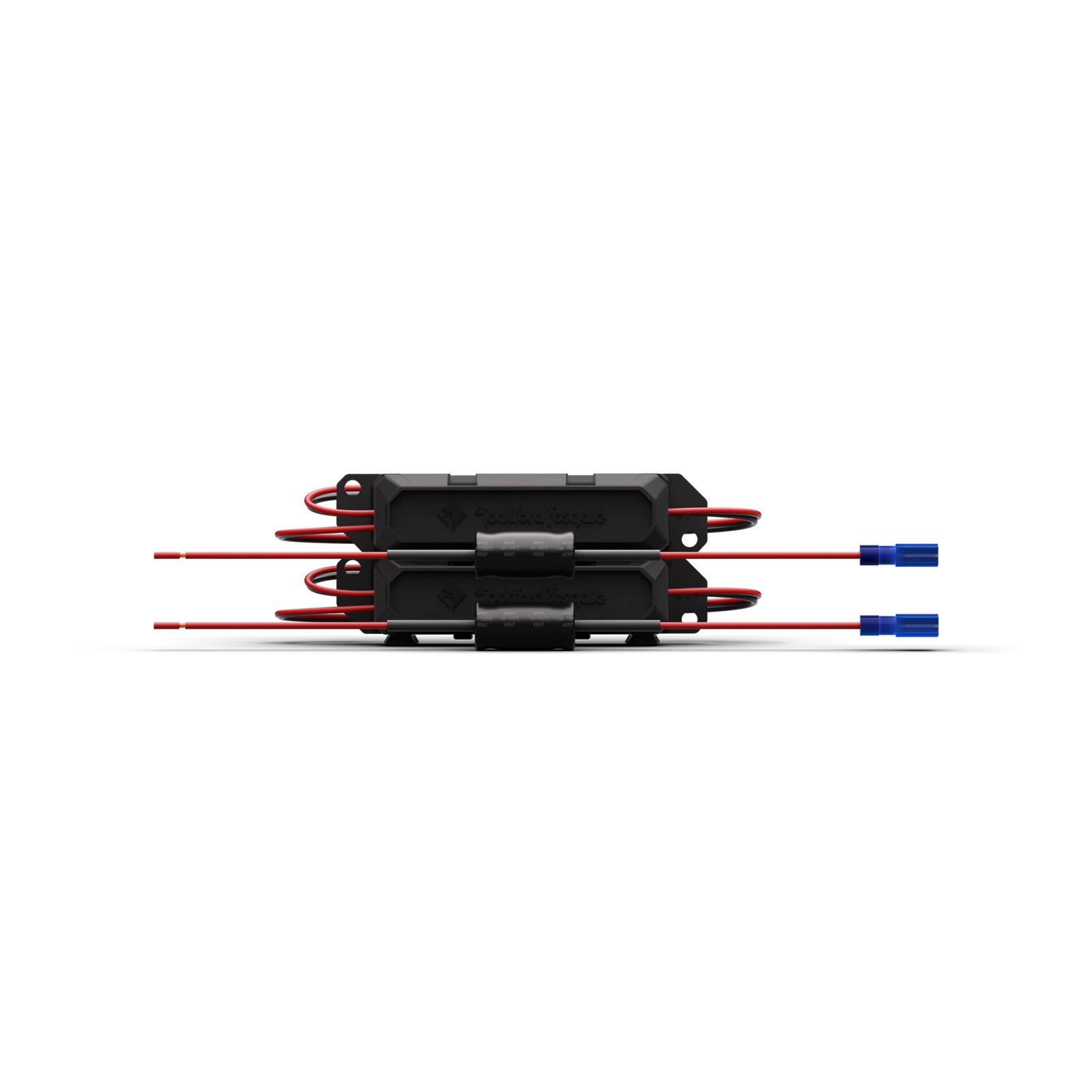

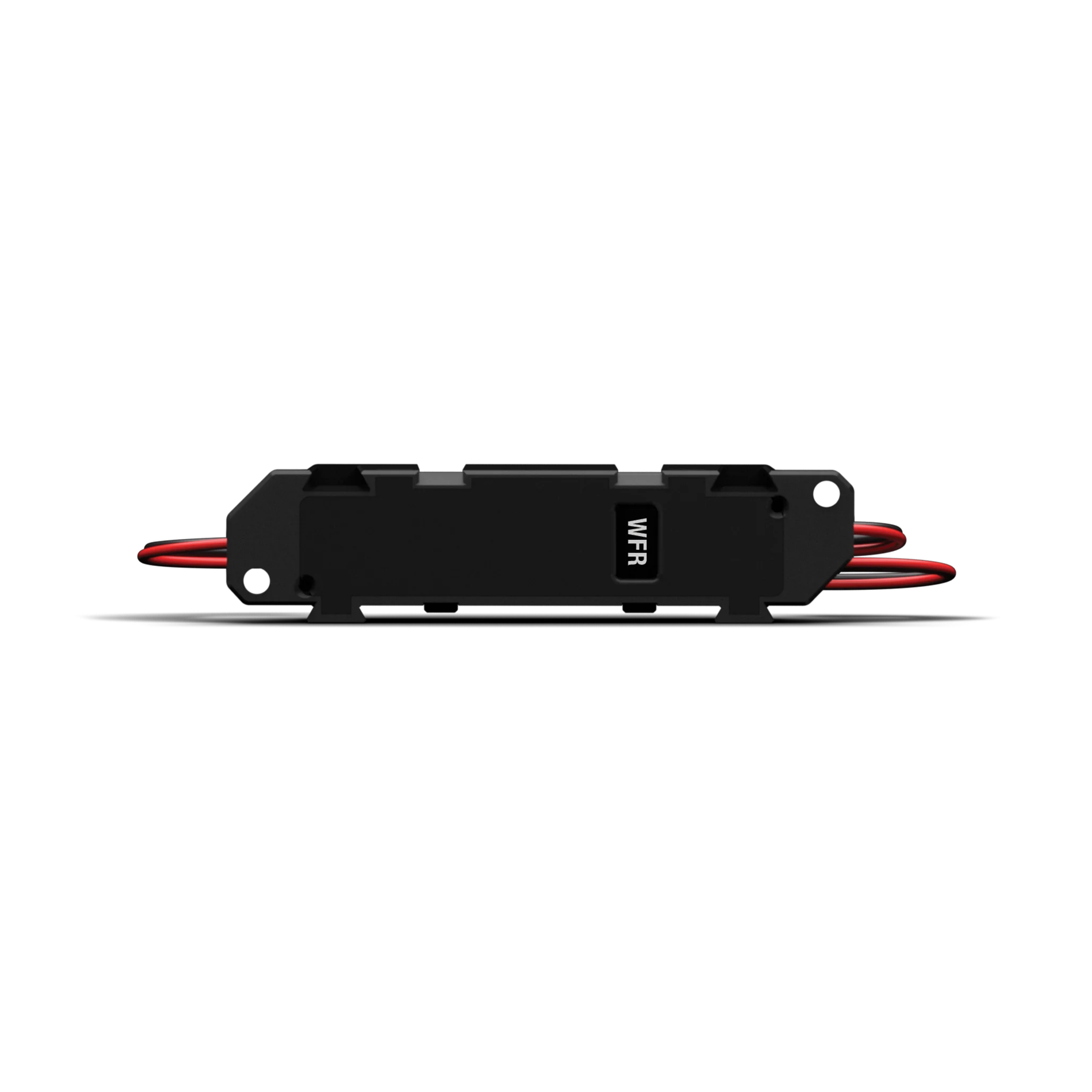

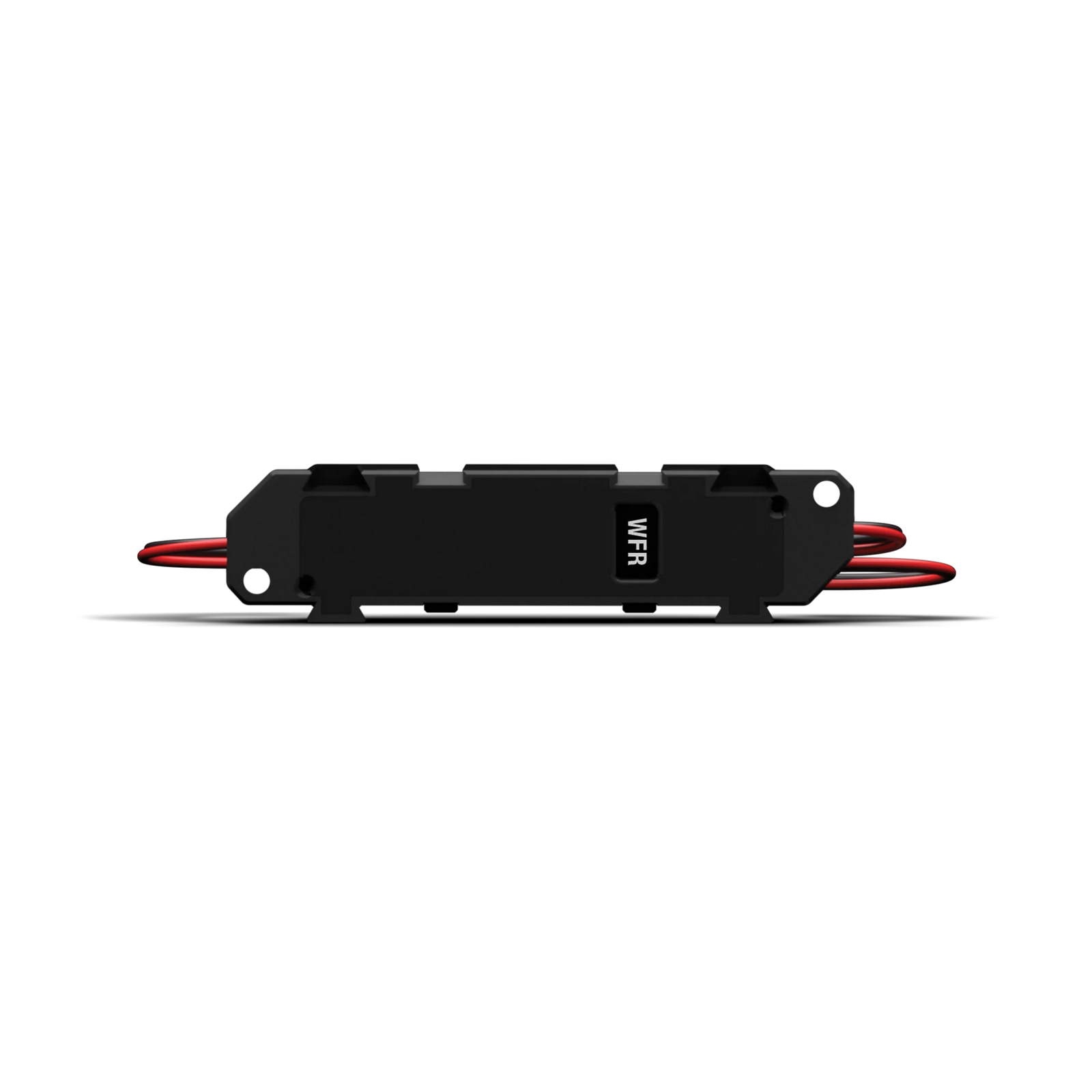

MC3 Multi Configuration Crossover Chassis: MC3 crossover chassis on the woofer lowpass network for flexible independent positioning or snap-together unified structure.
89dB System Sensitivity - 49Hz-25kHz Frequency Response: 89dB sensitivity at 1W/1M (92dB at 2.83V/1M) matching the P3V2-69 full component system, with identical 49Hz-25kHz frequency response.
Durable Woofer Material Stack: 15% glass-fibre reinforced PA66 composite basket, Santoprene half-roll surround, Nomex spider with braided tinsel leads, 20-40% mica-reinforced polypropylene curvilinear cone, Y35 ferrite motor (5mm larger than previous generation), vented Kapton voice coil former.
CTA-2031 Compliant and Klippel Verified: Power handling conforms to CTA-2031 industry standards. Klippel verified.
2-Year Warranty: Backed by Rockford Fosgate's 2-year manufacturer warranty.

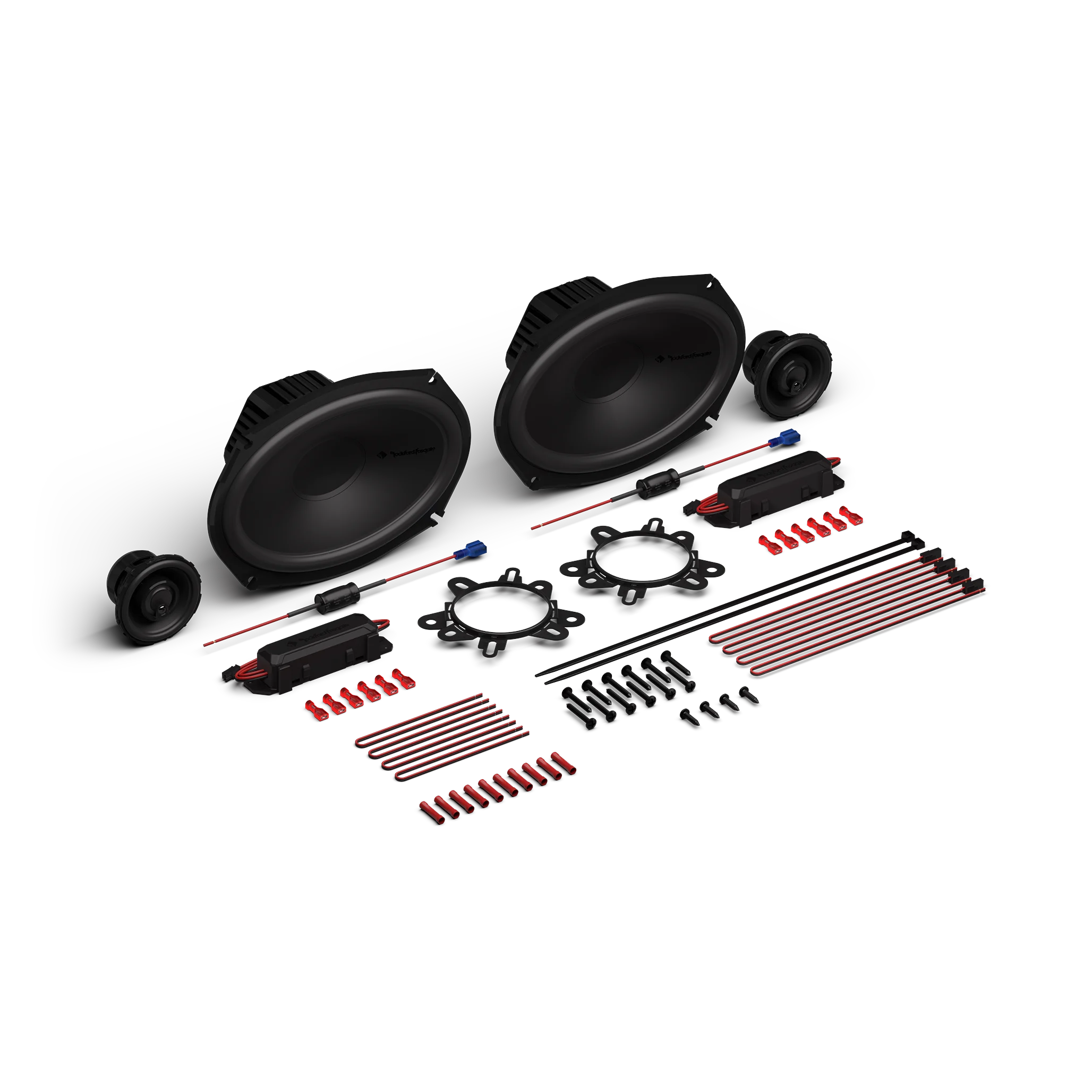

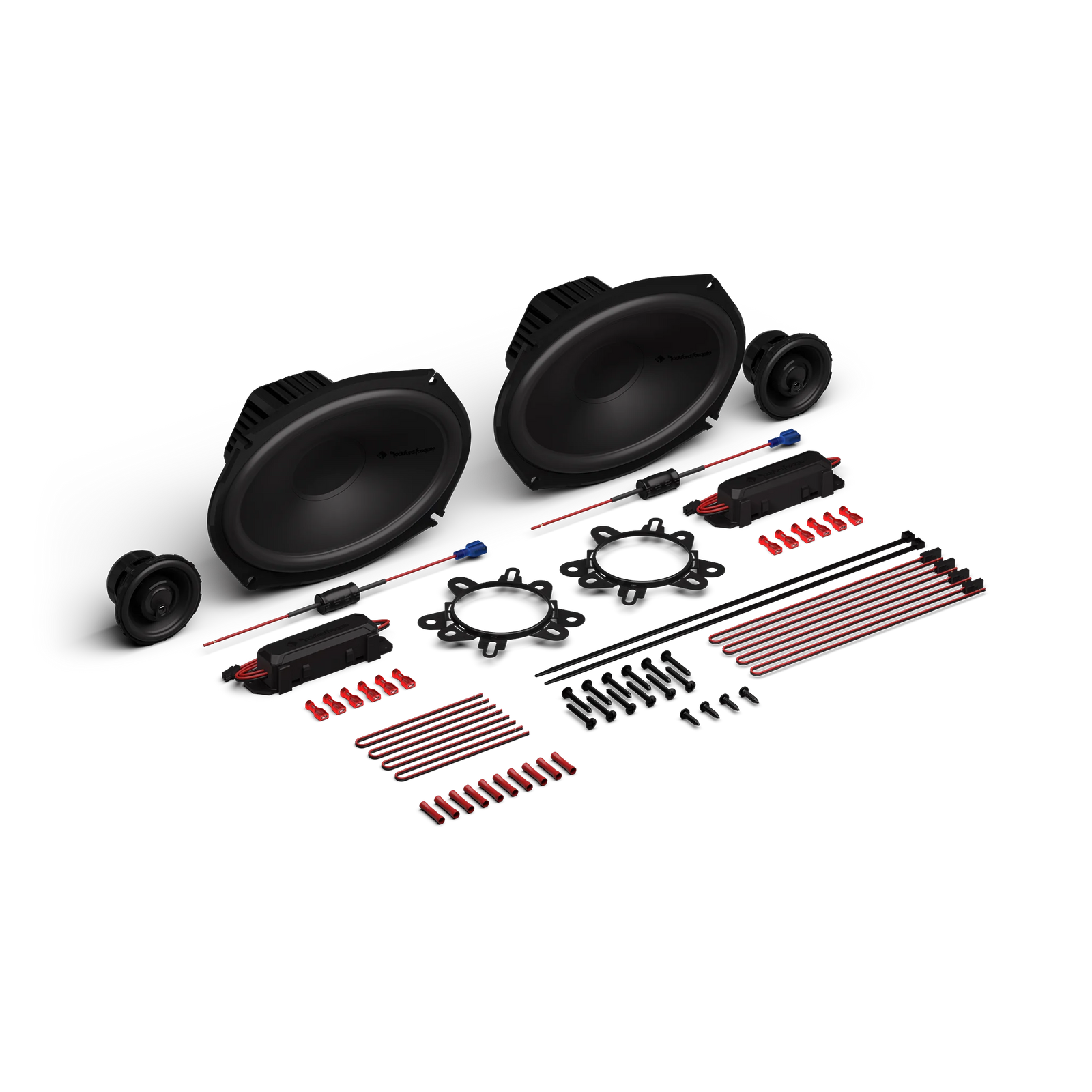

What's in the Box
- 2 x 6"x9" 4Ω Woofers
- 2 x 2.5" 4Ω Coaxial Speakers (P1V2-25)
- 2 x 2.5" FLWR Twist-Lock Adaptors (Multi)
- 2 x 33µF Non-Polarised Capacitors (Bass Blockers)

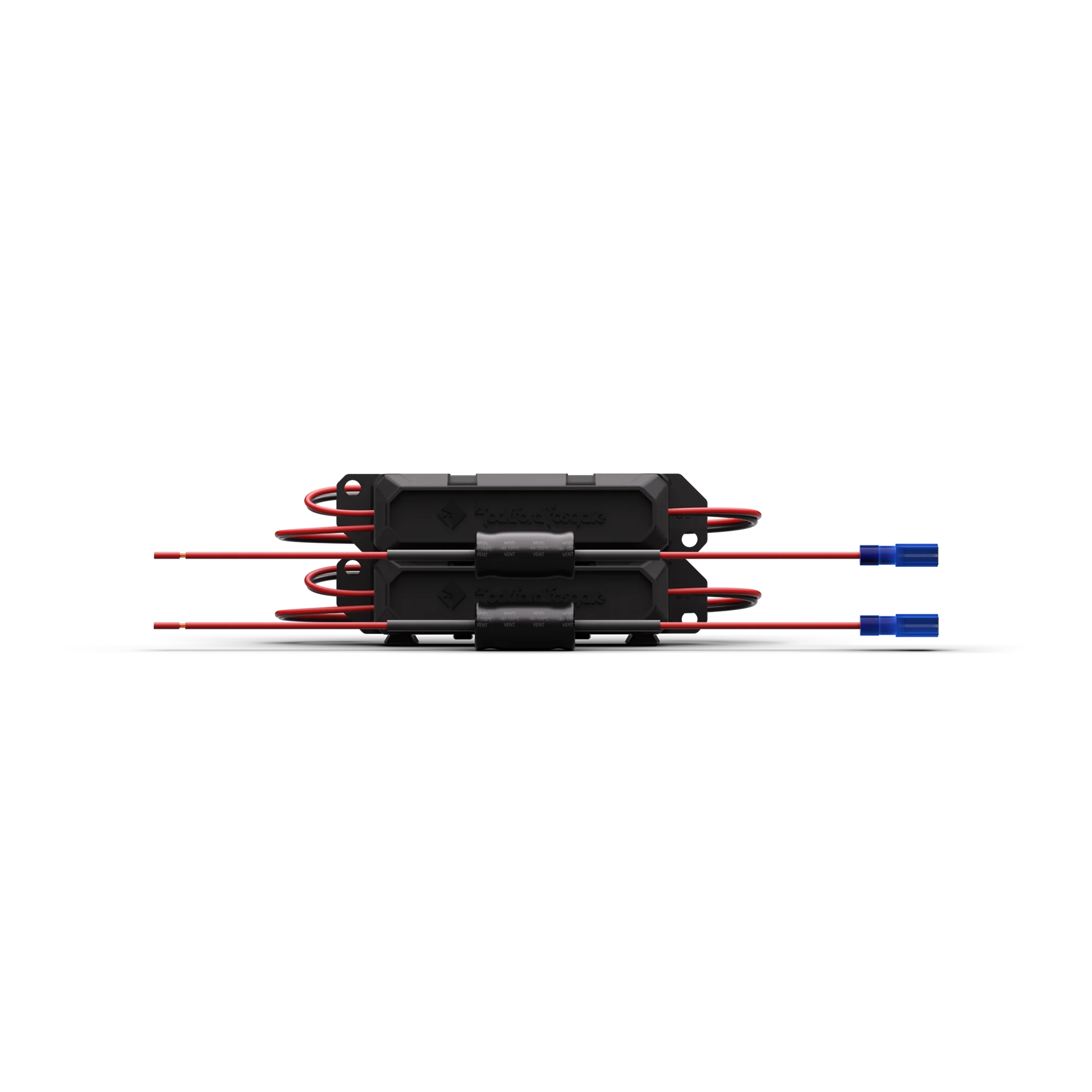

- 2 x Passive Crossover Networks (Woofer)
- 4 x Crossover Wiring Extensions (18", 457mm)
- 4 x 18 AWG Red/Black Speaker Wire (205mm)
- 1 x 2.5" Speaker Cut-Out Template
- 1 x 6"x9" Speaker Cut-Out Template
- 12 x Self-Tapping Phillips #8x32mm (Speaker)
- 4 x Self-Tapping Phillips #4x16mm (Crossover)
- 6 x 18 AWG Female Crimp Spade Connectors (0.187")
- 6 x 18 AWG Female Crimp Spade Connectors (0.250")
- 10 x 18 AWG Crimp Butt Connectors
- 2 x Zip Ties (4.8mm x 350mm)
Note: Grilles sold separately.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | P3V2-69C2 |
| Brand | Rockford Fosgate |
| Series | Punch P3 |
| Speaker Type | 3-Way Coaxial/Component System |
| Sold As | Pair |
| Woofer Nominal Diameter | 6"x9" |
| Midrange/Tweeter Unit | P1V2-25 Punch P1 2.5" Coaxial |
| Tweeter Nominal Diameter | 3/4" (19mm, within P1V2-25) |
| Nominal Impedance | 4Ω |
| System Power Handling | 75W RMS / 150W Peak (CTA-2031) |
| System Sensitivity | 89dB at 1W/1M |
| System Sensitivity (2.83V/1M) | 92dB |
| Frequency Response | 49Hz-25kHz |
| Woofer Voice Coil Diameter | 1.25" (32.5mm) |
| Woofer Fs | 65Hz |
| Tweeter Crossover (Internal) | ICC+ HP 9kHz at 6dB/Oct (within P1V2-25) |
| Midrange Bass Blocker | HP 1200Hz at 6dB/Oct (33µF Capacitor) |
| Woofer Crossover | LP 1.2kHz at 6dB/Oct (External) |
| Woofer Cutout Dimensions | 8.41" x 5.71" (213.5mm x 145mm) |
| Woofer Mounting Depth (With Motor Cover) | 3.13" (79.4mm) |
| Woofer Mounting Depth (No Motor Cover) | 2.76" (70mm) |
| Woofer Front Side Clearance | 0.42" (10.6mm) |
| Midrange Cutout Diameter | 2.54" (64.5mm) |
| Midrange Front-Loading Depth (FLWR) | 1.60" (40.6mm) |
| Midrange Rear-Loading Depth (FLWR) | 1.47" (37.3mm) |
| Removable Motor Cover | Yes (Woofer) |
| Woofer Basket Material | 15% Glass-Fibre Reinforced PA66 Composite |
| Woofer Surround Material | Santoprene Half-Roll |
| Woofer Spider Material | Nomex |
| Woofer Cone Material | 20-40% Mica Reinforced Polypropylene Curvilinear |
| Motor Structure | Y35 Ferrite (5mm Larger Than Previous Generation) |
| Voice Coil Former | Vented Kapton |
| Technology | VAST 2.0, MC3, FLWR, Auto Fit Architecture |
| Standards | CTA-2031 Compliant, Klippel Verified |
| Grilles | Sold Separately |
| Warranty | 2 Years |
Compatible With
The P3V2-69C2 6"x9" woofer is compatible with most modern vehicle factory 6"x9" oval speaker locations with an 8.41" x 5.71" cutout and up to 79.4mm mounting depth. The P1V2-25 2.5" coaxial fits factory 2.5" midrange and dash positions via FLWR twist-lock adaptors with a 2.54" cutout. Confirm mounting dimensions for both driver positions in your specific vehicle before purchase.
Frequently Asked Questions
What is the difference between the P3V2-69C2 and the P3V2-69?
Both are 6"x9" 3-way Punch P3 systems with 89dB sensitivity and identical 49Hz-25kHz frequency response. The P3V2-69 uses three fully separate discrete drivers per channel (woofer, P3V2-25 midrange, and standalone tweeter) requiring three separate mounting locations with six passive crossover networks. The P3V2-69C2 uses two driver mounting locations per channel: the 6"x9" woofer and the P1V2-25 2.5" coaxial which combines midrange and tweeter in a single coaxial unit. The P3V2-69C2 is simpler to install; the P3V2-69 provides fully independent driver placement for maximum staging and imaging control.
What is the P1V2-25 coaxial used in the P3V2-69C2?
The P1V2-25 is the Punch P1 2.5" coaxial speaker that combines a midrange driver and 3/4" inverted dome tweeter in a single coaxial unit with an integrated ICC+ 6dB internal crossover at 9kHz. In the P3V2-69C2 it replaces the separate P3V2-25 midrange and standalone tweeter used in the P3V2-69, reducing the number of mounting locations required per channel from three to two.
What does the 33µF bass blocker do?
The 33µF non-polarised capacitor acts as a simple 1200Hz highpass filter (bass blocker) for the P1V2-25 coaxial midrange driver, preventing excessive low-frequency signal from reaching the coaxial driver and causing overexcursion or damage.
Does the P3V2-69C2 require the same mounting locations as the P3V2-69?
The 6"x9" woofer requires the same 8.41" x 5.71" cutout and mounting depth as the P3V2-69 woofer. The P1V2-25 coaxial uses the same 2.54" FLWR mounting system as the P3V2-25 midrange in the P3V2-69. However, the P3V2-69C2 does not require a separate tweeter mounting location as the P1V2-25 includes the tweeter coaxially, reducing the total mounting locations from three to two per channel.
Are grilles included with the P3V2-69C2?
No. Grilles are sold separately.
