Rockford Fosgate P3V2-69 Punch P3 6"x9" 3-Way Component Speaker System 75W RMS

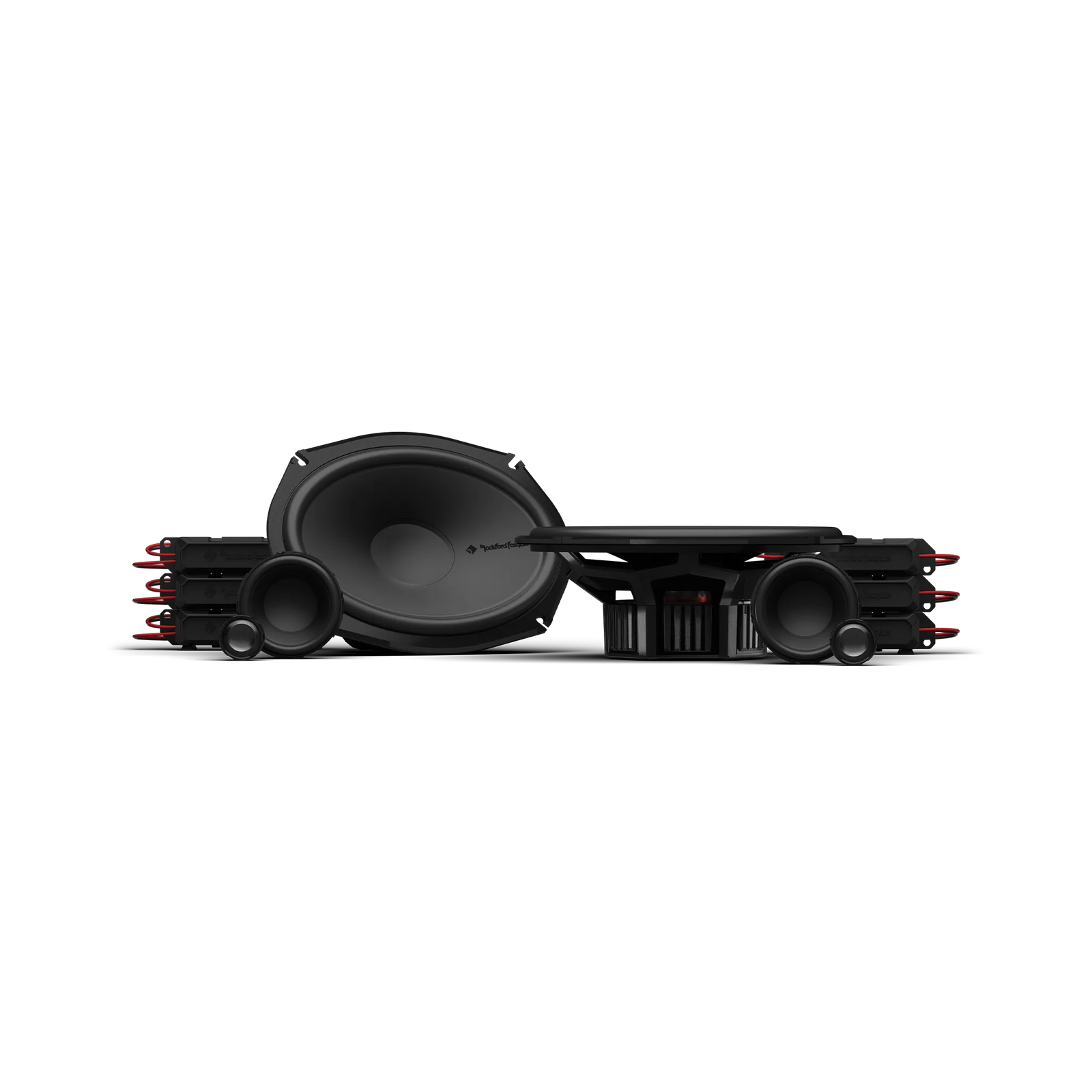

A complete 6"x9" 3-way component speaker system from Rockford Fosgate, the P3V2-69 includes a 6"x9" 4Ω woofer, 2.5" P3V2-25 midrange driver, and 3/4" Tetolon inverted dome tweeter per channel, with separate passive crossovers for each driver (tweeter HP at 9kHz 12dB/Oct, midrange BP at 600Hz-6kHz 6dB/Oct, woofer LP at 1.2kHz 6dB/Oct), MC3 multi-configuration crossover chassis, FLWR twist-lock midrange adaptors, VAST 2.0 woofer cone, 89dB system sensitivity, 49Hz-25kHz frequency response, full installation hardware, and 2-year warranty. Sold in pairs.
Product Overview
The Rockford Fosgate P3V2-69 is the complete 6"x9" 3-way component system from the Punch P3 range, combining the larger cone area and higher sensitivity of the 6"x9" format with the precision frequency separation of the P3 3-way driver architecture. Three independent drivers per channel ensure each frequency band is reproduced by the most appropriate driver: the 6"x9" woofer handles low frequencies through a 1.2kHz 6dB/Oct lowpass crossover, the P3V2-25 2.5" midrange covers 600Hz-6kHz with a bandpass crossover, and the 3/4" Tetolon inverted dome tweeter covers above 9kHz with a 12dB/Oct highpass crossover.

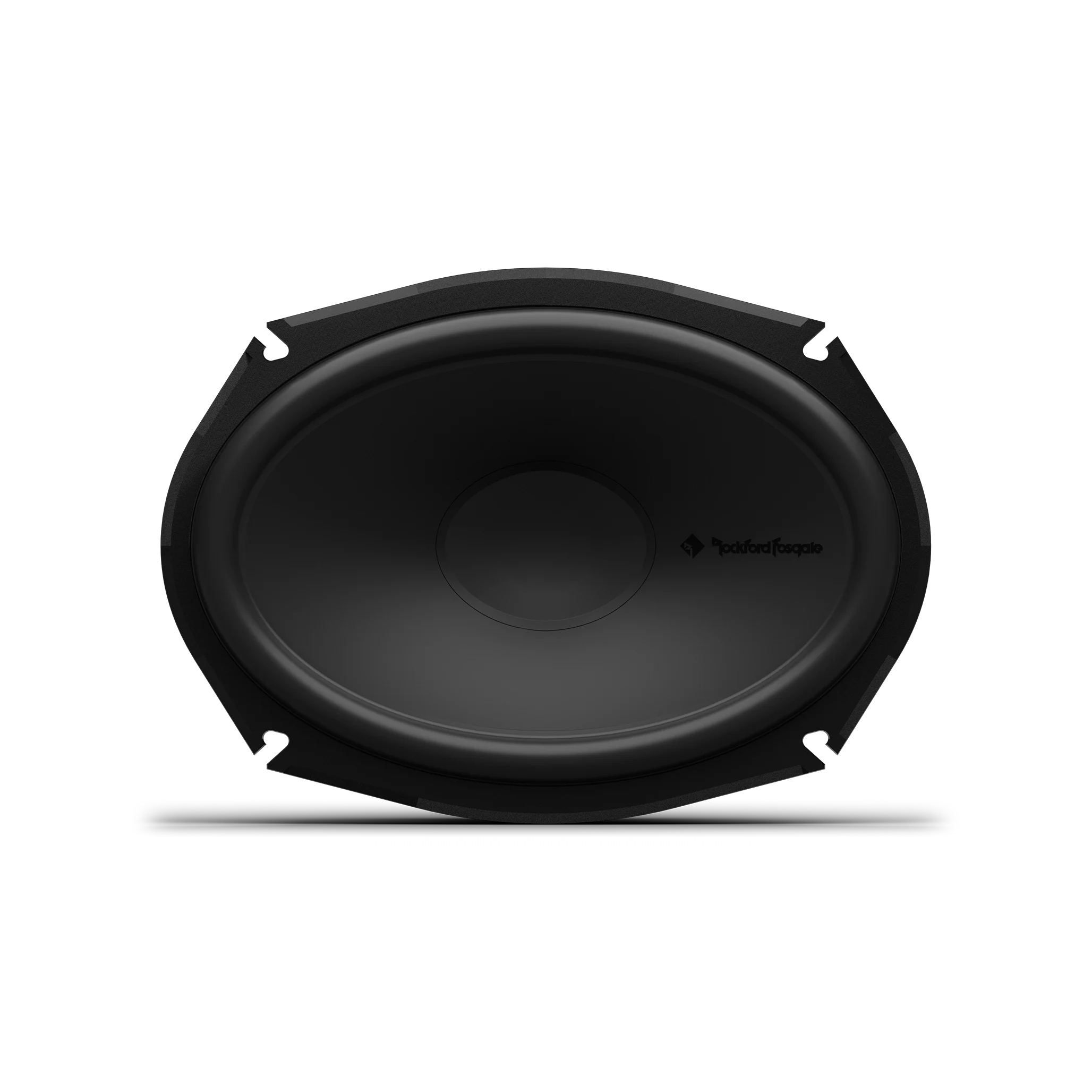

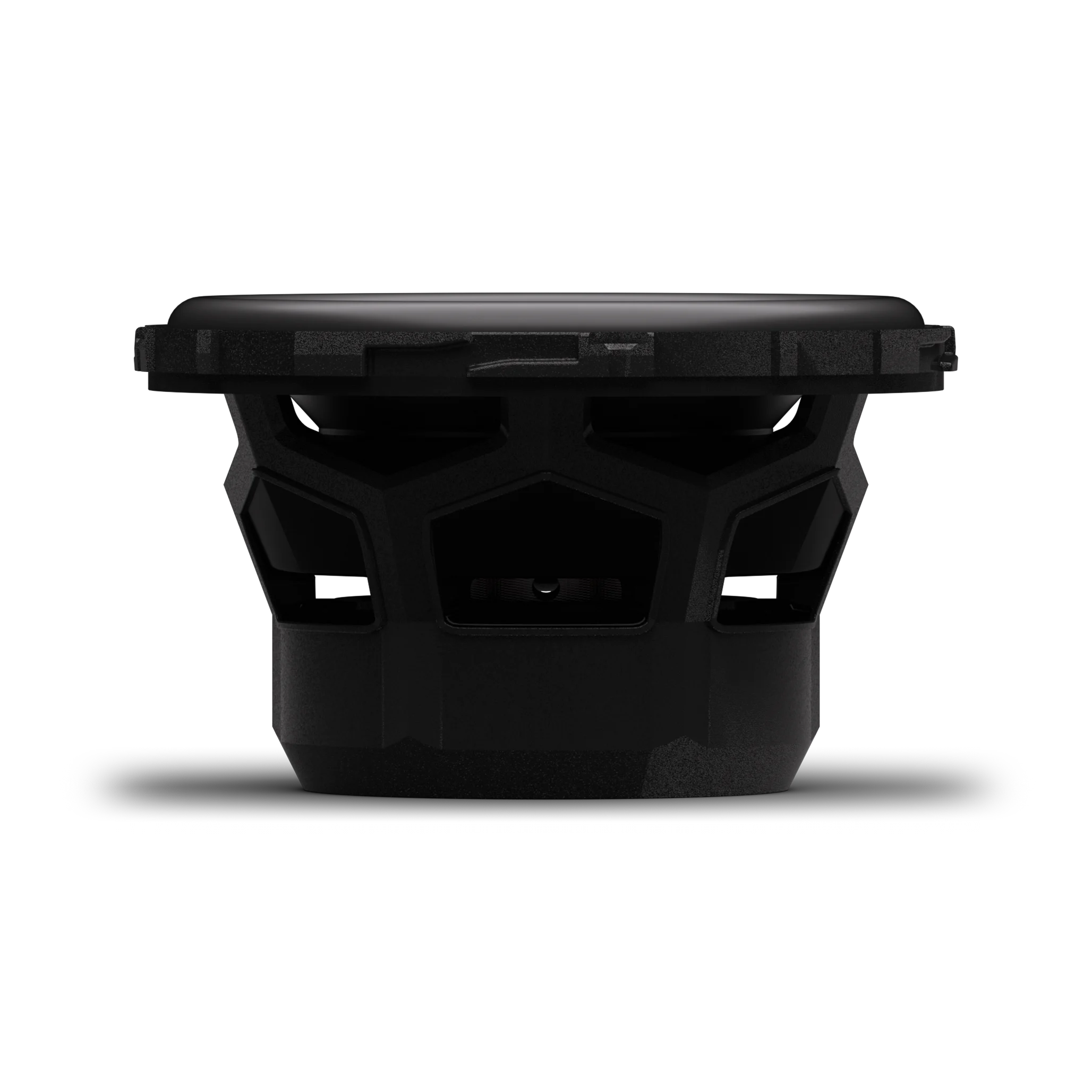

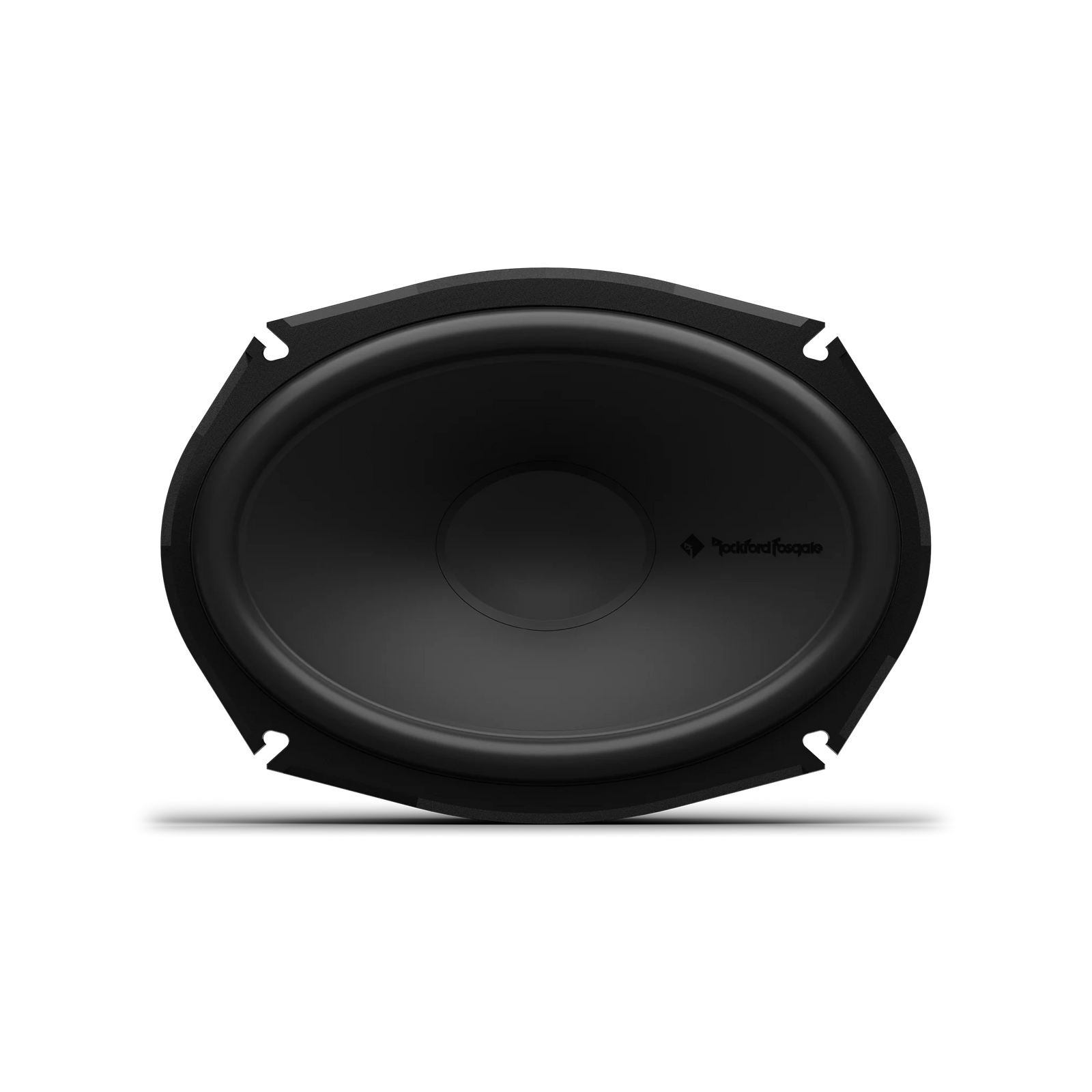

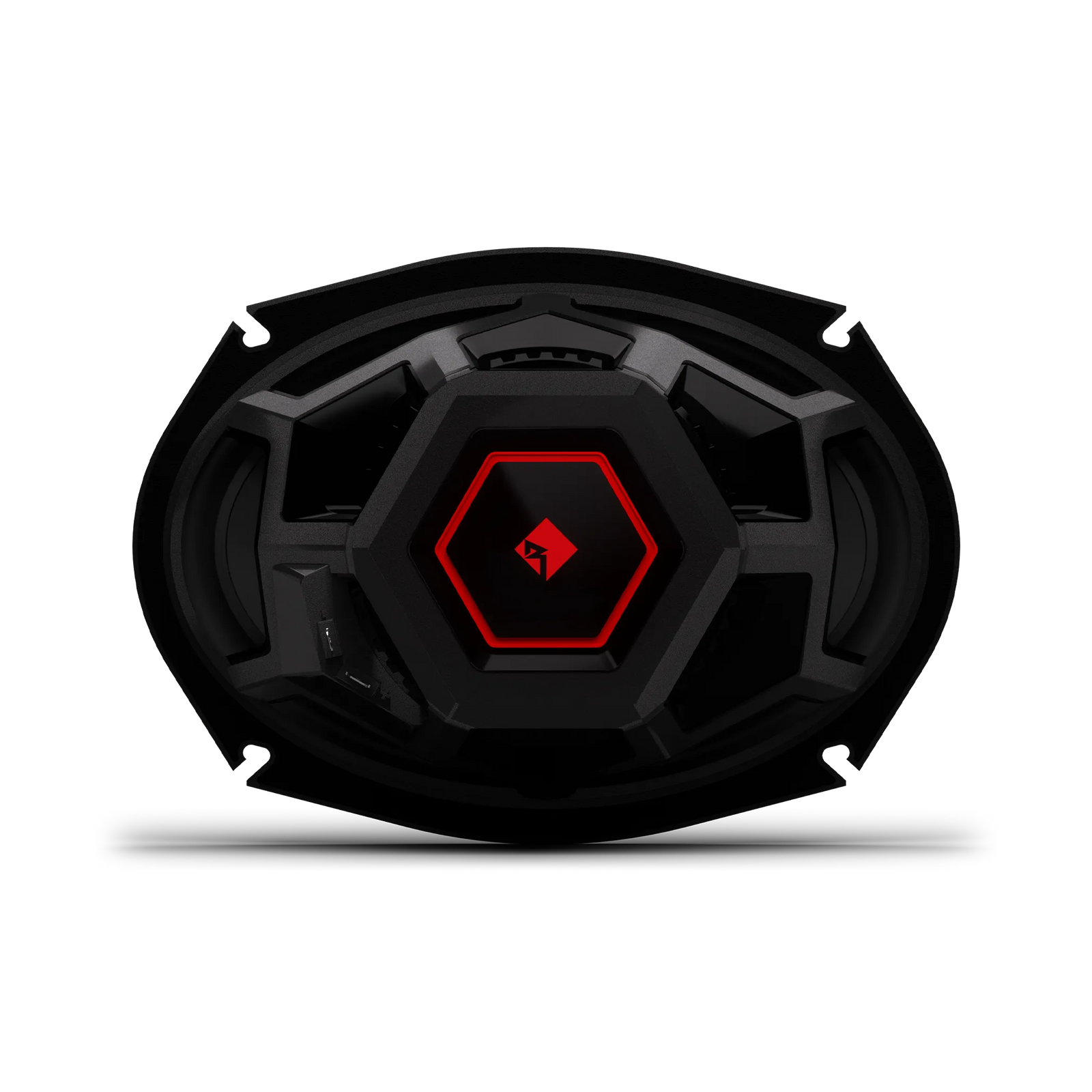

The 6"x9" woofer uses VAST 2.0 V-shape surround geometry for 25% increased effective cone area, with an 8.41" x 5.71" (213.5 x 145mm) oval cutout, 79.4mm mounting depth with motor cover (70mm without), and the same durable material stack as the P3V2-65 woofer. The 6"x9" oval format delivers 89dB system sensitivity at 1W/1M (92dB at 2.83V/1M), higher than the P3V2-65 3-way system's 87dB, for more output from the same power. The P3V2-25 2.5" midrange uses FLWR twist-lock adaptors providing 40.6mm front-loading and 37.3mm rear-loading depth. Six separate passive crossover networks are included (2 x tweeter, 2 x midrange, 2 x woofer). MC3 crossover chassis throughout. CTA-2031 compliant and Klippel verified. Grilles sold separately. 2-year warranty.
Features & Benefits
True 3-Way Component System with 6"x9" Woofer: Three independent drivers per channel deliver precise frequency separation with the larger cone area and higher sensitivity of the 6"x9" format: the 6"x9" woofer for bass, the 2.5" P3V2-25 midrange for vocals and instruments, and the 3/4" Tetolon tweeter for high-frequency detail and imaging.
89dB System Sensitivity - Highest in the P3V2 Range: The 6"x9" woofer delivers 89dB system sensitivity at 1W/1M (92dB at 2.83V/1M), providing more output per watt than the P3V2-65 3-way system (87dB) for efficient use with factory or lower-power aftermarket amplification.

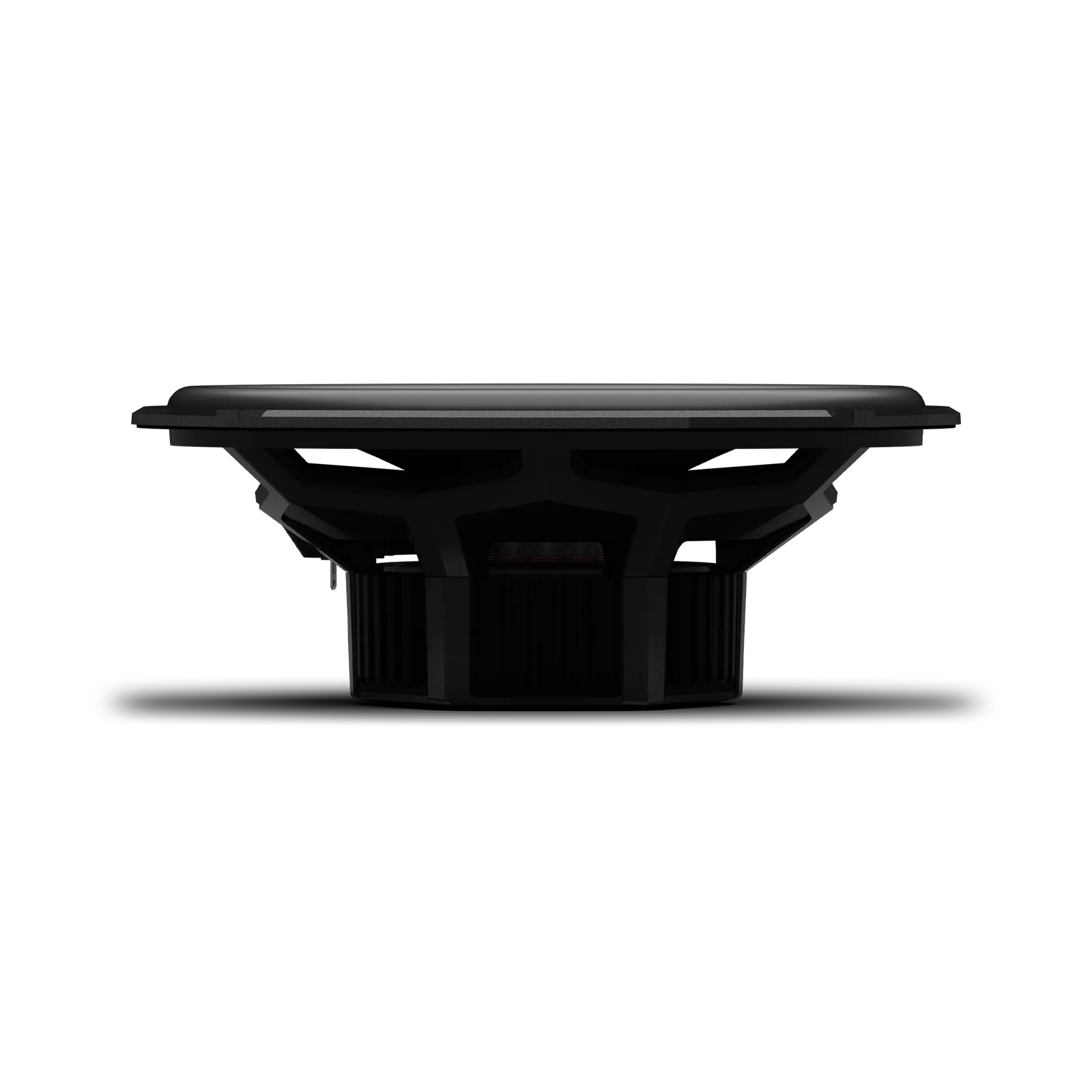

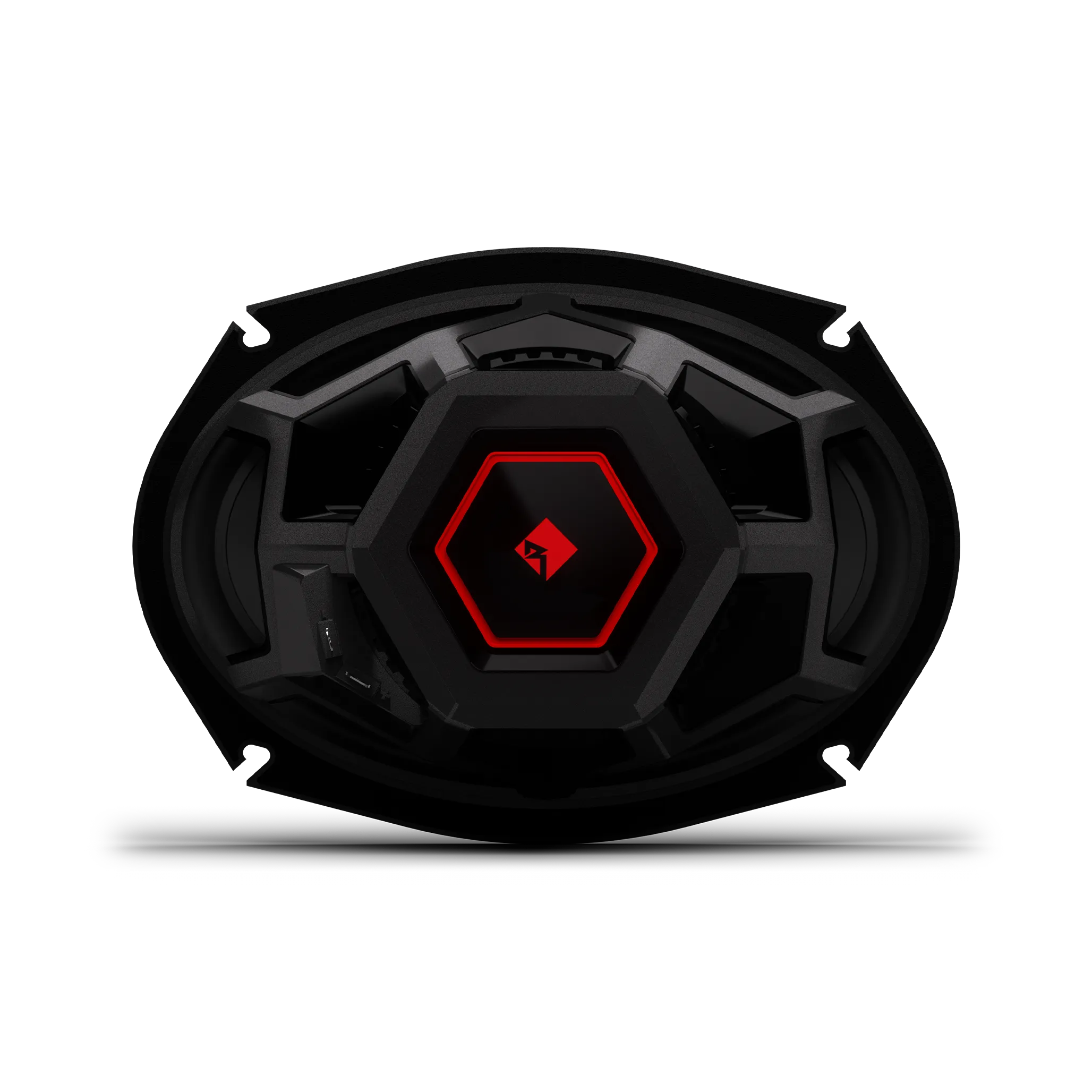

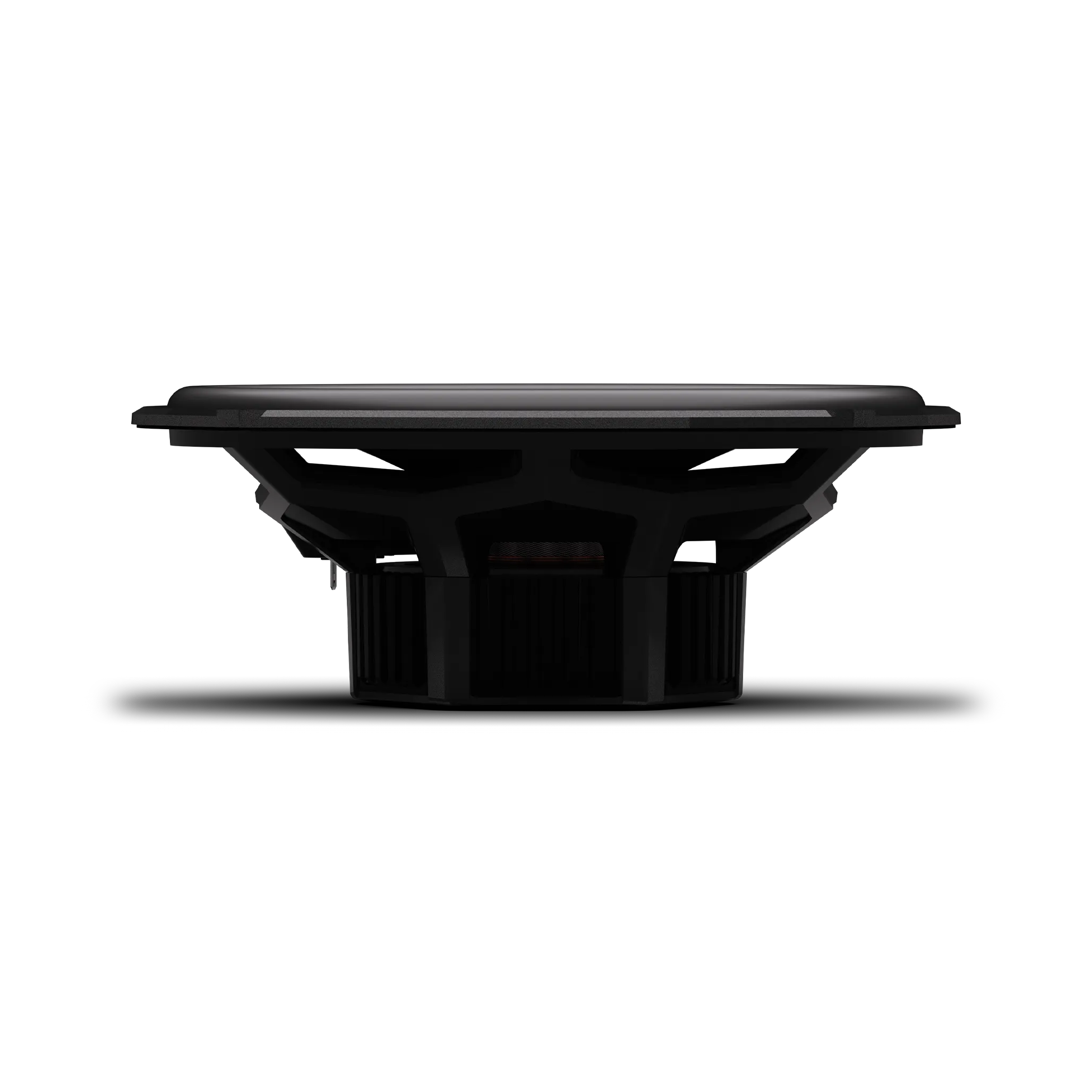

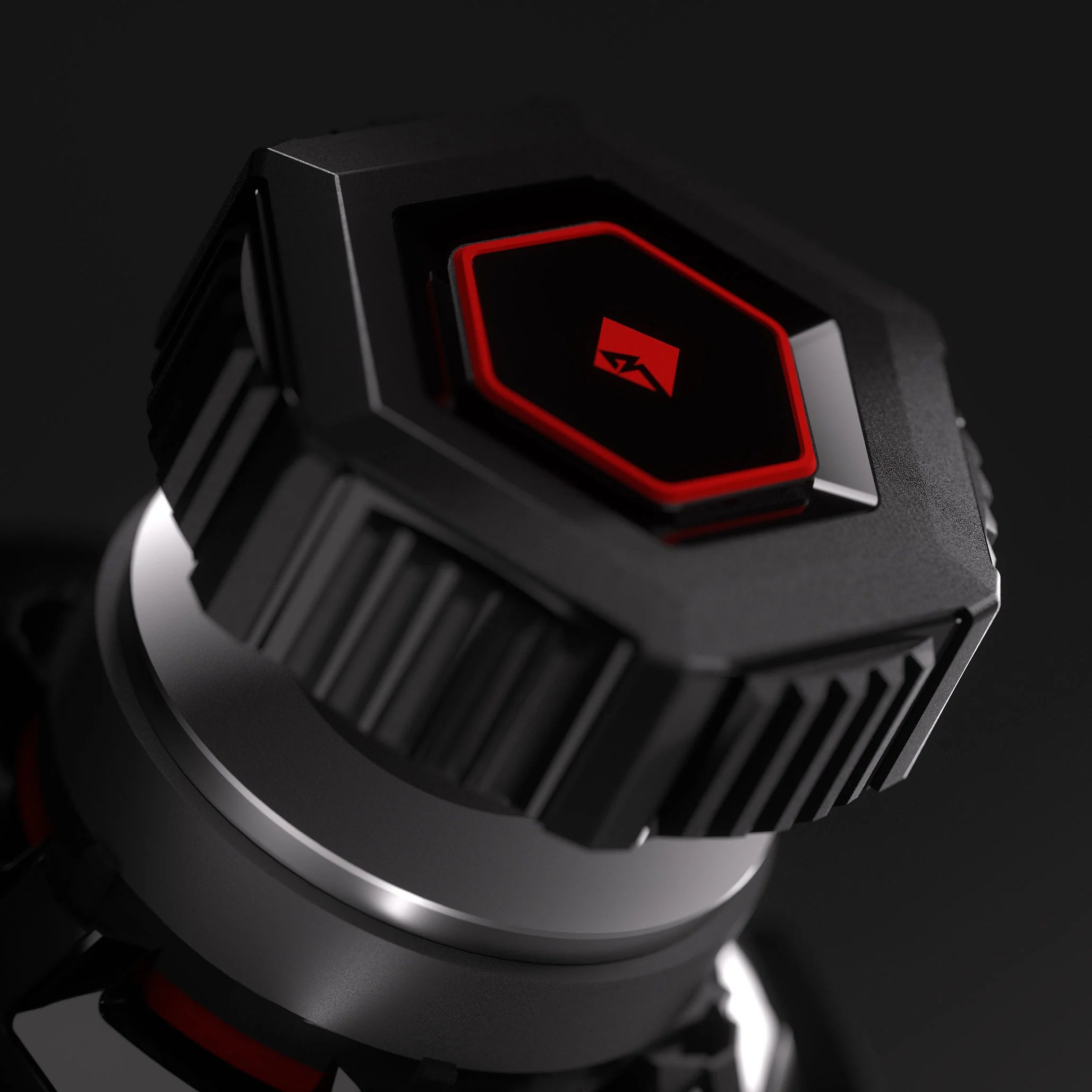

6"x9" VAST 2.0 Woofer with Auto Fit Architecture: The 6"x9" woofer uses VAST 2.0 for 25% increased effective cone area with an 8.41" x 5.71" oval cutout, 79.4mm mounting depth with motor cover (70mm without), and factory-location mounting flanges for drop-in integration into most modern vehicle 6"x9" factory speaker locations.

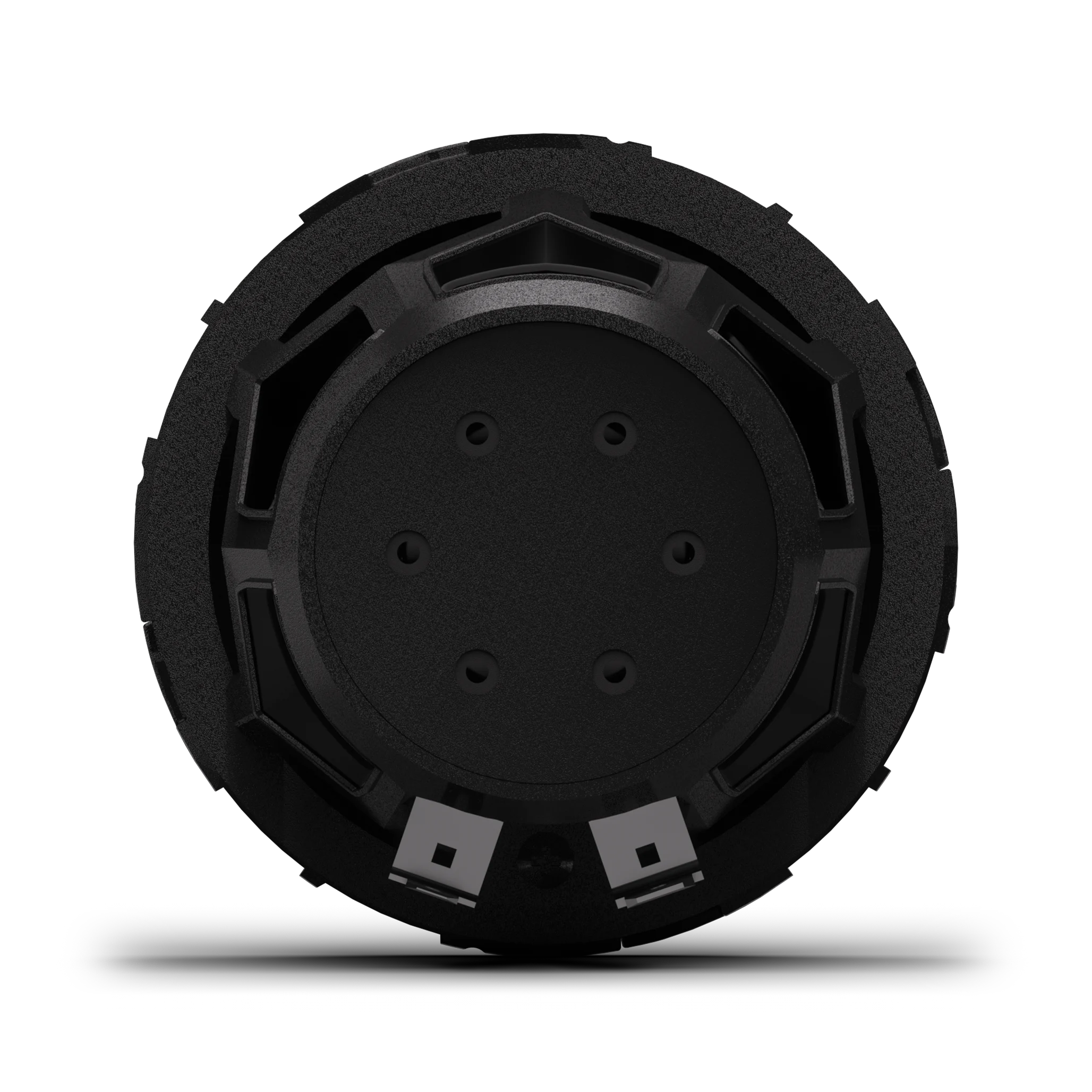

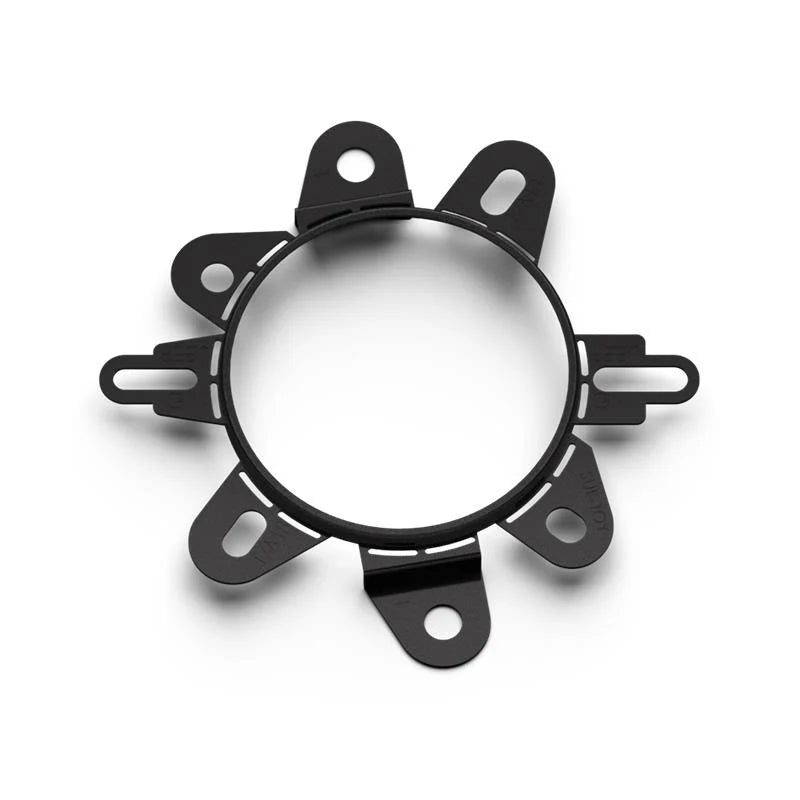

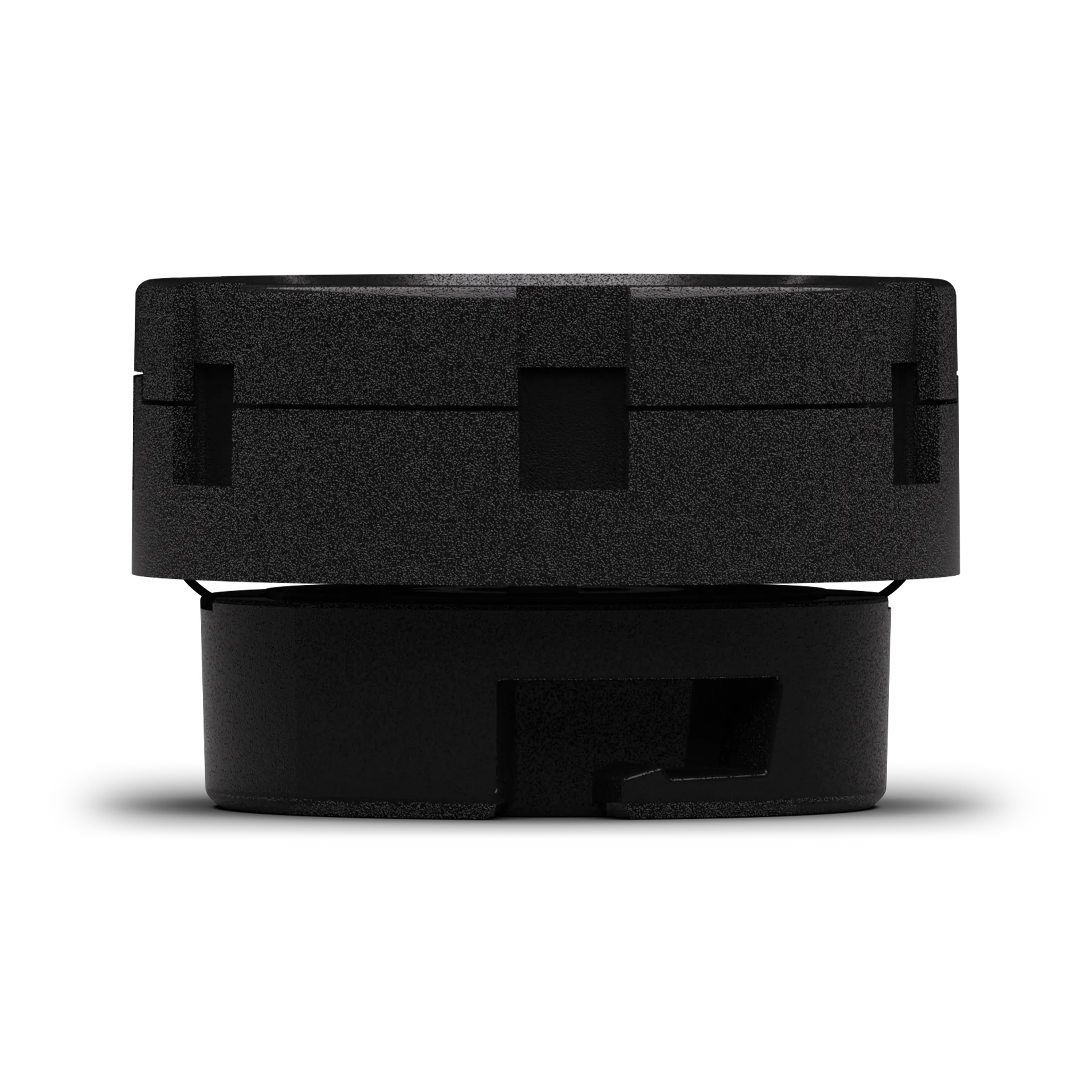

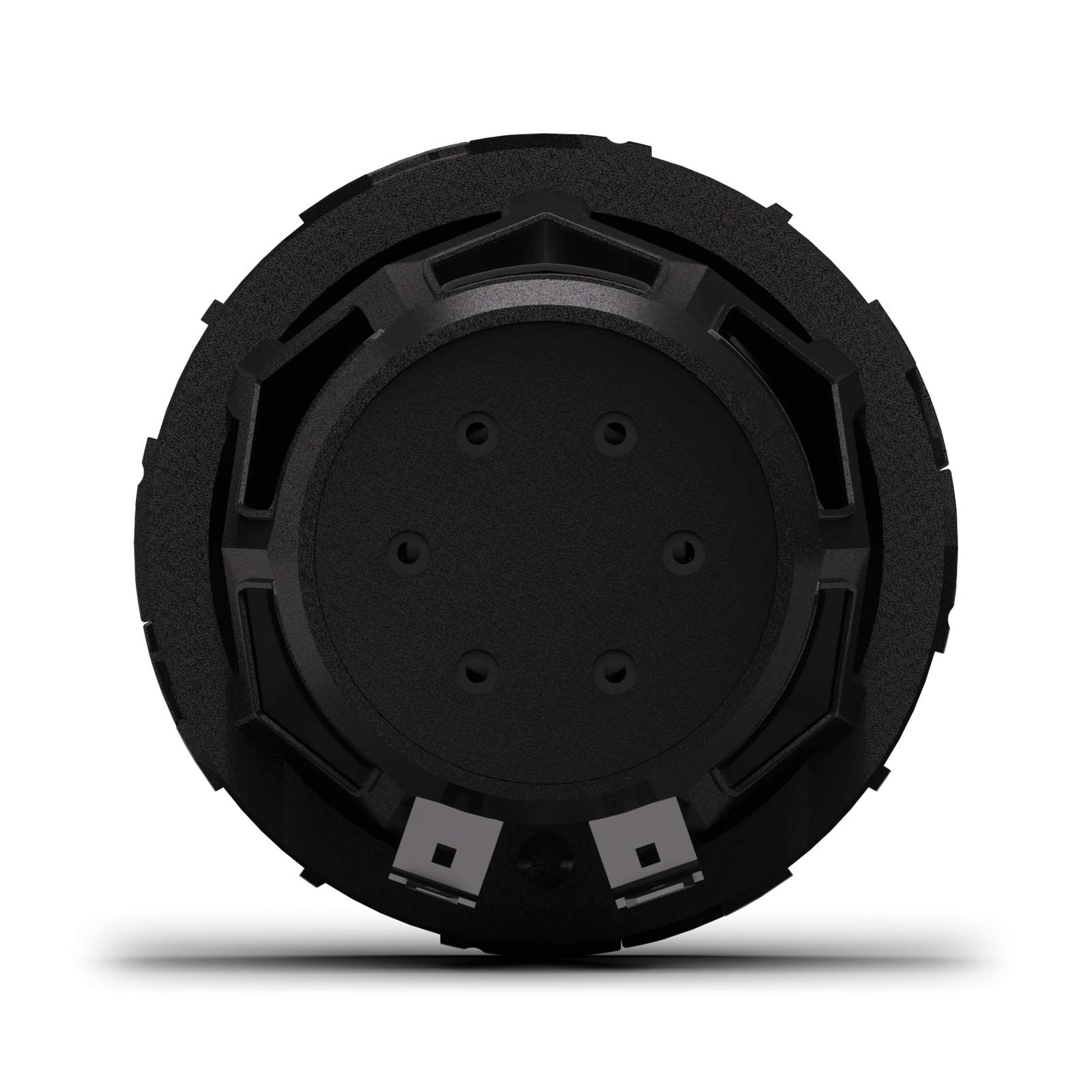

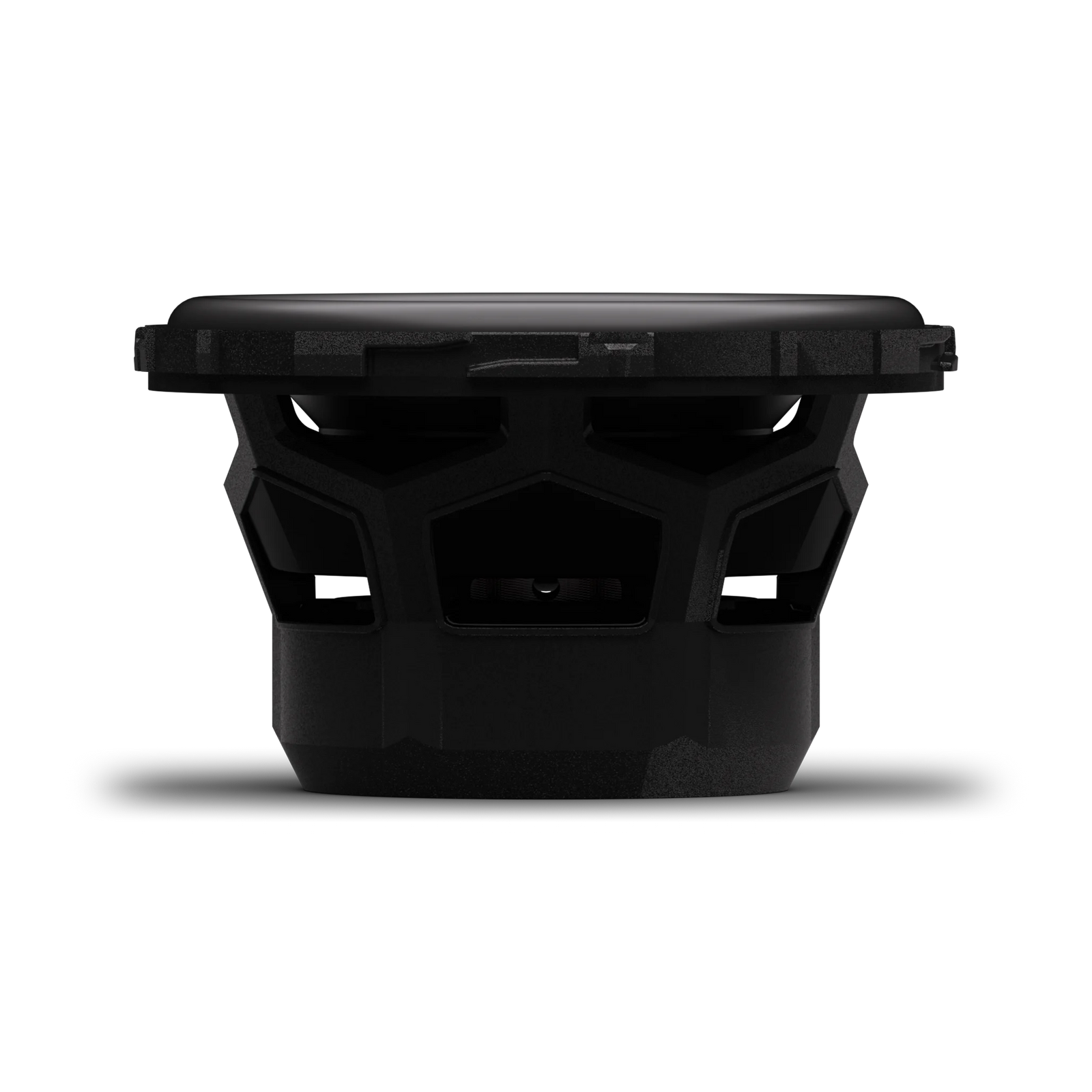

P3V2-25 2.5" Midrange with FLWR Adaptors: The dedicated P3V2-25 2.5" midrange driver covers 600Hz-6kHz with a bandpass crossover, fitting factory 2.5" midrange and dash positions via FLWR twist-lock adaptors at 40.6mm front-loading and 37.3mm rear-loading depth.

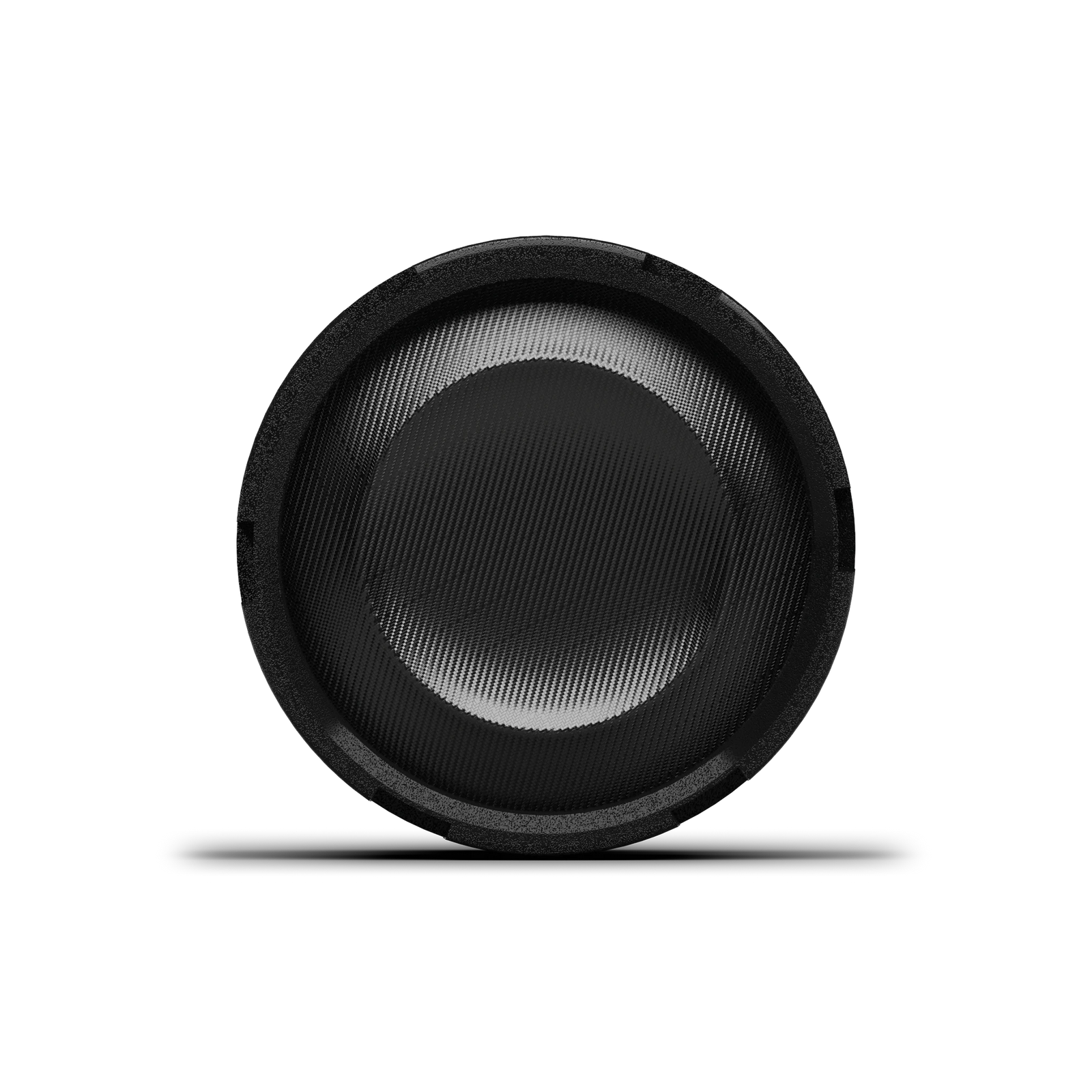

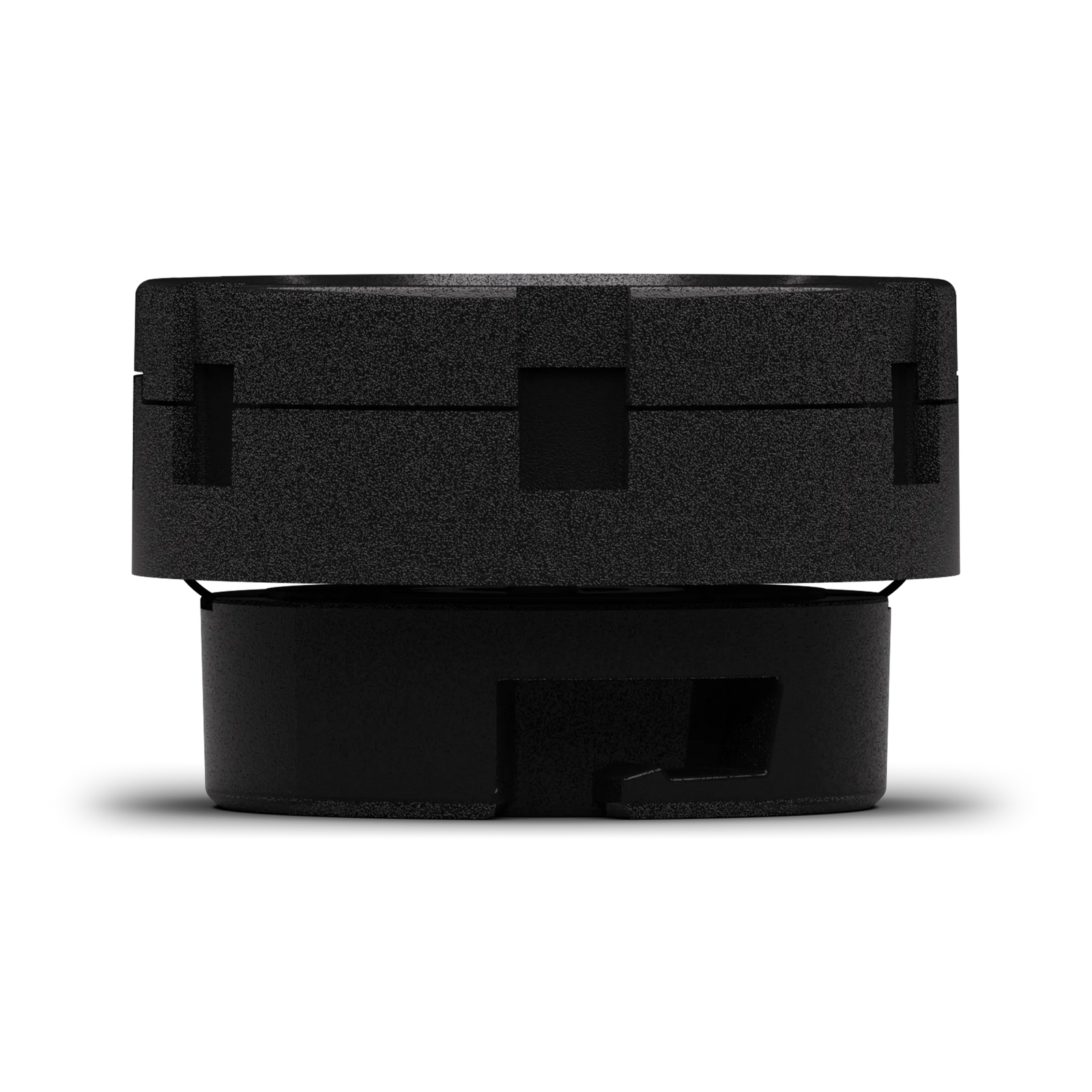

3/4" Tetolon Inverted Dome Edge-Driven Tweeter: The same 19mm Tetolon edge-driven tweeter as the P2V2 and P3V2-65 ranges, with flush-mount and surface-mount cup options and a 9kHz 12dB/Oct highpass crossover with switchable -3dB attenuation.
Separate Passive Crossover Networks for All Three Drivers: Six passive crossover networks (2 x tweeter HP at 9kHz 12dB/Oct, 2 x midrange BP at 600Hz-6kHz 6dB/Oct, 2 x woofer LP at 1.2kHz 6dB/Oct) provide complete passive crossover separation for all three driver pairs in each channel.

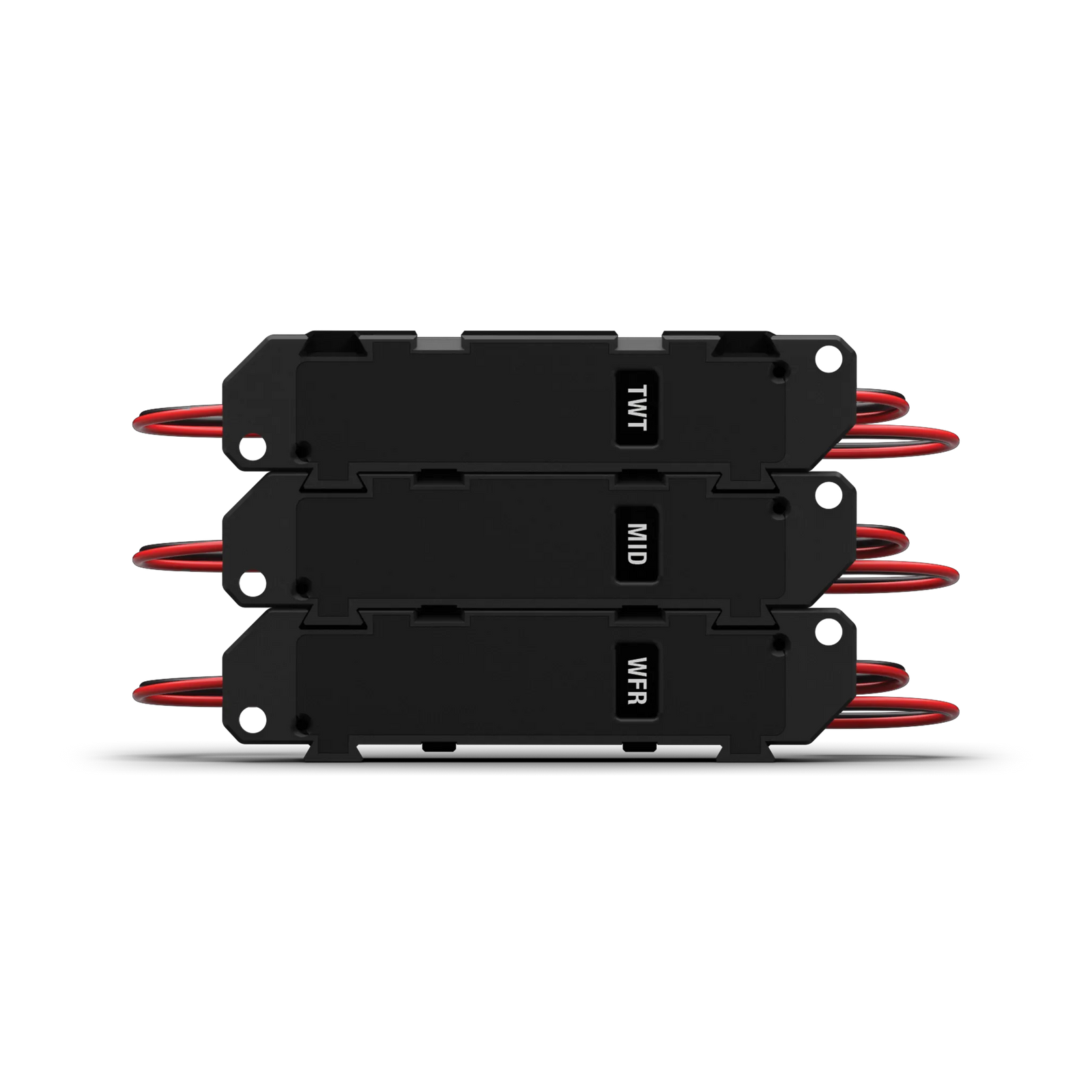

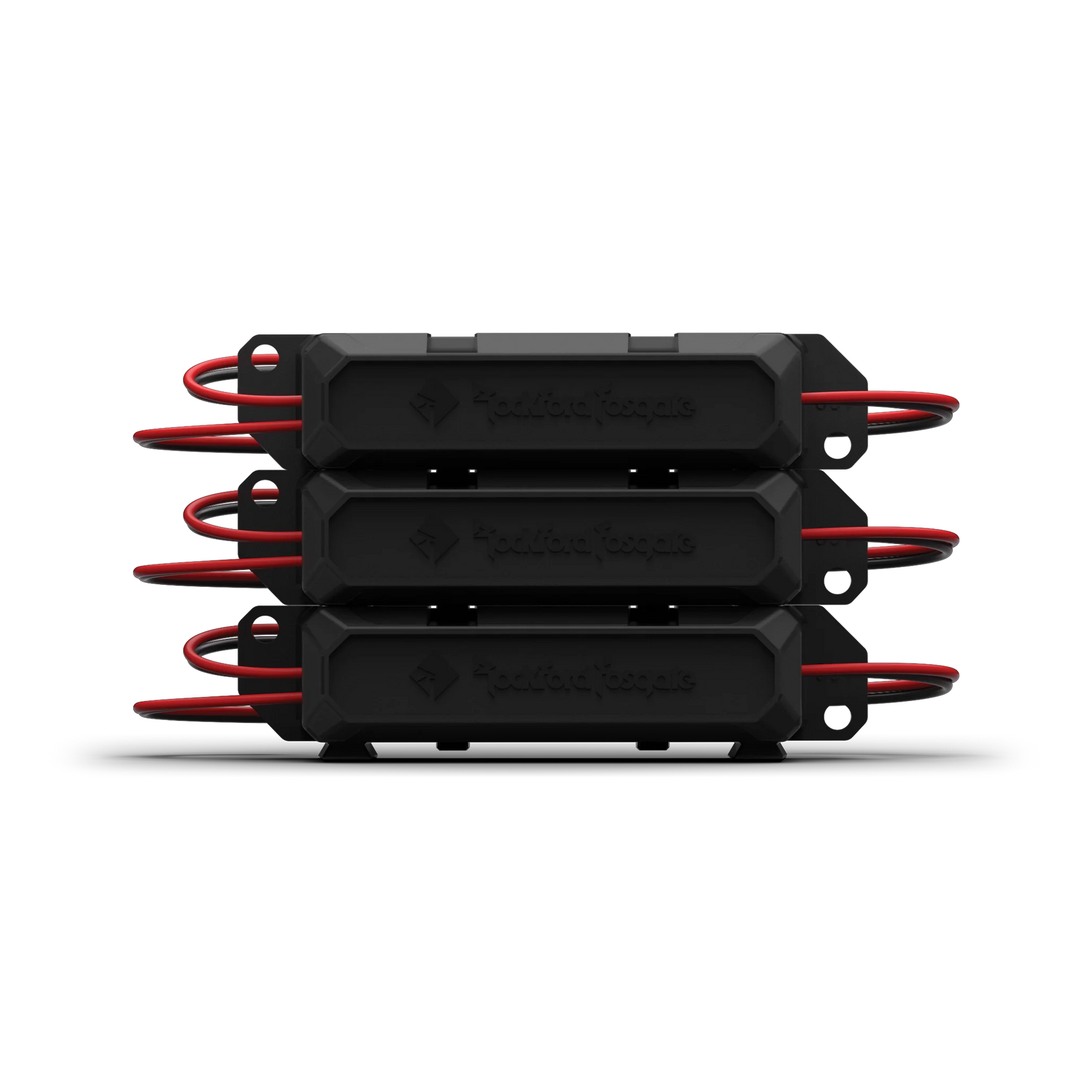

MC3 Multi Configuration Crossover Chassis: All six crossover networks use the MC3 chassis for flexible independent positioning or snap-together unified structure at a single location.
Durable Woofer Material Stack: 15% glass-fibre reinforced PA66 composite basket, Santoprene half-roll surround, Nomex spider with braided tinsel leads, 20-40% mica-reinforced polypropylene curvilinear cone, Y35 ferrite motor (5mm larger than previous generation), vented Kapton voice coil former.
CTA-2031 Compliant and Klippel Verified: Power handling conforms to CTA-2031 industry standards. Klippel verified.
2-Year Warranty: Backed by Rockford Fosgate's 2-year manufacturer warranty.

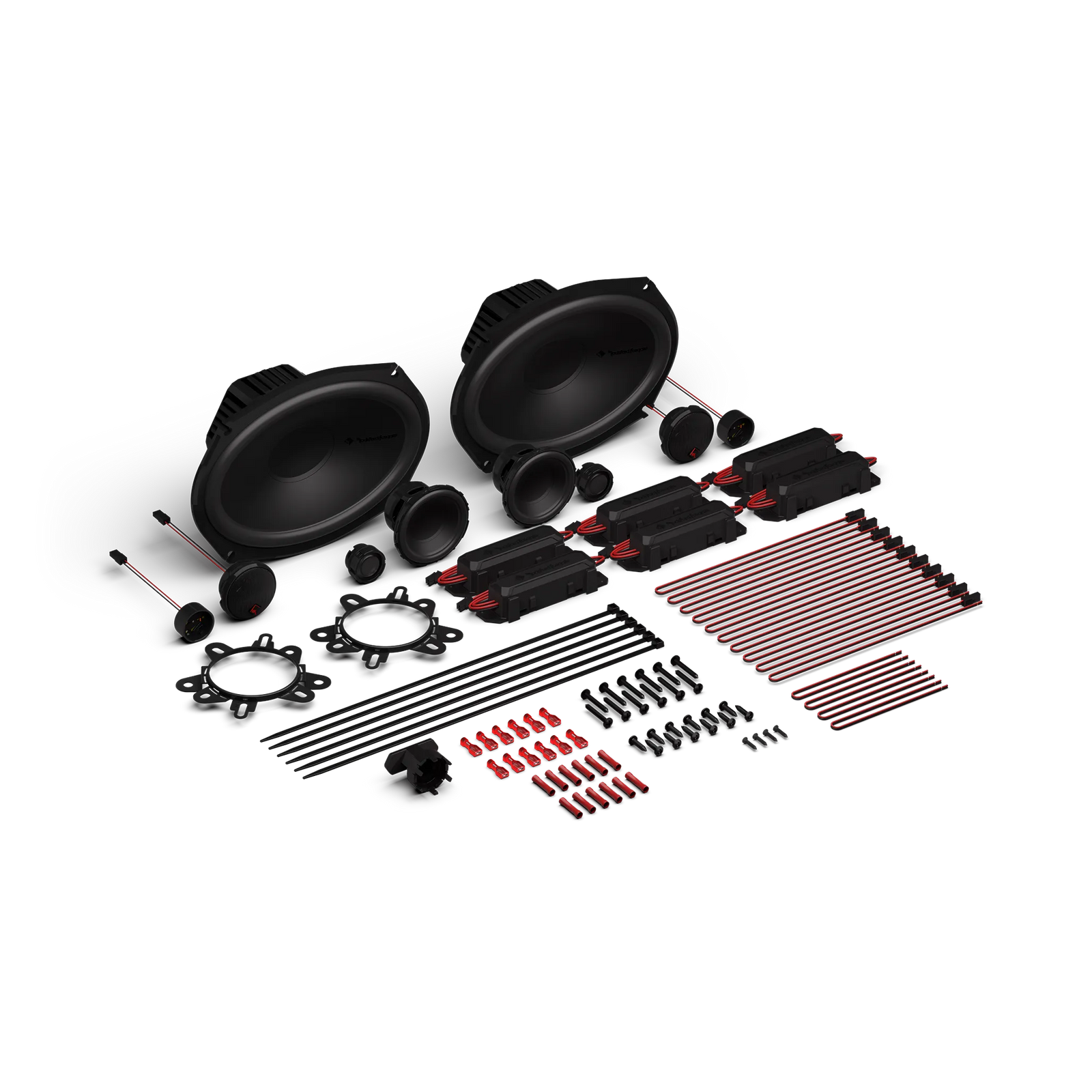

What's in the Box
- 2 x 3/4" 4Ω Tweeters
- 2 x 2.5" 4Ω Midrange Speakers (P3V2-25)
- 2 x 6"x9" 4Ω Woofers
- 2 x FLWR Twist-Lock Adaptors (Multi)
- 2 x Passive Crossover Networks (Tweeter)
- 2 x Passive Crossover Networks (Midrange)
- 2 x Passive Crossover Networks (Woofer)
- 2 x Flush-Mount Tweeter Cups
- 2 x Surface-Mount Tweeter Cups
- 1 x Tweeter Removal Tool
- 1 x 2.5" Speaker Cut-Out Template
- 1 x 6"x9" Speaker Cut-Out Template
- 10 x Crossover Wiring Extensions (18", 457mm)
- 4 x 18 AWG Red/Black Speaker Wire (205mm)
- 4 x Self-Tapping Phillips #4x16mm (Tweeter)
- 12 x Self-Tapping Phillips #8x32mm (Speaker)
- 12 x Self-Tapping Phillips #8x20mm (Crossover)
- 6 x 18 AWG Female Crimp Spade Connectors (0.187")
- 6 x 18 AWG Female Crimp Spade Connectors (0.250")
- 12 x 18 AWG Crimp Butt Connectors
- 6 x Zip Ties (4.8mm x 350mm)
Note: Grilles sold separately.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | P3V2-69 |
| Brand | Rockford Fosgate |
| Series | Punch P3 |
| Speaker Type | 3-Way Component System |
| Sold As | Pair |
| Woofer Nominal Diameter | 6"x9" |
| Midrange Nominal Diameter | 2.5" |
| Tweeter Nominal Diameter | 3/4" (19mm) |
| Nominal Impedance | 4Ω |
| System Power Handling | 75W RMS / 150W Peak (CTA-2031) |
| System Sensitivity | 89dB at 1W/1M |
| System Sensitivity (2.83V/1M) | 92dB |
| Frequency Response | 49Hz-25kHz |
| Woofer Voice Coil Diameter | 1.25" (32.5mm) |
| Woofer Fs | 65Hz |
| Tweeter Crossover | HP 9kHz at 12dB/Oct (External) |
| Tweeter Attenuation | 0dB or -3dB |
| Midrange Crossover | BP 600Hz-6kHz at 6dB/Oct (External) |
| Woofer Crossover | LP 1.2kHz at 6dB/Oct (External) |
| Woofer Cutout Dimensions | 8.41" x 5.71" (213.5mm x 145mm) |
| Woofer Mounting Depth (With Motor Cover) | 3.13" (79.4mm) |
| Woofer Mounting Depth (No Motor Cover) | 2.76" (70mm) |
| Woofer Front Side Clearance | 0.42" (10.6mm) |
| Midrange Cutout Diameter | 2.54" (64.5mm) |
| Midrange Front-Loading Depth (FLWR) | 1.60" (40.6mm) |
| Midrange Rear-Loading Depth (FLWR) | 1.47" (37.3mm) |
| Removable Motor Cover | Yes (Woofer) |
| Woofer Basket Material | 15% Glass-Fibre Reinforced PA66 Composite |
| Woofer Surround Material | Santoprene Half-Roll |
| Woofer Spider Material | Nomex |
| Woofer Cone Material | 20-40% Mica Reinforced Polypropylene Curvilinear |
| Motor Structure | Y35 Ferrite (5mm Larger Than Previous Generation) |
| Voice Coil Former | Vented Kapton |
| Technology | VAST 2.0, MC3, FLWR, I.L.M., Auto Fit Architecture |
| Standards | CTA-2031 Compliant, Klippel Verified |
| Grilles | Sold Separately |
| Warranty | 2 Years |
| Shipping Weight | 4.99kg |
Compatible With

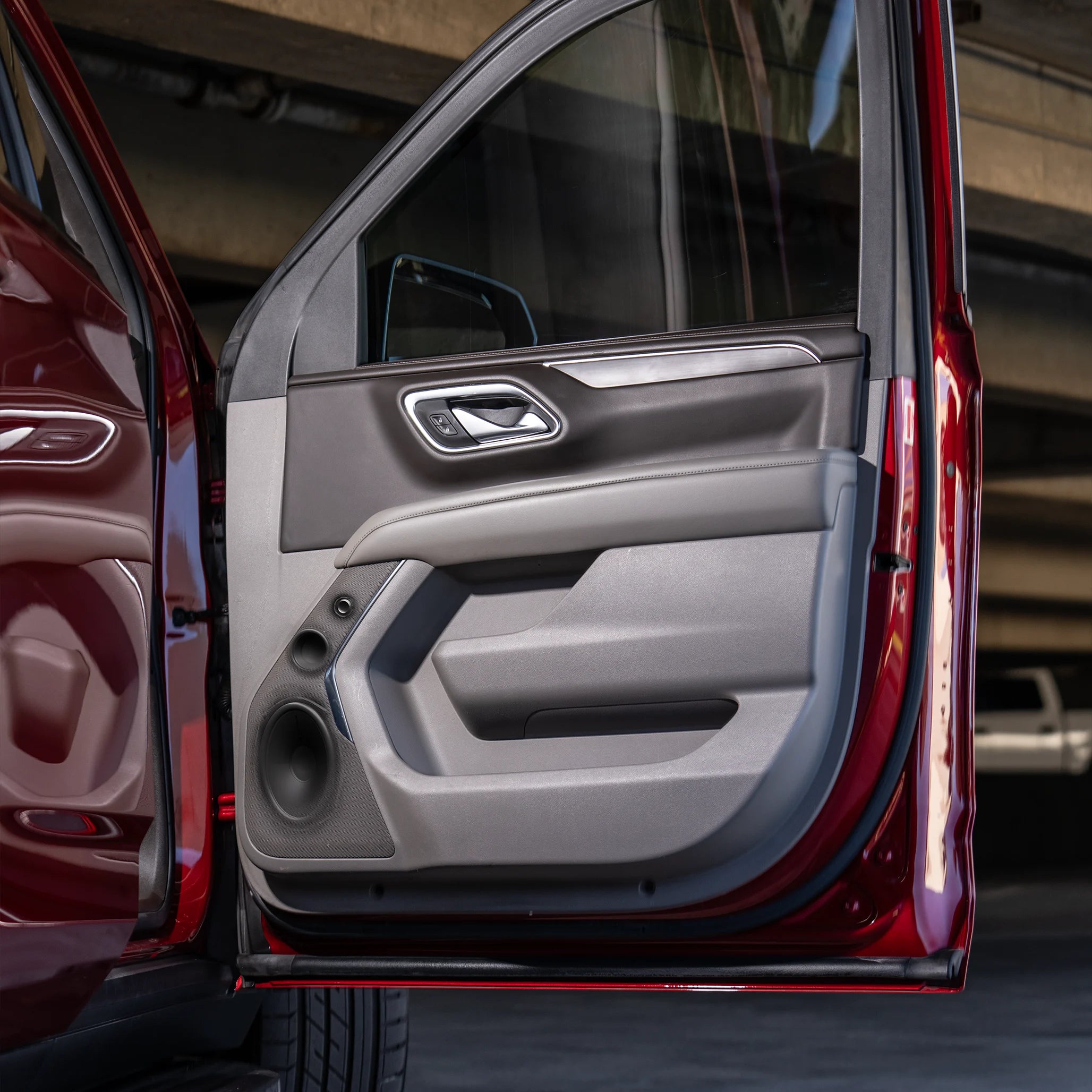

The P3V2-69 6"x9" woofer is compatible with most modern vehicle factory 6"x9" oval speaker locations with an 8.41" x 5.71" (213.5 x 145mm) cutout. Note the deeper mounting depth of 79.4mm with motor cover (70mm without) compared to the P3V2-65 woofer - confirm available mounting depth in rear deck and door locations before purchase. The P3V2-25 midrange fits factory 2.5" midrange and dash positions via FLWR twist-lock adaptors with a 2.54" cutout. The tweeter fits standard 1.5" hole-saw flush-mount positions or surface mounts without cutting.
Frequently Asked Questions
What is the difference between the P3V2-69 and the P3V2-65?
Both are Punch P3 3-way component systems sharing the same P3V2-25 midrange, 3/4" tweeter, crossover architecture, and technology. The P3V2-69 uses a 6"x9" oval woofer with an 8.41" x 5.71" cutout, 89dB system sensitivity, and 79.4mm mounting depth with motor cover. The P3V2-65 uses a 6.5" round woofer with a 5.42" circular cutout, 87dB system sensitivity, and 63.5mm mounting depth with motor cover. Choose based on the factory speaker size and location in your specific vehicle.
Does the P3V2-69 require significant mounting depth?
Yes. The 6"x9" woofer requires 79.4mm with the motor cover (70mm without), which is deeper than the P3V2-65. Confirm available mounting depth in your vehicle's rear deck or door cavity before purchase.
Does the P3V2-69 include all crossovers for the 3-way system?
Yes. Six separate passive crossover networks are included: 2 for the tweeter (9kHz HP 12dB/Oct), 2 for the midrange (600Hz-6kHz BP 6dB/Oct), and 2 for the woofer (1.2kHz LP 6dB/Oct).
Are grilles included with the P3V2-69?
No. Grilles are sold separately.
Can the P3V2-69 woofer be installed in the same location as a P2V2-69?
Yes. The P3V2-69 woofer shares the same 8.41" x 5.71" cutout dimensions and 79.4mm mounting depth with motor cover as the P2V2-69, enabling drop-in installation into the same factory 6"x9" speaker locations.
