Rockford Fosgate P3V2-65 Punch 6.5" 3-Way Component System 75W

Rockford Fosgate P3V2-65 Punch P3 6.5" 3-Way Component Speaker System 75W RMS

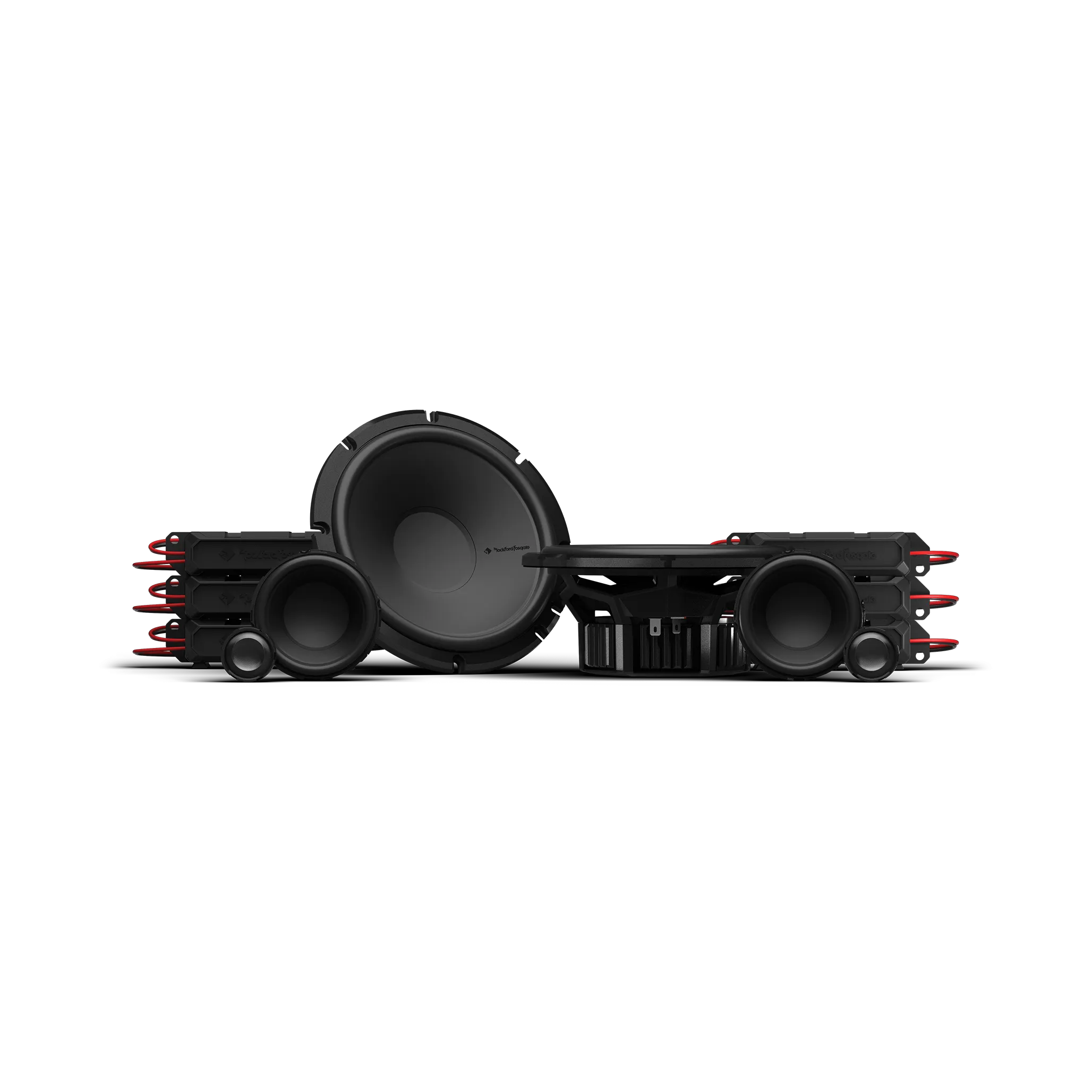

A complete 6.5" 3-way component speaker system from Rockford Fosgate, the P3V2-65 includes a 6.5" 4Ω woofer, 2.5" P3V2-25 midrange driver, and 3/4" Tetolon inverted dome tweeter per channel, with separate passive crossovers for each driver (tweeter HP at 9kHz 12dB/Oct, midrange BP at 600Hz-6kHz 6dB/Oct, woofer LP at 1.2kHz 6dB/Oct), MC3 multi-configuration crossover chassis, FLWR twist-lock midrange adaptors, VAST 2.0 woofer cone, 87dB system sensitivity, 49Hz-25kHz frequency response, full installation hardware, and 2-year warranty. Sold in pairs.

Product Overview

The Rockford Fosgate P3V2-65 is the complete 6.5" 3-way component system from the Punch P3 range, engineered for drivers who demand precision detail, powerful midrange, and accurate low-frequency reproduction from a factory-location compatible speaker system. Three independent drivers in each channel reproduce specific frequency bands with dedicated crossover networks: the 6.5" woofer handles lows with a 1.2kHz 6dB/Oct lowpass crossover, the P3V2-25 2.5" midrange driver covers 600Hz-6kHz with a bandpass crossover, and the 3/4" Tetolon inverted dome tweeter covers above 9kHz with a 12dB/Oct highpass crossover. The result is a complete 3-way system where each driver operates only in its optimised frequency range for exceptional clarity and accuracy.

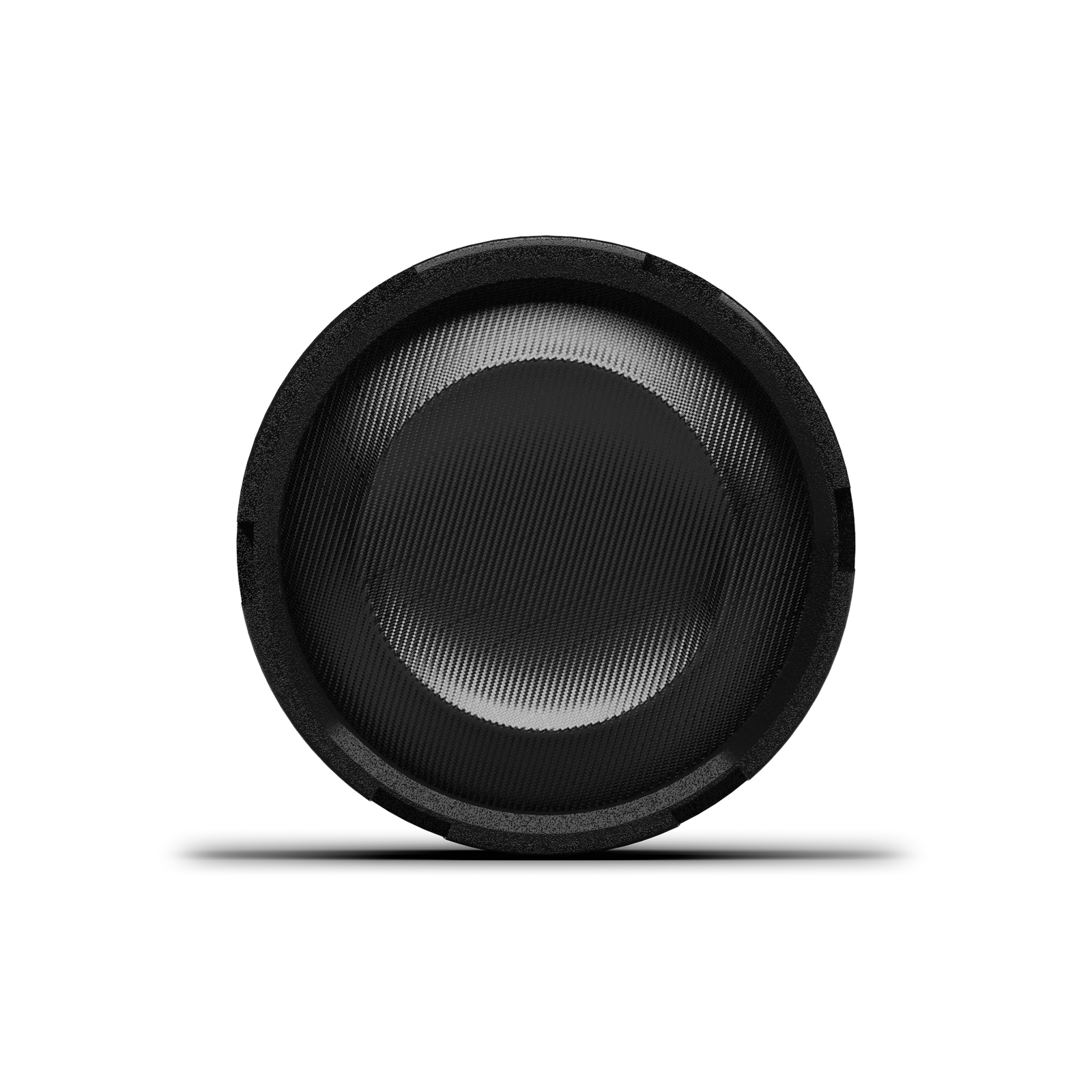

The 6.5" woofer uses VAST 2.0 V-shape surround geometry for 25% increased effective cone area, with a 5.42" (137.6mm) cutout diameter, 63.5mm mounting depth with motor cover (57.3mm without), and the same Y35 ferrite motor, Nomex spider, Santoprene surround, and mica-reinforced polypropylene cone construction as the P2V2-65. The P3V2-25 2.5" midrange uses FLWR twist-lock adaptors providing 40.6mm front-loading and 37.3mm rear-loading depth for integration into factory midrange, dash, and center channel positions with a 2.54" cutout. The 3/4" Tetolon inverted dome edge-driven tweeter mounts in flush or surface-mount cups. Six separate passive crossover networks are included (2 x tweeter, 2 x midrange, 2 x woofer). The MC3 crossover chassis separates or snaps together for flexible routing. CTA-2031 compliant and Klippel verified. Grilles sold separately. 2-year warranty.

Features & Benefits

True 3-Way Component System - Woofer, Midrange, and Tweeter: Three independent drivers per channel ensure each frequency band is reproduced by the most appropriate driver: the 6.5" woofer for bass and lower midrange, the 2.5" P3V2-25 midrange for the critical vocal and instrumental midrange band, and the 3/4" Tetolon tweeter for precise high-frequency detail and imaging.

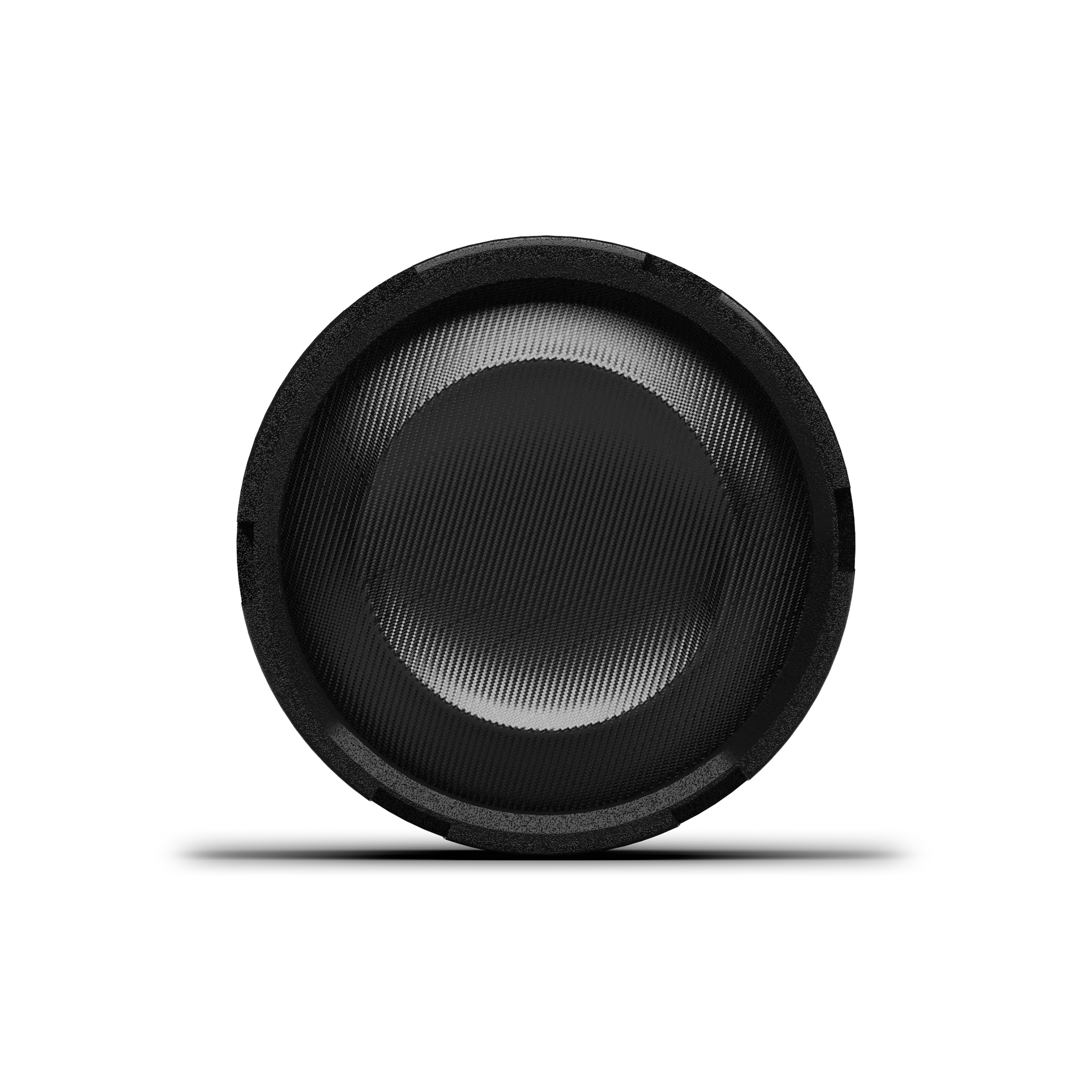

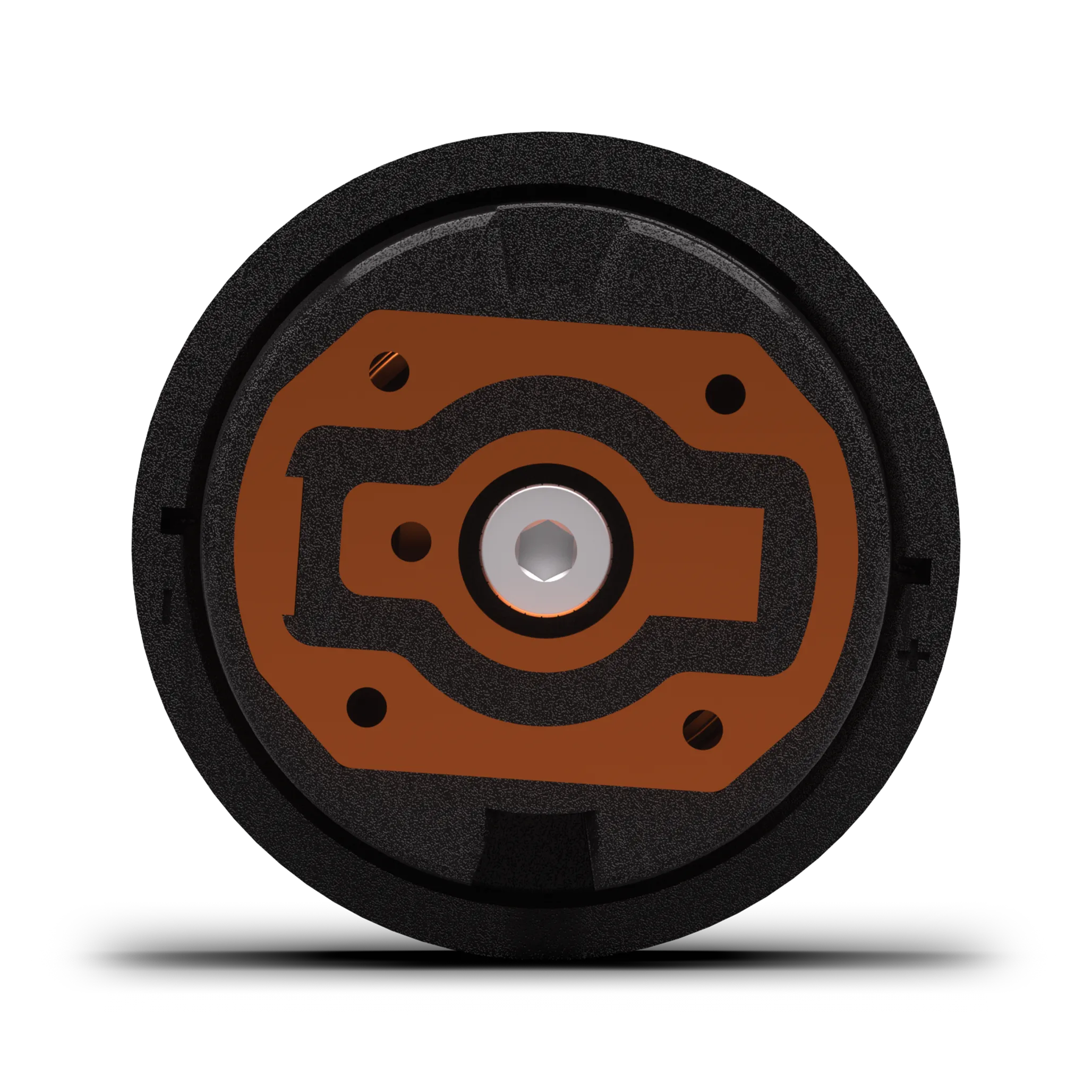

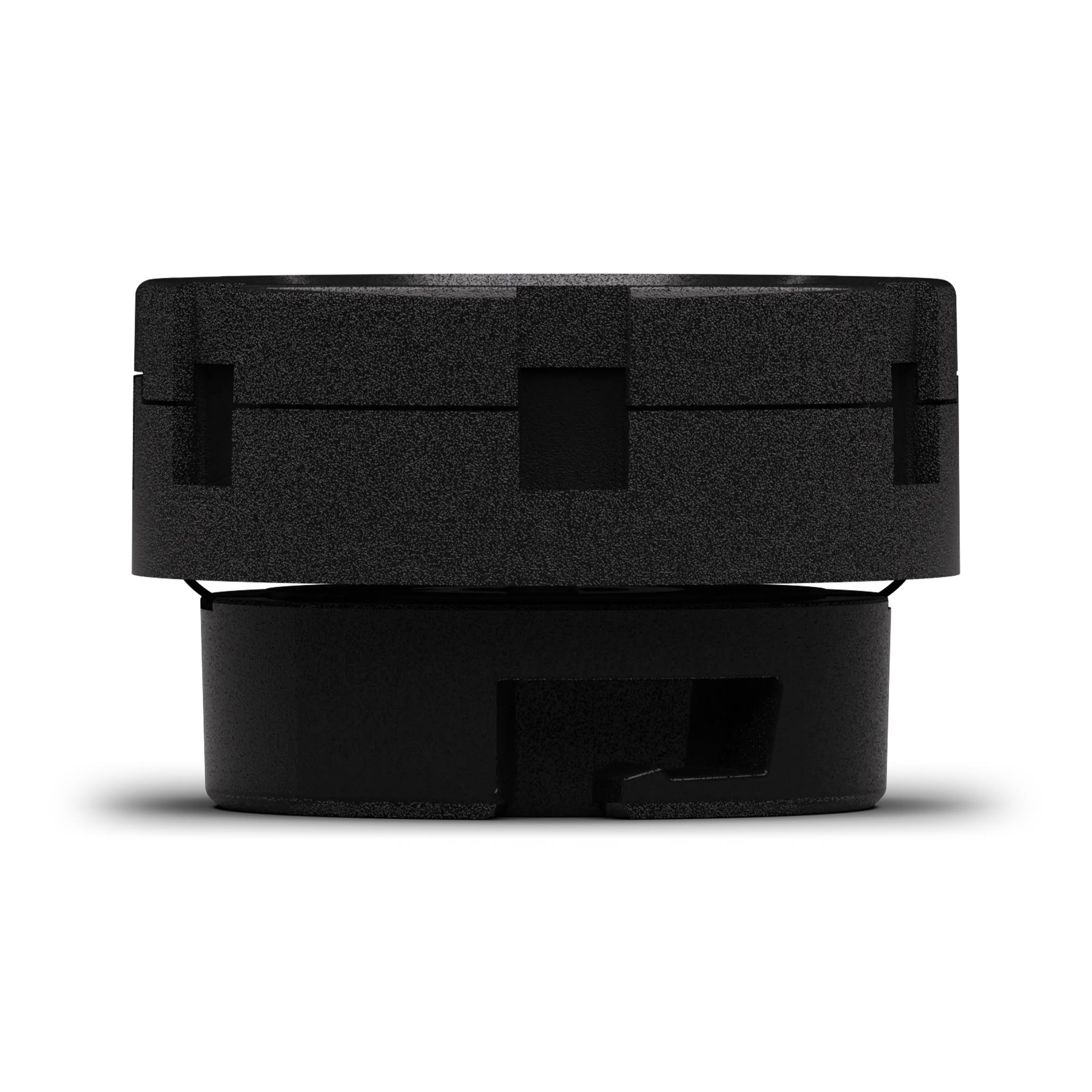

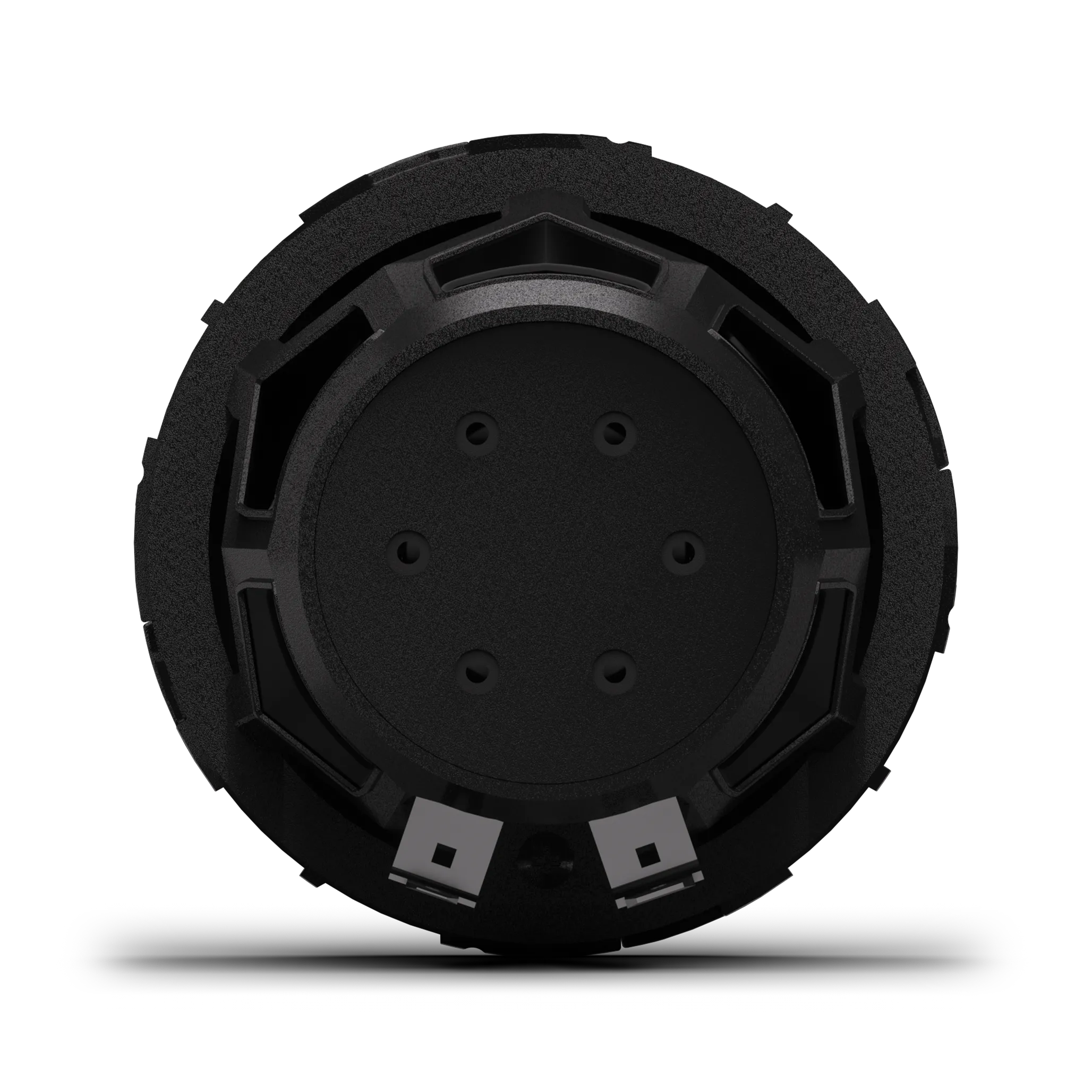

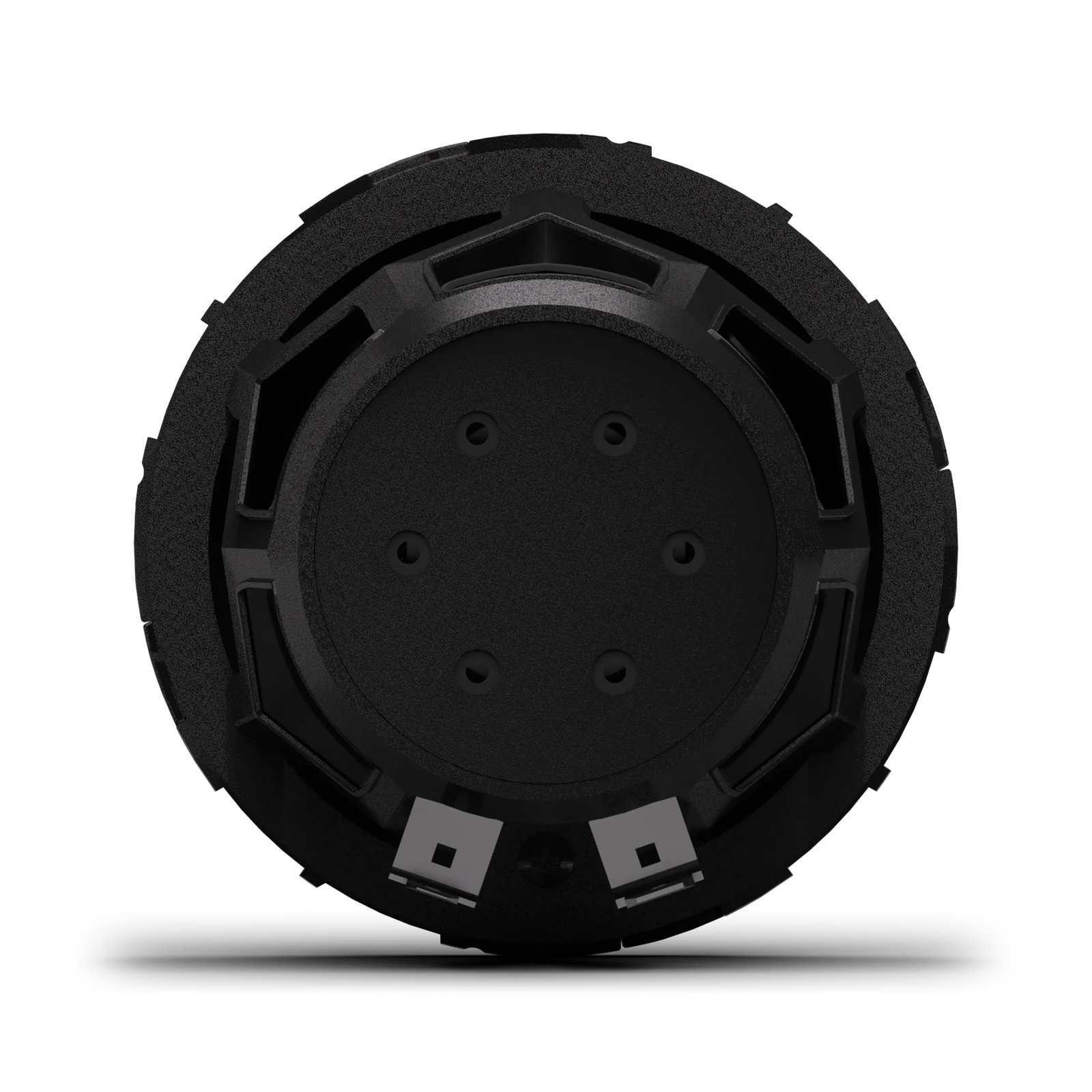

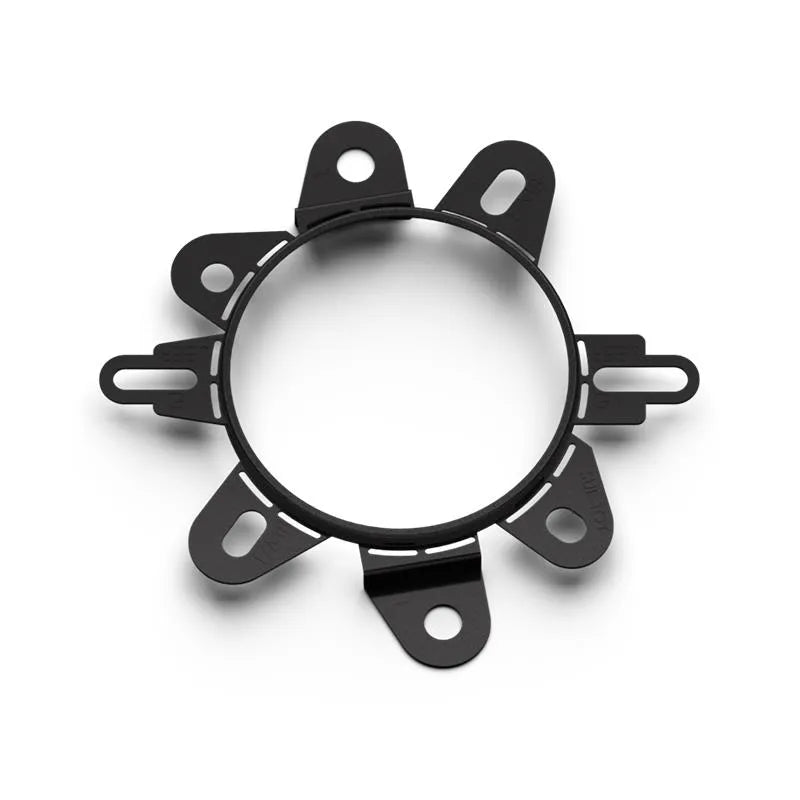

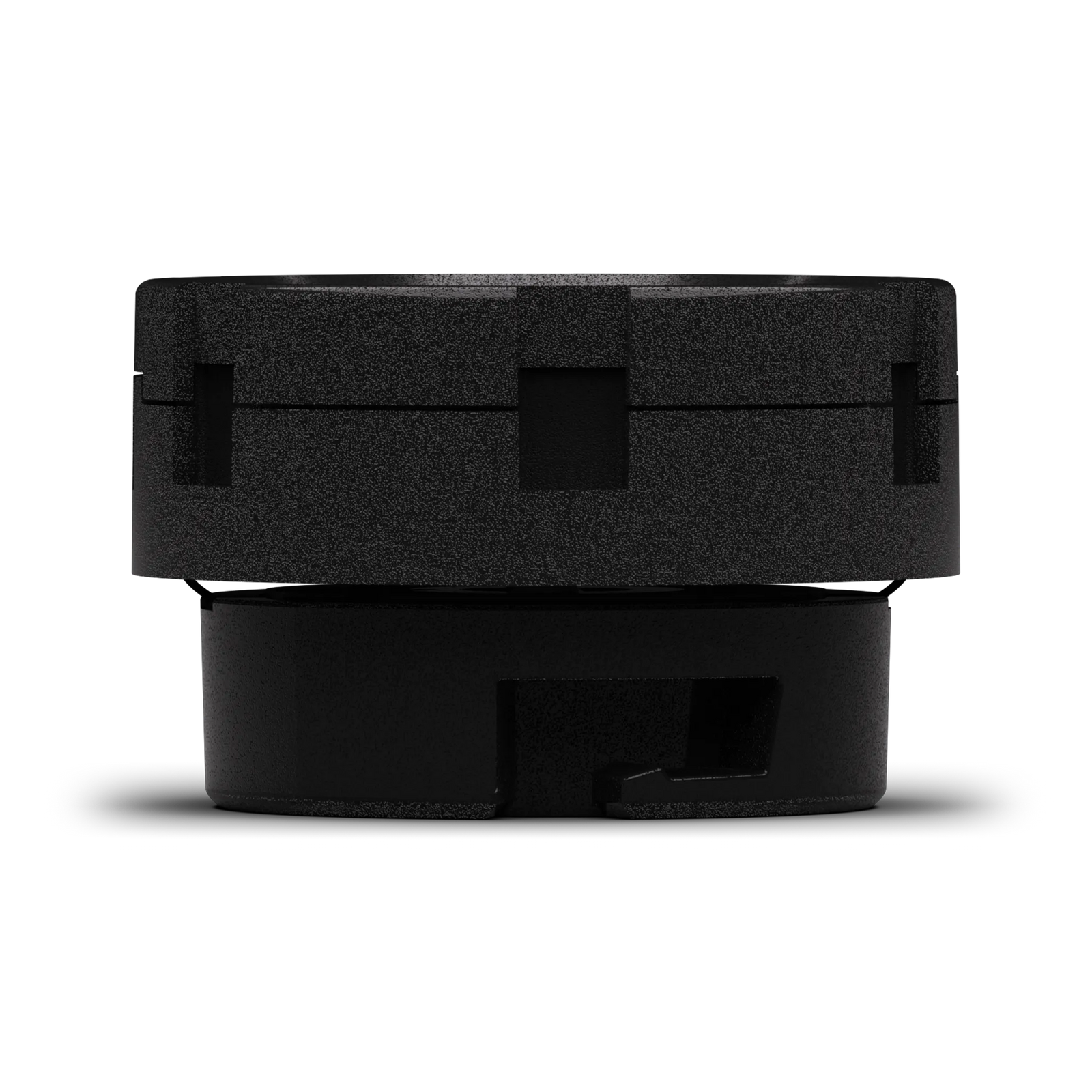

P3V2-25 2.5" Midrange with FLWR Adaptors: The dedicated P3V2-25 midrange driver covers 600Hz-6kHz with a bandpass crossover, fitting factory 2.5" midrange, dash, and center channel positions via the included FLWR twist-lock adaptors at 40.6mm front-loading and 37.3mm rear-loading depth.

3/4" Tetolon Inverted Dome Edge-Driven Tweeter: The same 19mm Tetolon edge-driven tweeter as the P2V2 range, providing superior power handling and broad high-frequency dispersion at the 9kHz crossover point with flush-mount and surface-mount cup options.

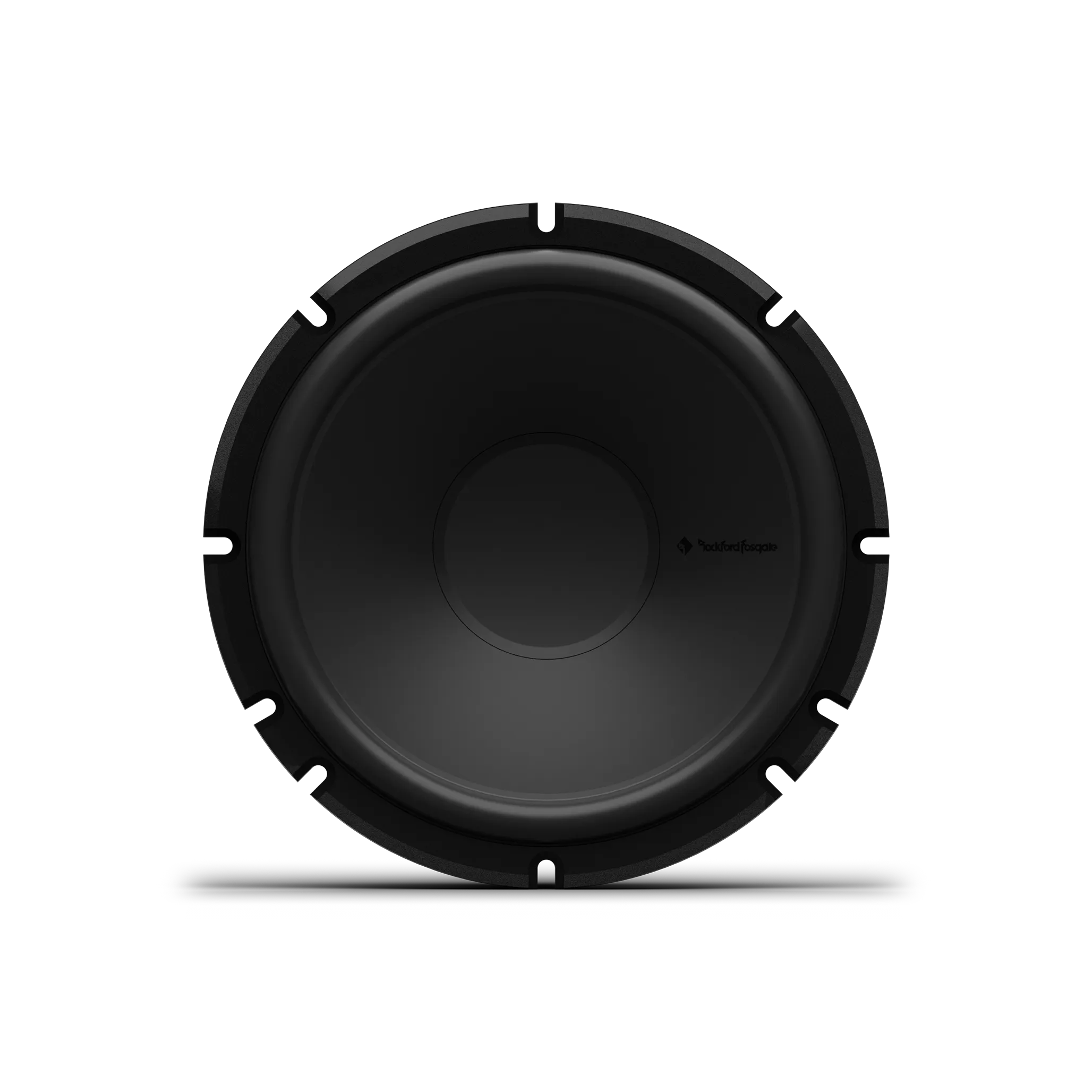

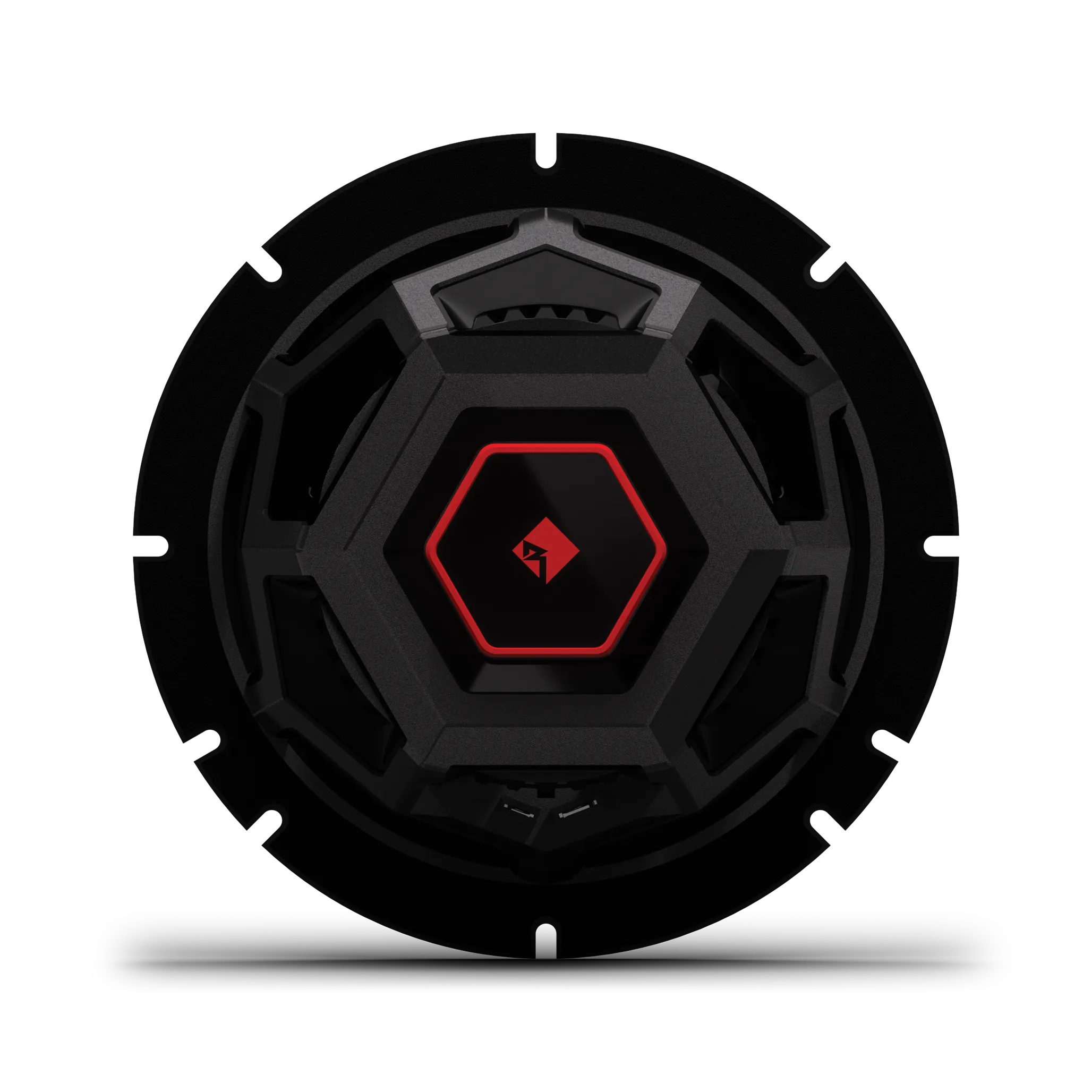

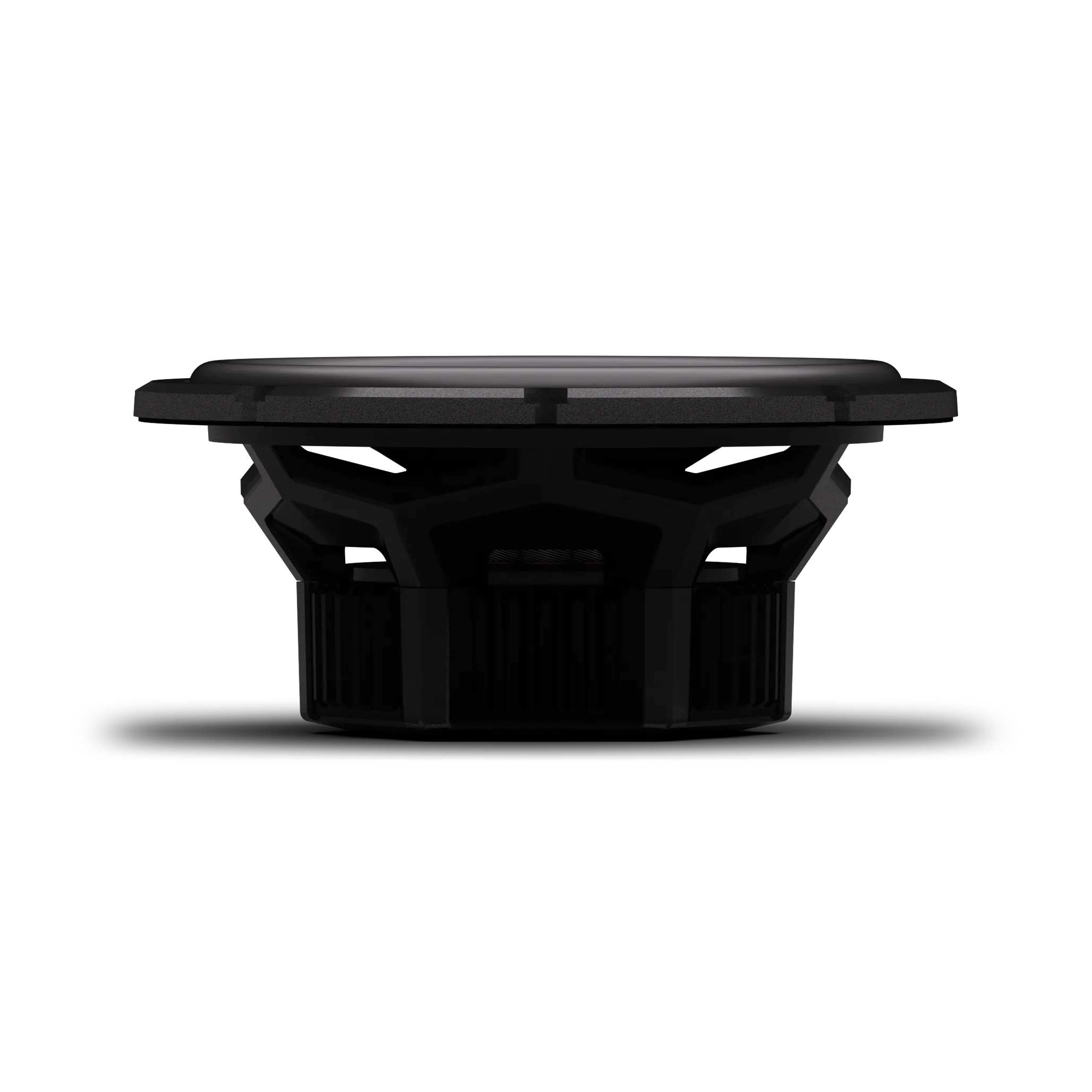

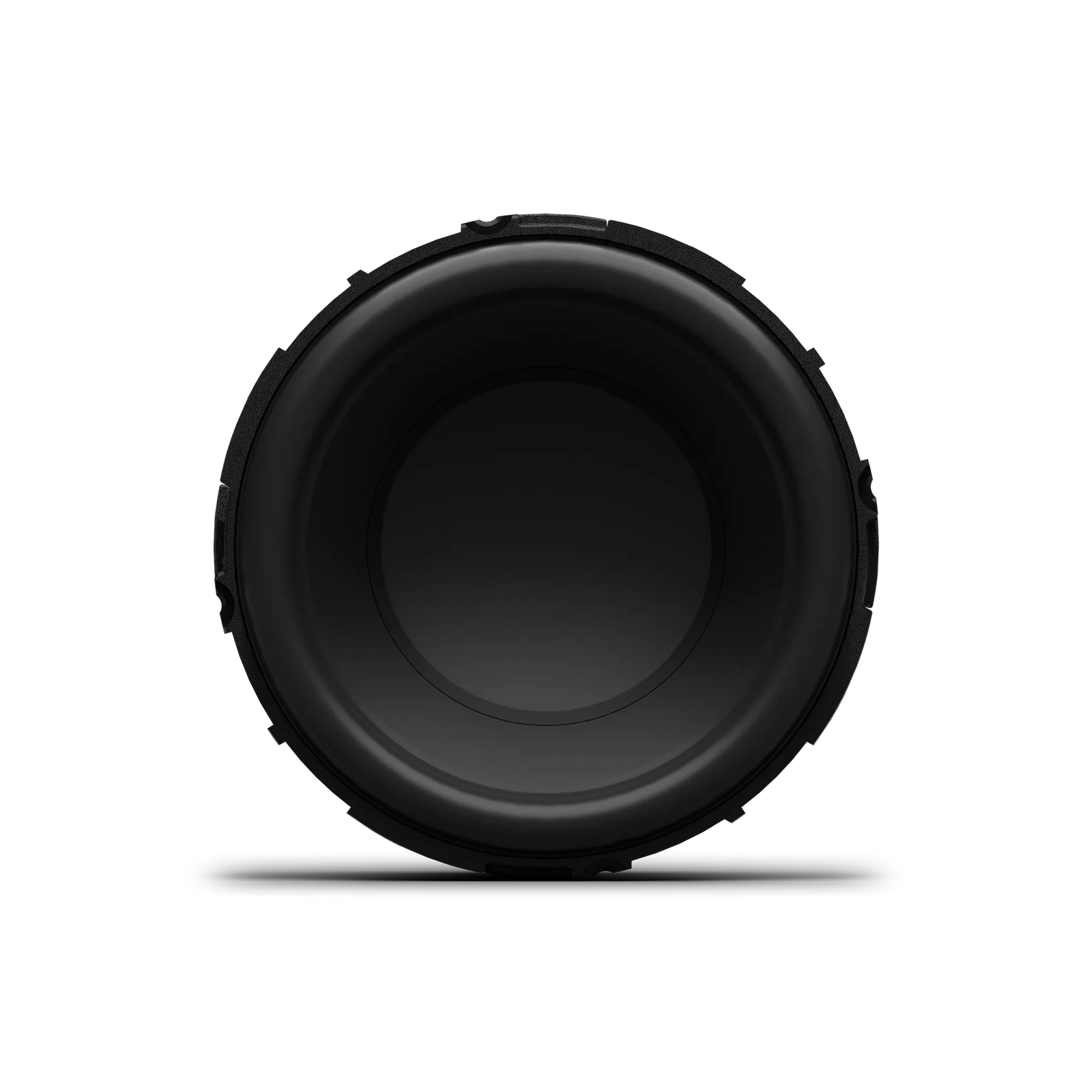

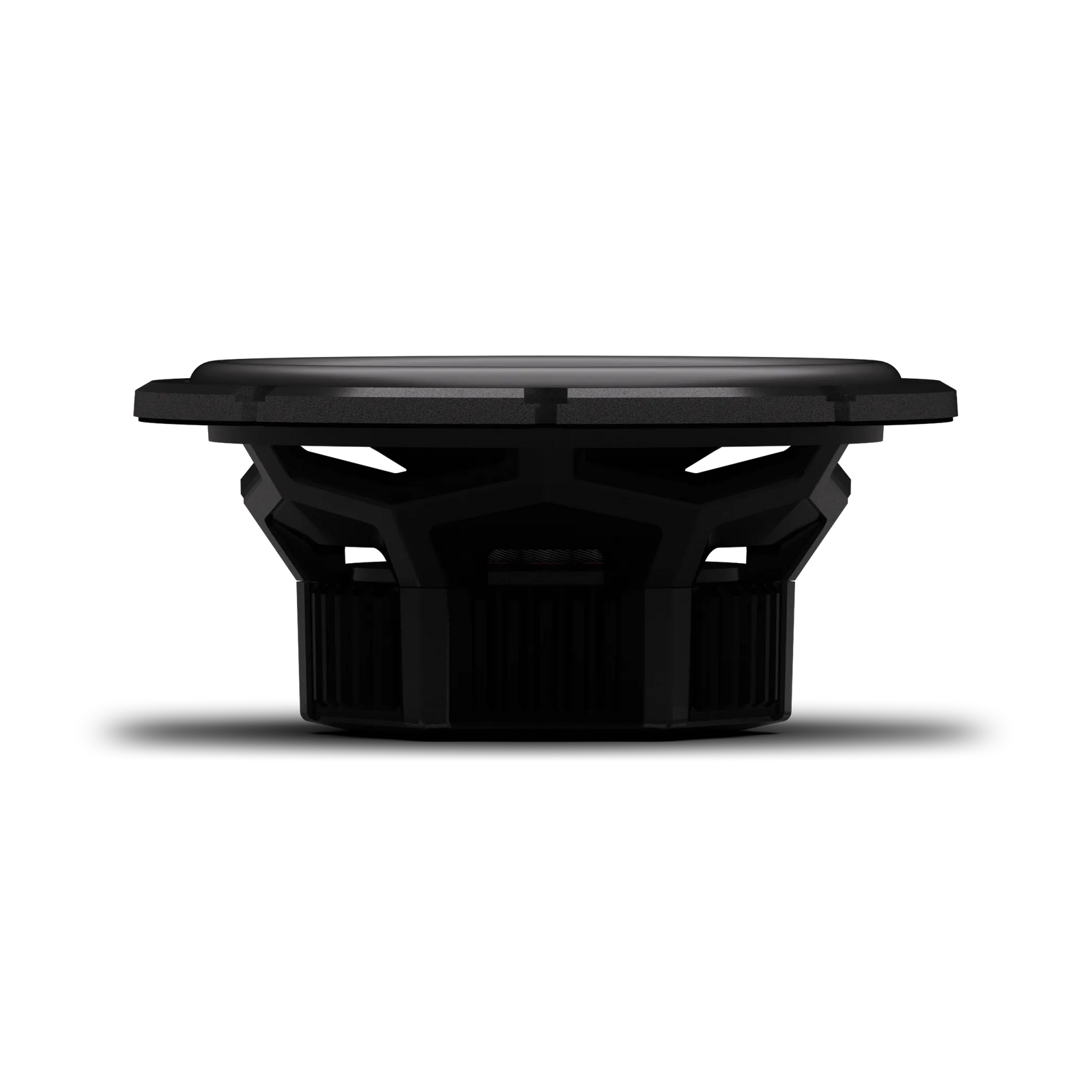

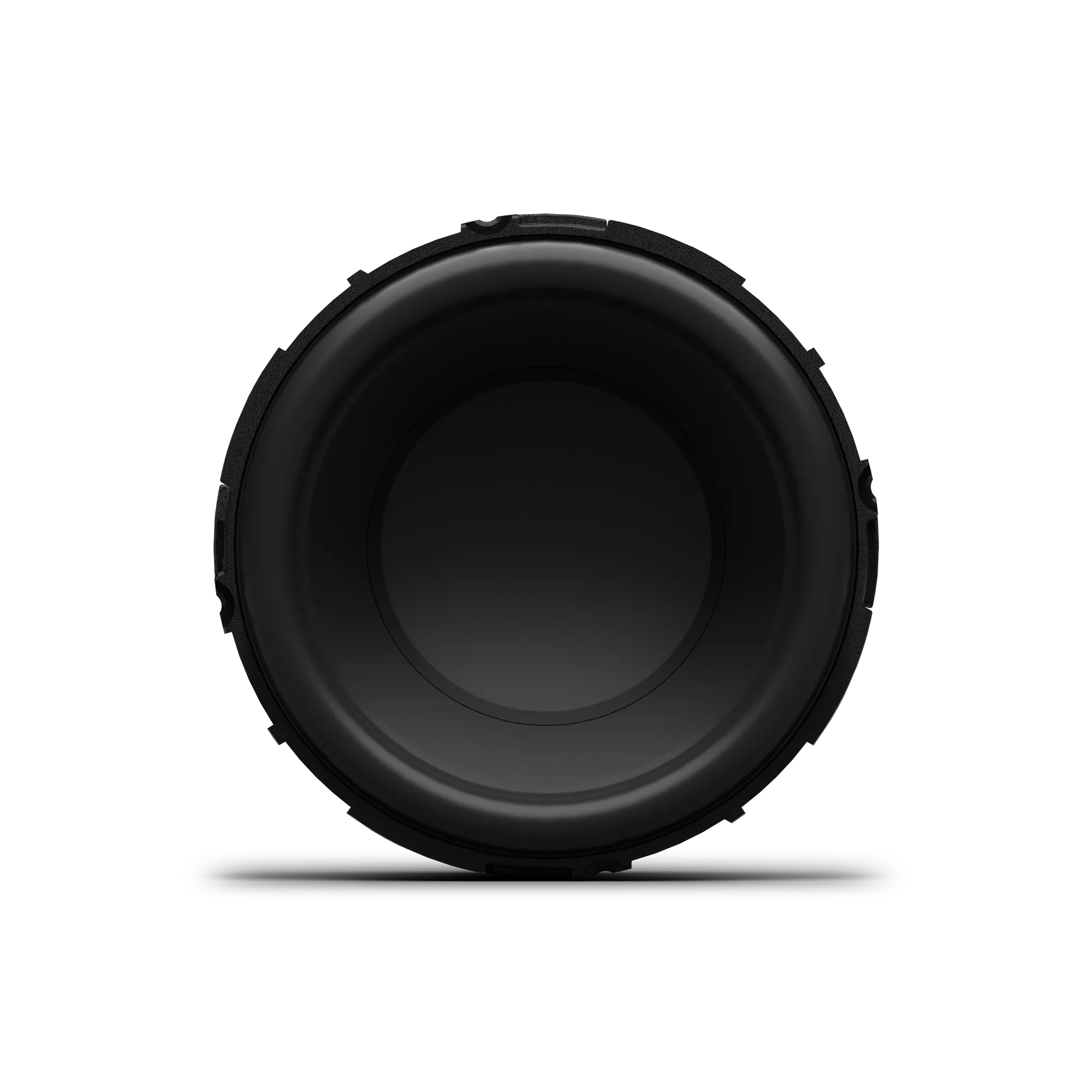

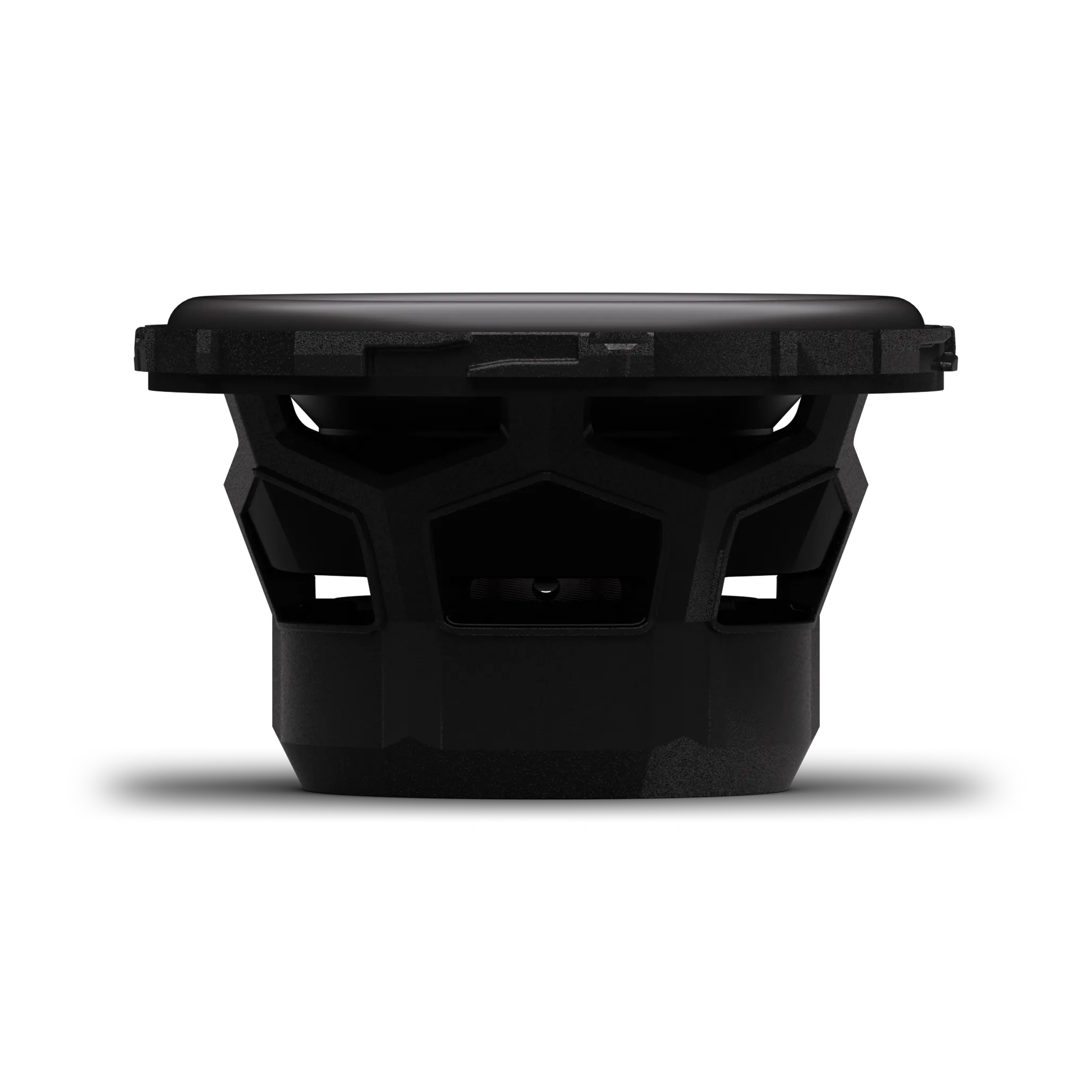

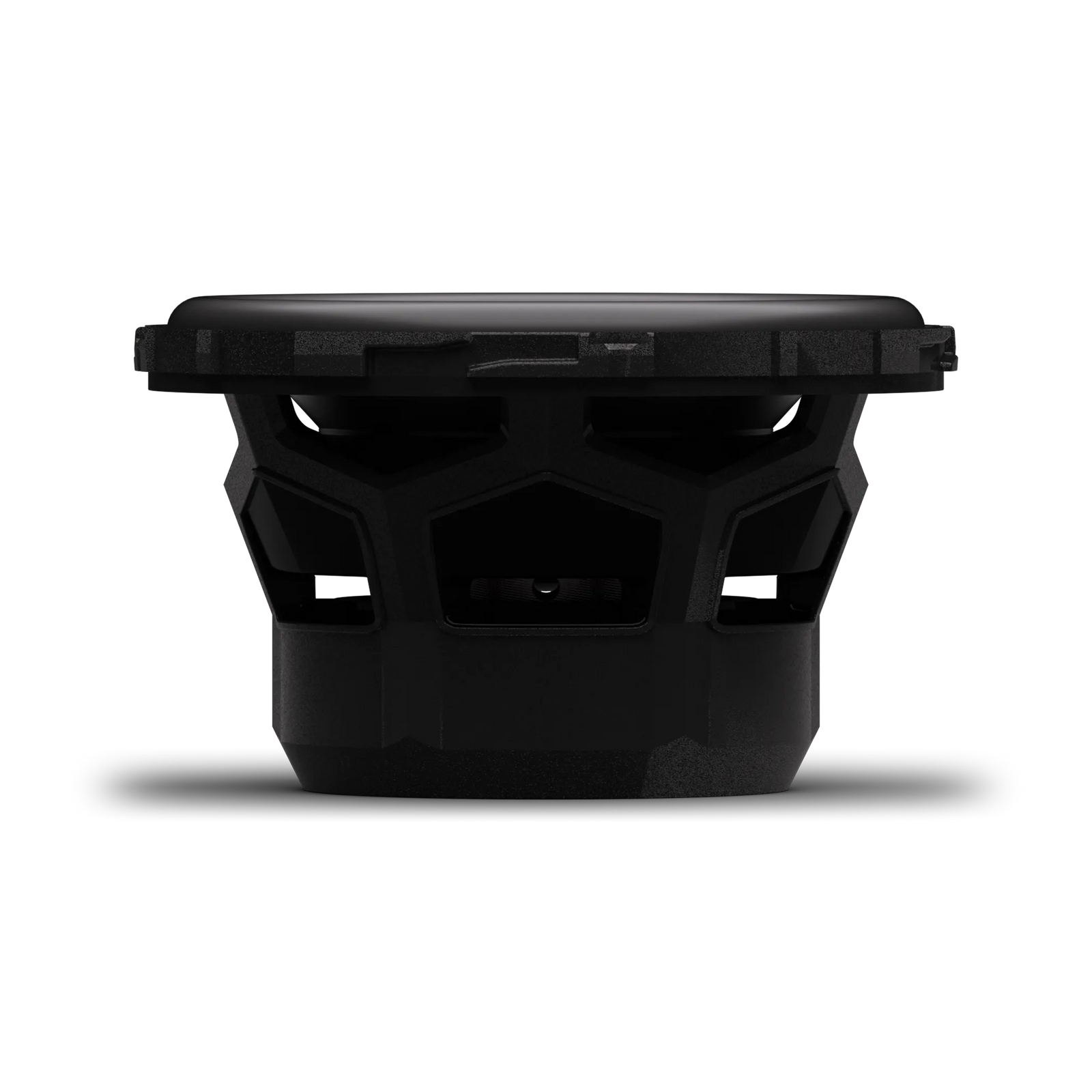

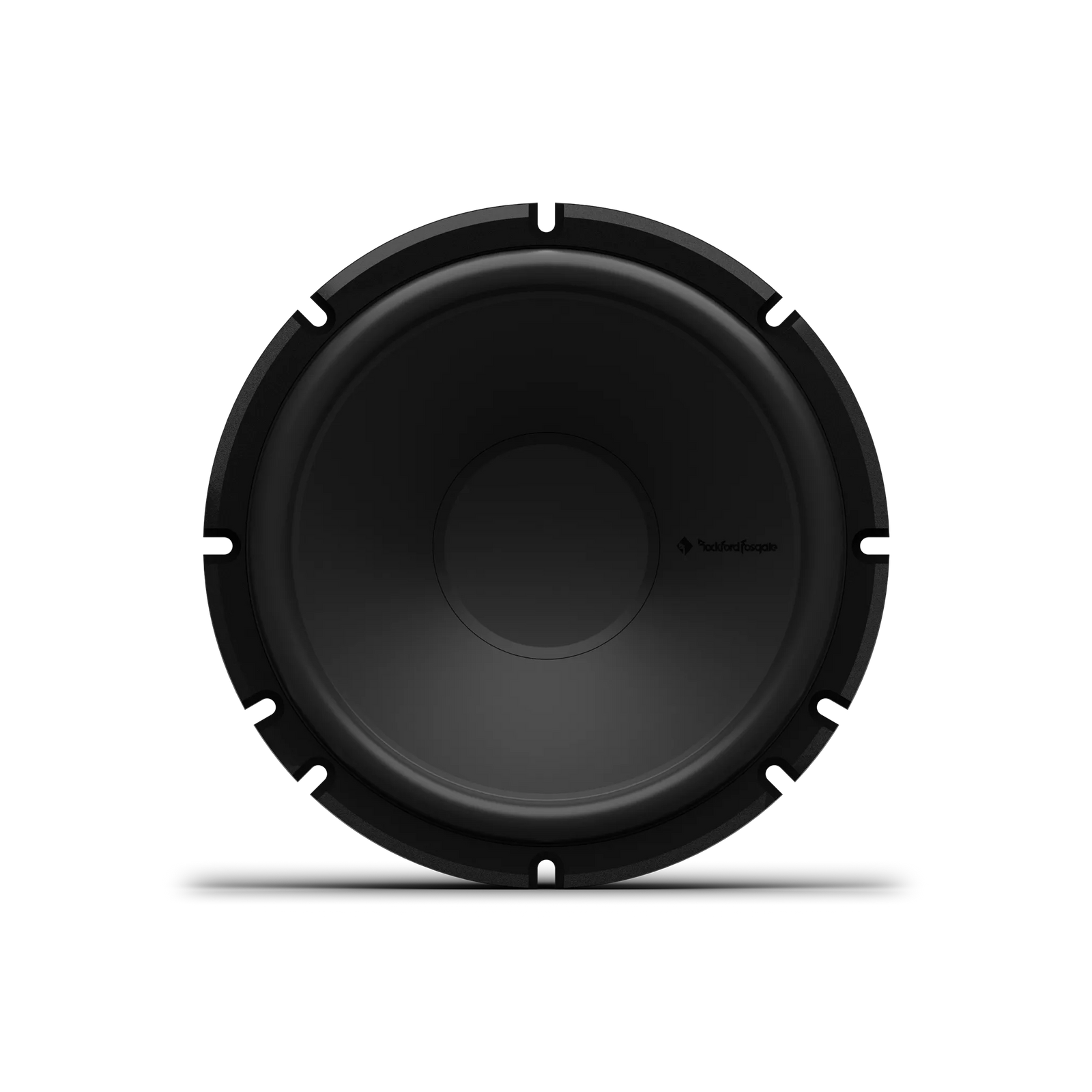

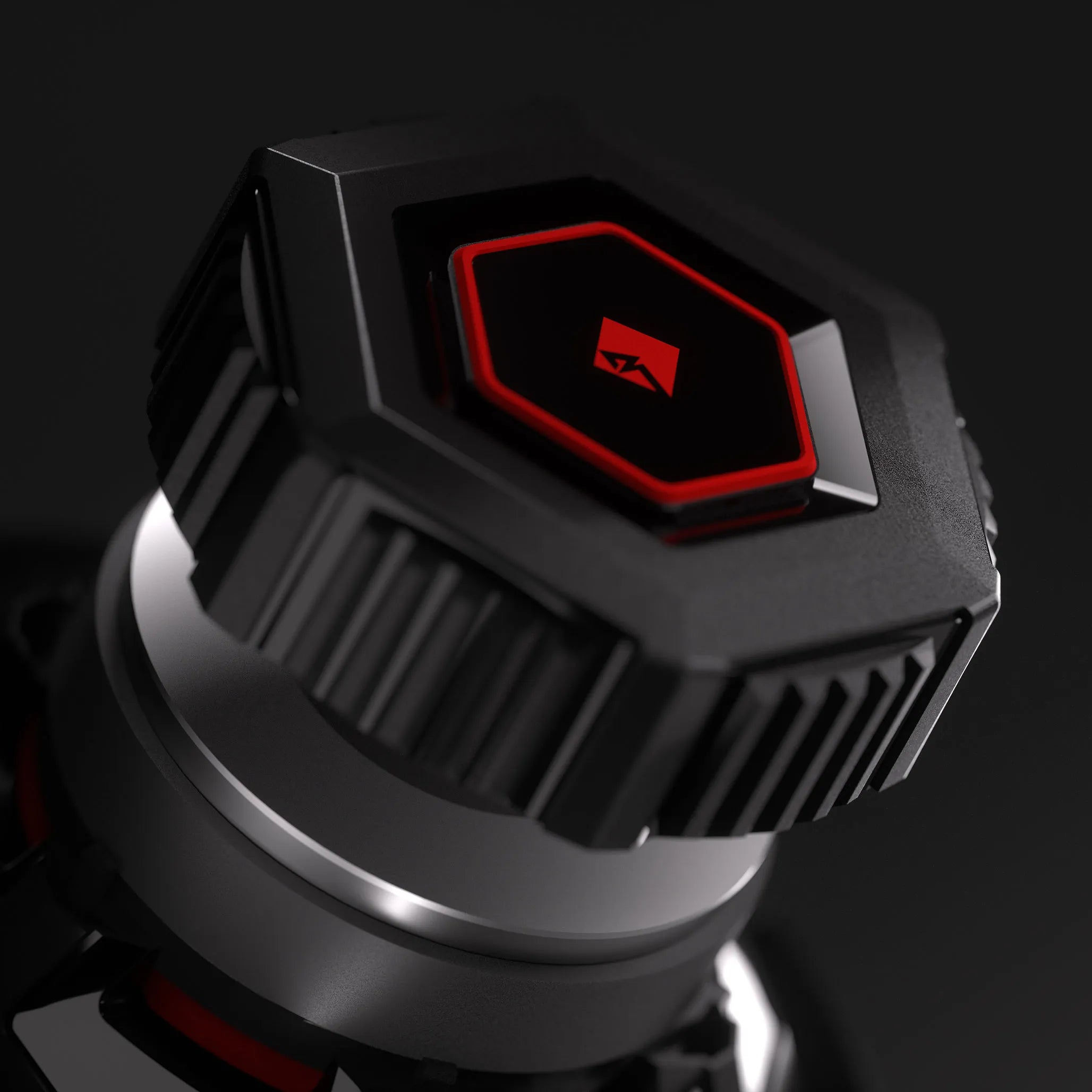

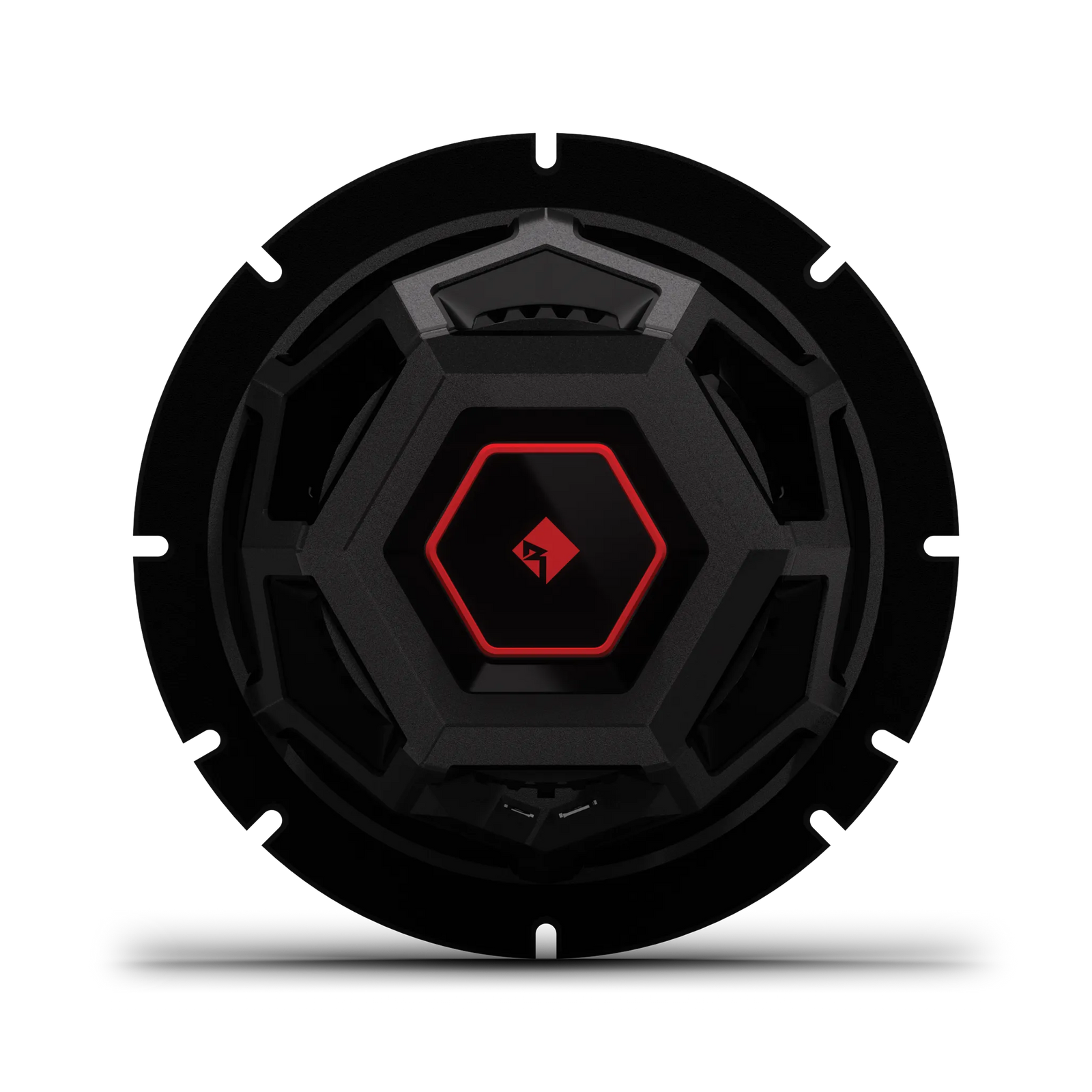

6.5" VAST 2.0 Woofer with Auto Fit Architecture: The 6.5" woofer uses VAST 2.0 for 25% increased effective cone area and Auto Fit Architecture with factory-location mounting flanges, 5.42" cutout, and removable motor cover (63.5mm depth with cover, 57.3mm without) for drop-in integration into most factory 6.5" speaker locations.

Separate Passive Crossover Networks for All Three Drivers: Six passive crossover networks (2 x tweeter HP at 9kHz 12dB/Oct with switchable 0dB/-3dB attenuation, 2 x midrange BP at 600Hz-6kHz 6dB/Oct, 2 x woofer LP at 1.2kHz 6dB/Oct) precisely allocate the correct frequency range to each driver independently.

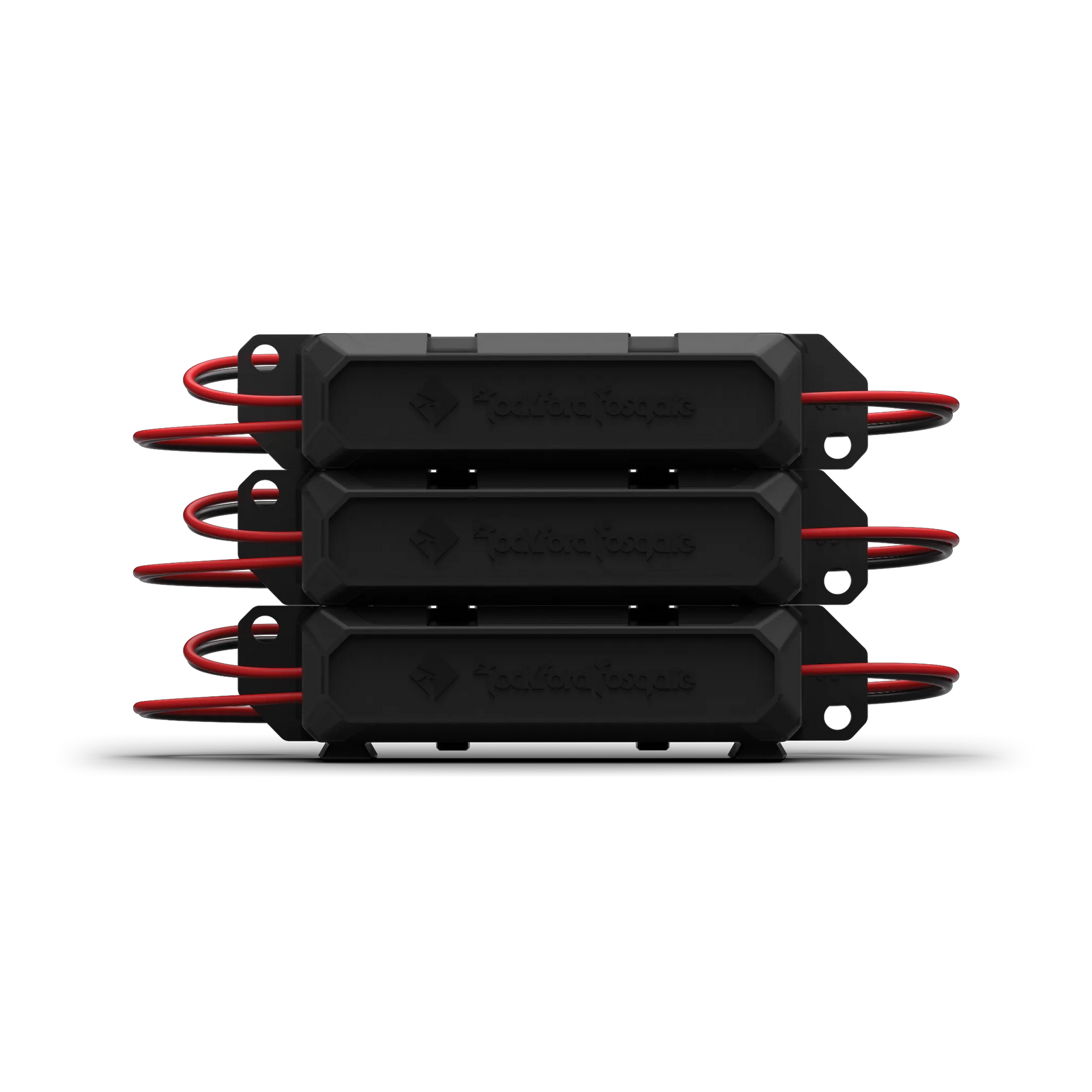

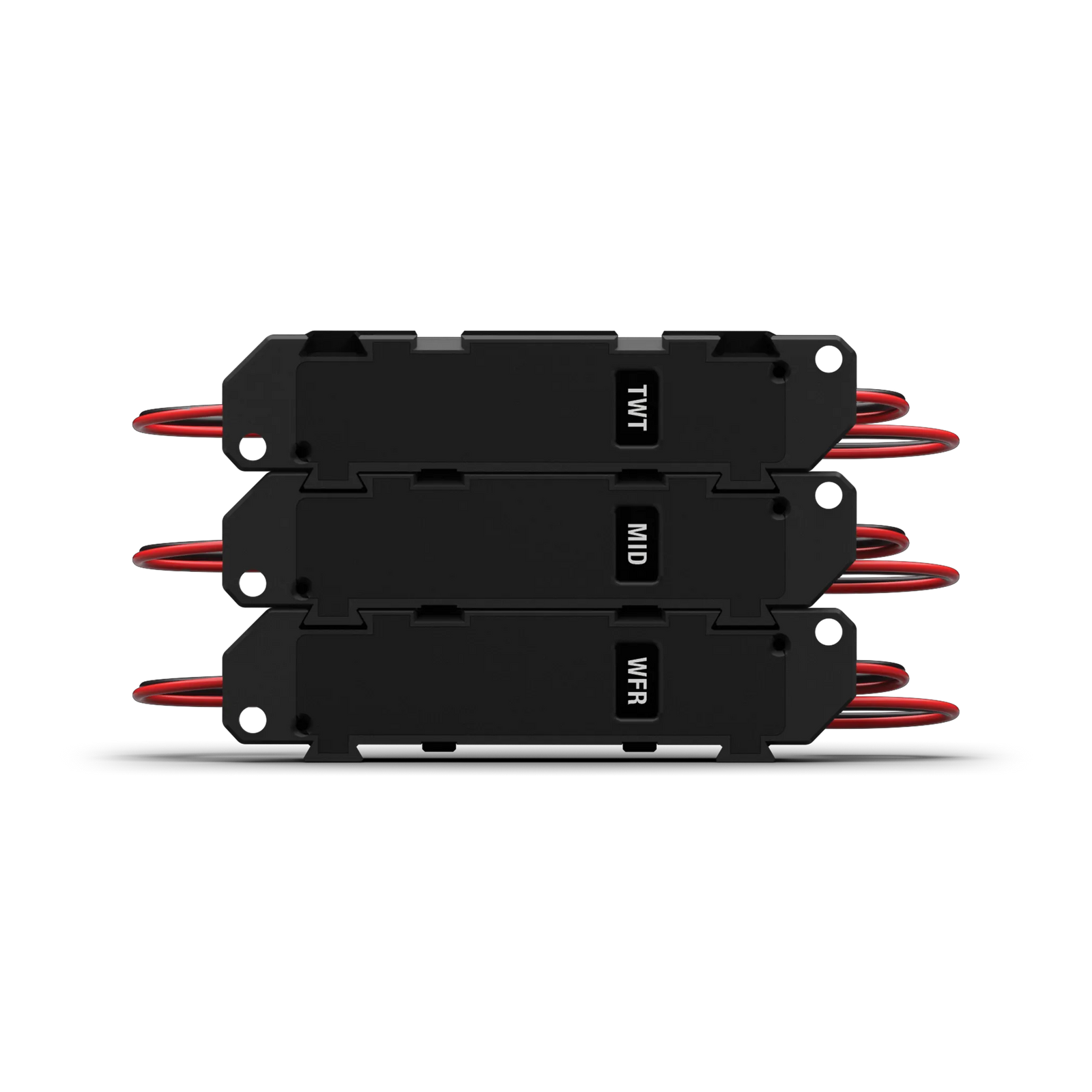

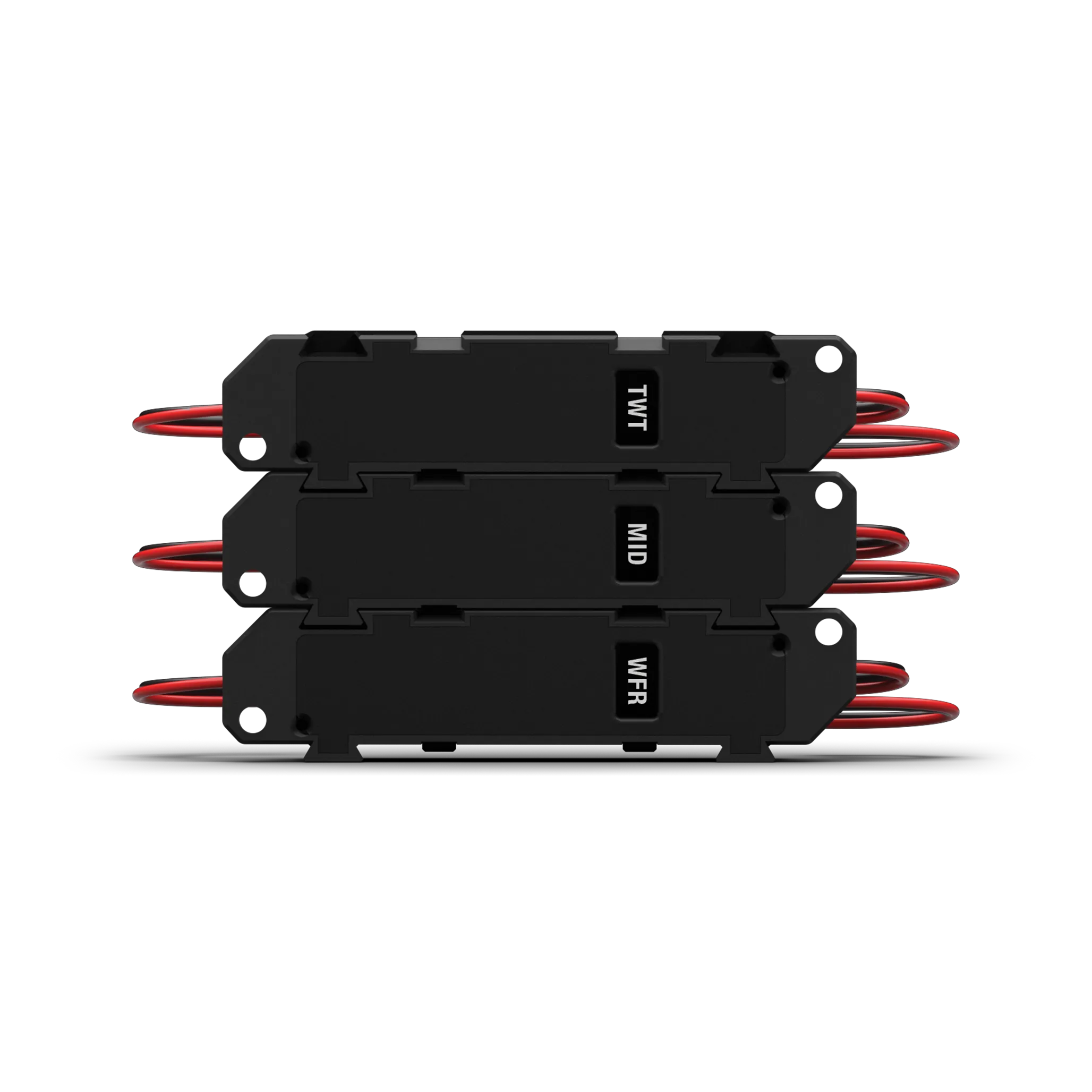

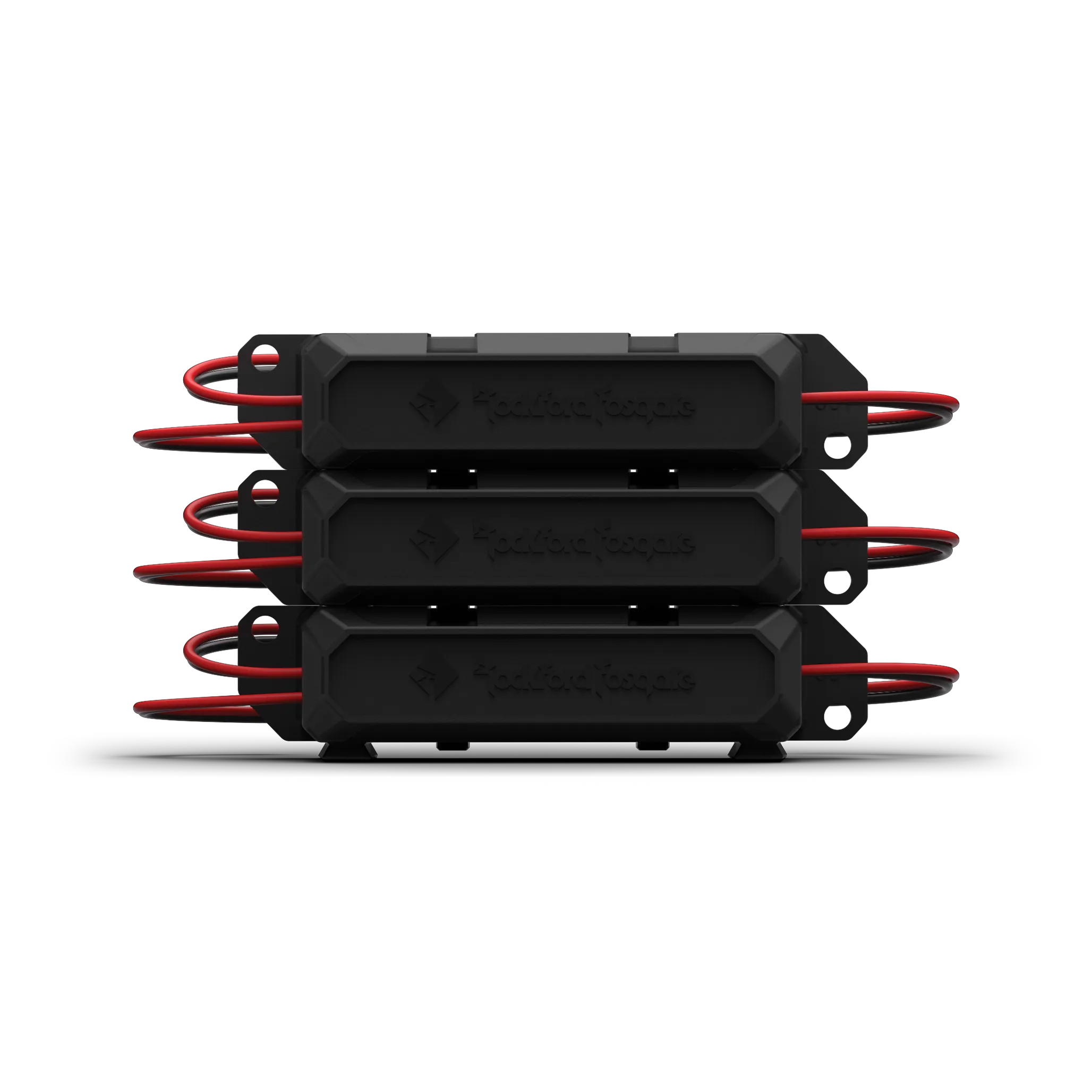

MC3 Multi Configuration Crossover Chassis: All six crossover networks use the MC3 chassis for flexible independent positioning throughout the vehicle or snap-together unified structure at a single location.

87dB System Sensitivity - 49Hz-25kHz Frequency Response: The 3-way system delivers 87dB sensitivity at 1W/1M (90dB at 2.83V/1M) and a full 49Hz-25kHz frequency response from the combined three-driver system.

Durable Woofer Material Stack: 15% glass-fibre reinforced PA66 composite basket, Santoprene half-roll surround, Nomex spider, 20-40% mica-reinforced polypropylene curvilinear cone, Y35 ferrite motor (5mm larger than previous generation), vented Kapton voice coil former.

CTA-2031 Compliant and Klippel Verified: Power handling conforms to CTA-2031 industry standards. Klippel verified.

2-Year Warranty: Backed by Rockford Fosgate's 2-year manufacturer warranty.

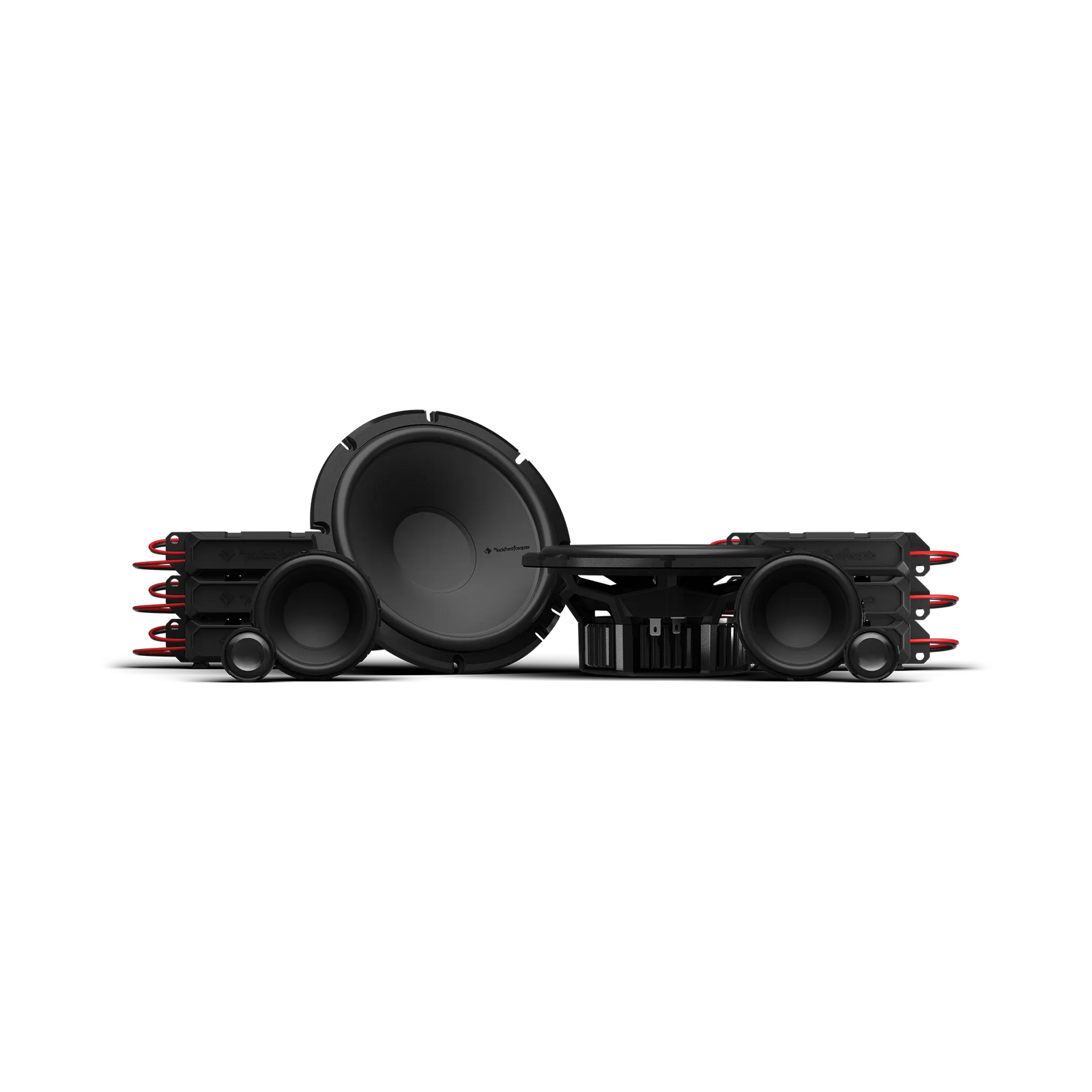

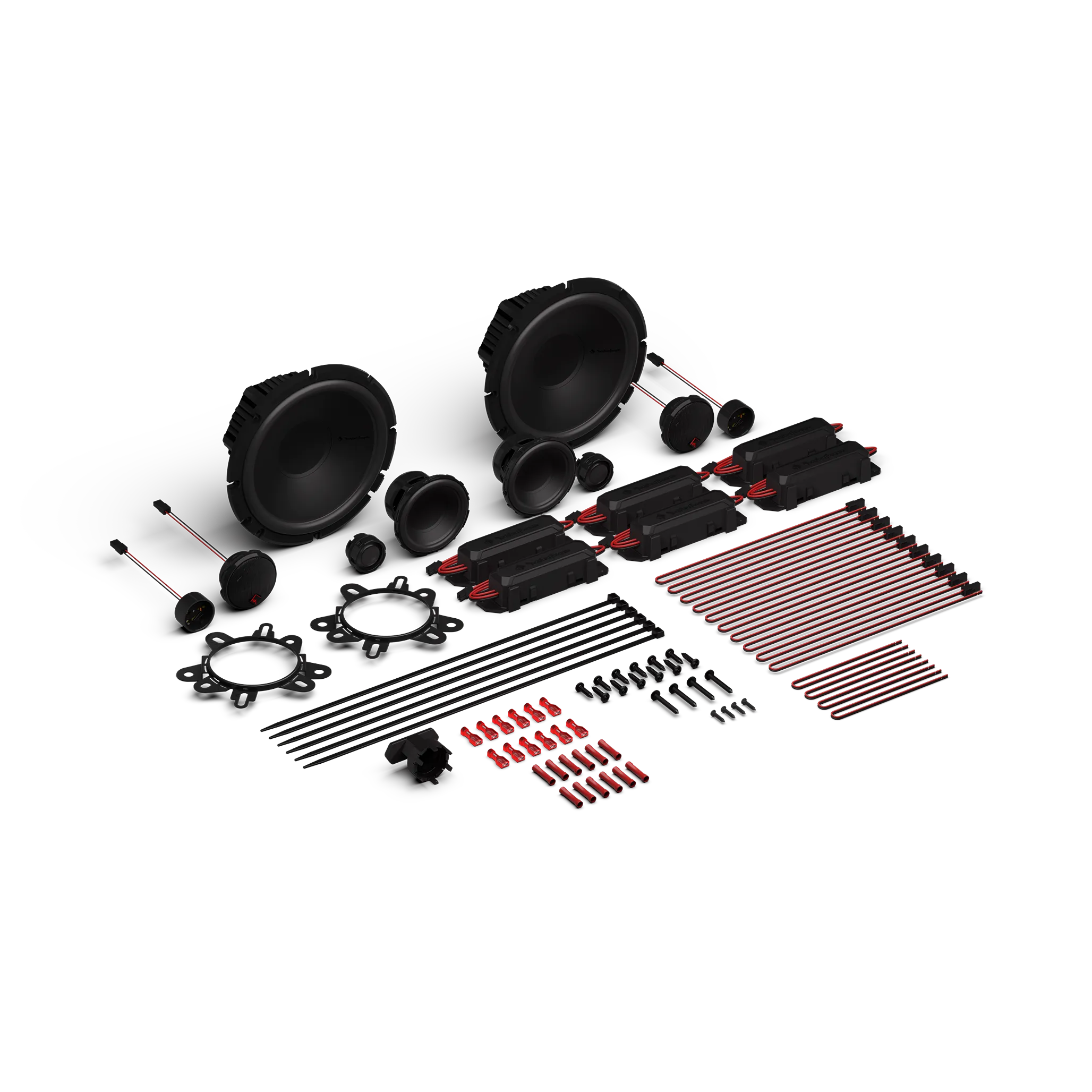

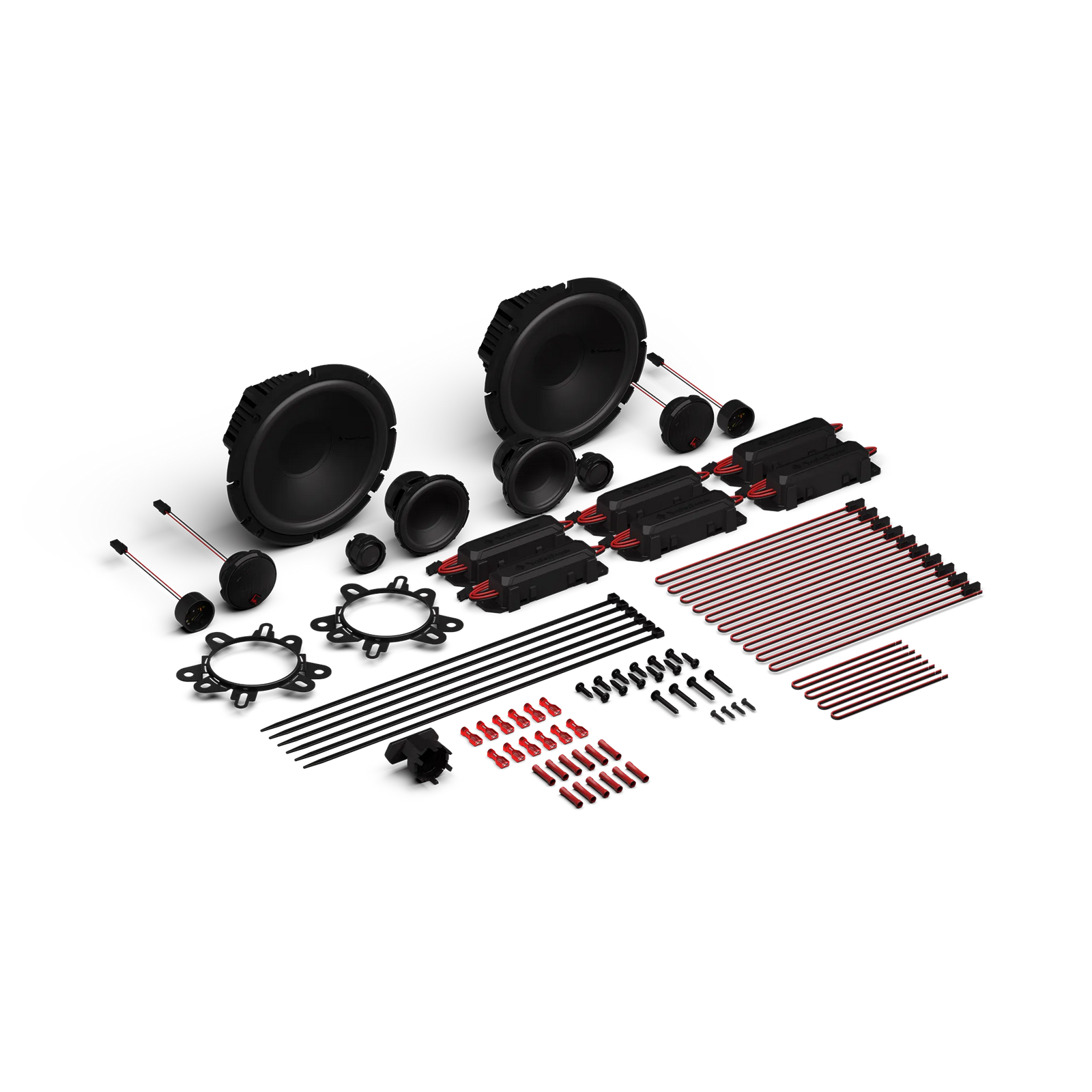

What's in the Box

• 2 x 3/4" 4Ω Tweeters
• 2 x 2.5" 4Ω Midrange Speakers (P3V2-25)
• 2 x 6.5" 4Ω Woofers
• 2 x FLWR Twist-Lock Adaptors (Multi)
• 2 x Passive Crossover Networks (Tweeter)
• 2 x Passive Crossover Networks (Midrange)
• 2 x Passive Crossover Networks (Woofer)
• 2 x Flush-Mount Tweeter Cups
• 2 x Surface-Mount Tweeter Cups
• 1 x Tweeter Removal Tool
• 1 x 2.5" Speaker Cut-Out Template
• 1 x 6.5" Speaker Cut-Out Template
• 10 x Crossover Wiring Extensions (18", 457mm)
• 4 x 18 AWG Red/Black Speaker Wire (205mm)
• 4 x Self-Tapping Phillips #4x16mm (Tweeter)
• 4 x Self-Tapping Phillips #8x32mm (Midrange)
• 8 x Self-Tapping Phillips #8x32mm (Woofer)
• 12 x Self-Tapping Phillips #8x20mm (Crossover)
• 6 x 18 AWG Female Crimp Spade Connectors (0.187")
• 6 x 18 AWG Female Crimp Spade Connectors (0.250")
• 12 x 18 AWG Crimp Butt Connectors
• 6 x Zip Ties (4.8mm x 350mm)

Note: Grilles sold separately.

Technical Specs

Compatible With

The P3V2-65 woofer is compatible with most modern vehicle factory 6.5" speaker locations with a 5.42" (137.6mm) cutout diameter. The P3V2-25 midrange fits factory 2.5" midrange and dash positions via FLWR twist-lock adaptors with a 2.54" cutout. The tweeter fits standard 1.5" hole-saw flush-mount positions or surface mounts without cutting. Confirm all three driver cutout dimensions and mounting depths against your specific vehicle before purchase.

Frequently Asked Questions

What is the difference between the P3V2-65 and the P2V2-65?

The P3V2-65 is a complete 3-way component system including a 6.5" woofer, dedicated 2.5" midrange driver, and 3/4" tweeter with separate passive crossover networks for each driver. The P2V2-65 is a 2-way convertible speaker with only a woofer and tweeter, configurable as coaxial or component. The P3V2-65 delivers more precise frequency separation and midrange detail through the dedicated P3V2-25 midrange driver covering the critical 600Hz-6kHz vocal and instrumental band.

What are the FLWR twist-lock adaptors used for?

The FLWR (Factory Location Woofer Ring) twist-lock adaptors allow the P3V2-25 2.5" midrange driver to be installed in factory 2.5" midrange, dash, or center channel speaker positions with either front-loading (40.6mm) or rear-loading (37.3mm) depth options, providing direct drop-in fitment without custom fabrication.

Does the P3V2-65 include all crossovers for the 3-way system?

Yes. Six separate passive crossover networks are included: 2 for the tweeter (9kHz HP 12dB/Oct), 2 for the midrange (600Hz-6kHz BP 6dB/Oct), and 2 for the woofer (1.2kHz LP 6dB/Oct), providing complete passive crossover separation for all three driver pairs.

Can the P3V2-65 woofer be installed in the same location as a P2V2-65?

Yes. The P3V2-65 woofer shares the same 5.42" (137.6mm) cutout diameter and 63.5mm mounting depth as the P2V2-65, enabling drop-in installation into the same factory 6.5" speaker locations.

Are grilles included with the P3V2-65?

No. Grilles are sold separately.
