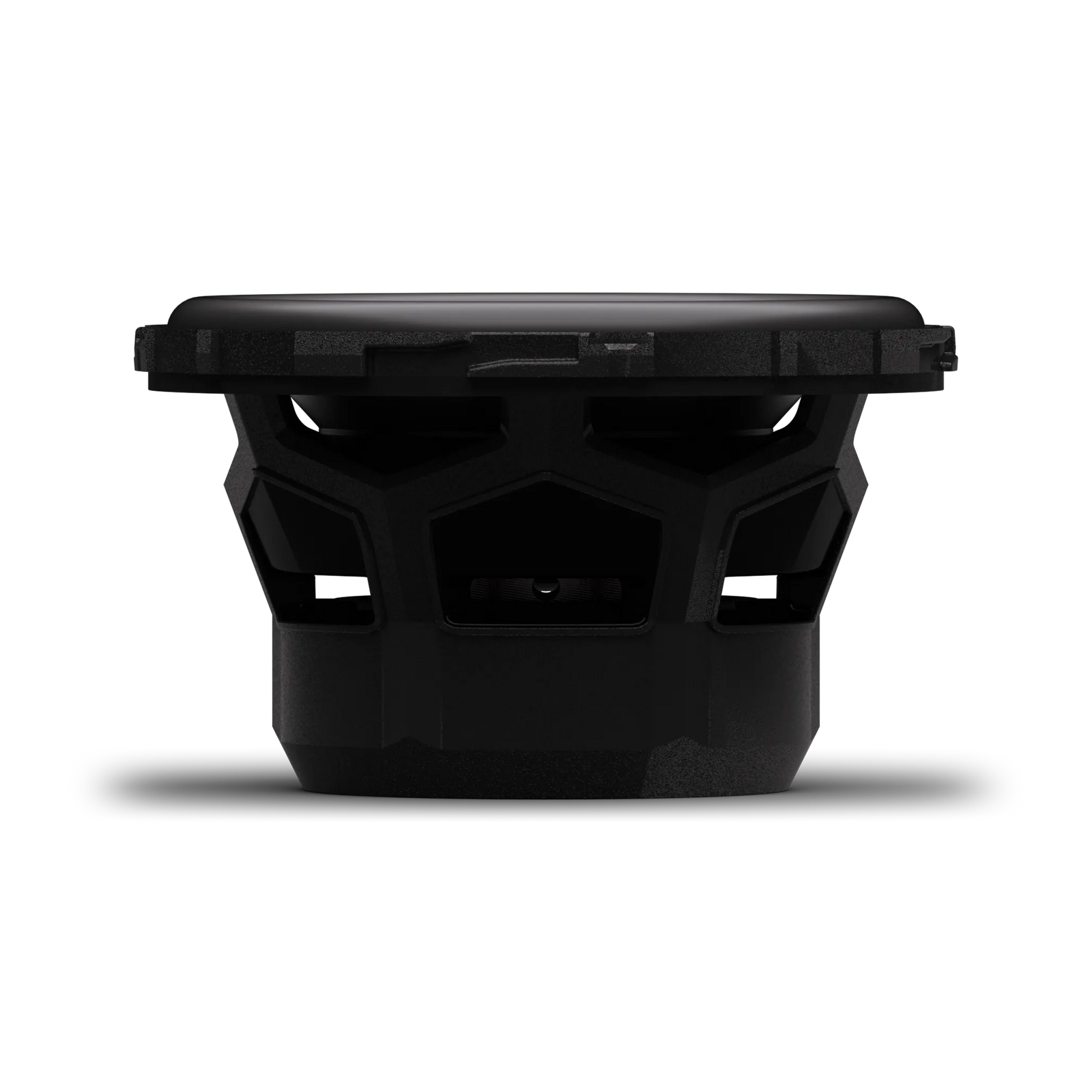

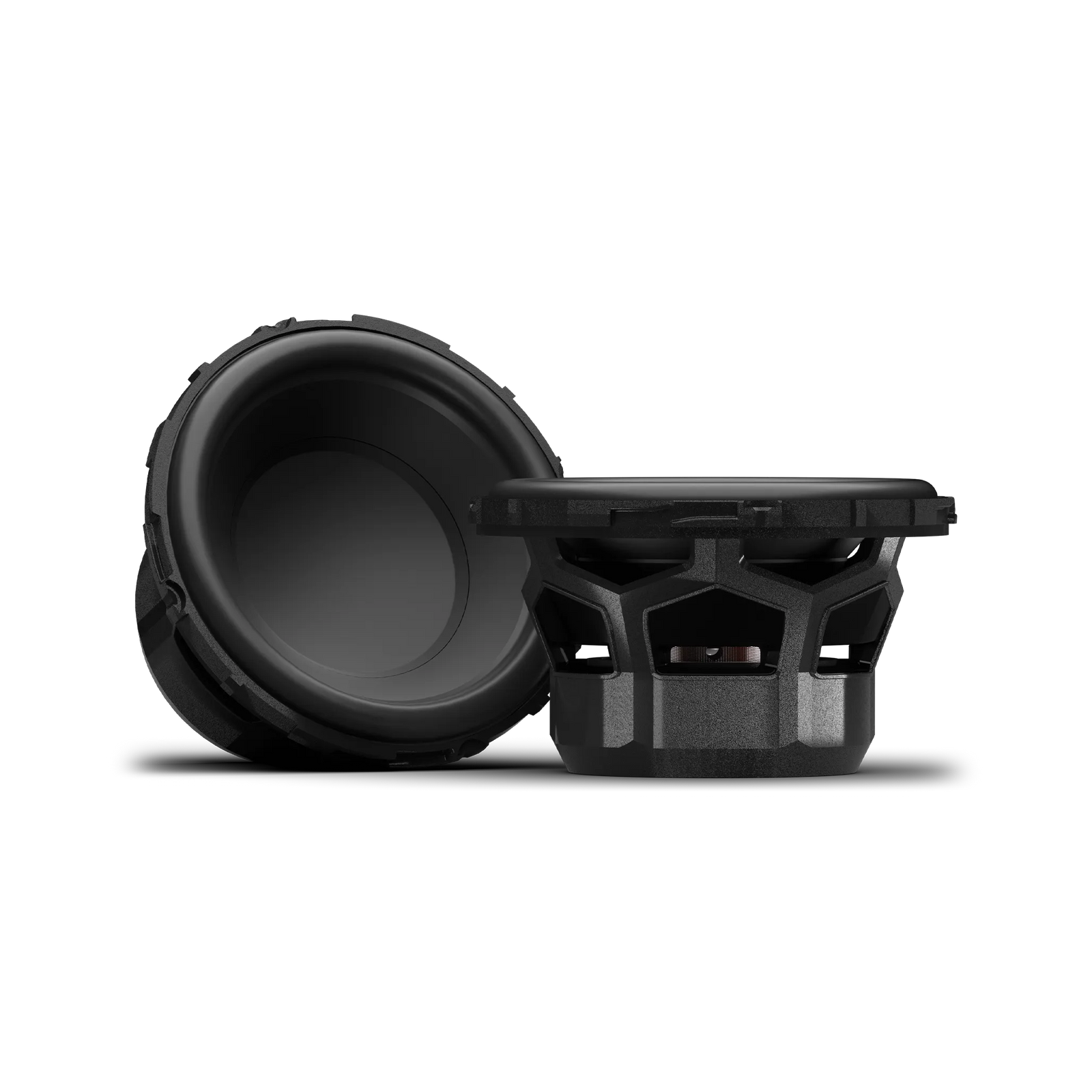

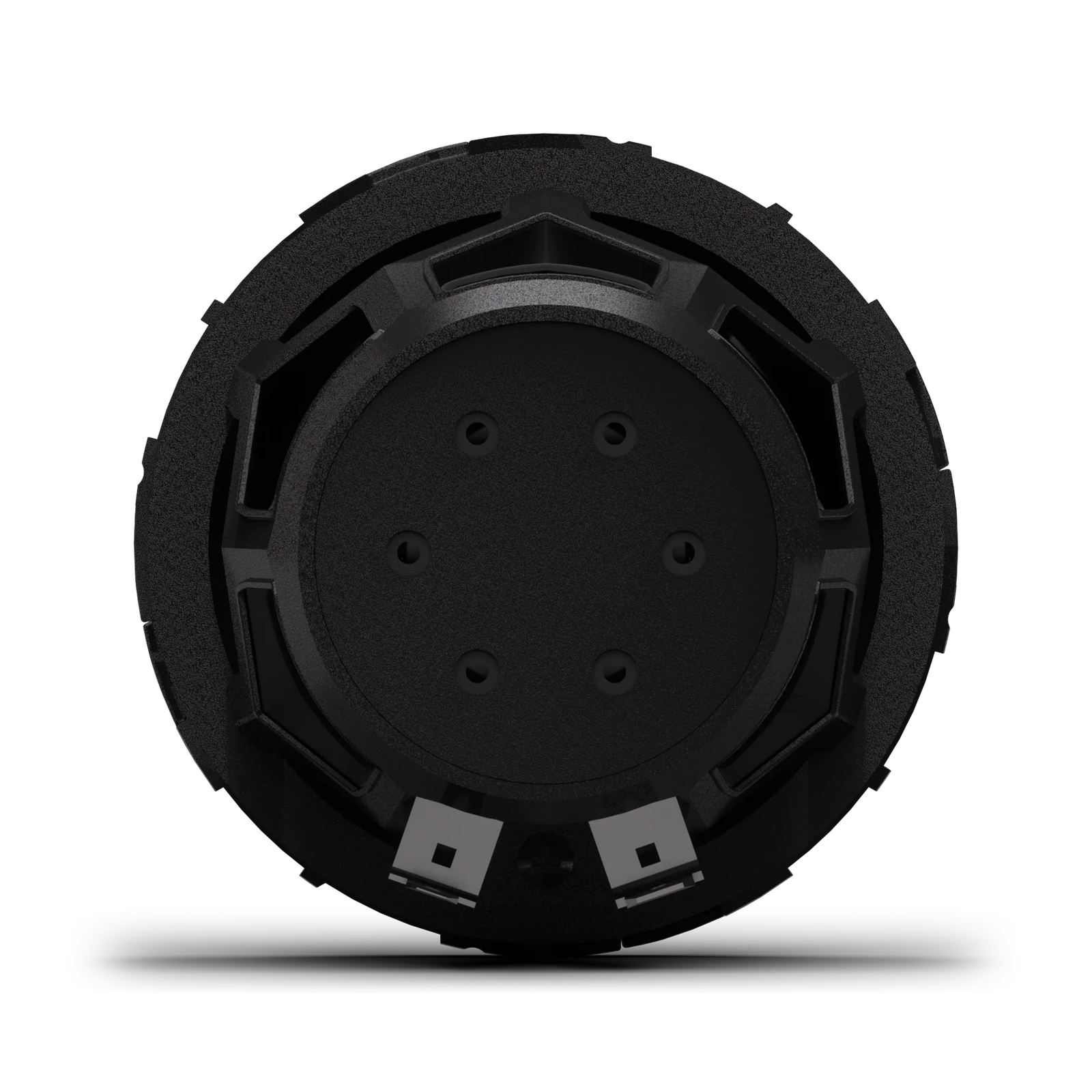

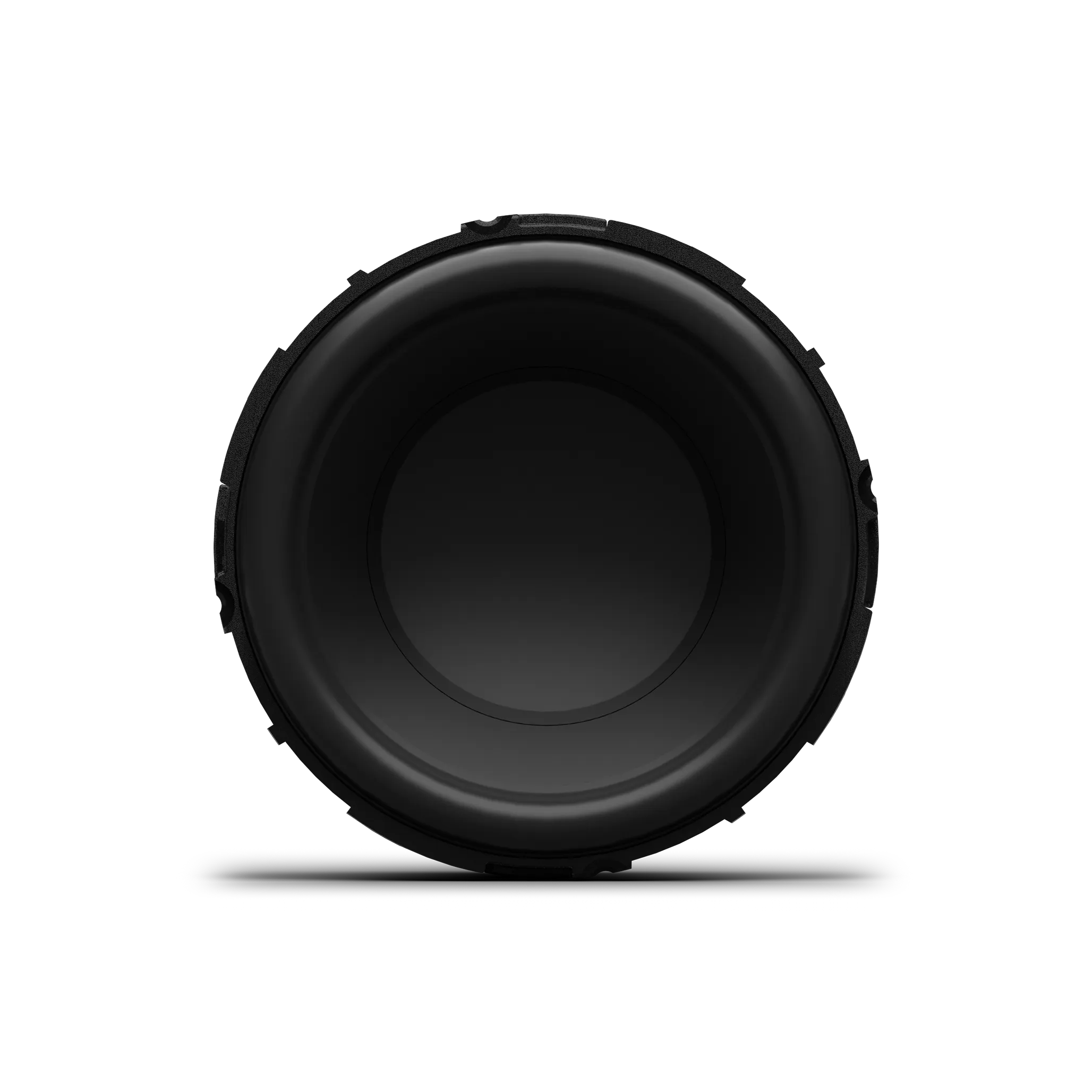

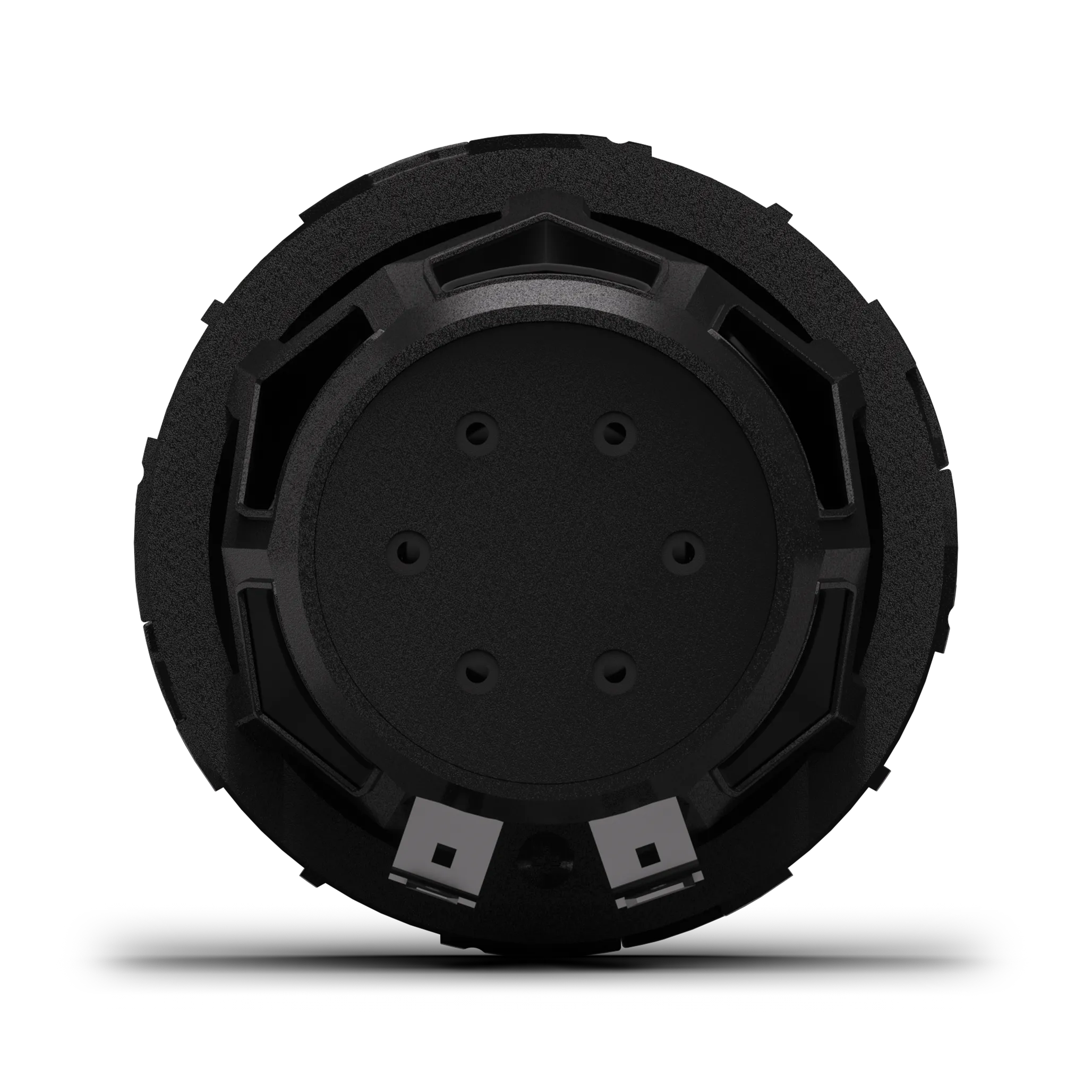

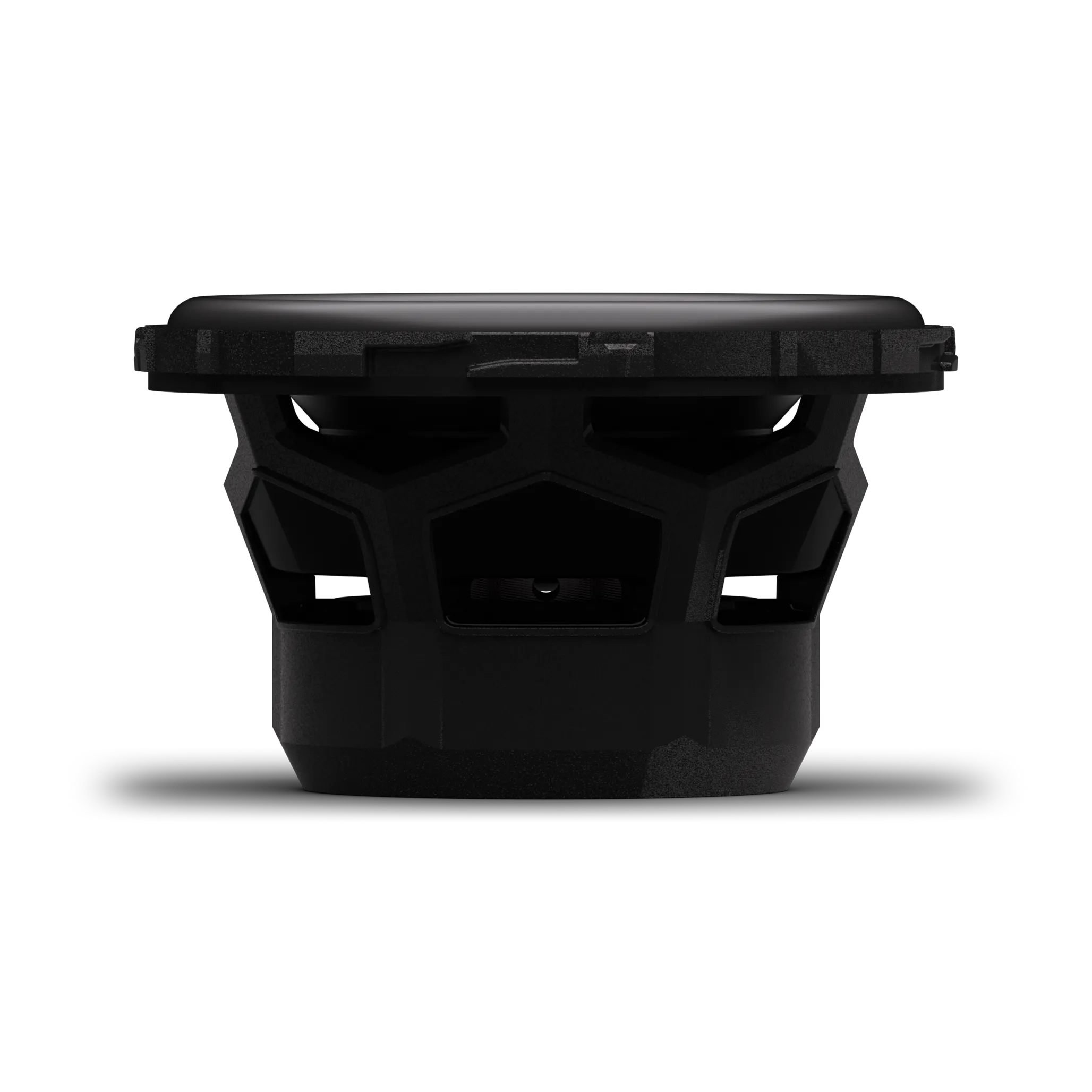

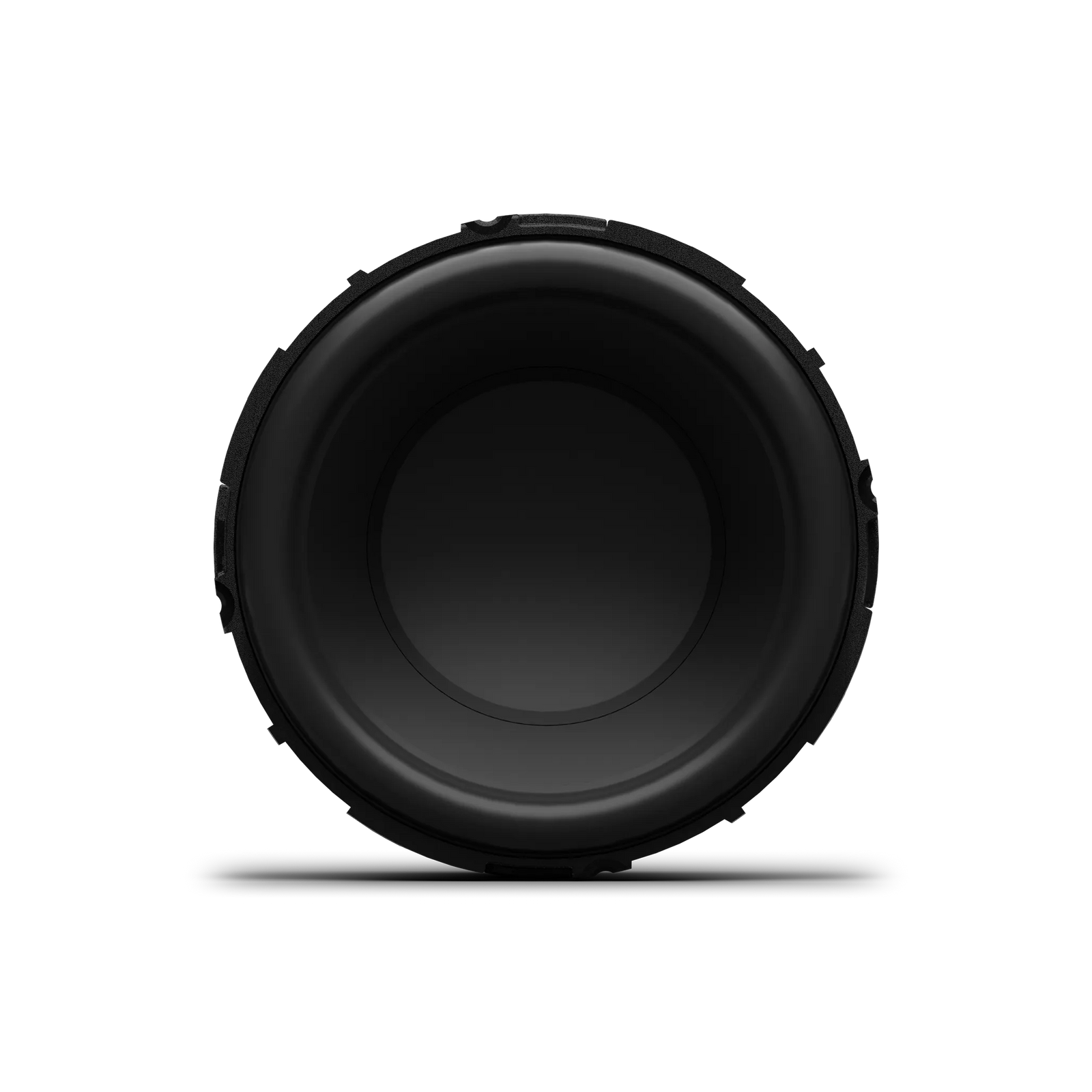

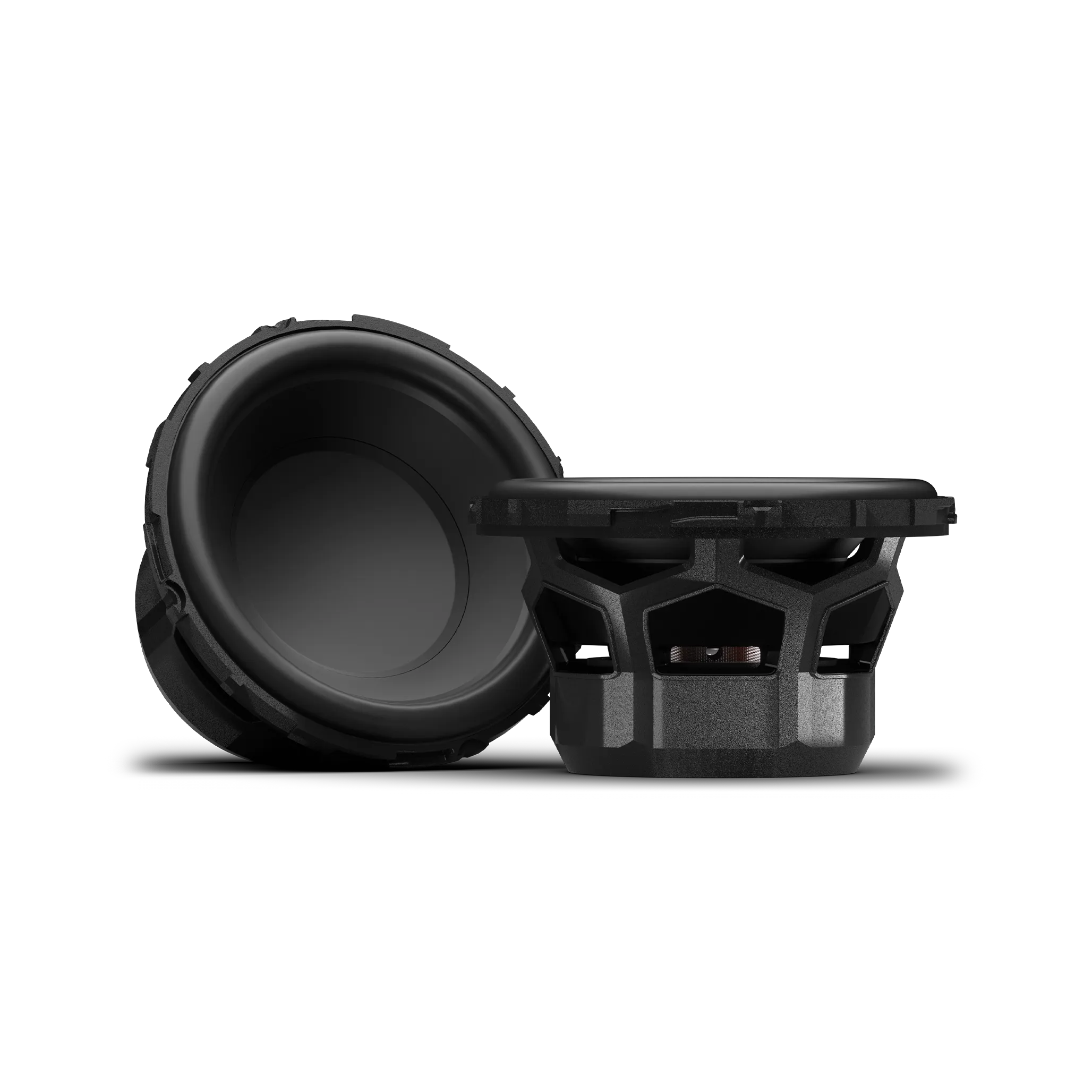

Rockford Fosgate P3V2-25 Punch P3 2.5" Component Midrange Speaker 75W RMS
A pair of 2.5" component midrange speakers from Rockford Fosgate, the P3V2-25 delivers 75W RMS and 150W peak per driver with an external 6dB/octave bandpass crossover (600Hz-6kHz), bass blocker crossover (1200Hz HP, 33µF), FLWR (Factory Location Woofer Ring) twist-lock adaptors, MC3 multi-configuration crossover chassis, VAST 2.0 cone technology, 135Hz-15kHz frequency response, and 2.54" cutout diameter. Designed for use in 3-way component systems or center channel applications as an upgrade to the P2V2 convertible speaker range. Sold in pairs.
Product Overview
The Rockford Fosgate P3V2-25 is the dedicated midrange driver for the Punch P3 3-way component system, designed for vehicles equipped with separate tweeter, midrange, and woofer speaker locations. The P3V2-25 fills the critical midrange frequency band between the low-frequency woofer and the high-frequency tweeter, reproducing the 135Hz-15kHz band where vocal clarity, instrument texture, and fine detail are most critical to the perceived quality of the audio system.
Two crossover options are included for different system configurations. The external bandpass (BP) crossover operates at 600Hz-6kHz at 6dB/octave for use in a full 3-way active crossover configuration where the midrange driver receives the correct band-pass filtered signal. The bass blocker crossover is a 33µF non-polarised capacitor providing a simple 1200Hz 6dB/octave highpass filter for applications where a full bandpass crossover is not used, protecting the midrange driver from excessive low-frequency excursion.
The FLWR (Factory Location Woofer Ring) twist-lock adaptors provide front-loading and rear-loading mounting options for integration into factory midrange or dash speaker positions. Front-loading depth is 40.6mm and rear-loading depth is 37.3mm. Cutout diameter is 2.54" (64.5mm). VAST 2.0 V-shape surround geometry and MC3 multi-configuration crossover chassis are shared with the P2V2 range. CTA-2031 compliant and Klippel verified. Grilles sold separately. 2-year warranty.
The P3V2-25 is the recommended midrange for upgrading any P2V2 convertible speaker installation to a full 3-way component system.
Features & Benefits
2.5" Component Midrange for 3-Way Systems: The P3V2-25 fills the midrange frequency band (135Hz-15kHz) in 3-way component systems, providing precise reproduction of vocal and instrumental detail that a 2-way speaker system cannot resolve as accurately.
Bandpass Crossover and Bass Blocker - Two Crossover Options: The included external bandpass crossover at 600Hz-6kHz 6dB/octave correctly filters the midrange signal for full 3-way component system integration. The included 33µF bass blocker capacitor provides a simplified 1200Hz highpass filter for installations where a full bandpass crossover is not used.
FLWR Twist-Lock Adaptors - Front and Rear Loading: The FLWR (Factory Location Woofer Ring) twist-lock adaptors provide both front-loading (40.6mm) and rear-loading (37.3mm) depth options for flexible installation into factory midrange, dash, and center channel speaker positions with a 2.54" (64.5mm) cutout diameter.
VAST 2.0 - 25% Increase in Effective Cone Area: V-shape surround attachment geometry increases the surround-to-frame bonding surface area for 25% more effective cone area, delivering higher output and more accurate midrange reproduction.
MC3 Multi Configuration Crossover Chassis: The MC3 chassis separates into independent units for flexible routing at different panel locations or snaps together as a unified structure for single-location installation.
Upgrades Any P2V2 Installation to 3-Way: The P3V2-25 is the recommended midrange driver for upgrading any existing P2V2 convertible speaker installation to a full 3-way component system, completing the system with dedicated midrange reproduction.
75W RMS Power Handling - CTA-2031 Compliant: 75W RMS and 150W peak power handling per driver, CTA-2031 compliant and Klippel verified.
82dB Sensitivity - 135Hz-15kHz Frequency Response: 82dB sensitivity at 1W/1M (85dB at 2.83V/1M) with a 135Hz-15kHz frequency response covering the critical midrange band.
2-Year Warranty: Backed by Rockford Fosgate's 2-year manufacturer warranty.

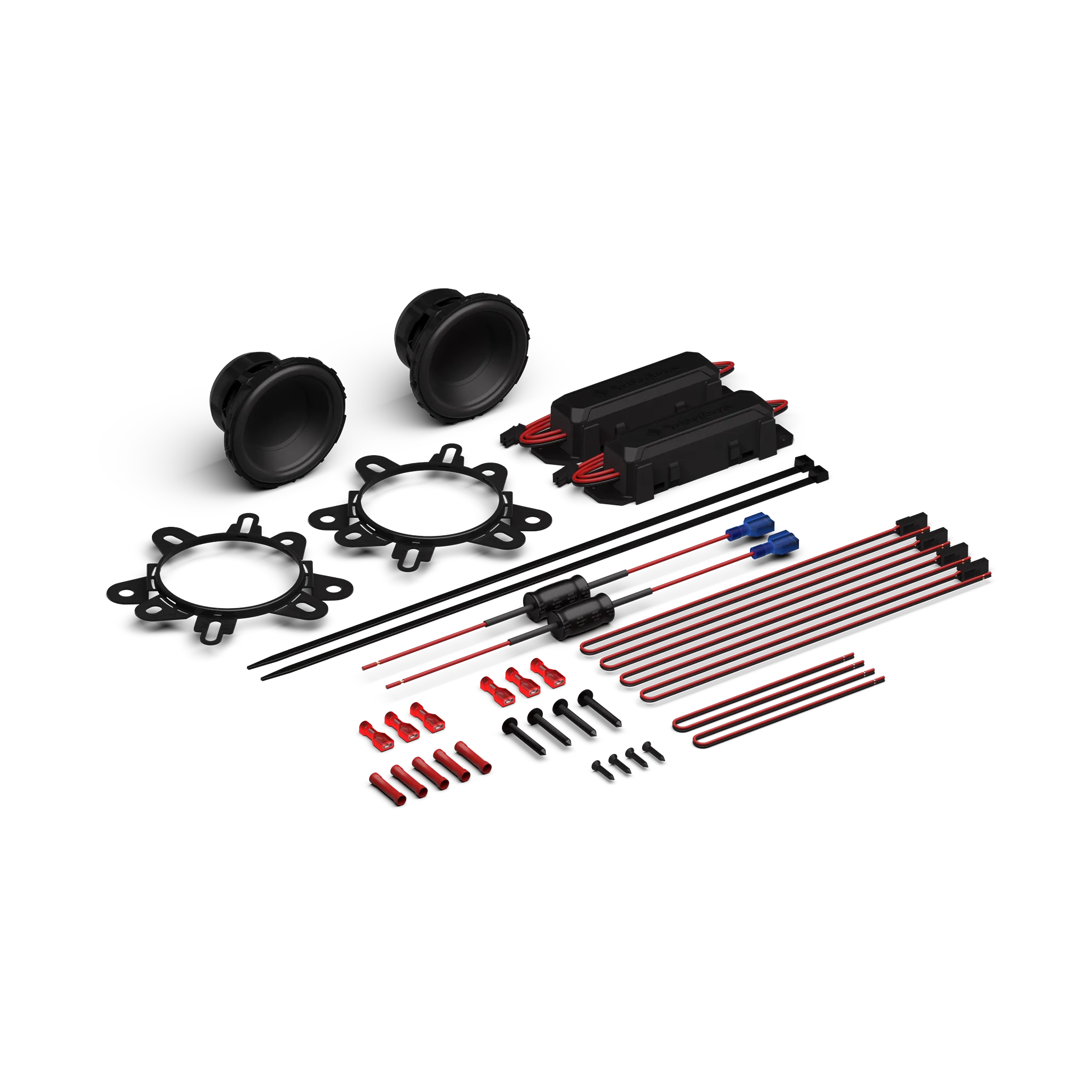

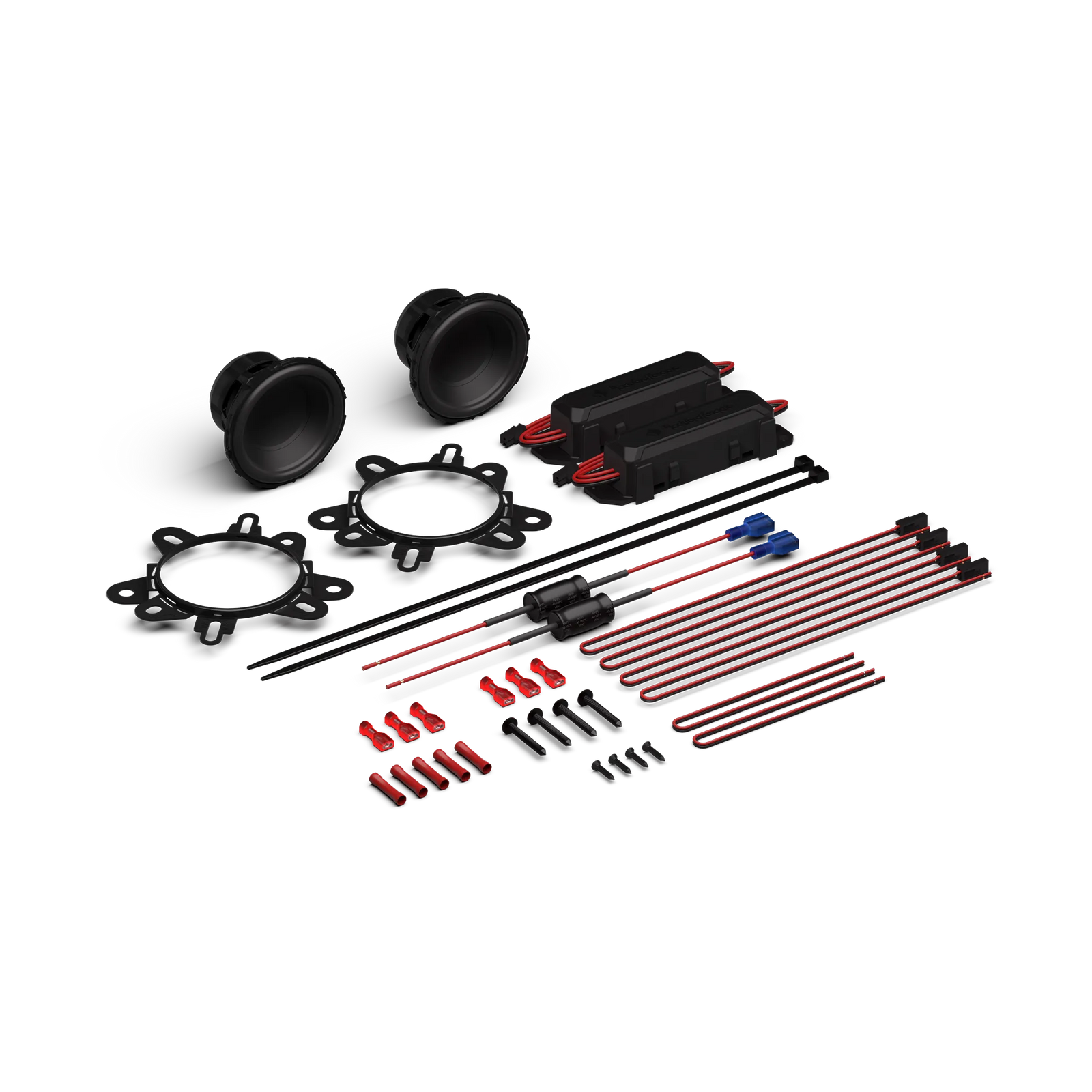

What's in the Box
- 2 x 2.5" 4Ω Midrange Speakers

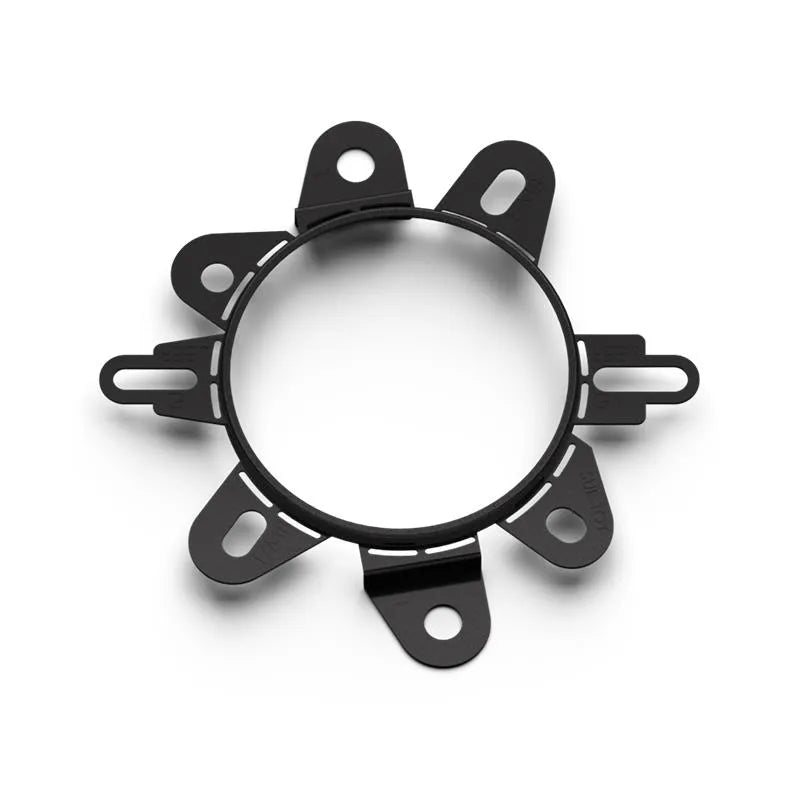

- 2 x FLWR Twist-Lock Adaptors (Multi)

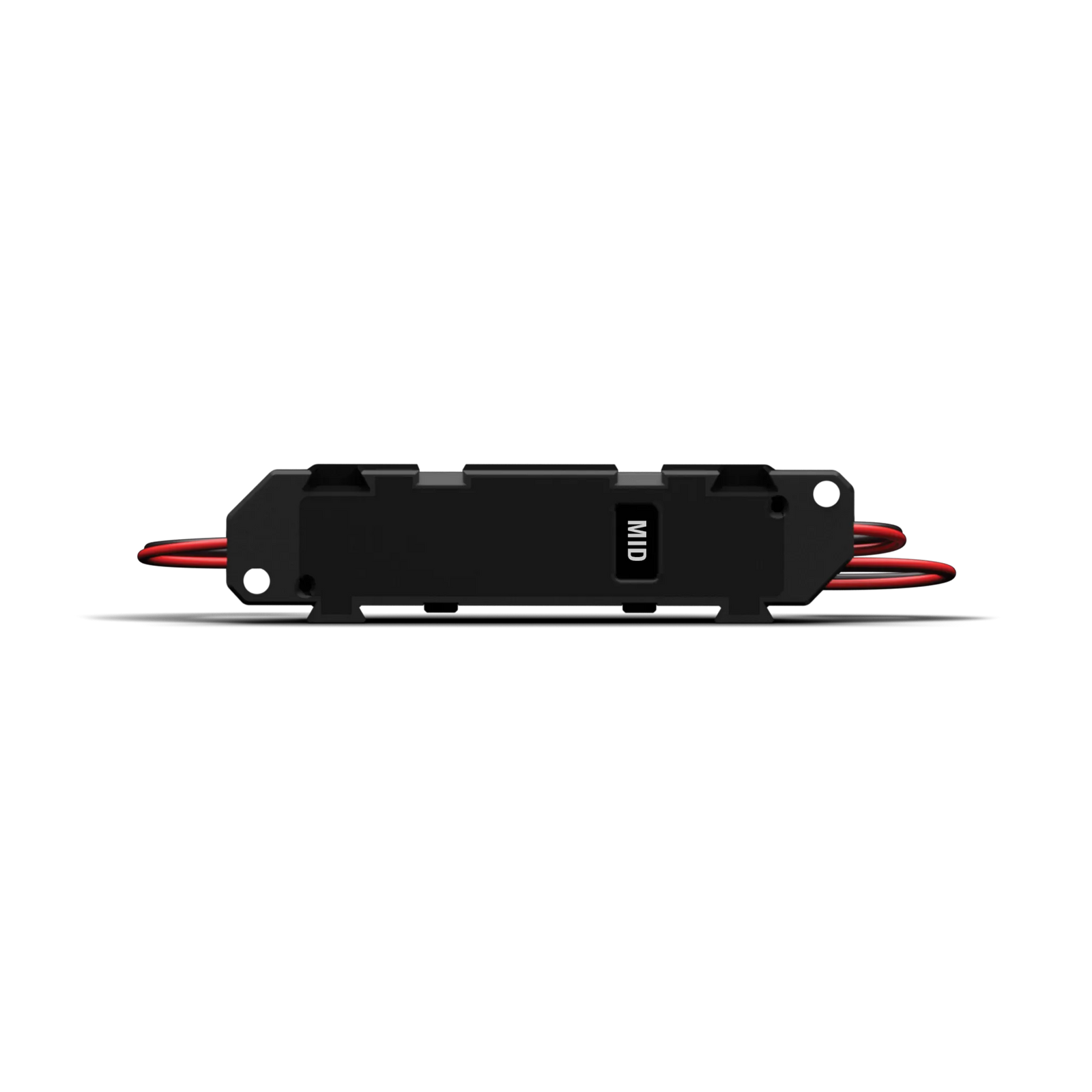

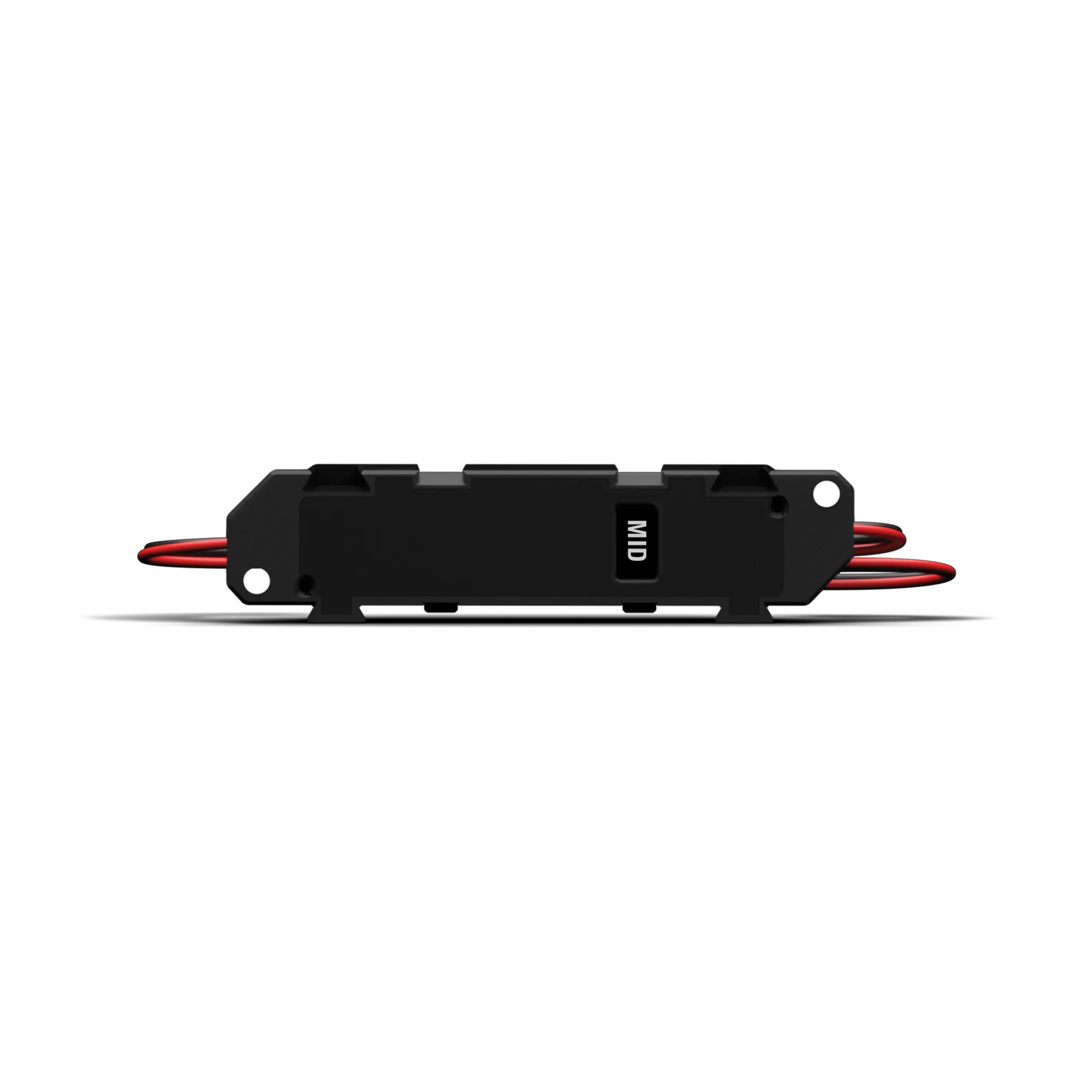

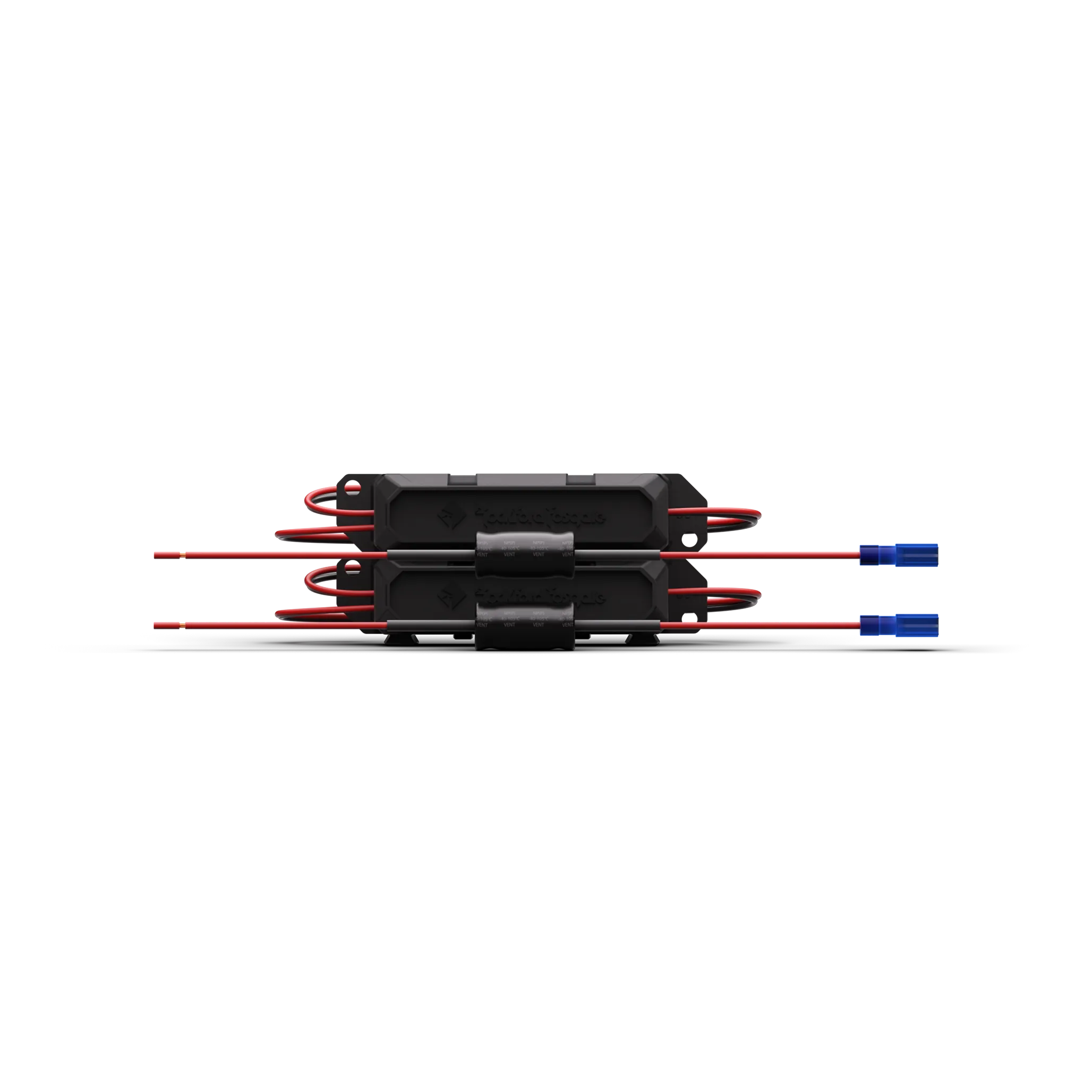

- 2 x Passive Crossover Networks (Midrange Bandpass)
- 2 x 33µF Non-Polarised Capacitors (Bass Blocker)
- 2 x Crossover Wiring Extensions (18", 457mm)
- 2 x 18 AWG Red/Black Speaker Wire (205mm)
- 1 x 2.5" Speaker Cut-Out Template
- 4 x Self-Tapping Phillips #8x32mm (Speaker)
- 4 x Self-Tapping Phillips #4x16mm (Crossover)
- 3 x 18 AWG Female Crimp Spade Connectors (0.187")
- 3 x 18 AWG Female Crimp Spade Connectors (0.250")
- 6 x 18 AWG Crimp Butt Connectors
- 2 x Zip Ties (4.8mm x 350mm)
Note: Grilles sold separately.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | P3V2-25 |
| Brand | Rockford Fosgate |
| Series | Punch P3 |
| Speaker Type | Component Midrange |
| Sold As | Pair |
| Midrange Nominal Diameter | 2.5" |
| Voice Coil Diameter | 1.00" (25.4mm) |
| Nominal Impedance | 4Ω |
| Power Handling | 75W RMS / 150W Peak (CTA-2031) |
| Sensitivity | 82dB at 1W/1M |
| Sensitivity (2.83V/1M) | 85dB |
| Frequency Response | 135Hz-15kHz |
| Fs | 180Hz |
| Crossover - Bandpass | BP 600Hz-6kHz at 6dB/Oct (External) |
| Crossover - Bass Blocker | HP 1200Hz at 6dB/Oct (33µF Non-Polarised Capacitor) |
| Cutout Diameter | 2.54" (64.5mm) |
| Front-Loading Depth (FLWR) | 1.60" (40.6mm) |
| Rear-Loading Depth (FLWR) | 1.47" (37.3mm) |
| Front Side Clearance | 0.26" (6.5mm) |
| Removable Motor Cover | No |
| Grilles | Sold Separately |
| Technology | VAST 2.0, MC3, FLWR, Auto Fit Architecture |
| Standards | CTA-2031 Compliant, Klippel Verified |
| Warranty | 2 Years |
| Shipping Weight | 0.91kg |
Compatible With
The P3V2-25 is the recommended midrange driver for upgrading any P2V2 convertible speaker installation to a full 3-way component system. Compatible with all P2V2 convertible speaker models including P2V2-65, P2V2-65HO, P2V2-675, P2V2-68, P2V2-68HO, P2V2-69, and P2V2-69HO. The 2.54" cutout diameter and FLWR twist-lock adaptors suit most factory 2.5" midrange and dash speaker positions. Confirm available cutout diameter and mounting depth in your specific vehicle before purchase.
Frequently Asked Questions
What is the P3V2-25 used for?
The P3V2-25 is a dedicated 2.5" midrange driver for 3-way component speaker systems. It fills the midrange frequency band between the subwoofer or woofer and the tweeter, providing precise vocal and instrumental detail reproduction that a 2-way system cannot achieve. It is also suited for center channel midrange applications in vehicles with a factory center channel speaker position.
How does the P3V2-25 upgrade a P2V2 installation to 3-way?
When added to any P2V2 convertible speaker installation, the P3V2-25 provides a dedicated midrange driver for the midrange frequency band (600Hz-6kHz with the bandpass crossover), allowing the P2V2 woofer to focus on lower frequencies and the P2V2 tweeter to focus on high frequencies, creating a precise 3-way crossover system with each driver optimised for its frequency range.
Which crossover should I use - the bandpass crossover or the bass blocker?
Use the bandpass crossover (600Hz-6kHz, 6dB/octave) when integrating into a full 3-way component system with a dedicated woofer, midrange, and tweeter with appropriate crossover separation. Use the bass blocker (33µF capacitor, 1200Hz HP) for simpler installations where a full bandpass crossover is not available, to protect the midrange driver from excessive low-frequency excursion.
What mounting depth does the P3V2-25 require?
The FLWR twist-lock adaptors provide 40.6mm front-loading depth and 37.3mm rear-loading depth for different panel thicknesses and access requirements. Confirm available depth in your specific vehicle's midrange or dash speaker position before purchase.
Are grilles included with the P3V2-25?
No. Grilles are sold separately.
