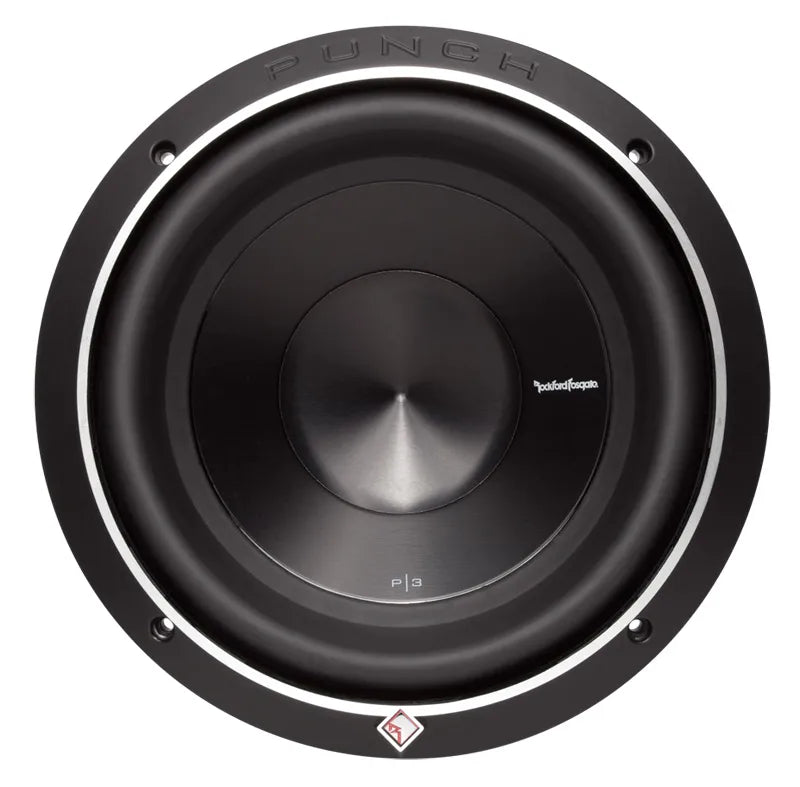

Rockford Fosgate P3D2-10 Punch 10" P3 2-Ohm DVC Subwoofer

10" P3 2-Ohm DVC Subwoofer 500W RMS, Anodised Aluminium Cone, 26.6Hz Fs, 15.2mm Xmax, VAST, FlexFit Basket, Compression Terminals. Enclosure Volumes Confirmed.

Product Overview

The Rockford Fosgate Punch P3D2-10 is Rockford Fosgate's highest-performing Punch series subwoofer rated at 500W RMS (1000W peak) and introducing an anodised aluminium cone and dustcap in place of the Kevlar fibre-reinforced paper used throughout the P1 and P2 series. The full confirmed specification set includes 82dB sensitivity, 26.6Hz free-air resonance, 15.2mm Xmax, 232mm (9.13") cutout diameter, 156.8mm (6.18") mounting depth, and Rockford Fosgate's confirmed enclosure recommendations: 0.59 cu ft (16.7L) sealed, 1.4 cu ft (39.6L) vented. CEA-2031 compliant.

The 2-Ohm DVC provides wiring options of 1-Ohm (parallel), 4-Ohm (series), or 2-Ohm per coil for bi-amplification. The P3 introduces a hybrid StampCast basket, FlexFit mounting, and a rubberised over-mould grip feature for installation handling. The 2.5" (65.5mm) voice coil is larger than any other subwoofer in this catalogue. Input terminals are confirmed 10-AWG compression type consistent with the P2D4-10 spec table, confirming compression terminals as the correct type across the P2 and P3 range.

Key Specifications

• Subwoofer size: 10 inch
• Voice coil configuration: Dual Voice Coil (DVC)
• Impedance: 2-Ohm per coil (1-Ohm parallel / 4-Ohm series / 2-Ohm biamp)
• Power handling (RMS): 500W ✓ (CEA-2031)
• Power handling (peak): 1000W ✓
• Sensitivity (SPL): 82dB @ 1W/1M ✓
• Free-air resonance (Fs): 26.6Hz ✓
• Xmax: 15.2mm ✓
• Cutout diameter: 9.13" (232mm) ✓
• Mounting depth: 6.18" (156.8mm) ✓
• Voice coil diameter: 2.5" (65.5mm) ✓
• Magnet weight: 81 oz (2.30 kg) ✓
• Effective piston area (Sd): 360 cm² ✓
• Equivalent air volume (Vas): 27.0 litres ✓
• Total Q (Qts): 0.49 ✓
• Electrical Q (Qes): 0.54 ✓
• Mechanical Q (Qms): 6.00 ✓
• Voice coil inductance (Le): 4.5 mH ✓
• DC resistance (Re): 3.20 Ohms ✓
• Woofer displacement: 0.070 cu ft (2.0 litres) ✓
• Recommended sealed enclosure: 0.59 cu ft (16.7L) ✓
• Recommended vented enclosure: 1.4 cu ft (39.6L) ✓
• Shipping weight: 17.3 lbs (7.8 kg) ✓
• CEA-2031 compliant: Yes ✓
• Surround technique: VAST (up to 25% increased cone area) ✓
• Voice coil: High-temp, Nomex® reinforcement collar ✓
• Cone: Anodised aluminium ✓
• Dustcap: Anodised aluminium ✓
• Basket: Hybrid StampCast, FlexFit, with integrated spider venting ✓
• Pole piece: Extended ✓
• Backplate: Bumped and vented ✓
• Input terminals: 10-AWG compression (confirmed) ✓
• Trim ring: Diamond-cut cast aluminium (grille insert compatible) ✓
• Magnet cover: Protective PVC textured ✓
• Enclosure compatibility: Sealed and vented ✓
• Sold as: Individual unit
• Warranty: Confirmed (authorised dealer purchase required — terms TBC)

Features & Benefits

• Anodised Aluminium Cone and Dustcap — The P3 replaces the Kevlar fibre-reinforced paper cone used in the P1 and P2 series with an anodised aluminium cone. Aluminium is rigid and lightweight — resisting cone breakup under high-excursion, high-power conditions. Anodising creates a hard oxide layer on the aluminium surface, improving abrasion resistance and adding a consistent aesthetic finish. The aluminium dustcap assists with heat conduction from the voice coil former.
• 500W RMS / 1000W Peak — CEA-2031 Compliant — 500W RMS is the highest power handling in the Punch series in this catalogue. At 1000W peak, the P3D2-10 can handle the transient demands of high-powered Class D mono amplifiers.
• 15.2mm Xmax — The largest confirmed Xmax in this subwoofer catalogue — 4.2mm more than the P2D4-10's 11mm. Greater Xmax means the voice coil remains in the linear portion of the magnetic gap over a wider excursion range — producing more output before distortion onset and improving bass reproduction at high volume levels.
• 26.6Hz Free-Air Resonance (Fs) — An Fs of 26.6Hz is exceptionally low — indicating bass extension capability below 30Hz. This driver is optimised for deep bass reproduction covering sub-bass synthesizer tones, pipe organ fundamentals, and the lowest register of bass instruments.
• Confirmed Enclosure Volumes:
  • Sealed: 0.59 cu ft (16.7 litres)
  • Vented: 1.4 cu ft (39.6 litres) These are Rockford Fosgate's official recommended volumes for the P3D2-10 — eliminating the need for custom Thiele-Small modelling to identify a starting enclosure design.
• 2.5" Voice Coil — At 65.5mm, this is the largest voice coil in any subwoofer in this catalogue — providing a greater heat-dissipating surface area and improved power handling capacity compared to smaller coils.
• Hybrid StampCast Basket with FlexFit — The hybrid basket combines the structural rigidity of a cast design with the weight and resonance properties of a stamp-cast approach. FlexFit enables mounting in non-standard cavity profiles.
• Qts = 0.49 — Suitable for both sealed and vented alignments. In a sealed 16.7L box, a Qtc between 0.65 and 0.7 is achievable; in the 39.6L vented box, a porting tuning below 26Hz is possible.
• 82dB Sensitivity — Slightly lower than the P2D4-10 (84dB), consistent with the P3's emphasis on deep extension and high excursion over raw efficiency. More amplifier power is required per unit of output — matched by the 500W RMS rating.
• 10-AWG Compression Terminals — Confirmed compression type. The P3 spec table is consistent with the P2D4-10 spec table in specifying compression terminals. The "push terminals" language in P2 features lists is a supplier data error — compression is the correct terminal type across the P2 and P3 range.
• Nomex® Voice Coil Reinforcement Collar — Structural and thermal reinforcement at the voice coil-to-cone junction — critical for sustained 500W operation.
• Rubberised Over-Mould Grip — A rubberised grip feature on the basket assists with handling during installation — particularly relevant for a 7.8 kg driver being manoeuvred into an enclosure.

Technical Specs

Compatible With / Goes Well With

Confirmed enclosure volumes:

• Sealed: 0.59 cu ft (16.7 litres) net internal
• Vented: 1.4 cu ft (39.6 litres) net internal — confirm port dimensions from Rockford Fosgate

Mounting depth: 156.8mm (6.18") confirmed. Verify enclosure depth clearance.

Cutout: 232mm (9.13") — same as P2D4-10. Not a standard 229mm (9") cutout.

1-Ohm wiring caution: Confirm amplifier stability at 1-Ohm before using parallel configuration.

Wiring:

• 1-Ohm → parallel (confirm amplifier stability)
• 4-Ohm → series
• 2-Ohm per coil → biamp

Pairs well with:

• Rockford Fosgate T2500-1BDCP mono amplifier (2500W rated — confirm RMS at 1-Ohm or 4-Ohm for appropriate match to 500W)
• T1500-1BDCP at appropriate impedance
• A sealed 10" box at 0.59 cu ft or vented box at 1.4 cu ft

Weight

7.8 kg (17.3 lbs)

Frequently Asked Questions

What makes the P3 cone different from the P1 and P2?

The P3 uses an anodised aluminium cone instead of the Kevlar fibre-reinforced paper used in the P1 and P2 series. Aluminium is stiffer and more resistant to cone breakup at high excursion than paper-based cones. Anodising hardens the surface and provides a uniform finish. The aluminium dustcap also assists with heat conduction away from the voice coil former. This is a genuine materials upgrade, not a cosmetic one.

What is the confirmed enclosure size for the P3D2-10?

Rockford Fosgate confirms: sealed box — 0.59 cu ft (16.7 litres) net internal; vented box — 1.4 cu ft (39.6 litres) net internal. Confirm vent port dimensions and tuning frequency from the official P3D2-10 datasheet.

What amplifier is appropriate for 500W RMS?

A mono amplifier rated at 500W RMS at the selected wiring impedance. The Rockford Fosgate T2500-1BDCP is rated at 2500W at 1-Ohm — confirm its RMS output at 4-Ohm (series) or 2-Ohm (biamp) before purchasing. Ensure the amplifier's actual RMS output at your chosen load matches 500W, not exceeds it significantly.

What is Xmax and why does 15.2mm matter?

Xmax is the maximum linear one-way excursion of the voice coil — the distance the cone can move before the voice coil exits the linear portion of the magnetic field. At 15.2mm, the P3D2-10 has more linear excursion than any other subwoofer in this catalogue, producing more output before distortion increases at high volume levels.

Does the warranty require an authorised dealer purchase?

Yes — Rockford Fosgate confirms their warranty coverage requires purchase from an authorised dealer. Products purchased through unauthorised sellers are not covered by the manufacturer warranty. Confirm the full warranty terms and period with your authorised Rockford Fosgate reseller at time of purchase.
