Rockford Fosgate P2V2-TS Punch P2 3/4" Inverted Dome Tweeter Kit 75W RMS
A pair of 3/4" Punch P2 inverted dome tweeters from Rockford Fosgate, the P2V2-TS delivers 75W RMS and 150W peak per tweeter with the same Tetolon edge-driven inverted dome tweeter used in the P2V2 convertible speaker range, I.L.M. (Interchangeable Locking Mechanism) compatibility, MC3 multi-configuration crossover chassis with 12dB/octave external crossover at 9kHz and switchable -3dB attenuation, flush-mount and surface-mount tweeter cups with copper spring contacts, 90dB sensitivity, 3.5kHz-25kHz frequency response, 4Ω impedance, and grilles included. Sold in pairs.
Product Overview
The Rockford Fosgate P2V2-TS is the standalone tweeter kit from the Punch P2 range, designed as a direct replacement for frequency-limited factory tweeters or as a supplemental high-frequency addition to an existing audio system where improved detail and high-frequency extension are required. Using the same 3/4" (19mm) Tetolon inverted dome edge-driven tweeter as the P2V2 convertible speaker range, the P2V2-TS delivers the same tweeter performance in a standalone kit format for installations where the full convertible speaker is not required.
The I.L.M. (Interchangeable Locking Mechanism) bayonet-style mounting system is retained, allowing the tweeter to be installed in either the included flush-mount or surface-mount tweeter cups with copper spring contacts for front-side servicing. Flush-mount cups suit 3/8" thick panels using a 1.5" hole-saw cutout with a 39mm mounting diameter and 19.9mm mounting depth. Surface-mount cups require a 31.1mm mounting diameter with 14.4mm depth. Both cup types include grilles.

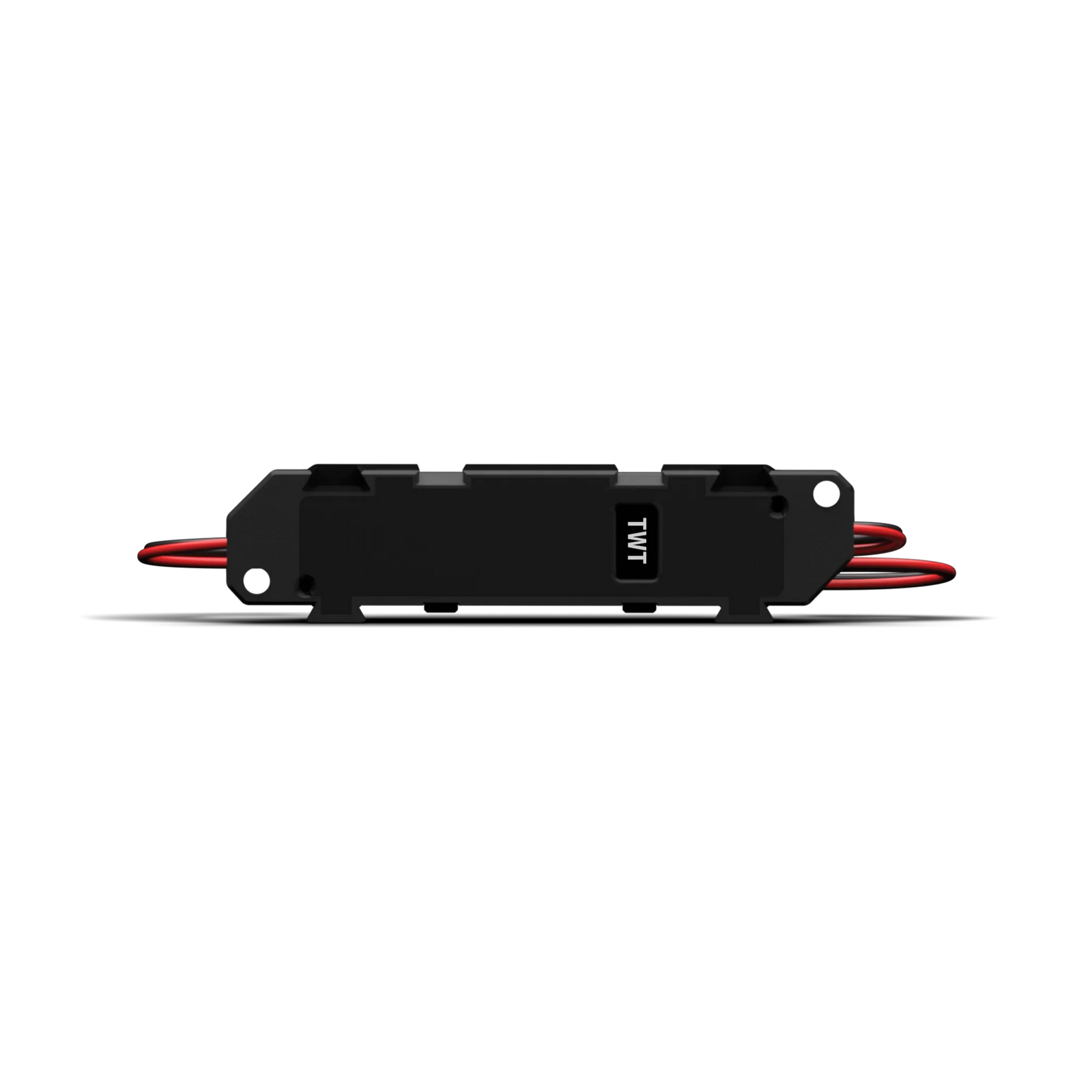

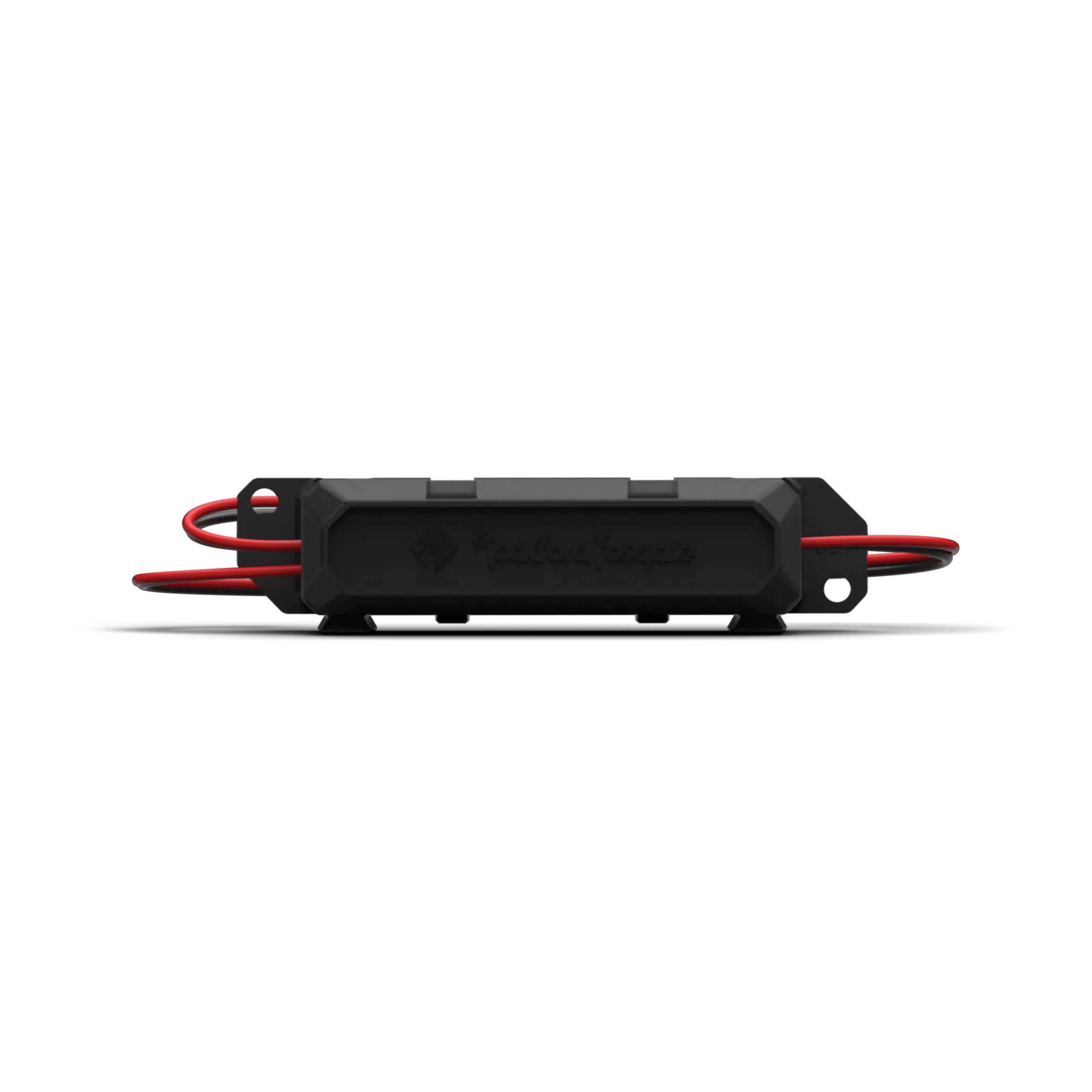

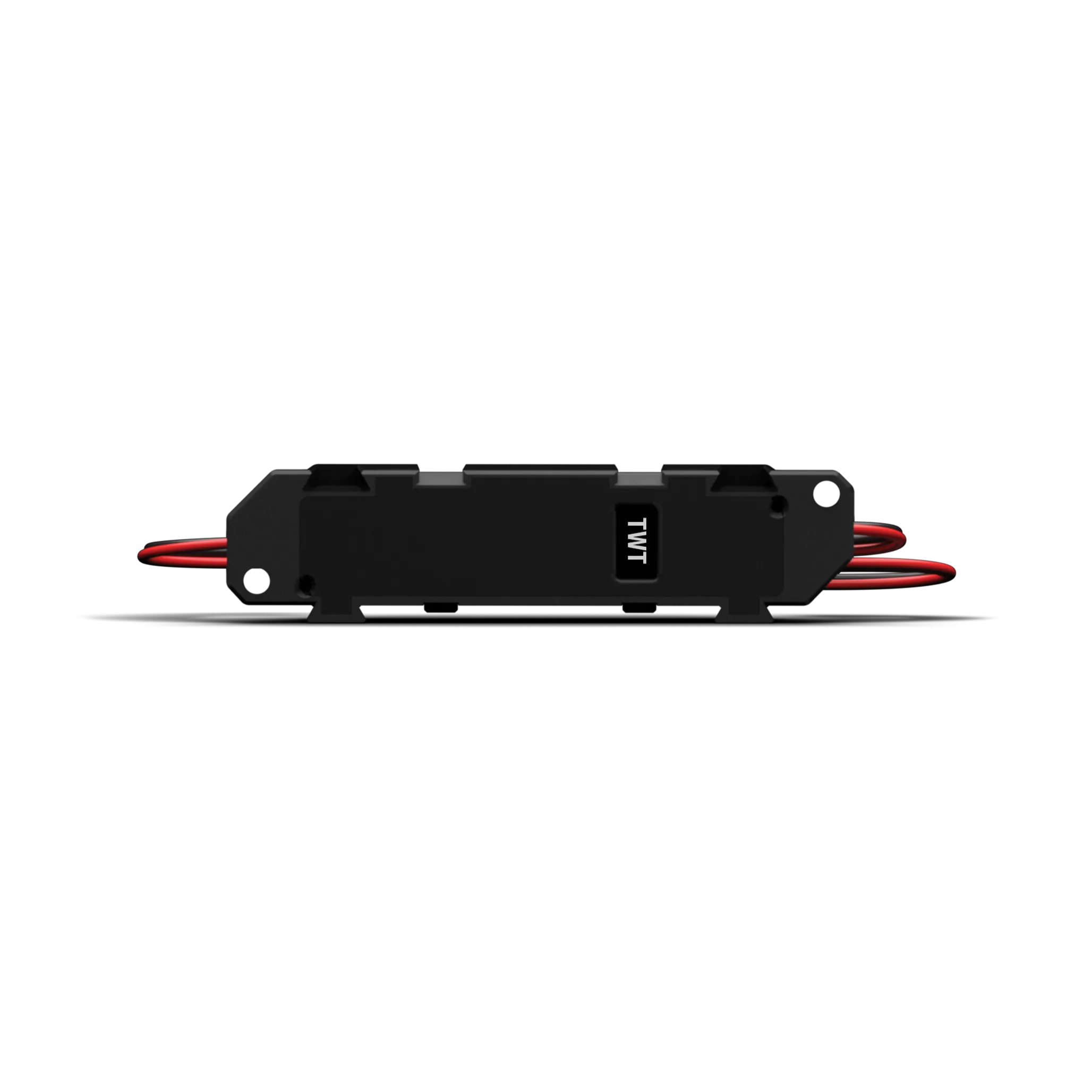

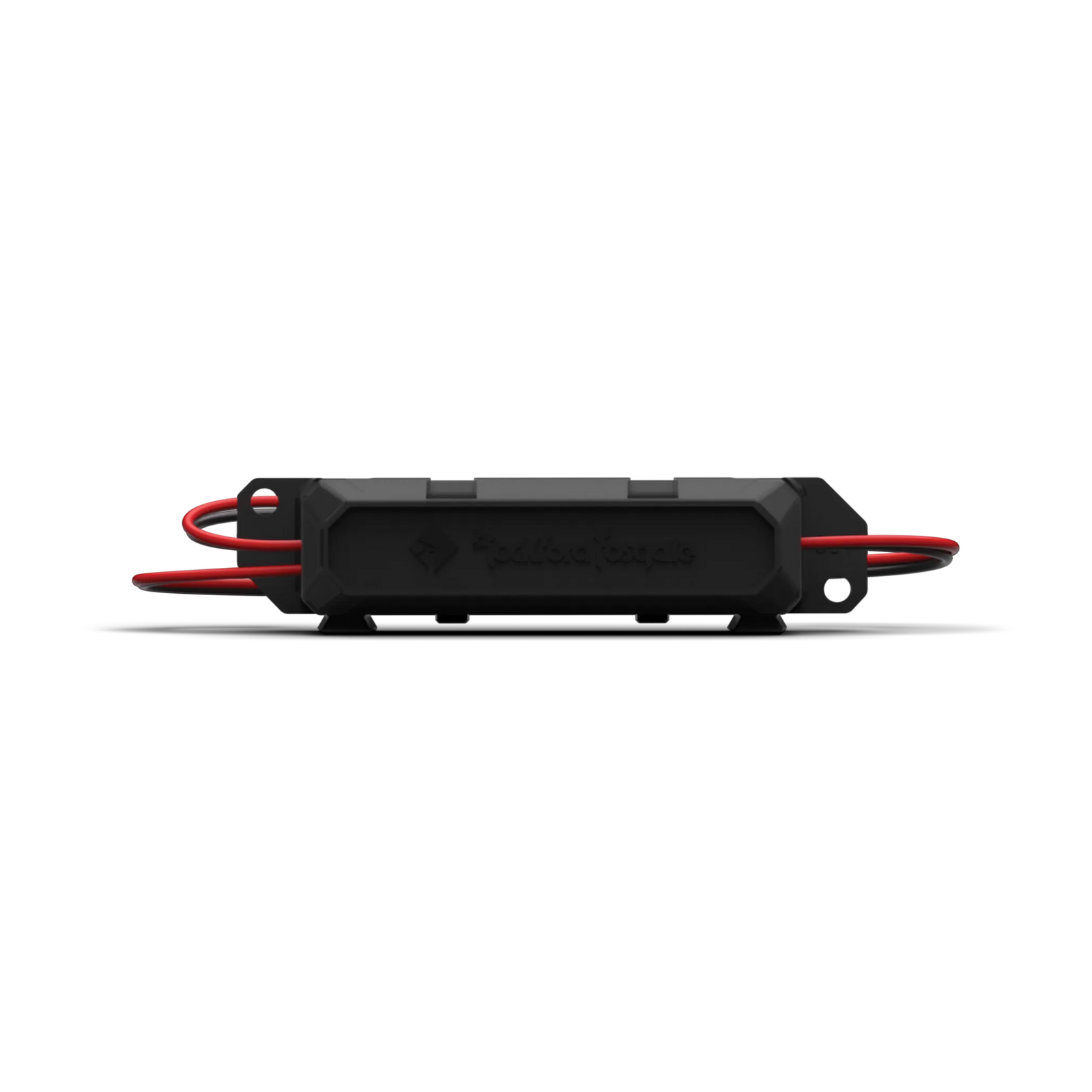

The included MC3 multi-configuration crossover chassis provides a 12dB/octave passive crossover at 9kHz with switchable 0dB or -3dB tweeter attenuation, and the MC3 design allows the crossover units to be separated into independent positions or snapped together as a unified structure for installation flexibility. CTA-2031 compliant. Klippel verified. 2-year warranty.
Features & Benefits

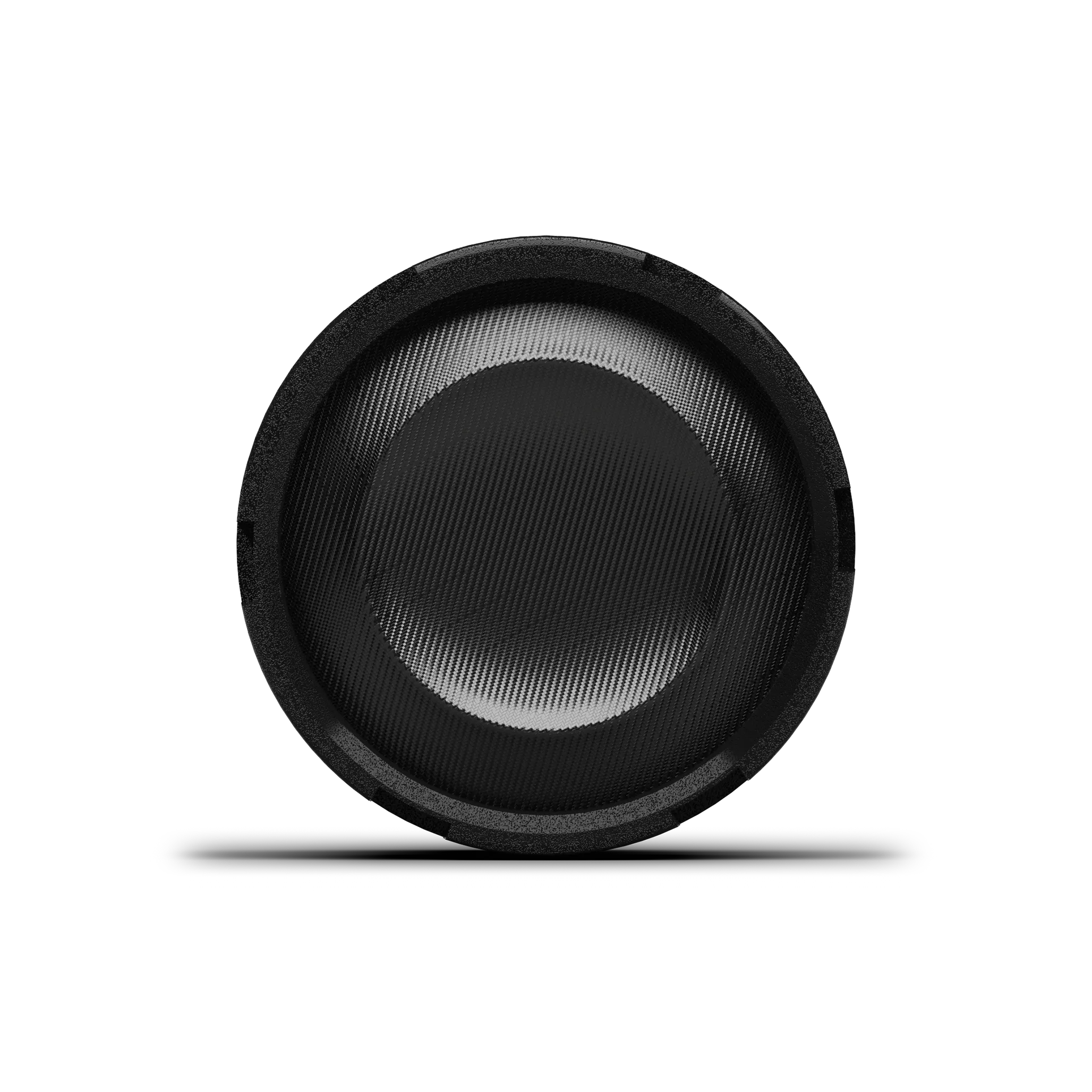

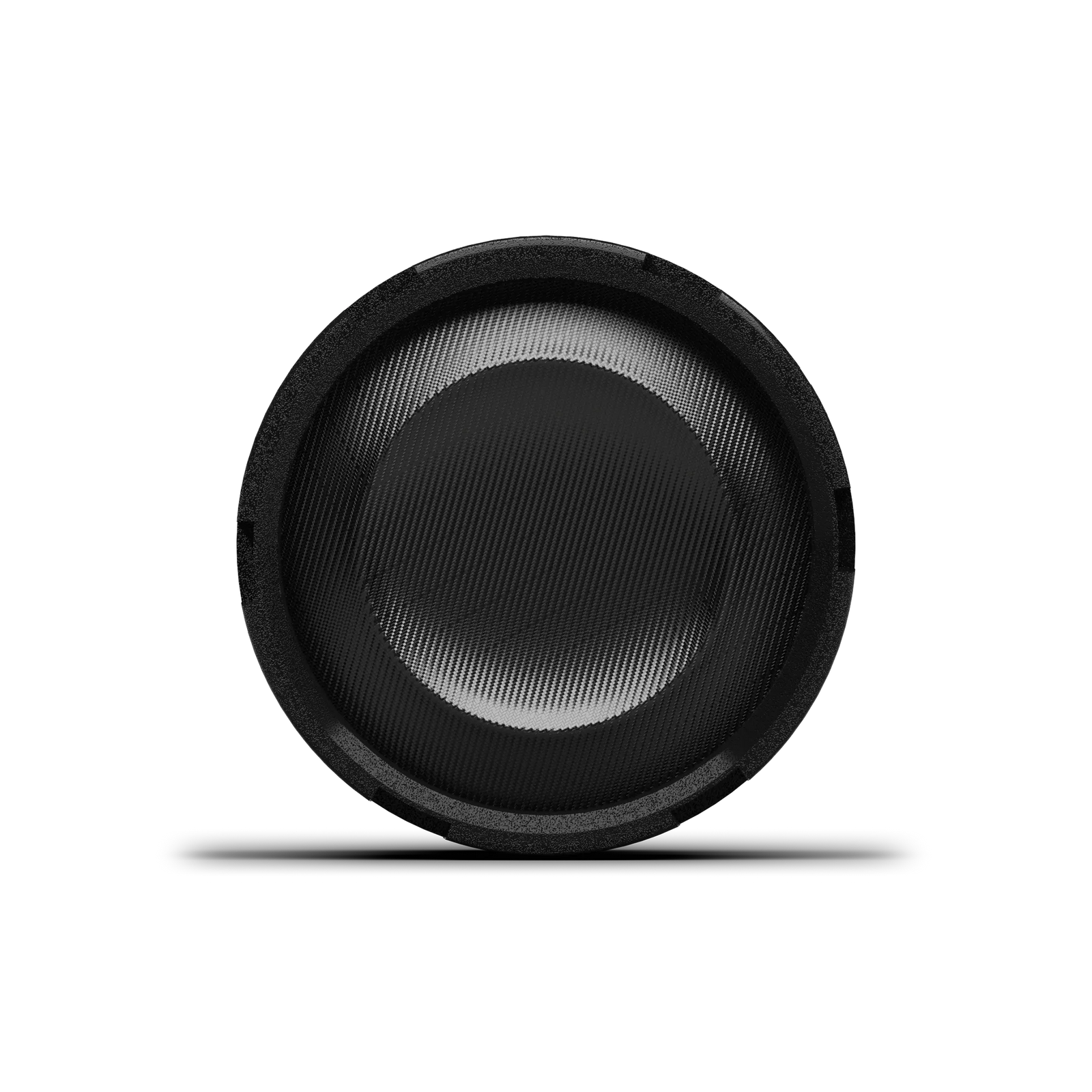

3/4" Tetolon Inverted Dome Edge-Driven Tweeter - 75W RMS: The same 19mm Tetolon inverted dome tweeter with edge-driven voice coil used in the P2V2 convertible speaker range, delivering 75W RMS and 150W peak power handling with 90dB sensitivity and a 3.5kHz-25kHz frequency response for exceptional high-frequency detail and clarity.

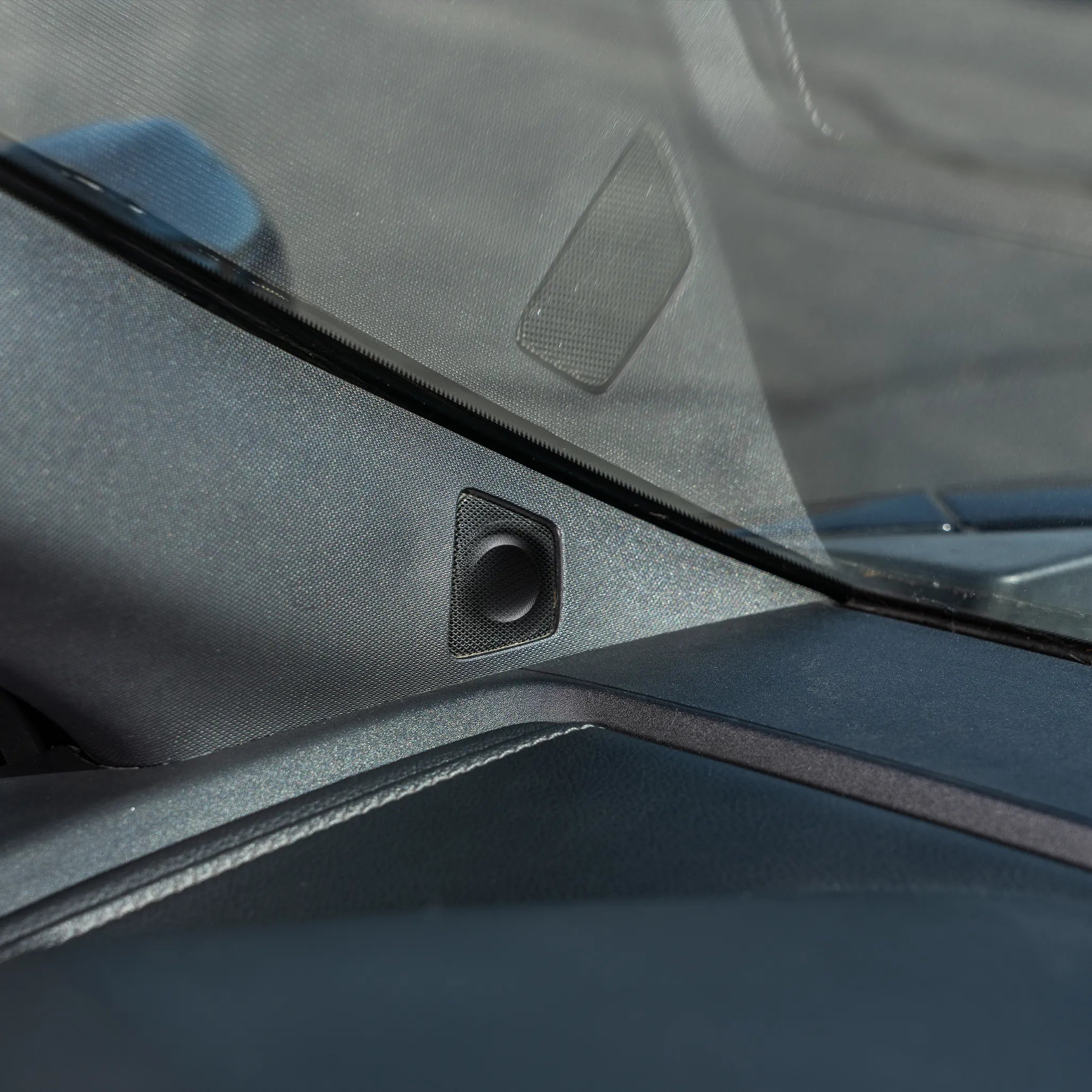

Direct Replacement for Frequency-Limited Factory Tweeters: Suited for vehicles where the factory tweeter is the limiting factor in high-frequency performance, or where a high-performance tweeter is required to supplement an existing speaker system without replacing the full speaker.

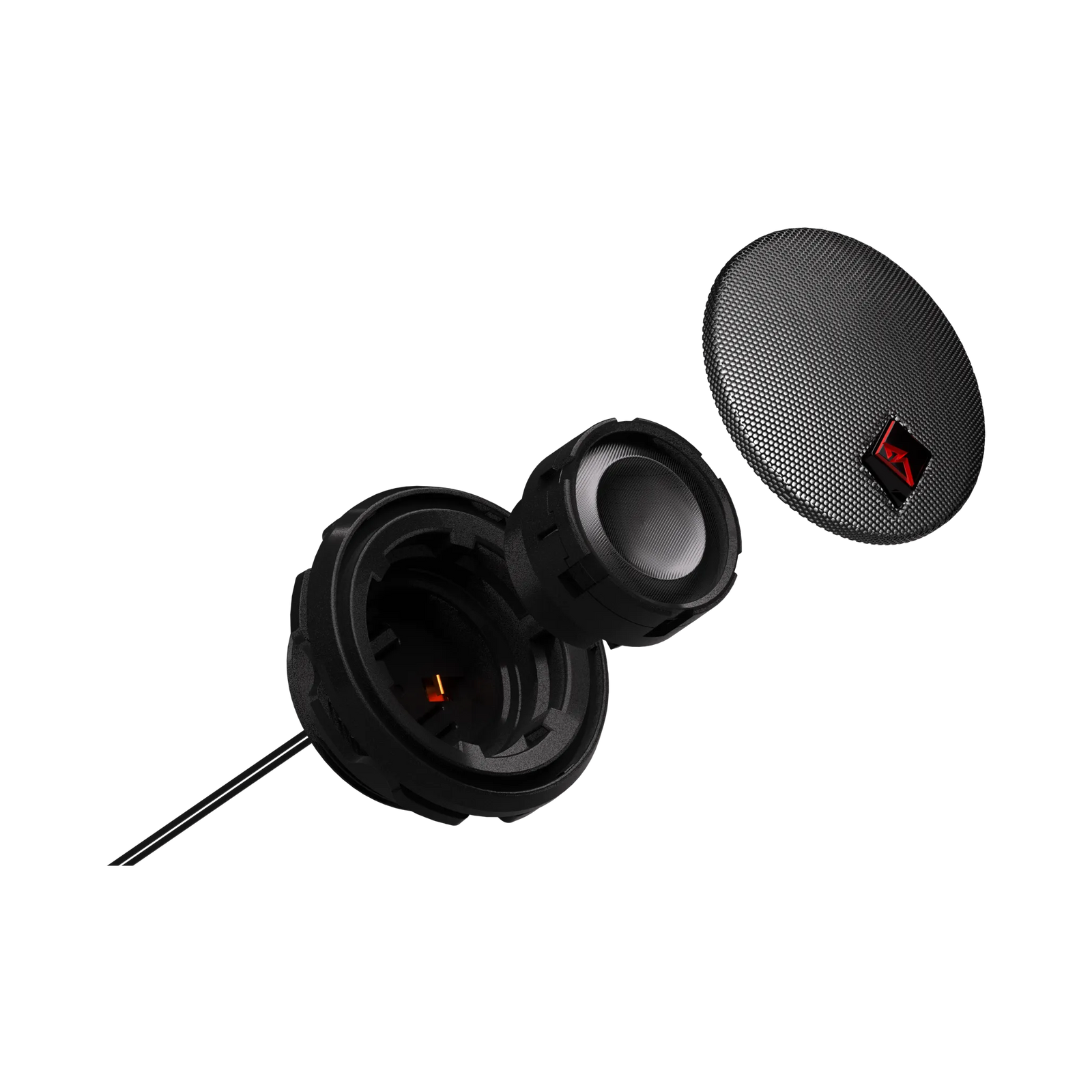

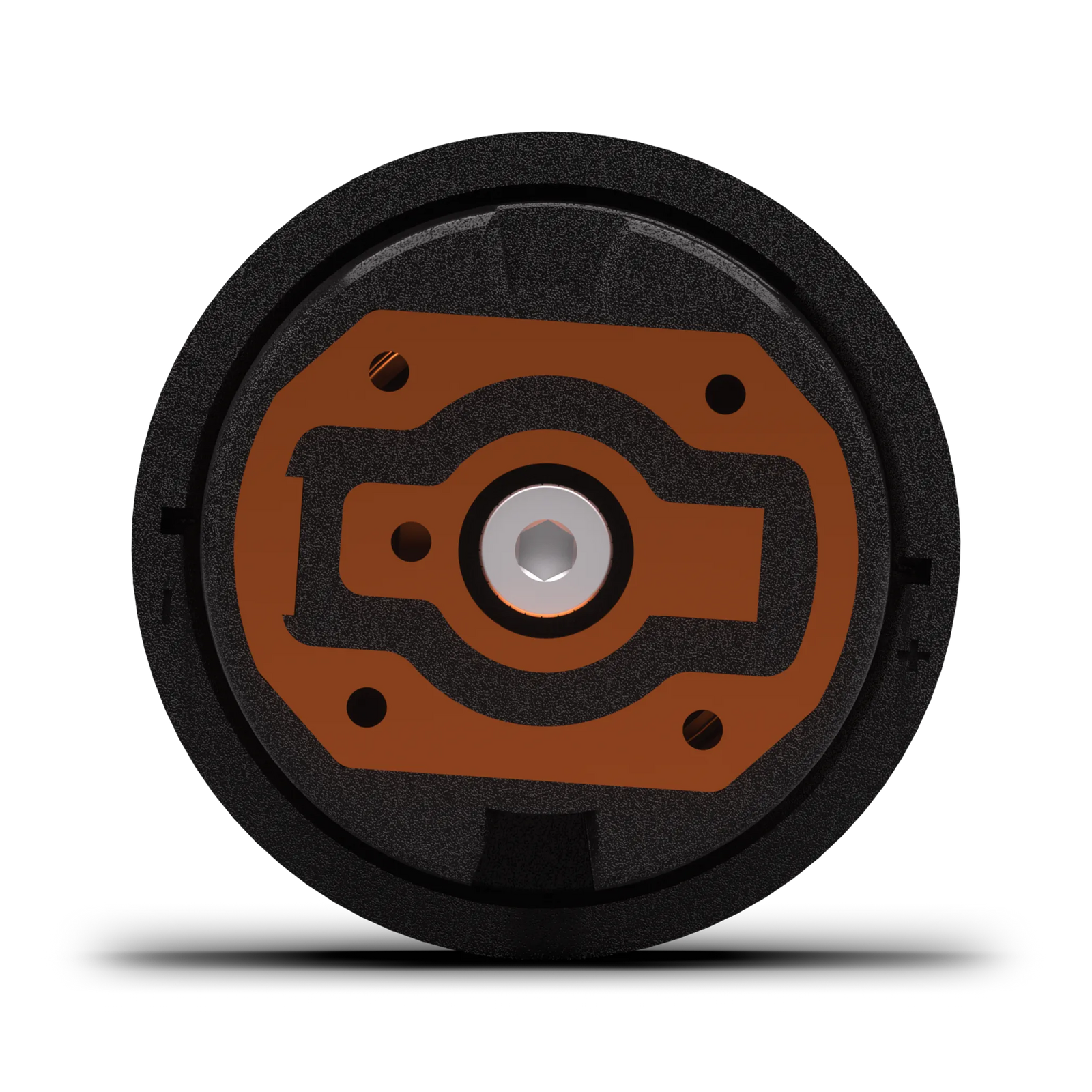

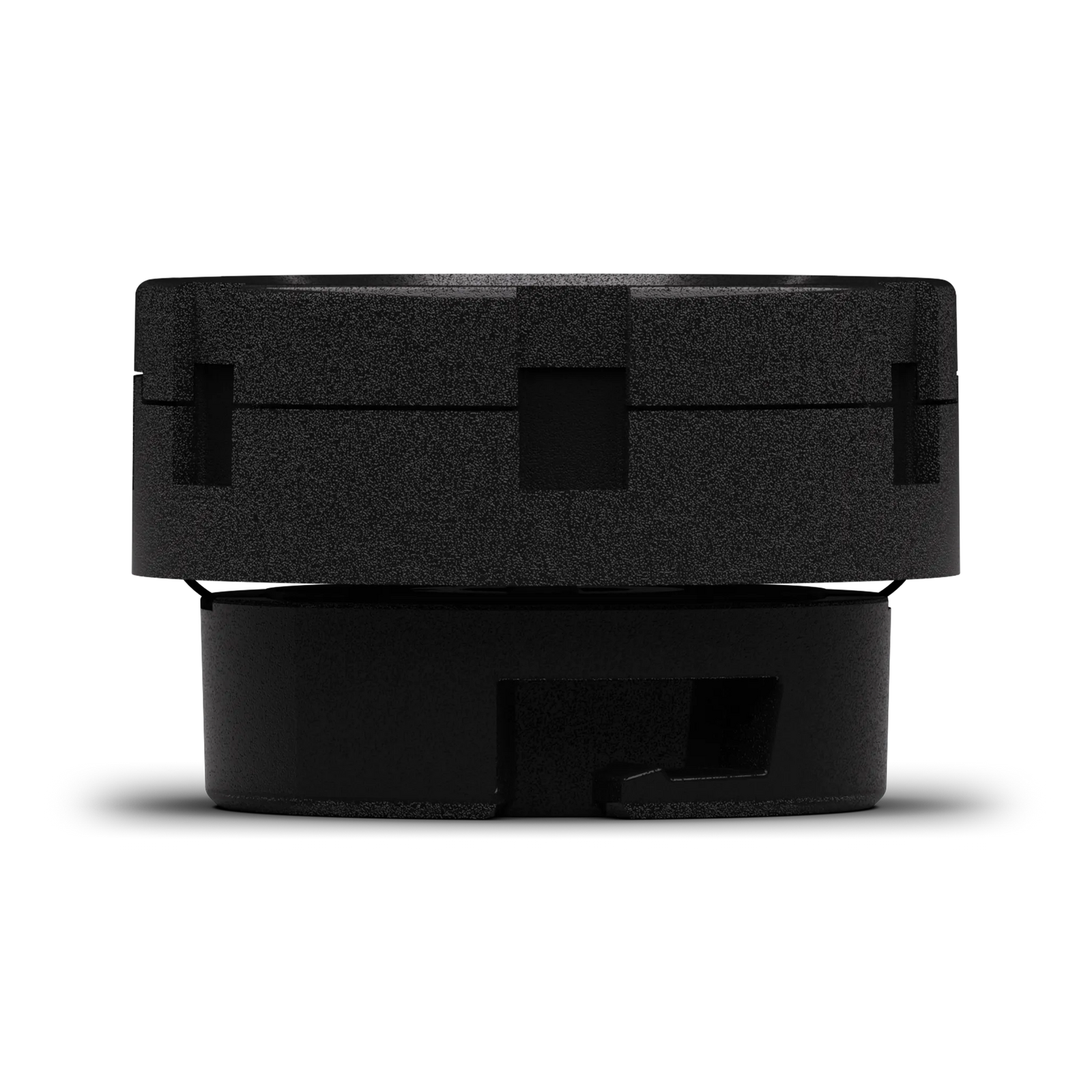

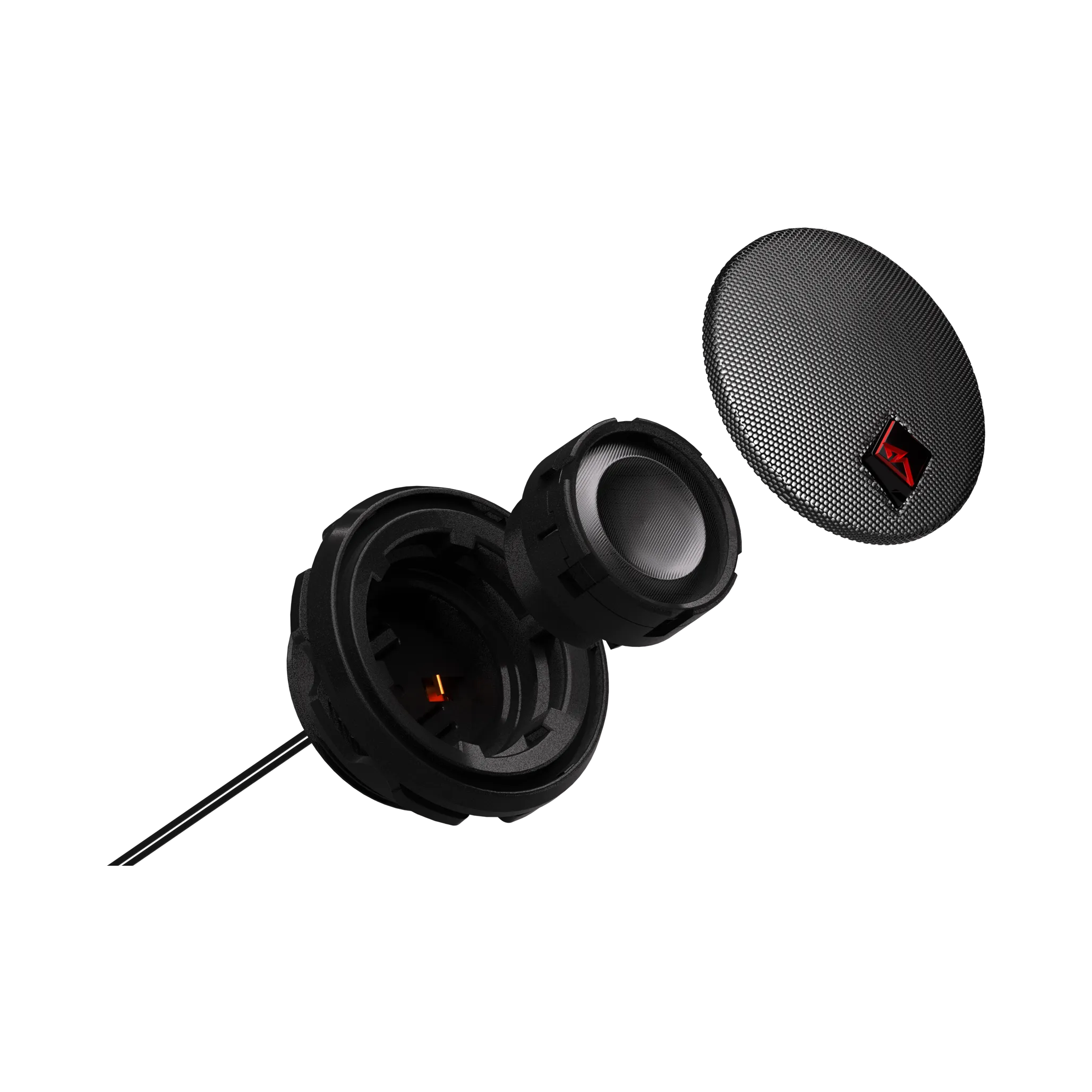

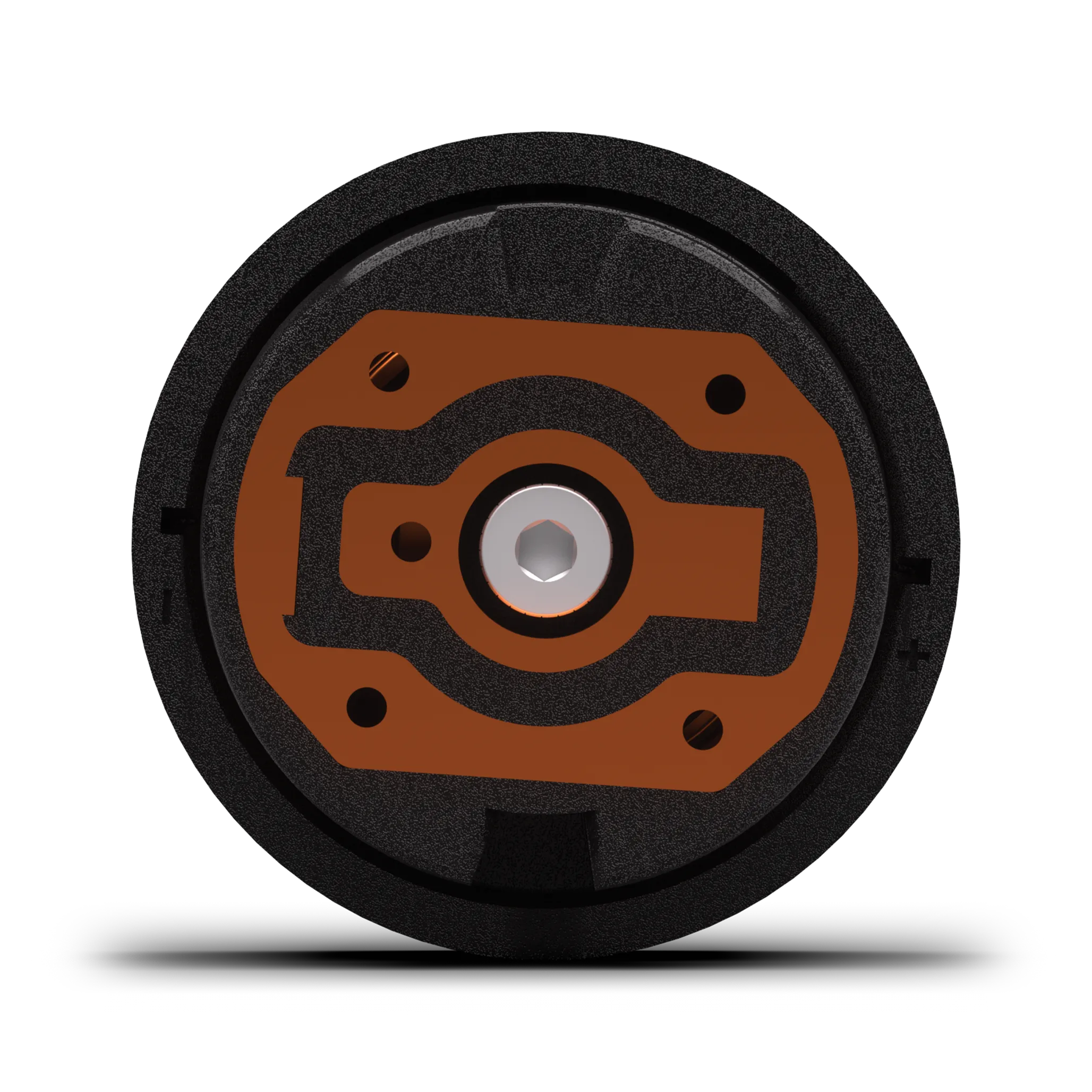

I.L.M. - Flush-Mount or Surface-Mount Configuration: The I.L.M. bayonet-style mechanism allows the tweeter to be installed in either the flush-mount or surface-mount tweeter cup, with copper spring contacts for front-side servicing without removing the cup from the panel.
Flush-Mount Cup - 1.5" Hole-Saw Cutout: The flush-mount cup fits 3/8" thick panels using a 1.5" hole-saw cutout at a 39mm mounting diameter and 19.9mm mounting depth for a clean integrated flush-panel appearance.

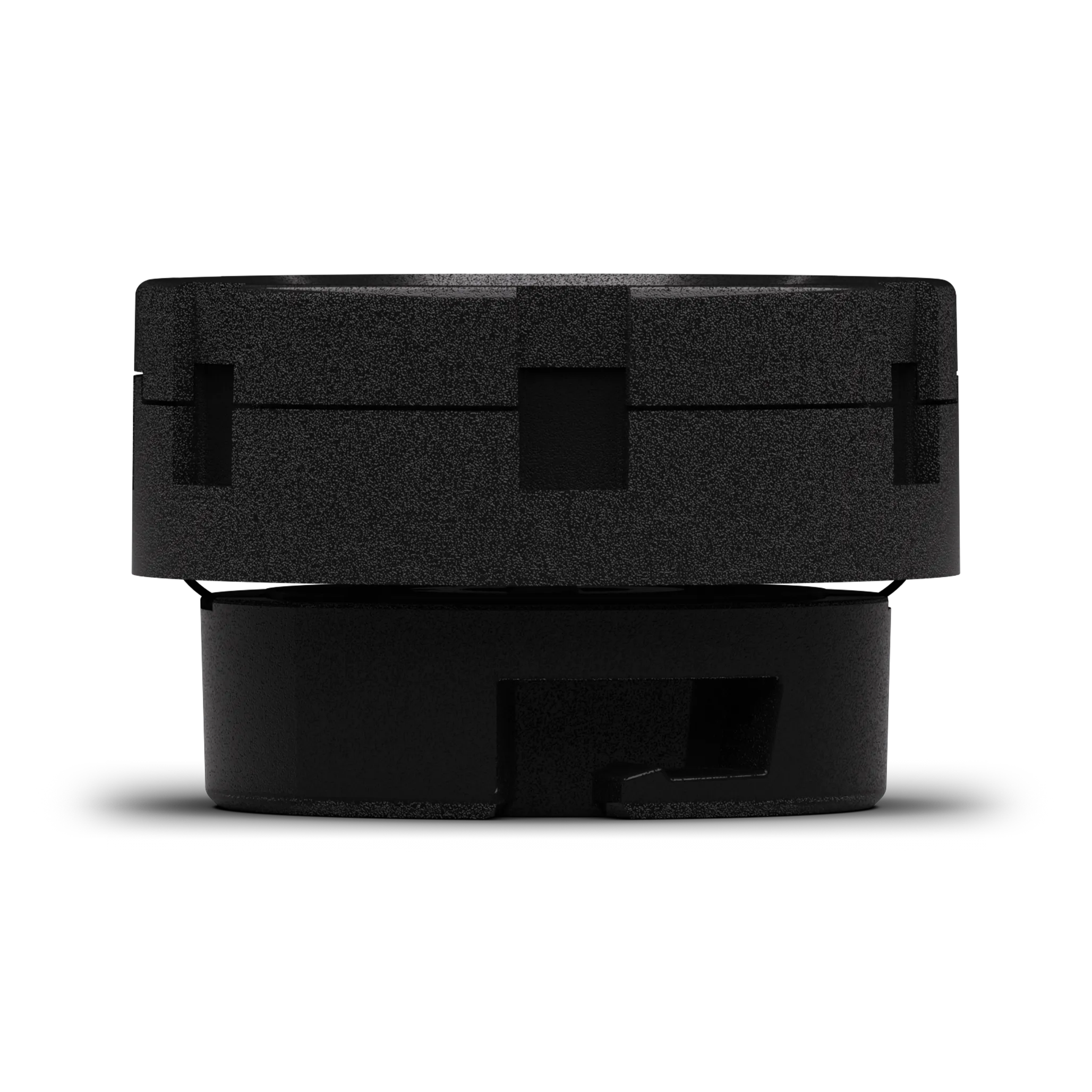

Surface-Mount Cup - No Panel Cutout Required: The surface-mount cup provides an alternative installation option with a 31.1mm mounting diameter and 14.4mm depth for applications where panel cutting is not preferred.

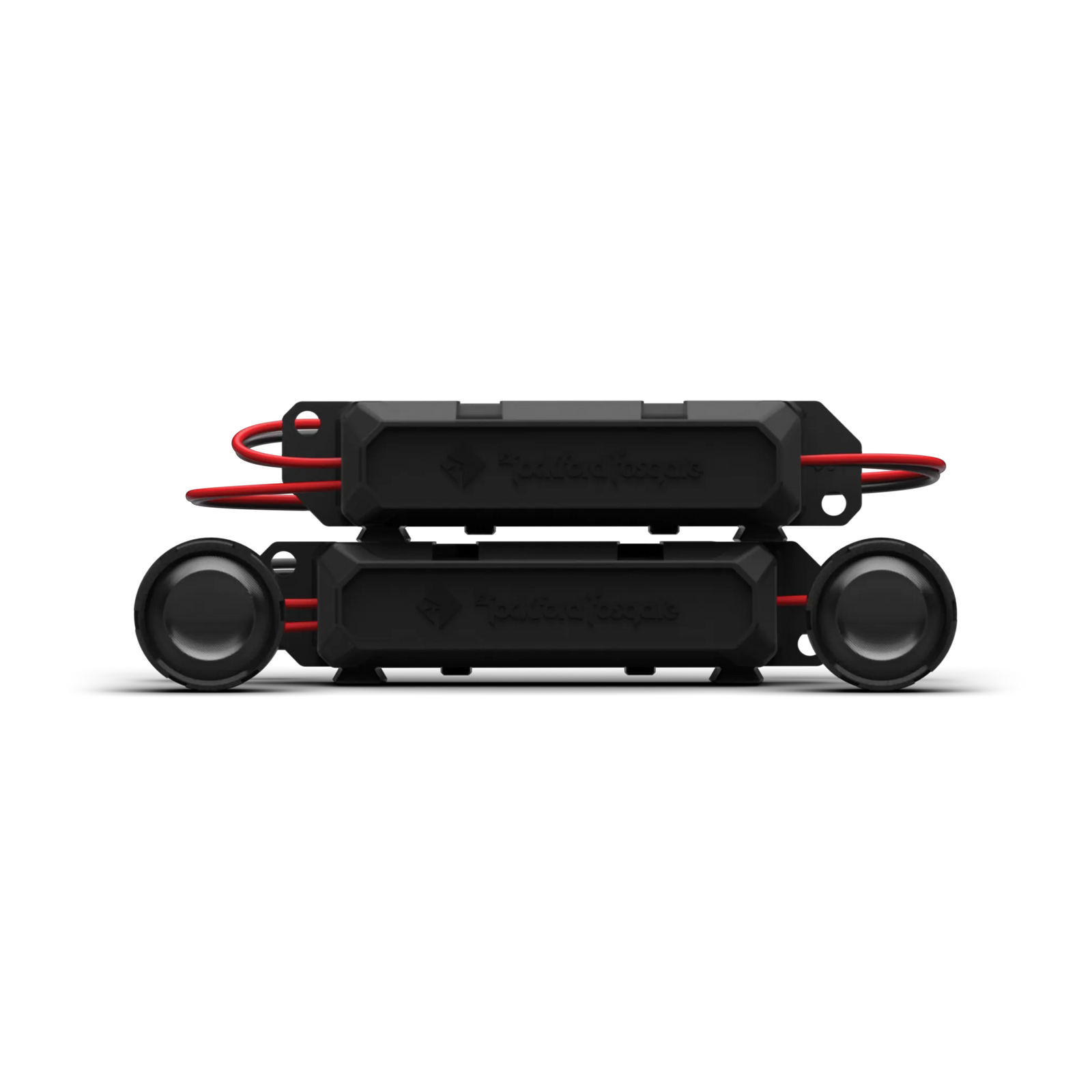

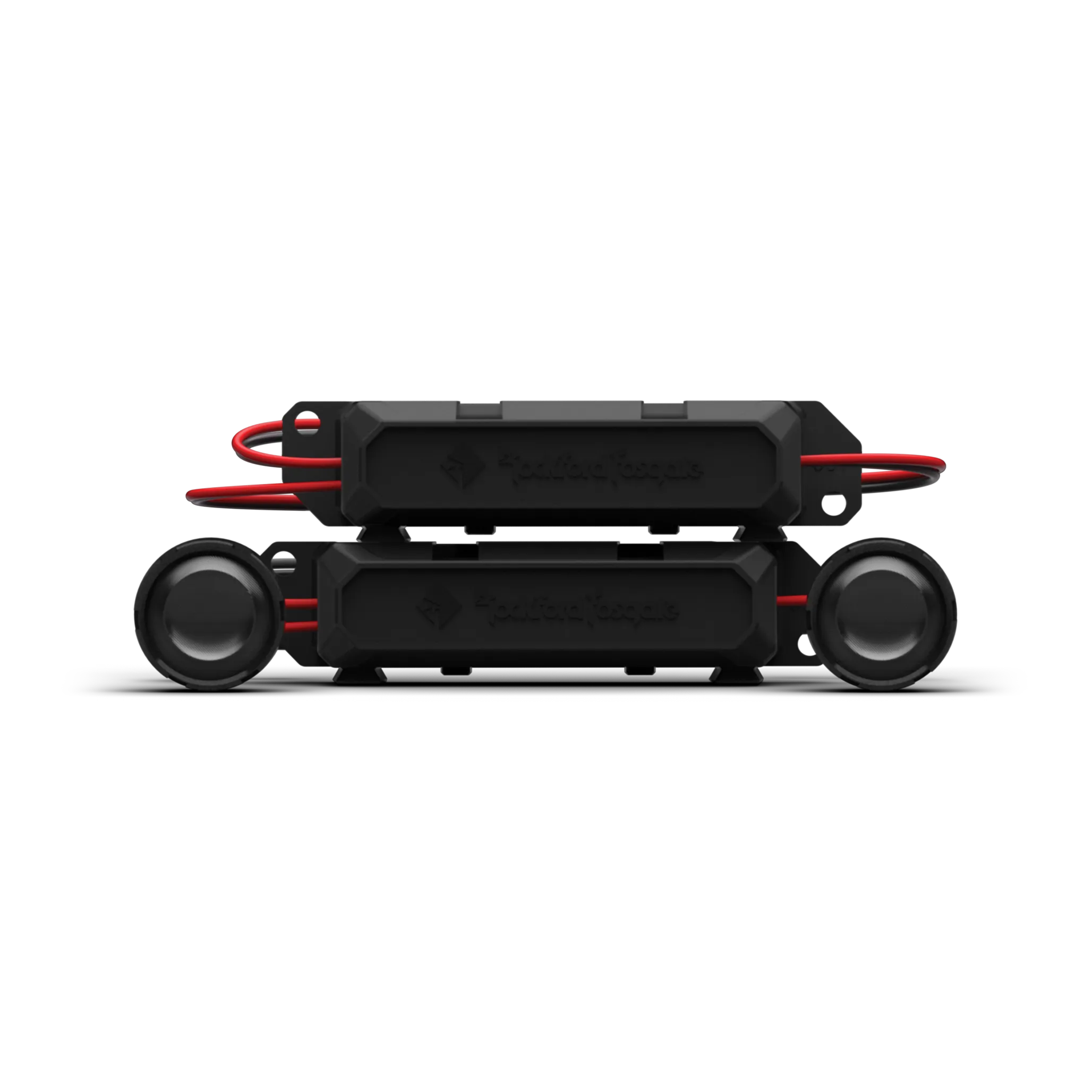

MC3 Multi Configuration Crossover Chassis - 12dB/Oct at 9kHz: The MC3 crossover chassis provides a 12dB/octave passive crossover at 9kHz with switchable 0dB or -3dB tweeter attenuation, separable into independent units for flexible installation routing or snap-together for single-location use.
Compatible with P2V2 Convertible Speakers: The P2V2-TS tweeters are the same unit supplied with the P2V2 convertible speaker range, making them a direct compatible replacement or addition for any P2V2 installation.
90dB Sensitivity and 3.5kHz-25kHz Response: High sensitivity of 90dB at 1W/1M (93dB at 2.83V/1M) and a wide high-frequency response from 3.5kHz to 25kHz for detailed, accurate high-frequency reproduction.

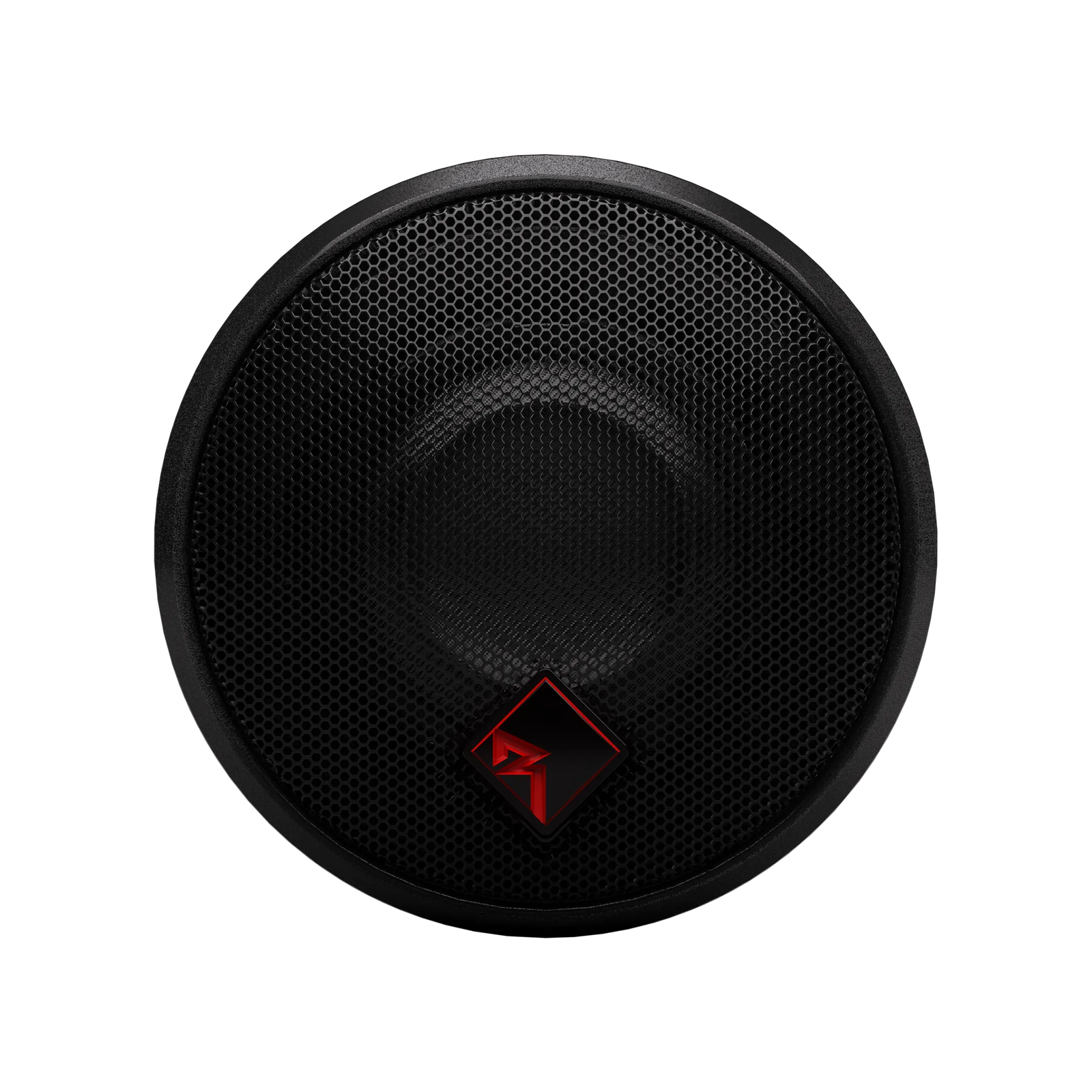

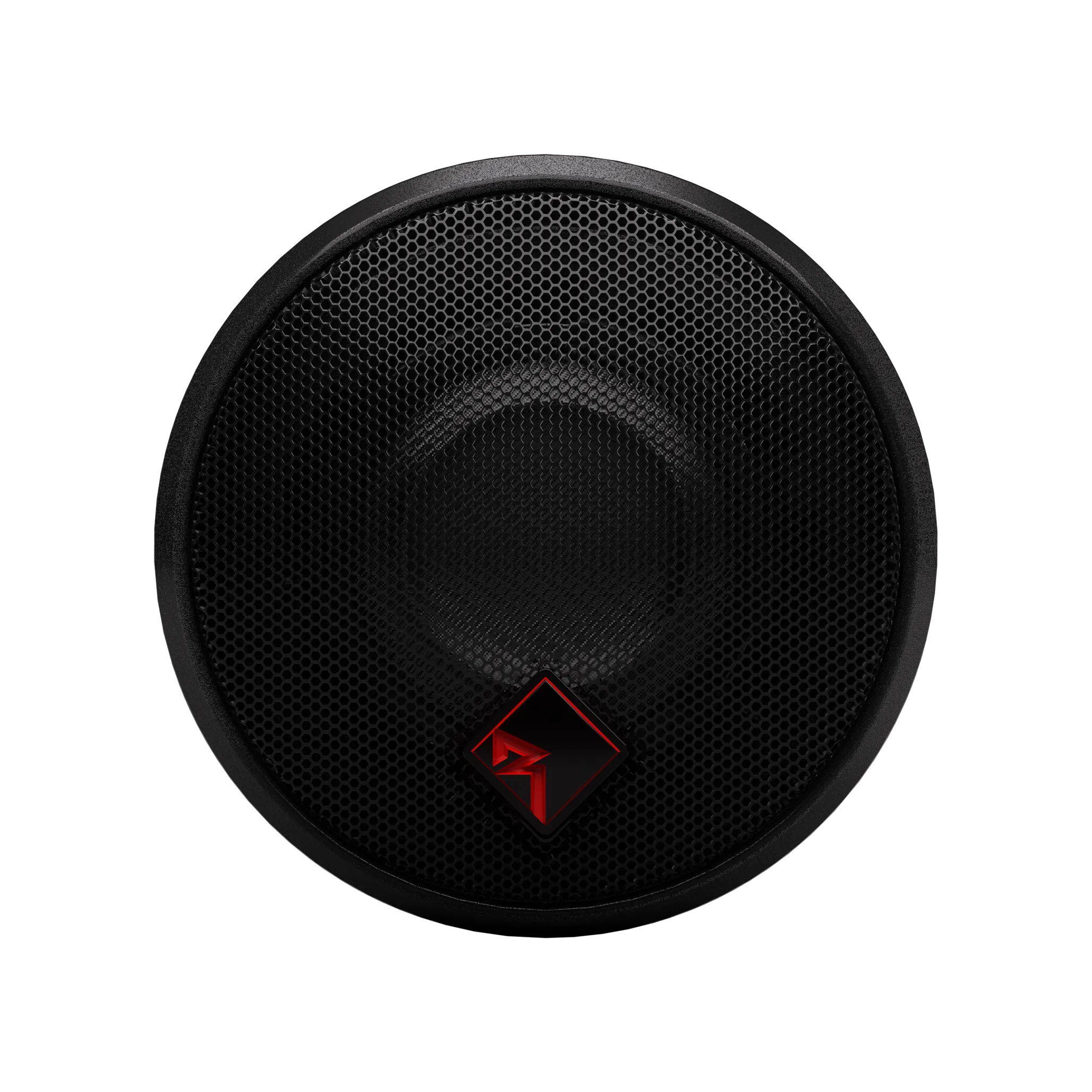

Grilles Included: Tweeter grilles are included with both the flush-mount and surface-mount cups.
CTA-2031 Compliant and Klippel Verified: Power handling conforms to CTA-2031 industry standards. Klippel verified.
2-Year Warranty: Backed by Rockford Fosgate's 2-year manufacturer warranty.

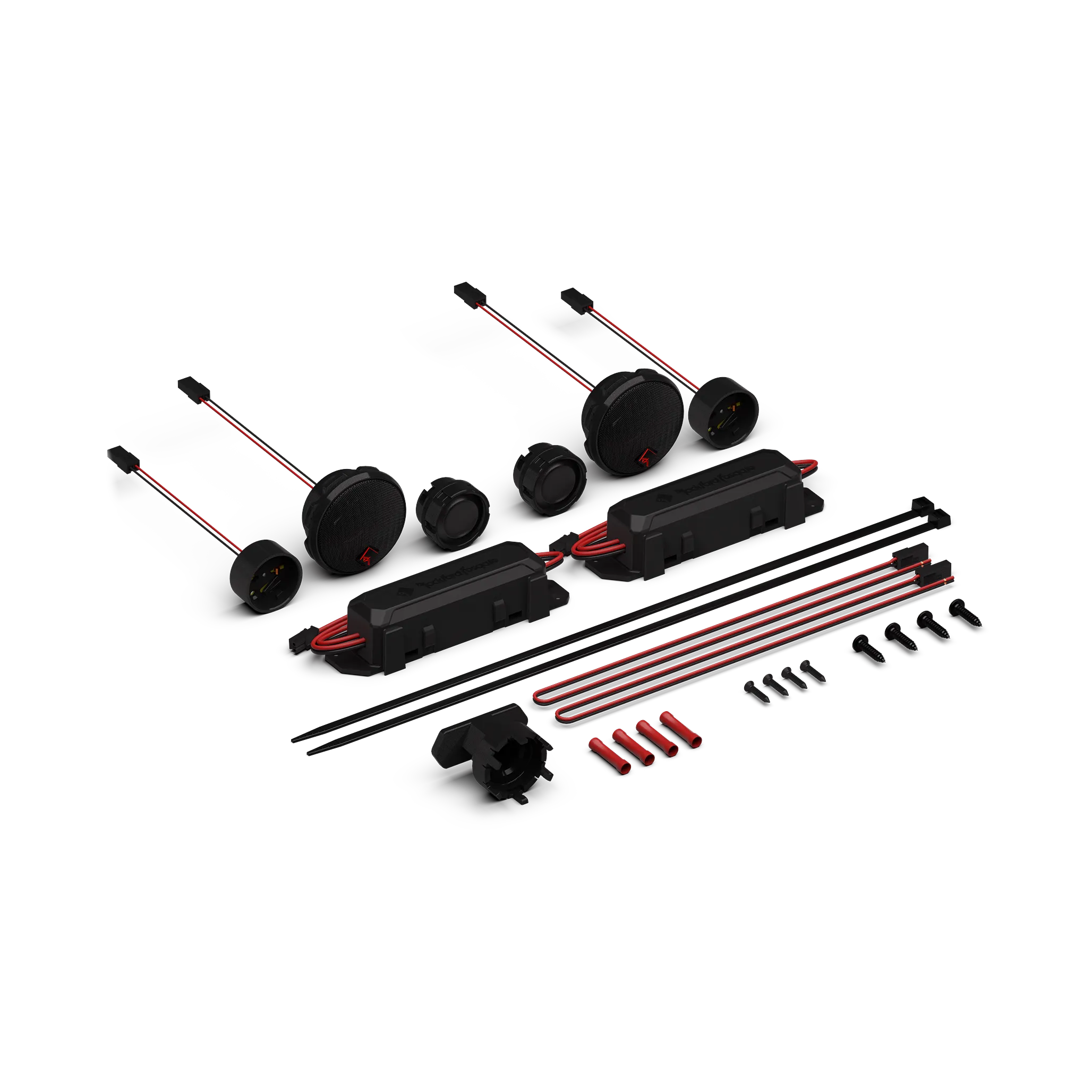

What's in the Box
- 2 x 3/4" 4Ω Tweeters (with Grilles)
- 2 x Flush-Mount Tweeter Cups
- 2 x Surface-Mounting Tweeter Cups
- 2 x Passive Crossover Networks (Tweeter)

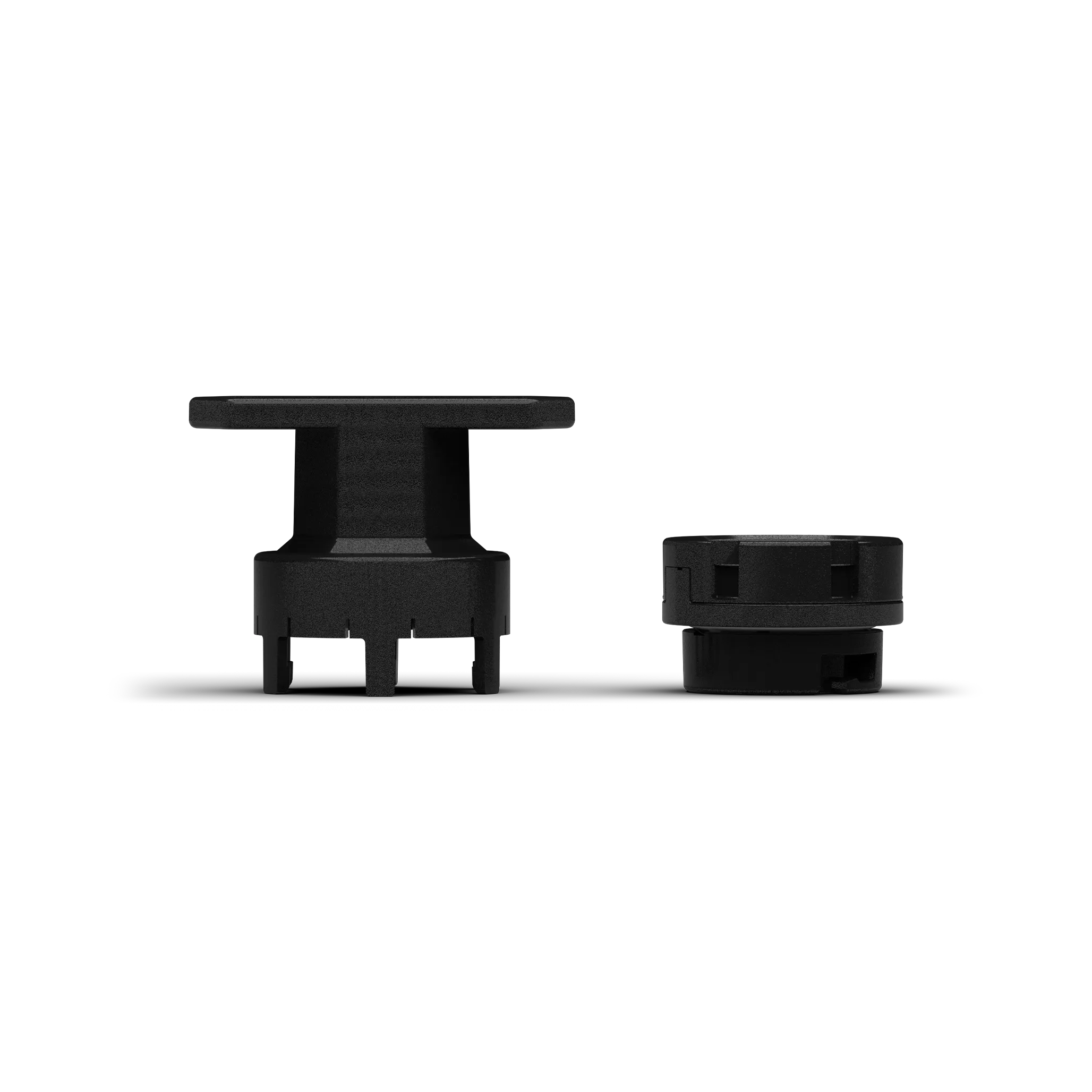

- 1 x Tweeter Removal Tool
- 2 x Crossover Wiring Extensions (18", 457mm)
- 4 x Self-Tapping Phillips #4x16mm (Tweeter)
- 4 x Self-Tapping Phillips #8x20mm (Crossover)
- 4 x 18 AWG Crimp Butt Connectors
- 2 x Zip Ties (4.8mm x 350mm)
Technical Specs
| Specification | Detail |
|---|---|
| SKU | P2V2-TS |
| Brand | Rockford Fosgate |
| Series | Punch P2 |
| Speaker Type | Tweeter Kit |
| Sold As | Pair |
| Tweeter Nominal Diameter | 3/4" (19mm) |
| Voice Coil Diameter | 0.75" (19mm) |
| Nominal Impedance | 4Ω |
| Power Handling | 75W RMS / 150W Peak (CTA-2031) |
| Sensitivity | 90dB at 1W/1M |
| Sensitivity (2.83V/1M) | 93dB |
| Frequency Response | 3.5kHz-25kHz |
| Fs | 3.5kHz |
| Crossover | 9kHz at 12dB/Oct (External Passive) |
| Tweeter Attenuation | 0dB or -3dB |
| Flush Mount Diameter | 1.54" (39mm) |
| Surface Mount Diameter | 1.22" (31.1mm) |
| Flush Mount Depth | 0.78" (19.9mm) |
| Surface Mount Depth | 0.57" (14.4mm) |
| Flush Front Side Clearance | 0.44" (11.2mm) |
| Surface Front Side Clearance | 0.49" (12.4mm) |
| Grilles Included | Yes |
| Standards | CTA-2031 Compliant, Klippel Verified |
| Warranty | 2 Years |
| Shipping Weight | 0.45kg |
Compatible With
The P2V2-TS is compatible with any audio system requiring a high-performance 4Ω 3/4" tweeter with external passive crossover. The 1.5" hole-saw cutout required for flush mounting suits most factory tweeter locations and custom panels. Surface mounting requires no panel cutout. The P2V2-TS tweeters are the same unit supplied with all P2V2 convertible speakers, making them fully compatible as replacements or additions to any existing P2V2 installation.
Frequently Asked Questions
Can the P2V2-TS tweeters be added to an existing P2V2 convertible speaker installation?
Yes. The P2V2-TS uses the same 3/4" Tetolon inverted dome tweeter and crossover components supplied with the P2V2 convertible speaker range. They are fully compatible as additional or replacement tweeters for any P2V2 installation.
What is the difference between flush-mount and surface-mount installation?
Flush mounting requires a 1.5" hole-saw cutout in a panel up to 3/8" thick, resulting in a clean flush-panel tweeter appearance. Surface mounting requires no panel cutting, with the cup sitting on the panel surface. The flush-mount cup has a larger 39mm mounting diameter at 19.9mm depth; the surface-mount cup has a 31.1mm diameter at 14.4mm depth.
Does the P2V2-TS include a crossover?
Yes. Two MC3 passive crossover networks are included, providing a 12dB/octave crossover at 9kHz with switchable 0dB or -3dB tweeter attenuation.
Are grilles included with the P2V2-TS?
Yes. Grilles are included with both the flush-mount and surface-mount tweeter cups.
What is the crossover point of the P2V2-TS?
The included passive crossover network provides a 12dB/octave highpass crossover at 9kHz, limiting the tweeter to frequencies above 9kHz where it operates most efficiently.
