Rockford Fosgate P2V2-69 Punch 6x9" 2-Way Convertible Speakers 75W

Rockford Fosgate P2V2-69 Punch P2 6"x9" 2-Way Convertible Car Speakers 75W RMS

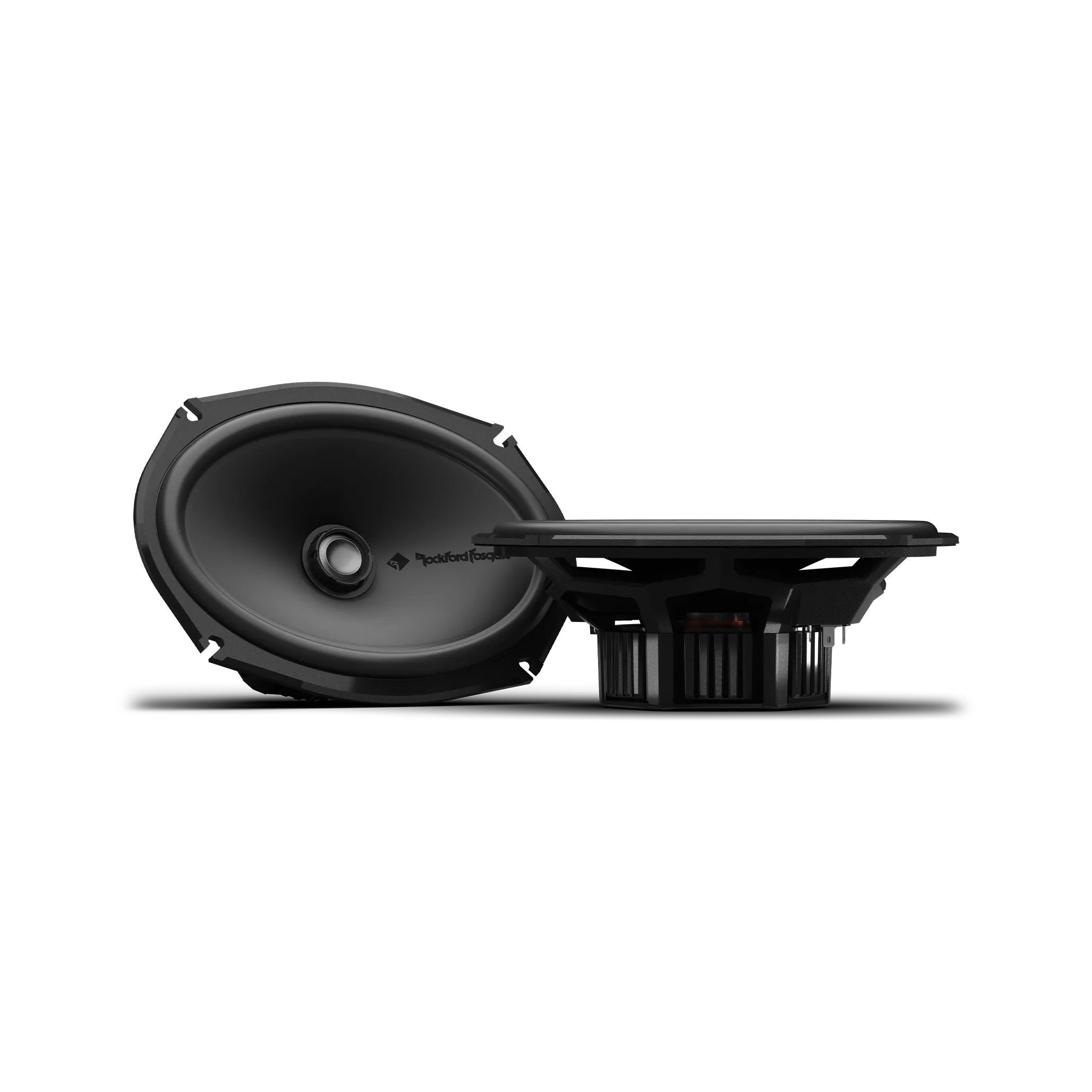

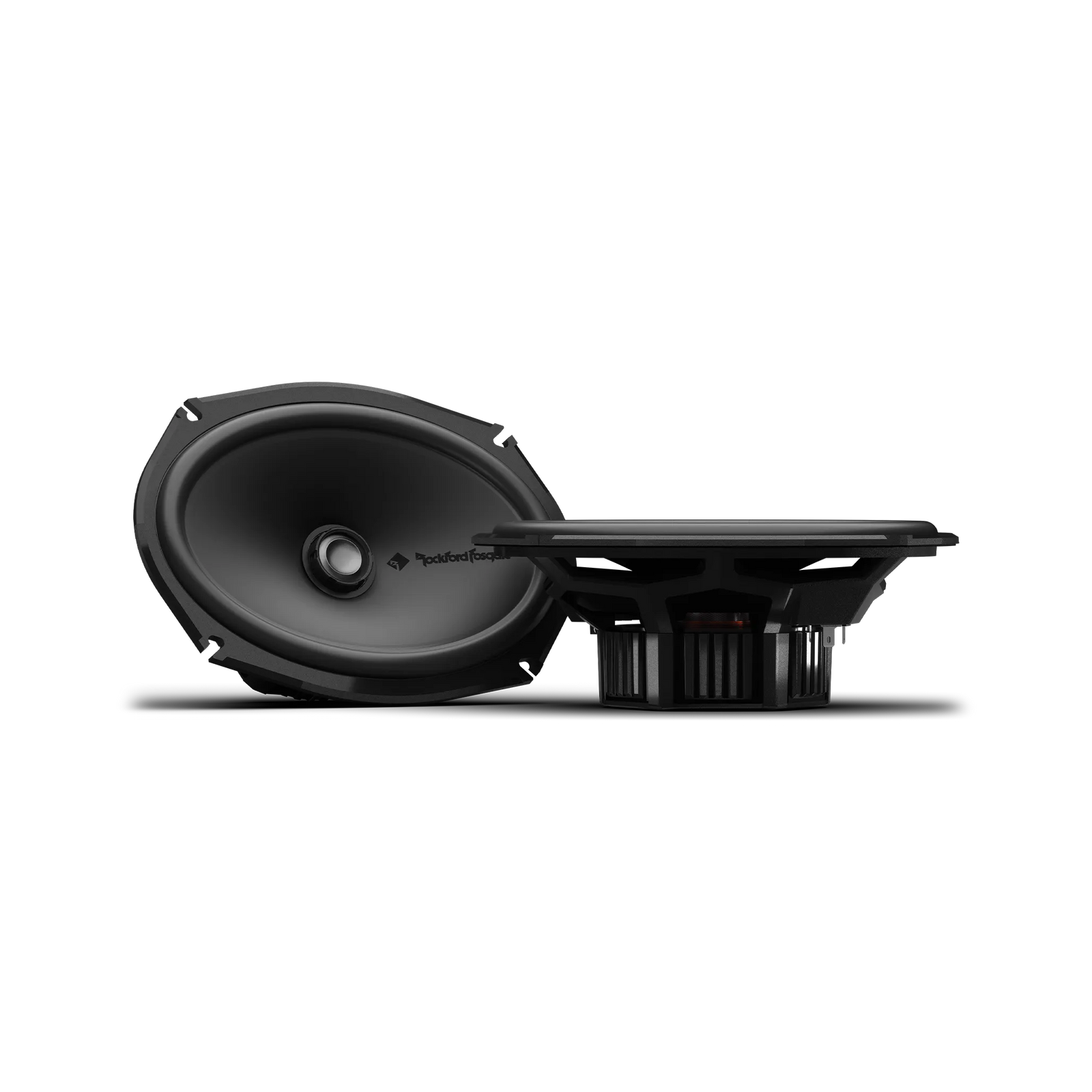

A pair of 6"x9" 2-way convertible car speakers from Rockford Fosgate, the P2V2-69 delivers 75W RMS and 150W peak per speaker with the I.L.M. (Interchangeable Locking Mechanism) allowing configuration as a coaxial or component system, VAST 2.0 cone technology, 3/4" Tetolon inverted dome edge-driven tweeter, ICC+ integrated concealed crossover (6dB internal, 12dB external), MC3 multi-configuration crossover chassis, 15% glass-fibre reinforced PA66 composite basket, Santoprene half-roll surround, Nomex spider, removable motor cover, 90dB sensitivity, 45Hz-25kHz frequency response, 4Ω impedance, and full installation hardware. Sold in pairs.

Product Overview

The Rockford Fosgate P2V2-69 is the 6"x9" model in the Punch P2 convertible speaker range, sharing the same platform, technology stack, and feature set as the smaller P2V2 models but with a 6"x9" oval cone for direct drop-in replacement of factory 6"x9" oval speaker locations. The larger 6"x9" format delivers the highest sensitivity in the P2V2 range at 90dB at 1W/1M (93dB at 2.83V/1M), the same low-frequency extension as the 6"x8" model at 45Hz, and a deeper mounting depth of 79.4mm with motor cover (64.7mm without) to accommodate the larger motor and cone assembly.

The I.L.M. bayonet-style interchangeable locking mechanism allows the tweeter to be locked into the woofer cup for coaxial operation in single-speaker factory rear deck and door locations, or removed and relocated to a separate flush-mount or surface-mount tweeter cup for 2-way component staging in vehicles with separate tweeter positions. A woofer phase plug is included for component configurations. VAST 2.0 V-shape surround geometry delivers 25% increased effective cone area. The 3/4" Tetolon inverted dome edge-driven tweeter provides broad high-frequency dispersion at the 9kHz crossover point. Upgradable to a 3-way component system with the addition of the P3V2-25 midrange speaker. CTA-2031 compliant and Klippel verified. Grilles sold separately. 2-year warranty.

Features & Benefits

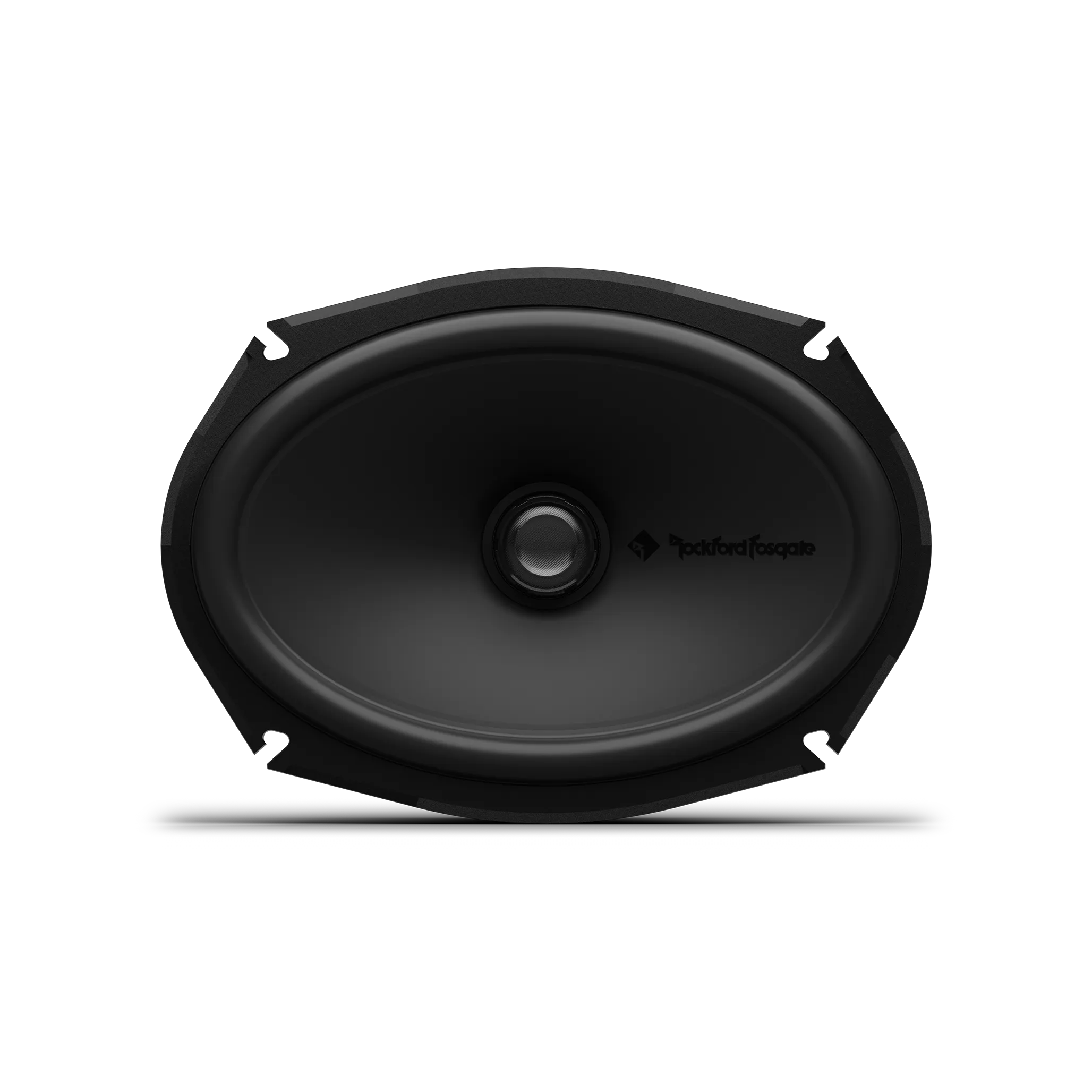

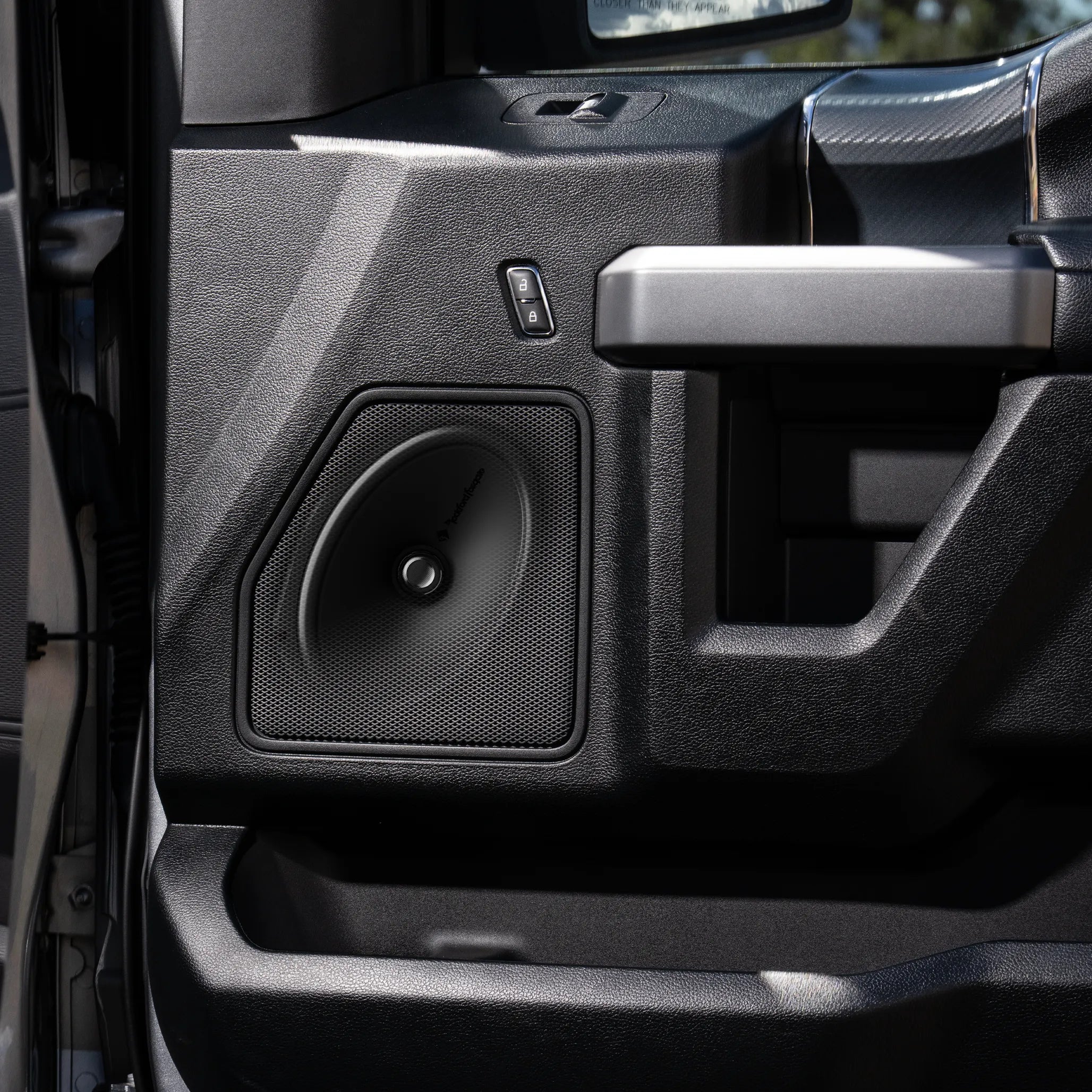

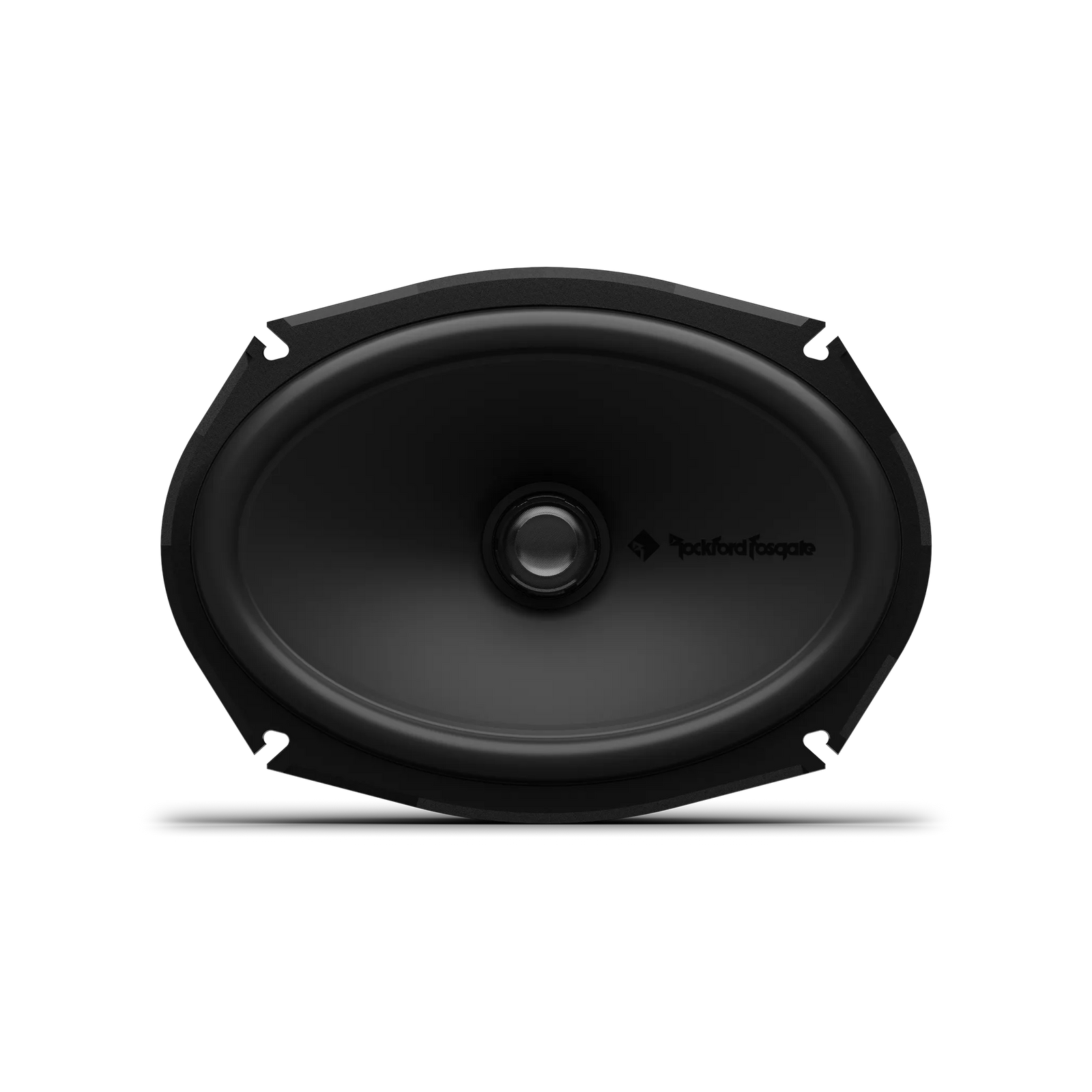

6"x9" Oval Format - Direct Drop-In for Factory 6x9 Locations: The 6"x9" oval cone and 8.41" x 5.71" (213.5 x 145mm) oval cutout provide a purpose-designed direct drop-in replacement for factory 6"x9" speaker locations, commonly found in rear decks, rear doors, and some front door positions across many vehicle platforms.

90dB Sensitivity - Highest Output in the P2V2 Range: The larger 6"x9" cone area delivers 90dB sensitivity at 1W/1M (93dB at 2.83V/1M), the highest sensitivity of any model in the P2V2 range, providing more output per watt for efficient use with factory or lower-power aftermarket head unit amplification.

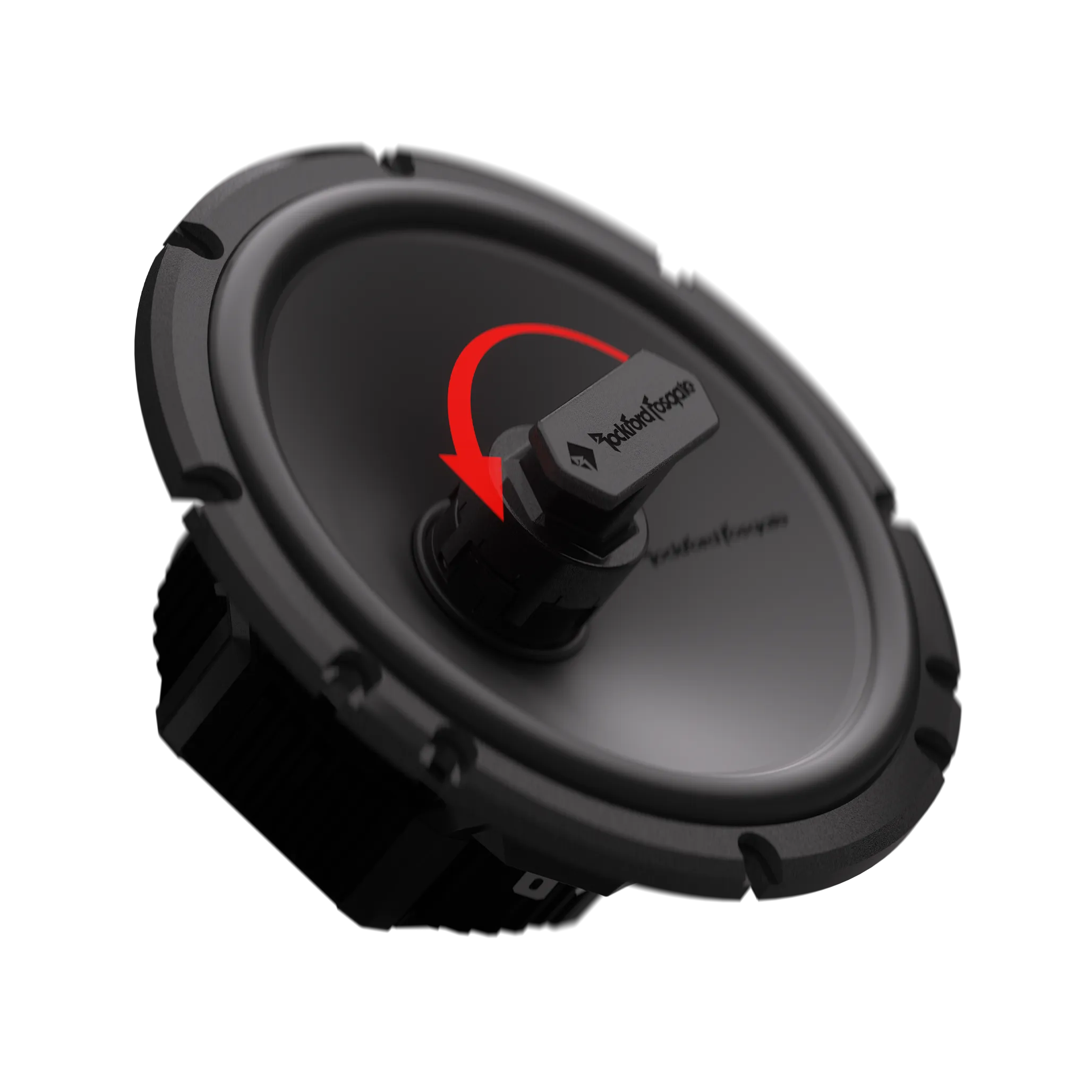

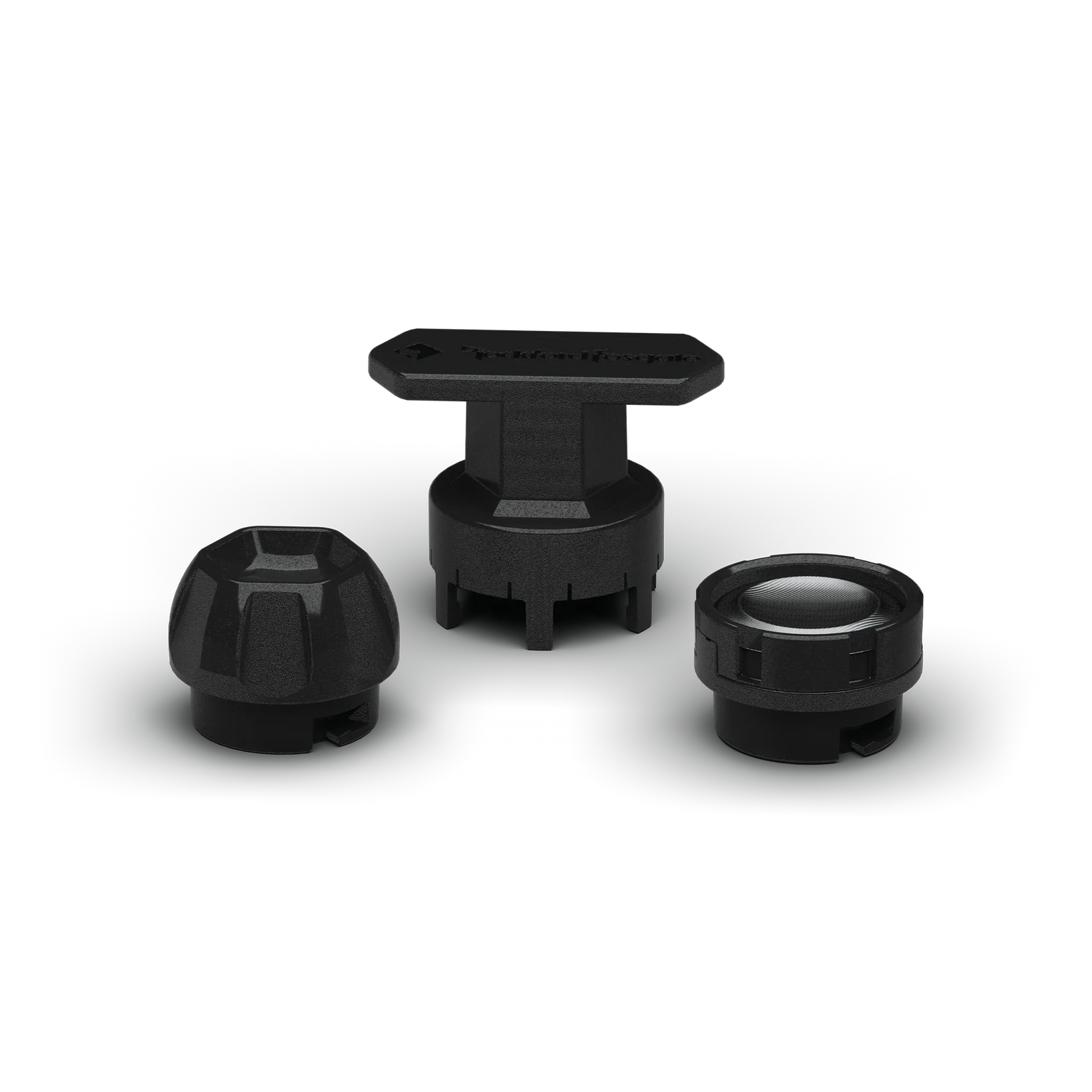

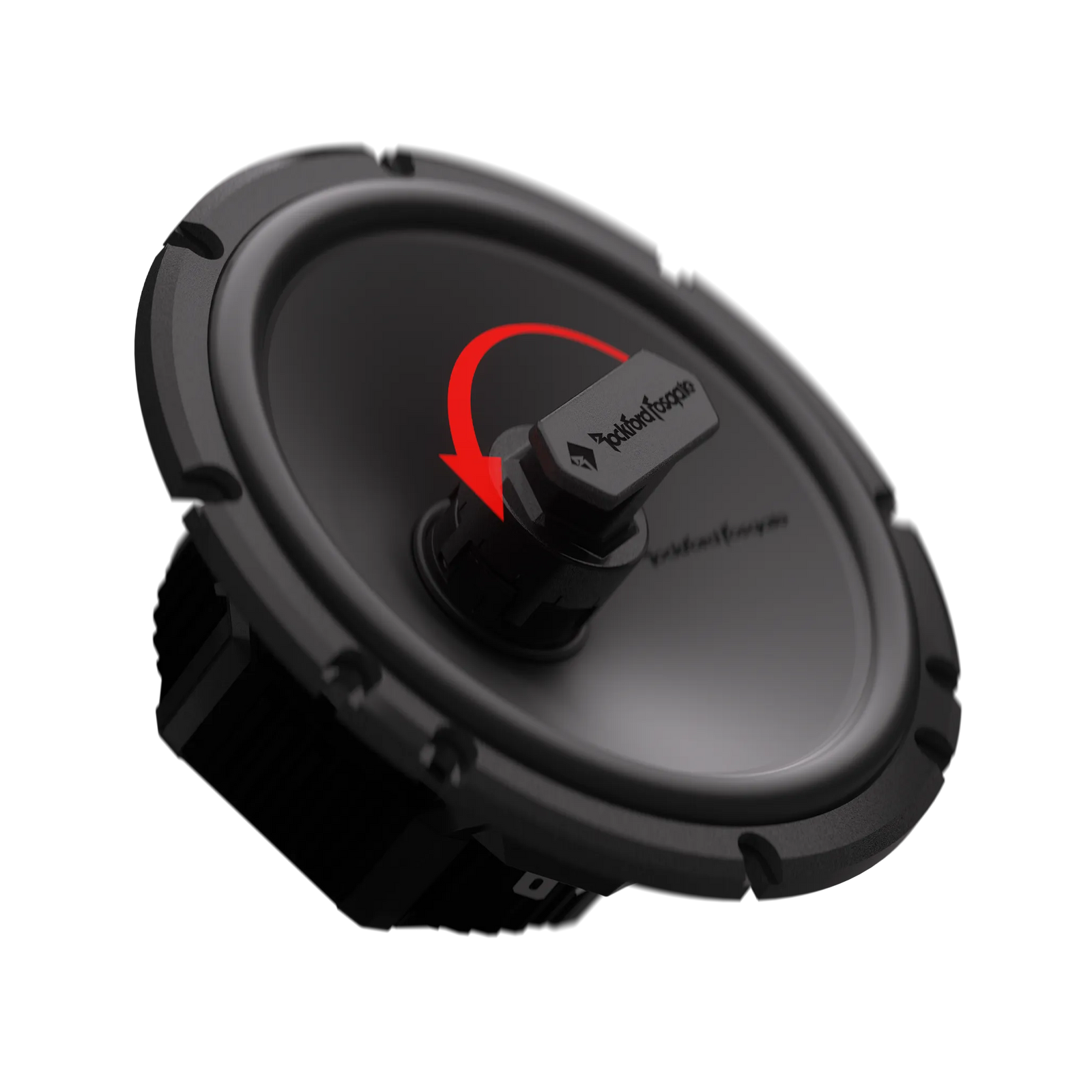

I.L.M. - Coaxial or Component Configuration from a Single Speaker: The bayonet-style I.L.M. allows the tweeter to be locked into the woofer cup for coaxial operation or relocated to a separate flush-mount or surface-mount tweeter cup for 2-way component staging, with a woofer phase plug included for component configurations.

VAST 2.0 - 25% Increase in Effective Cone Area: V-shape surround attachment geometry increases the surround-to-frame bonding surface area for 25% more effective cone area, delivering higher output and deeper bass compared to conventional surround mounting.

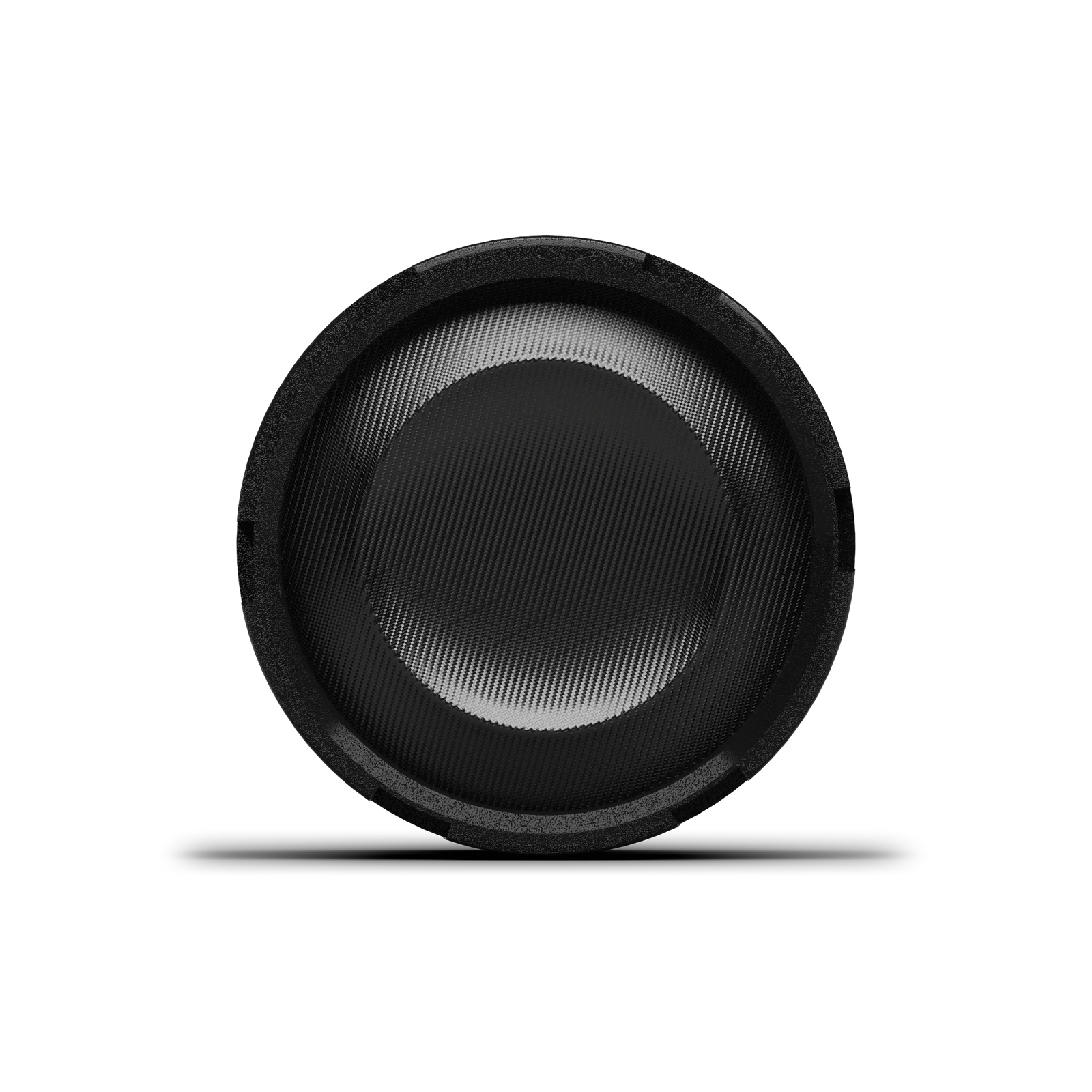

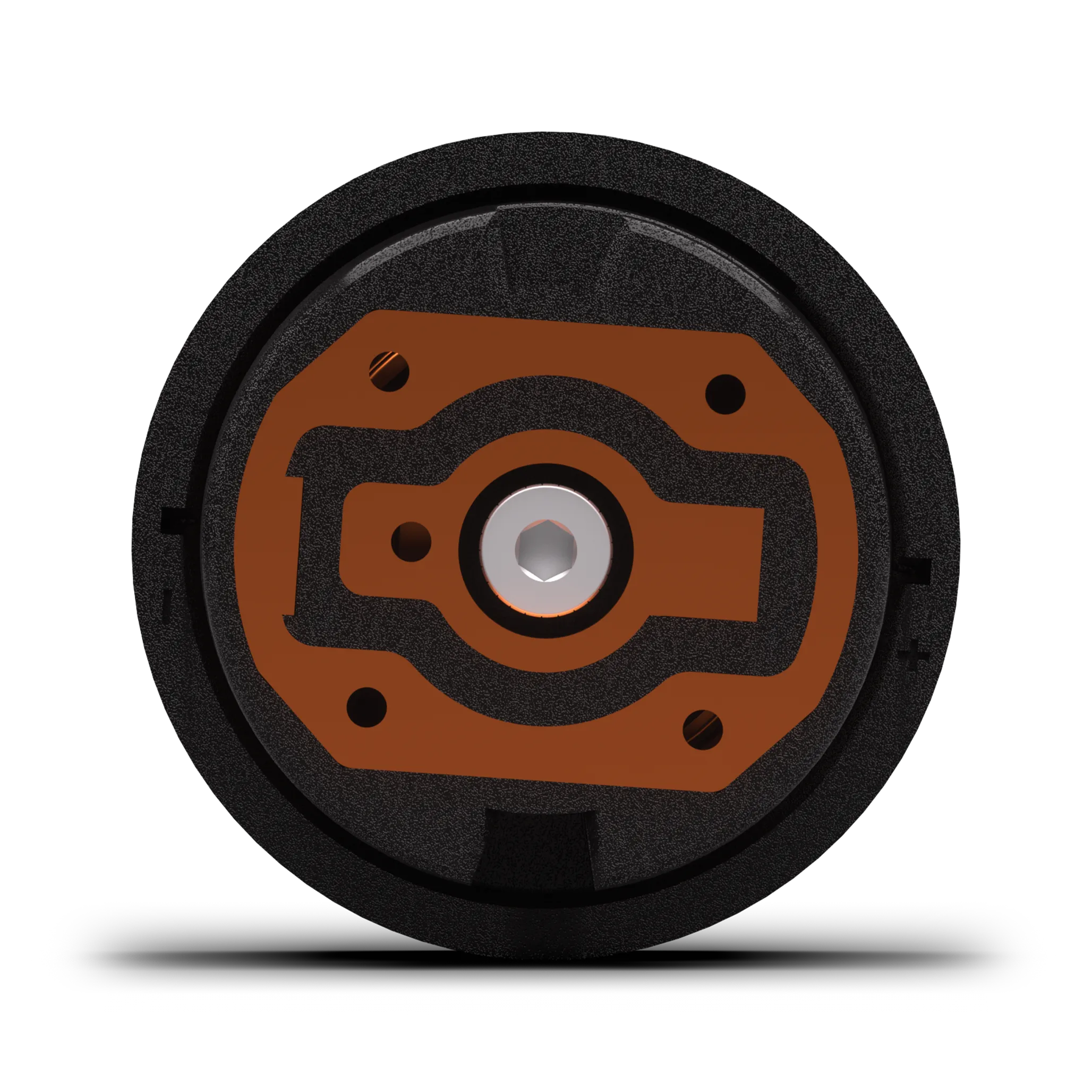

3/4" Tetolon Inverted Dome Edge-Driven Tweeter: The 19mm Tetolon inverted dome tweeter uses an edge-driven voice coil for superior power handling, broad high-frequency dispersion, and precise imaging across the 9kHz crossover point.

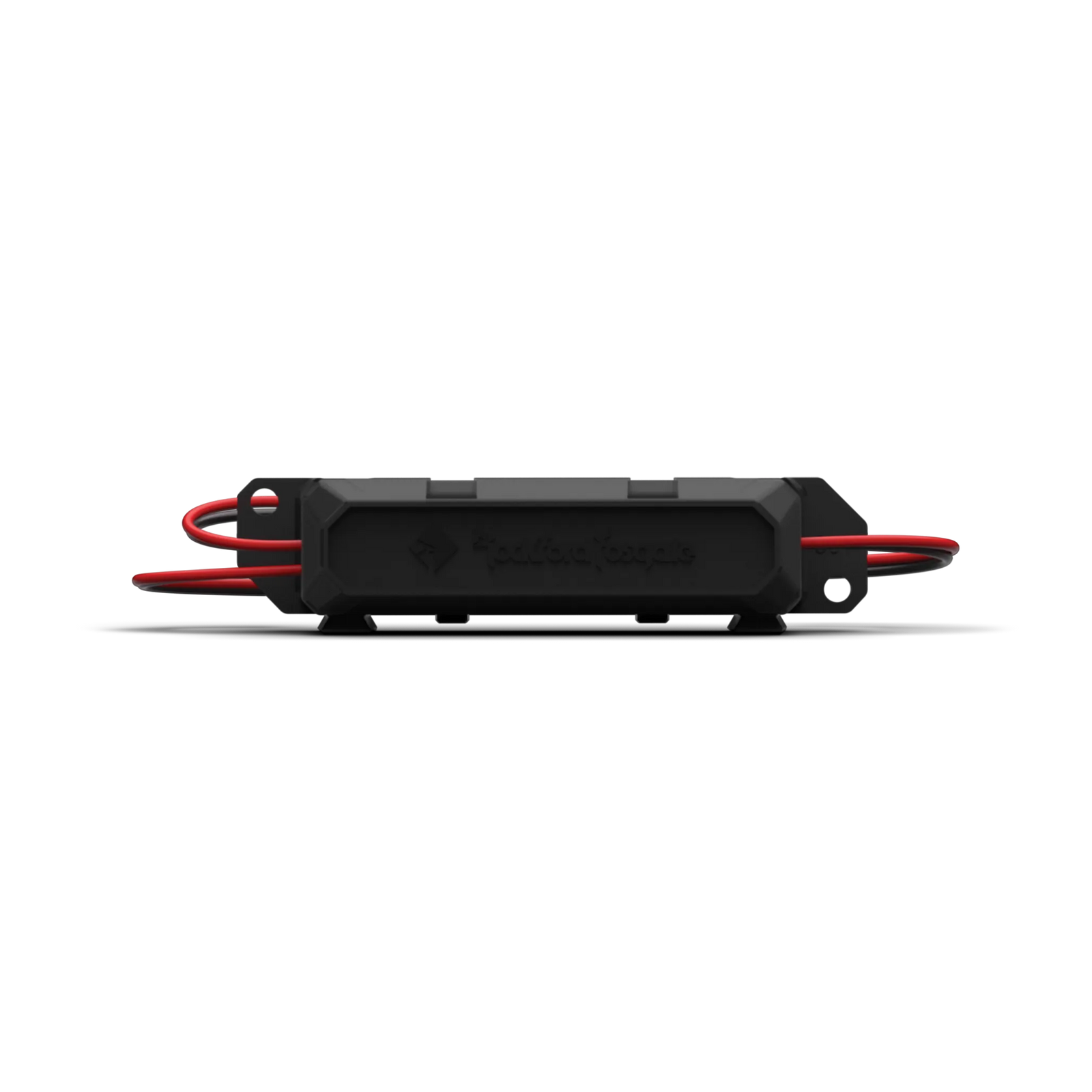

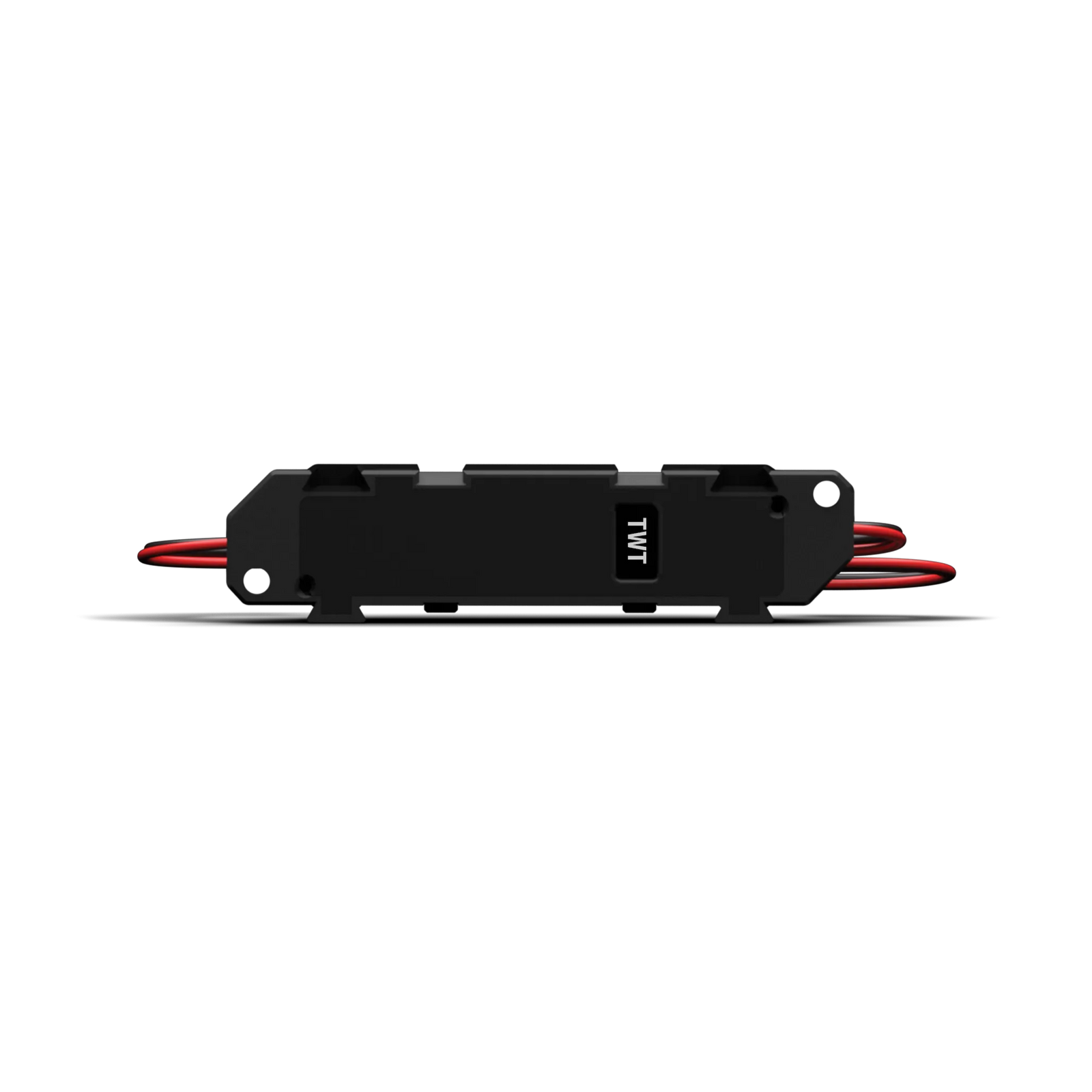

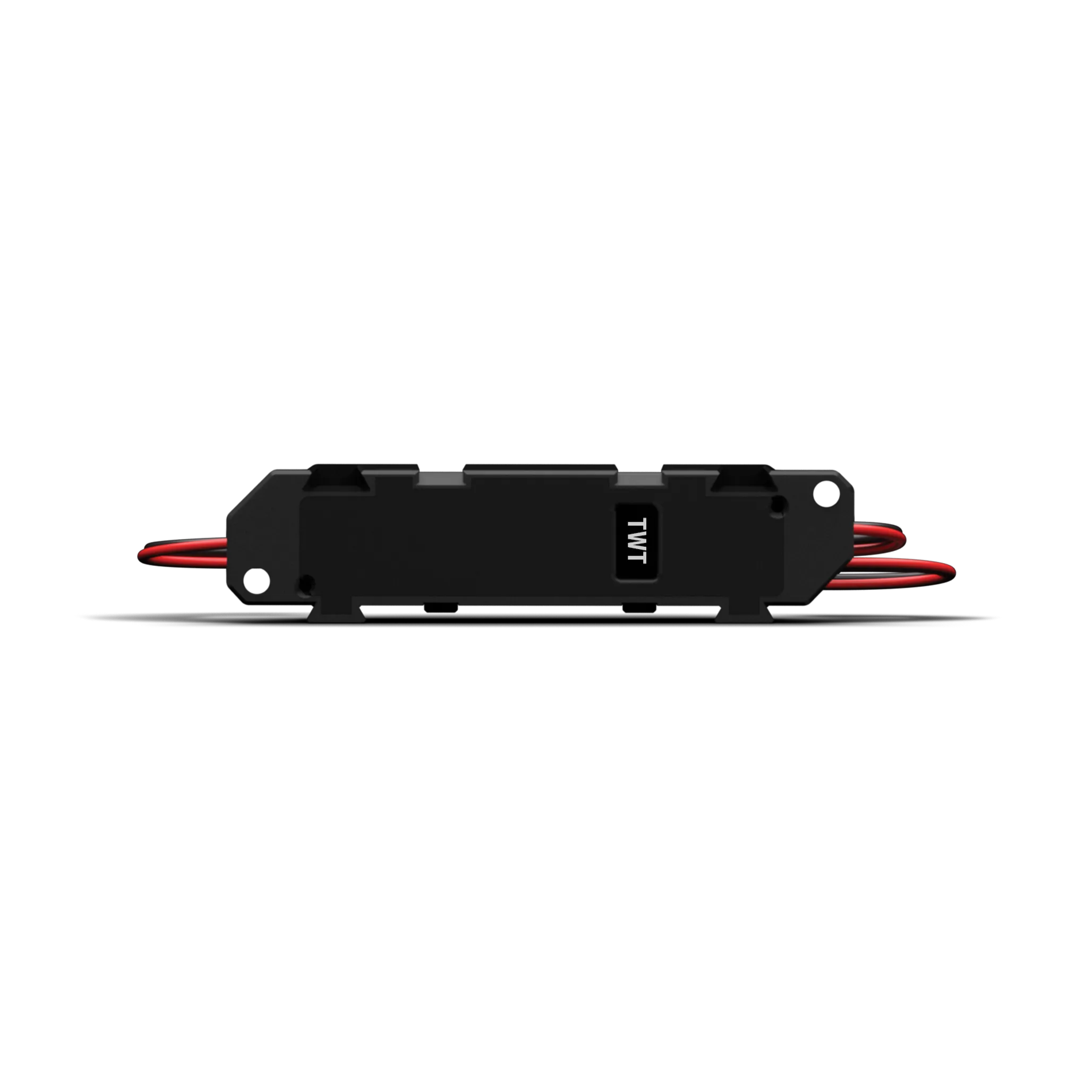

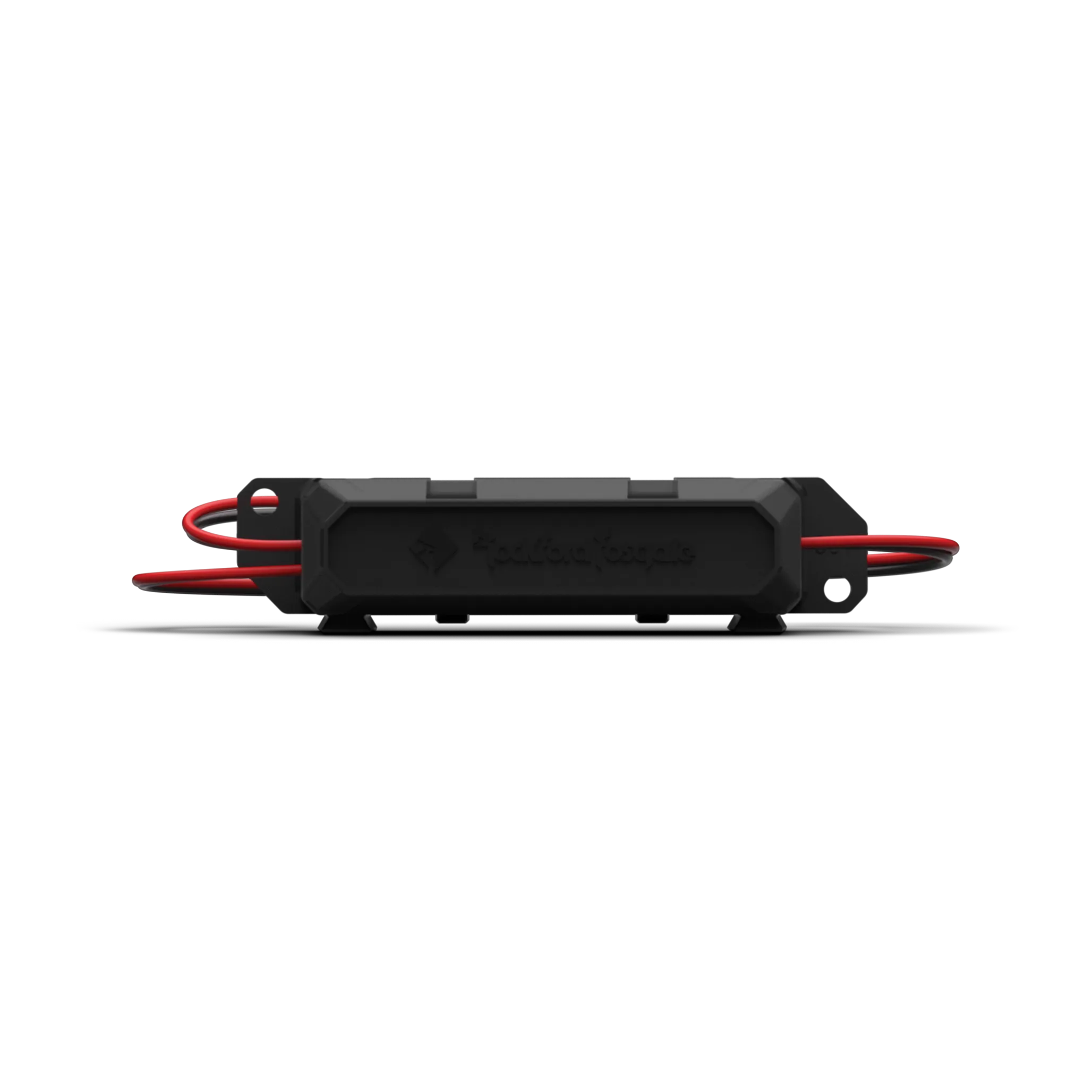

ICC+ Crossover - 6dB Internal and 12dB External Options: Integrated concealed crossover at 9kHz 6dB/octave within the basket, with an included external passive crossover providing 12dB/octave and switchable 0dB or -3dB tweeter attenuation.

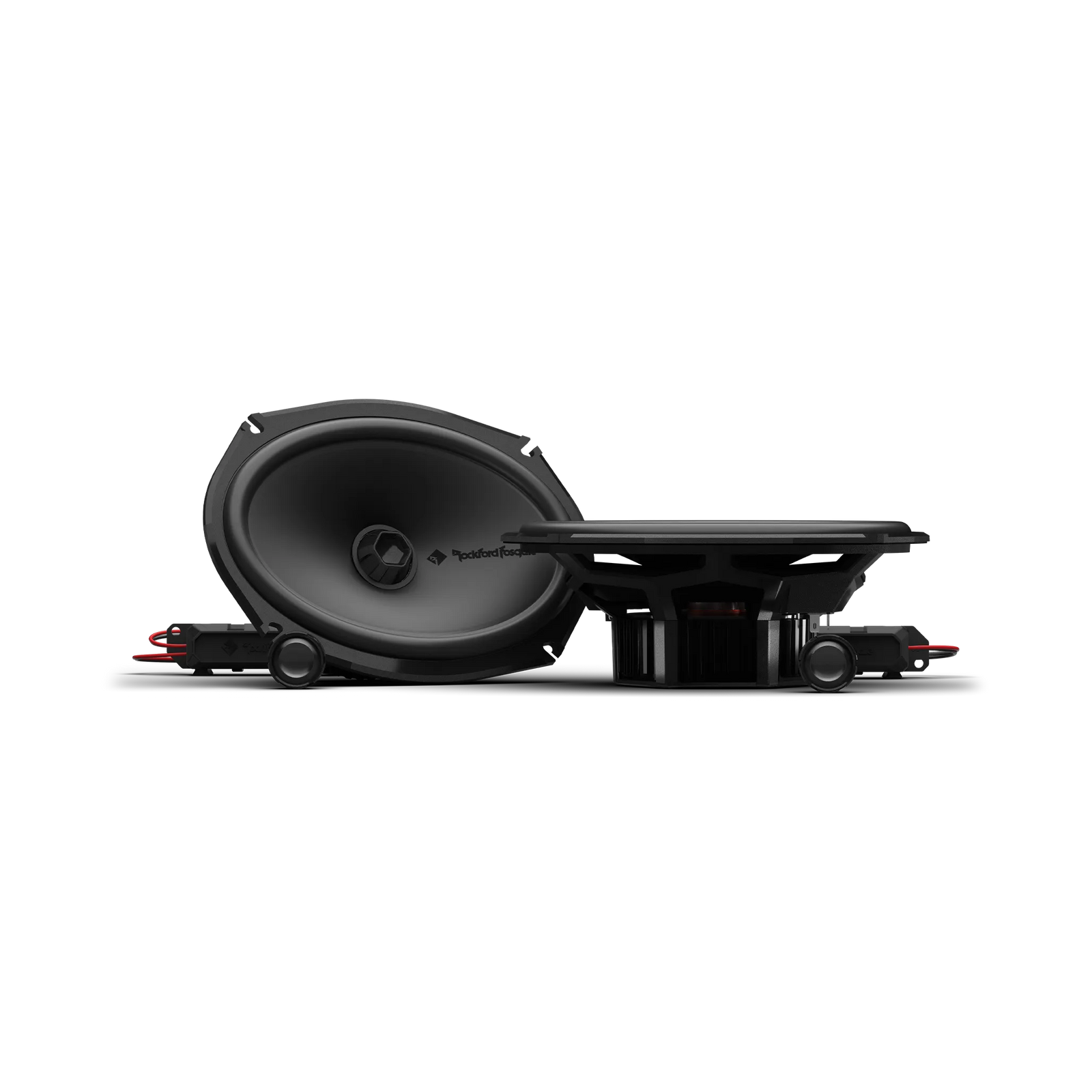

MC3 Multi Configuration Crossover Chassis: The MC3 chassis separates into independent units for flexible positioning or snaps together as a unified structure for single-location installation.

Auto Fit Architecture - Drop-In 6"x9" Factory Location Fitment: Redesigned oval frame with factory-location mounting flanges, 8.41" x 5.71" oval cutout, and removable motor cover for integration into most modern vehicle 6"x9" factory speaker locations.

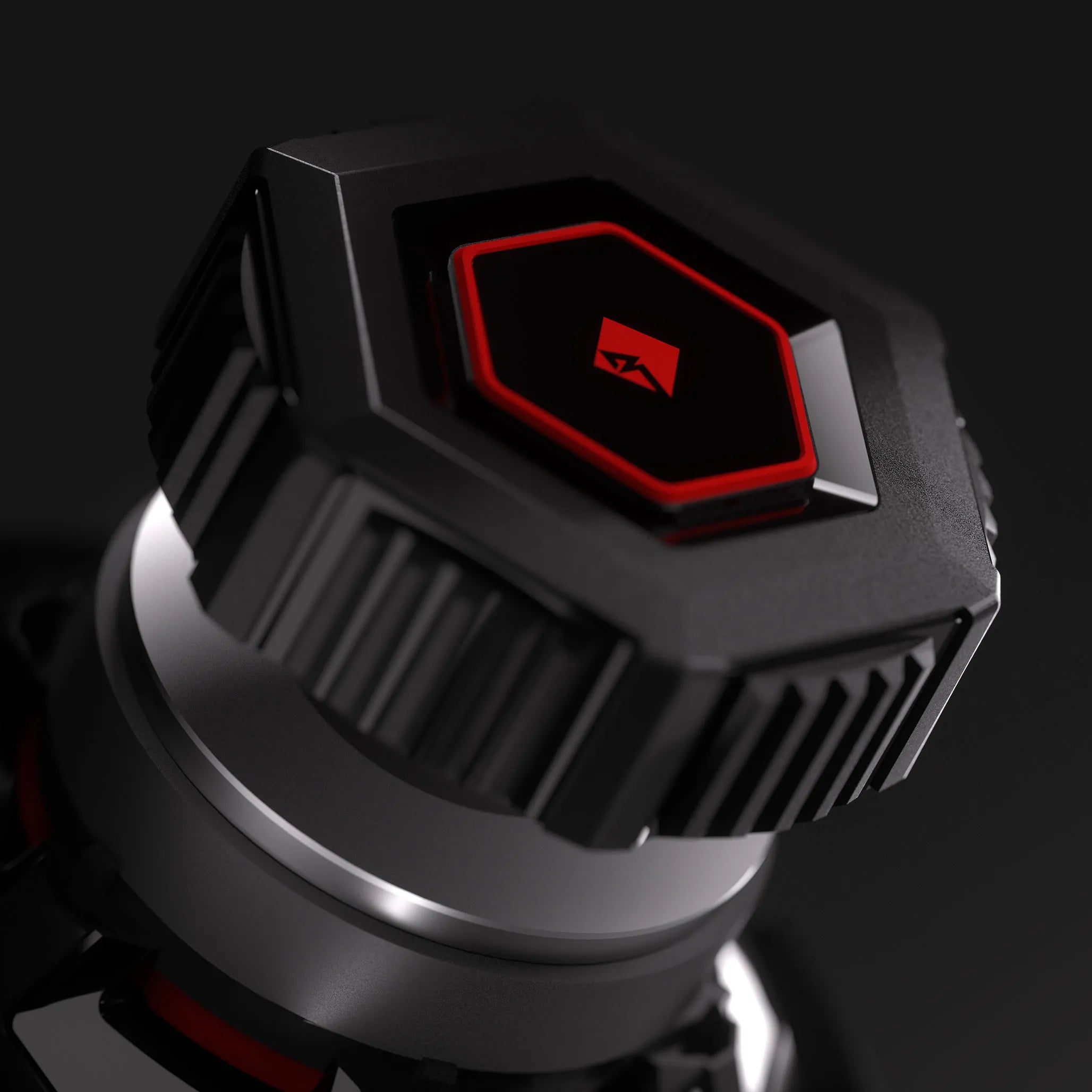

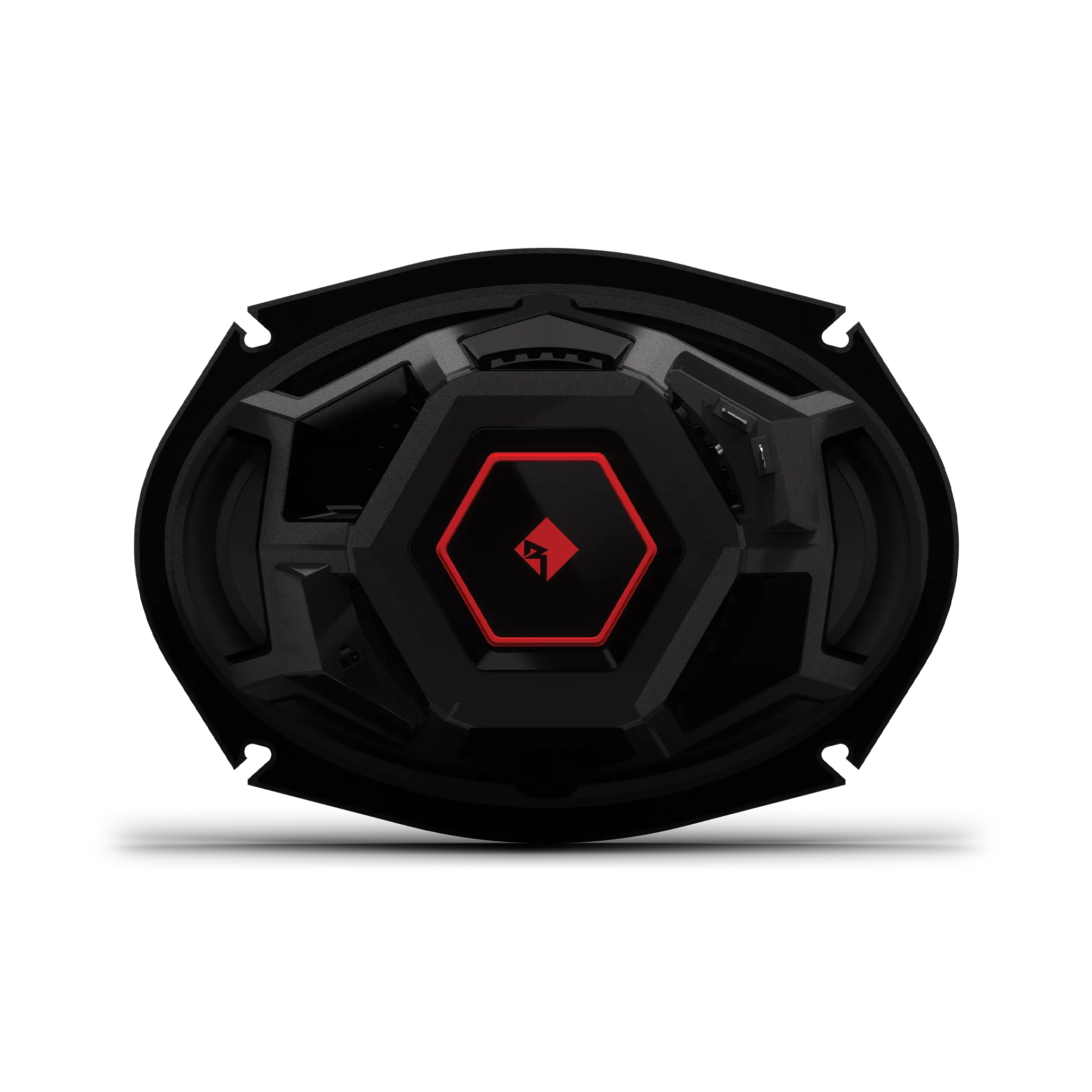

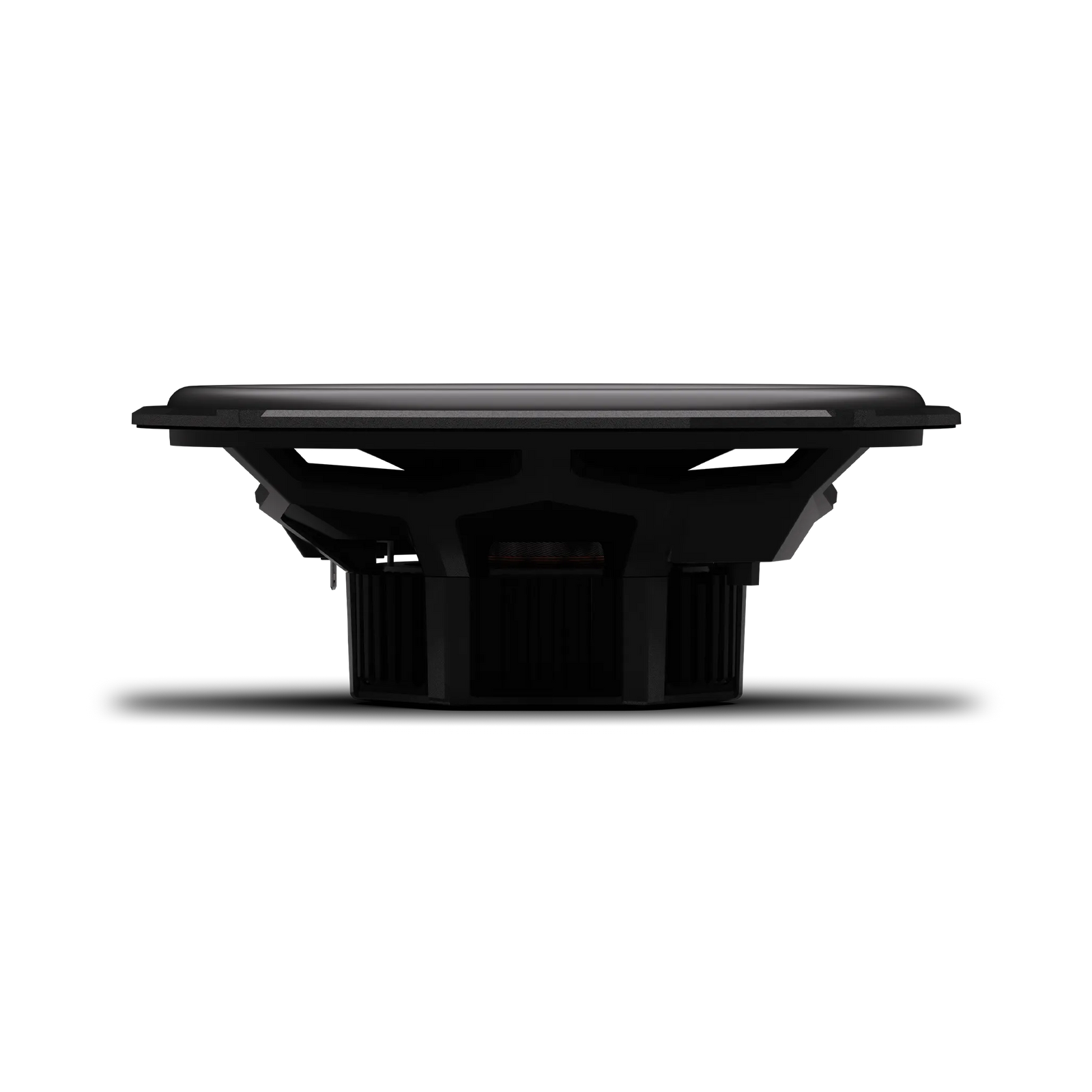

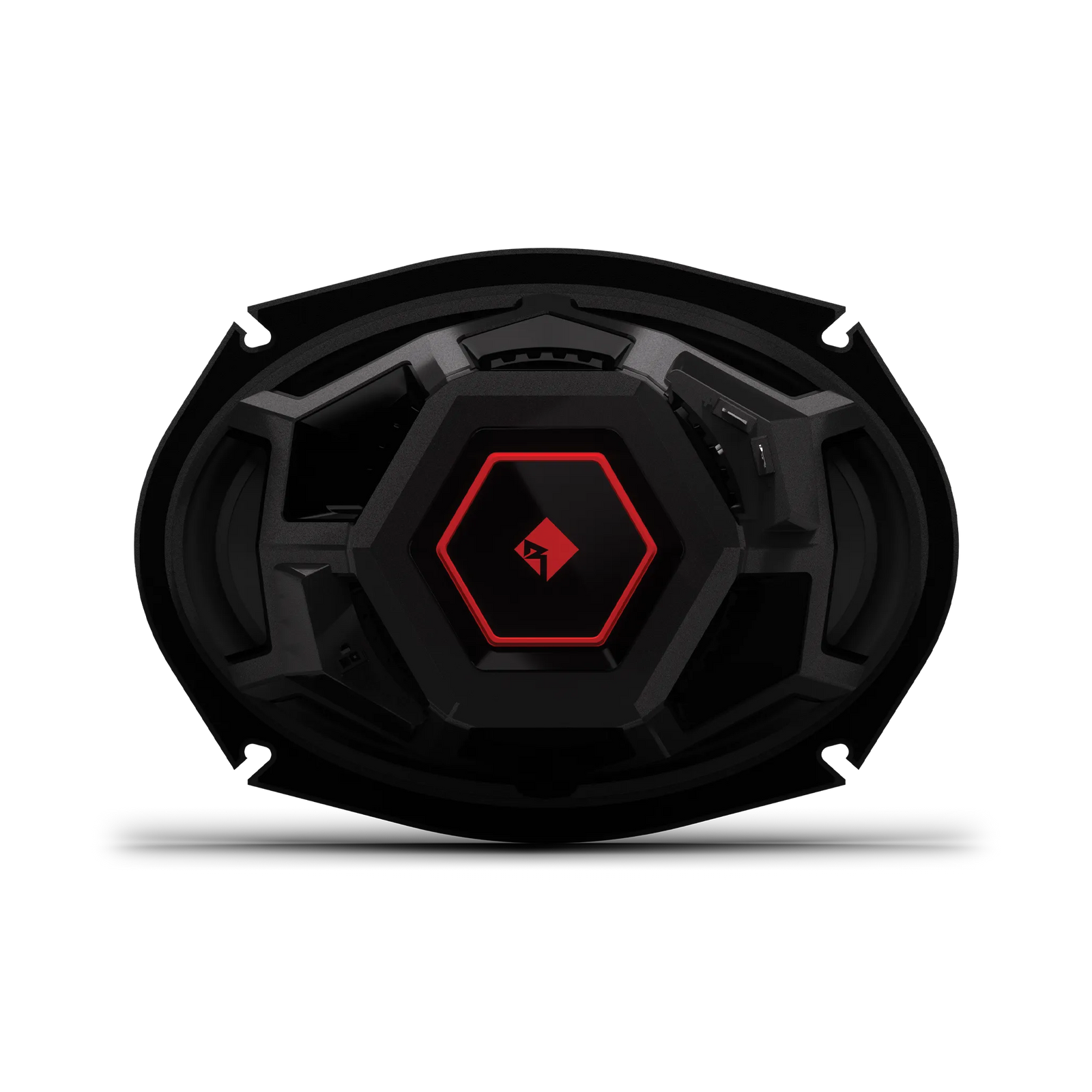

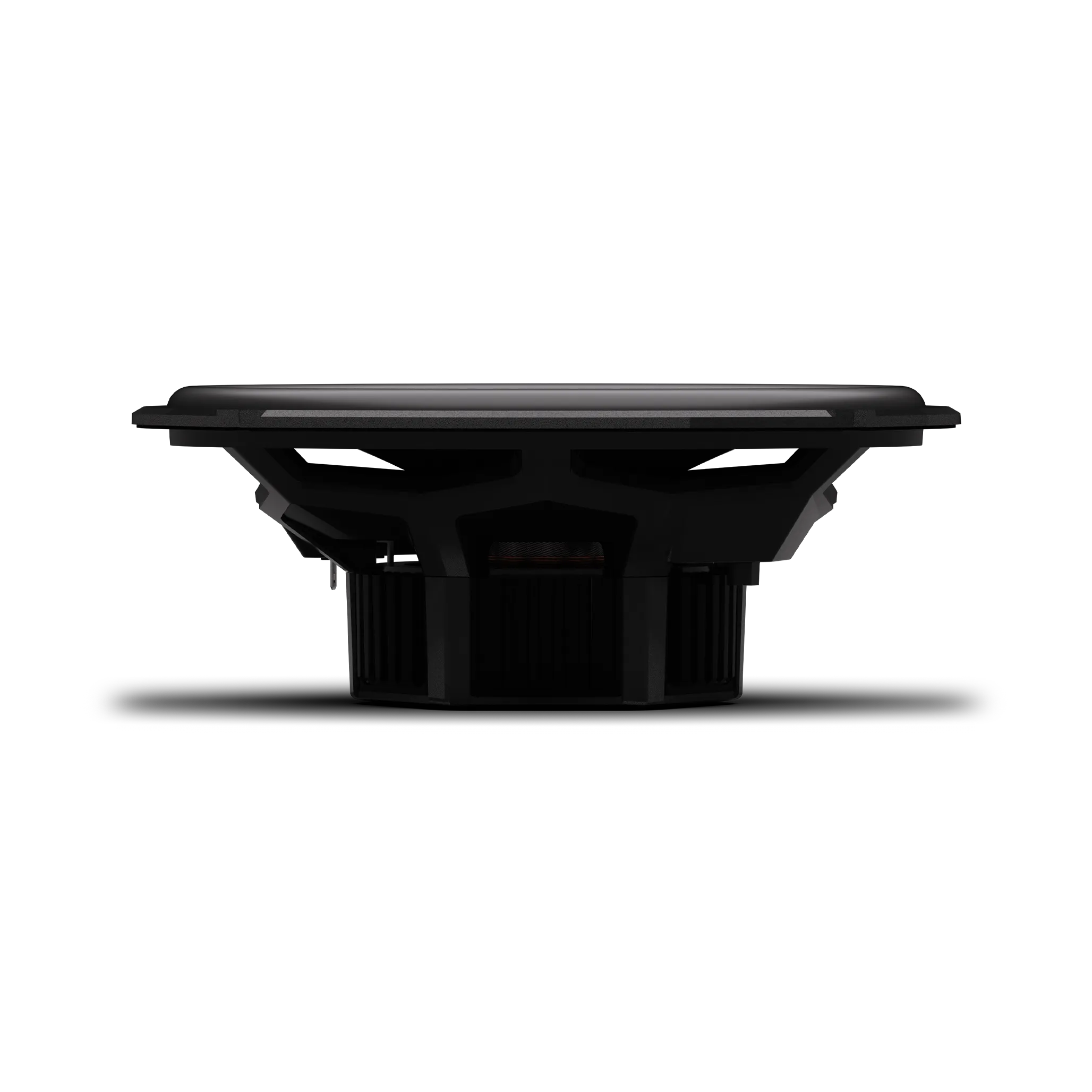

Removable Motor Cover for Tight Applications: Reduces mounting depth from 79.4mm to 64.7mm without the motor cover for installations with limited rear deck or door cavity depth.

Upgradable to 3-Way Component: Upgradable to a 3-way component system with the separately available Rockford Fosgate P3V2-25 midrange speaker.

Durable Material Stack: 15% glass-fibre reinforced PA66 composite basket, Santoprene half-roll surround, Nomex spider with braided tinsel leads, 20-40% mica-reinforced polypropylene curvilinear cone, Y35 ferrite motor (5mm larger than previous generation), and vented Kapton voice coil former.

CTA-2031 Compliant and Klippel Verified: Power handling conforms to CTA-2031 industry standards. Klippel verified.

2-Year Warranty: Backed by Rockford Fosgate's 2-year manufacturer warranty.

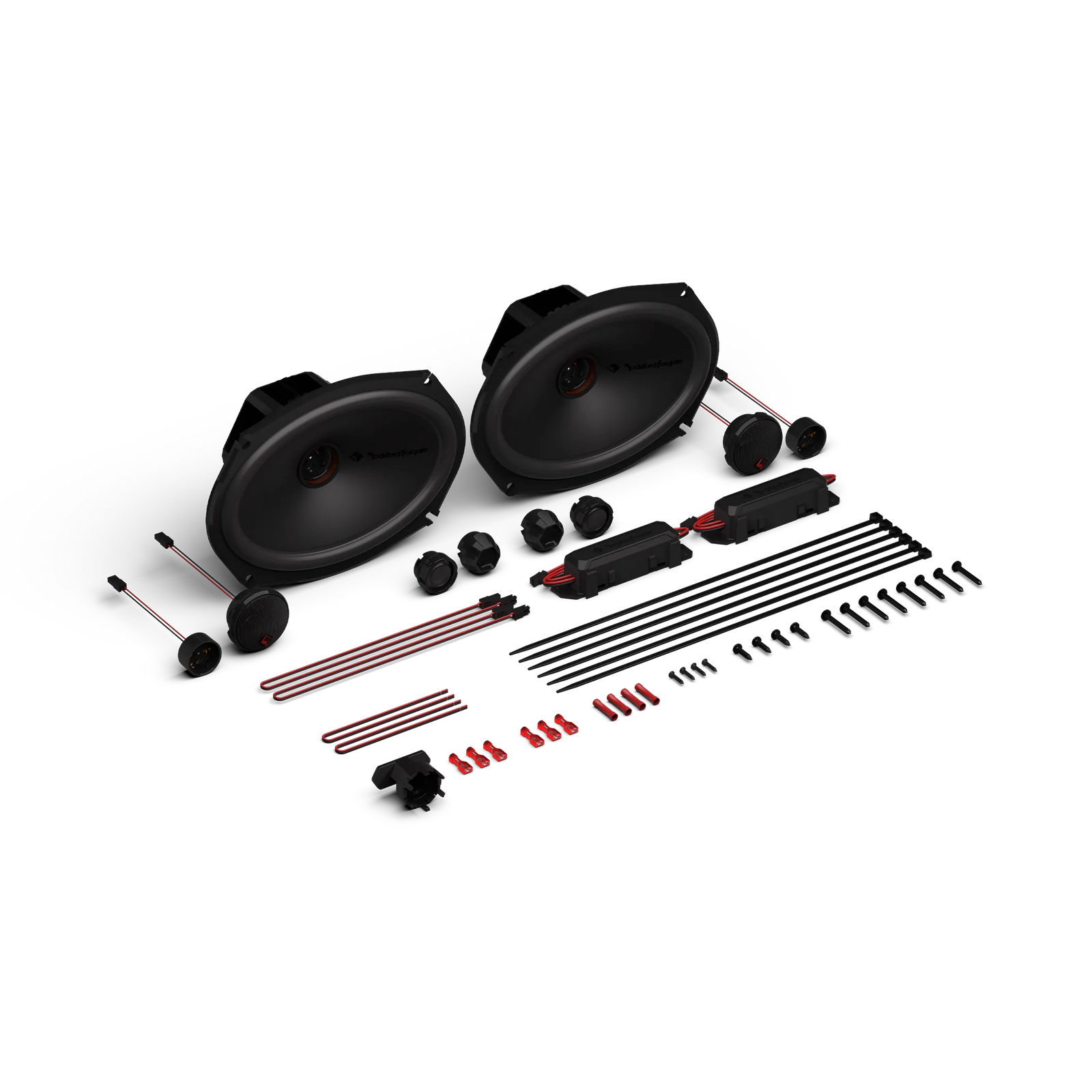

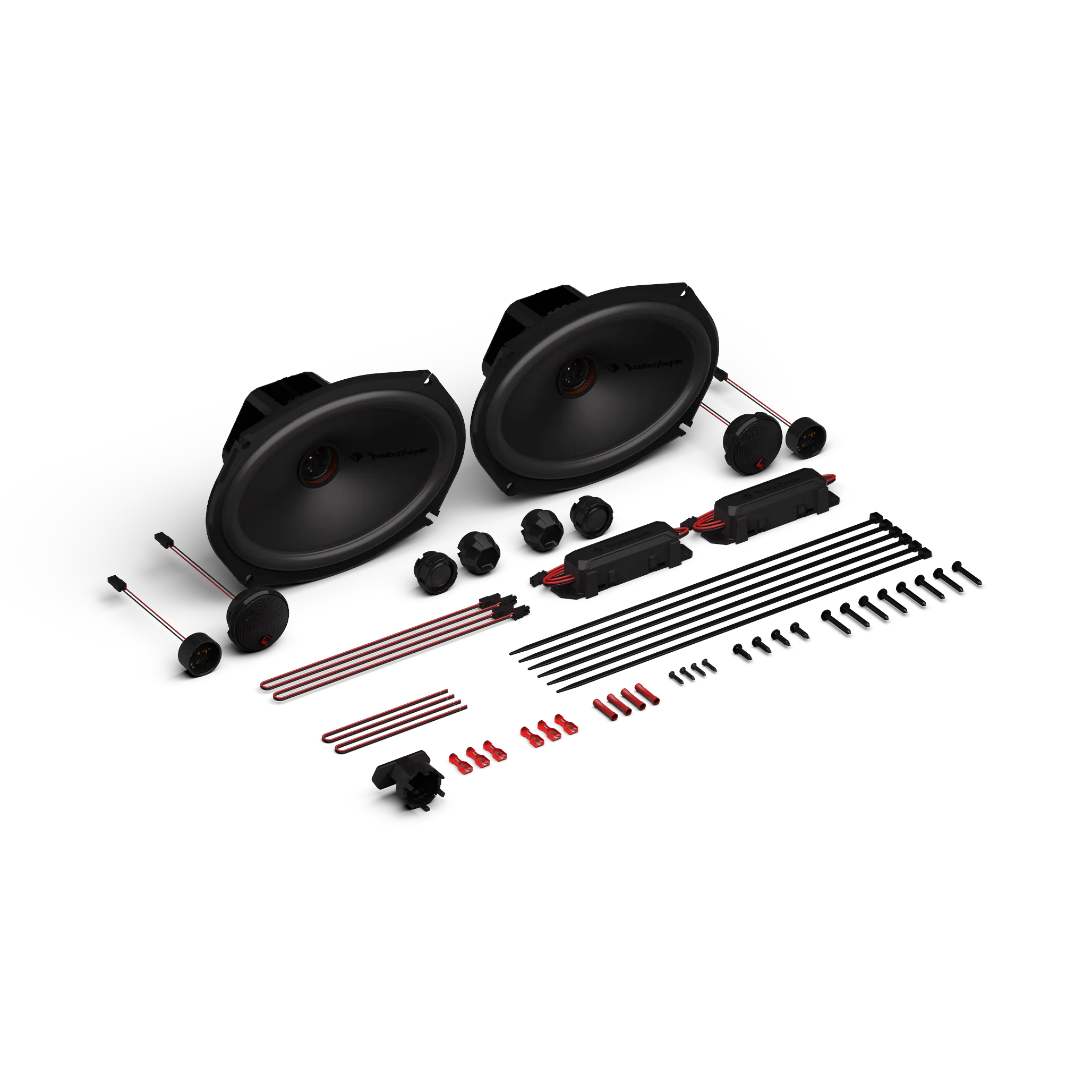

What's in the Box

• 2 x 6"x9" 4Ω Convertible Speakers
• 2 x 3/4" 4Ω Tweeters
• 2 x Passive Crossover Networks (Tweeter)

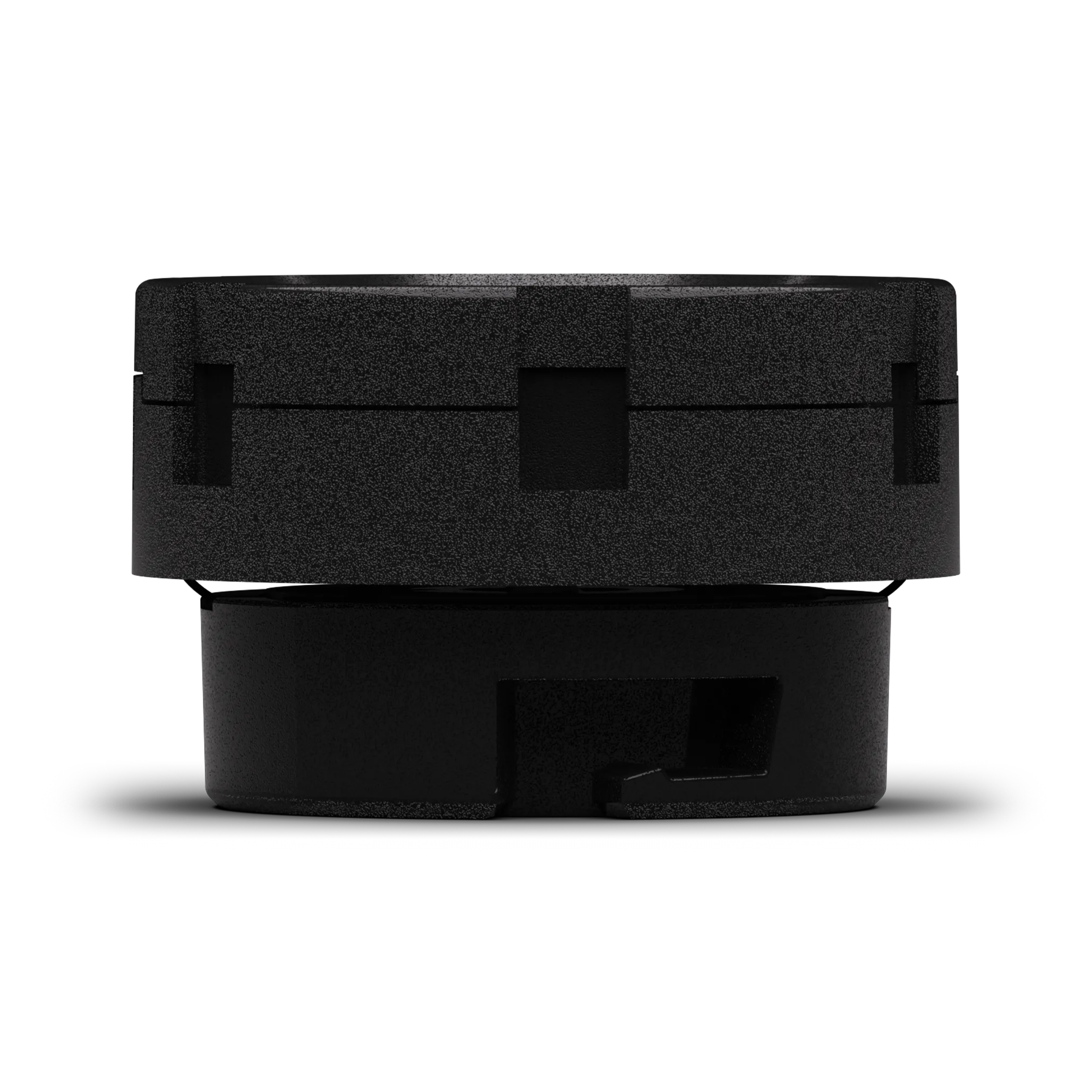

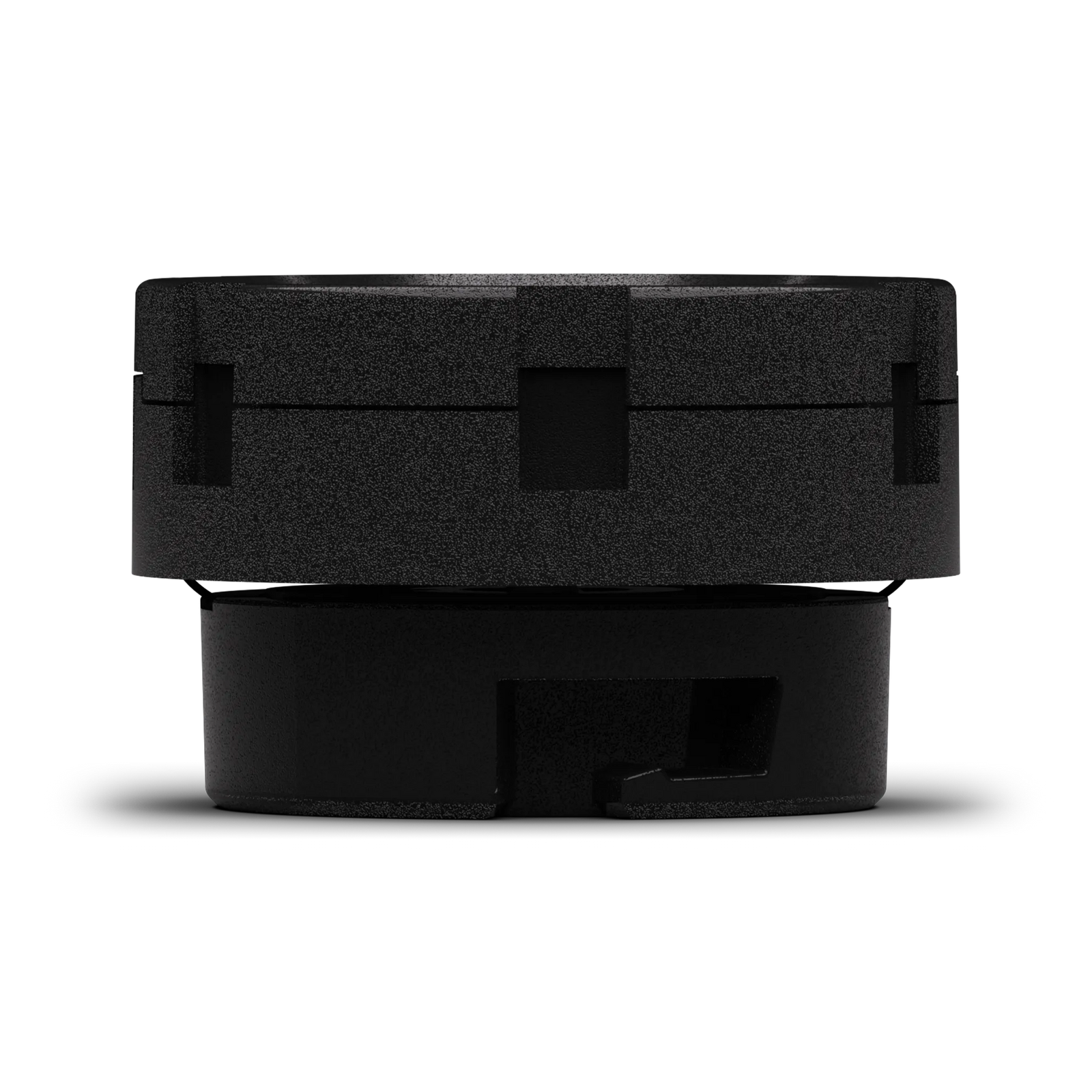

• 2 x Flush-Mount Tweeter Cups
• 2 x Surface-Mounting Tweeter Cups
• 2 x Woofer Phase Plugs
• 1 x 6"x9" Speaker Cut-Out Template

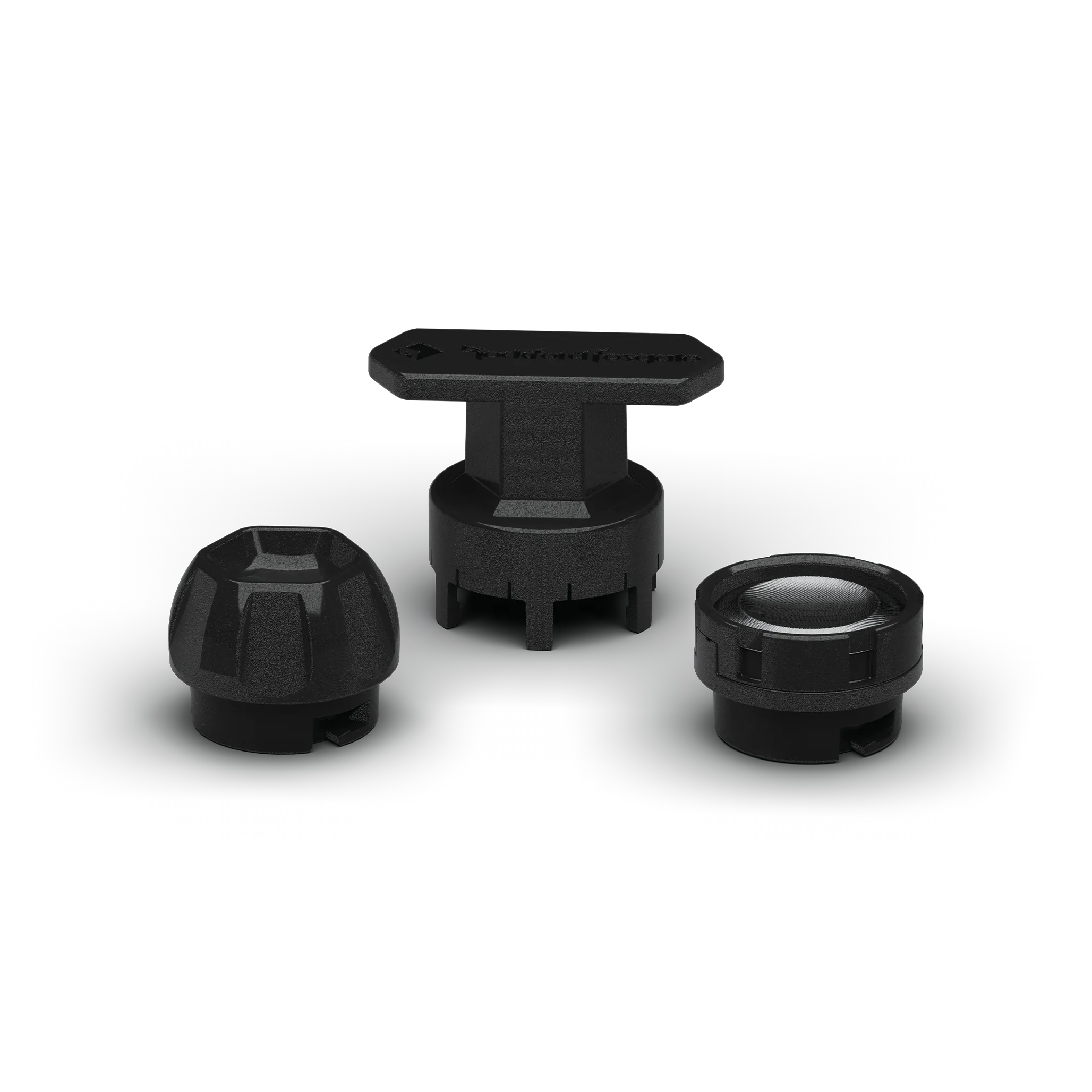

• 1 x Tweeter Removal Tool
• 4 x Crossover Wiring Extensions (18", 457mm)
• 2 x 18 AWG Red/Black Speaker Wire (205mm)
• 4 x Self-Tapping Phillips #8x32mm (Speaker)
• 4 x Self-Tapping Phillips #4x16mm (Tweeter)
• 4 x Self-Tapping Phillips #8x20mm (Crossover)
• 3 x 18 AWG Female Crimp Spade Connectors (0.187")
• 3 x 18 AWG Female Crimp Spade Connectors (0.250")
• 4 x 18 AWG Crimp Butt Connectors
• 6 x Zip Ties (4.8mm x 350mm)

Note: Grilles sold separately.

Technical Specs

Compatible With

The P2V2-69 is compatible with most modern vehicle factory 6"x9" oval speaker locations with an 8.41" x 5.71" (213.5 x 145mm) cutout. Note the deeper mounting depth of 79.4mm with motor cover (64.7mm without) compared to the smaller P2V2 models - confirm available mounting depth in rear deck and door locations before purchase. The P2V2-69 is upgradable to a 3-way component system with the separately available Rockford Fosgate P3V2-25 midrange speaker.

Frequently Asked Questions

What makes the P2V2-69 different from the smaller P2V2 models?

The P2V2-69 shares the same platform, technology, and power handling as the P2V2-65, P2V2-675, P2V2-68, and their HO variants. The larger 6"x9" oval format delivers the highest sensitivity in the range at 90dB at 1W/1M (93dB at 2.83V/1M) and requires the largest cutout at 8.41" x 5.71" with the deepest mounting depth at 79.4mm with motor cover. Choose the P2V2-69 for factory 6"x9" speaker locations where maximum sensitivity and bass output are priorities.

Can the P2V2-69 be used as both a coaxial and a component speaker?

Yes. The I.L.M. (Interchangeable Locking Mechanism) allows the tweeter to be locked into the woofer cup for coaxial operation or relocated to a separate flush-mount or surface-mount tweeter cup for 2-way component staging. A woofer phase plug is included for component configurations.

Does the P2V2-69 have significant mounting depth requirements?

Yes. The P2V2-69 requires 79.4mm mounting depth with the motor cover and 64.7mm without, which is deeper than the smaller P2V2 models due to the larger 6"x9" motor and cone assembly. Confirm available mounting depth in your specific vehicle's rear deck or door cavity before purchase.

Can the P2V2-69 be upgraded to a 3-way system?

Yes. The P2V2-69 can be upgraded to a 3-way component system by adding the Rockford Fosgate P3V2-25 midrange speaker, sold separately.

Are grilles included with the P2V2-69?

No. Grilles are sold separately.
