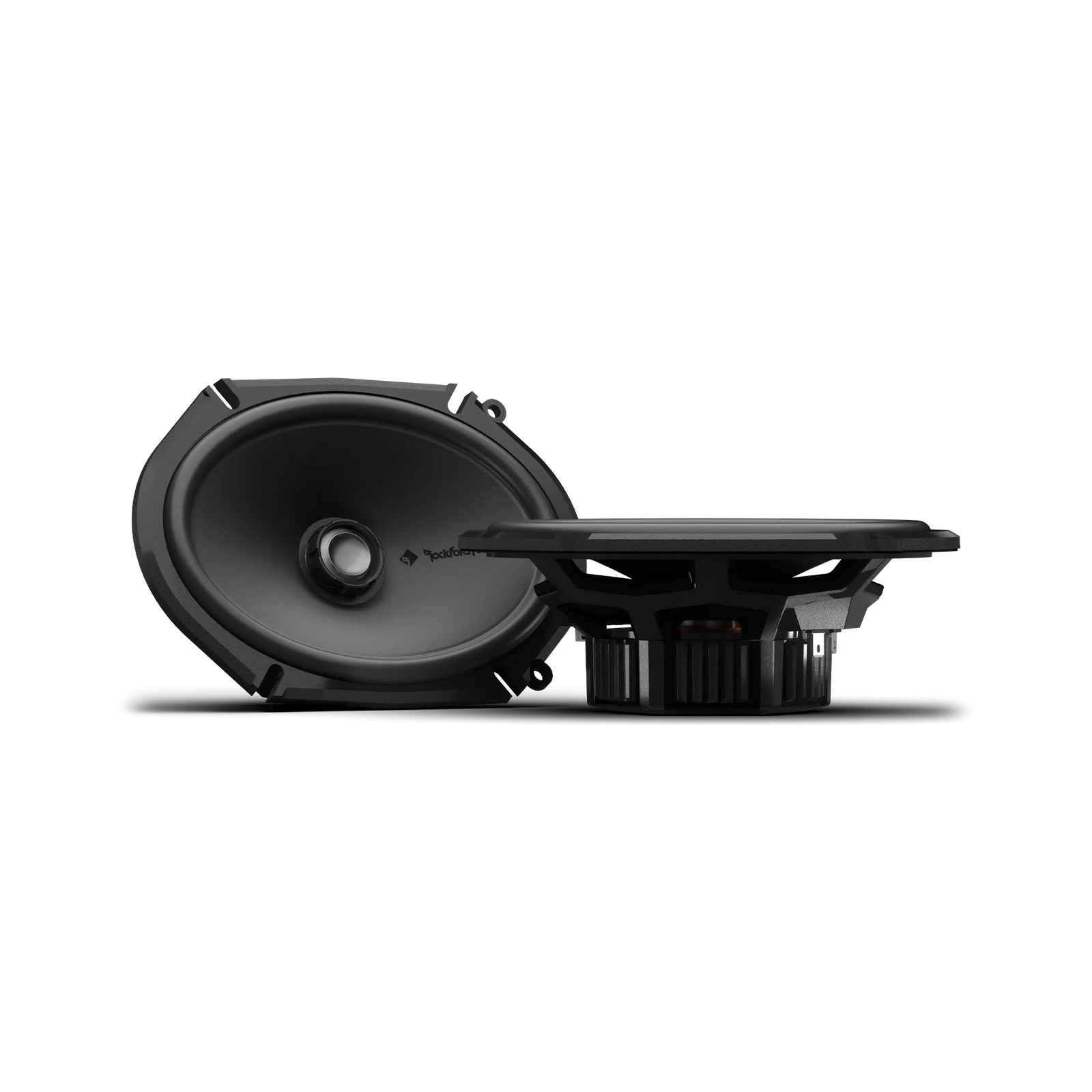

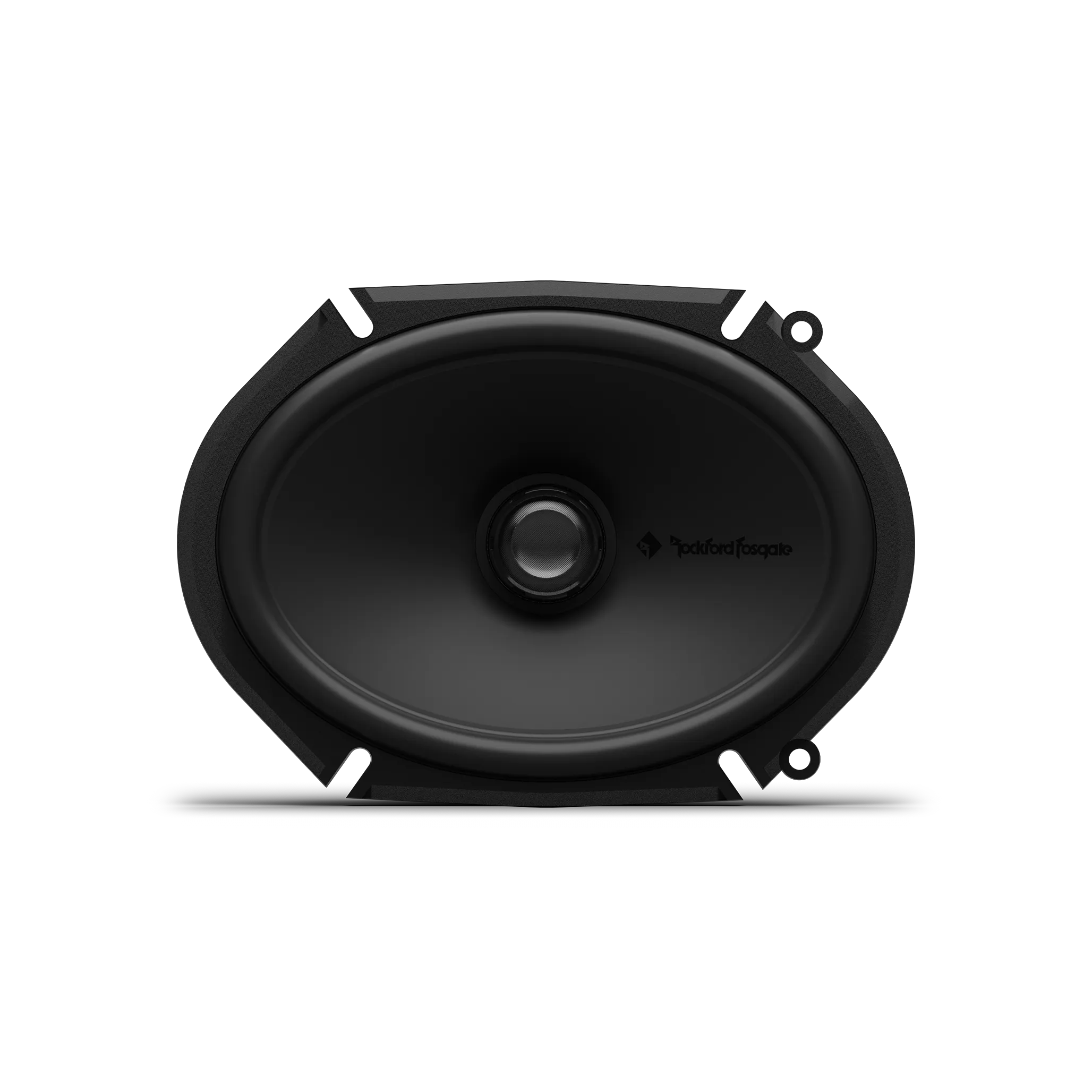

Rockford Fosgate P2V2-68HO Punch P2 6"x8" 2-Way High Output Convertible Car Speakers 75W RMS 2Ω
A pair of 6"x8" 2-way high output (HO) convertible car speakers from Rockford Fosgate, the P2V2-68HO delivers 75W RMS and 150W peak per speaker at 2Ω impedance for direct OEM replacement in factory audio systems using 2Ω oval speakers, with the I.L.M. (Interchangeable Locking Mechanism) allowing configuration as a coaxial or component system, VAST 2.0 cone technology, 3/4" Tetolon inverted dome edge-driven tweeter, ICC+ integrated concealed crossover (6dB internal, 12dB external HO passive crossover network), MC3 multi-configuration crossover chassis, 15% glass-fibre reinforced PA66 composite basket, Santoprene half-roll surround, Nomex spider, removable motor cover, 89dB sensitivity, 45Hz-25kHz frequency response, and full installation hardware. Sold in pairs.
Product Overview
The Rockford Fosgate P2V2-68HO is the 2Ω High Output variant of the P2V2-68, sharing the same Punch P2 convertible speaker platform and 6"x8" oval format but rated at 2Ω nominal impedance for direct drop-in replacement of OEM factory 6"x8" speakers that use 2Ω loads. Many premium factory audio systems use 2Ω speaker impedance to extract higher output from the factory amplifier, and the HO designation ensures correct impedance matching for these applications.
All other specifications and features are shared with the P2V2-68: the I.L.M. bayonet-style interchangeable locking mechanism for coaxial or component configuration, VAST 2.0 V-shape surround geometry for 25% increased cone area, 3/4" Tetolon inverted dome edge-driven tweeter, ICC+ concealed crossover with internal 6dB and external 12dB HO passive crossover network options, MC3 multi-configuration crossover chassis, Auto Fit Architecture with factory-location mounting flanges, 7.19" x 5.18" oval cutout dimensions, removable motor cover, and the same durable material stack. CTA-2031 compliant and Klippel verified. Grilles sold separately. 2-year warranty.
Features & Benefits
2Ω High Output - Direct OEM Replacement for Factory 2Ω 6"x8" Systems: The 2Ω impedance rating makes the P2V2-68HO the correct choice for vehicles with factory audio systems that use 2Ω 6"x8" oval speakers, ensuring correct impedance matching for maximum output and safe amplifier operation.

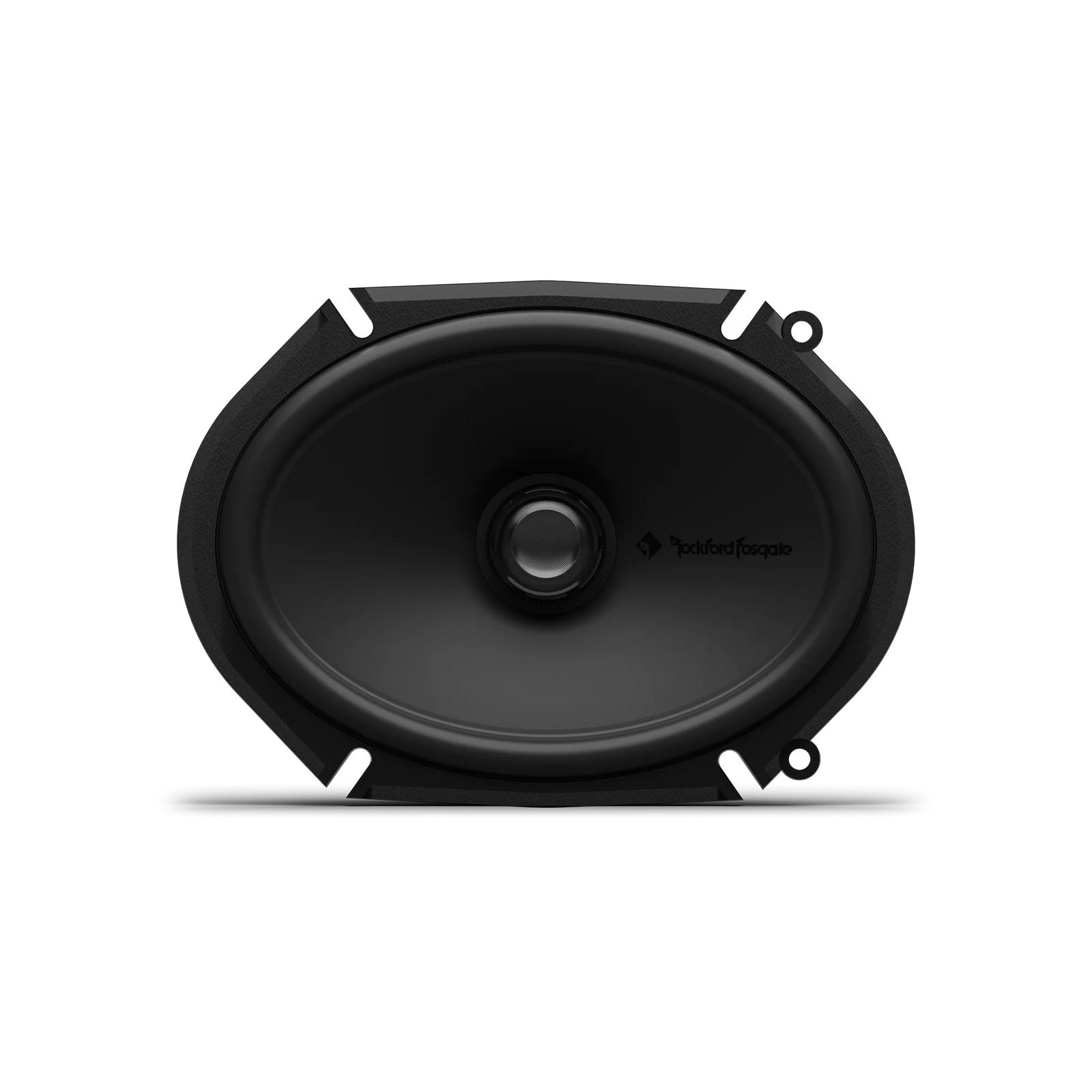

6"x8" Oval Format - Direct Drop-In for Factory 6x8 Locations: The 6"x8" oval cone and 7.19" x 5.18" oval cutout dimensions provide a purpose-designed direct drop-in replacement for factory 6"x8" speaker locations.

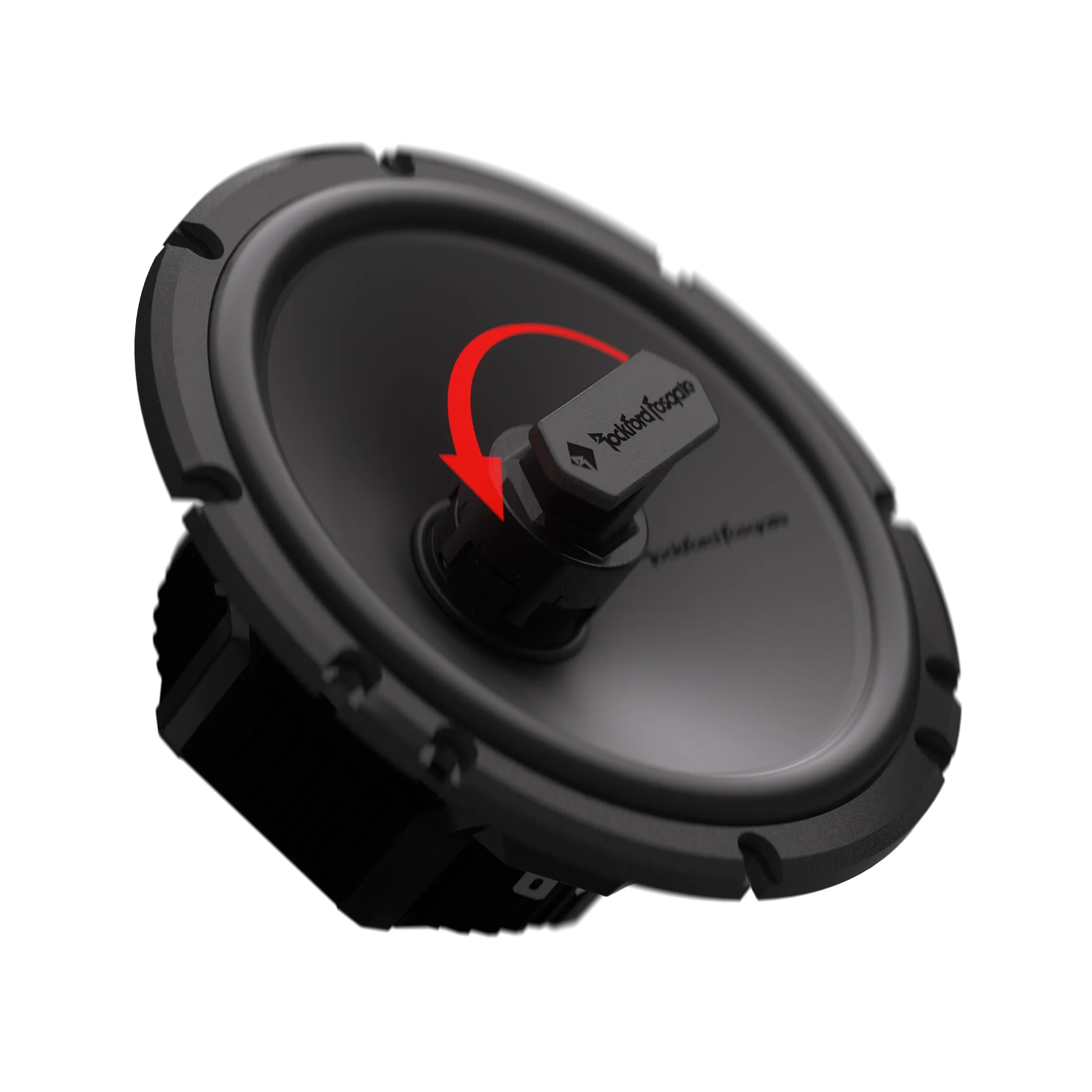

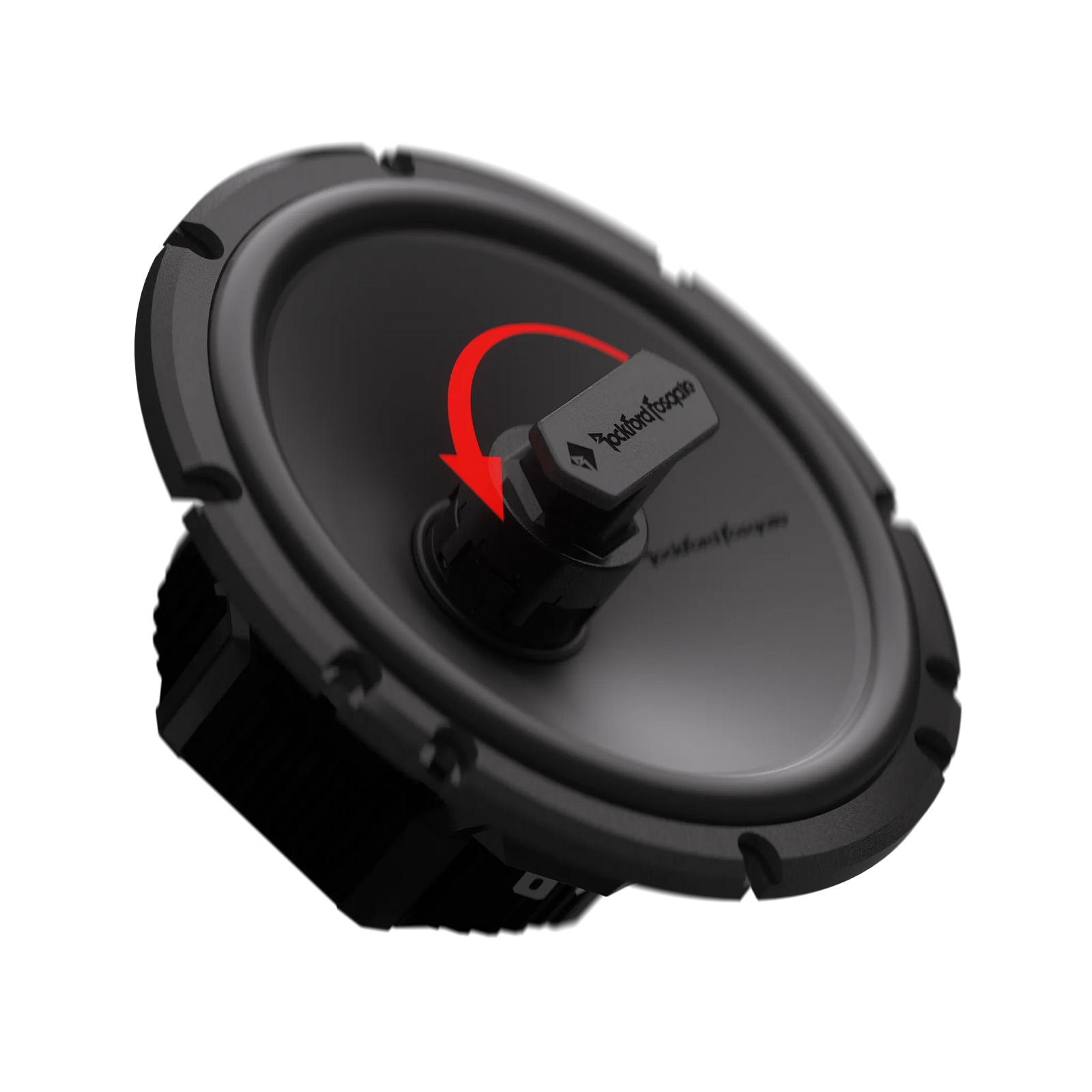

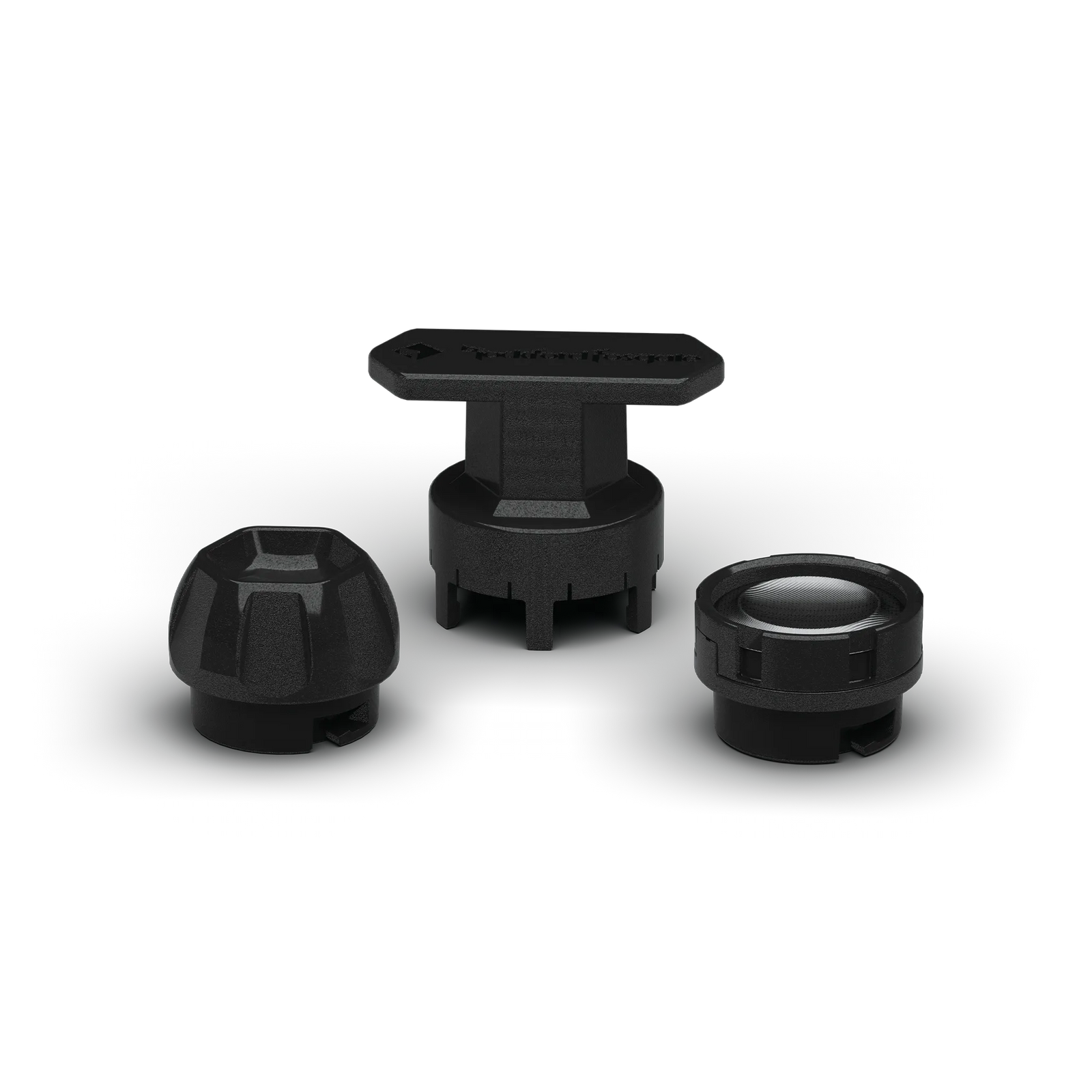

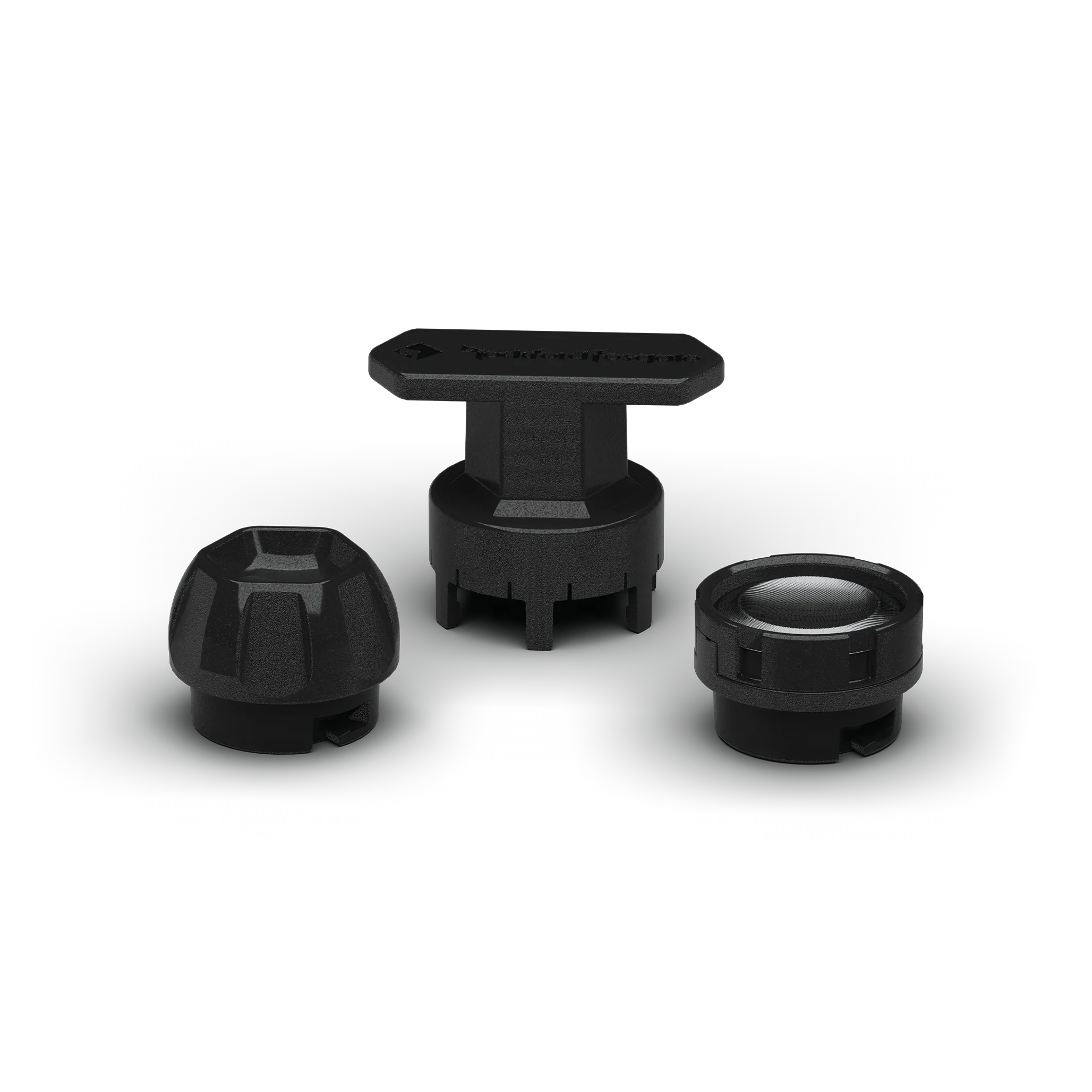

I.L.M. - Coaxial or Component Configuration from a Single Speaker: The bayonet-style I.L.M. allows the tweeter to be locked into the woofer cup for coaxial operation or relocated to a separate flush-mount or surface-mount tweeter cup for 2-way component staging, with a woofer phase plug included for component configurations.
VAST 2.0 - 25% Increase in Effective Cone Area: V-shape surround attachment geometry increases the surround-to-frame bonding surface area for 25% more effective cone area, delivering higher output and deeper bass.

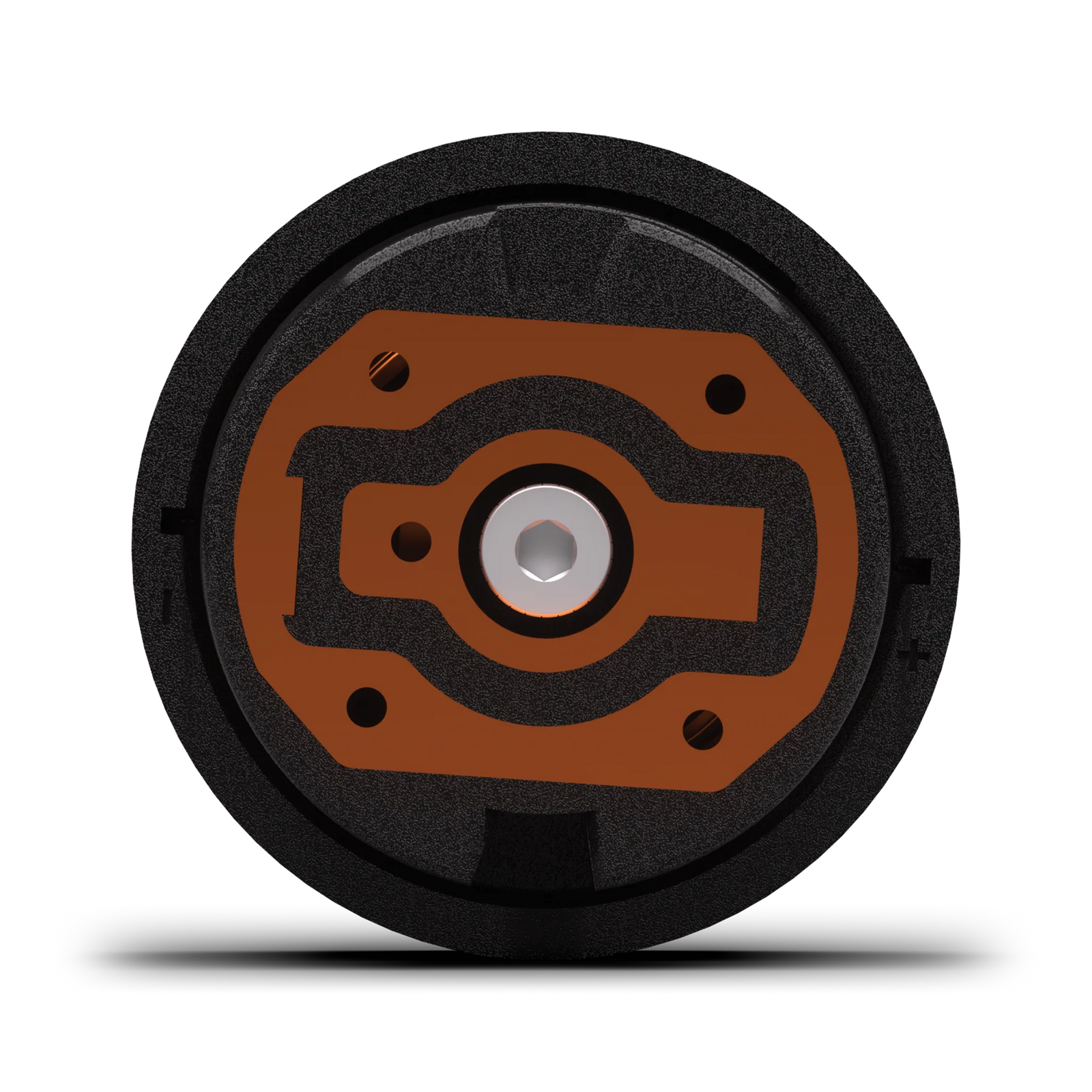

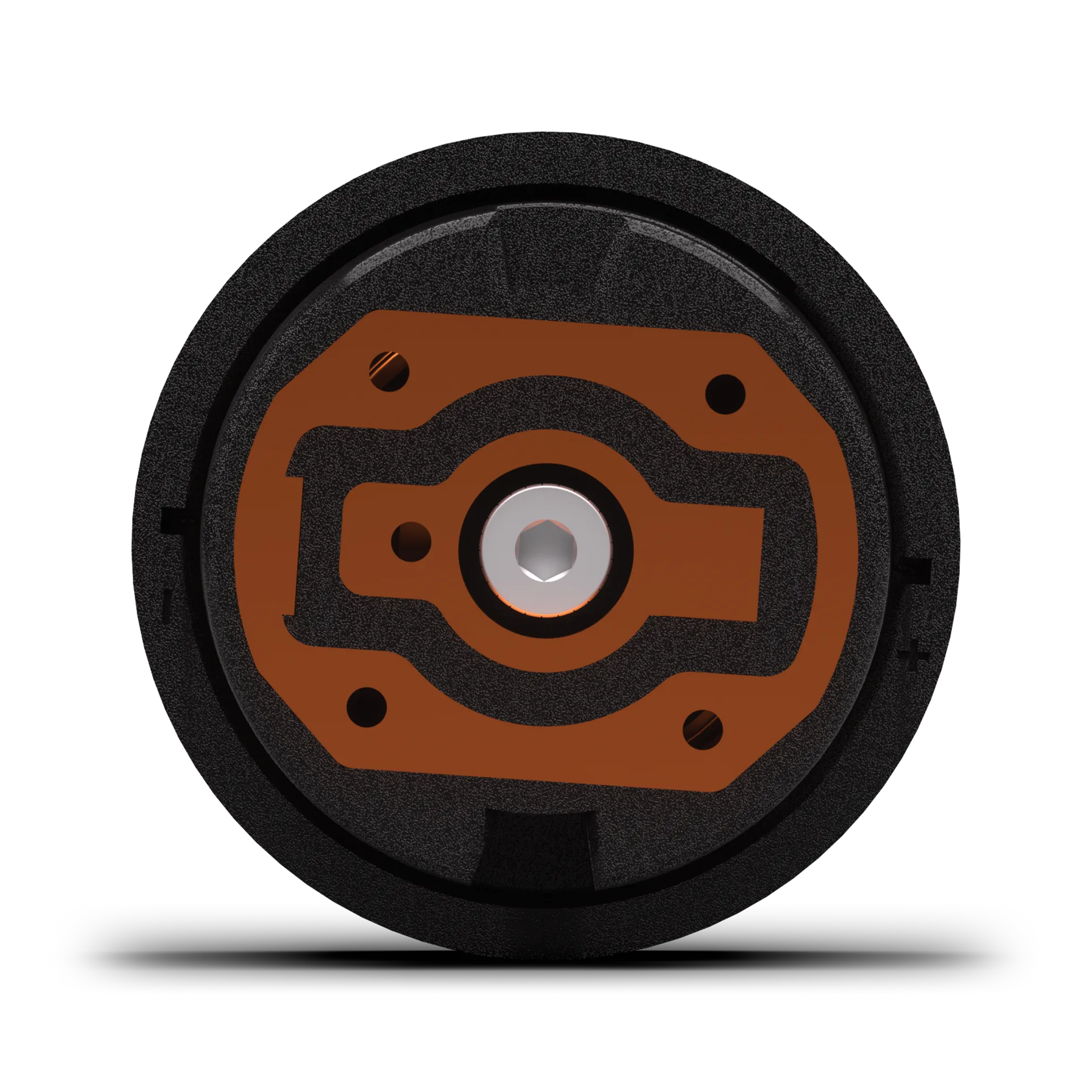

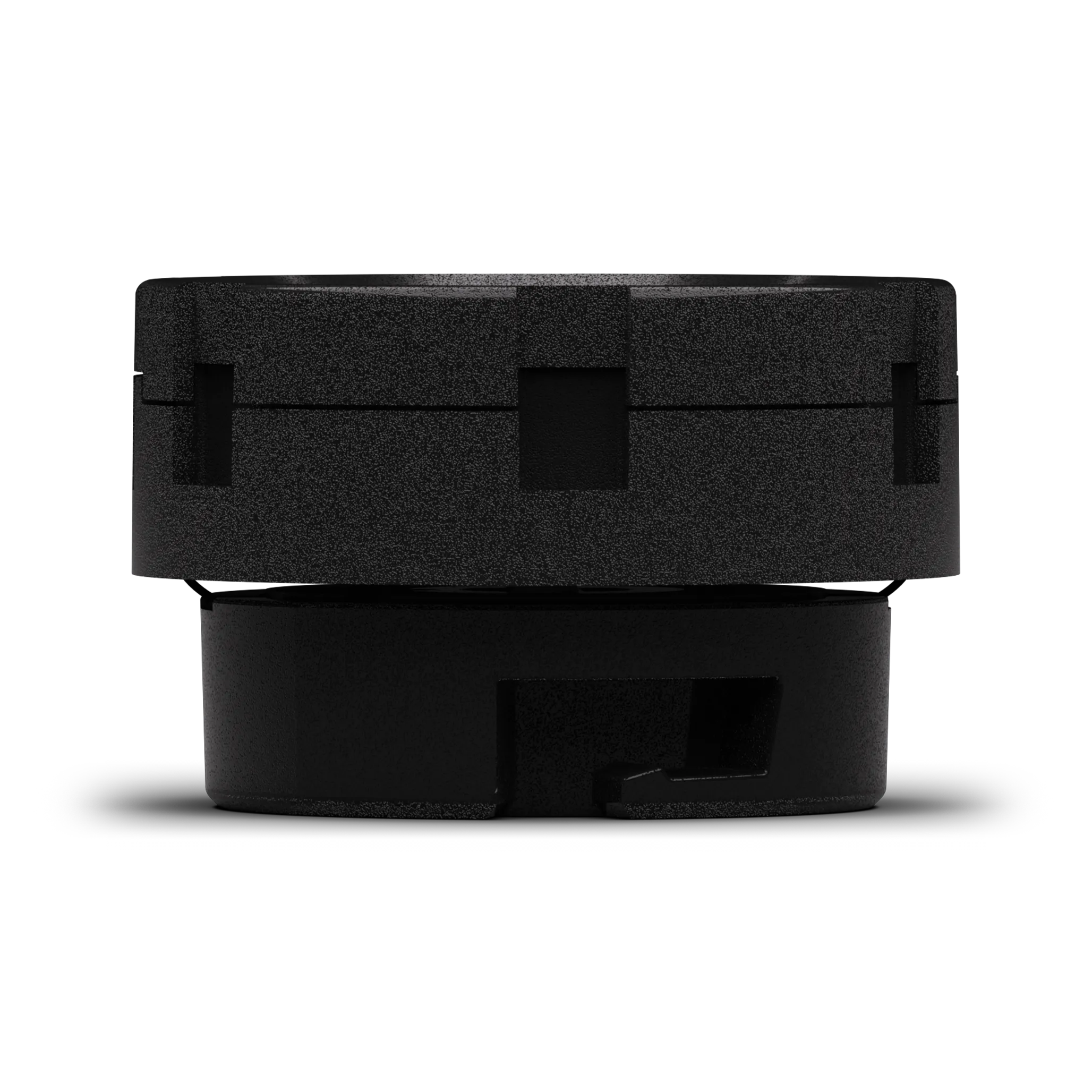

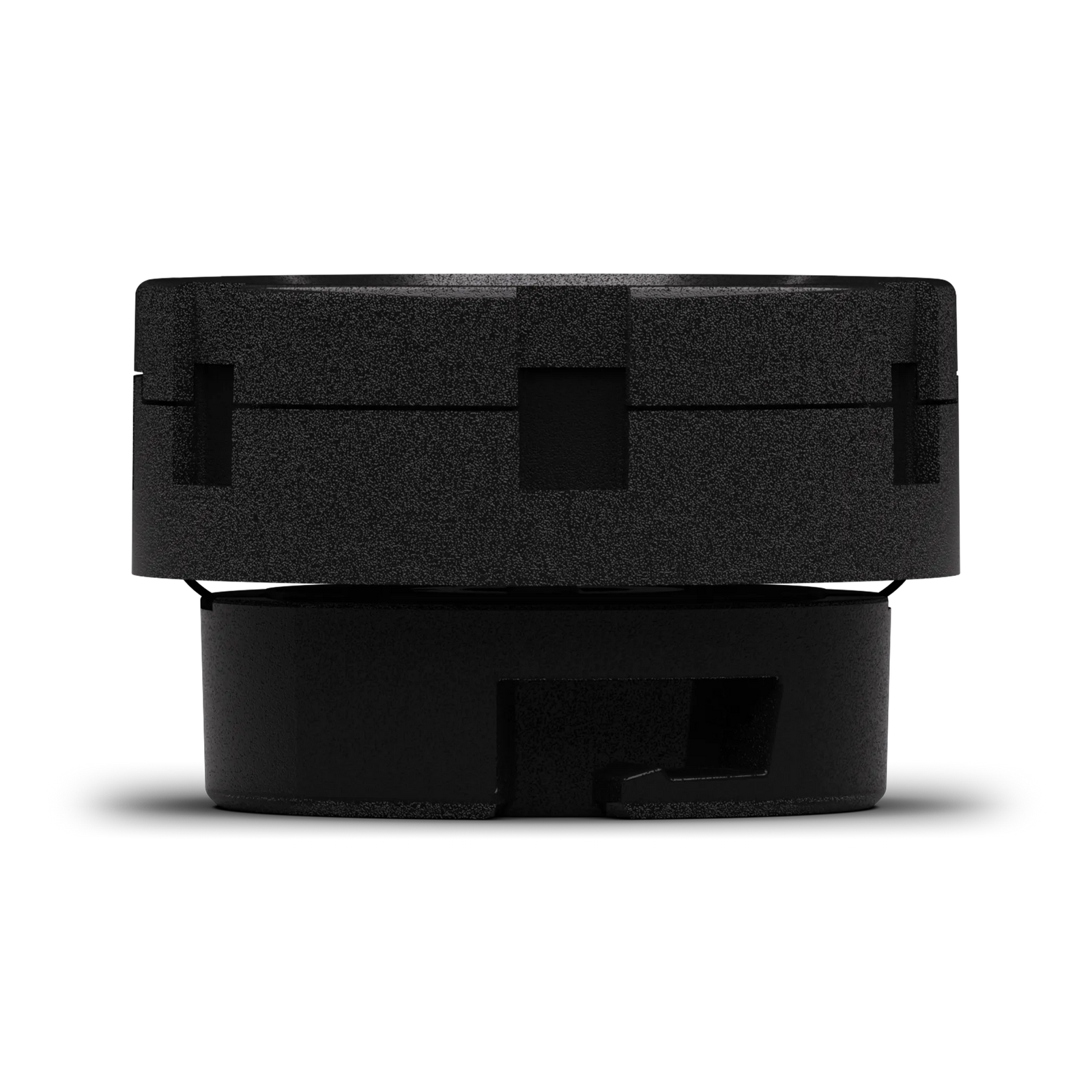

3/4" Tetolon Inverted Dome Edge-Driven Tweeter at 2Ω: The 19mm Tetolon inverted dome tweeter uses an edge-driven voice coil rated at 2Ω to match the woofer impedance in the HO configuration.

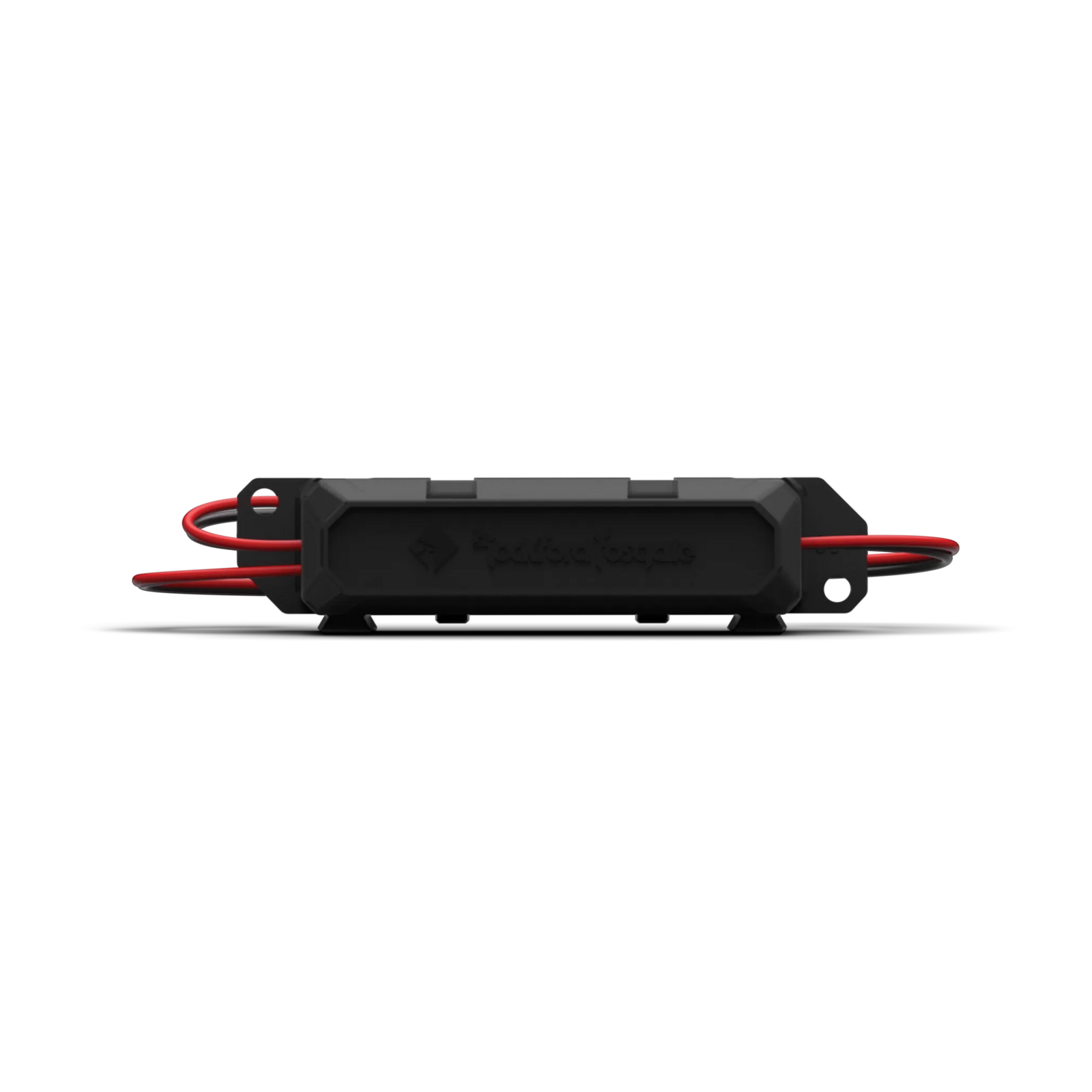

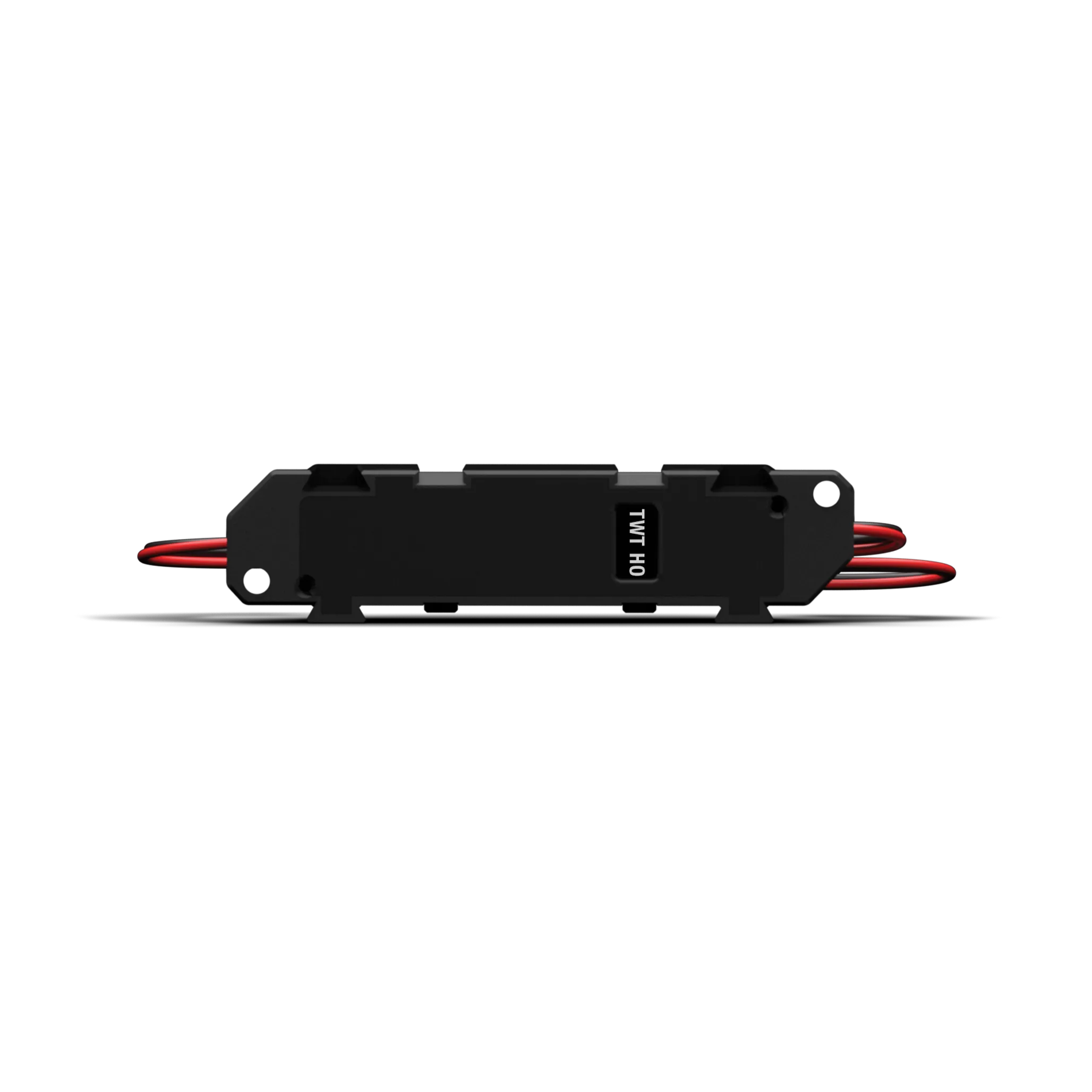

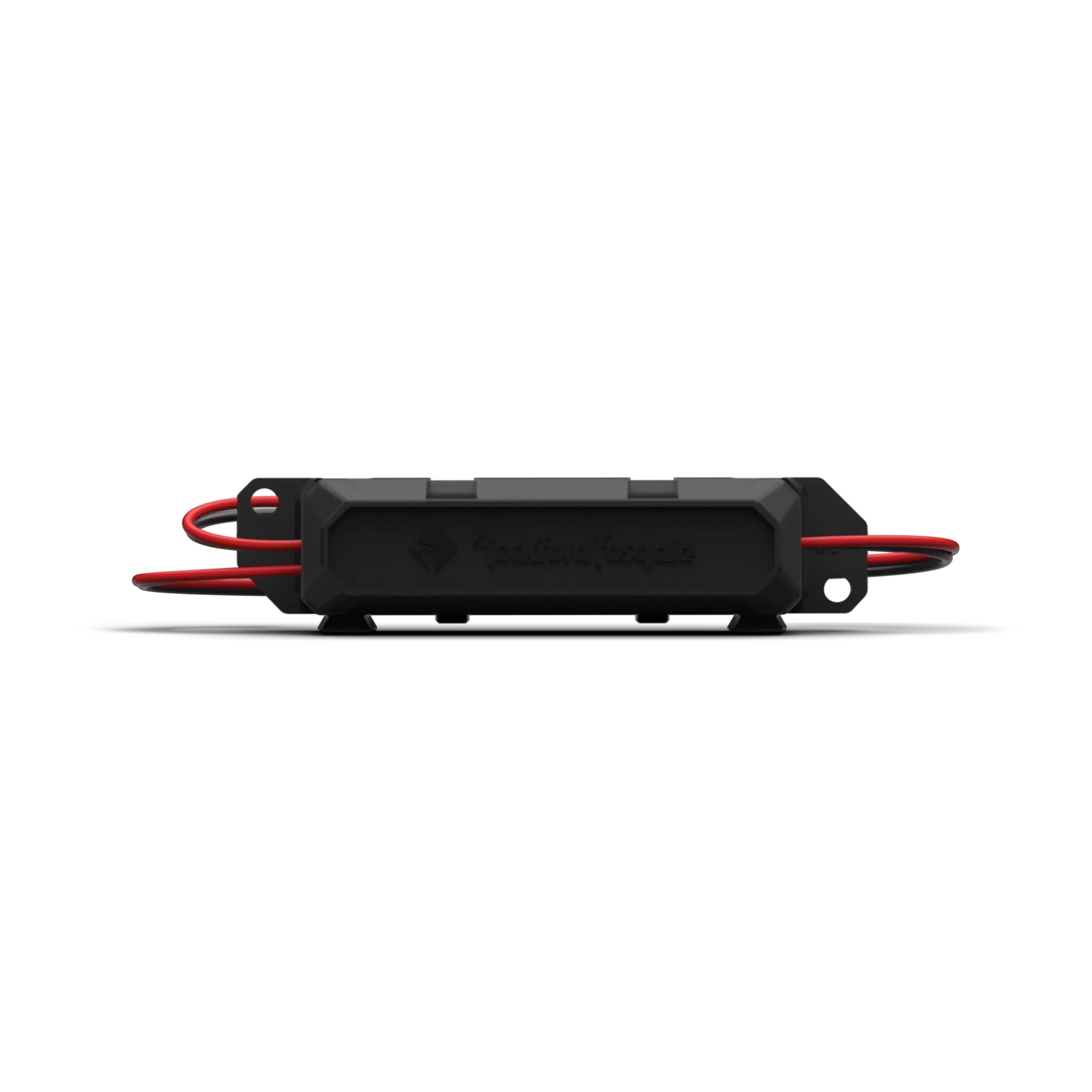

HO Passive Crossover Network - ICC+ with 6dB Internal and 12dB External: The integrated concealed crossover provides 6dB/octave at 9kHz within the basket. The included HO passive crossover network provides 12dB/octave with switchable 0dB or -3dB tweeter attenuation, calibrated for the 2Ω HO configuration.
MC3 Multi Configuration Crossover Chassis: Separates into independent units for flexible positioning or snaps together as a unified structure for single-location installation.
Auto Fit Architecture - Drop-In 6"x8" Factory Location Fitment: Redesigned oval frame with factory-location mounting flanges and removable motor cover.

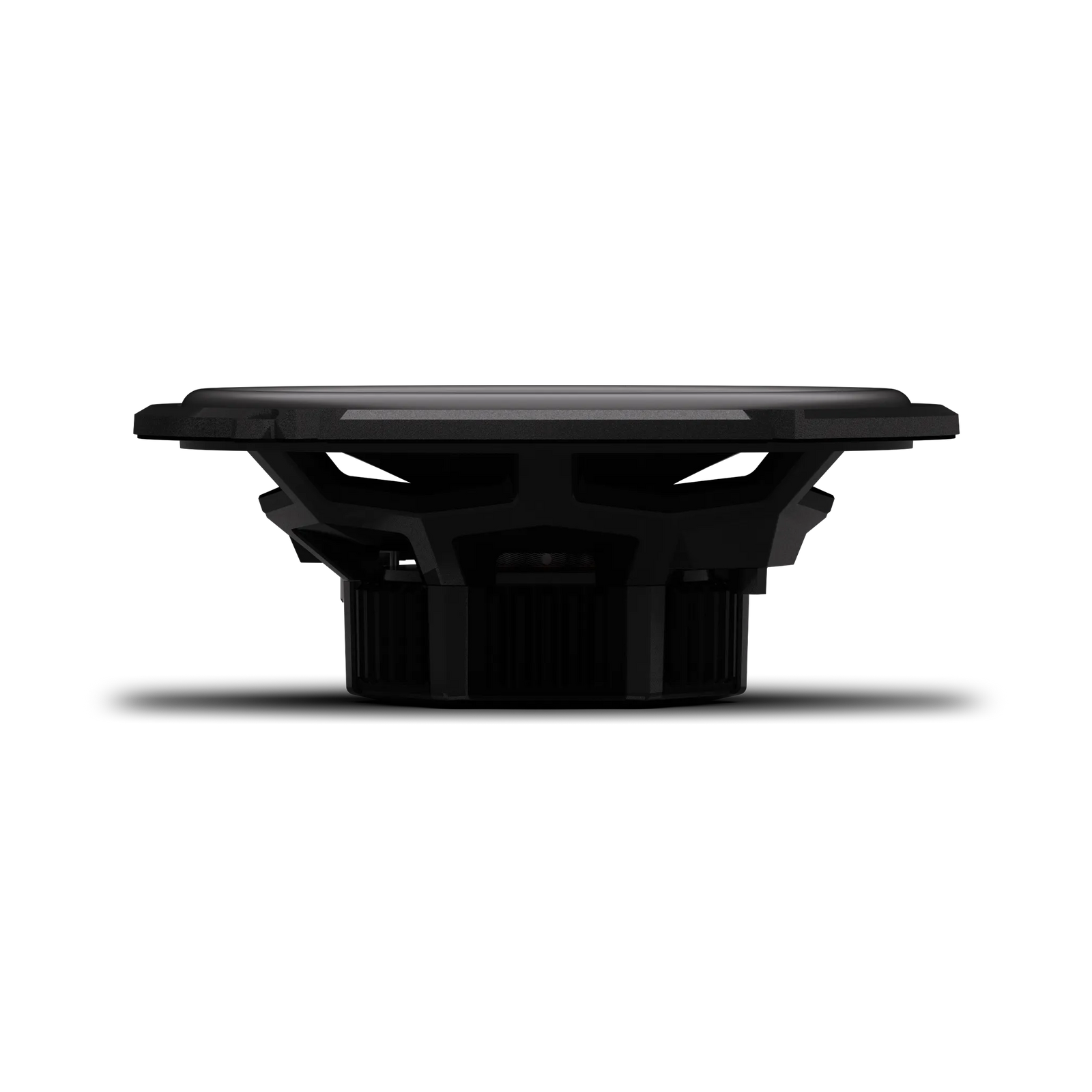

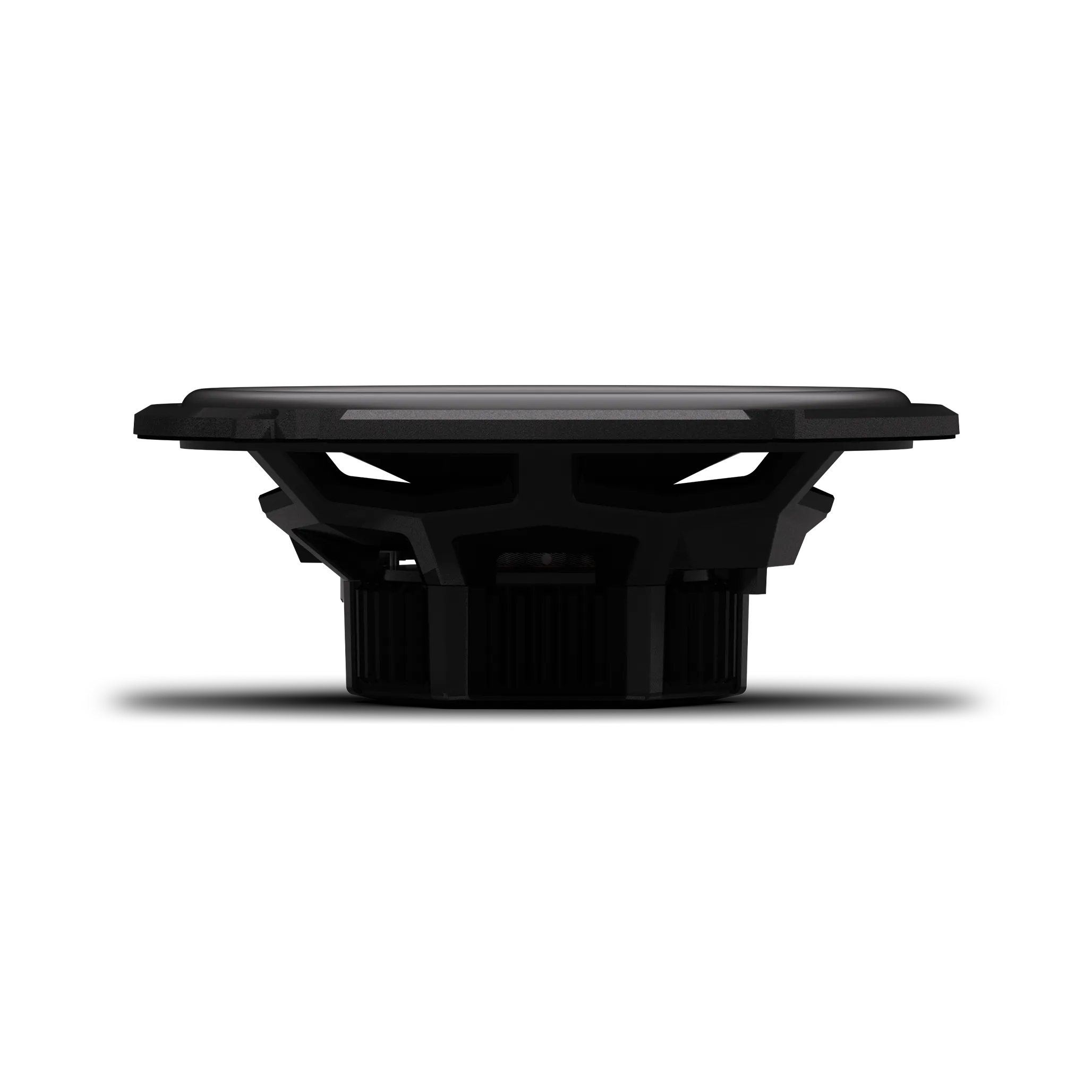

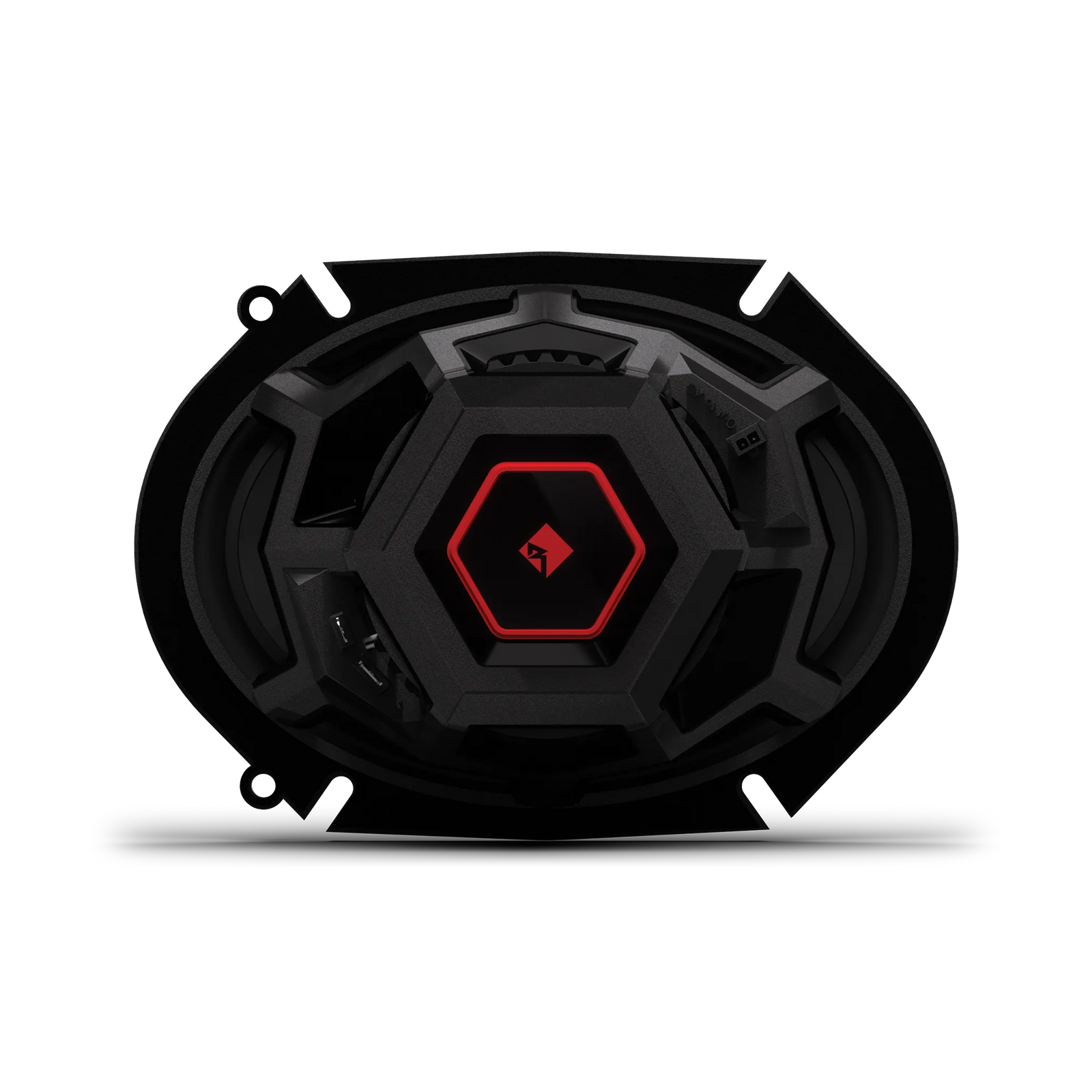

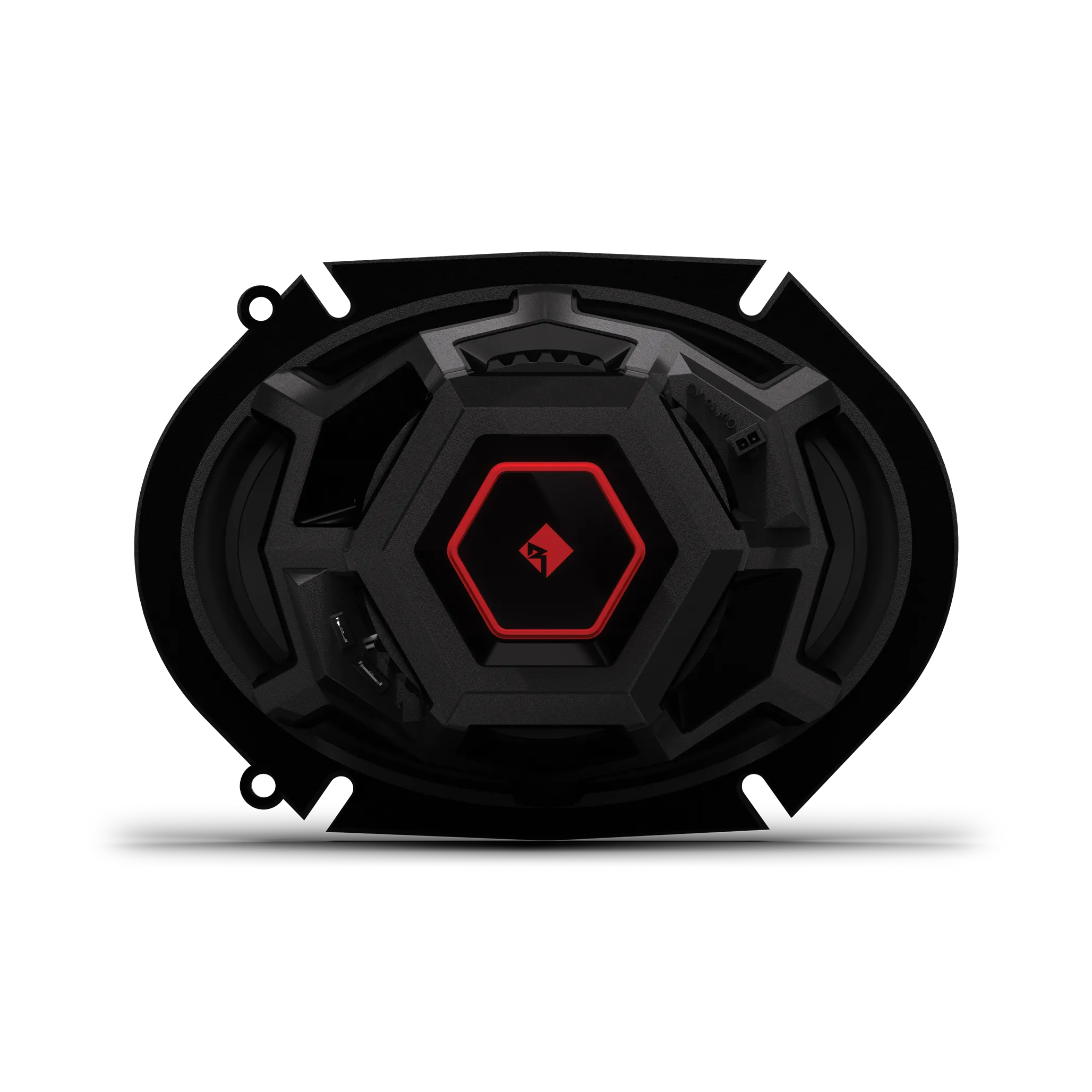

Removable Motor Cover for Tight Applications: Reduces mounting depth from 66.4mm to 60.3mm for shallower factory door and panel locations.
Durable Material Stack: 15% glass-fibre reinforced PA66 composite basket, Santoprene half-roll surround, Nomex spider with braided tinsel leads, 20-40% mica-reinforced polypropylene curvilinear cone, Y35 ferrite motor (5mm larger than previous generation), and vented Kapton voice coil former.
CTA-2031 Compliant and Klippel Verified: Power handling conforms to CTA-2031 industry standards. Klippel verified.
2-Year Warranty: Backed by Rockford Fosgate's 2-year manufacturer warranty.

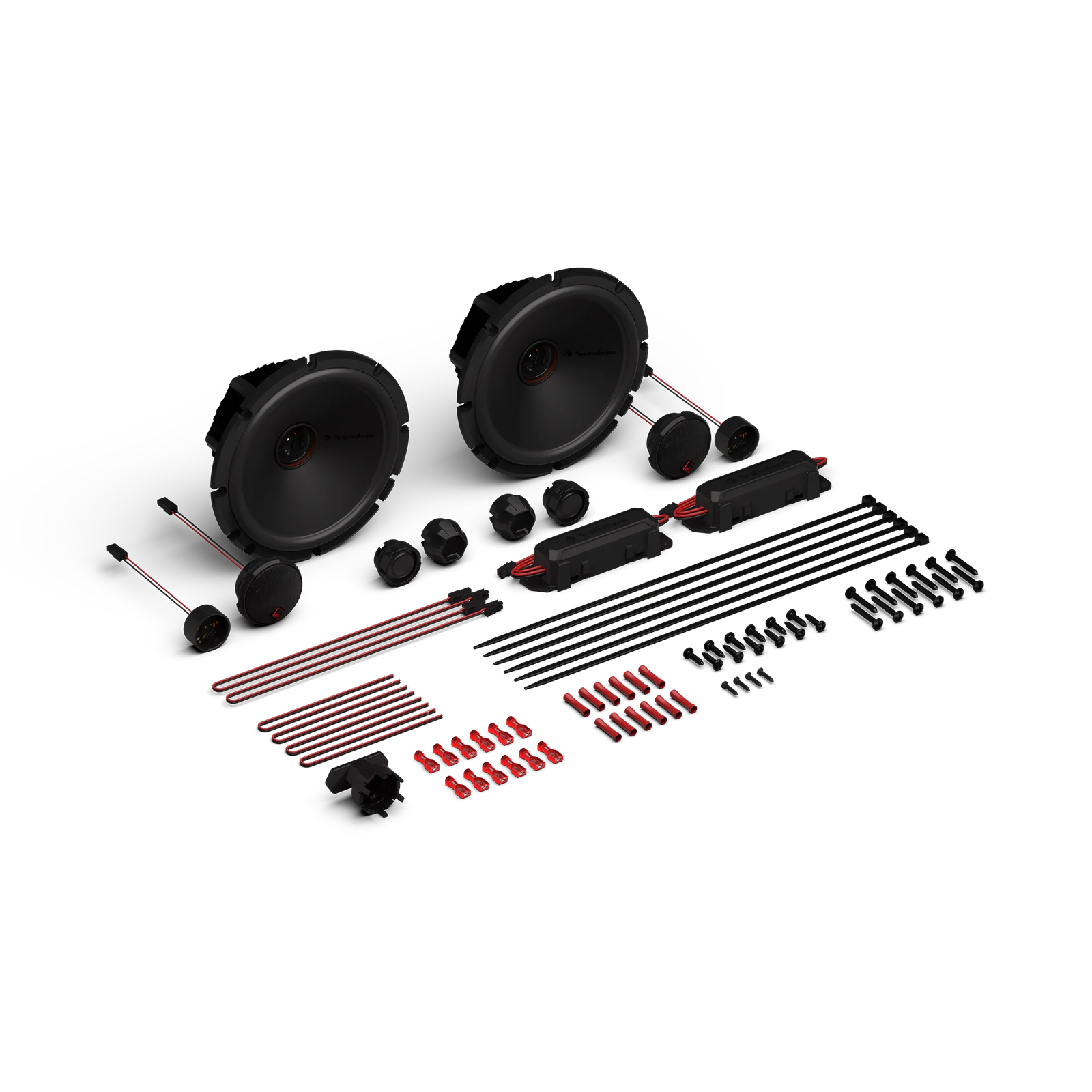

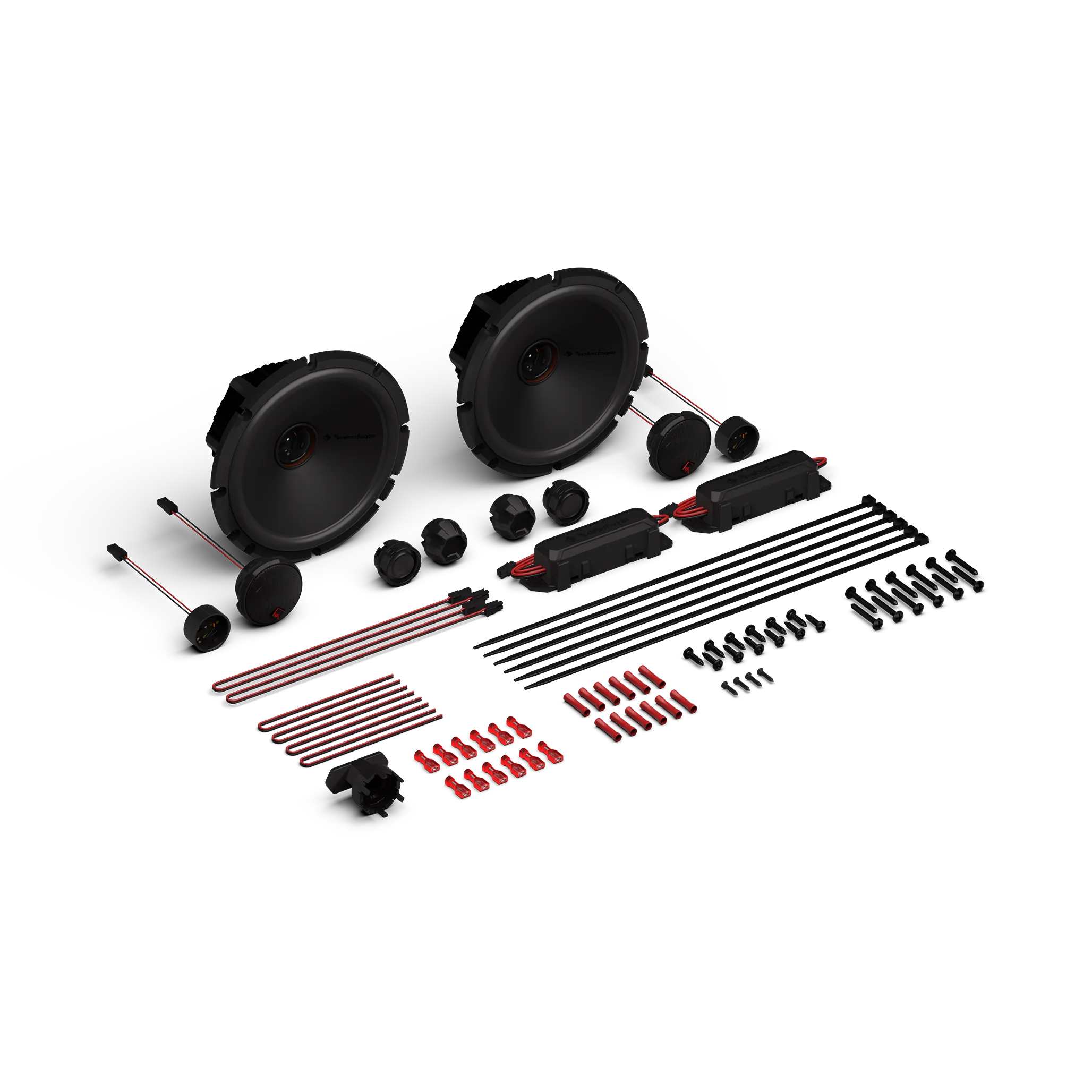

What's in the Box

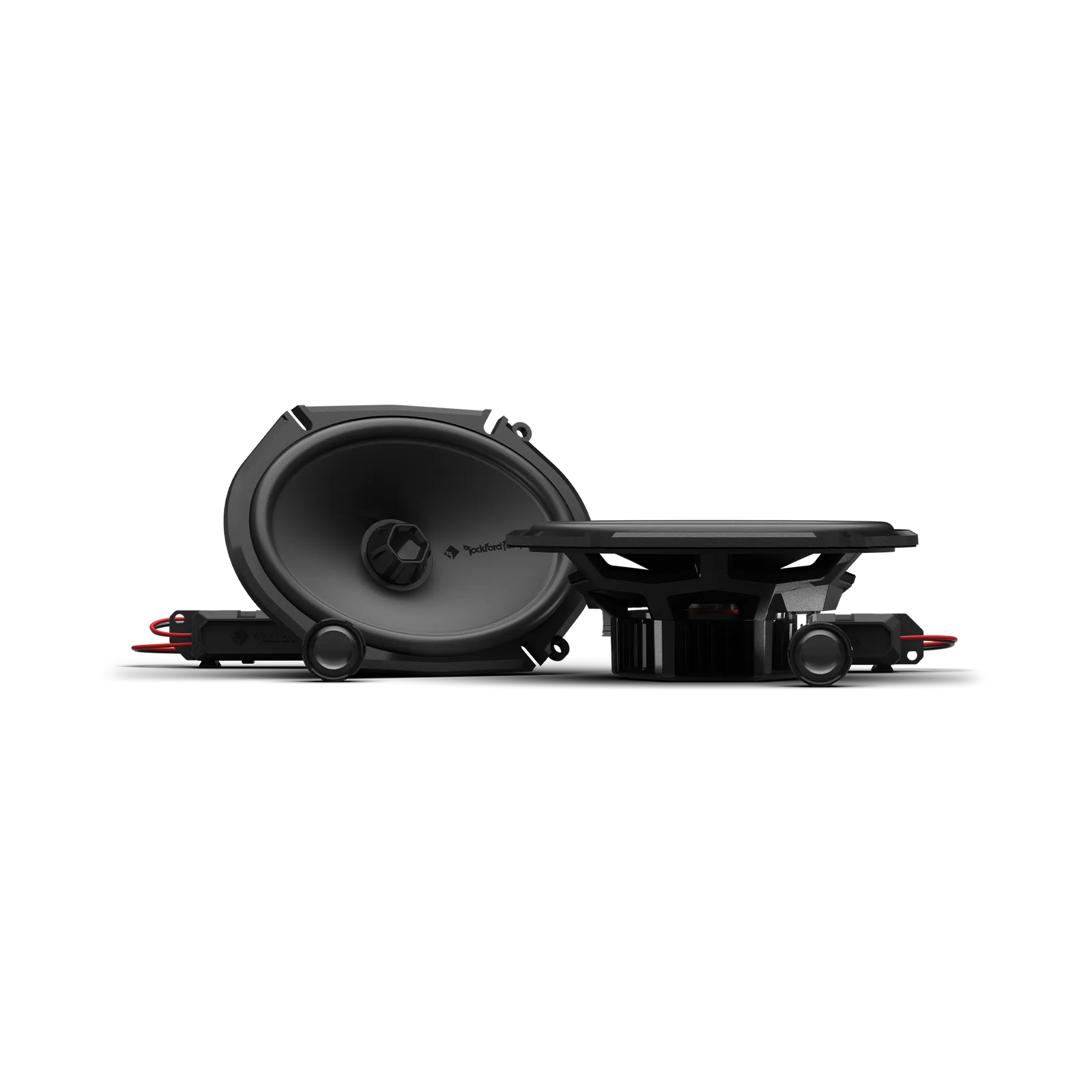

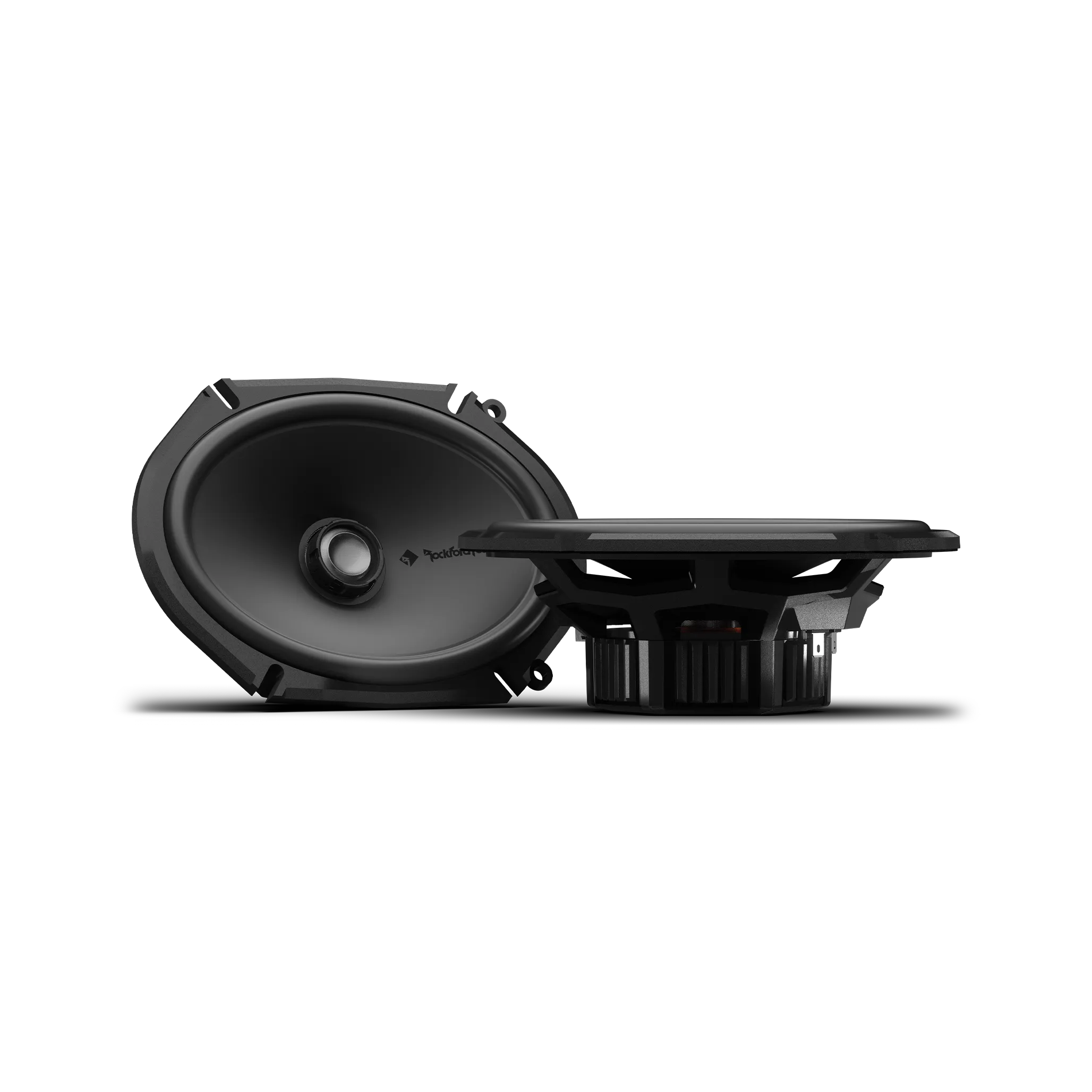

- 2 x 6"x8" 2Ω Convertible Speakers
- 2 x 3/4" 2Ω Tweeters

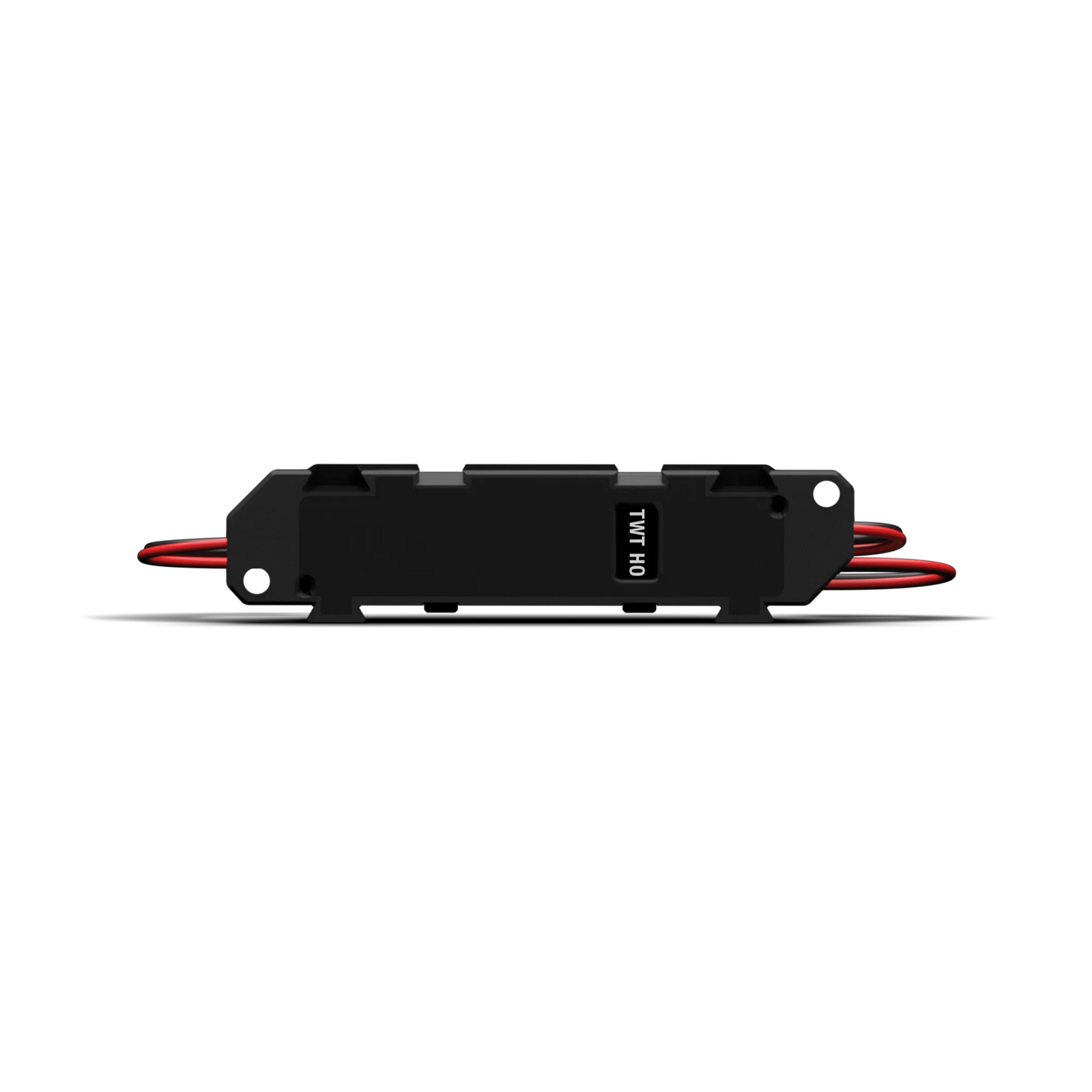

- 2 x HO Passive Crossover Networks (Tweeter)
- 2 x Flush-Mount Tweeter Cups
- 2 x Surface-Mounting Tweeter Cups
- 2 x Woofer Phase Plugs
- 1 x 6"x8" Speaker Cut-Out Template
- 1 x Tweeter Removal Tool
- 4 x Crossover Wiring Extensions (18", 457mm)
- 2 x 18 AWG Red/Black Speaker Wire (205mm)
- 4 x Self-Tapping Phillips #8x32mm (Speaker)
- 4 x Self-Tapping Phillips #4x16mm (Tweeter)
- 4 x Self-Tapping Phillips #8x20mm (Crossover)
- 3 x 18 AWG Female Crimp Spade Connectors (0.187")
- 3 x 18 AWG Female Crimp Spade Connectors (0.250")
- 4 x 18 AWG Crimp Butt Connectors
- 6 x Zip Ties (4.8mm x 350mm)
Note: Grilles sold separately.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | P2V2-68HO |
| Brand | Rockford Fosgate |
| Series | Punch P2 |
| Speaker Type | Convertible (Coaxial or Component) |
| Sold As | Pair |
| Midrange Nominal Diameter | 6"x8" |
| Tweeter Nominal Diameter | 3/4" (19mm) |
| Nominal Impedance | 2Ω |
| Power Handling | 75W RMS / 150W Peak (CTA-2031) |
| Sensitivity | 89dB at 1W/1M |
| Sensitivity (2.83V/1M) | 92dB |
| Frequency Response | 45Hz-25kHz |
| Voice Coil Diameter | 1.25" (32.5mm) |
| Crossover - Internal | Tweeter High-Pass: 9kHz at 6dB/Oct |
| Crossover - External | HO Tweeter High-Pass: 9kHz at 12dB/Oct |
| Tweeter Attenuation | 0dB or -3dB (External) |
| Fs | 60Hz |
| Cutout Dimensions | 7.19" x 5.18" (182.5mm x 131.5mm) |
| Mounting Depth (With Motor Cover) | 2.61" (66.4mm) |
| Min. Mounting Depth (No Motor Cover) | 2.37" (60.3mm) |
| Front Side Clearance | 0.43" (11mm) |
| Removable Motor Cover | Yes |
| Basket Material | 15% Glass-Fibre Reinforced PA66 Composite |
| Surround Material | Santoprene Half-Roll |
| Spider Material | Nomex |
| Cone Material | 20-40% Mica Reinforced Polypropylene Curvilinear |
| Motor Structure | Y35 Ferrite (5mm Larger Than Previous Generation) |
| Voice Coil Former | Vented Kapton |
| Technology | VAST 2.0, I.L.M., ICC+, MC3, Auto Fit Architecture |
| Standards | CTA-2031 Compliant, Klippel Verified |
| Grilles | Sold Separately |
| Warranty | 2 Years |
| Shipping Weight | 3.18kg |
Compatible With
The P2V2-68HO is designed for vehicles with factory audio systems that use 2Ω 6"x8" oval speaker loads. Confirm the factory speaker impedance in your specific vehicle before purchase. For 4Ω factory 6"x8" speaker applications, refer to the P2V2-68. Mounting dimensions are identical to the P2V2-68: 7.19" x 5.18" oval cutout, 66.4mm mounting depth with motor cover, and 60.3mm minimum mounting depth without motor cover.
Frequently Asked Questions
What is the difference between the P2V2-68HO and the P2V2-68?
Both share identical construction, dimensions, power handling, sensitivity, frequency response, and feature sets. The P2V2-68HO is rated at 2Ω for direct OEM replacement in factory audio systems that use 2Ω 6"x8" oval speakers, while the P2V2-68 is rated at 4Ω for standard 4Ω factory and aftermarket applications. The HO variant also includes HO passive crossover networks calibrated for 2Ω operation. Confirm your factory speaker impedance before choosing between the two variants.
Why would a factory audio system use 2Ω 6"x8" speakers?
Many premium factory audio systems use 2Ω speakers to allow the factory amplifier to deliver higher output power at lower impedance. Installing a standard 4Ω aftermarket speaker in a 2Ω system can result in reduced output and, in some cases, amplifier protection activation. The P2V2-68HO at 2Ω provides correct impedance matching for these factory systems.
Can the P2V2-68HO be used as both a coaxial and a component speaker?
Yes. The I.L.M. allows the tweeter to be locked into the woofer cup for coaxial operation or relocated to a separate flush-mount or surface-mount tweeter cup for 2-way component staging. A woofer phase plug is included for component configurations.
Can the motor cover be removed for shallow installations?
Yes. Removing the motor cover reduces mounting depth from 66.4mm to 60.3mm for shallower factory door and panel locations.
Are grilles included with the P2V2-68HO?
No. Grilles are sold separately.
