Rockford Fosgate P2V2-675 Punch 6.75" 2-Way Convertible Speakers 75W

Rockford Fosgate P2V2-675 Punch P2 6.75" 2-Way Convertible Car Speakers 75W RMS

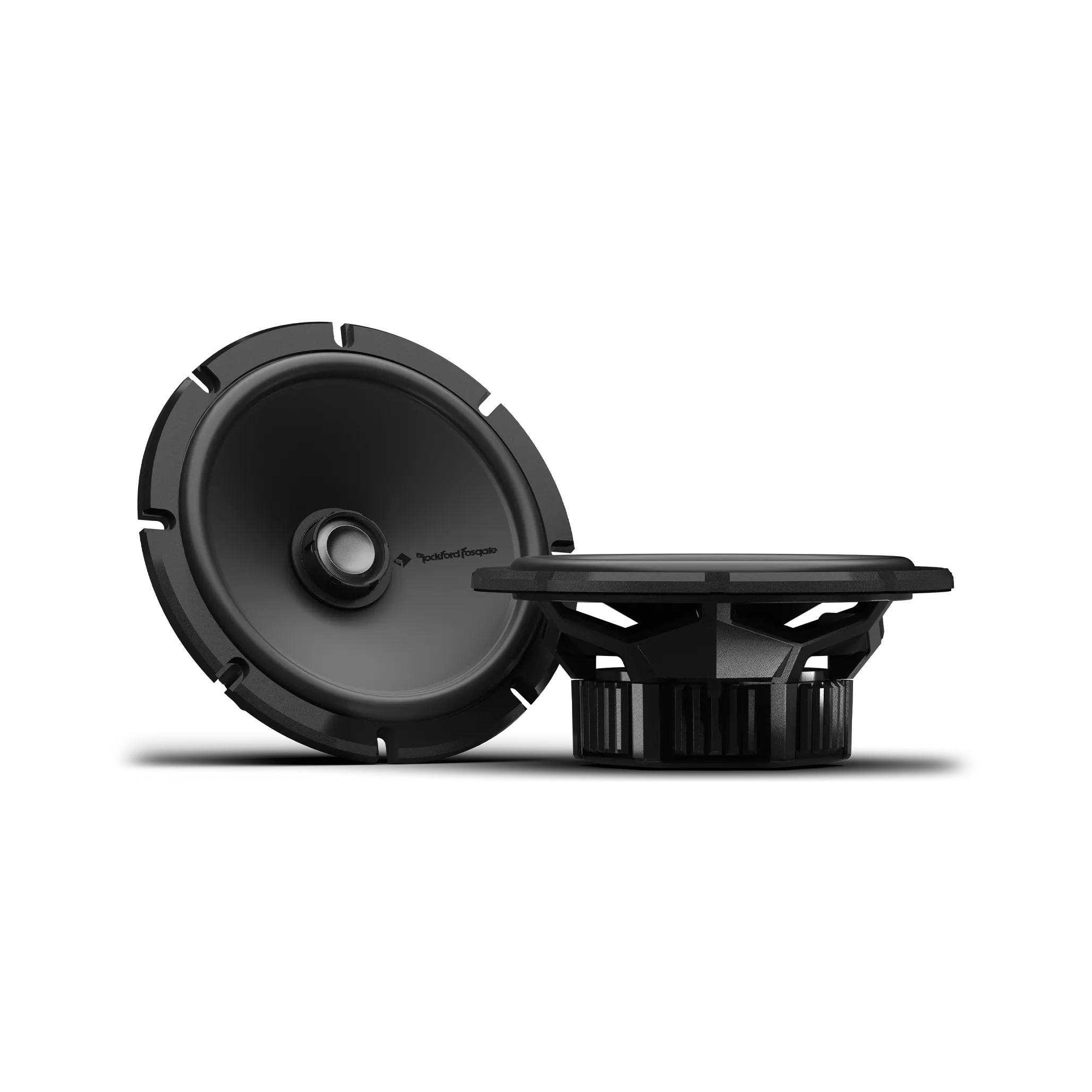

A pair of 6.75" 2-way convertible car speakers from Rockford Fosgate, the P2V2-675 delivers 75W RMS and 150W peak per speaker with the I.L.M. (Interchangeable Locking Mechanism) allowing configuration as a coaxial or component system, VAST 2.0 cone technology, 3/4" Tetolon inverted dome edge-driven tweeter, ICC+ integrated concealed crossover (6dB internal, 12dB external), MC3 multi-configuration crossover chassis, 15% glass-fibre reinforced PA66 composite basket, Santoprene half-roll surround, Nomex spider, removable motor cover, 88dB sensitivity, 49Hz-25kHz frequency response, 4Ω impedance, and full installation hardware. Sold in pairs.

Product Overview

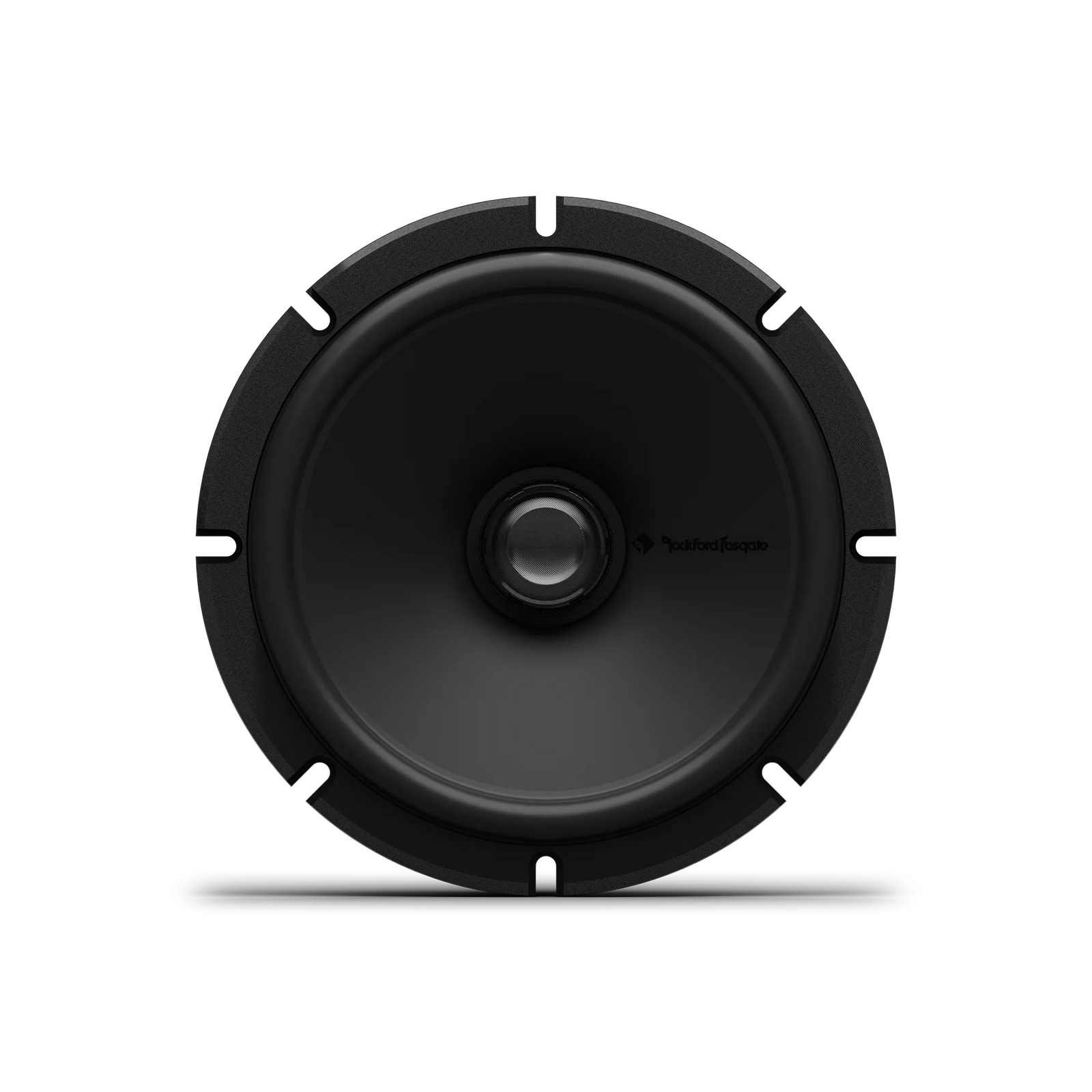

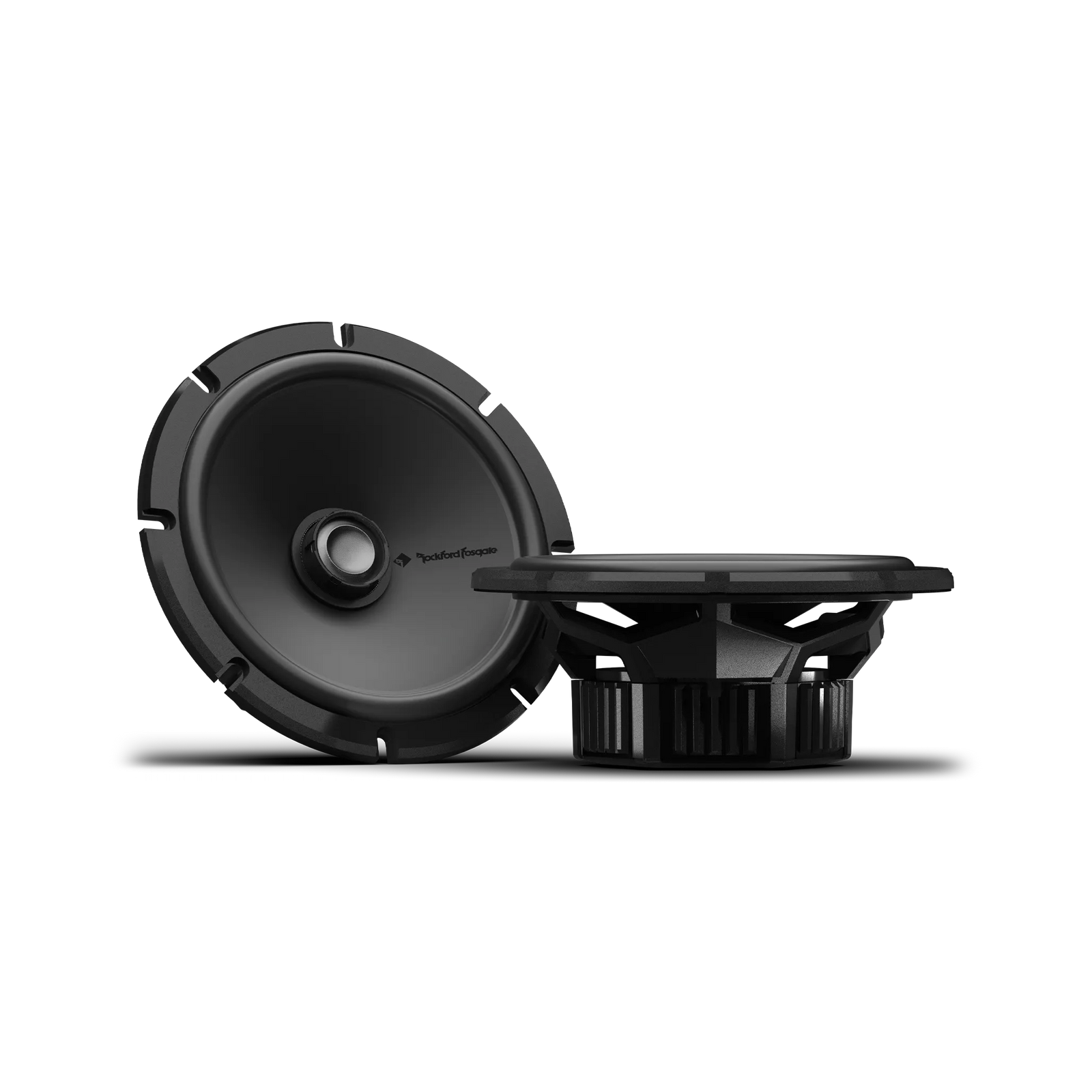

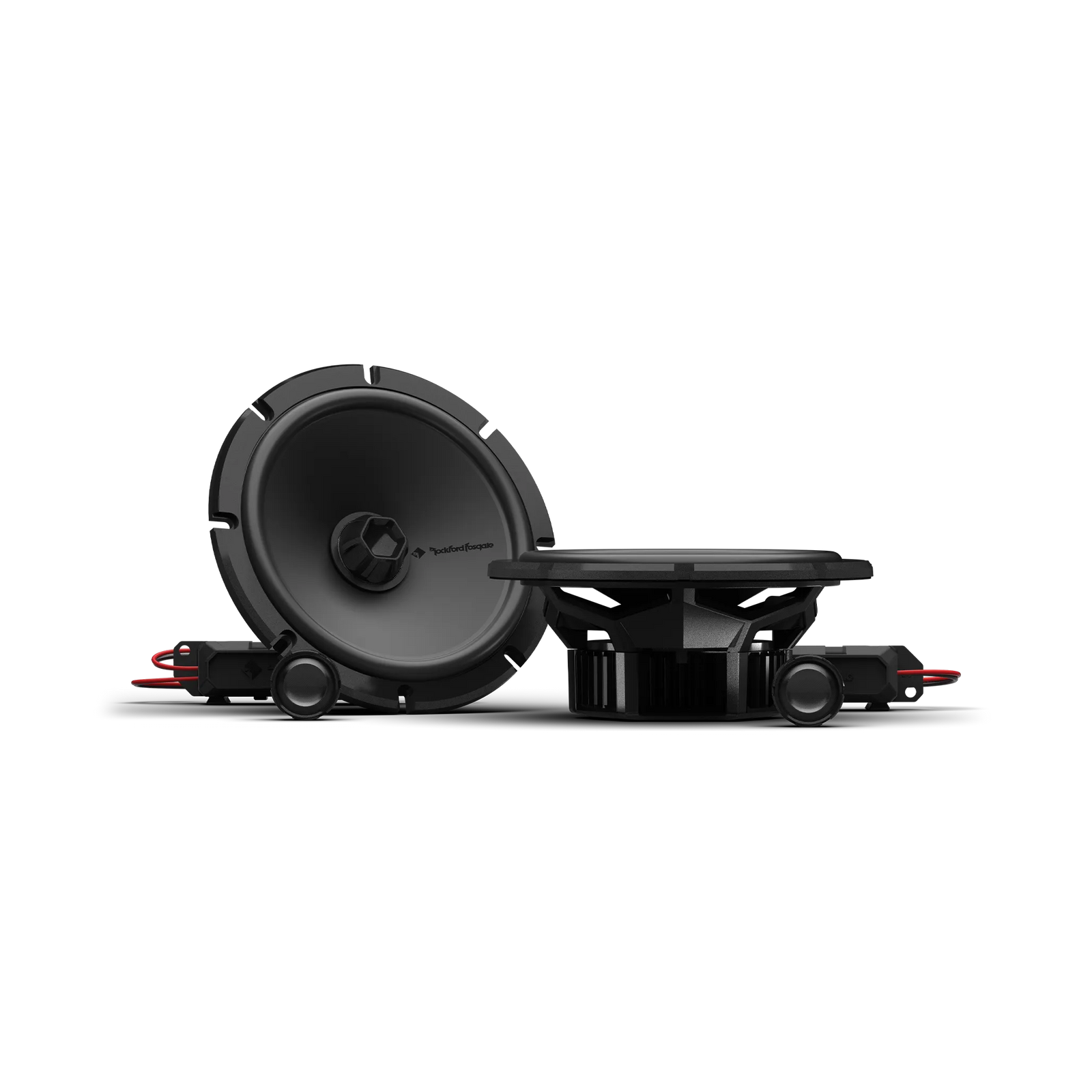

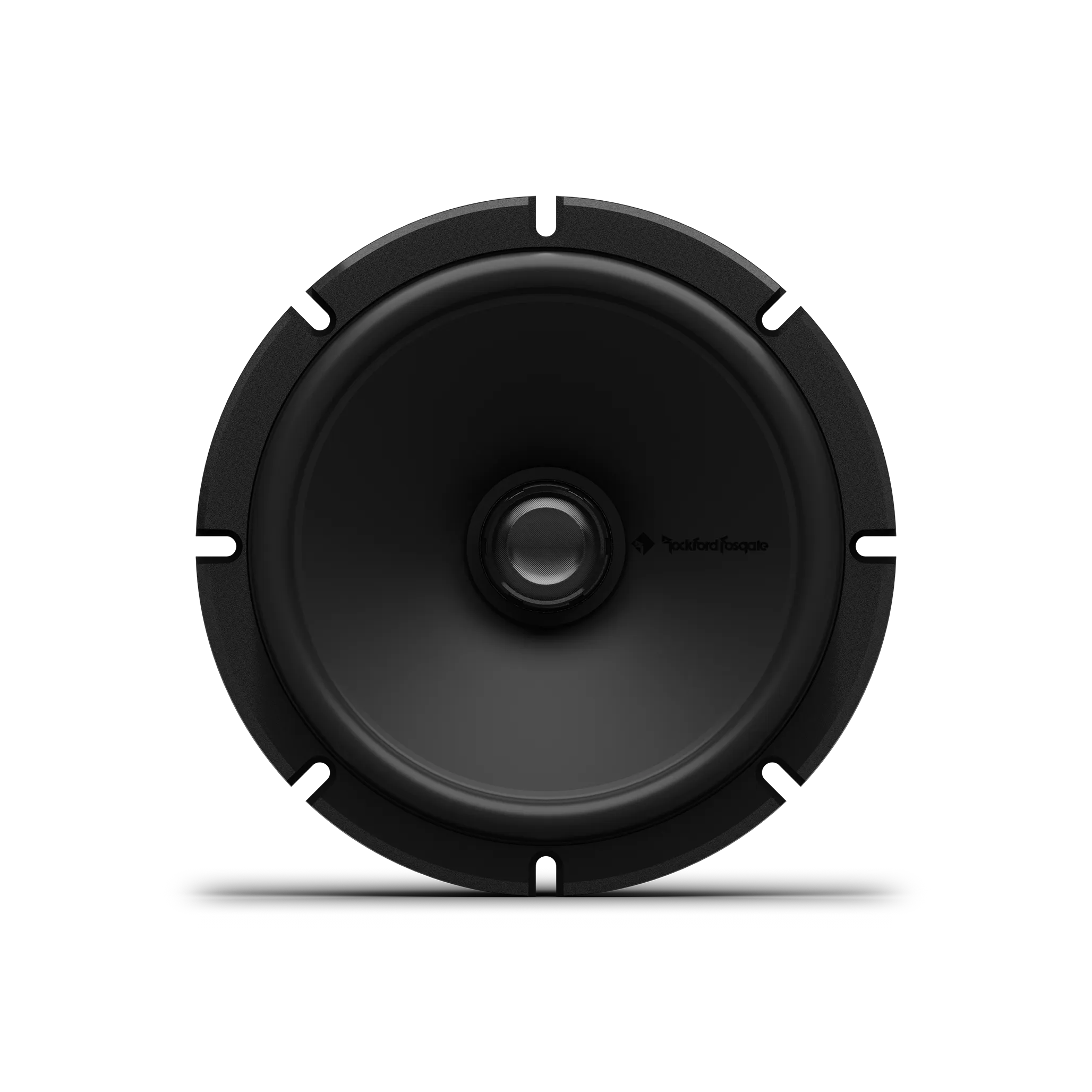

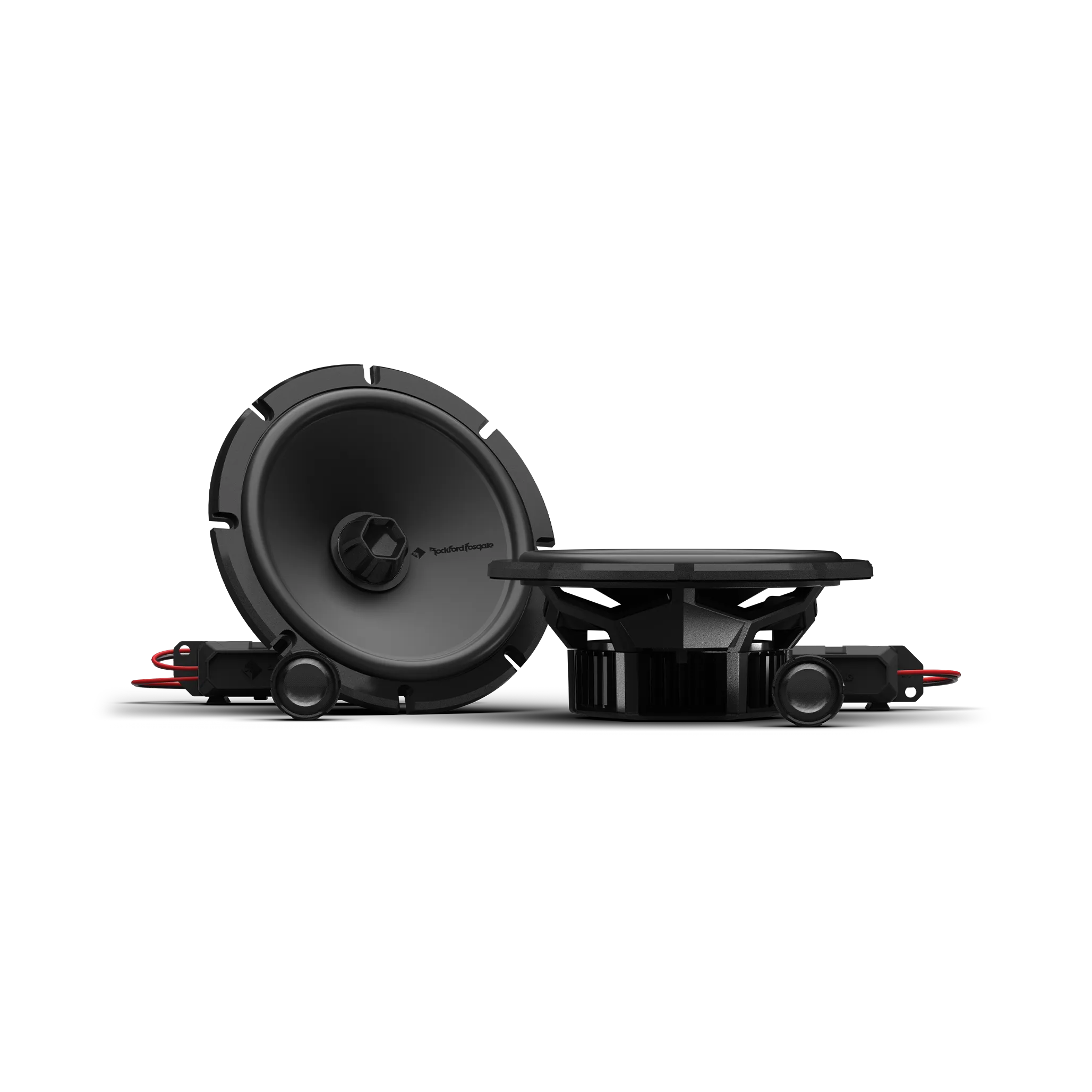

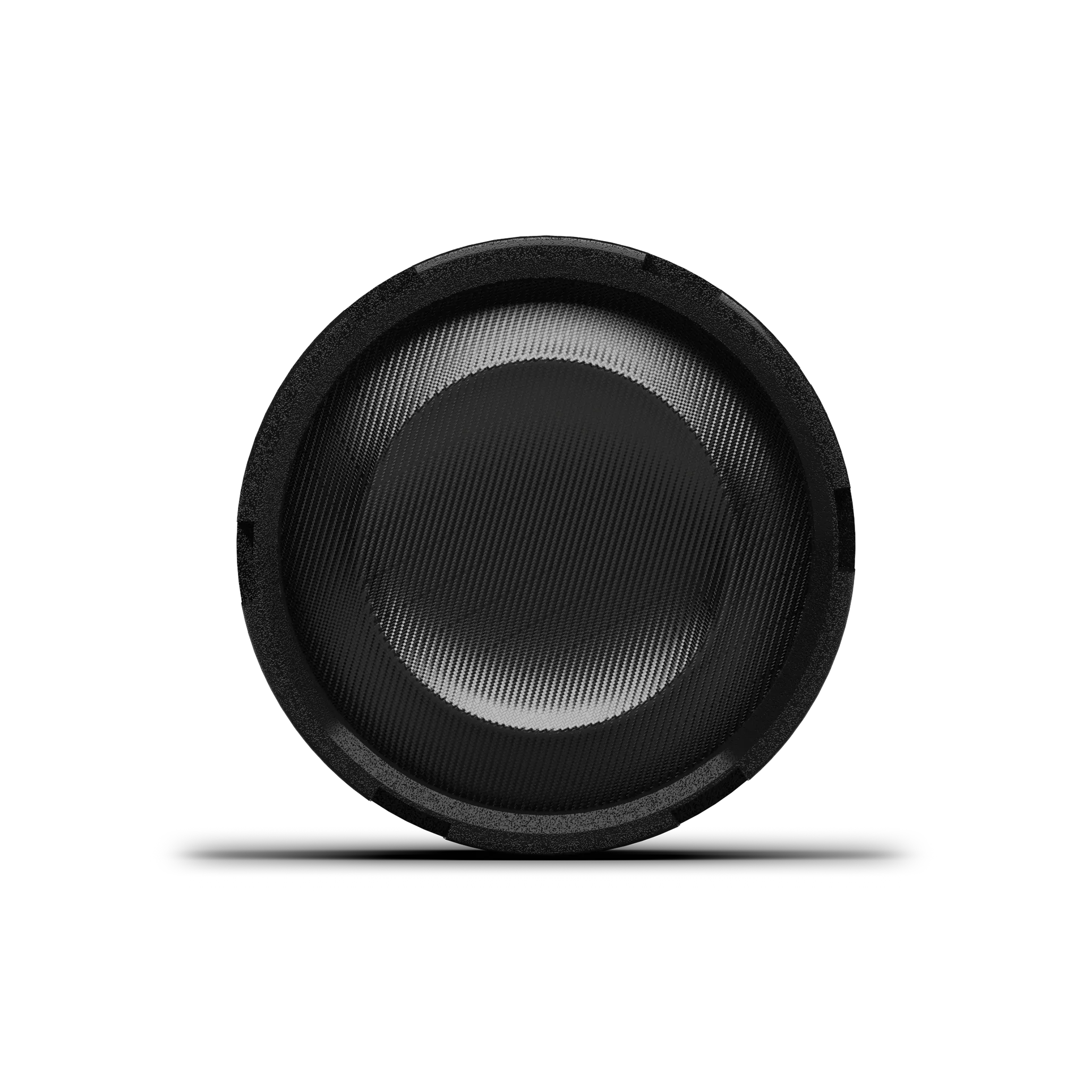

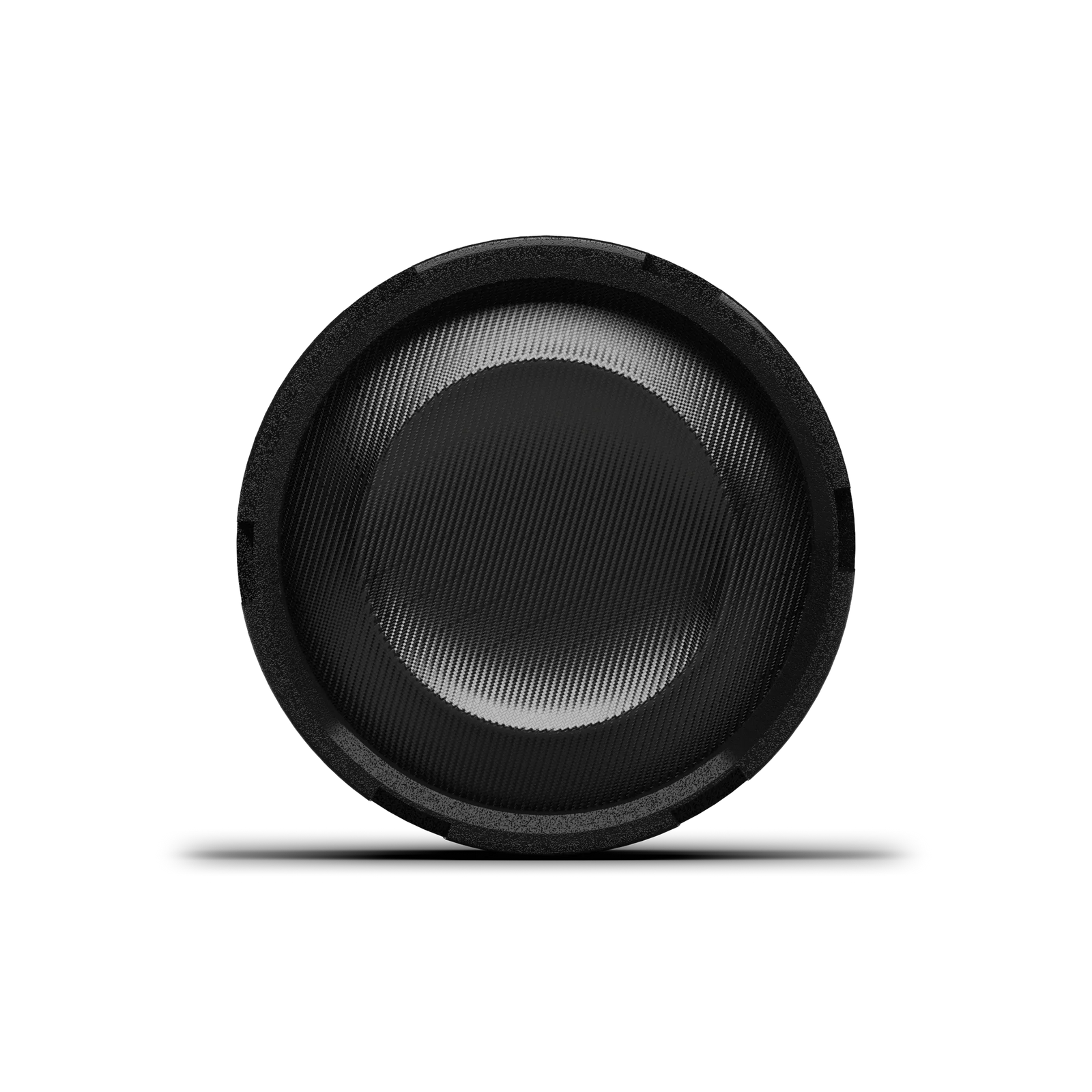

The Rockford Fosgate P2V2-675 is the 6.75" model in the Punch P2 convertible speaker range, sharing the same platform, technology stack, and feature set as the P2V2-65 but with a 6.75" nominal cone diameter and a 5.51" (140mm) cutout diameter for vehicles with 6.75" factory speaker locations. The I.L.M. bayonet-style interchangeable locking mechanism allows the tweeter to be locked into the woofer cup for coaxial use in single-speaker factory locations or removed and relocated to a separate flush-mount or surface-mount tweeter cup for 2-way component staging in vehicles with separate tweeter positions. A woofer phase plug is included for component configurations.

VAST 2.0 V-shape surround geometry delivers a 25% increase in effective cone area for maximum output and deeper bass. The 3/4" (19mm) Tetolon inverted dome tweeter with edge-driven voice coil provides broad high-frequency dispersion and superior power handling. The ICC+ concealed crossover at 9kHz 6dB/octave is integrated within the basket, with the included external passive crossover providing 12dB/octave and switchable -3dB tweeter attenuation. The MC3 crossover chassis separates into independent units or snaps together as a unified structure for flexible installation routing. Upgradable to a 3-way component system with the addition of the P3V2-25 midrange speaker. CTA-2031 compliant and Klippel verified. Grilles sold separately. 2-year warranty.

Features & Benefits

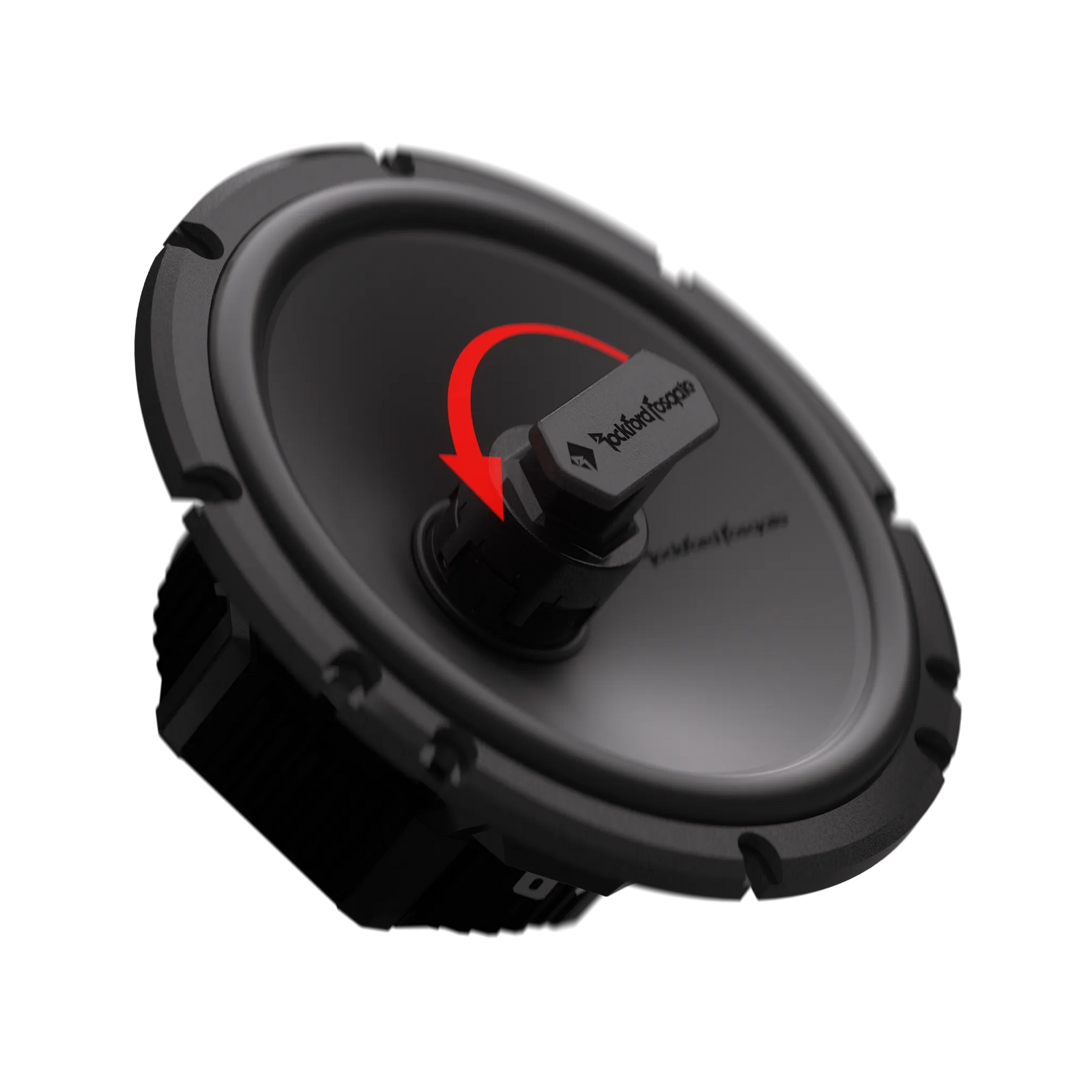

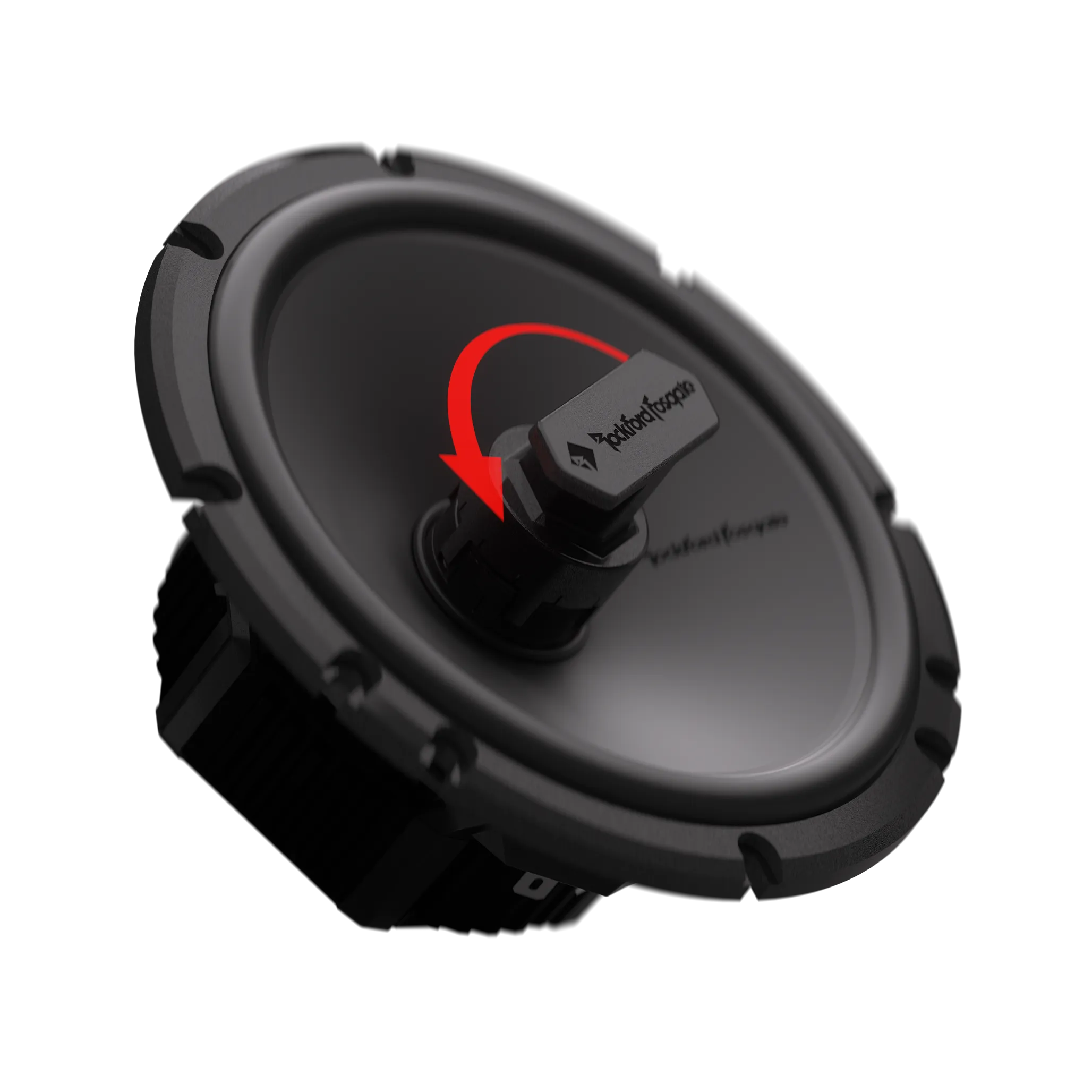

I.L.M. - Coaxial or Component Configuration from a Single Speaker: The bayonet-style I.L.M. allows the tweeter to be locked into the woofer cup for coaxial operation or relocated to a separate tweeter cup for 2-way component staging, with a woofer phase plug included for component configurations.

VAST 2.0 - 25% Increase in Effective Cone Area: V-shape surround attachment geometry increases the surround-to-frame bonding surface area for 25% more effective cone area, delivering higher output and deeper bass compared to conventional surround mounting.

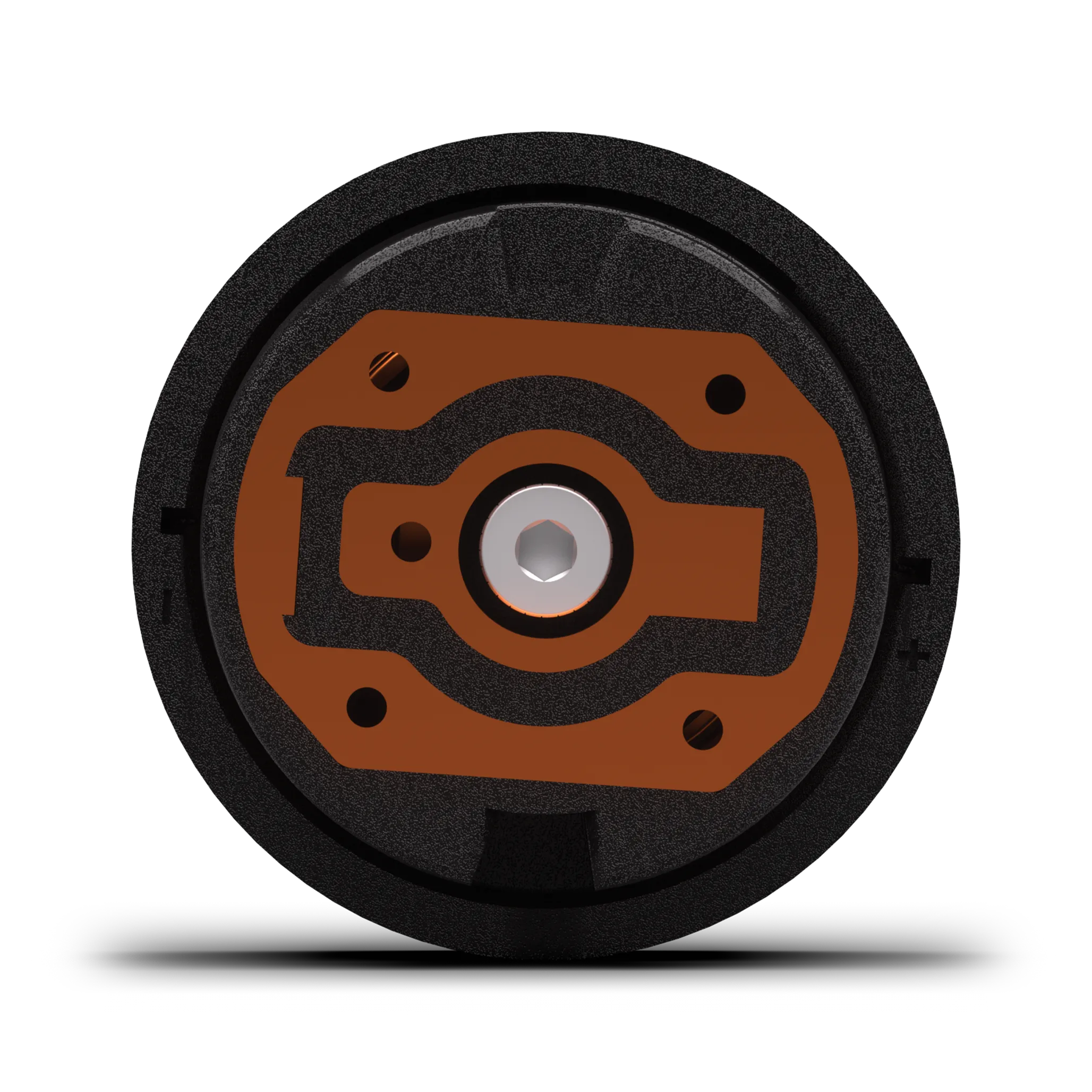

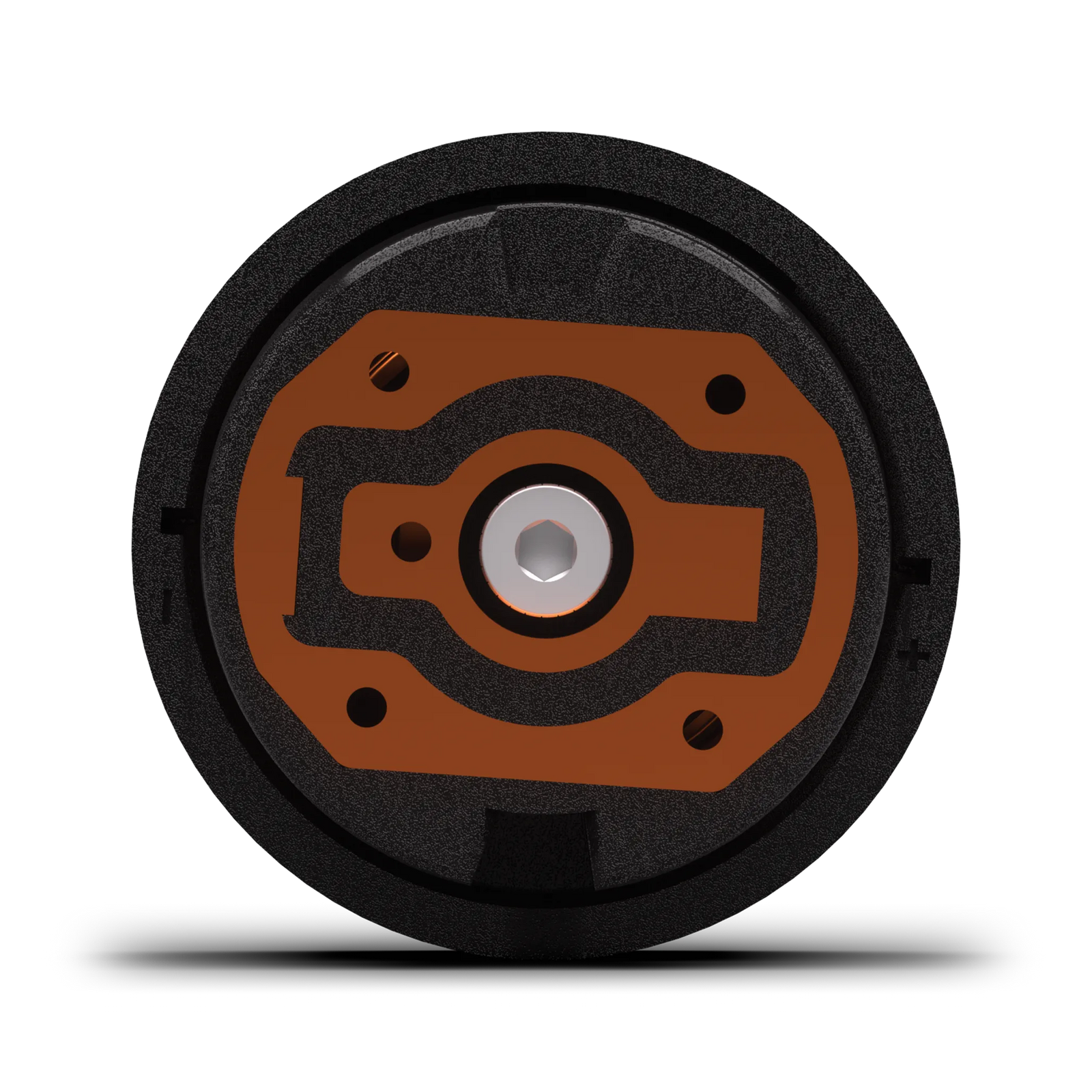

3/4" Tetolon Inverted Dome Edge-Driven Tweeter: The 19mm Tetolon inverted dome tweeter uses an edge-driven voice coil for superior power handling, broad high-frequency dispersion, and precise imaging across the 9kHz crossover point.

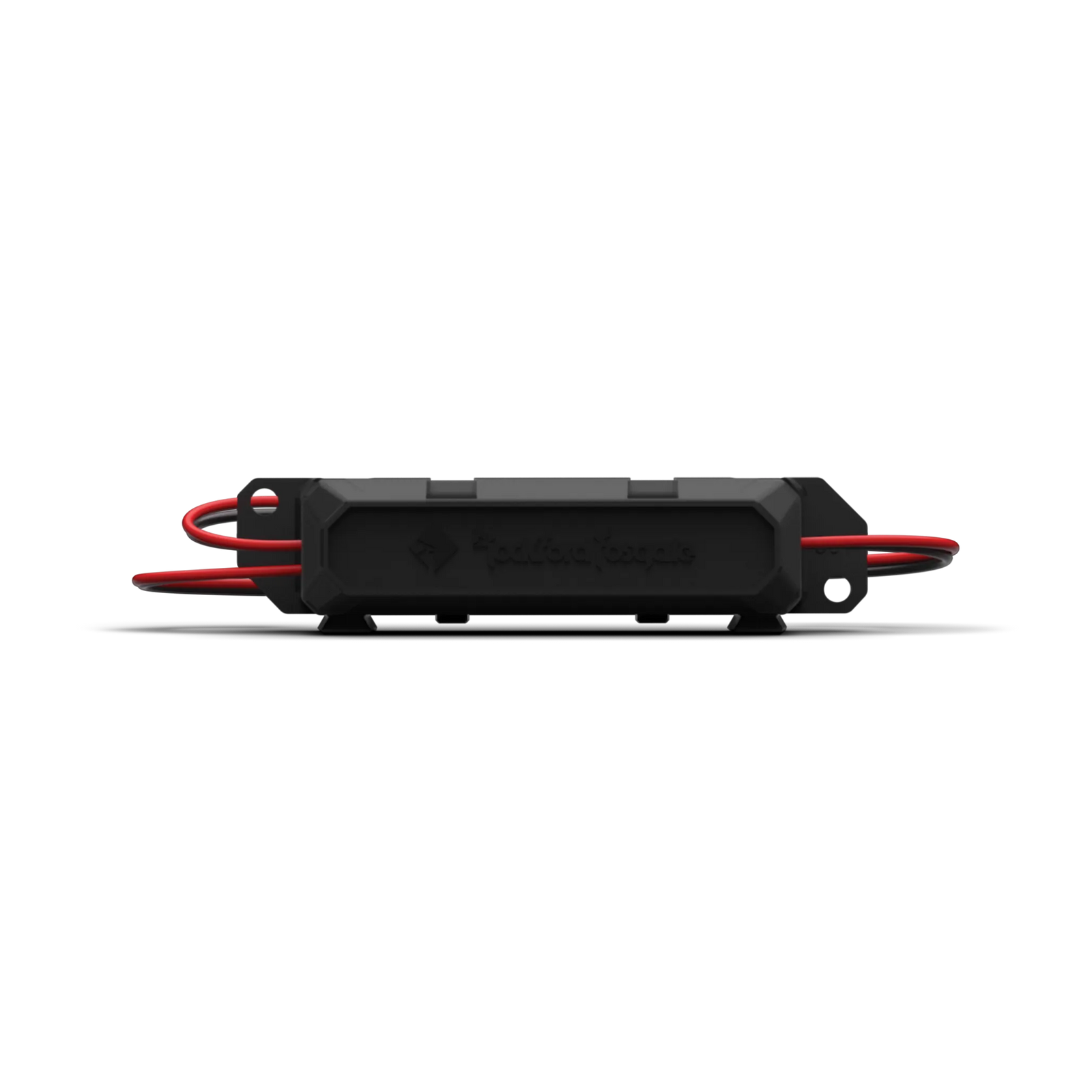

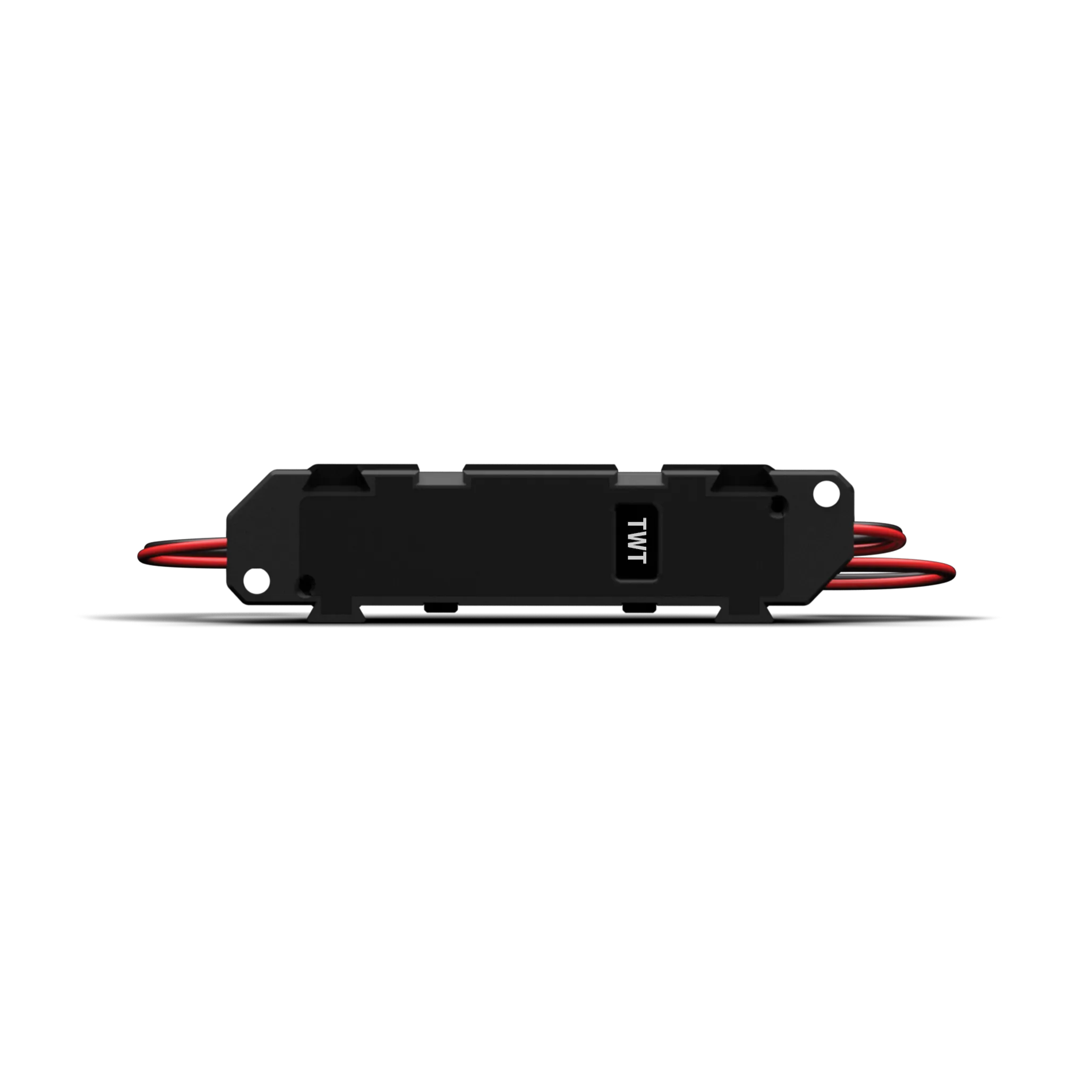

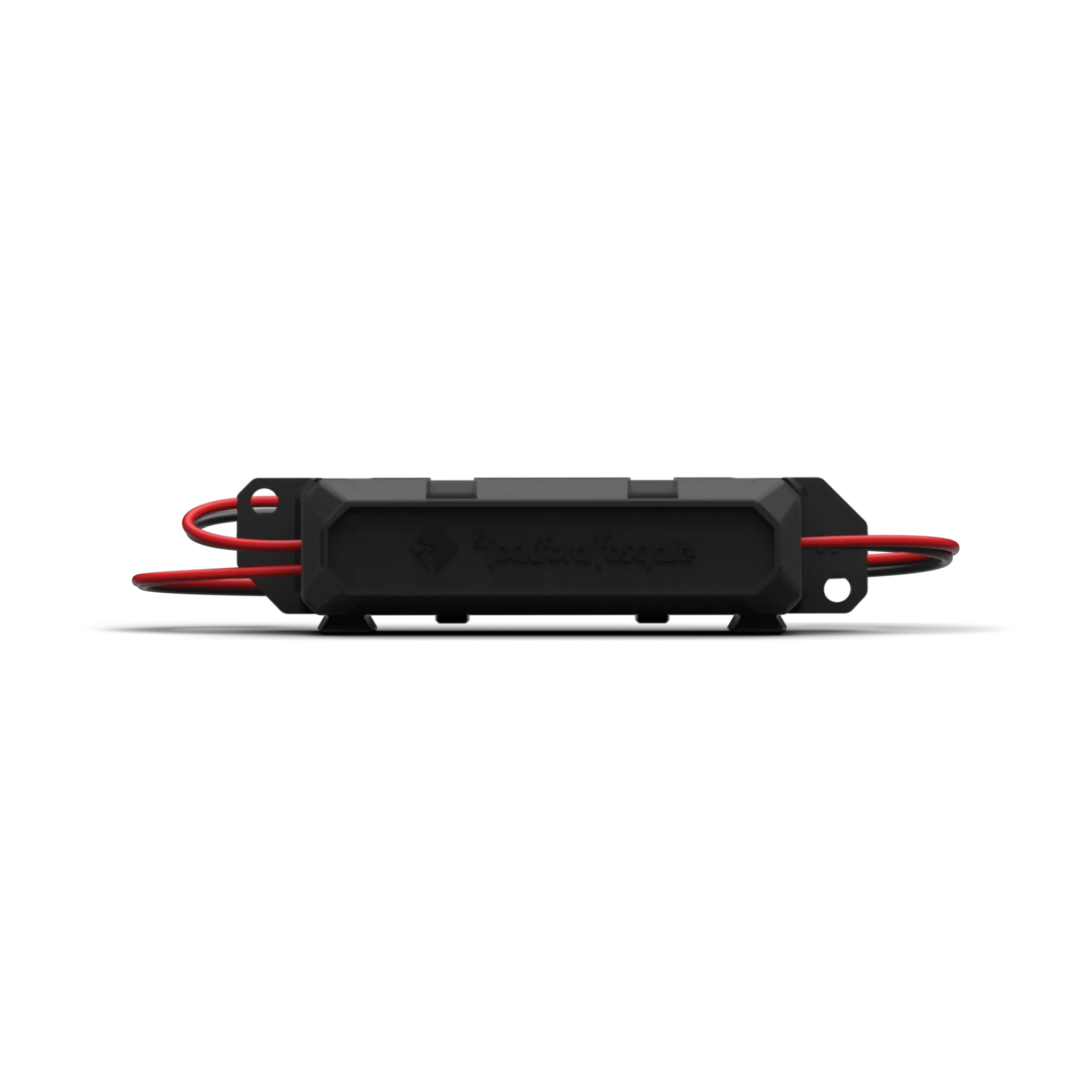

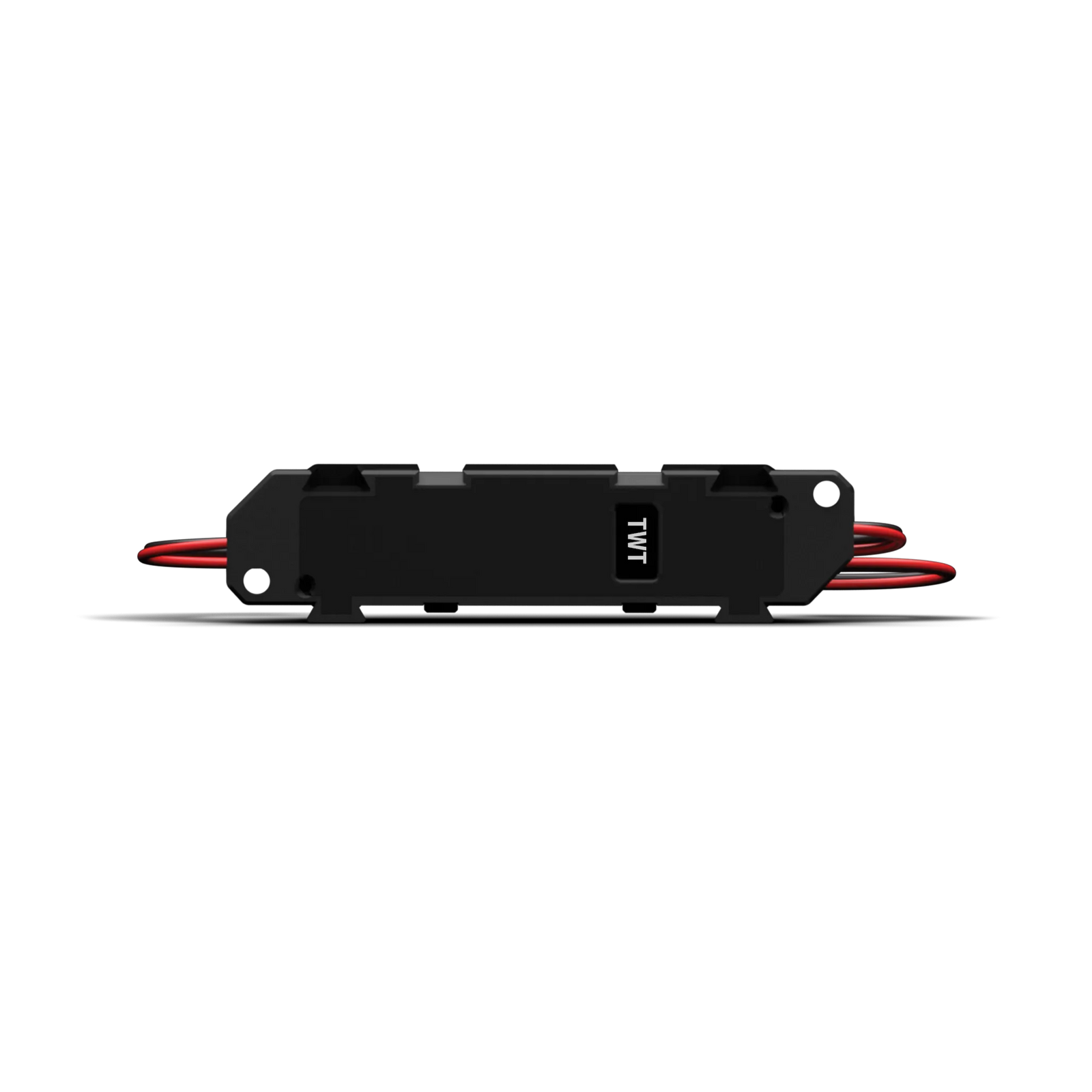

ICC+ Crossover - 6dB Internal and 12dB External Options: Integrated concealed crossover at 9kHz 6dB/octave within the basket, with an included external passive crossover providing 12dB/octave and switchable 0dB or -3dB tweeter attenuation.

MC3 Multi Configuration Crossover Chassis: The MC3 chassis separates into independent units for flexible positioning or snaps together as a unified structure for single-location installation.

Auto Fit Architecture - Drop-In 6.75" Factory Location Fitment: Redesigned frame with factory-location mounting flanges, 5.51" (140mm) cutout diameter, and removable motor cover for integration into most modern vehicle 6.75" factory speaker locations.

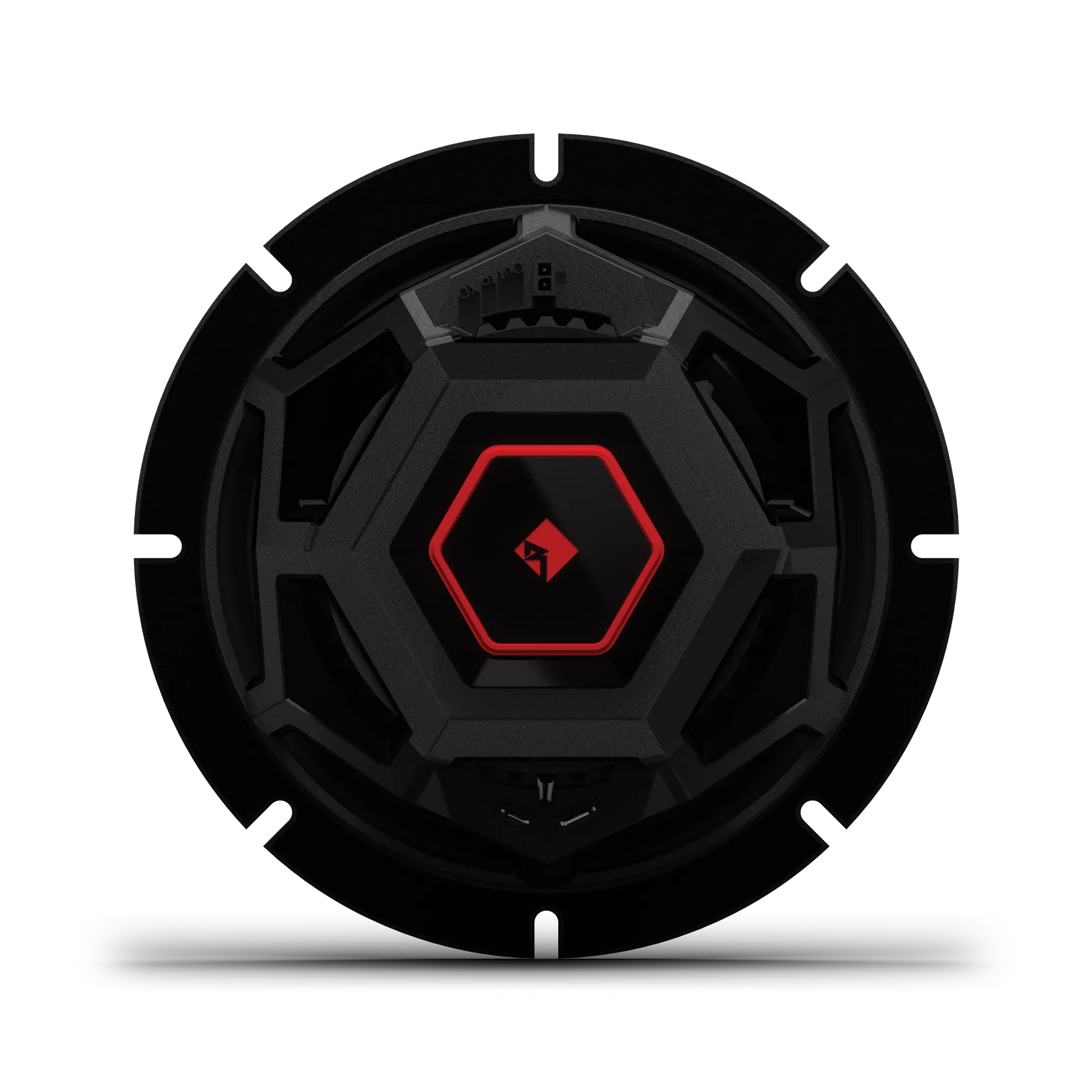

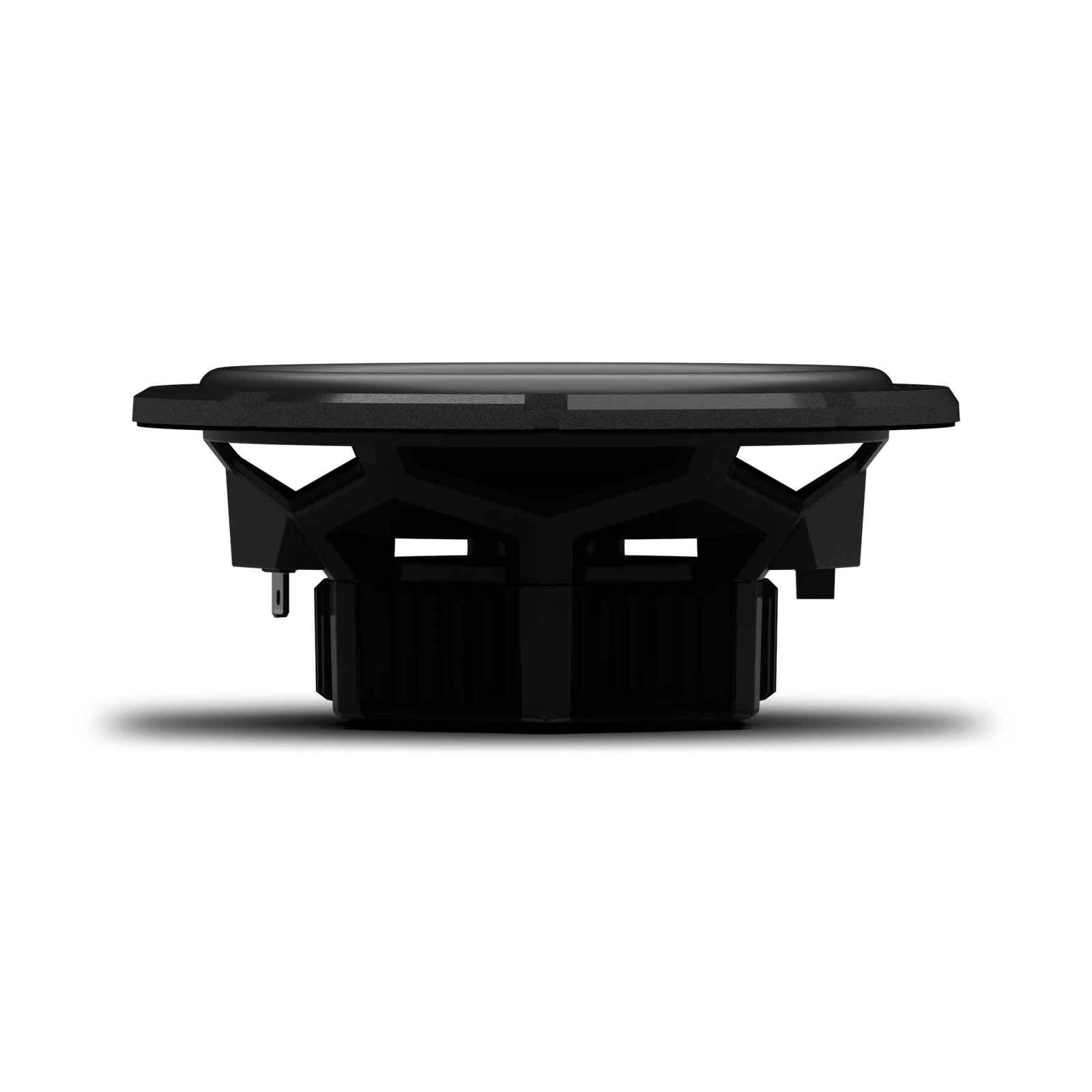

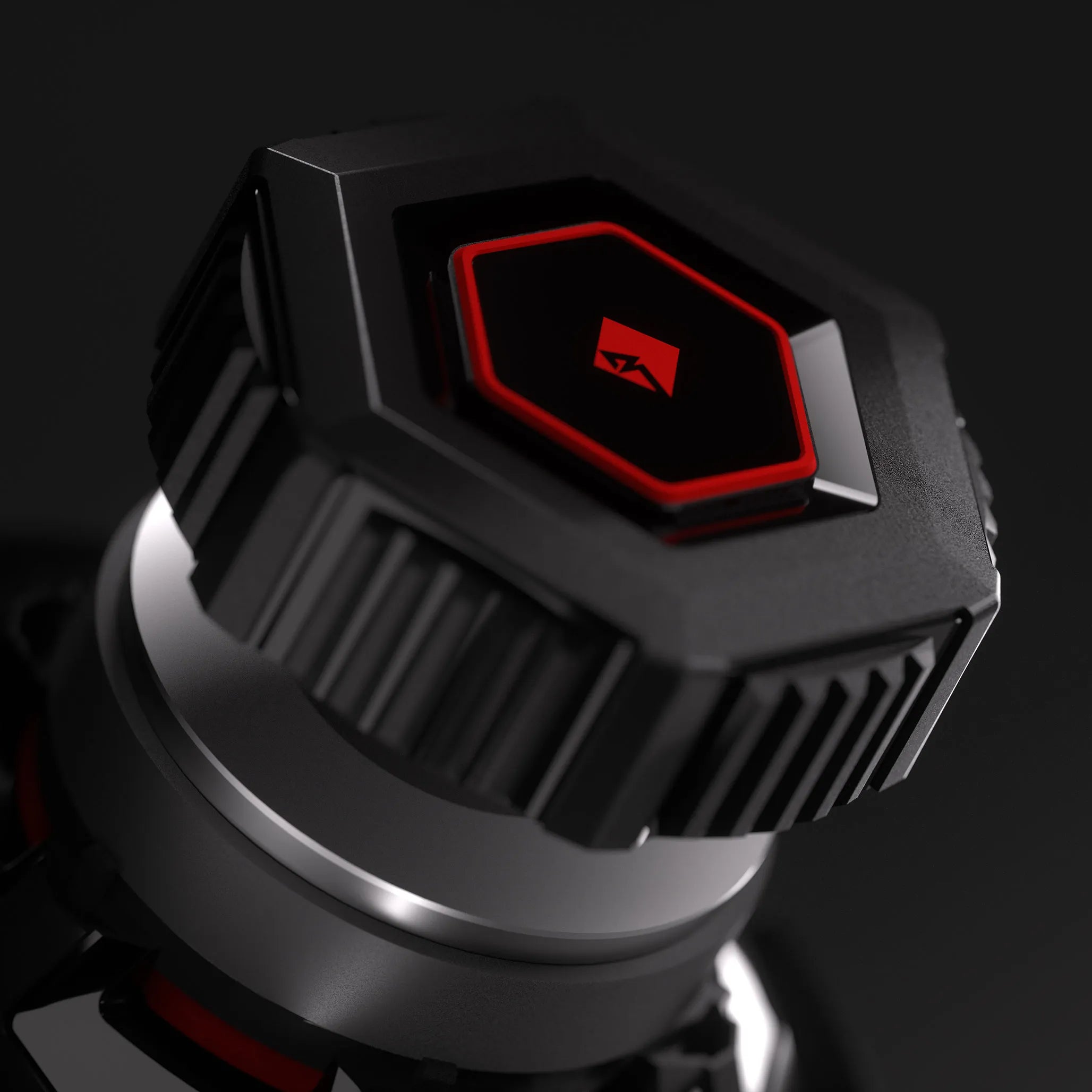

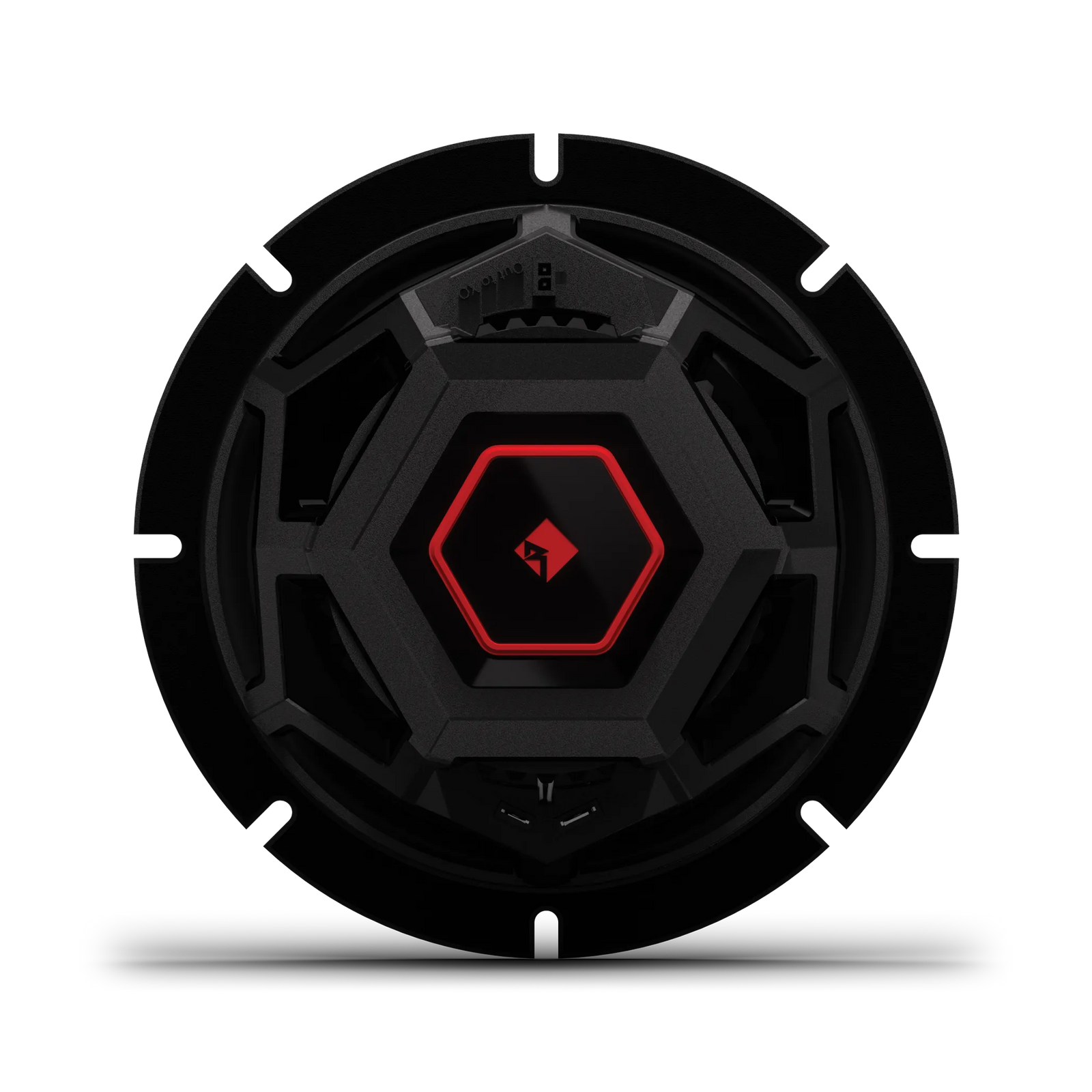

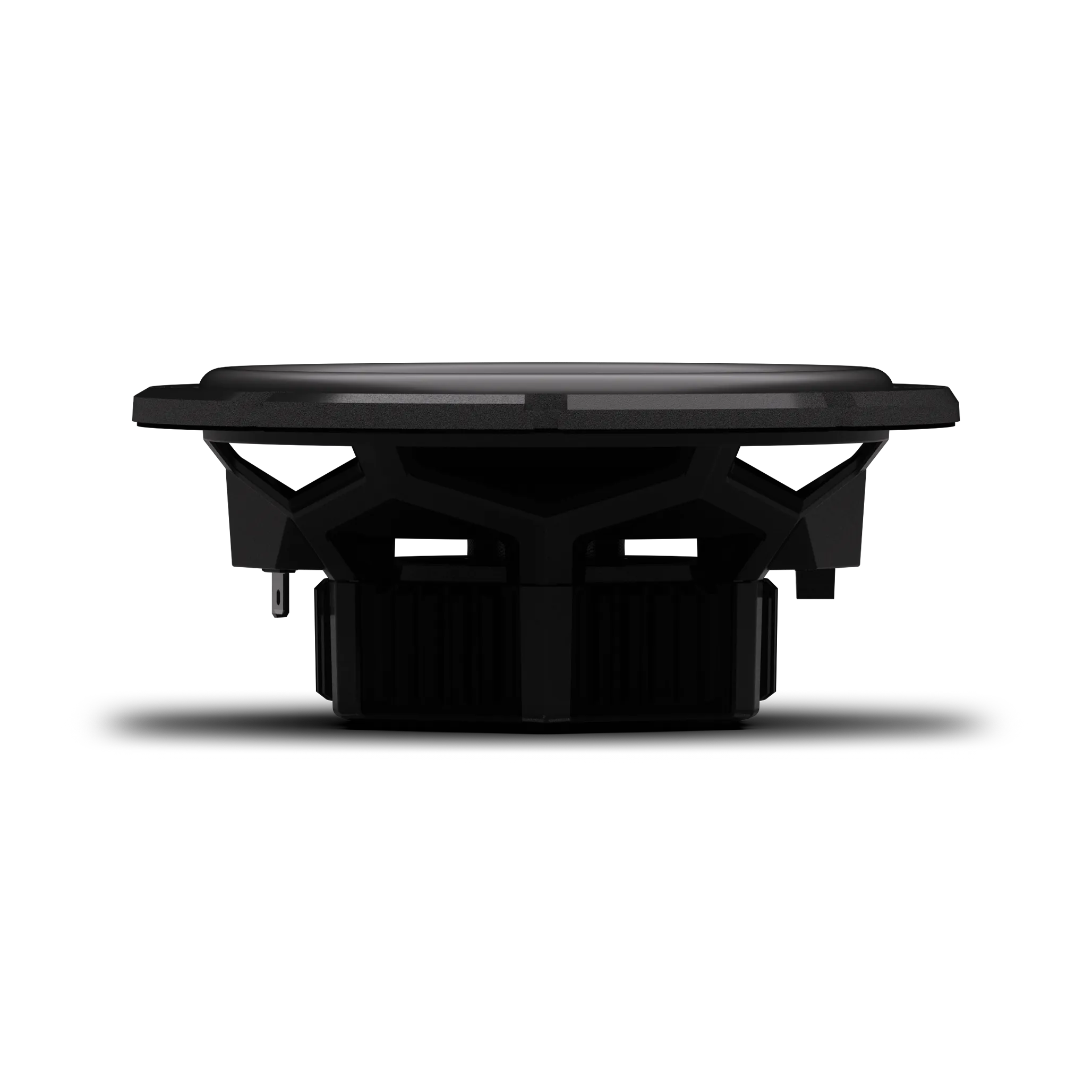

Removable Motor Cover for Tight Applications: Reduces mounting depth from 62.9mm to 56.5mm without the motor cover for shallower factory door and panel locations.

Upgradable to 3-Way Component: Upgradable to a 3-way component system with the separately available Rockford Fosgate P3V2-25 midrange speaker.

Durable Material Stack: 15% glass-fibre reinforced PA66 composite basket, Santoprene half-roll surround, Nomex spider with braided tinsel leads, 20-40% mica-reinforced polypropylene curvilinear cone, Y35 ferrite motor (5mm larger than previous generation), and vented Kapton voice coil former.

CTA-2031 Compliant and Klippel Verified: Power handling conforms to CTA-2031 industry standards. Klippel verified.

2-Year Warranty: Backed by Rockford Fosgate's 2-year manufacturer warranty.

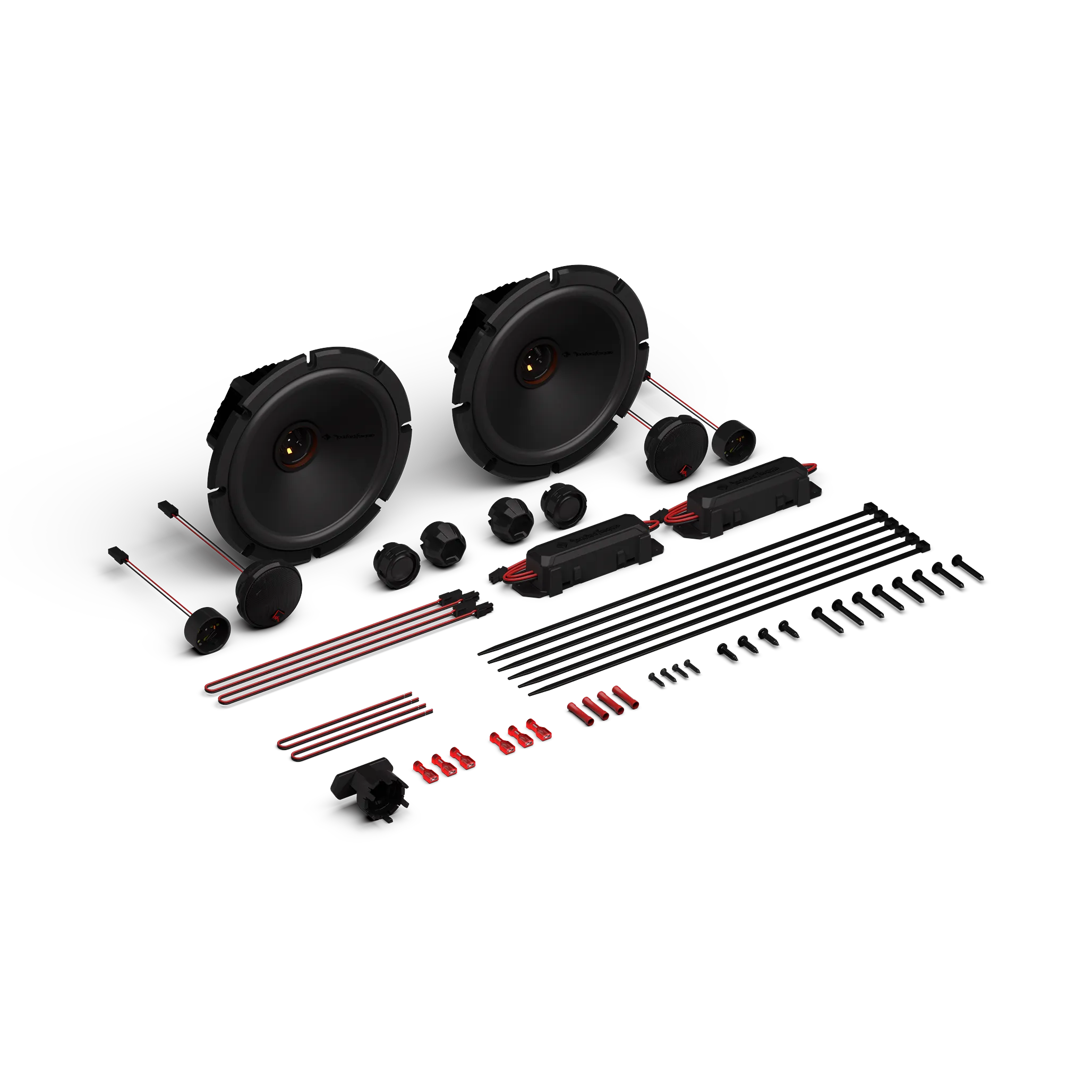

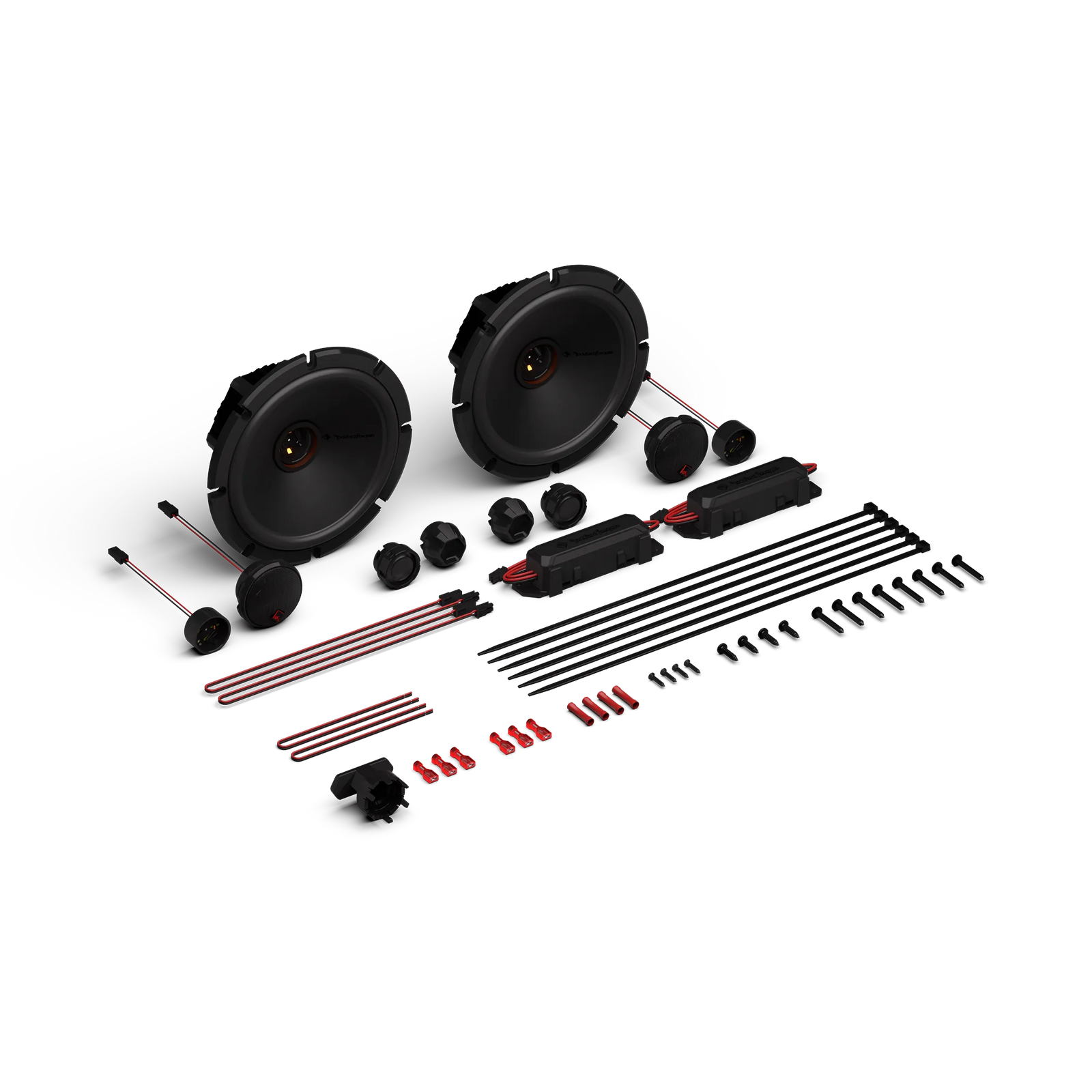

What's in the Box

• 2 x 6.75" 4Ω Convertible Speakers
• 2 x 3/4" 4Ω Tweeters
• 2 x Passive Crossover Networks (Tweeter)

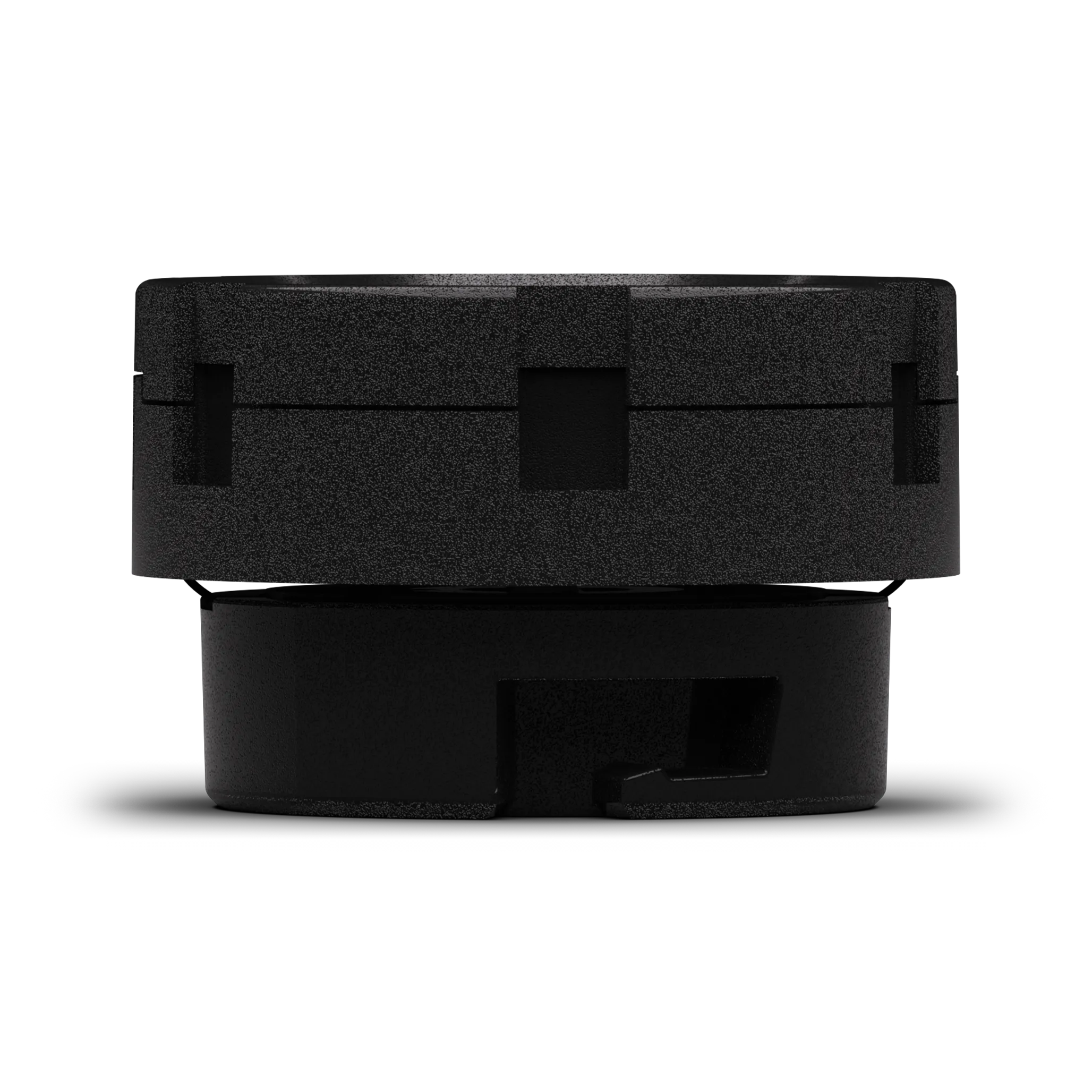

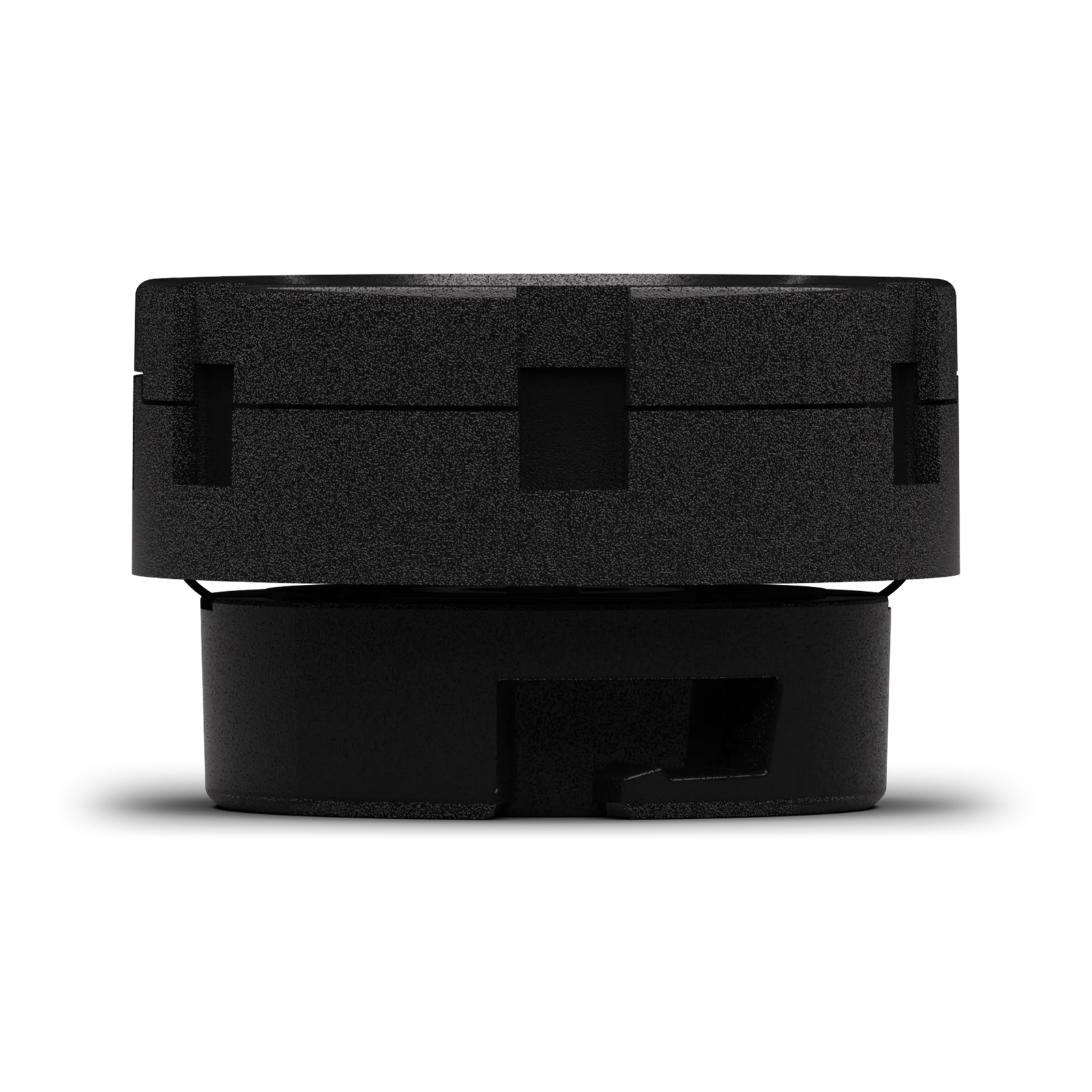

• 2 x Flush-Mount Tweeter Cups
• 2 x Surface-Mounting Tweeter Cups

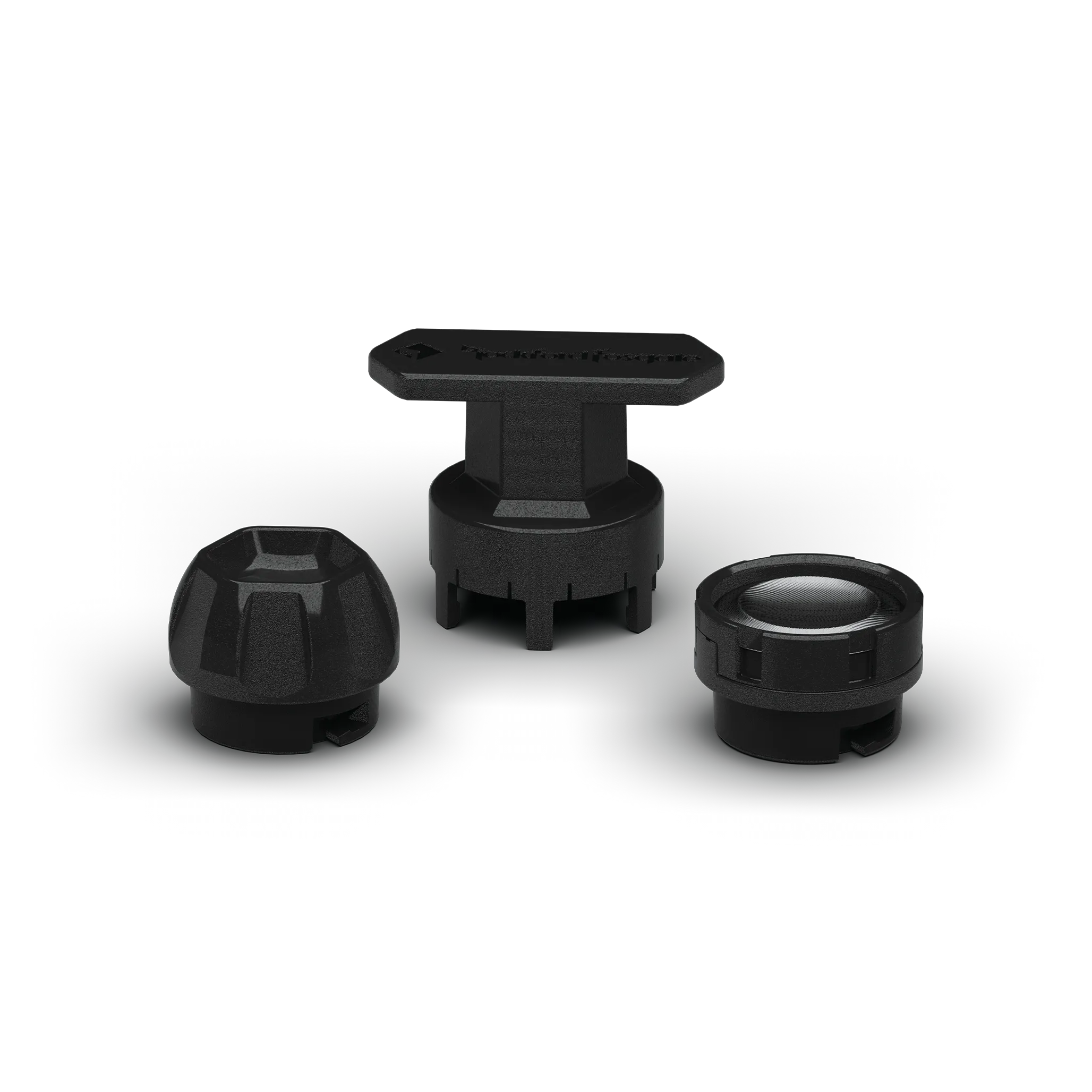

• 2 x Woofer Phase Plugs
• 1 x 6.75" Speaker Cut-Out Template

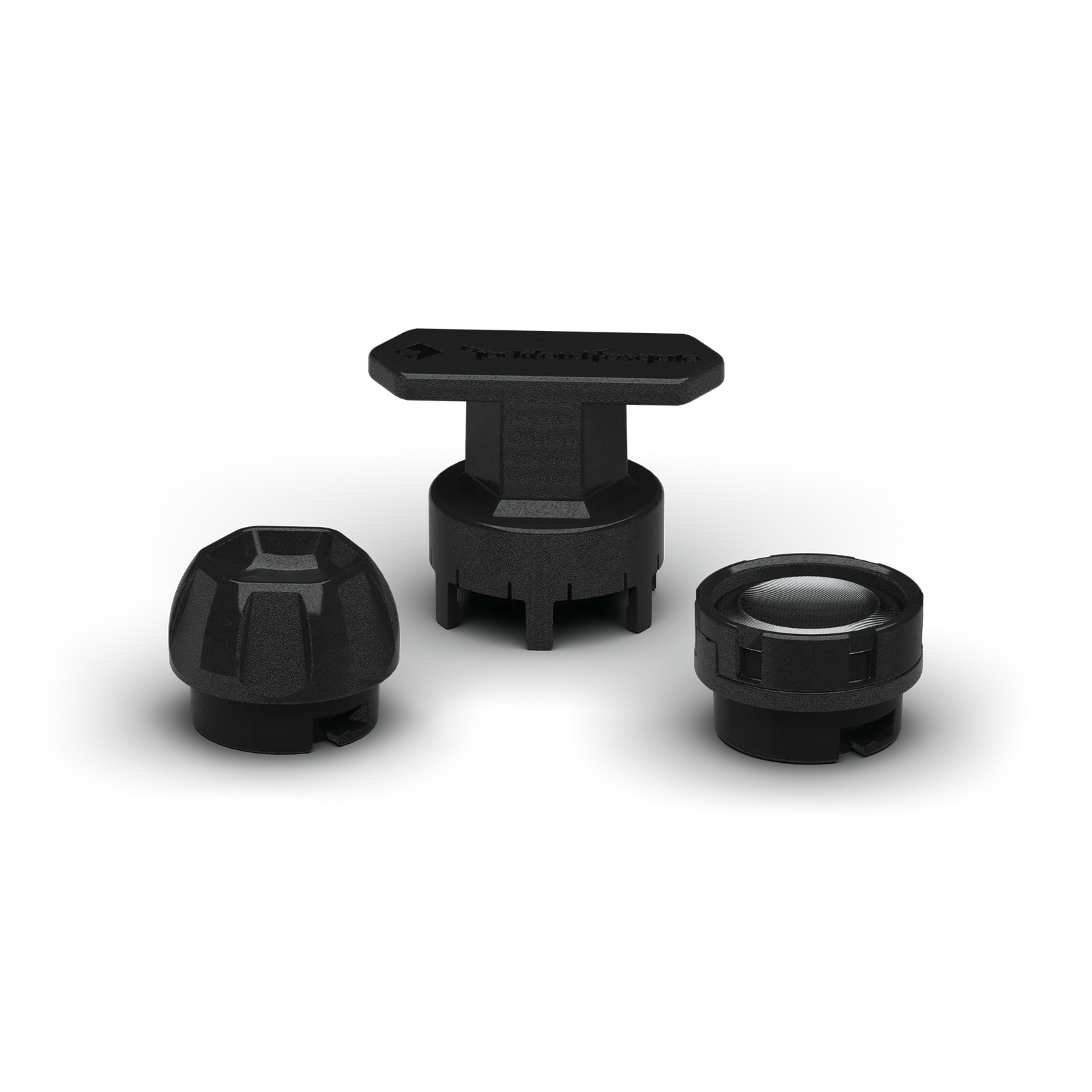

• 1 x Tweeter Removal Tool
• 4 x Crossover Wiring Extensions (18", 457mm)
• 2 x 18 AWG Red/Black Speaker Wire (205mm)
• 4 x Self-Tapping Phillips #8x32mm (Speaker)
• 4 x Self-Tapping Phillips #4x16mm (Tweeter)
• 4 x Self-Tapping Phillips #8x20mm (Crossover)
• 3 x 18 AWG Female Crimp Spade Connectors (0.187")
• 3 x 18 AWG Female Crimp Spade Connectors (0.250")
• 4 x 18 AWG Crimp Butt Connectors
• 6 x Zip Ties (4.8mm x 350mm)

Note: Grilles sold separately.

Technical Specs

Compatible With

The P2V2-675 is compatible with most modern vehicle factory 6.75" speaker locations with a 5.51" (140mm) cutout diameter. The removable motor cover reduces mounting depth to 56.5mm for shallow factory door cavities. Confirm cutout diameter, mounting depth, and front side clearance against your specific vehicle before purchase. The P2V2-675 is upgradable to a 3-way component system with the separately available Rockford Fosgate P3V2-25 midrange speaker.

Frequently Asked Questions

What is the difference between the P2V2-675 and the P2V2-65?

Both are Punch P2 convertible speakers sharing identical technology, power handling, sensitivity, and feature sets. The P2V2-675 has a 6.75" nominal cone diameter and a 5.51" (140mm) cutout diameter for 6.75" factory speaker locations. The P2V2-65 has a 6.5" nominal cone diameter and a 5.42" (137.6mm) cutout. Mounting depths are virtually identical. Choose based on the factory speaker diameter in your specific vehicle.

Can the P2V2-675 be used as both a coaxial and a component speaker?

Yes. The I.L.M. (Interchangeable Locking Mechanism) allows the tweeter to be locked into the woofer cup for coaxial operation or relocated to a separate flush-mount or surface-mount tweeter cup for 2-way component staging. A woofer phase plug is included for component configurations.

Can the motor cover be removed for shallow installations?

Yes. Removing the motor cover reduces mounting depth from 62.9mm to 56.5mm for installation in shallower factory door and panel locations.

Can the P2V2-675 be upgraded to a 3-way system?

Yes. The P2V2-675 can be upgraded to a 3-way component system by adding the Rockford Fosgate P3V2-25 midrange speaker, sold separately.

Are grilles included with the P2V2-675?

No. Grilles are sold separately.
