Rockford Fosgate P2V2-65 Punch 6.5" 2-Way Convertible Speakers 75W

Rockford Fosgate P2V2-65 Punch P2 6.5" 2-Way Convertible Car Speakers 75W RMS

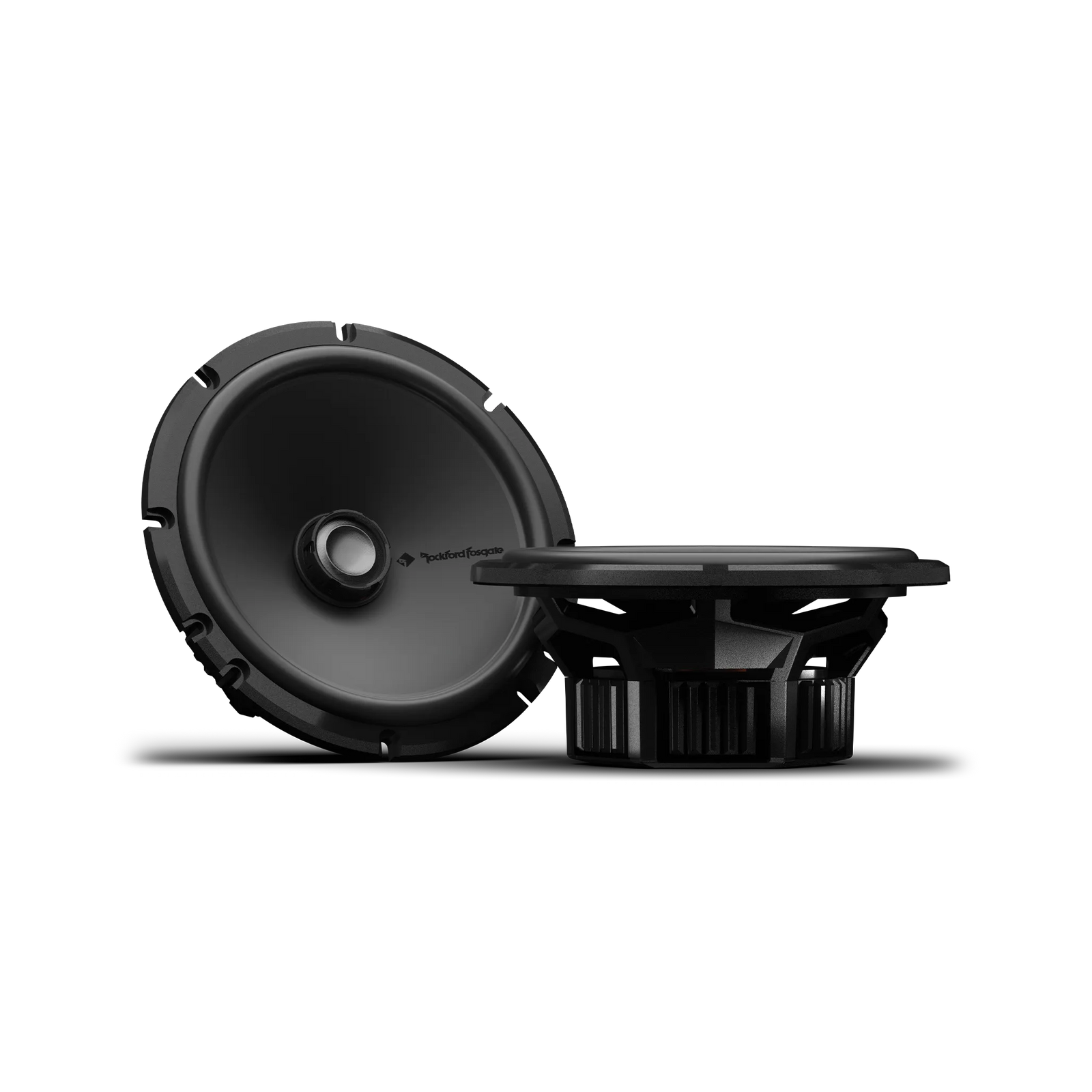

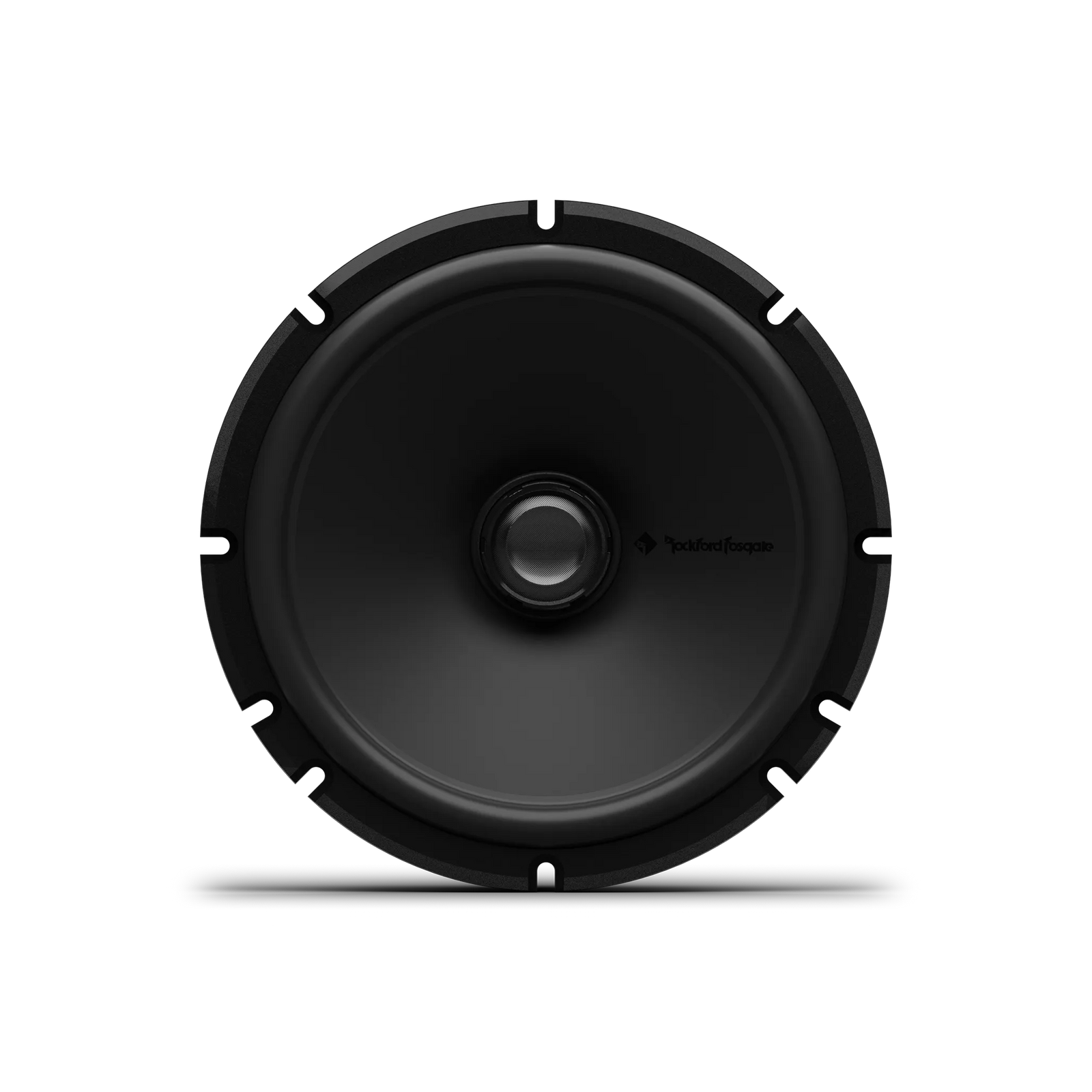

A pair of 6.5" 2-way convertible car speakers from Rockford Fosgate, the P2V2-65 delivers 75W RMS and 150W peak per speaker with the I.L.M. (Interchangeable Locking Mechanism) allowing configuration as a coaxial or component system, VAST 2.0 cone technology, 3/4" Tetolon inverted dome edge-driven tweeter, ICC+ integrated concealed crossover (6dB internal, 12dB external), MC3 multi-configuration crossover chassis, 15% glass-fibre reinforced PA66 composite basket, Santoprene half-roll surround, Nomex spider, removable motor cover, 88dB sensitivity, 49Hz-25kHz frequency response, 4Ω impedance, and full installation hardware. Sold in pairs.

Product Overview

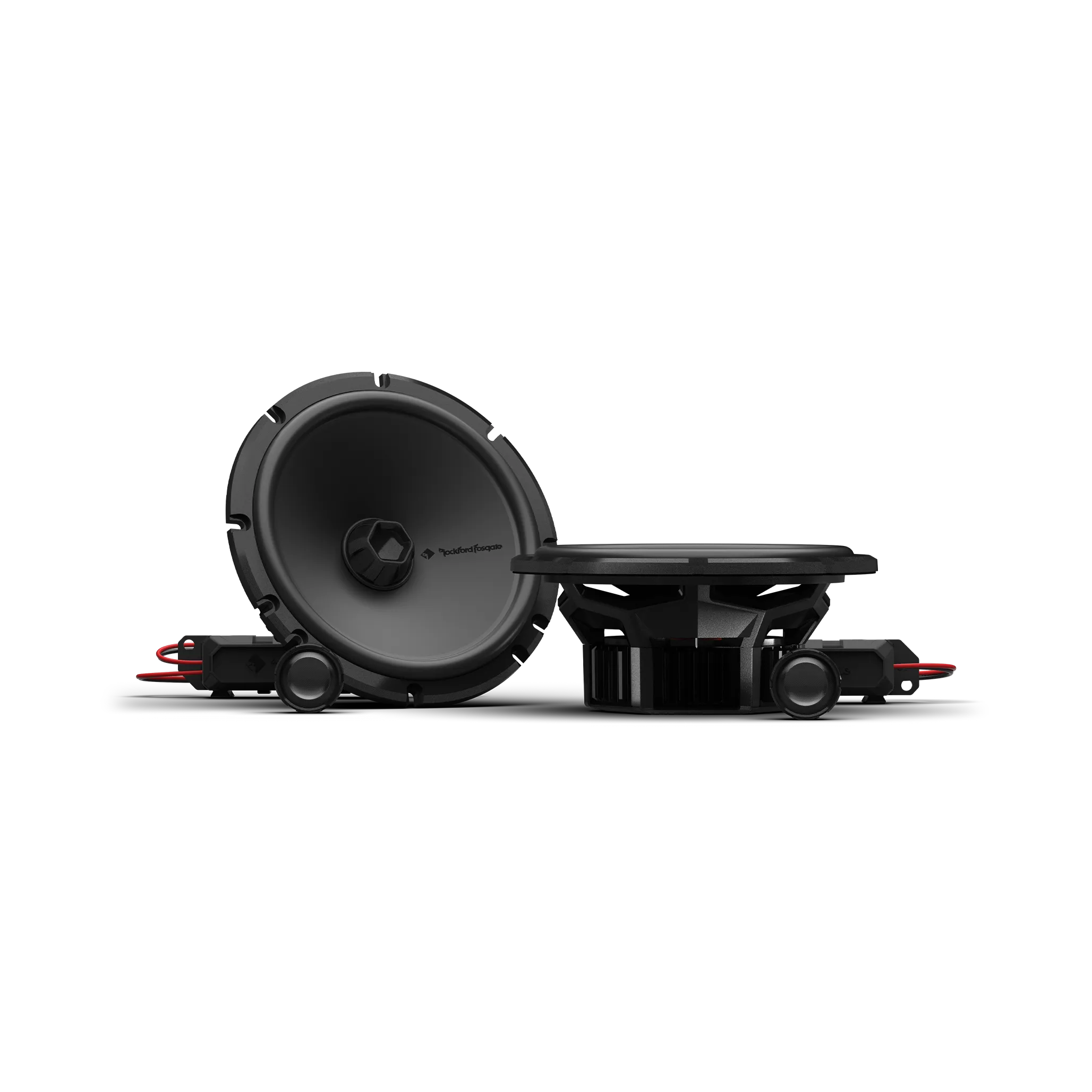

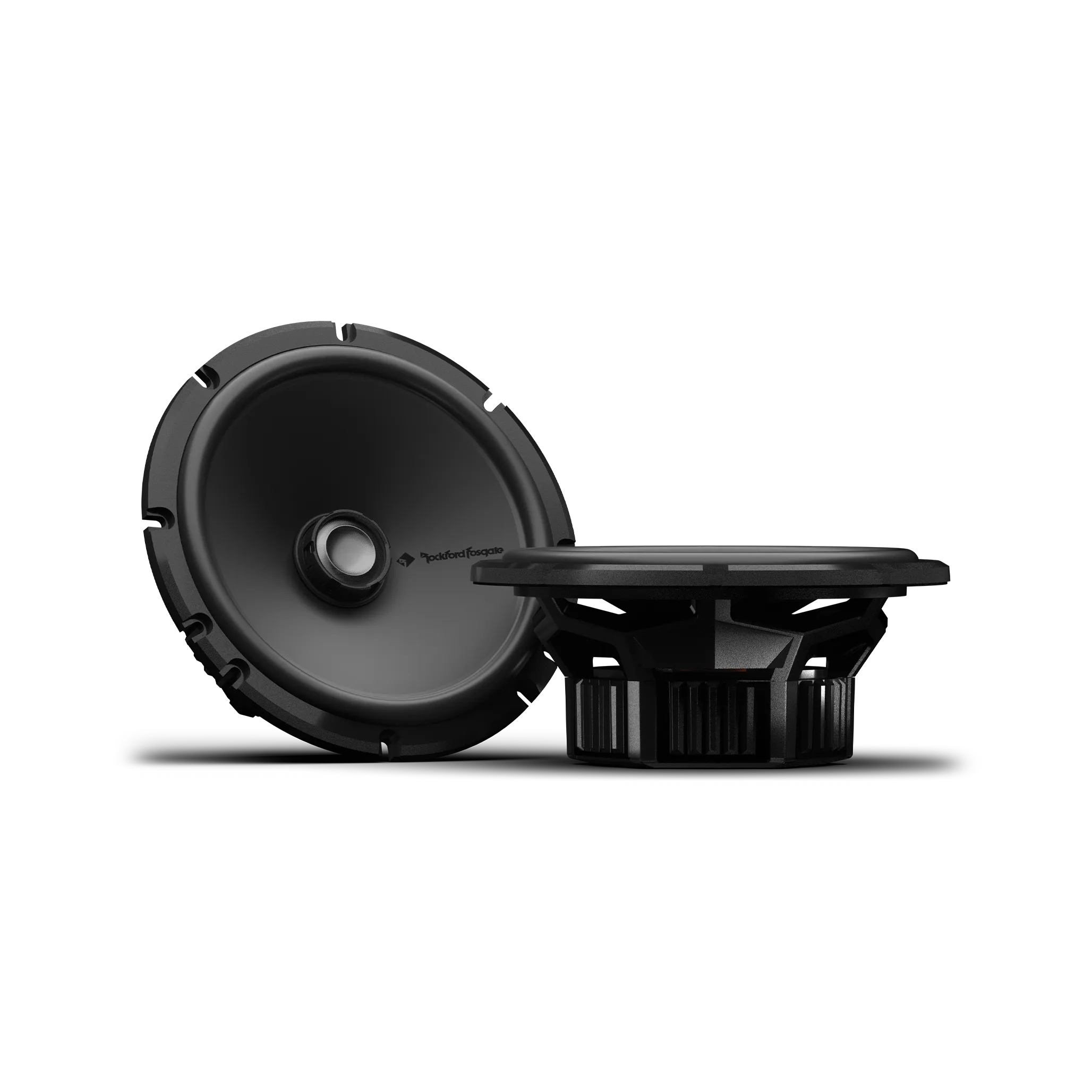

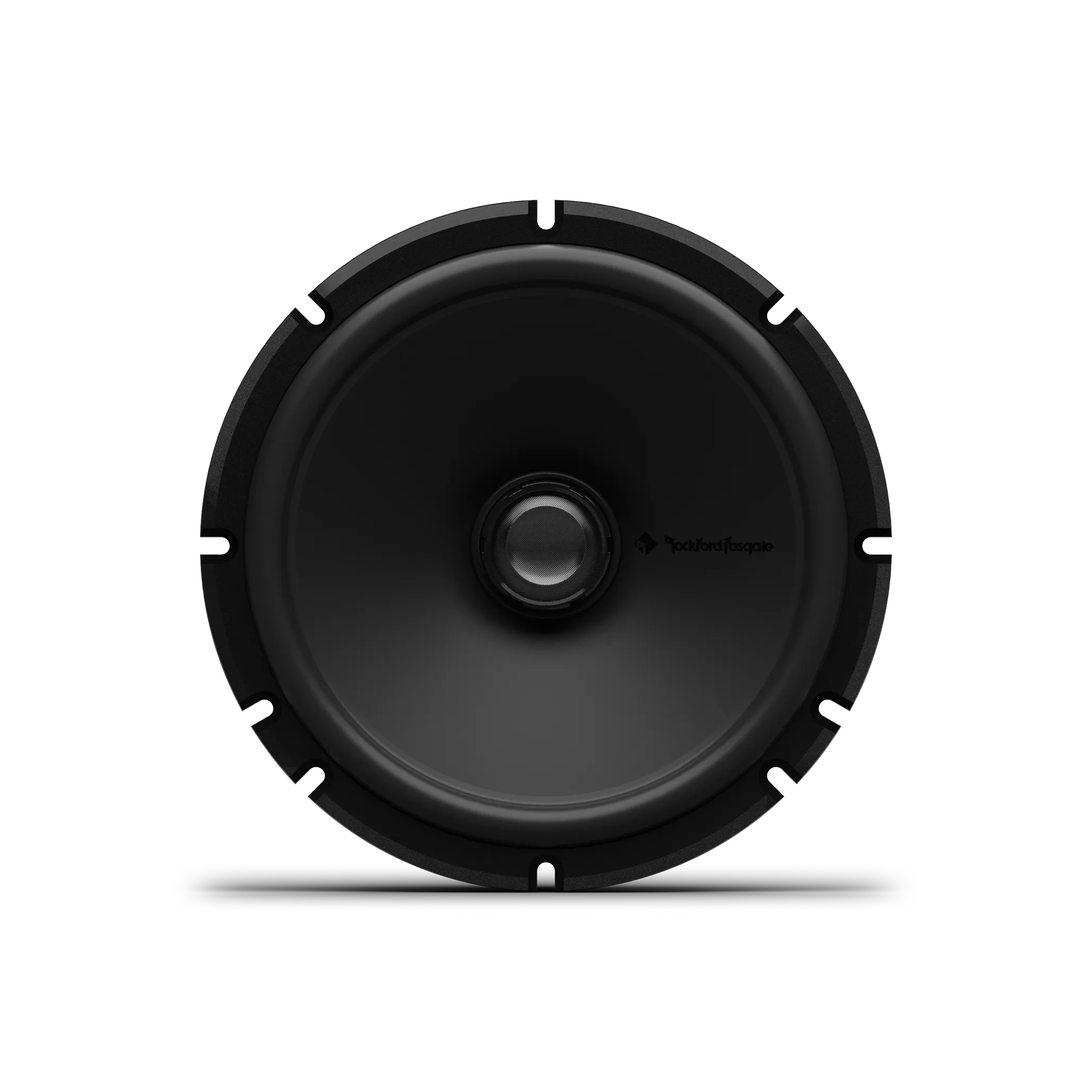

The Rockford Fosgate P2V2-65 is the 6.5" model in the second-generation Punch P2 convertible speaker range, engineered to provide both drop-in coaxial replacement capability and full 2-way component staging from the same speaker unit. The I.L.M. (Interchangeable Locking Mechanism) allows the tweeter to be locked into or removed from the woofer mounting cup using a bayonet-style mechanism, configuring the speaker as a coaxial for single-speaker factory locations or as a 2-way component system for vehicles with separate tweeter locations such as A-pillars or dash corners. A woofer phase plug is included for use when the tweeter is relocated to a separate tweeter cup.

VAST 2.0 (Vertical Attach Surround Technique) updates the surround mounting geometry from a T-shape to a V-shape, increasing the surround-to-frame bonding surface area and delivering a 25% increase in effective cone area for maximum output and deeper bass response. The 3/4" (19mm) Tetolon inverted dome tweeter uses an edge-driven voice coil for superior power handling, broad high-frequency dispersion, and clarity across the 9kHz crossover point. The ICC+ integrated concealed crossover hides within the basket at 6dB/octave with the option of the included external crossover network at 12dB/octave and switchable -3dB tweeter attenuation.

Auto Fit Architecture encompasses a redesigned frame with factory-location mounting flanges, removable motor cover for tight applications, and a 5.42" cutout diameter for drop-in fitment in most modern vehicle factory locations. The 15% glass-fibre reinforced PA66 composite basket, Santoprene half-roll surround, co-molded cone and surround body, Nomex spider with braided tinsel leads, and Y35 ferrite motor structure (5mm larger than the previous generation) provide long-term durability and consistent performance under high drive conditions. The MC3 Multi Configuration Crossover Chassis allows the crossover units to be separated and positioned independently or snapped together as a unified structure for flexible installation routing. Power handling conforms to CTA-2031 industry standards. Klippel verified. Upgradable to a 3-way component system with the addition of the P3V2-25 midrange speaker. Grilles sold separately.

Features & Benefits

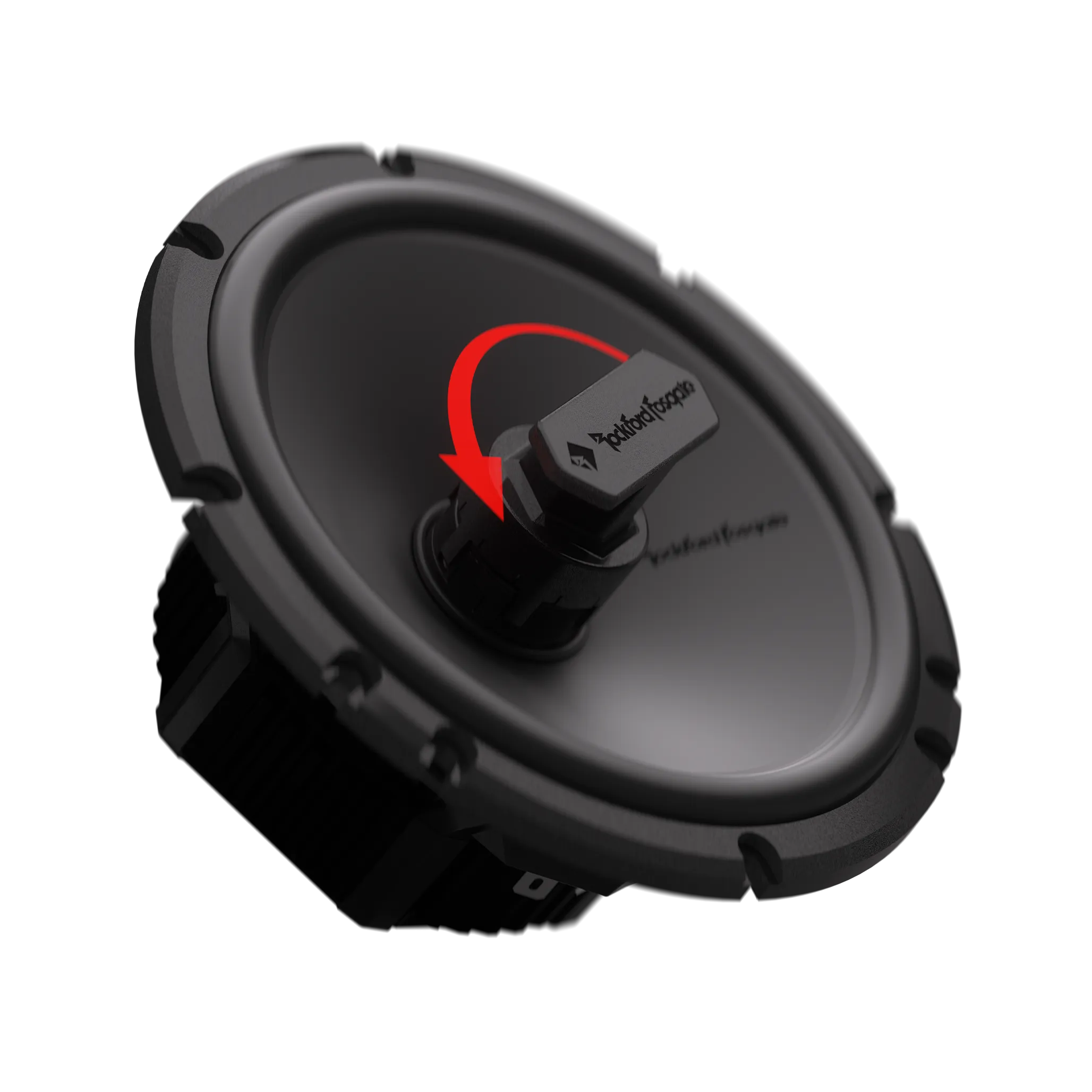

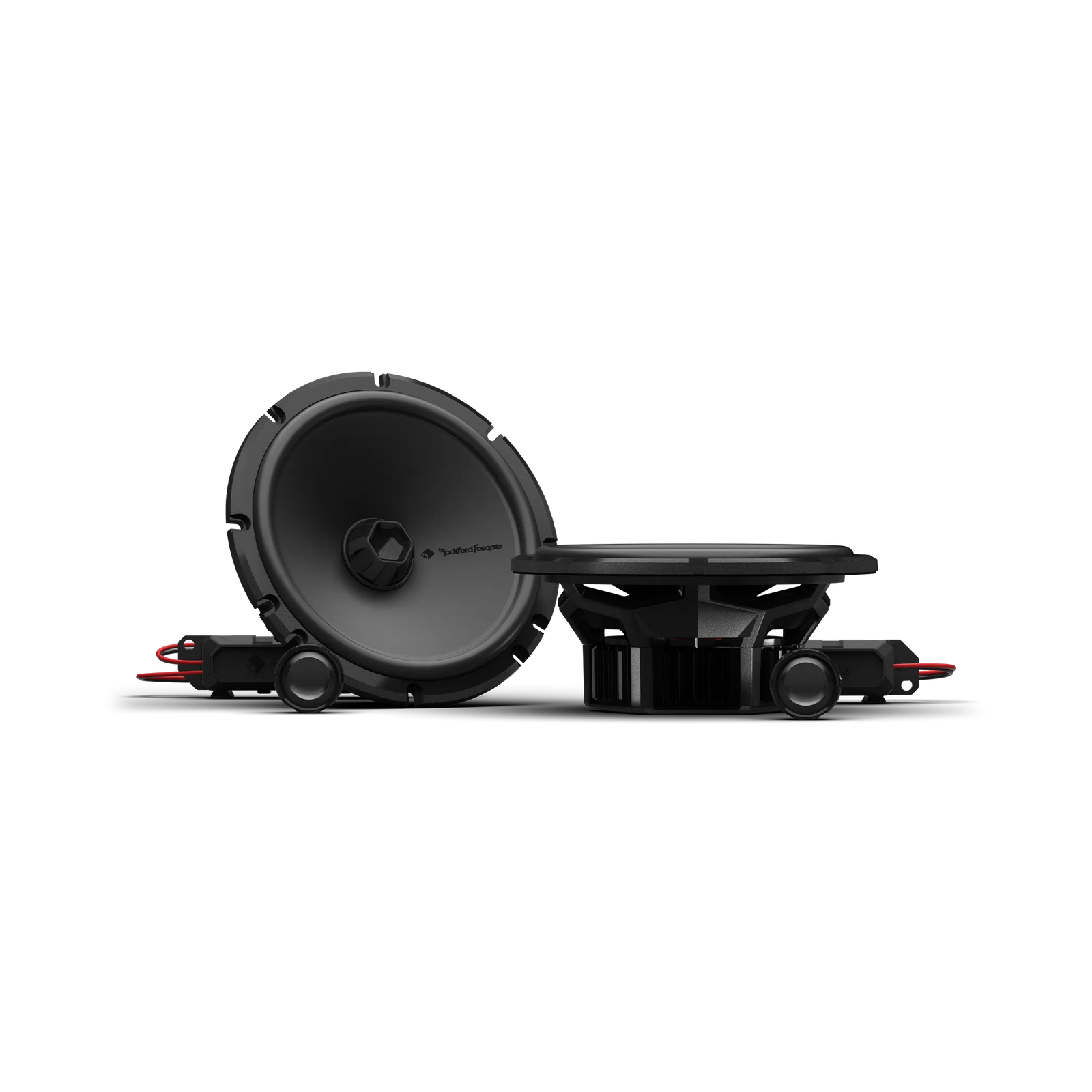

I.L.M. - Coaxial or Component Configuration from a Single Speaker: The I.L.M. (Interchangeable Locking Mechanism) bayonet-style system allows the tweeter to be locked into the woofer cup for coaxial use or removed and relocated to a separate flush-mount or surface-mount tweeter cup for 2-way component staging, giving full control over tweeter placement and system configuration.

VAST 2.0 - 25% Increase in Effective Cone Area: VAST 2.0 relocates the surround attachment point to a V-shape geometry, increasing the bonding surface area in the pull-force direction and delivering 25% more effective cone area than conventional surround mounting for maximum output and deeper bass.

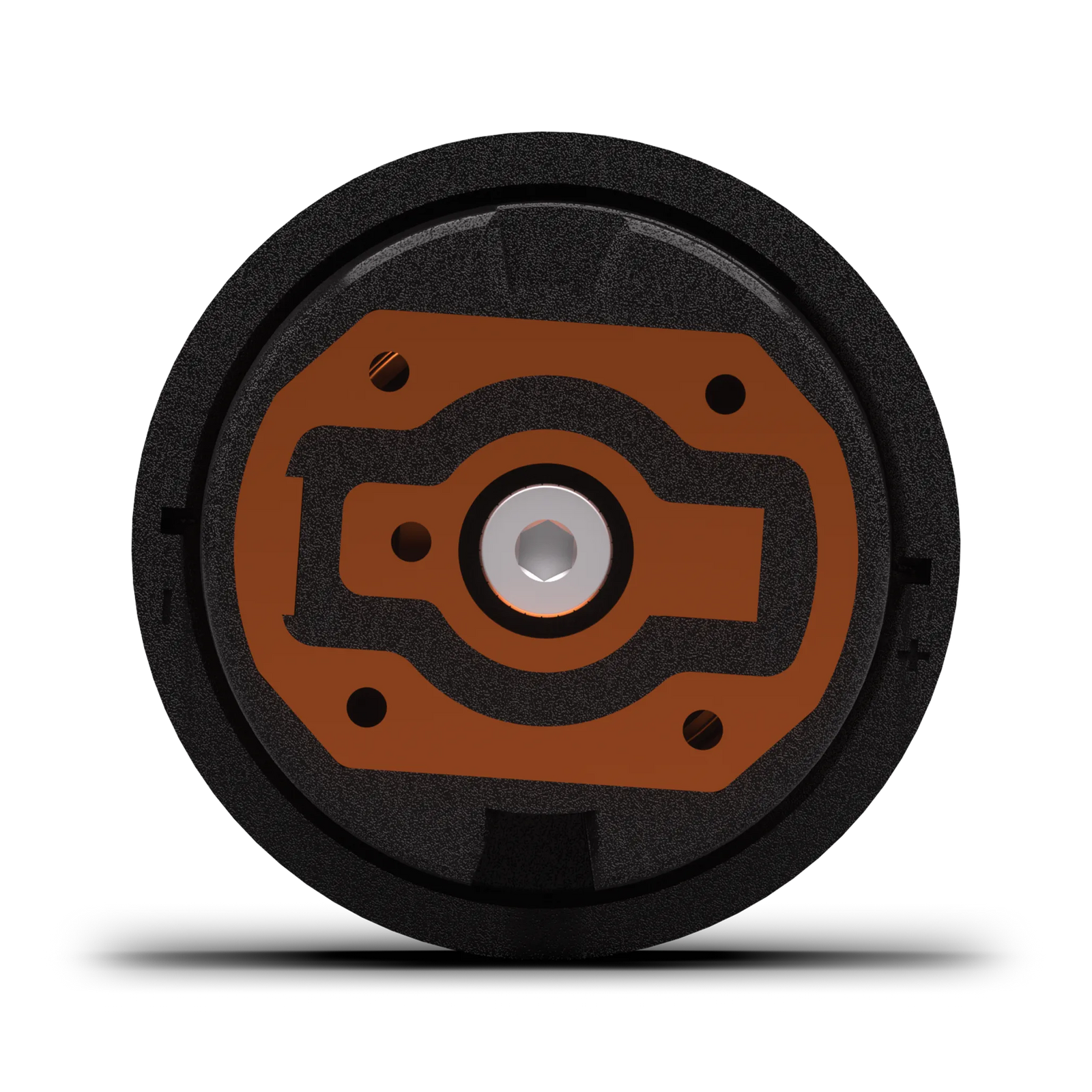

3/4" Tetolon Inverted Dome Edge-Driven Tweeter: The 19mm Tetolon inverted dome tweeter uses an edge-driven voice coil for superior power handling, broad high-frequency dispersion, and precise imaging across the high-frequency range.

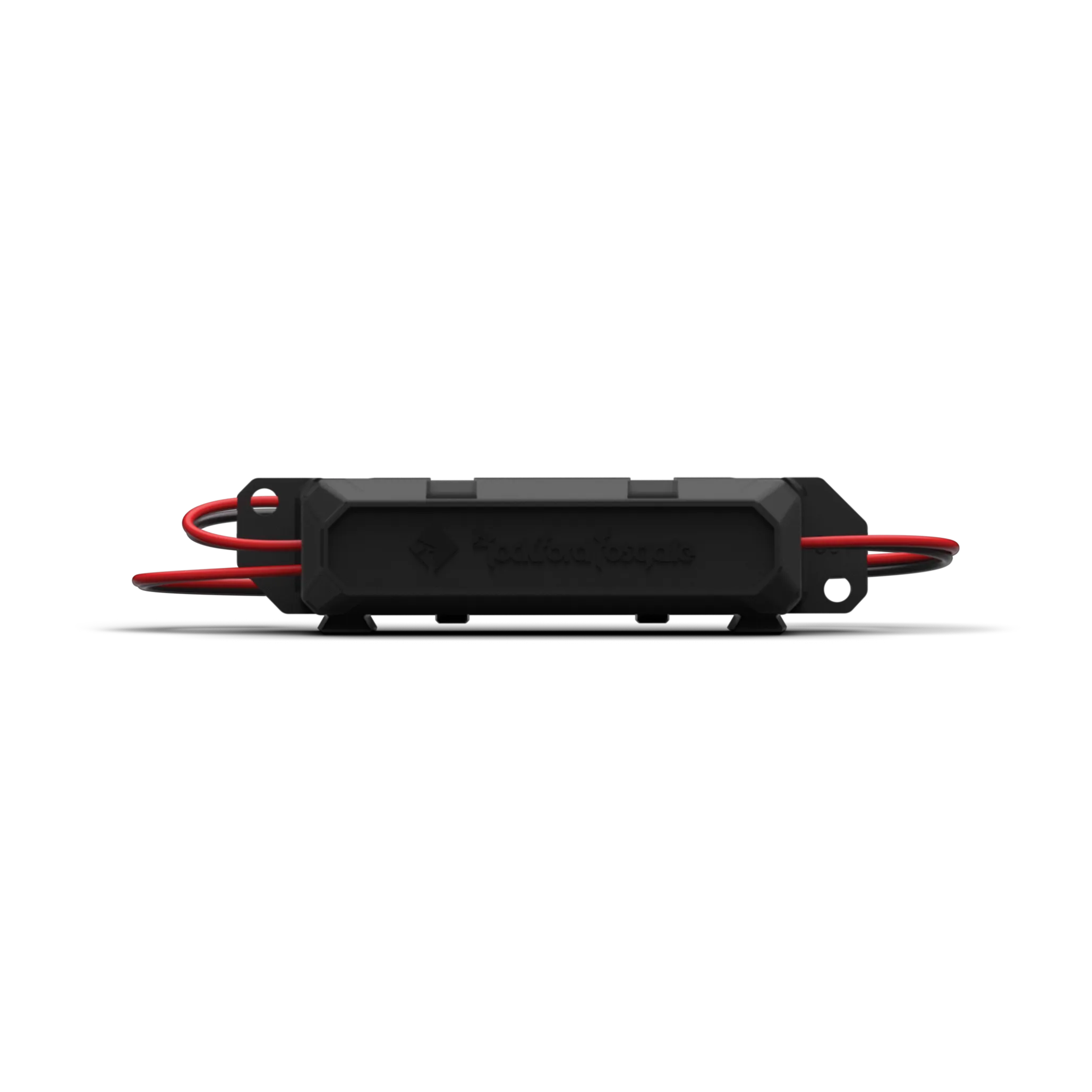

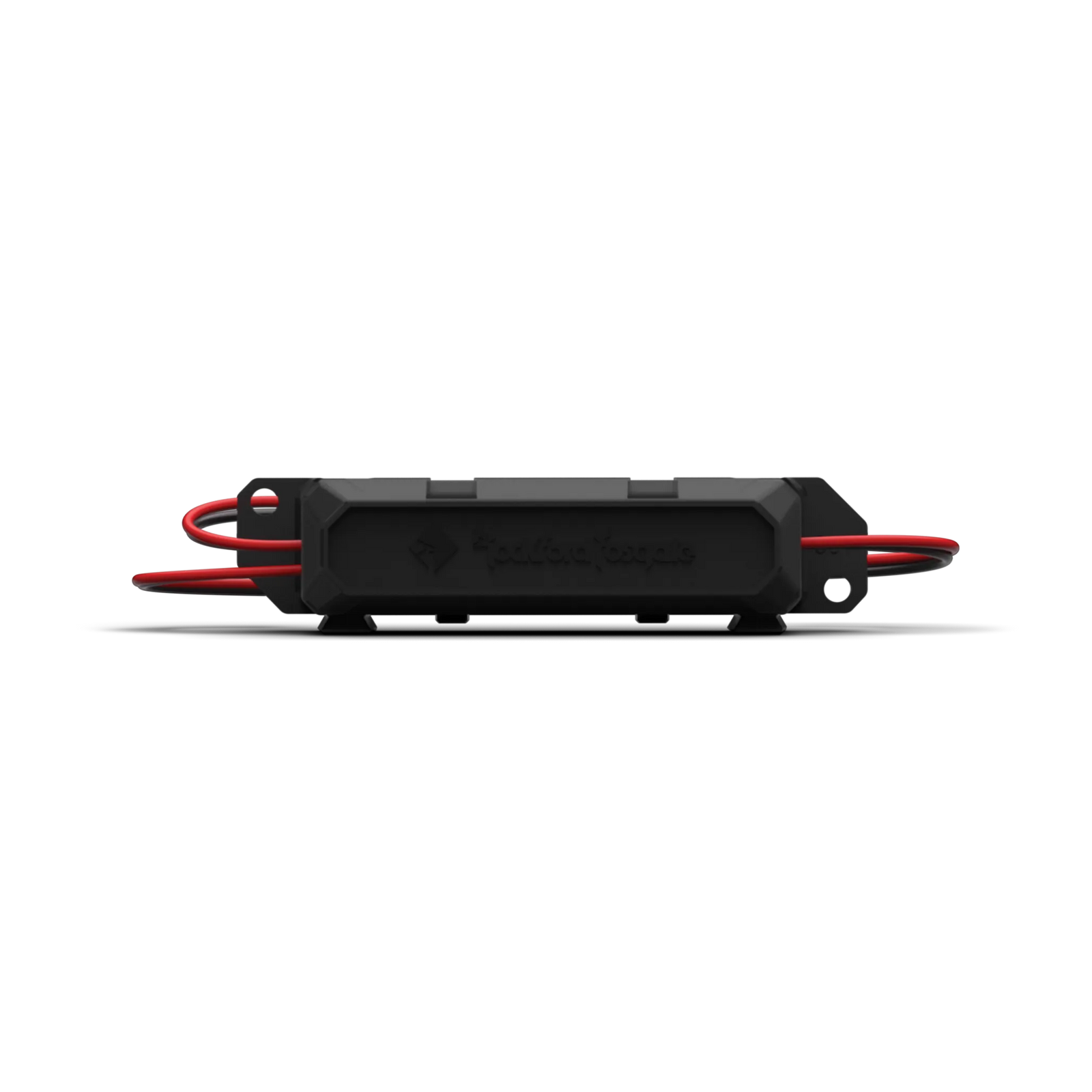

ICC+ Crossover - 6dB Internal and 12dB External Options: The integrated concealed crossover at 9kHz 6dB/octave is hidden within the basket for a clean installation. The included external passive crossover network provides 12dB/octave crossover slope and switchable -3dB tweeter attenuation for further system tuning flexibility.

MC3 Multi Configuration Crossover Chassis: The MC3 crossover chassis breaks into separate units for independent positioning at different locations in the vehicle, or snaps together as a unified structure for single-location installation.

Auto Fit Architecture - Drop-In Factory Location Fitment: Redesigned frame with factory-location mounting flanges, 5.42" cutout diameter, removable motor cover, and updated mounting hole geometry engineered for drop-in integration into most modern vehicle factory speaker locations.

15% Glass-Fibre Reinforced PA66 Composite Basket: High-stiffness, low-resonance basket construction with UV-resistant materials and co-molded terminals for secure, vibration-resistant wiring connections.

Santoprene Half-Roll Surround - Low Distortion and High Fatigue Resistance: Santoprene surround material provides excellent fatigue resistance and low distortion across the full excursion range, co-molded and chemically bonded to the cone body for long-term durability.

Nomex Spider with Braided Tinsel Leads: Fatigue and tear resistant linear Nomex spider with ultra-flexible braided tinsel leads securely stitched to the spider for reliable voice coil centring and long-term lead connection integrity.

20-40% Mica Reinforced Polypropylene Curvilinear Cone: Enhanced cone rigidity and sonic accuracy through mica-reinforced polypropylene construction with curvilinear geometry.

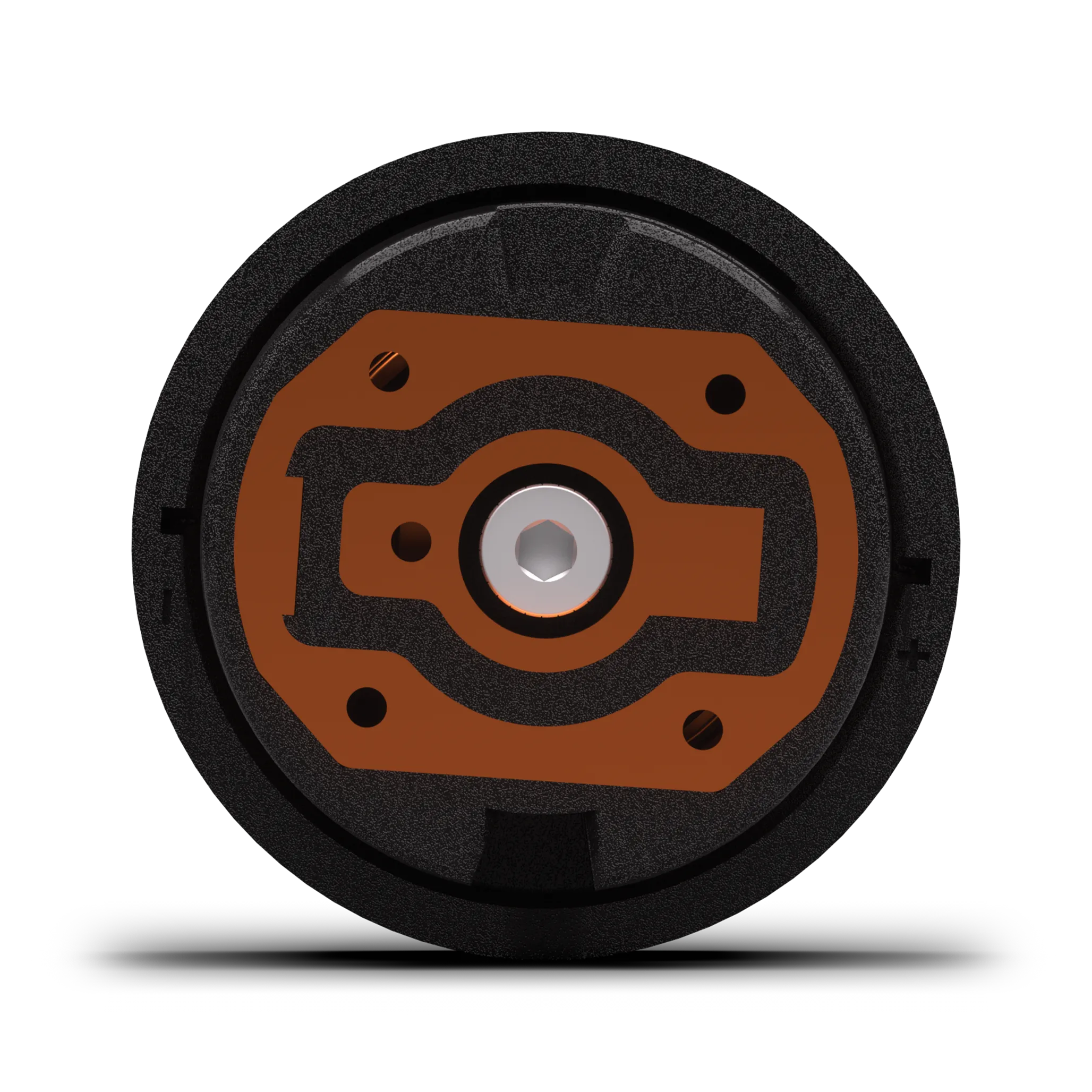

Y35 Ferrite Motor - 5mm Larger Than Previous Generation: The larger Y35 ferrite motor provides increased magnetic flux for higher sensitivity and more consistent output, with a vented Kapton voice coil former for efficient heat dissipation and an overhung voice coil design for consistent magnetic flux across the full excursion range.

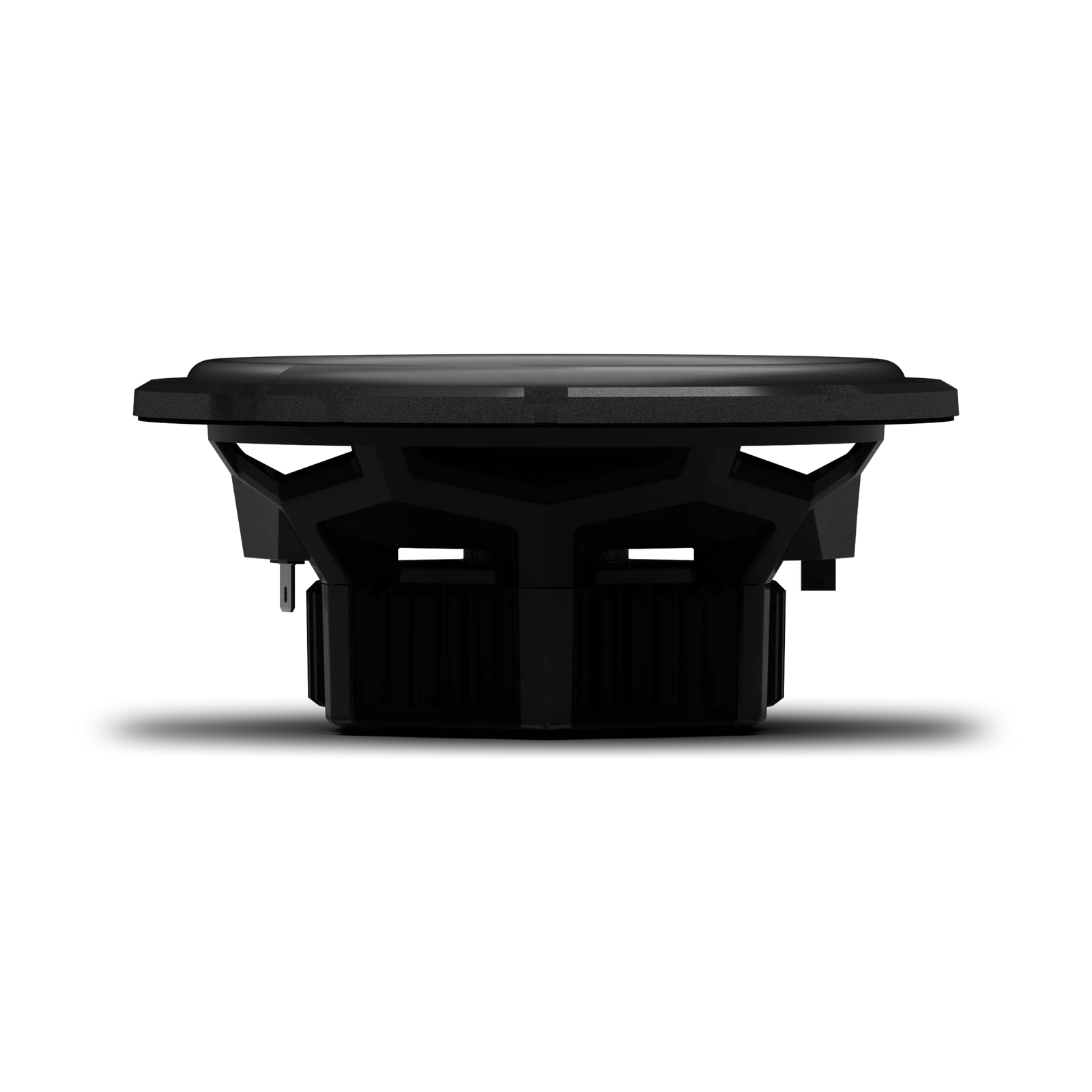

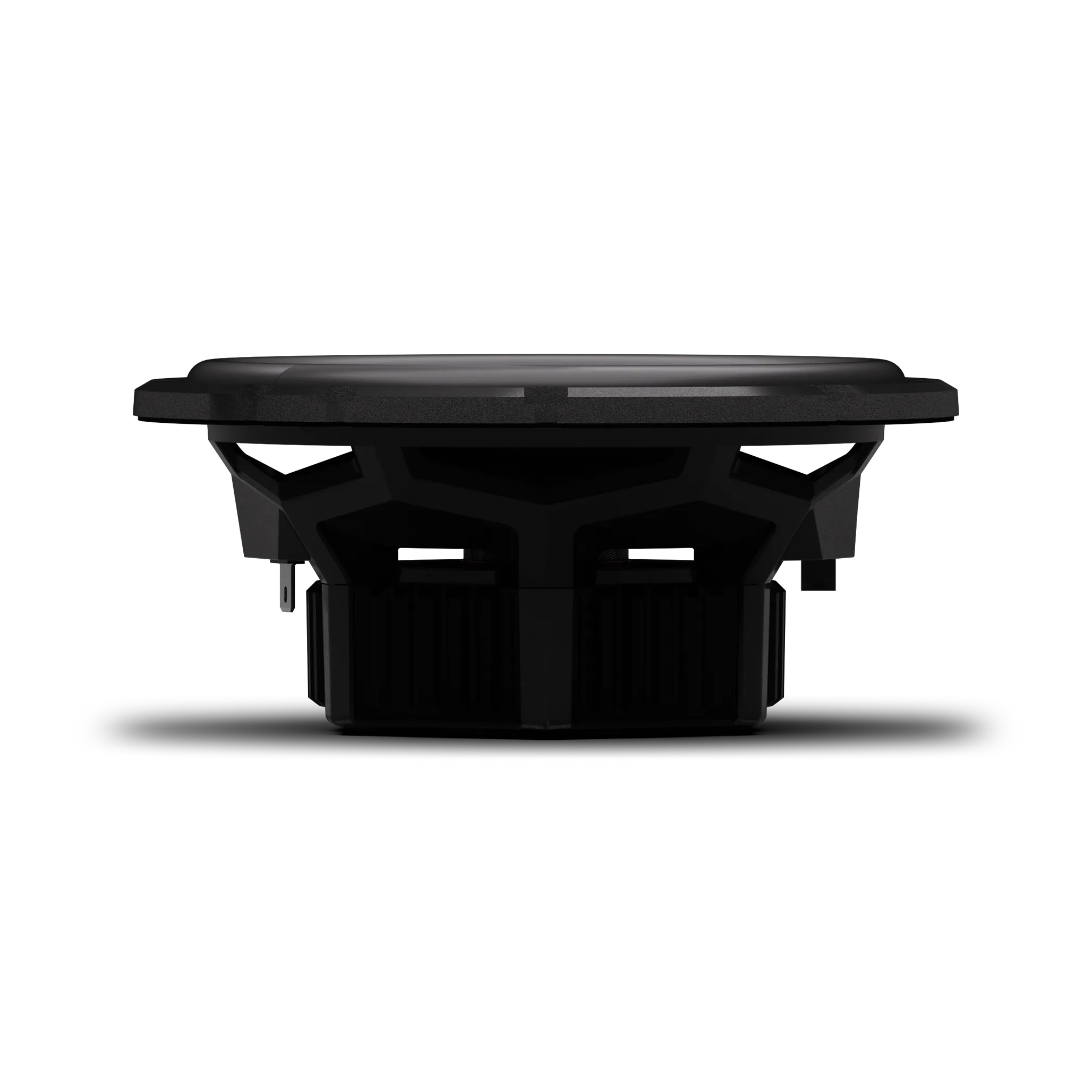

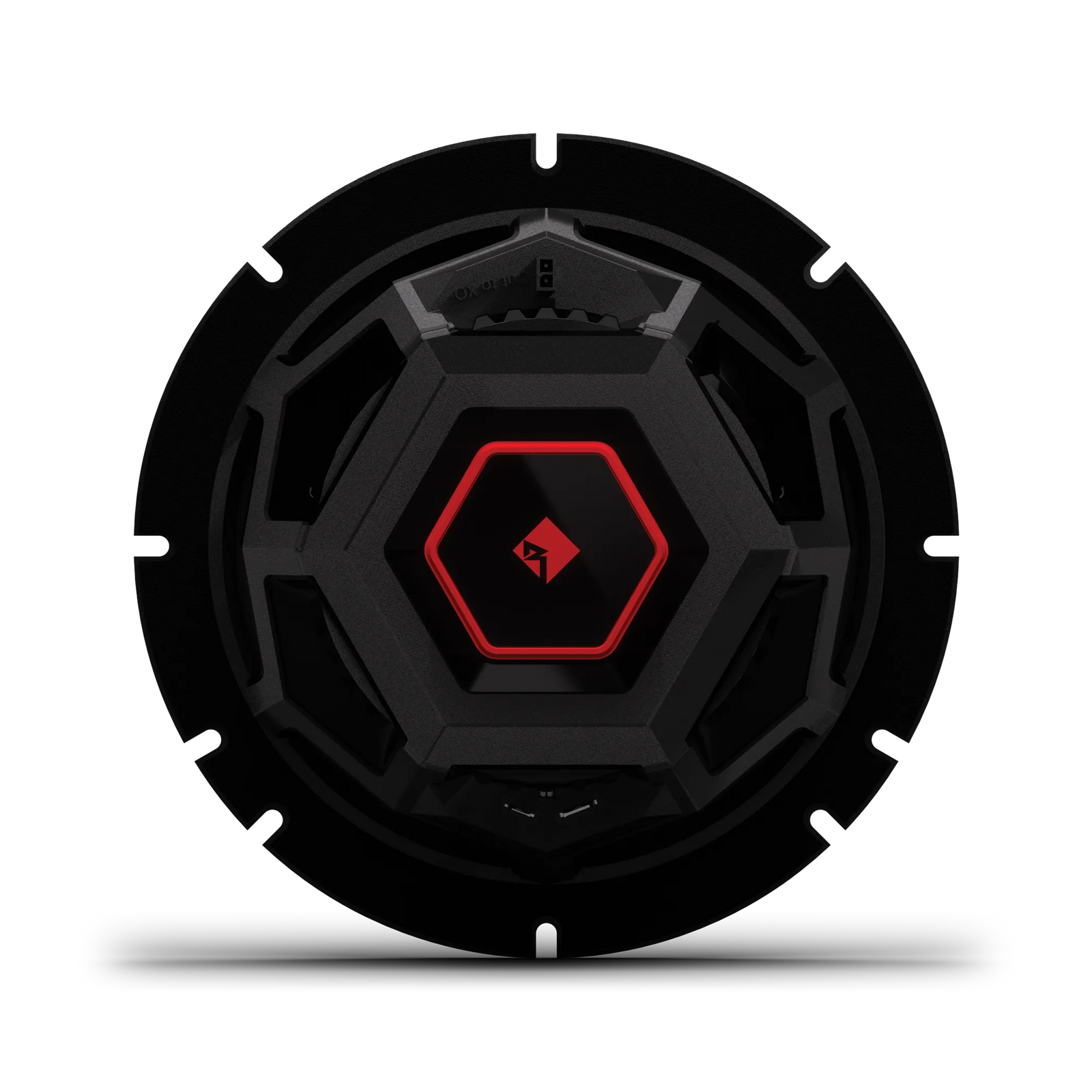

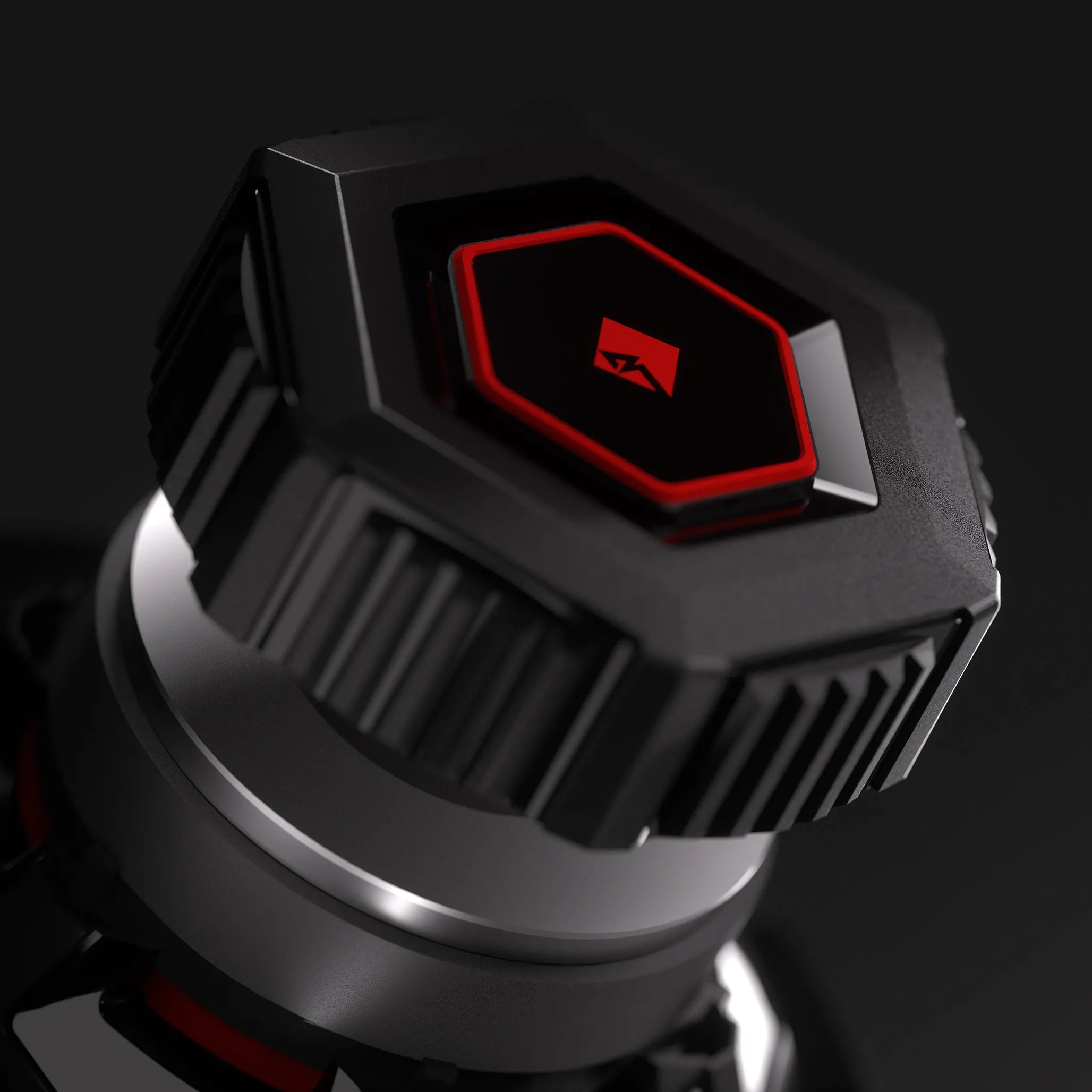

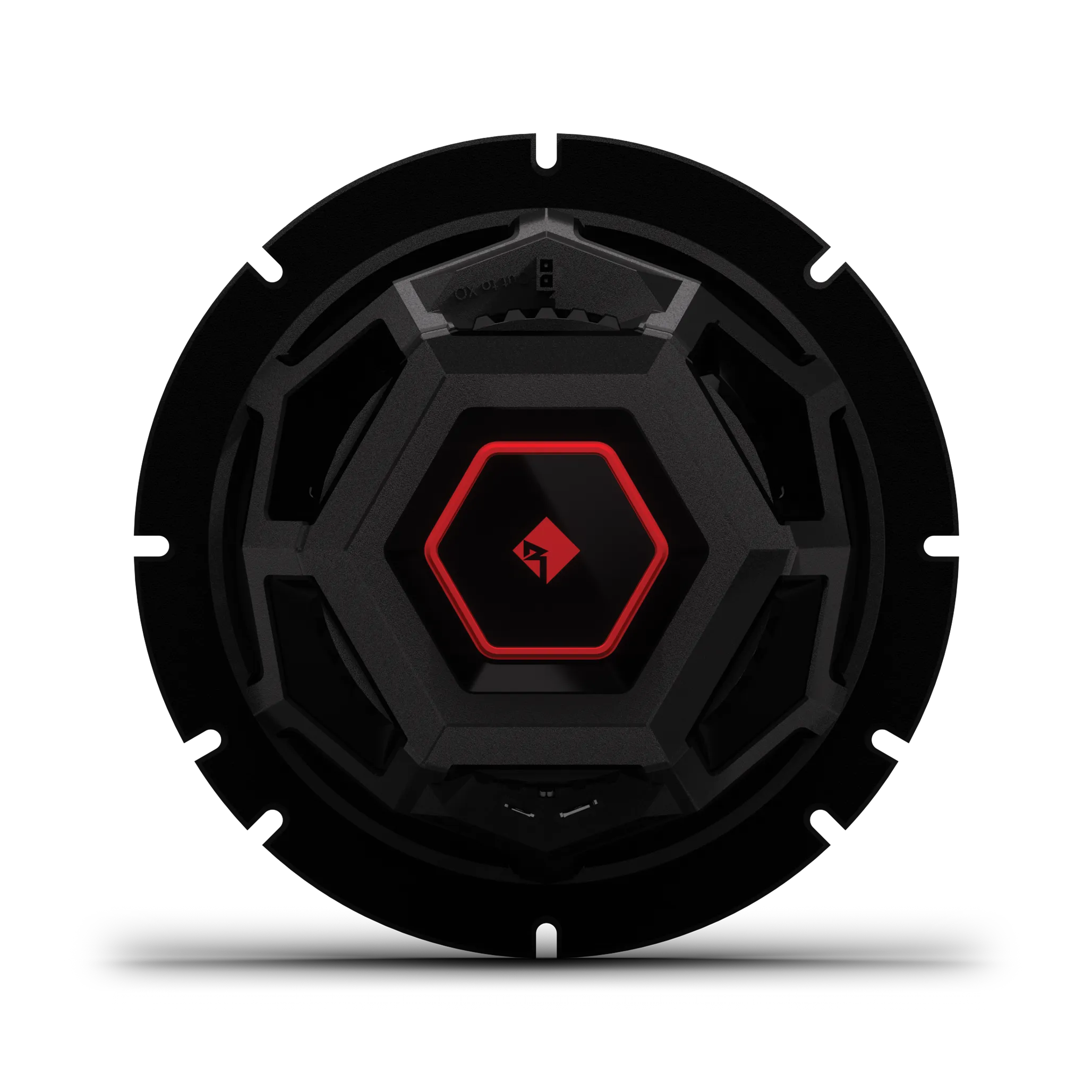

Removable Motor Cover for Tight Applications: The motor cover can be removed to reduce mounting depth from 63.5mm to 57.3mm for installation in shallower factory door and panel locations.

Upgradable to 3-Way Component: The P2V2-65 can be upgraded to a 3-way component system with the addition of the separately available Rockford Fosgate P3V2-25 midrange speaker.

CTA-2031 Compliant and Klippel Verified: Power handling conforms to CTA-2031 industry standards. Klippel verified for accurate performance measurement and specification integrity.

2-Year Warranty: Backed by Rockford Fosgate's 2-year manufacturer warranty.

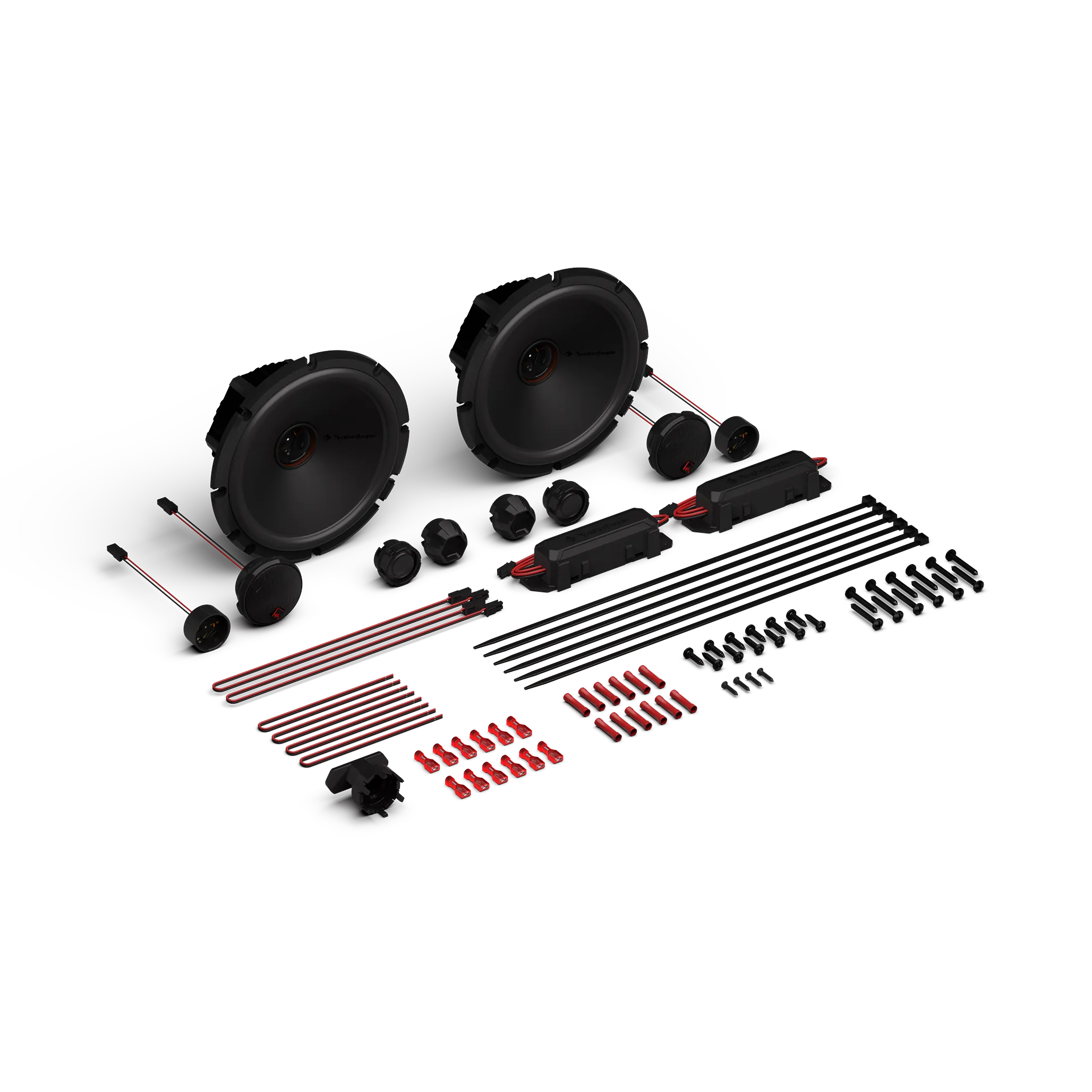

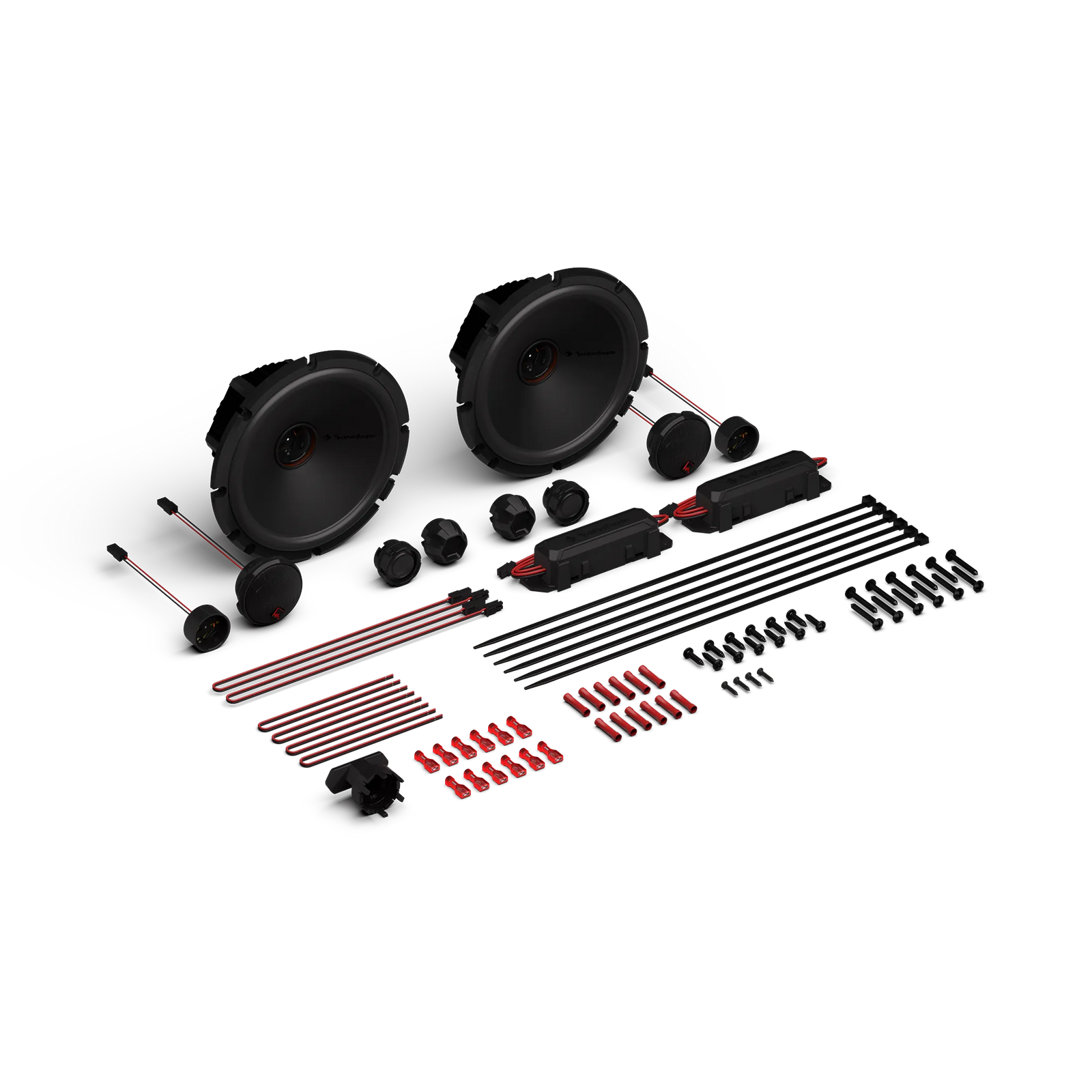

What's in the Box

• 2 x 6.5" 4Ω Convertible Speakers
• 2 x 3/4" 4Ω Tweeters

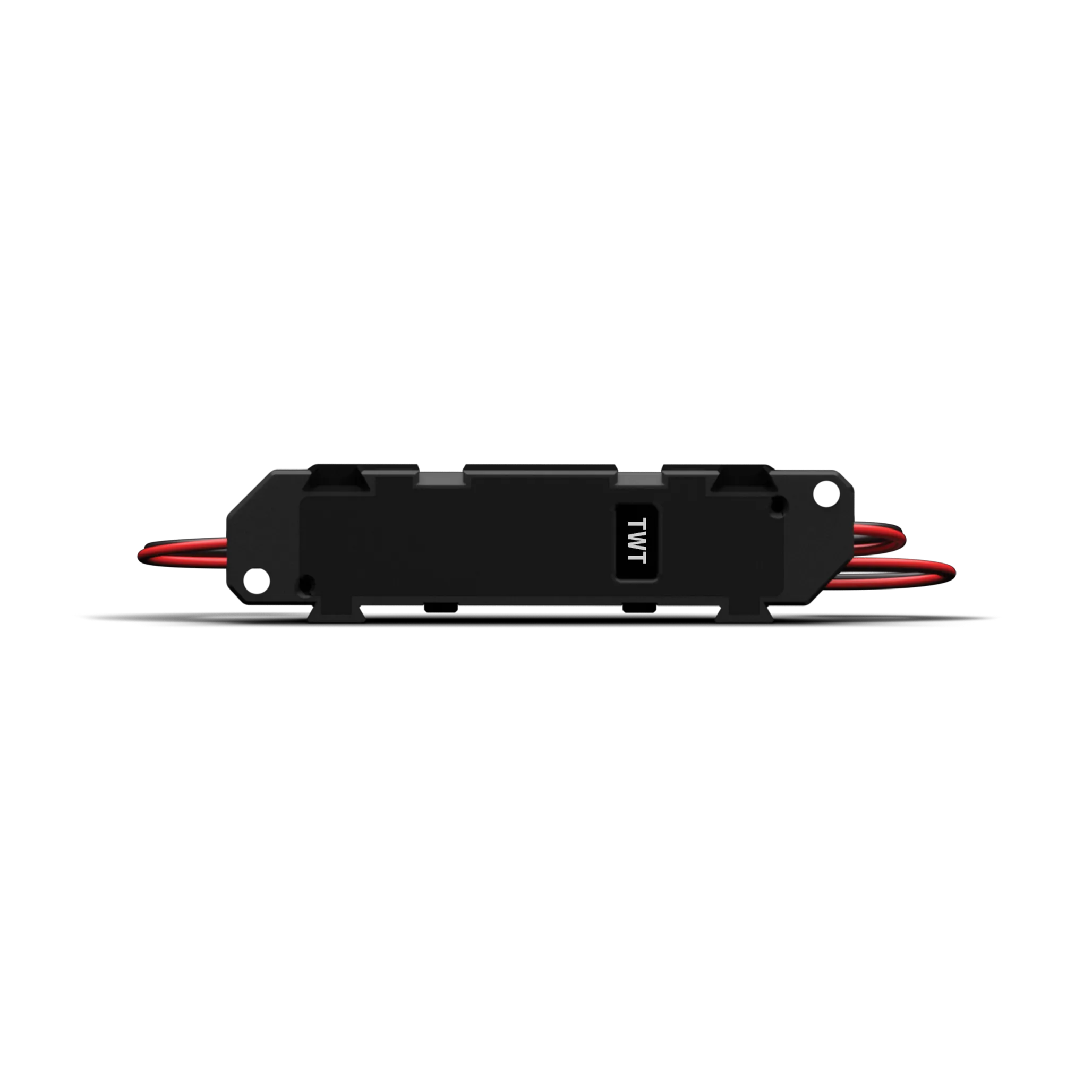

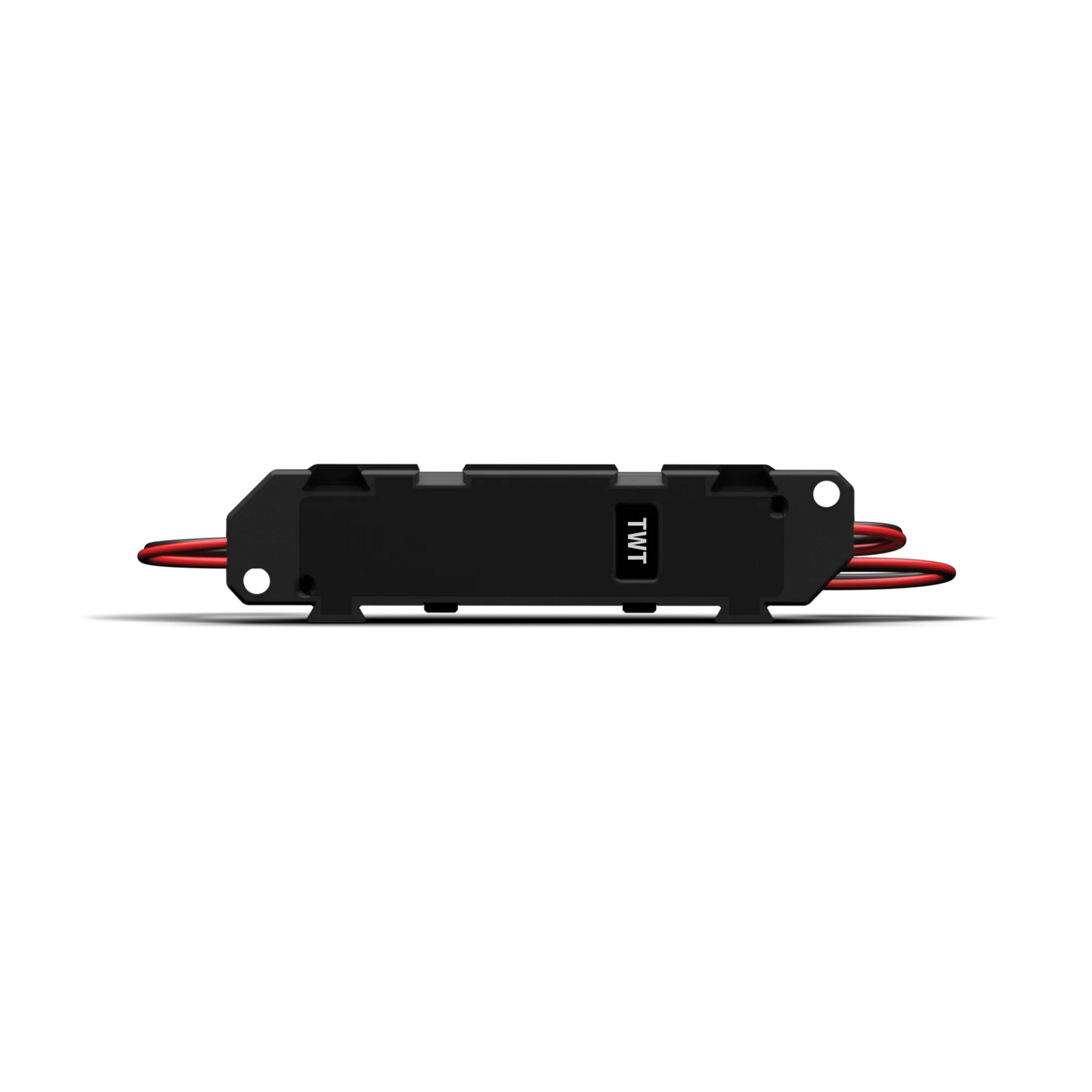

• 2 x Passive Crossover Networks (Tweeter)

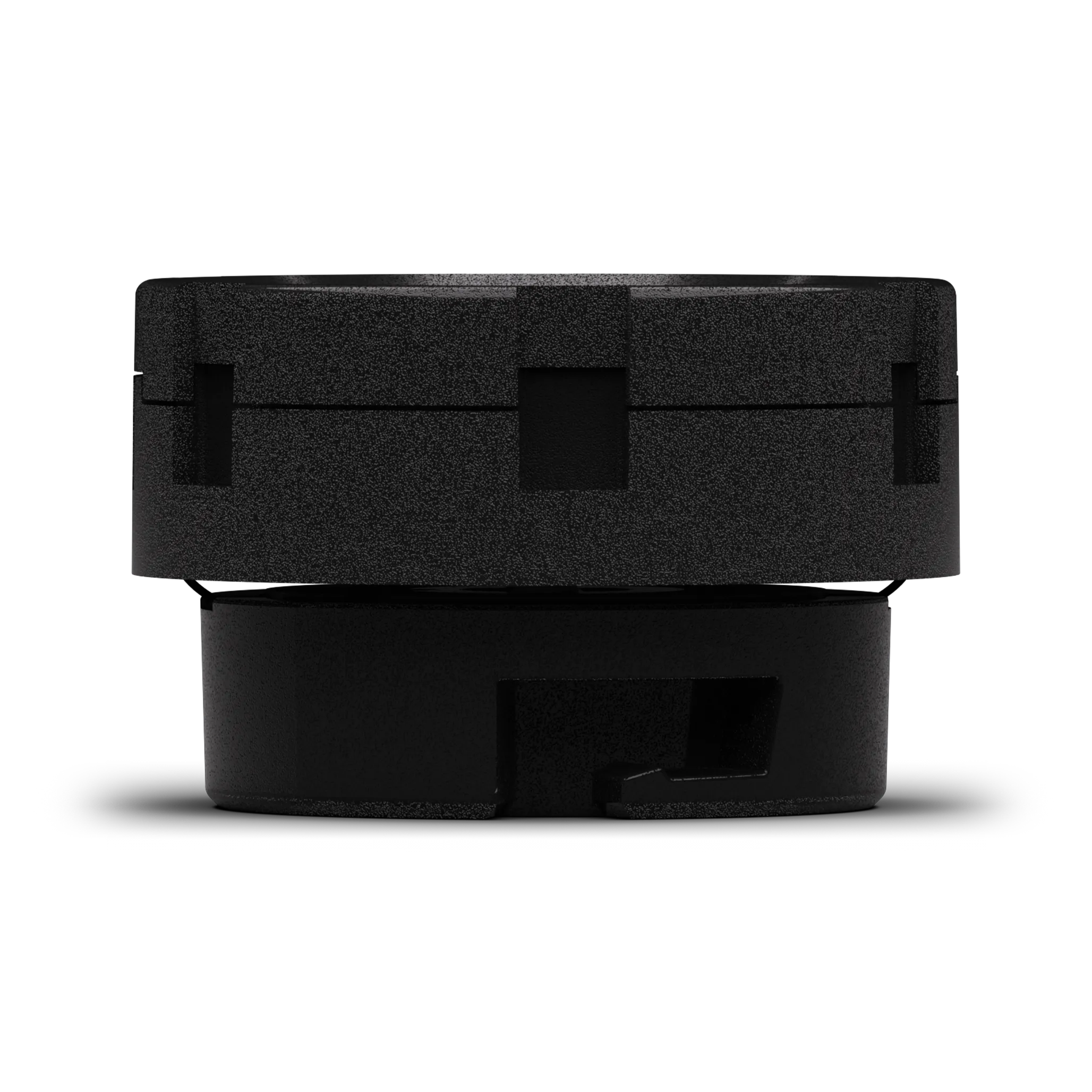

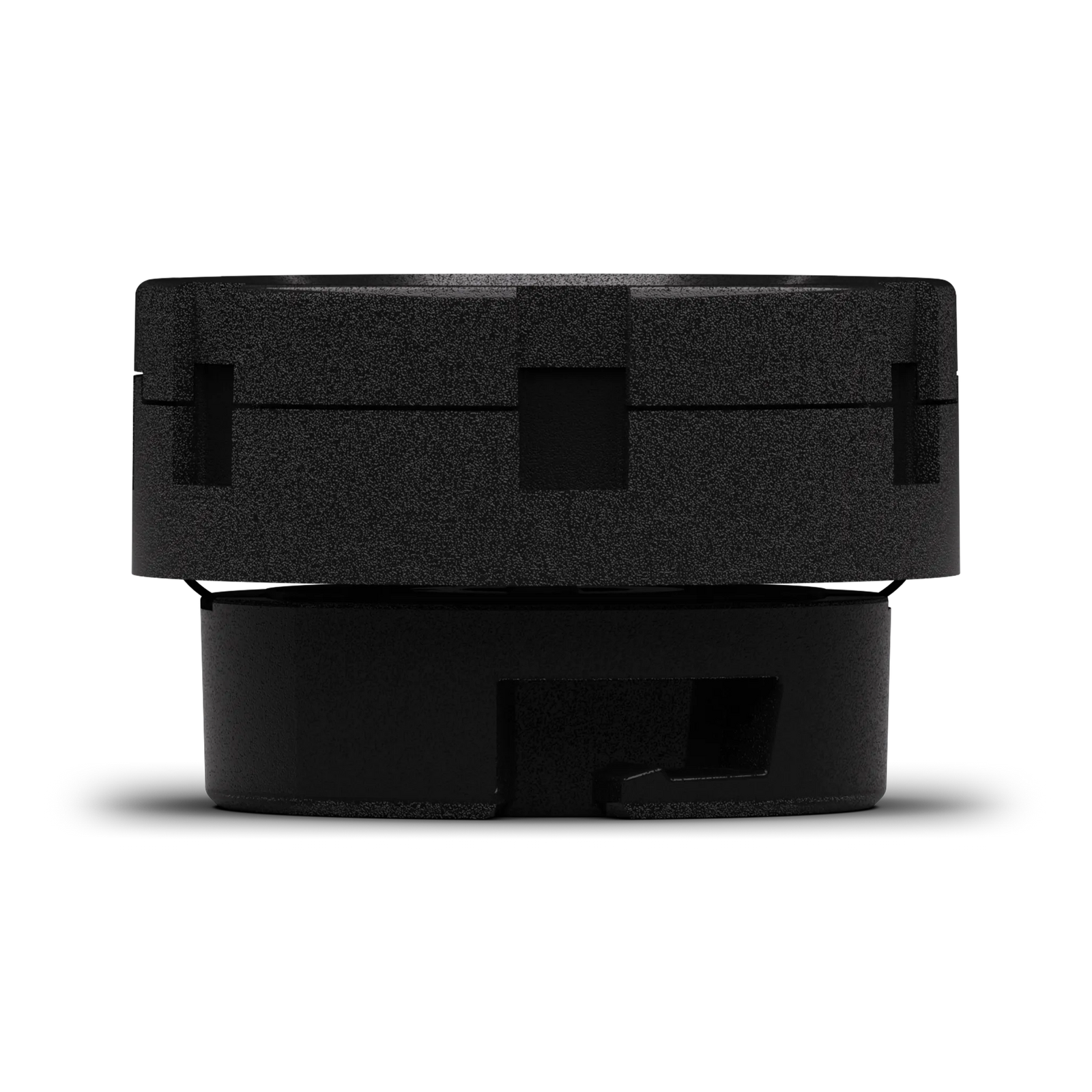

• 2 x Flush-Mount Tweeter Cups
• 2 x Surface-Mounting Tweeter Cups

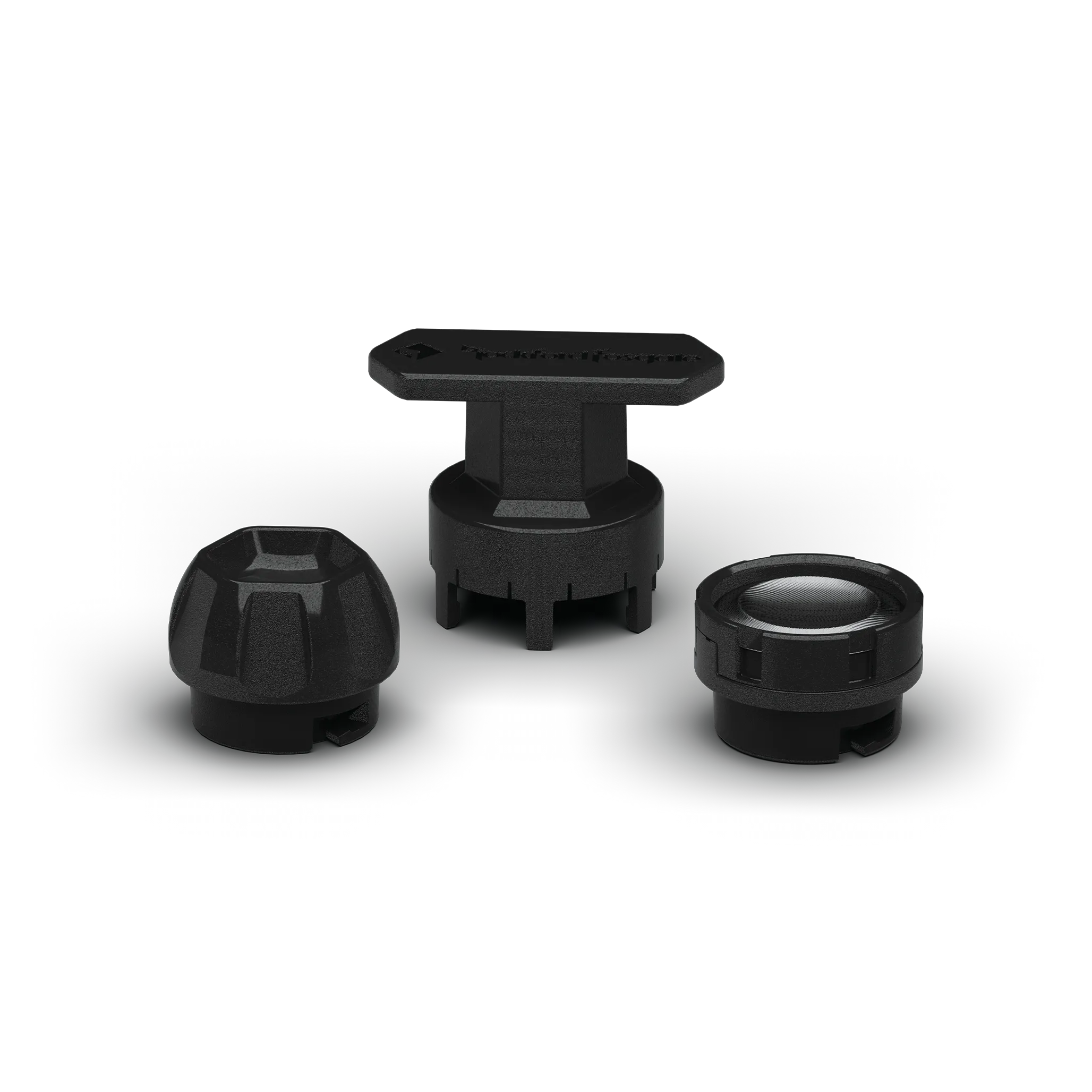

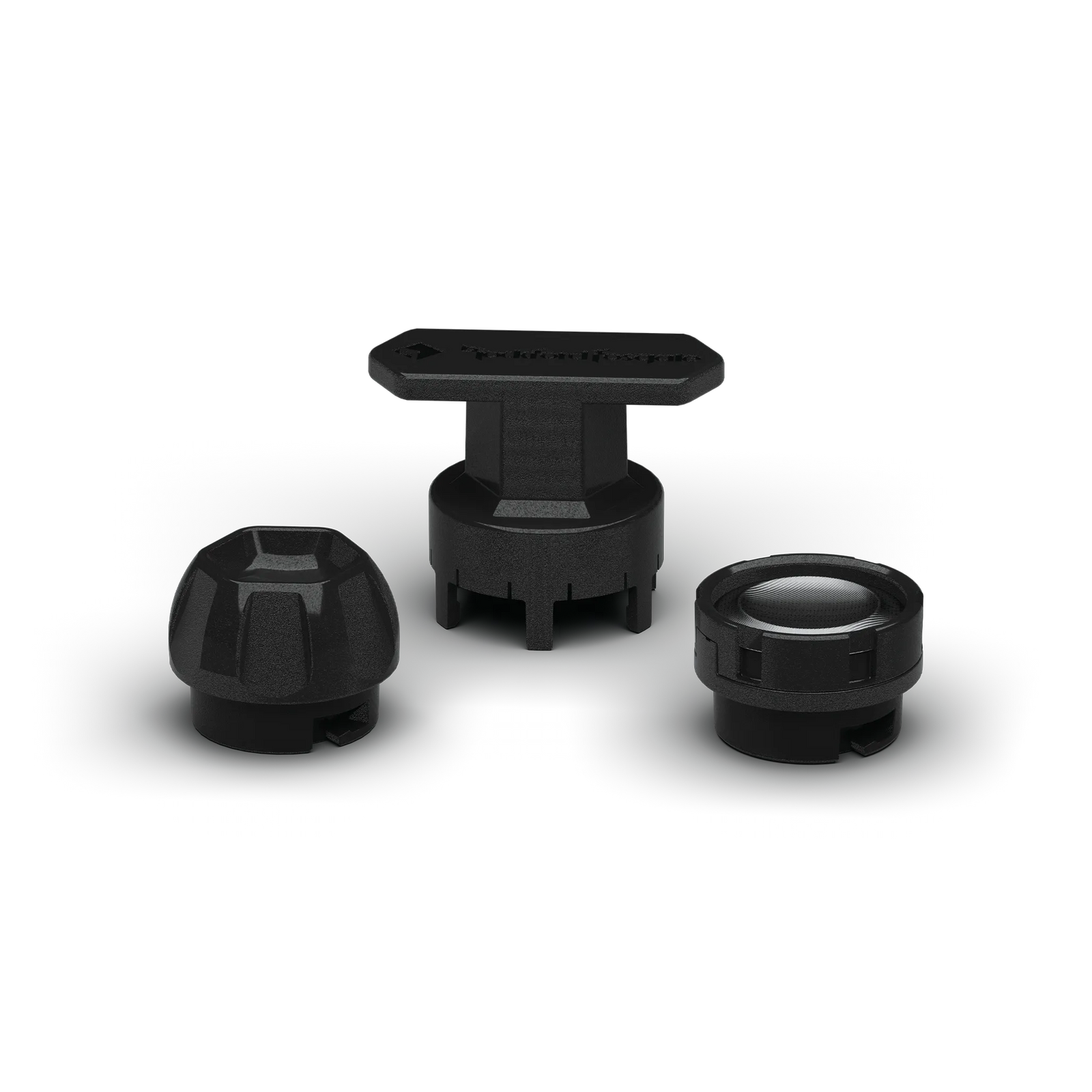

• 2 x Woofer Phase Plugs
• 1 x 6.5" Speaker Cut-Out Template

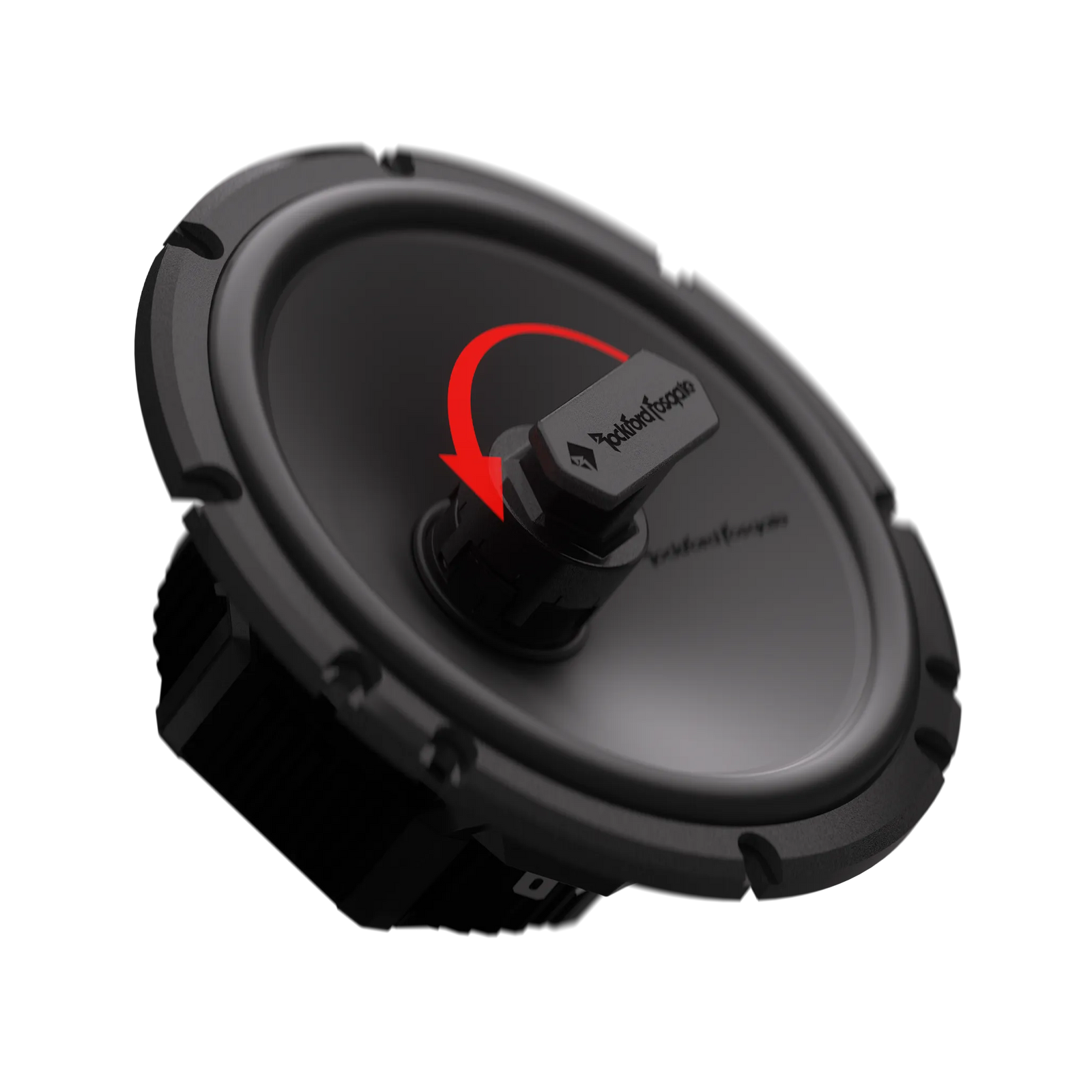

• 1 x Tweeter Removal Tool
• 4 x Crossover Wiring Extensions (18", 457mm)
• 2 x 18 AWG Red/Black Speaker Wire (205mm)
• 4 x Self-Tapping Phillips #8x32mm (Speaker)
• 4 x Self-Tapping Phillips #4x16mm (Tweeter)
• 4 x Self-Tapping Phillips #8x20mm (Crossover)
• 3 x 18 AWG Female Crimp Spade Connectors (0.187")
• 3 x 18 AWG Female Crimp Spade Connectors (0.250")
• 4 x 18 AWG Crimp Butt Connectors
• 6 x Zip Ties (4.8mm x 350mm)

Note: Grilles sold separately.

Technical Specs

Compatible With

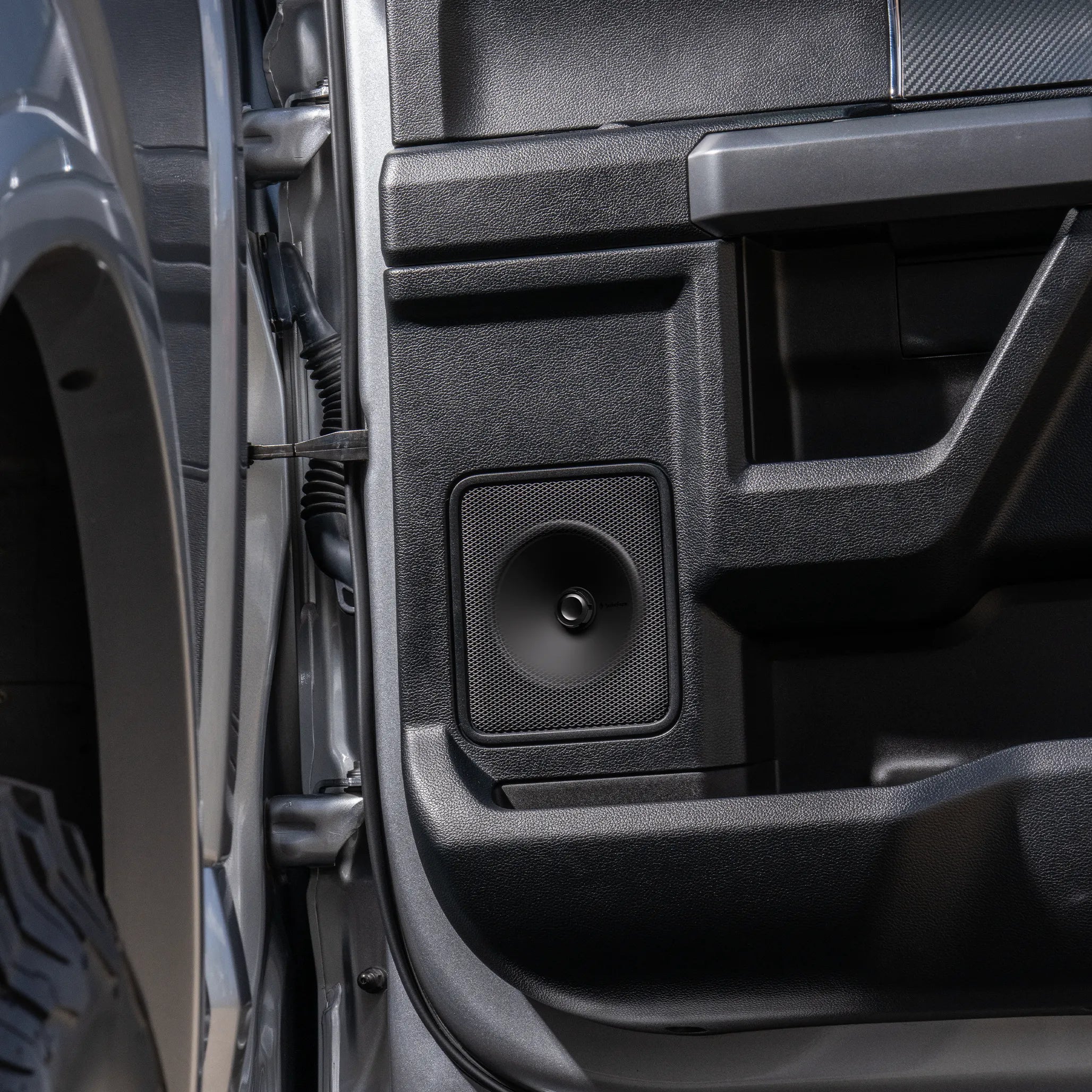

The P2V2-65 is compatible with most modern vehicle factory 6.5" speaker locations with a 5.42" cutout diameter. The removable motor cover reduces mounting depth to 57.3mm for shallow factory door cavities. Confirm cutout diameter, mounting depth, and front side clearance against your specific vehicle before purchase. The P2V2-65 is upgradable to a 3-way component system with the separately available Rockford Fosgate P3V2-25 midrange speaker.

Frequently Asked Questions

Can the P2V2-65 be used as both a coaxial and a component speaker?

Yes. The I.L.M. (Interchangeable Locking Mechanism) allows the tweeter to be locked into the woofer mounting cup for coaxial operation in single-speaker factory locations, or removed and relocated to a separate flush-mount or surface-mount tweeter cup for 2-way component staging in vehicles with separate A-pillar or dash tweeter locations. A woofer phase plug is included for use when the tweeter is in a separate location.

What is VAST 2.0 and how does it benefit the P2V2-65?

VAST 2.0 (Vertical Attach Surround Technique) repositions the surround attachment from a T-shape to a V-shape geometry, increasing the surround-to-frame bonding surface area in the pull-force direction and delivering a 25% increase in effective cone area over a conventional surround mounting approach, resulting in higher output and deeper bass from the same nominal speaker diameter.

What crossover slope options does the P2V2-65 provide?

The ICC+ integrated concealed crossover provides a 6dB/octave slope at 9kHz hidden within the basket. The included external passive crossover network provides a 12dB/octave slope at 9kHz with switchable 0dB or -3dB tweeter attenuation for additional system tuning flexibility.

Can the motor cover be removed for shallow installations?

Yes. The removable motor cover reduces mounting depth from 63.5mm to 57.3mm for installation in shallower factory door and panel locations.

Can the P2V2-65 be upgraded to a 3-way system?

Yes. The P2V2-65 can be upgraded to a 3-way component system by adding the Rockford Fosgate P3V2-25 midrange speaker, sold separately.
