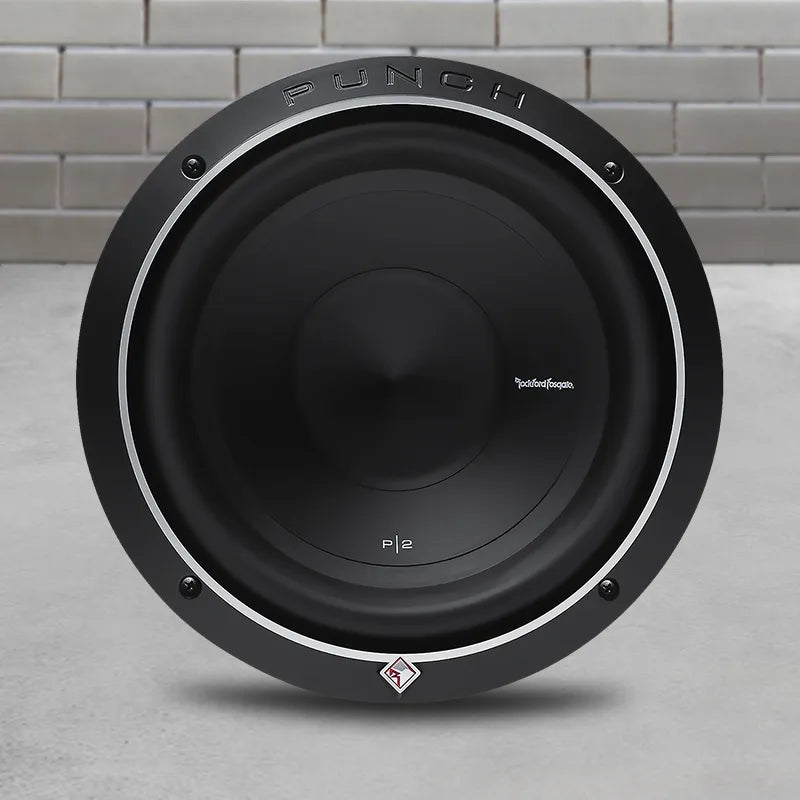

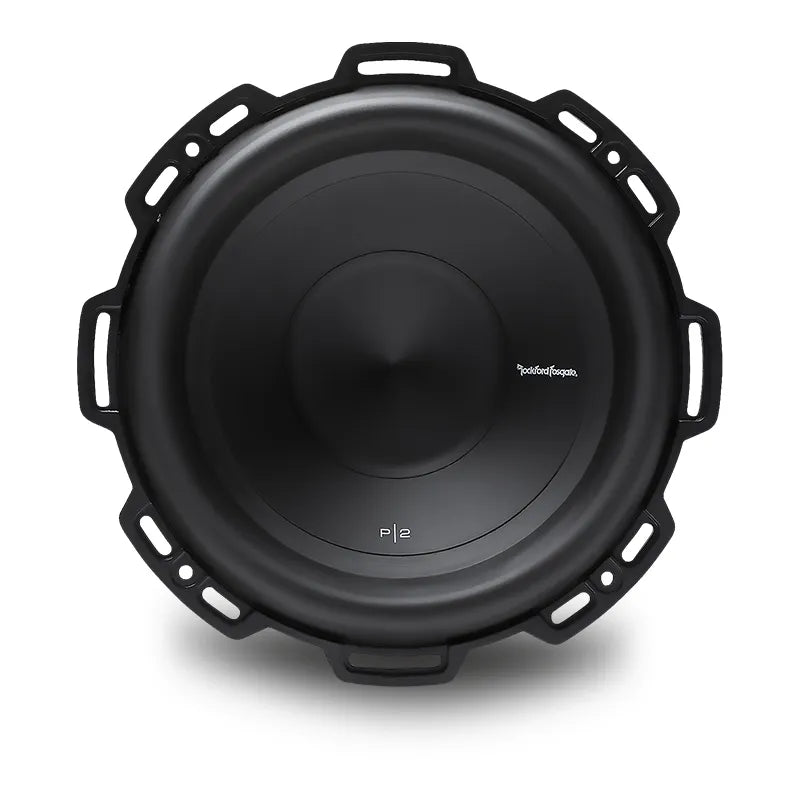

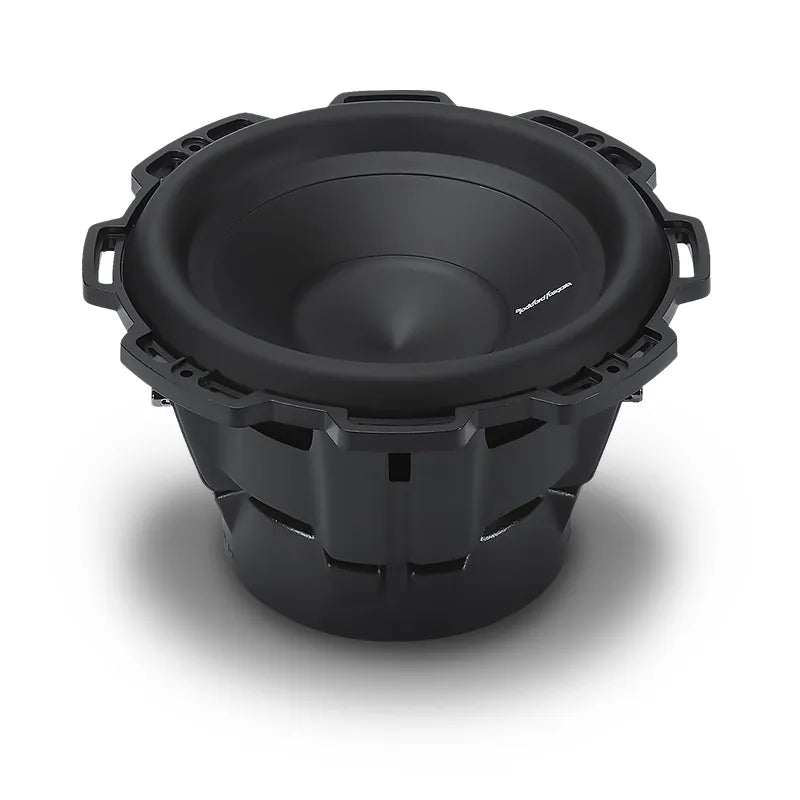

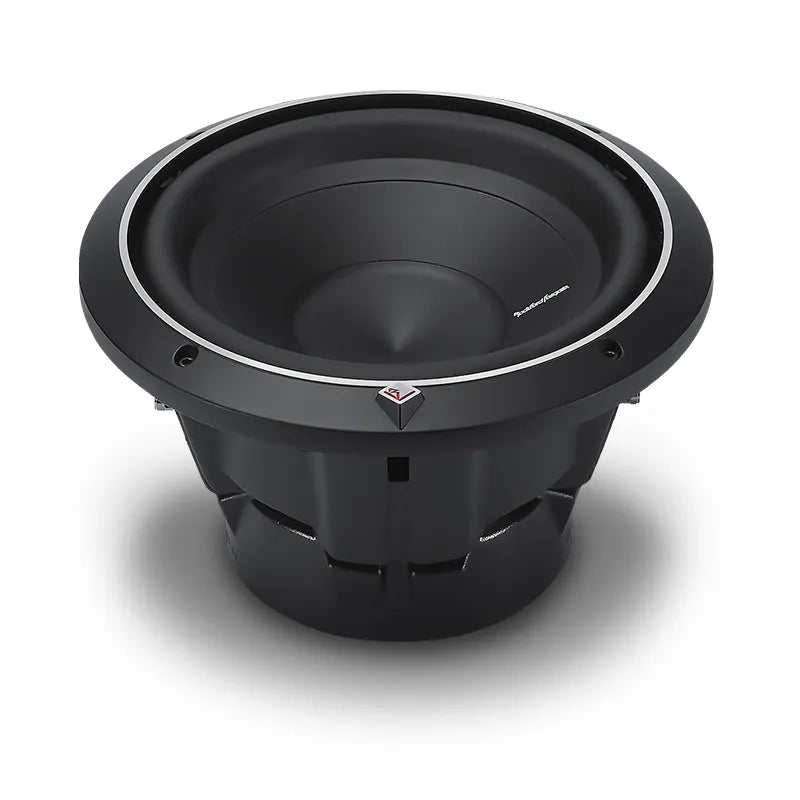

Rockford Fosgate P2D2-10 Punch 10" P2 2-Ohm DVC Subwoofer

10" 2-Ohm DVC Punch P2 Subwoofer 300W RMS, Kevlar Cone, VAST, Dual Spider, Diamond-Cut Cast Aluminium Trim Ring, Extended Pole Piece.

Product Overview

The Rockford Fosgate Punch P2D2-10 is a 10" 2-Ohm Dual Voice Coil (DVC) subwoofer rated at 300W RMS the 10" 2-Ohm variant of the Punch P2 series. The 300W RMS rating is a step up from the 250W RMS of the P2 8" models, reflecting the larger cone's increased power capacity. The 2-Ohm DVC provides wiring options of 1-Ohm (parallel), 4-Ohm (series), or 2-Ohm per coil for bi-amplification. Optimised for sealed and vented enclosures. Sold as an individual unit.

All confirmed Punch P2 construction applies: Kevlar fibre-reinforced paper cone, VAST surround (up to 25% increased cone area), high-temperature voice coil with spun-laced Nomex® reinforcement collar, dual linear spider with embedded 16 AWG tinsel leads, extended pole piece with bumped vented backplate, StampCast basket with integrated spider venting, 10-AWG nickel-plated push terminals, diamond-cut cast aluminium trim ring with grille insert provision, and protective PVC textured magnet cover.

Key Specifications

• Subwoofer size: 10 inch
• Voice coil configuration: Dual Voice Coil (DVC)
• Impedance: 2-Ohm per coil (1-Ohm parallel / 4-Ohm series / 2-Ohm biamp)
• Power handling (RMS): 300W (confirmed)
• Peak power: Not specified — confirm with Rockford Fosgate
• Surround technique: VAST (up to 25% increased cone area)
• Sensitivity: Not specified — confirm with Rockford Fosgate
• Frequency response: Not specified — confirm with Rockford Fosgate
• Xmax: Not specified — confirm with Rockford Fosgate
• Voice coil: High-temp, Nomex® reinforcement collar
• Cone: Kevlar fibre-reinforced paper
• Spider: Dual linear with embedded 16 AWG tinsel leads

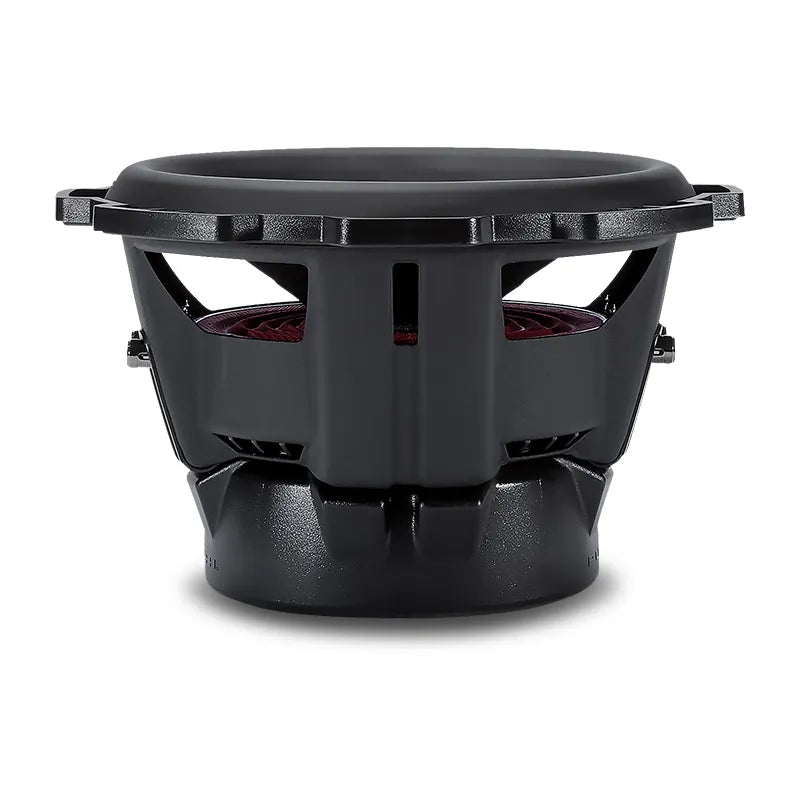

• Basket: StampCast with integrated spider venting
• Pole piece: Extended

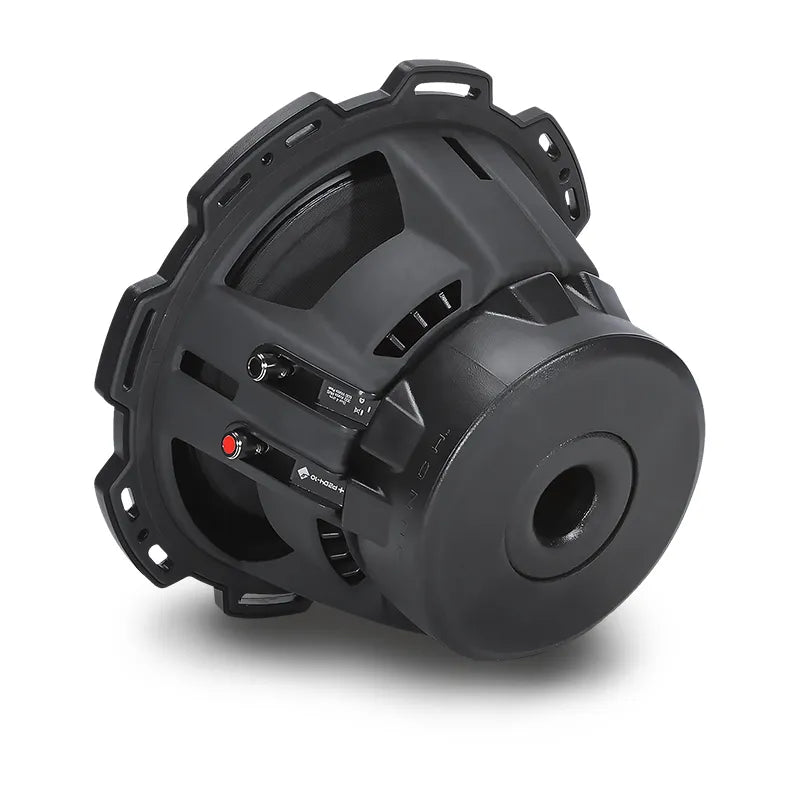

• Backplate: Bumped and vented

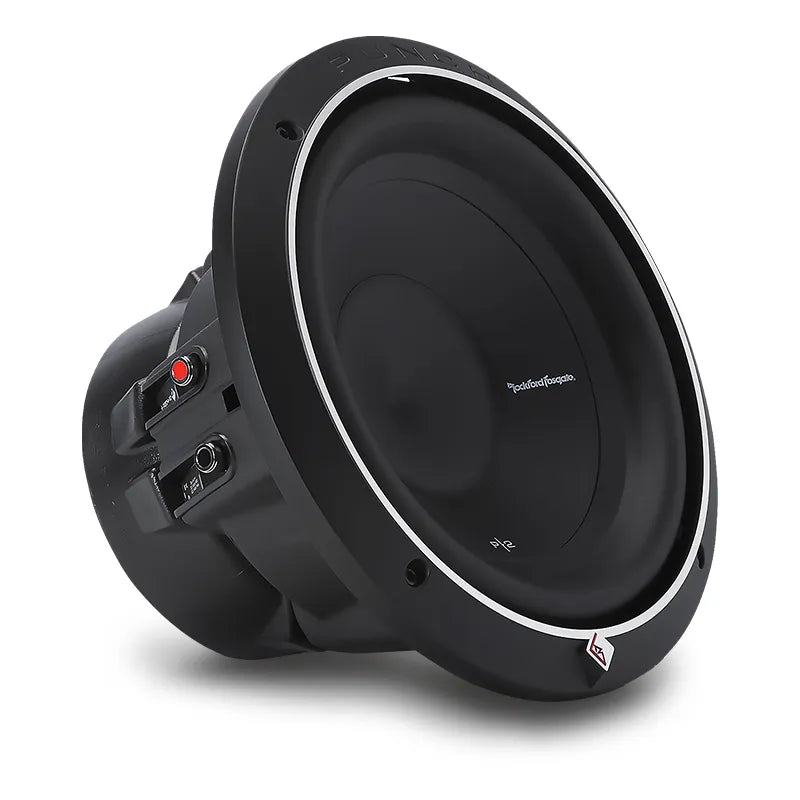

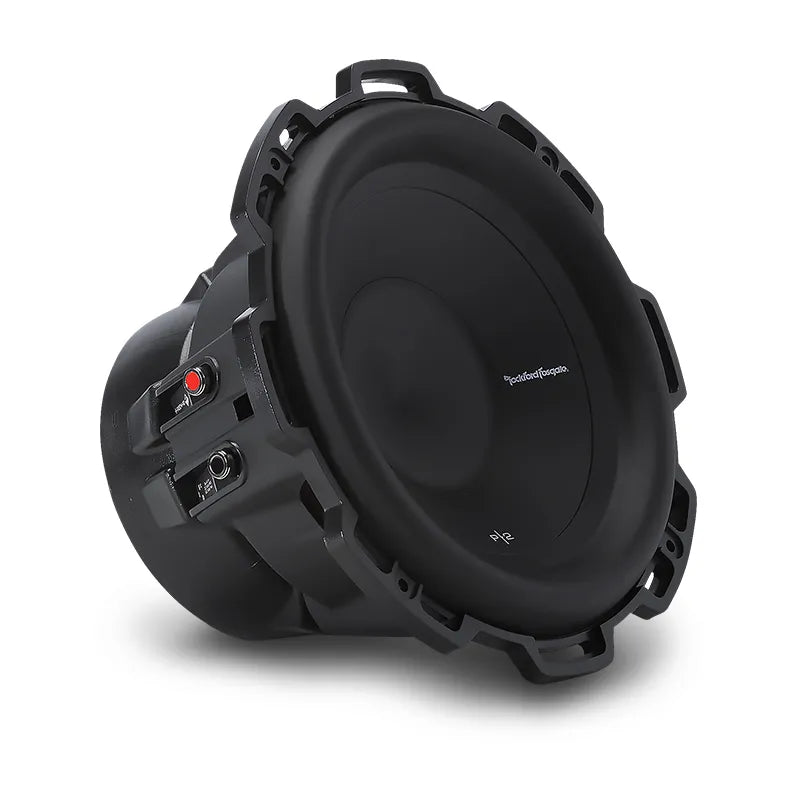

• Input terminals: 10-AWG nickel-plated push terminals

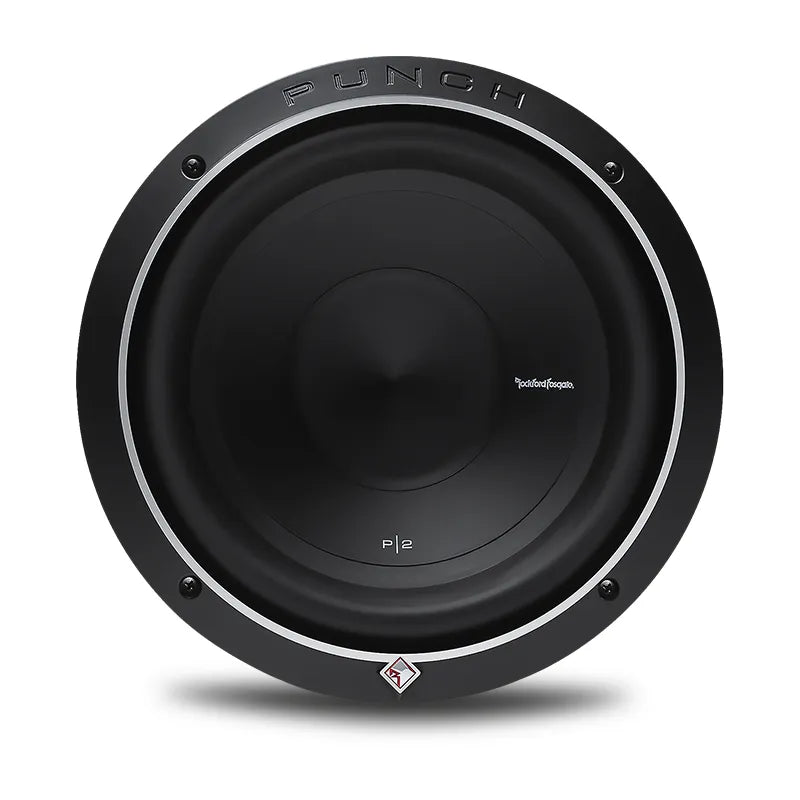

• Trim ring: Diamond-cut cast aluminium (grille insert compatible)
• Magnet cover: Protective PVC textured
• Enclosure compatibility: Sealed and vented ✓
• Mounting depth: Not specified — confirm with Rockford Fosgate
• Cutout diameter: Not specified — confirm with Rockford Fosgate
• Sold as: Individual unit
• Weight: Not specified — confirm with Rockford Fosgate
• Warranty: Not specified — confirm with Rockford Fosgate

Features & Benefits

• 300W RMS Power Handling — 300W RMS confirmed — a 50W step up from the P2 8" models and from all R-series and P1-series subwoofers in this catalogue. Provides substantial headroom for high-output sealed or vented 10" installations.
• 10" Cone — The 10" format moves more air than the P2D2-8, producing greater bass output and lower frequency extension in equivalent enclosures.
• 2-Ohm DVC — Three Wiring Configurations:
  • 1-Ohm (parallel): Both coils in parallel — confirm amplifier stable at 1-Ohm before use
  • 4-Ohm (series): Both coils in series — broad amplifier compatibility
  • 2-Ohm per coil (biamp): Each coil to a separate amplifier channel
• Diamond-Cut Cast Aluminium Trim Ring — Premium machined aluminium finish with diamond-cut pattern — rigid, corrosion-resistant, and visually distinctive.
• Dual Linear Spider — Improved suspension compliance and cone control at high excursion versus a single spider design.
• Kevlar Fibre-Reinforced Paper Cone — Kevlar reinforcement for improved stiffness and breakup resistance, paper's natural damping retained.
• VAST — Up to 25% increased effective cone area.
• Nomex® Voice Coil Collar — Thermal and mechanical reinforcement at the voice coil junction.
• Extended Pole Piece and Bumped Vented Backplate — Increased Xmax; air spring prevention at high excursion.
• 10-AWG Nickel-Plated Push Terminals — Heavier gauge for 300W operation.
• StampCast Basket with Integrated Spider Venting — Motor cooling during sustained use.

Technical Specs

Compatible With / Goes Well With

Suitable enclosure types:

• Sealed — tight, accurate bass
• Vented — higher efficiency output

Wiring:

• 1-Ohm → parallel (confirm amplifier stability)
• 4-Ohm → series
• 2-Ohm per coil → biamp

Pairs well with:

• Rockford Fosgate T1000-1BDCP, T1500-1BDCP, or T2500-1BDCP mono amplifiers — confirm RMS output at selected impedance is matched to 300W

Frequently Asked Questions

What is the power handling of the P2D2-10?

300W RMS — confirmed in the product description. This is 50W higher than the P2 8" models (250W RMS) and all P1 and R-series subwoofers in this catalogue.

What are the wiring options for the 2-Ohm DVC?

1-Ohm (parallel — requires amplifier rated stable at 1-Ohm), 4-Ohm (series — broadly compatible), and 2-Ohm per coil for bi-amplification.

What enclosure volume is recommended?

Not confirmed in the supplier data. Pull the official Rockford Fosgate P2D2-10 datasheet for sealed and vented volume recommendations.

Is a grille available?

The diamond-cut cast aluminium trim ring accommodates an optional grille insert. Confirm the compatible grille SKU with Rockford Fosgate.

What amplifier should I use with the P2D2-10?

A mono amplifier rated at 300W RMS at the selected wiring impedance (1-Ohm parallel, 4-Ohm series, or 2-Ohm per coil). Confirm the amplifier's stable impedance rating and RMS output at the intended load before purchasing.
