Rockford Fosgate P1-1X12 Punch Single P1 12" Loaded Enclosure

Rockford Fosgate P1-1X12 Punch Single P1 12" Vented Loaded Enclosure The Simplest Way to Add Real Bass

Product Overview

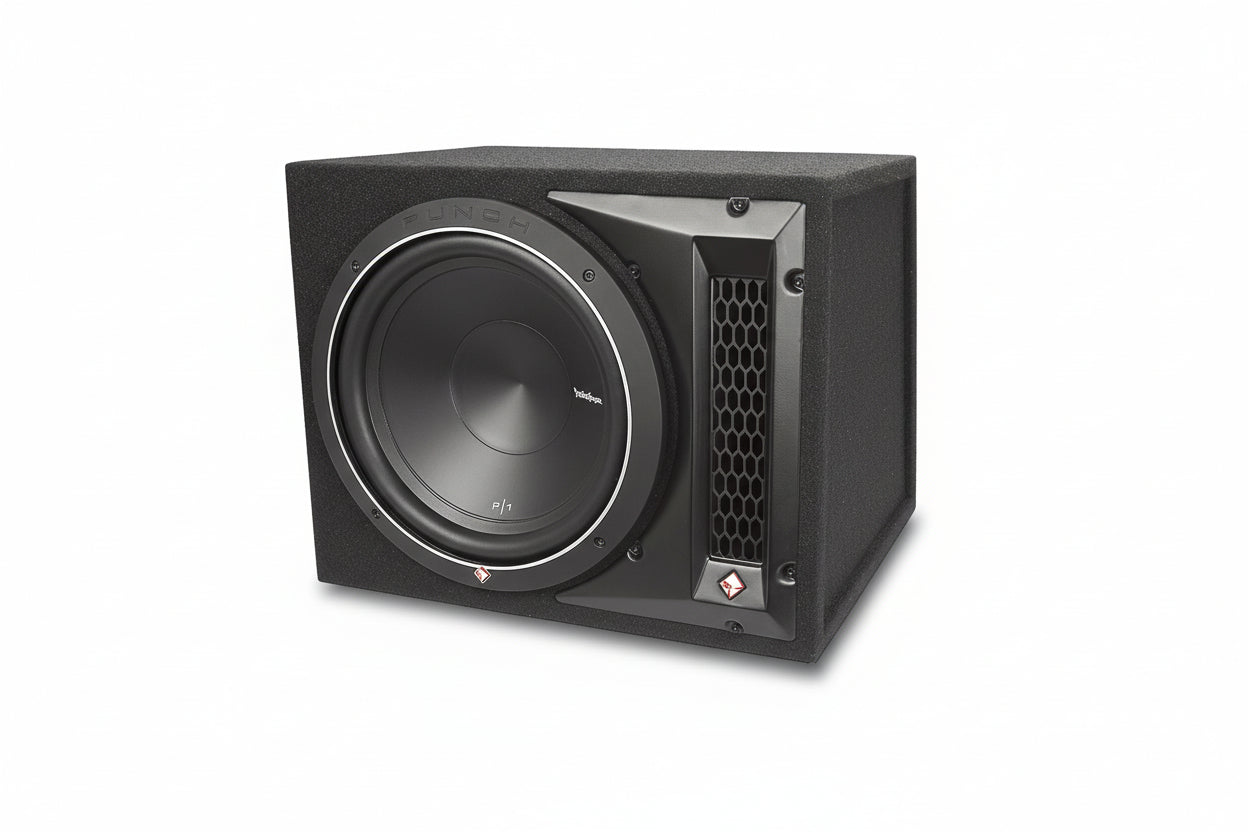

The Rockford Fosgate P1-1X12 is a single 12" vented loaded enclosure housing a genuine Punch P1 subwoofer, rated at 250 Watts RMS and 500 Watts peak, internally pre-wired to a 4-ohm load. The most accessible entry point in the Punch single 12" loaded enclosure range, it is designed for Australian vehicle owners who want a straightforward, no-fuss bass upgrade without the complexity of sourcing a separate driver, enclosure, and amplifier configuration.

Pre-wired to 4 ohms, the P1-1X12 is the most amplifier-friendly enclosure in the Punch loaded range virtually any mono or stereo amplifier with a 4-ohm stable channel will drive it directly without impedance concerns. The same genuine Punch P1 woofer available separately is factory-loaded here in a vented enclosure tuned via computer-aided design software, with a proprietary high-flow, low-noise port, 5/8" MDF construction, high-density carpet finish, and high-current compression binding posts ready to install straight out of the box in any vehicle with available boot space.

Key Specifications

• Subwoofer: Single 12" Rockford Fosgate Punch P1
• Power handling: 250W RMS / 500W peak
• Pre-wired impedance: 4 ohm (internally wired)
• Enclosure type: Vented
• Construction: 5/8" MDF
• Finish: High-density carpet
• Port: Proprietary high-flow, low-noise
• Input terminals: High-current compression binding posts
• Enclosure design: Computer-aided design tuned
• Dimensions: Confirm with supplier
• Shipping weight: Confirm with supplier

Features & Benefits

• Single 12" Punch P1 driver: The same genuine Punch P1 woofer available as a standalone driver, factory-loaded and tuned in a single vented enclosure. P1 tonal performance consistent with the broader Punch loaded range, straight out of the box without custom enclosure building.
• 250W RMS / 500W peak power handling: Accessible power requirements make the P1-1X12 compatible with a wide range of mono and stereo amplifiers. An ideal starting point for a first bass upgrade in an Australian vehicle running a factory or entry-level aftermarket head unit.
• Pre-wired to 4 ohms most amplifier-friendly option in the Punch loaded range: Unlike the P1-2X10 and P1-2X12 (pre-wired to 2 ohms) and the P2 and P3 loaded enclosures (pre-wired to 1 ohm), the P1-1X12 presents a standard 4-ohm load. Compatible with virtually any mono amplifier and many stereo amplifiers the lowest barrier to entry for pairing with existing equipment.
• Vented enclosure for impactful bass output: The vented design produces higher output at the tuning frequency than a sealed enclosure, delivering the loud, impactful bass response preferred for single 12" high-output systems in vehicle boot spaces.
• Proprietary high-flow, low-noise port: Purpose-engineered to minimise air turbulence and port chuffing at high excursion levels. Consistent with the port quality standard across the entire Punch loaded enclosure range, ensuring clean bass output at sustained volumes.
• Computer-aided design tuning: Enclosure volume and port dimensions are calculated specifically for the P1 12" driver, ensuring the vented alignment is optimised for the intended tuning frequency rather than approximated.
• Lightest and most portable of the Punch single 12" vented loaded enclosures: The P1 loaded range is specifically noted by Rockford Fosgate for lighter weight and easier handling compared to P2 and P3 equivalents making the P1-1X12 the most practical choice for owners who frequently move or transfer their subwoofer between vehicles.
• Natural upgrade path: The P1-1X12 uses the same Punch loaded enclosure construction and port standards as the P2-1X12 and P3-1X12. When more power handling is required, stepping up to a P2 or P3 single 12" loaded enclosure requires only an amplifier upgrade and enclosure swap no install redesign.
• 5/8" MDF construction: Rigid enclosure walls minimise panel flex and resonance at sustained 250W RMS input levels.
• High-density carpet finish: Durable, professional appearance suited to daily boot and cargo area use in Australian vehicles.
• High-current compression binding posts: Secure, reliable connections appropriate for the current demands of a 250W RMS, 4-ohm system.

Technical Specs

Compatible With

• Mono amplifiers stable at 4 ohms, rated at or near 250W RMS at 4 ohms
• Stereo amplifiers with a 4-ohm stable channel bridged to mono
• Rockford Fosgate Punch and Prime series mono amplifiers
• Entry-level and mid-range aftermarket head units with preamp outputs
• Factory system integrations via line output converter and 4-ohm stable amplifier
• Sedans, hatchbacks, SUVs, and utes with boot or cargo area space available
• Rockford Fosgate wiring kits for 4-ohm mono amplifier installation
• Rockford Fosgate RCA cables and signal accessories

Frequently Asked Questions

What amplifier does the P1-1X12 require? The P1-1X12 is pre-wired to 4 ohms and handles 250W RMS. Any mono amplifier stable at 4 ohms and rated at or near 250W RMS at 4 ohms is suitable or a stereo amplifier bridged to mono into 4 ohms. The 4-ohm load makes it the most amplifier-compatible option in the Punch loaded enclosure range.

How does the P1-1X12 compare to the P1-2X12 and P1-2X10? The P1-1X12 uses a single 12" P1 driver pre-wired to 4 ohms with 250W RMS power handling. The P1-2X12 and P1-2X10 use dual drivers pre-wired to 2 ohms with 500W RMS combined. Choose the P1-1X12 for a simpler, lighter single-driver setup compatible with a wider range of amplifiers, or step up to the dual driver models when more output is needed.

Why is the P1-1X12 pre-wired to 4 ohms? The P1-1X12 houses a single P1 driver a single voice coil 4-ohm woofer presenting a straightforward 4-ohm load with no parallel wiring required. This makes it compatible with virtually any mono or bridged stereo amplifier, lowering the barrier to entry compared to the 2-ohm and 1-ohm pre-wired enclosures elsewhere in the Punch loaded range.

Are the drivers in the P1-1X12 the same as the standalone P1 subwoofers? Yes. The P1-1X12 is loaded with a genuine Rockford Fosgate Punch P1 12" driver the same woofer available separately in the Punch P1 range factory-loaded and tuned in a computer-optimised vented enclosure.

Is the P1-1X12 a good starting point for a first subwoofer system in an Australian vehicle? Yes. The 4-ohm pre-wiring, 250W RMS power handling, and plug-and-play loaded enclosure format make the P1-1X12 one of the most accessible entry points in the Punch range. It pairs with a broad range of amplifiers, requires minimal installation complexity, and provides a natural upgrade path to P2 or P3 loaded enclosures when more output is desired later.
