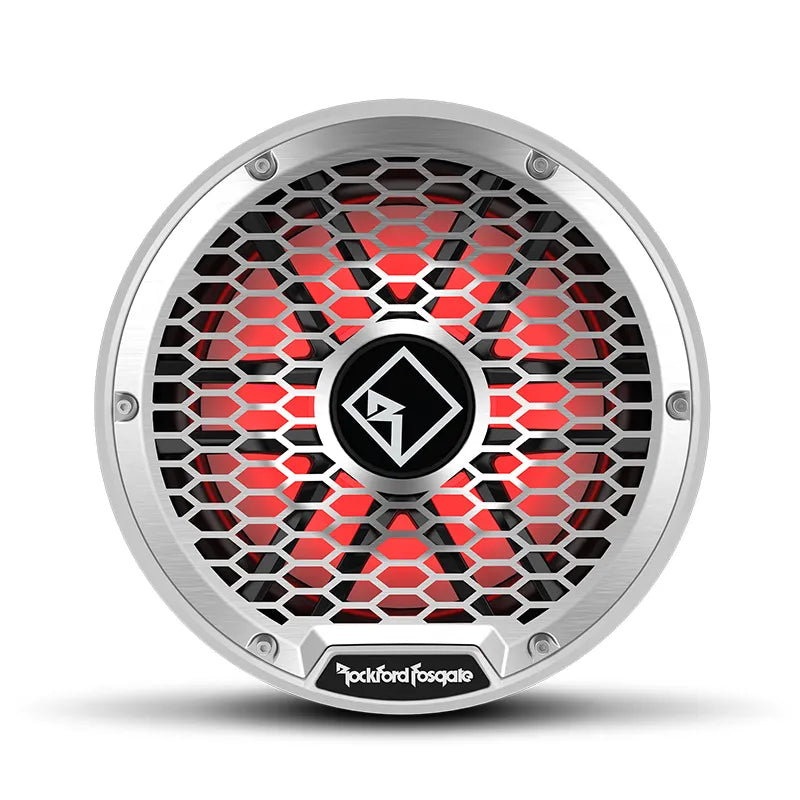

Rockford Fosgate M2D4-12I M2 12" 1600W DVC 4Ω Infinite Baffle Marine Subwoofer

Rockford Fosgate M2D4-12I M2 Series 12 Inch DVC 4-Ohm Color Optix Infinite Baffle Marine Subwoofer

A marine grade 12 inch dual voice coil 4-ohm infinite baffle subwoofer with Color Optix RGB LED lighting, VersaSwitch impedance selection, and integrated Deutsch/Amphenol plug-and-play connectors. Optimised for infinite baffle installations where an enclosure is not required. IPX6 rated and ASTM B117 and G154 tested. Sold individually (1 each). Backed by a 2 year warranty.

Product Overview

The Rockford Fosgate M2D4-12I is an M2 series 12 inch dual voice coil (DVC) 4-ohm marine subwoofer with Color Optix RGB illumination, purpose-built for infinite baffle marine installations where a dedicated subwoofer enclosure is not available or practical. It is optimised for infinite baffle (free air) applications - a mounting baffle is required to isolate front and rear wavelengths and prevent cancellation.

The M2D4-12I features Rockford Fosgate's VersaSwitch, which allows the impedance to be changed between 2-ohm (parallel) and 8-ohm (series) configurations simply by flipping a switch, without any additional wiring. Integrated Deutsch/Amphenol connectors are moulded directly into the basket frame - the first of their kind in the industry - providing error-proof plug-and-play connectivity for both the speaker signal and Color Optix RGB lighting through a single connection point. Conventional spade terminals are also included as an alternative wiring option.

Color Optix RGB LED lighting is controllable via the PMX-RGB controller and RF Connect app (available on iOS and Android, sold separately). A 2-piece interchangeable grille accepts both the included stainless steel and sport grille inserts. The subwoofer is constructed from 100% UV stable ASA plastic and is tested to ASTM B117 (500-hour salt/fog), ASTM G154 (500-hour accelerated UV), and ISO60068-2-64 vibration standards. Klippel Verified certification and VAST surround technology are applied throughout the M2 series. Sold individually - one subwoofer per purchase.

Features & Benefits

VersaSwitch - Switchable Impedance Without Rewiring: The VersaSwitch allows the dual voice coil configuration to be switched between parallel (2-ohm) and series (8-ohm) with a single switch, without any additional wiring or soldering. This makes it straightforward to match the M2D4-12I to a wide range of amplifiers without being locked into a fixed impedance at purchase.

Color Optix RGB LED Lighting - App Controlled: The Color Optix system delivers bright, wide-angle RGB illumination controllable via the PMX-RGB controller and RF Connect app on iOS and Android. Colour, effects, and intensity can be customised to suit any vessel style. The PMX-RGB controller is sold separately.

Industry-First Moulded In-Frame Deutsch/Amphenol Connectors: Integrated Deutsch and Amphenol connectors are moulded directly into the basket frame, combining speaker signal and RGB lighting into a single error-proof plug-and-play connection. Conventional spade terminals are also included for standard wiring installations. Deutsch DT connectors incorporate front and rear silicone seals for environmental protection.

Optimised for Infinite Baffle - No Enclosure Required: The M2D4-12I is engineered specifically for infinite baffle (free air) installations, making it well suited to hull-mounted applications in marine watercraft where enclosure space is unavailable. A mounting baffle is required to isolate the front and rear wavelengths and prevent acoustic cancellation.

VAST Surround Technology - Up to 25% More Cone Area: Rockford Fosgate's Vertical Attach Surround Technique attaches the surround vertically to the cone, increasing the effective radiating cone area by up to 25% for more bass output from the same physical driver size.

ASTM and ISO Tested - Purpose-Built for Marine Environments: The M2D4-12I is tested to ASTM B117 (500-hour salt/fog), ASTM G154 (500-hour accelerated UV), and ISO60068-2-64 vibration standards, confirming long-term durability in both freshwater and saltwater marine environments. IPX6 water intrusion rating confirms protection against powerful jets of water from any direction.

Interchangeable 2-Piece Grille System: The 2-piece grille design accepts both the included stainless steel and sport grille inserts, with additional grille options available separately to match the style of any vessel.

Technical Specs

Compatible With / Goes Well With

The M2D4-12I is suited to marine watercraft, pontoon boats, ski boats, and any vessel where infinite baffle subwoofer mounting is preferred or required. A mounting baffle must be used to separate the front and rear acoustic wavelengths. The VersaSwitch allows the subwoofer to be matched to amplifiers rated at 2-ohm or 8-ohm without rewiring.

Goes Well With:

• PMX-RGB - Rockford Fosgate Color Optix RGB controller required to access full Color Optix lighting control and RF Connect app integration
• M5-1000X1 - Rockford Fosgate M5 series 1000W marine monoblock amplifier, compatible with the M2D4-12I at both 2-ohm and 8-ohm VersaSwitch configurations
• M5-1500X5 - M5 series 1500W 5-channel marine amplifier for full system builds pairing the M2D4-12I subwoofer with marine full-range speakers
• M5-800X4 - M5 series 800W 4-channel marine amplifier for builds using the M2D4-12I bridged on two channels
• M2D4-12IB - Black version of this subwoofer for colour-matched installations
• M2D2-10I / M2D4-10I - M2 series 10 inch DVC infinite baffle subwoofers for builds where a smaller footprint is required

Frequently Asked Questions

What does the VersaSwitch do and which impedance setting should I use?

The VersaSwitch allows the dual voice coil configuration to be switched between parallel (2-ohm) and series (8-ohm) by flipping a single switch, without any rewiring. Use the 2-ohm parallel setting when pairing with an amplifier that delivers its rated power at 2-ohm. Use the 8-ohm series setting when your amplifier is better suited to a higher impedance load. Contact us if you need help selecting the correct setting for your amplifier.

What is an infinite baffle installation and is an enclosure required?

An infinite baffle (or free air) installation mounts the subwoofer directly into a panel, hull, or partition rather than in a sealed or ported enclosure box. No dedicated enclosure is required, making this installation method ideal for vessels with limited below-deck space. A mounting baffle is required to physically separate the front and rear of the subwoofer cone to prevent the front and rear acoustic waves from cancelling each other out.

Does the Color Optix lighting require a separate controller?

Yes. Color Optix RGB lighting requires the PMX-RGB controller and the RF Connect app (available on iOS and Android) to access full colour control, lighting effects, and brightness adjustment. The PMX-RGB controller is sold separately and is not included. The subwoofer can also be used without the controller at a fixed default colour setting straight out of the box.

Is the M2D4-12I sold as a single unit or as a pair?

The M2D4-12I is sold individually - one subwoofer per purchase. If your installation requires two subwoofers, two units will need to be added to the order.

What is the difference between the M2D4-12I and the standard M212S4?

The M2D4-12I is the Color Optix illuminated DVC version with VersaSwitch impedance selection, integrated Deutsch/Amphenol plug-and-play connectors, and interchangeable grille system - all features not present on the standard M212S4. Both are optimised for infinite baffle installations. The M212S4 is a single voice coil fixed 4-ohm subwoofer without lighting and uses conventional spade terminals only. Choose the M2D4-12I for Color Optix lighting, VersaSwitch flexibility, and True Marine Ecosystem connectivity; choose the M212S4 for a straightforward non-illuminated installation.
