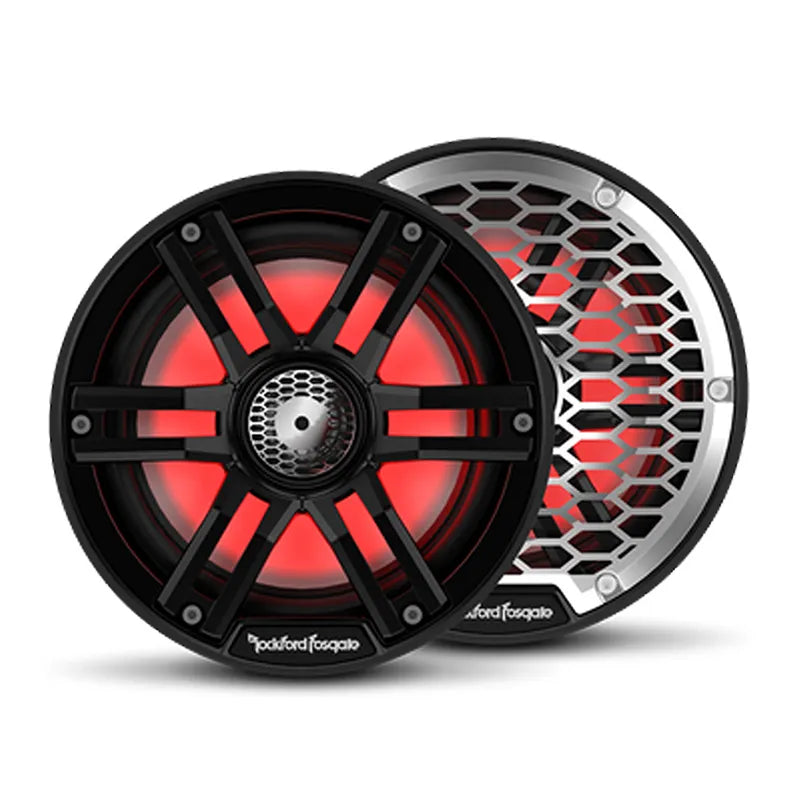

Rockford Fosgate M2-65B M2 Series 6.5 Inch 2-Way Color Optix Marine Speakers in Black - Pair

Quick answer

The Rockford Fosgate M2-65B is a pair of M2 Series 6.5 inch two way marine coaxial speakers in black, with RGB LED lighting built in.

Rockford rates each speaker at 150 watts RMS into 4 ohms, with Deutsch and Amphenol style connectors on the back.

Problems it solves

• Speakers that fade and crack in the sun. Rockford treats the poly cone against UV and gives it a TPE edge.
• A boat that looks flat at night. The RGB lights run from the PMX-RGB controller or the RF Connect app.
• Water getting into the motor. The vented motor carries a nano coated mesh screen to keep water out.

Specifications

• Size: 6.5 inch, two way coaxial
• Impedance: 4 ohm
• RMS power handling: 150W
• Peak power handling: 600W
• Sensitivity: 91.8dB at 1W, 92dB at 2.83V
• Frequency response: 40Hz to 24kHz
• Tweeter: 1 inch
• Crossover: 12dB per octave high pass
• Mounting depth: 2.49 inch (63mm)
• Cut out diameter: 5.36 inch (136mm)
• Screw circle: 6.12 inch (155.5mm)
• Overall diameter: 7.05 inch (179mm)
• LED supply: 9 to 16V, 0.25A, 1A fuse
• Shipping weight: 1.23kg

Fitment and compatibility

Any boat panel, tower pod or enclosure with a 136mm cut out and at least 63mm of depth behind it. Sold as a pair.

What is in the box

Per the Rockford manual: one pair of speakers, a pair of removable sport grilles, a pair of stainless grille inserts, 13 stainless socket head screws, 2 driver bits and 2 RGB harnesses.

Install notes

Wire the speakers with the spade connectors supplied, or a Deutsch/Amphenol plug bought separately. Never run the RGB lights straight to 12V; use the PMX-RGB or a fused toggle switch.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ about the M2-65B

How deep a hole does the M2-65B need to fit?

A 136mm hole, with 63mm clear behind the panel.

Can the M2-65B lights be wired without the PMX-RGB controller?

Yes, through a toggle switch on a fused 12V supply. Rockford warns never to wire them straight to 12V. The RGB lights run from the PMX-RGB controller or the RF Connect app.

Can I swap the M2-65B sport grilles for stainless ones?

Yes. Both are in the box: removable sport grilles and stainless steel inserts. Per the Rockford manual: one pair of speakers, a pair of removable sport grilles, a pair of stainless grille inserts, 13 stainless socket head screws, 2 driver bits and 2 RGB harnesses.
