Rockford Fosgate M1D4-10 M1 10" DVC 4 Ohm RGB Marine Subwoofer White

SKU: M1D410
Price
$455
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

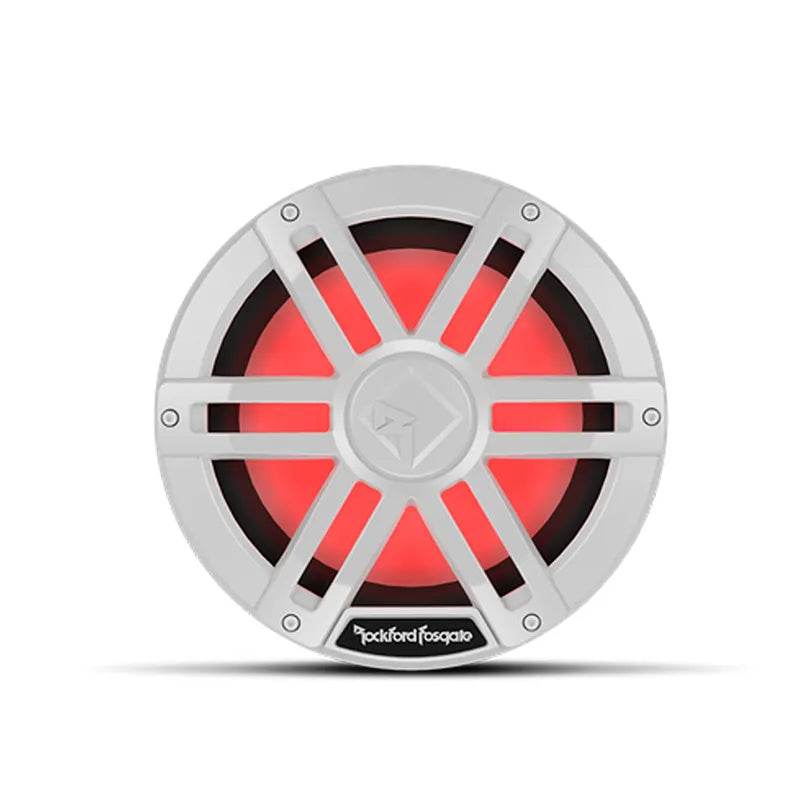

White Rockford Fosgate M1 10 inch marine subwoofer with a white grille and red LED ring lit

Rockford Fosgate M1D4-10 M1 10" DVC 4 Ohm RGB Marine Subwoofer White

Price
$455

Product features

A white hull or tower setup looks wrong with a black sub in the panel. The Rockford Fosgate M1D4-10 is the white 10 inch M1 marine sub with dual 4 ohm coils and built in RGB lighting.

Power handling is 300W RMS and 1,200W peak, and it comes as one sub.

Problems it solves

  • Amp wants 2 ohm but you have one sub. Flick the VersaSwitch to present 2 ohm or 8 ohm with no extra jumpers.
  • Sun fades and cracks the cone area. Rockford puts the M1 range through 500 hours of accelerated UV testing (ASTM G154) and salt fog testing (ASTM B117).
  • No room for a deep box on the boat. It runs in a sealed box of 31.15 litres or a vented box of 41.06 litres, or in free air panels.

M1D4-10 specifications

  • Voice coil: dual 4 ohm, switchable to 2 or 8 ohm
  • Power handling: 300W RMS, 1,200W peak
  • Frequency response: 20Hz to 750Hz
  • Sensitivity: 91.5dB (1W/1m)
  • Fs: 37Hz
  • Qts: 0.47
  • Xmax: 7.0mm
  • Sealed box: 31.15 litres
  • Vented box: 41.06 litres
  • Cut out: 226mm
  • Mounting depth: 107.4mm
  • Shipping weight: 3.9kg

Fitment and compatibility

Universal marine 10 inch. Measure for a 226mm hole and at least 107.4mm behind the panel.

What is in the box

Sold individually. The RGB lighting is run by the PMX-RGB controller and the RF Connect app, both sold separately.

Install notes

Set VersaSwitch to 2 ohm for a single sub on a mono amp that is stable there, or 8 ohm when paralleling several subs.

Plug the lighting lead into the PMX-RGB controller, then pair with the RF Connect app to set colours.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

M1D4-10 FAQs

What impedance can the M1D4-10 be set to?

2 ohm or 8 ohm, using the VersaSwitch on the basket.

What size enclosure suits this white M1 sub?

Rockford gives 31.15 litres sealed or 41.06 litres vented.

Can I change the lighting colour?

Yes, with the PMX-RGB controller and RF Connect app, which are separate purchases.

How much depth do I need behind the panel?

107.4mm, with a 226mm cut out.
