Rockford Fosgate HD9813SG-STG3 Stage 3 Speaker and Amplifier Kit for 1998-2013 Harley-Davidson Street Glide and Electra Glide
Rockford Fosgate HD9813SG-STG3 Stage 3 Speaker and Amplifier Kit for 1998-2013 Harley-Davidson Street Glide and Electra Glide
Rockford Fosgate HD9813SG-STG3 Stage 3 Speaker and Amplifier Kit for 1998-2013 Harley-Davidson Street Glide and Electra Glide
Click to open expanded view
ROCKFORD FOSGATE logo

Out of stock

Rockford Fosgate HD9813SG-STG3 Stage 3 Speaker and Amplifier Kit for 1998-2013 Harley-Davidson Street Glide and Electra Glide

SKU: HD9813SGSTAGE3
Regular price
$5,249
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Rockford Fosgate HD9813SG-STG3 Stage 3 Speaker and Amplifier Kit for 1998-2013 Harley-Davidson Street Glide and Electra Glide

The ultimate M5 Series Stage 3 audio upgrade for 1998-2013 Harley-Davidson Street Glide and Electra Glide models, delivering 4-speaker, 800W coverage across both fairing and saddlebag positions. Includes 2 x TMS6SG 6.5 inch fairing speakers, 1 x TMS69BL9813 6x9 inch saddlebag retrofit speaker kit, an M5-800X4 800W 4-channel IPX6 amplifier, and the RFK-HD9813M5 amp installation kit. No drilling or cutting required. Backed by a 2 year warranty.

Product Overview

The Rockford Fosgate HD9813SG-STG3 is the top-of-range Stage 3 speaker and amplifier kit for 1998-2013 Harley-Davidson Street Glide (FLHX, 2006-2013) and Electra Glide Standard (FLHTI, 1998-2013) with Bat Wing fairing. The kit expands on the Stage 2 system by adding a TMS69BL9813 6x9 inch Element Ready saddlebag retrofit speaker kit for factory H-D hard shell bags (non-fibreglass only), providing full front and rear speaker coverage alongside the TMS6SG 6.5 inch fairing speakers.

The M5-800X4 delivers 800W from a 4-channel IPX6 Element Ready amplifier, and the RFK-HD9813M5 amp installation kit provides all required hardware for fitting the amplifier to 1998-2013 Harley-Davidson models. All speakers are custom tuned to overcome wind, road, and exhaust noise at highway speed. Y-adaptors are included for further expansion to lower fairing, saddlebag, or Tour-Pak positions.

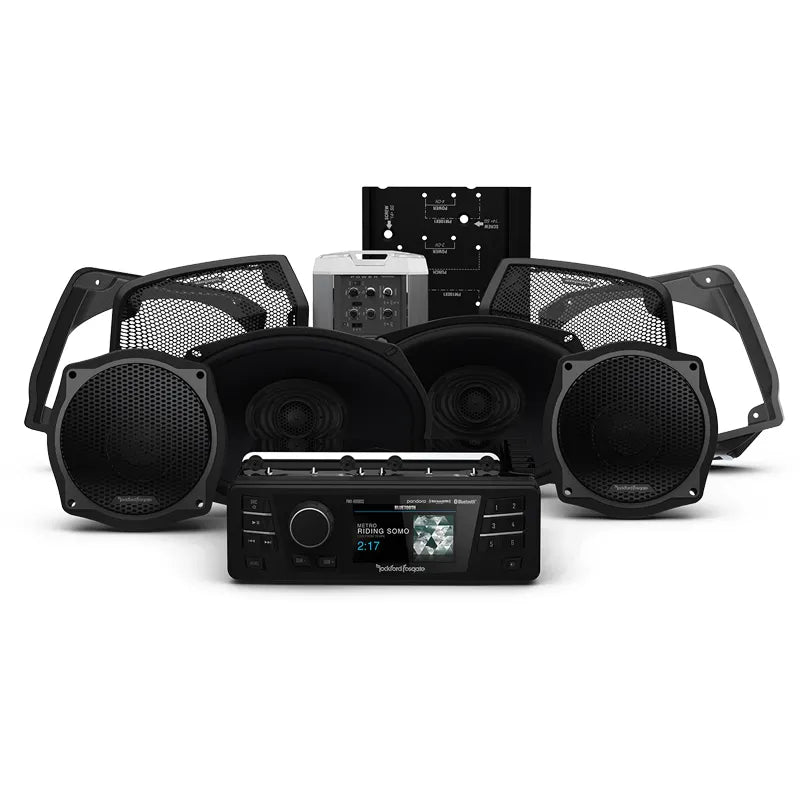

A multimedia source unit can be added to upgrade this system to the PMX-STG3 configuration (sold separately).

Important compatibility notes:

  • Saddlebag speaker kit is compatible with ABS plastic lids only - not compatible with fibreglass lids
  • Saddlebag kit is not compatible with H-D Power Lock Kit
  • CVO and Screaming Eagle models are not plug-and-play and will require modification
  • Tour-Pak speakers are not 100% plug-and-play compatible - contact us for a workaround before purchasing
  • If used with the PMX-HD9813 source unit, not compatible with factory amplified systems, CB, intercom, rear volume controls, rear speakers on 1998-2005 Ultra models, or factory satellite radio systems

Features & Benefits

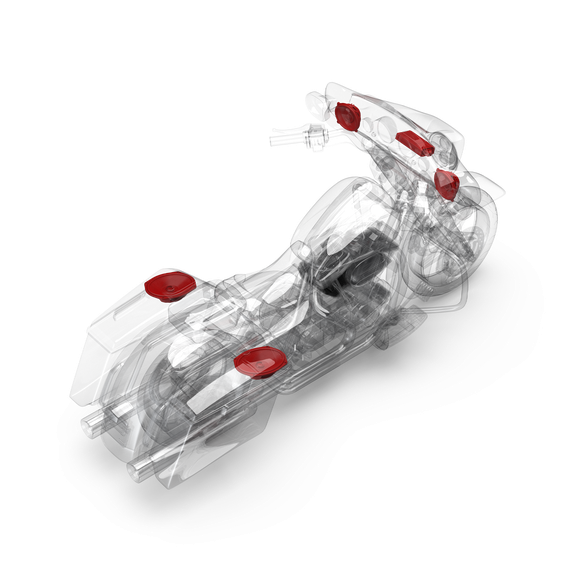

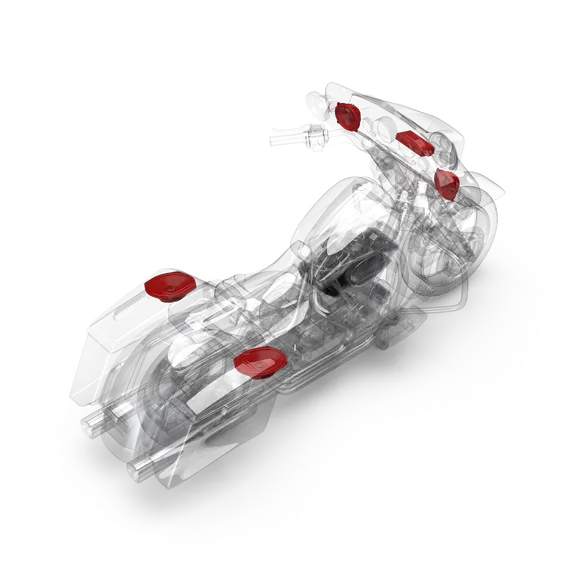

Full Fairing and Saddlebag Speaker Coverage: Stage 3 extends the Stage 2 fairing speaker system with the addition of the TMS69BL9813 6x9 inch Element Ready retrofit speakers for factory H-D hard shell saddlebags, providing complete front and rear on-bike audio coverage.

TMS6SG 6.5 Inch 2-Way Fairing Speakers - Highway Tuned: Custom tuned to overcome wind, road, and exhaust noise at highway speed, with phase-aligned 25mm tweeters and Street Glide grilles for a factory fit and finish appearance.

TMS69BL9813 6x9 Inch Saddlebag Retrofit Speaker Kit: Element Ready 6x9 inch speakers purpose-built for factory H-D hard shell saddlebags (ABS plastic lids only), providing a direct retrofit fit without cutting or drilling.

M5-800X4 800W 4-Channel IPX6 Amplifier: Delivers 800W total across 4 channels in an IPX6 Element Ready amplifier specifically designed for the motorcycle environment.

Plug-and-Play - No Drilling or Cutting Required: Bolts directly to factory attachment points using direct-connect wiring harnesses for compatible 1998-2013 Harley-Davidson models.

Element Ready for Motorcycle Environments: All components are tested for water, dust, UV, corrosion, vibration, and thermal shock resistance in the motorcycle environment.

Expandable with Optional Source Unit: The system can be upgraded to PMX-STG3 by adding the optional PMX-HD9813 multimedia source unit (sold separately).

Y-Adaptors for Further Expansion: Included Y-adaptors support further expansion to lower fairing, saddlebag, or Tour-Pak speaker positions.

Technical Specs

Specification Detail
SKU HD9813SG-STG3
Brand Rockford Fosgate
Type Stage 3 Speaker and Amplifier Kit
Compatible Models See compatibility table below
Kit Contents
Fairing Speakers 2x TMS6SG 6.5" 2-Way Element Ready (with Street Glide grilles)
Saddlebag Speakers 1x TMS69BL9813 6x9" Saddlebag Retrofit Kit (ABS plastic lids only)
Amplifier M5-800X4 800W 4-Channel IPX6 Element Ready
Amp Install Kit RFK-HD9813M5 (for 1998-2013 Harley-Davidson models)
Performance
Total Amplifier Power 800W
Amplifier Channels 4
Fairing Speaker Size 6.5 inch
Saddlebag Speaker Size 6x9 inch
Installation
Drilling Required No
Cutting Required No
Mounting Factory attachment points
Wiring Direct-connect harnesses for Harley-Davidson models
Saddlebag Lid Compatibility ABS plastic only - not compatible with fibreglass lids
H-D Power Lock Kit Not compatible
CVO / Screaming Eagle Not plug-and-play - modification required
Tour-Pak Not 100% plug-and-play - contact us before purchasing
Expansion Y-adaptors included
Environmental
Amplifier IP Rating IPX6
Element Ready Yes - water, dust, UV, vibration, thermal shock, corrosion
UV Testing ASTM D4329
Certifications Klippel Verified, RATS tested
Warranty 2 Years

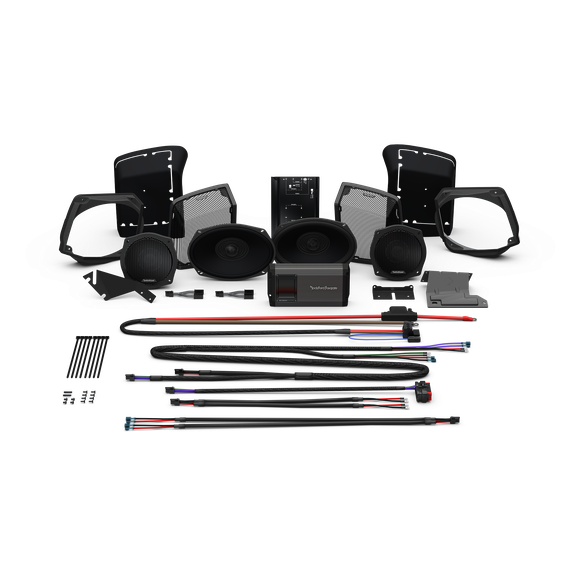

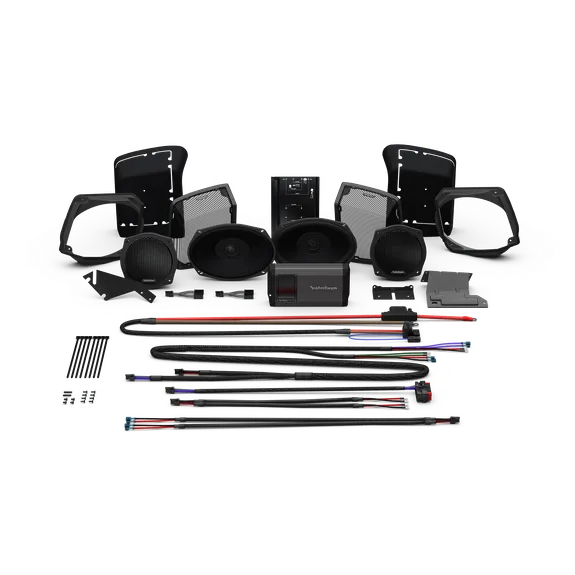

What's in the Box

  • 1x Pair TMS6SG 6.5" Fairing Speakers
  • 1x TMS69BL9813 6x9" Saddlebag Retrofit Speaker Kit
  • 1x M5-800X4 800W 4-Channel IPX6 Amplifier
  • 1x RFK-HD9813M5 Amp Installation Kit

Compatible With

Year Range Make Model Chassis Fairing
2006-2013 Harley-Davidson Street Glide FLHX Bat Wing
1998-2013 Harley-Davidson Electra Glide Standard FLHTI Bat Wing

Please read all compatibility notes before purchasing:

  • Saddlebag kit suits ABS plastic lids only - not compatible with fibreglass lids
  • Saddlebag kit not compatible with H-D Power Lock Kit
  • CVO and Screaming Eagle models are not plug-and-play and will require modification
  • Tour-Pak speakers are not 100% plug-and-play - please contact us before purchasing if Tour-Pak compatibility is required
  • If used with PMX-HD9813 source unit: not compatible with factory amplified systems, CB, intercom, rear volume controls, rear speakers on 1998-2005 Ultras, or factory satellite radio

Frequently Asked Questions

What is the difference between Stage 2 and Stage 3?

The Stage 2 kit (HD9813SG-STG2) covers fairing speakers only with the same 800W M5-800X4 amplifier. The Stage 3 kit adds the TMS69BL9813 6x9 inch saddlebag retrofit speaker kit for full fairing and saddlebag coverage. If you want sound from both the front fairing and the rear saddlebag positions, Stage 3 is the recommended upgrade.

Is the saddlebag speaker kit compatible with all H-D saddlebags?

No. The TMS69BL9813 saddlebag kit is compatible with factory H-D hard shell bags with ABS plastic lids only. It is not compatible with fibreglass lids or with the H-D Power Lock Kit. Please confirm your saddlebag lid material before purchasing.

Does this kit work on CVO or Screaming Eagle models?

The HD9813SG-STG3 is not plug-and-play for CVO and Screaming Eagle models and will require modification. Please contact us before purchasing if you have a CVO or Screaming Eagle model to confirm what is involved.

Are Tour-Pak speaker positions supported by this kit?

Tour-Pak speakers are not 100% plug-and-play compatible with this kit. Please contact us before purchasing if Tour-Pak speaker integration is required, as a workaround may be available.

Does the kit include a source unit?

No. The HD9813SG-STG3 is a speaker and amplifier kit only. The optional PMX-HD9813 multimedia source unit is sold separately and upgrades the system to the PMX-STG3 configuration. Note: when using the PMX-HD9813 source unit, it is not compatible with factory amplified systems, CB, intercom, rear volume controls, rear speakers on 1998-2005 Ultras, or factory satellite radio.
